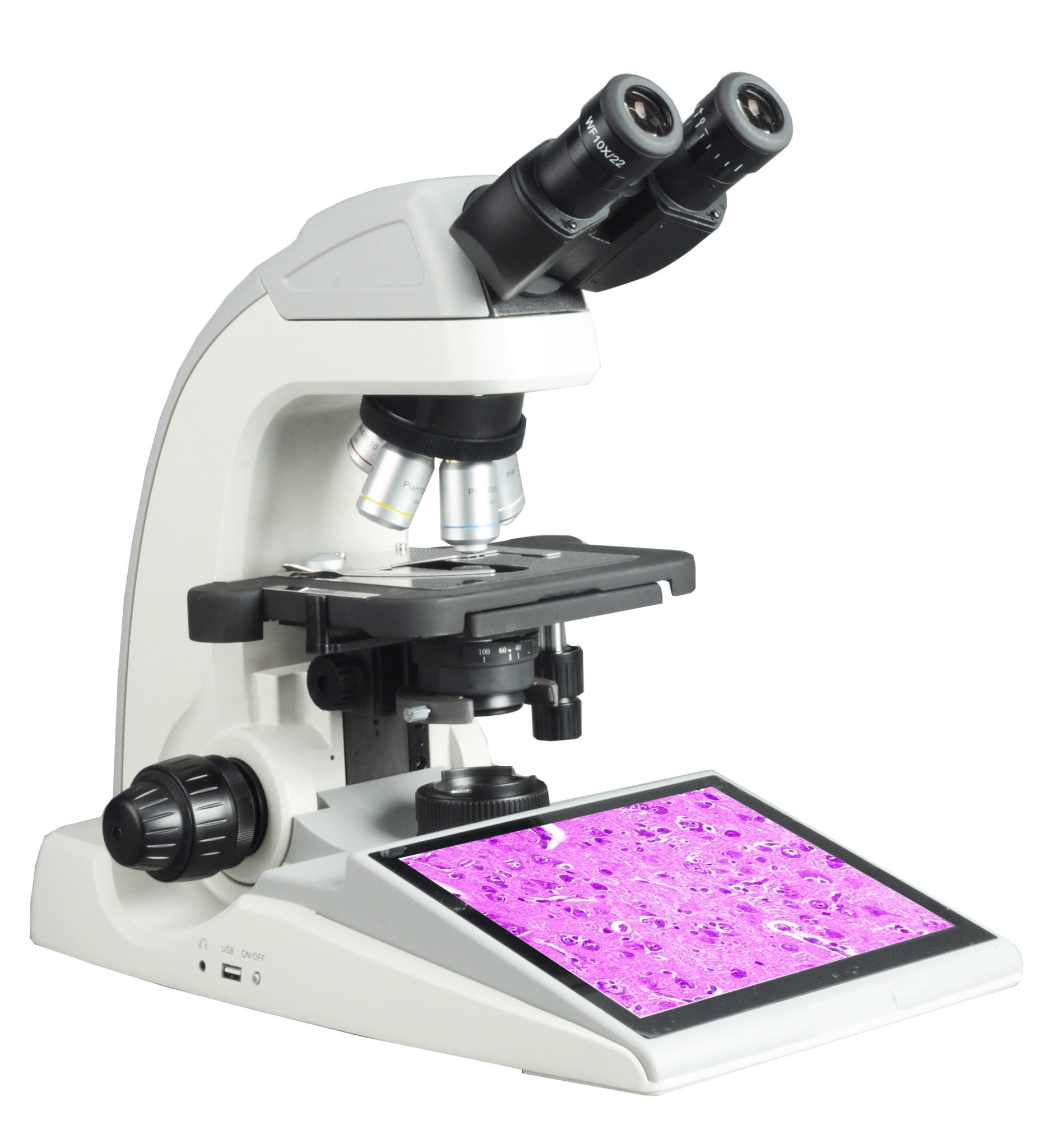

BUM340L-16MP Upright Biological/Clinical Microscope with 16MP Camera & 9.7″ Touch Screen
- Upright biological/clinical microscope
- Binocular or Trinocular viewing head
- Infinity Plan 4X, 10X, 40X(S), 100X(S,OIL)
- Total Magnifications 40x-1000x
- 9.7″ High Resolution Touch Screen LCD + built-in 16MP Camera
BUM270L Digital LCD Upright Biological Microscope
- Infinite Optical System 8.4 Inch TFT Touching screen
- 2.0 Mega Pixels CMOS Sensor W-LAN and LAN function
- Seidentopf Binocular Head, 30° inclined, 360° Rotatable, Interpupillary 48-75mm
- WF10×/ 20 Eyepiece
- Infinite Plan Achromatic Objective 4x, 10x, 40x, 100x
- Abbe Condenser NA1.25 with Aperture Diaphragm
- LED Illumination, Brightness Adjustable
BUM280L Digital LCD Upright Biological Microscope
- It is a new generation microscope which supports 100M Ethernet network, WI-FI wireless net and can communicate with remote PC
- LCD Screen: 8.4 Inch TFT Touching screen
- Wide Field Eyepiece EW10×/ 18
- Infinite Semi-Plan Achromatic Objective 4×, 10×, 40×, 100×
- Windows CE 5.0 System, NMS (microscope software) & NMS Client (computer software)

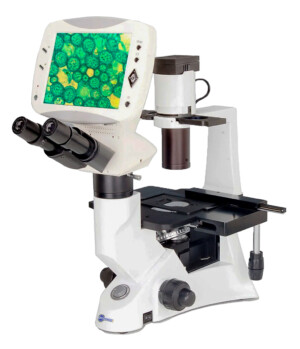

BIM500L Digital LCD Inverted Biological Microscope
- 9 Inches HD LCD Screen, Resolution is 1280×800
- Pixel: 5 Mega Pixel
- Compensation Free Binocular Head, Inclined at 30°, Interpupillary Distance 48-75mm
- High-point, Extra Wide Field Eyepiece EW10×/ 22
- LWD Infinite Plan Objective 4×/ 0.1,WD 18mm, 40×/ 0.6,WD 2.6mm, Infinite Plan Phase Objective PH10×/ 0.25,WD 10 mm, PH20×/ 0.4,WD 5.1mm
BIM500A9 Inverted Biological Microscope with 9.7″ Tablet Camera
This microscope is a high level microscope which is specially designed for medical and health units, universities, research institutes to observe cultured living cells. It adopts an Infinite optical system, reasonable structure and ergonomic design.SKU: BIM500BF-A9
Biological Microscopes with LCD
BIOIMAGER signature product, BLM series digital LCD microscopes, integrates traditional optics and digital technology. A built-in digital camera in the head of the microscopes helps users observe image on LCD screen and ocular at the same time. It supports USB and display real-time image on TV and PC at the same time. These microscopes make the observation more comfortable and resolve the fatigue caused by using a traditional microscope for a long time.
These microscopes integrate magnification, digital enlarge, imaging display, capture photo and video, store captured photos and videos on the optional SD card. Users can transfer images and videos to PC via included USB cable.
- Varity observation mode: Observe image on LCD screen and ocular at the same time; display real-time image on TV and PC at the same time.
- TFT LCD screen , High Definition or Ultra HD Retina Display with digital zooming.
- Built-in digital camera facilitates capturing images, video and audio with no messy wires or power cords.
- Expandable to SD Card slot for more storage capacity.
- Support Windows 2000/XP/Vista/7/8/10 and equipped with powerful image processing software.
- Integrated traditional optics and digital technology.
BLM series LCD microscopes are widely used in teaching, medical, biological, clinical, vet, industrial and scientific research fields.
The LCD microscopes are offered at various models for all microscopes and BIOIMAGER has great collections of all models, such as biological, clinical, educational, upright, inverted, fluorescence, stereo, polarized, gemological, metallurgical, industrial, etc. Please check below the comparison table for these different models.
BIOIMAGER is professional in microscopy-based imaging systems for life science and engineering applications and offers custom-design of LCD microscopes based on your imaging requirements and budget limits. For this specific case, we also offer fancy design touch screens together with customized digital camera and microscope.
