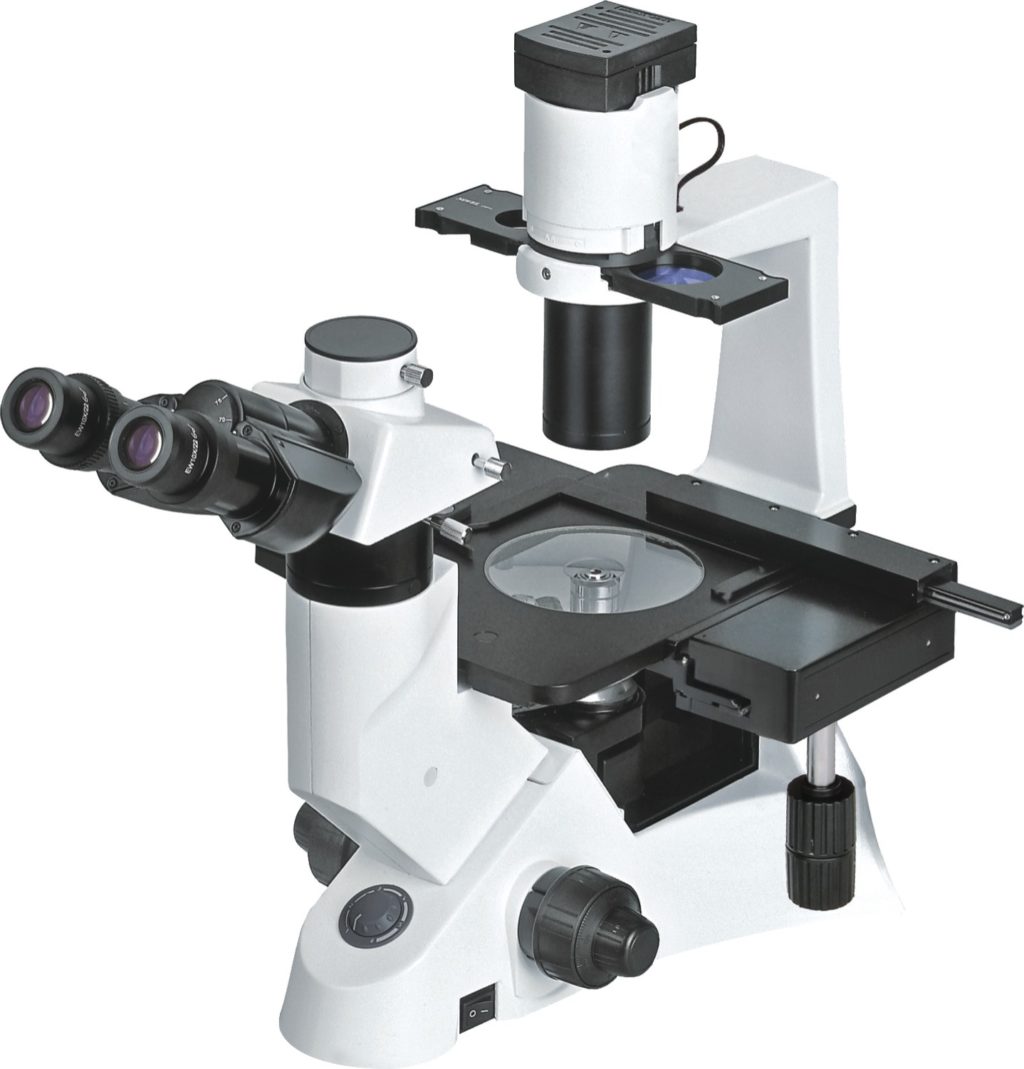

BIM500A9 Inverted Biological Microscope with 9.7″ Tablet Camera

BIM500A9 Inverted Biological Microscope with 9.7″ Tablet Camera
Introduction

This microscope is a high level microscope which is specially designed for medical and health units, universities, research institutes to observe cultured living cells. It adopts an Infinite optical system, reasonable structure and ergonomic design. With an innovative optical and structure design idea, excellent optical performance and easy to operate system, this inverted biological microscope makes your works enjoyable. It has a trinocular head, so digital camera or digital eyepiece can be add to the trinocular head take photos and videos.

Features
1. Excellent optical function with infinitive optical system.

2. Innovative stand structure, sharp image display, convenient and special for viewing incubating cell tissue.

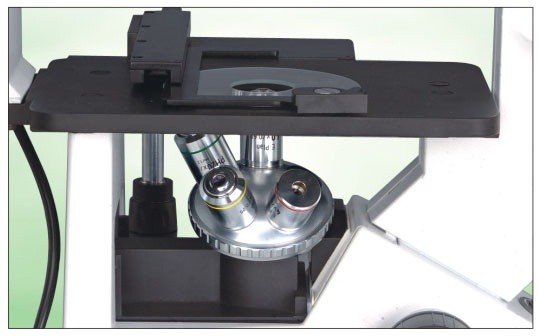

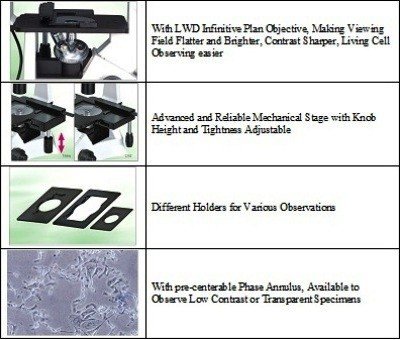

	With LWD Infinitive Plan Objective, Making Viewing Field Flatter and Brighter, Contrast Sharper, Living Cell Observing easier

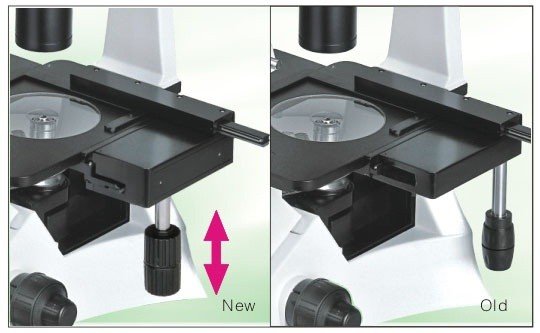

	Advanced and Reliable Mechanical Stage with Knob Height and Tightness Adjustable

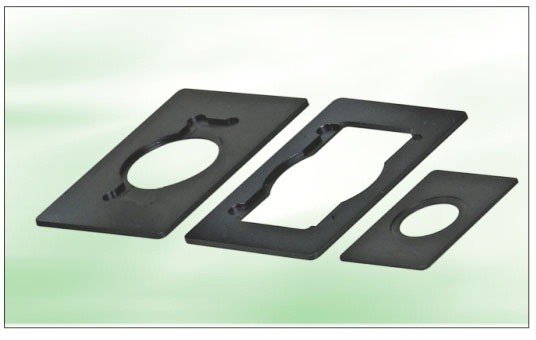

	Different Holders for Various Observations
	With pre-centerable Phase Annulus, Available to Observe Low Contrast or Transparent Specimens

Applications
BIM500 Inverted microscope is used by medical and health units, universities, research institutes for observations of micro-organisms, cells, bacteria and tissue cultivation. It can be used for continuous observation of process of cells, bacteria grow and divide in the culture medium. Videos and images can be taken during the process. This microscope is widely used in cytology, parasitology, oncology, immunology, genetic engineering, industrial microbiology, botany and other fields.

1. Main Body

2. Optical System

Ask us how to add or swap with Japanese objective lenses and save lots of money (2.5x, 4x, 10x, 20x, 40x (dry or oil), 50x(oil), 60x (dry), 100x (oil)).

Bright Field Objectives	Phase Contrast Objective

3. Mechanical XY Stage

Attachable Mechanical Stage, X-Y Coaxial Control，Moving Rang120mm×78mm

35mm Culture Dish Holder

54mm Culture Dish Holder
& Glass slide holder

65mm Culture Dish Holder
& Terasaki Holder

4. Observation Tube

0.5X C-Mount	1X C-Mount

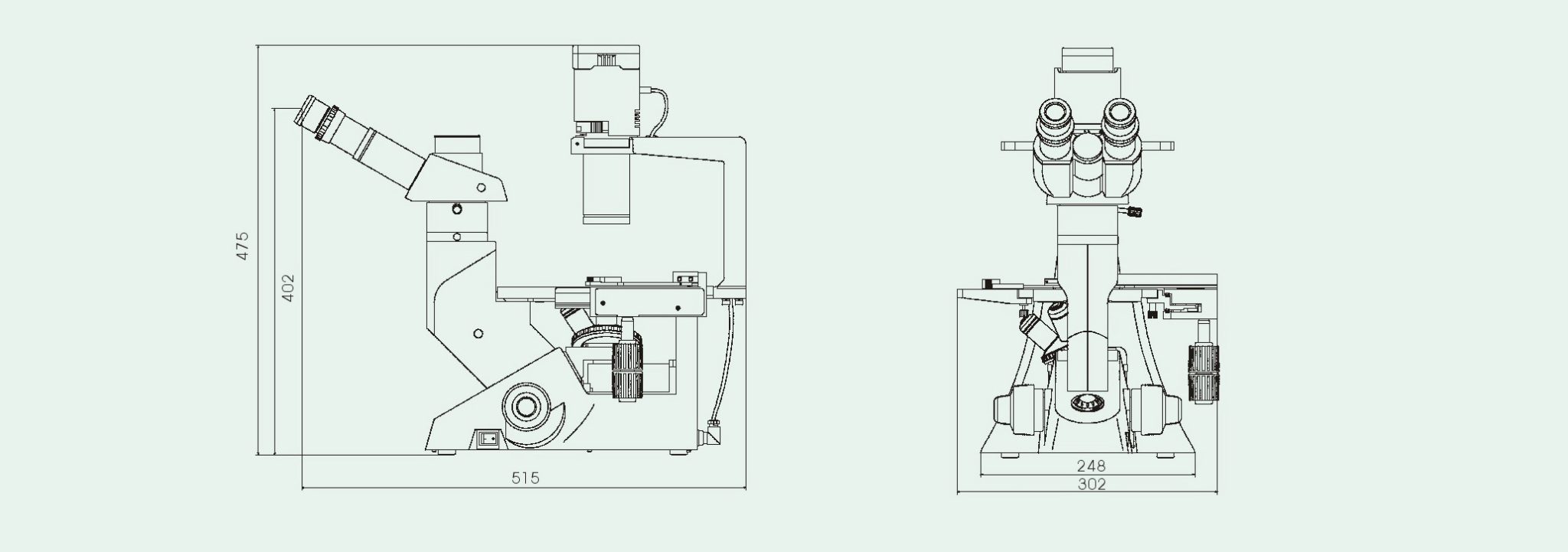

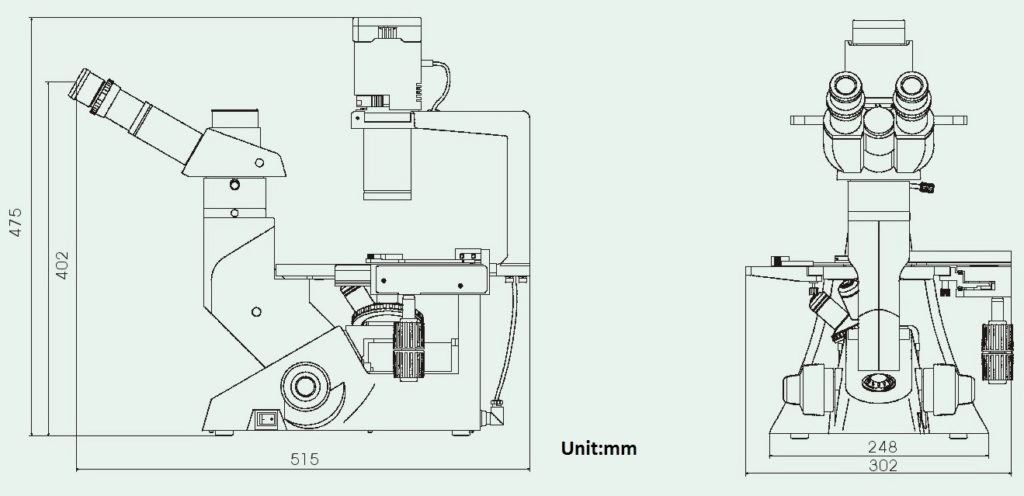

5. Dimension

Size (in mm)

6. Specifications

Viewing Head	Trinocular Head Inclined at30°, Interpupillary Distance48-75mm		●
Eyepiece	High-point, Extra Wide Field Eyepiece EW10×/ 22		●
Objective	LWD (Long Working Distance) Infinite Plan Objective	4×/ 0.1, WD 18mm	●
		10×/ 0.25, WD 10mm	○
		20×/ 0.4, WD 5.1mm	○
		40×/ 0.6, WD 2.6mm	●
	Infinite Plan Phase Objective	PH10×/ 0.25, WD 10 mm	●
		PH20×/ 0.4, WD 5.1mm	●
		PH40×/ 0.65, WD 0.35mm	○
Nosepiece	Quintuple Nosepiece		●
Condenser	ELWD(Extra Long Working Distance) Condenser NA 0.3, LWD 72mm (Without Condenser 150mm)		●
Centering	Centering Telescope (Φ30MM)		○
Phase Annulus	10×-20×, 40× Phase Annulus Plate(Center Fixed)		●
	10×-20×, 40× Phase Annulus Plate(Center Adjustable)		○
Stage	Plain Stage 160×250mm		●
	Glass Insert		●
	Attachable Mechanical Stage, X-Y Coaxial Control，Moving Rang120mm×78mm		○
	Auxiliary Stages 70mm×180mm		●
	Terasaki Holder		○
	Φ38mm Petri Dish Holder		○
	Φ54mm Slide Glass Holder		○
Focusing	Coaxial Coarse and Fine Adjustment, Vertical Objective Movement, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation		●
Illumination	Halogen Lamp 6V/30W		●
Filter	Diameter 45mm, Blue, Green and Ground Glass		●
Photo Attachment	Photo Attachment		○
Video Adapter	Video Adapter with C Mount		○

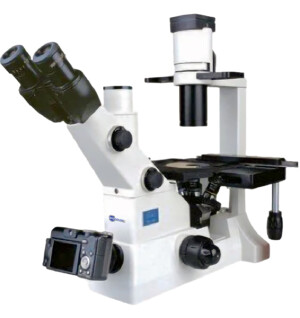

Fluorescence Attachment	Inverted Fluorescence Attachment FI-100		○
Dimension& G.W.	46.5cm*39.5cm*64cm, 15.5kg		●

Note: “●”In Table Is Standard outfits, “○” Is Optional Accessories.

BIM500A9: Biological Microscope with 9.7″ Tablet Camera

BIM500A9= BIM500 Microscope +BLC5097

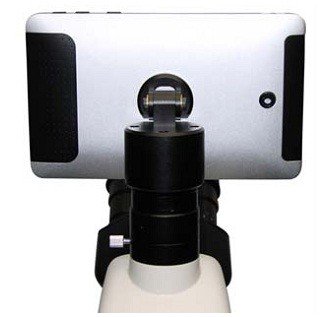

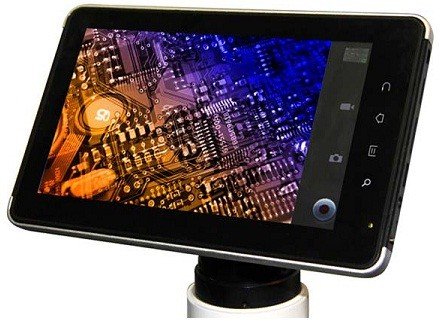

BLC-5097A Android Tablet Camera

Introduction

BLC-5097A is developed based on our BLM (BIOIMAGER LCD Microscope) series, it is a revolutionary product in microscope area which combines a tablet PC and a digital camera. It can preview, take snaps, videos, make measurement and save them, wireless transmission. It has a C-mount connector that can be connected to any microscopes with microscope adaptors. With the excellent digital image processing technology, its imaging effect is gorgeous and can beat the image processed by CCD camera. BLC-5097A has 5 Mega Pixels image sensor and can take 720P dynamic video record. Equipped with the most stable hardware and Android Operation System, binding professional multi-functional measuring software, it is easily to achieve to all your desire of exploration and discovery mystery of the microscopic kingdom. It is an Ideal instrument of industrial optical inspection, teaching and scientific research.

Features

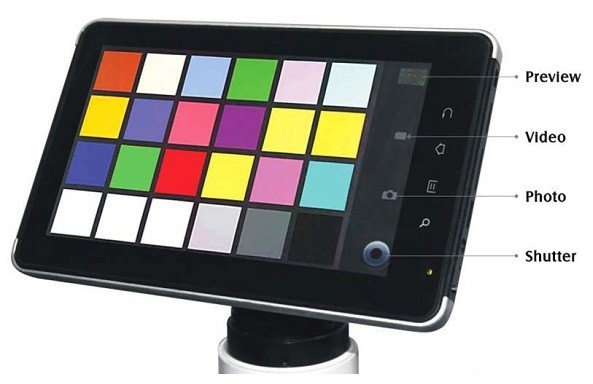

1. Wonderful User Experience. Built-in Camera and tablet PC for previewing capture photo & video, storage, playback, wireless Data transmission, measurement etc.

2. High Quality Image Sensor. Embedded with 5 Mega Pixels high resolution and low illumination level sensor chip, the imaging effect is gorgeous and even can beat the images generated by CCD camera.

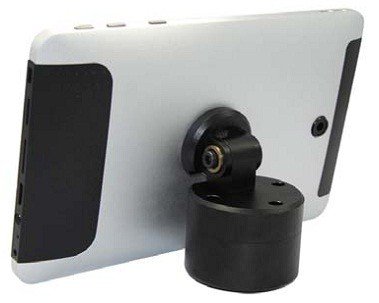

3. Easy to Install. Comes with an international standard C-mount connector, it can be installed on monocular, binocular, trinocular, stereo, dissecting and various kinds of microscopes and telescopes with optional eyepiece adapter (microscope adapter), which including 0.5x eyepiece adapter (Φ23mm), Φ30mm and Φ30.5mm connecting rings.

a) 0.5× or 1× C-mount adapter is not included, please contact us to provide you the correct adapter.

b) International standard C-mount connector, which fits any type of microscopes with C-mount adapters.

c) Eyepiece adaptor Kit (Optional), include: 0.5× microscope adapter (Φ23mm), Φ30mm and Φ30.5mm connecting rings for different diameter eyepiece tube or trinocular tube.

d) BLC-5097A can be connected to an eyepiece (ocular) tube via eyepiece adapter kit.

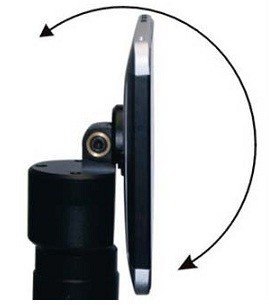

e) Wide view angle, adjustable 90˚ Inclined.

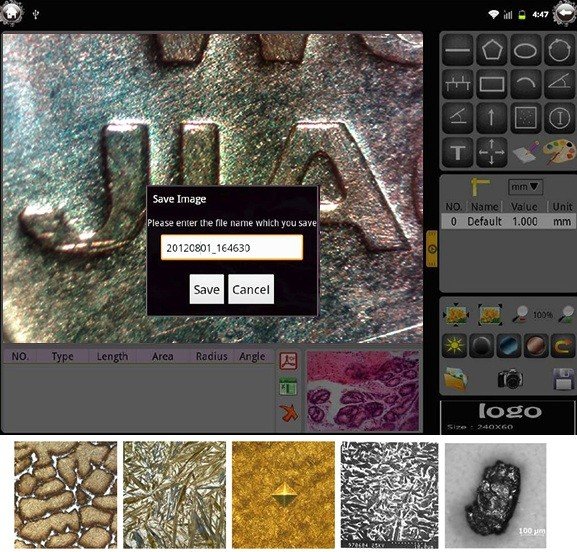

4. Integrated Measurement Software. The measurement software offers powerful functions and makes this BLC-5097A much more useful (Free upgrade later), same operating with WINDOWS system.

5. Built-in Android 2.3 Operating System. Users can download any of the tens of thousands of Android application software from the official Android Market and other websites. High quality entertainment (pictures, movies, music, reading and games).

Specifications

Digital Parts	1/2.5″ CMOS Sensor
	5Mega Pixels, Full Resolution: 2592×1936, Selectable Resolutions for Capturing Images
	Image-previewing Rate: 30fps at Full Resolution
	Video Format: 720P/30 fps
	White Balance Setting: Manual / Automatic / Preinstall Operation
	Programmable Controls: Gain, Frame Rate, Frame Size, Exposure
	Pixel Size: 2.2µm × 2.2µm
	ADC: 12bit
	Dynamic Range: 71dB
	SNR Max: 40.5dB
	Shutter Type: Global Reset Release (GRR)
	Color Filter Array: RGB Bayer Pattern
	Connection: C-mount Interface
Display	9.7″ 2nd Generation HD LED Backlit LCD Screen (1024×768)
	G-sensor, Multi-point Capacitance Touch Screen
Operating System	Android 2.3
CPU	1.2GHz (ARM Cortex™-A8 Core)
RAM	1GB (DDR 3)
Storage Device	Onboard Flash 8GB, Optional: 16GB
	Support External TF Card, Maximum Capacity of 32GB
Application Software	Task Manager, Browser, Calculator, Calendar, Email, ES File Explorer, Gallery, Photo/Video, Music, Search, Setting, Sound Recorder, E-book, MSN/Skype Chatting, Game Playing etc.
	Google Android Market Support Thousands of Applications Download
Buttons	Top Button: Turn on/off, Volume+, Volume –, Reset
	Front Main Button: Return, Home, Menu, Search
Battery	3.7V 6400mAh Rechargeable Li-Polymer Battery
	Endurance in Tablet Mode: 10hours
Wi-Fi	Support Wireless Data Network, Wireless LAN 802.11b/g
Bluetooth	V2.1 + EDR
3G Net Work	3G Module is Optional Accessories, External 3G Card Slot , Support WCDMA / EVDO / TDSCDMA
Sensor Function	Onboard G-sensor, Support X/Y/Z 3axis Gravity Sensor
	Onboard Electronic Compass
Interface	1* Mini USB2.0, 1*HDMI, 1* Micro-SD Card Slot (Up to 32GB), 1* 3.5mm Standard Stereo Earphone Slot, 1* SIM Card Slot
Audio	2* Built-in Class-D Digital Power Amplifier Loudspeaker, Built-in Microphone
Media File Formats	Video Supported: MPEG-2 Main-High, H.264 BP/MP/HP, VC1 SP/MP/AP, RV10 8/9/10, MPEG-4/Xvid SP/ASP, DivX 3/4/5/6, H.263 P0/P3, MJPEG Encode: H.264 BP, H.263 P0/P3, MPEG-4 SP, MPEG-2 Main-Main, MJPEG, 3D Video Primary Formats
	Audio Support: MP3, ACC, ADTS, M4A, WMA
	Photo Support: JPG, GIF, BMP, PNG
Language	Multi Languages：English, Czech, Dansk, German, Spanish, Russian, French, Italian, Dutch, Norwegian, Polski, Portugues, Greek, Portuguese, Svenska, Turkey, Korean, Japanese, Simplified Chinese, Traditional Chinese etc.
Power Switching Adaptor	External Power Adaptor, Input: AC 110V~220V, Output: DC5V 2500mA. Optional Plug Types: USA, EU, UK and Japan etc.
Accessories	Power Adapter, USB Cable, User Manual
Ambient Condition	Temperature: -30°C to +70°C
