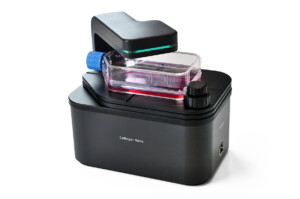

IS170 Incubator Smart Fluorescence Microscope
- The smallest phase contrast microscope in the world
- Simple, small and smart digital inverted fluorescence biological microscope
- Small enough to fit inside an incubator, hood or be part of another device
- LED fluorescence imaging with 2 or 3 channels
- Custom Camera, selection based on speed (up to 500fps), resolution( 1.5MP to 20MP), sensor size (1/3″ to 2″) and more,
- Advanced live cell imaging software (optional)
- Reasonable Price
Fluorescence Slide Scanning Microscope BUM400AFL
- Automated biological upright microscope
- Motorized XY stage, Z focus, nosepiece
- LED Fluorescence imaging for Dapi/Hoechst, GFP/FITC/Alexa 488, TRITC/mCherry, plus optional custom filter such as red or Infrared.
- Sharp autofocus at custom size of steps, number of steps and skipped or focused spots.
- Plan 4x, 10x, 20x objective lenses, optional 1.25x, 2x, 2.5x, 5x, 25x, 40x, 50x.
- Scanning of 50x75mm double-size glass slide or two single slide 25x75mm
- Preview of tiled /stitched image
- Direct access to individual images, save at standard formats.
- No limit on the number of tile size
Custom Design of A Miniature Incubator /Chamber for Automated Upright Microscope BMU450A
Here we describe how to make a custom miniature incubator or chamber for an upright automated biological/industrial microscope. The chamber allows control of temperature in the base, lid and objective lens, humidity and CO2/O2 and most importantly scanning a big area of a sample such as one or two 35mm petri-dishes, chamber slides and so on, in automated mode while the chamber is fully closed. Here we discuss some challenges during the development in terms of how to fit this chamber to the microscope and meet all requirements of having a closed chamber for a motorized stage.SKU: n/a
Olympus CX23 Biological Microscope
- Infinity-corrected Plan Achromat objectives (4x, 10x, 40x, 100x oil)
- 10X F.N. 18 eyepieces
- Anti-fungus treatment helps protect optical parts even in high humidity work conditions
- Ultra-smooth, quadruple revolving nosepiece
- Fixed Abbe condenser N.A. 1.25, aperture stop position for each objective
- LED illumination. The built-in aspherical collector lens
- Compact design with ergonomic grip for easy portability and storage in a typical classroom cabinet
- Built-in right-hand stage with rackless design, low positioned X, Y controls
- Student proof – The eyepieces, objectives, and condenser are all factory attached to the microscope body
Introduction to Microscopy Imaging
Microscope is a high-precision optical instrument to visualize the specimen, which are too small to be seen by naked eyes. It has a light source and lenses to generate highly magnified image, ranging from one or two to multiple thousand times. Today, a biology lab without a microscope can do nothing. Some microscopes are too cheap that even kids and students can have it at home and some use it for hubby to collect the images of coins and stamps, or jewellery stores pays few hundred bucks to inspect at the gold and jewelleries. On top of this, engineers at automobile, TV and semiconductor industries use the microscope for their daily routine quality control and measurements. Advanced research works on cancer cell behavior need to use complicated optics, and computer programs to do live cell imaging to come up with new findings.
Using stereoscopes you can see a highly magnified image of insects, molds, coins, stamps, gems, jewellery, minerals, papers, fingerprints, etc. While biological microscopes are essential for the medical lab, biological teaching lab or research labs work on genetics, cellular studies, molecular, developmental biology, embryo, IVF, zebrafish and so on. Biological engineers, biomedical technologists, and engineers who work on microfluidics, new electronics, mechanics, electromechanics, optomechanics, fiber optics often use all types of microscopes which are stereoscopes, biological, metallurgical and even fluorescence microscopes depending on the directional of research works and goal of imaging jobs. Polarizing microscopes are used in rock, fossil and mineral industry.
BIOIMAGER’s Biological Microscopes offer high quality, cost saving and the best performance per price microscopes for clinicians, lab supervisors, medical technicians and researchers. These microscopes are the best solutions for the clinics, hospitals, universities, college schools, leading biomedical research labs and companies. This includes upright, inverted, fluorescent, brightfield, darkfield, DIC and polarizing microscopes w/o digital cameras. Beside this, we offer live cell imaging chambers, custom-design/OEM, on-site installation and training, rental, repair and maintenance, and imaging of your samples for both in vivo and ex vivo applications in our site. Our success is primarily due to our determination in satisfying our customers, considering their needs and most importantly meeting their imaging requirements within their budget limits. We offer unlimited technical supports via phone and email, and free consultation.
6 Things you need to know about a microscope:
- A microscope’s total magnification is considered as a magnification of an objective lens multiplied by the magnification of an eyepiece.
- For large items at macro-level, you need a high power microscope which is a stereoscope (also called dissecting microscope), typically with a total magnification of 5x-50x. For observation of small and tiny objects at micron levels, you need a compound microscope, which normally has a total magnification of 40x-400x.
- To see an image on a computer, you need a microscope, a camera, AND a c-mount adapter. Getting a calibration slide on top of these will make your job so professional.
- A high megapixel camera does not necessarily mean you will get a high-resolution (optically not digitally) image but a high magnification microscope can generate high-resolution images.
- You can increase the total magnification (up to 3-times) of a microscope easily by using 15x, 20x, 25x and even 30x eyepieces. In a stereo microscope, this is also possible using an aux lens.
- You can increase the magnification optically in a computer (besides digital zooming) using a high-magnification lens of c-mount adapter rather than a standard one. If your camera has a 1/3” chip (or sensor), you need a 0.35x c-mount adapter to generate the image at the resolution of a 10x eyepiece. Using a 0.66x or 1x c-mount adapter, you can expect the image is magnified twice or tripled, i.e. an image at the size of 20x or 30x eyepieces can be seen in your computer screen. The only drawback here is you will have a smaller field of view as this happens by moving from the 20x objective lens to 40x or 60x, accordingly.
- (Bonus Point): There is no difference between an upright and inverted microscope from an optical design point of view!
What are the differences between these two combinations?
Combo A: 20x objective lens, 10x /FN23 eyepieces,
Combo B: 10x objective lens, 20x/FN12 eyepieces,
You can answer this question and get 5% discount and maybe more.
Hint: Think of magnification, Field of View, Resolution, Working Distance, Depth of Field, Illumination, and others.
