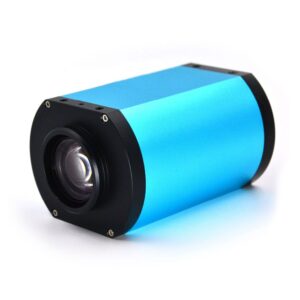

BIC-AF2-Z14 Autofocus Video Microscope Camera 1X-14X Zoom
- Autofocus: Fully Automated Real-time Auto Focusing
- Large optical magnification: from 1x to 14x
- Digital zoom: 6x
- Super large Field of view: From 171x92mm (larger than a well-plate) up to a 24.3×13.5mm (largest stereoscope view possible)
- SONY 1/2.8″ CMOS sensor, high sensitivity
- HD 1080p resolution
- High frame rate 60fps
- Support photo capture and video record, TF card storage
- Long working distance: 10cm to infinity
- Support I/O equipment

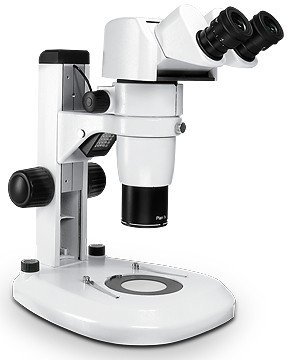

Configurable RZ Meiji Techno Research Zoom BF/DF Stereo Microscope
SKU: RZ Meiji Techno Research Zoom BF/DF Stereo Microscope
- Research Zoom Stereoscope
- 10:1 zoom ratio and 0.75x-7.5x zoom
- iris diaphragm with clcik stop zoom body
- Viewing Head: standard or Ergonomic
- Eyepieces: 10x/FN24, 15x/FN16 or 20x/FN12
- Plan Achrfomat lenses 0.5x, 0.75x, 1.0x, 1.5x, 2.0x
- WD: 76mm with 1x, can vary 29mm to 164mm using 2x or 0.5x accordingly
- Brightfield, Drakfield and configurable polarized and fluorescence imaging capability
- Huge Selection of Stands: Plain, standard, universal, heavy-duty
- illumination: coaxial, light-guide, fluorescence
- Optional mechanical XY stage or rottaing
- Contact us for extra accessories

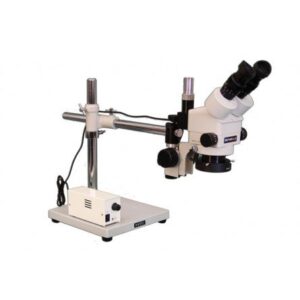

Boom Stand Inspection Microscopes for SMD, SMT & MDM
- Stereo Zoom Microscope Body with Trinocular Head
- Eyepieces (Paired Super Wide Field 10X eyepiece – accepts a 25mm reticle)
- Pole stand with rotatable and sliding Y-axis mirror in base with locking tension ring and Pseudo Dark eld LED transmitted light stand with a clear glass stage plate 9.5” pillar height and a 12” x 15” wide base
- FC focusing Holder (Smooth precise focusing over 55mm of travel, with slip clutch and tension adjustment
- Auxiliary Lens for added working distance ( MA517 –W.D. 150mm or MA794- W.D. 174mm)
- FL151- Dual Arm Fiber Optic System for Incident Illumination
- 6MP/60fps HDMI/USB 2.0 camera, with power transformer, USB cable, USB mouse, HDMI cable, SD card, application CD, 11.6 HDMI monitor

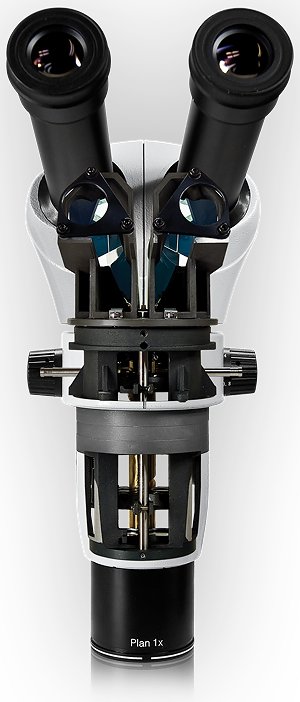

|Stereo microscopes are low power microscopes which are also called dissecting, dissection or inspection microscopes. Stereoscopes have low power or magnification range which is mainly 10x-70x (10-70 times bigger than actual).|

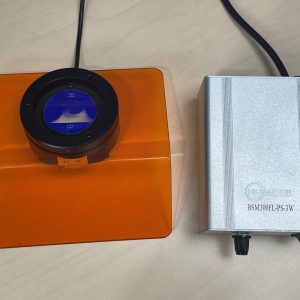

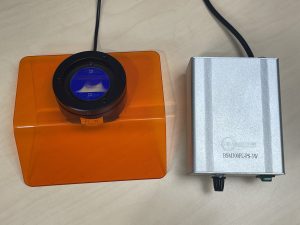

Stereo microscopes are used for inspection and visualization of stamps, coins, mobile parts, printed circuit board (PCB), insects, plants, seeds, fruits, veterinary, anatomy, nearoanatomy, zebrafish, in vitro fertilization (IVF), music instrument parts (strings, CDs,…), material surfaces, ….. . Adding a polarization kit, stereoscopes can be used for inspection of rocks, minerals, and fossils. Advanced studies in this regard, which requires higher magnification, can use Polarizing microscopes or metallurgical microscopes. Researchers in zebrafish, embryo, IVF, bacteriophage, and microfluidics on small animal models like c-elegant use fluorescence stereoscopes.
Using auxiliary (or aux) lenses, you can extend the magnification or field of view. With a 2x aux lens, 30x eyepieces, in a regular stereoscope (0.7x-5.6x), the max magnification can be 336x. If a smaller magnification aux lens such as 0.5x or 0.33x is used, the working distance (WD) and field of view (FOV) will be increased and you can expect to see as large as 50mm FOV and over 200mm WD. Contact us for such a configuration.
By default, all light microscopes generate brightfield images, i.e. specimen is seen with a bright background. It is possible to see the images with a dark background, i.e. darkfield images. To compare this, think of seeing an airplane in the sky during the day (brightfield) versus seeing it near sunset (darkfield). You can add a darkfield and polarization kit to a stereoscope to make it much professional. Contact us for further details.
What to consider before buying:
Magnification: a typical magnification is 7x-45x which can be extended using a 15x, 20x, 30x eyepieces and /or 1.5x / 2x aux lenses
Working distance: at physical stereoscope has 80-90mm WD.
illumination: Reflected for opaque sample and transmitted light for transparent samples.
Case Study: The larger field of view, the better for teaching
A client wrote us: Interested in a trinocular zoom stereoscope with the widest field of view (to the camera, we have a Lumenera Infinity2-1R, 1/2″ 1.4 MPixel) possible. Probably would need 0.5X aux lens. BUT CAN YOU PROVIDE for me with the field-of-view we could achieve (with our camera)? We need to use this to teach neuroanatomy, meaning about 2 cm horizontal field of view (at lowest mag setting).
To get the largest field of view (FOV), a good combination of the camera sensor and the c-mount adapter is the key. As you know well, we see circular in eyepieces but a camera sees a rectangular or square. Depending on the c-mount adapter magnification, we can fit the camera FOV square or rectangle into the eyepiece circle. If we go further than eyepiece FOV circle, there won’t be any signal to the corners of the square. Then the sensor will generate an image with black corners (called vignetting).
Depending on the stereoscope model, it is possible to get ~20-22mm width image assuming a perfect camera-adapter is used. In most cases, we can reach this without a 0.5x aux lens. Since you like to use your own camera with 1/2” sensor, we need to provide a 0.5x c-mount adapter.
You need to use BSM330T or higher models to get such a large FOV. Using a 0.5x aux lens will be an advantage.
Next, we asked the client to send his own sample and camera to test. Here are the rest of further works:
We have done some works and sending you the images in a separate email via an external link. Please read these comments before and after viewing those images.
– The file name describes the imaging condition: date_camera_c-mount-adapter_scope zoom_sample-Name.jpg
– we tested so many c-mount adapters, including default and custom 0.35x, 0.5x and 1x c-mount adapter with your Infinity 2 Camera. Some of the images are presented.
– The 0.35x gives largest FOV but it has some vignetting issue, as expected.
– The custom 0.5x c-mount adapter gives a better result with your camera. However, it has a minor black corner on one side. You may not like it.
– The 1x c-mount adapter helps you increase the magnification twice in comparison to 0.5x c-mount adapter, i.e. it will be like using 20x/FN10 eyepieces vs 10x /FN20 or adding a 2x aux lens.
– At 0.85x zoom, you can have the whole view of your sample
– Using a calibration slide, now we know your camera has an FOV of 20mmx15mm (HxV) at the lowest magnification 0.7x zoom.
If you do not like to have black corners in your images, you need to either upgrade the microscope or change the camera. This will depend on your budget.
Thus, I tested this with our BIC-T3C-2.3C 2.3MP 1/1.2” CMOS camera.
– This camera has an FOV of 22.5x14mm (HxV) at the lowest magnification 0.7x zoom.
– Some sample images were also shown.
– Frankly speaking, this camera has better image quality, much more natural color and higher sensitivity than yours. I guess ours has also better price, i.e. $1,089 USD.

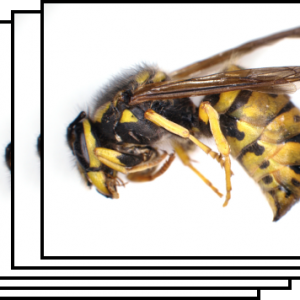

Last but not least, we also used our BioStitch Live Image Stitching Software and manually stitched your sample images at the highest zoom of 4.5x and 0.5x c-mount adapter. Using 1x c-mount adapter will increase the resolution twice. If you decide to get the BIC-T3C-2.3C camera, we can offer this software ($1,499) totally free.
Result: the customer was extremely happy with the prepared images, purchased the stereoscope and enjoyed it.
