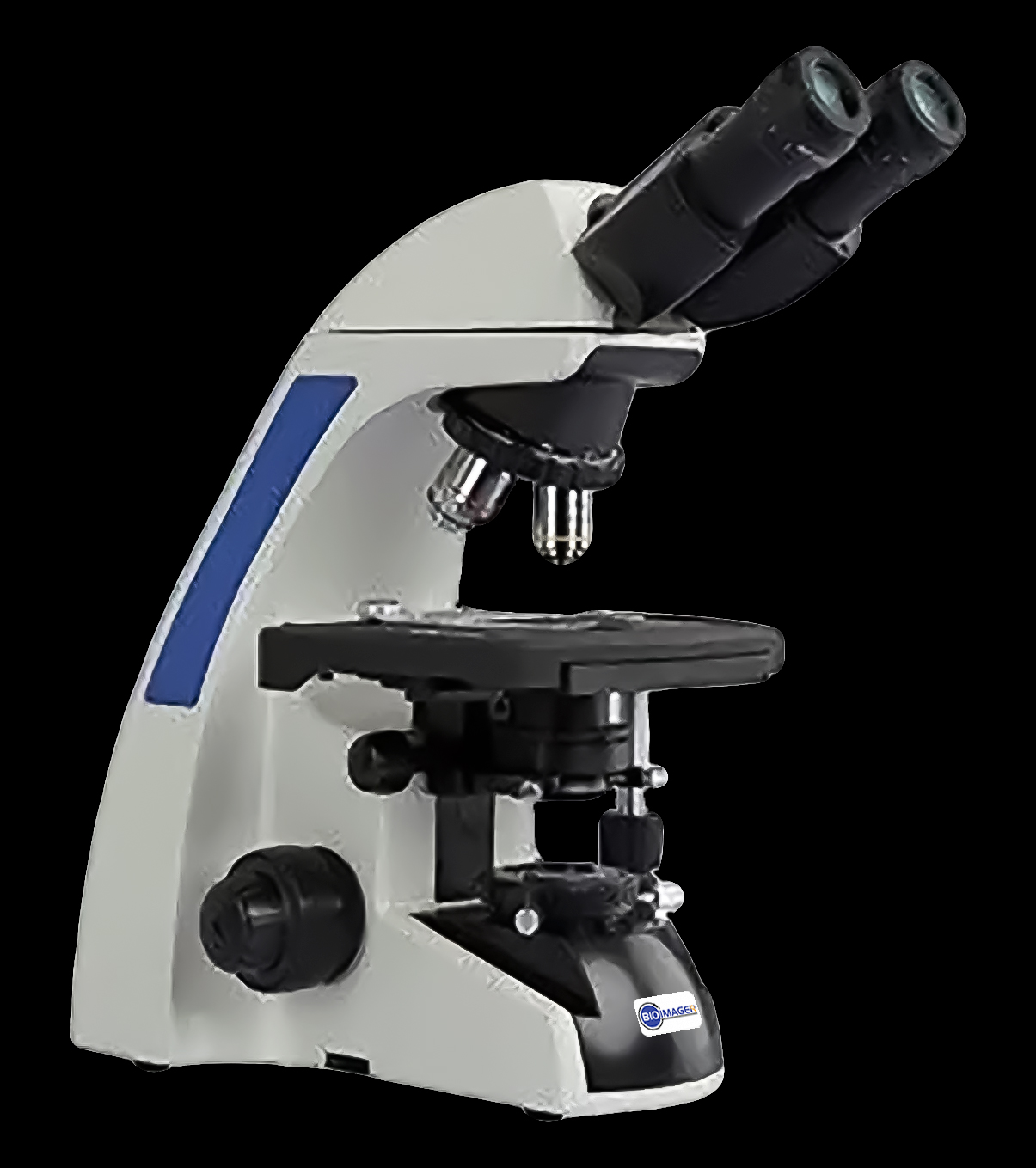

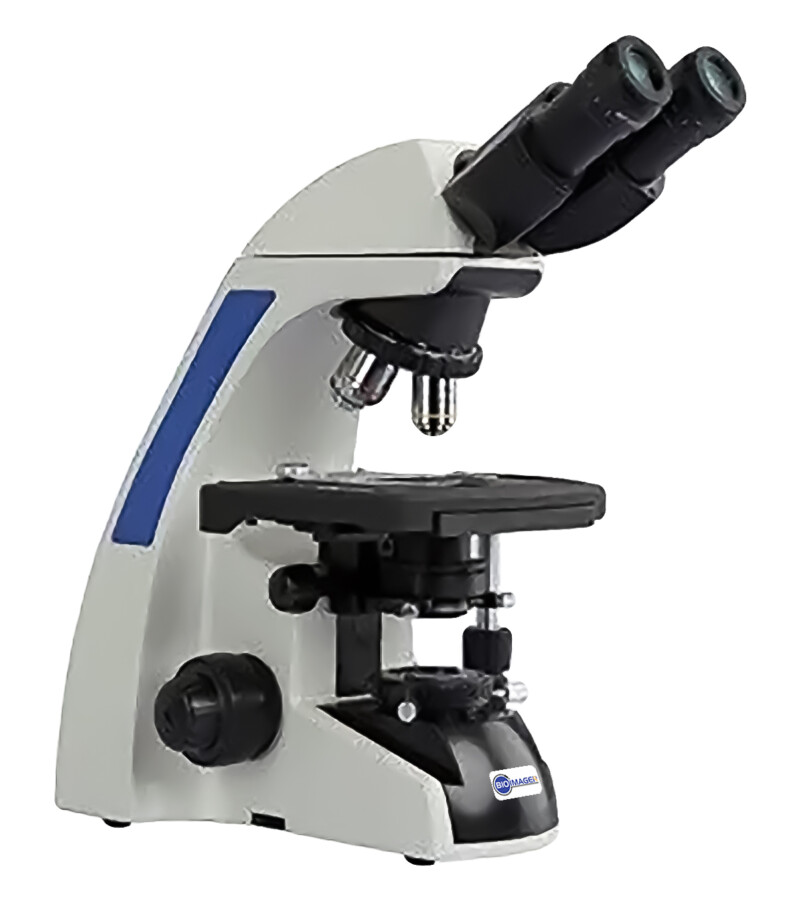

- Upright biological/clinical microscope

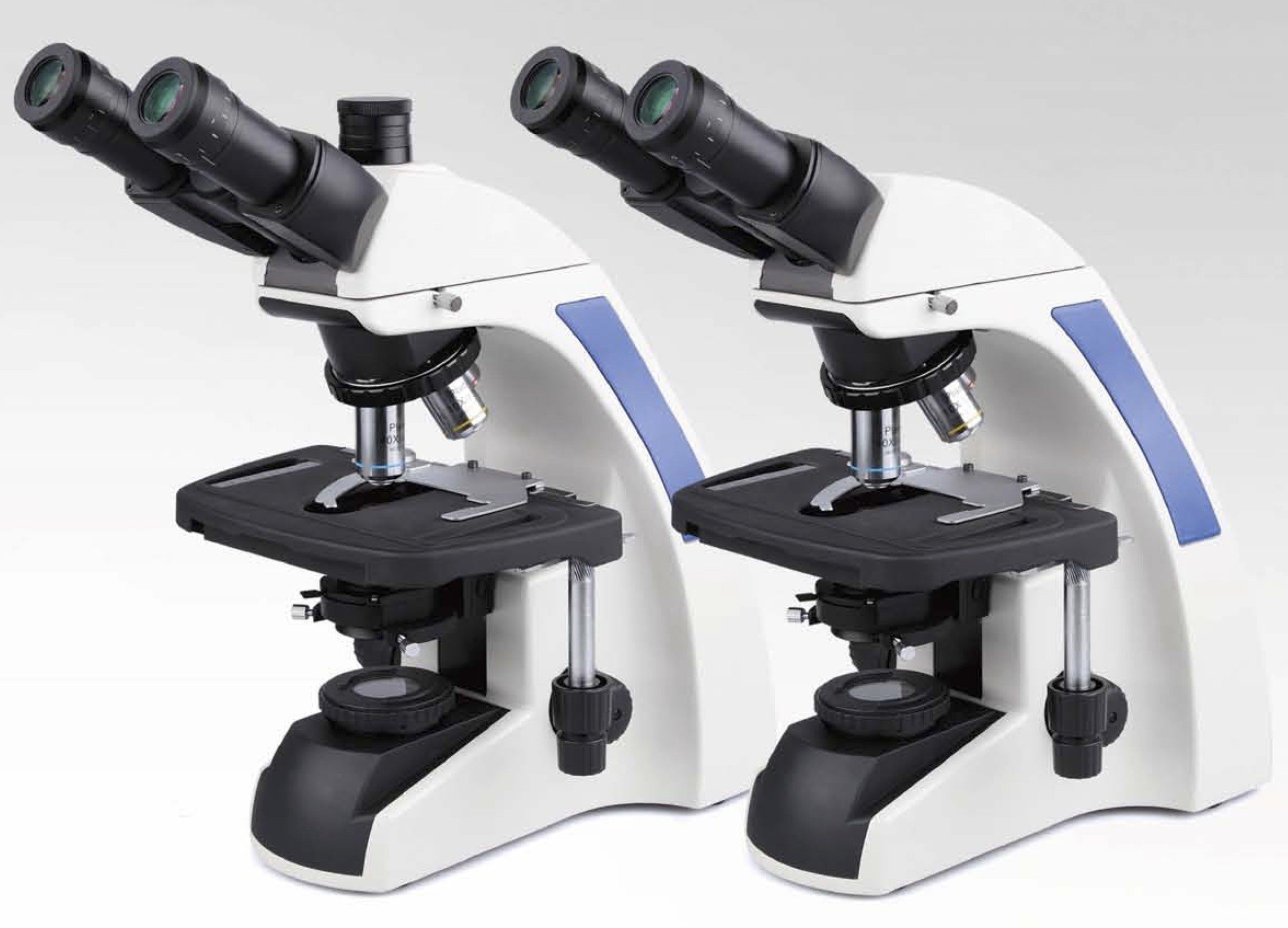

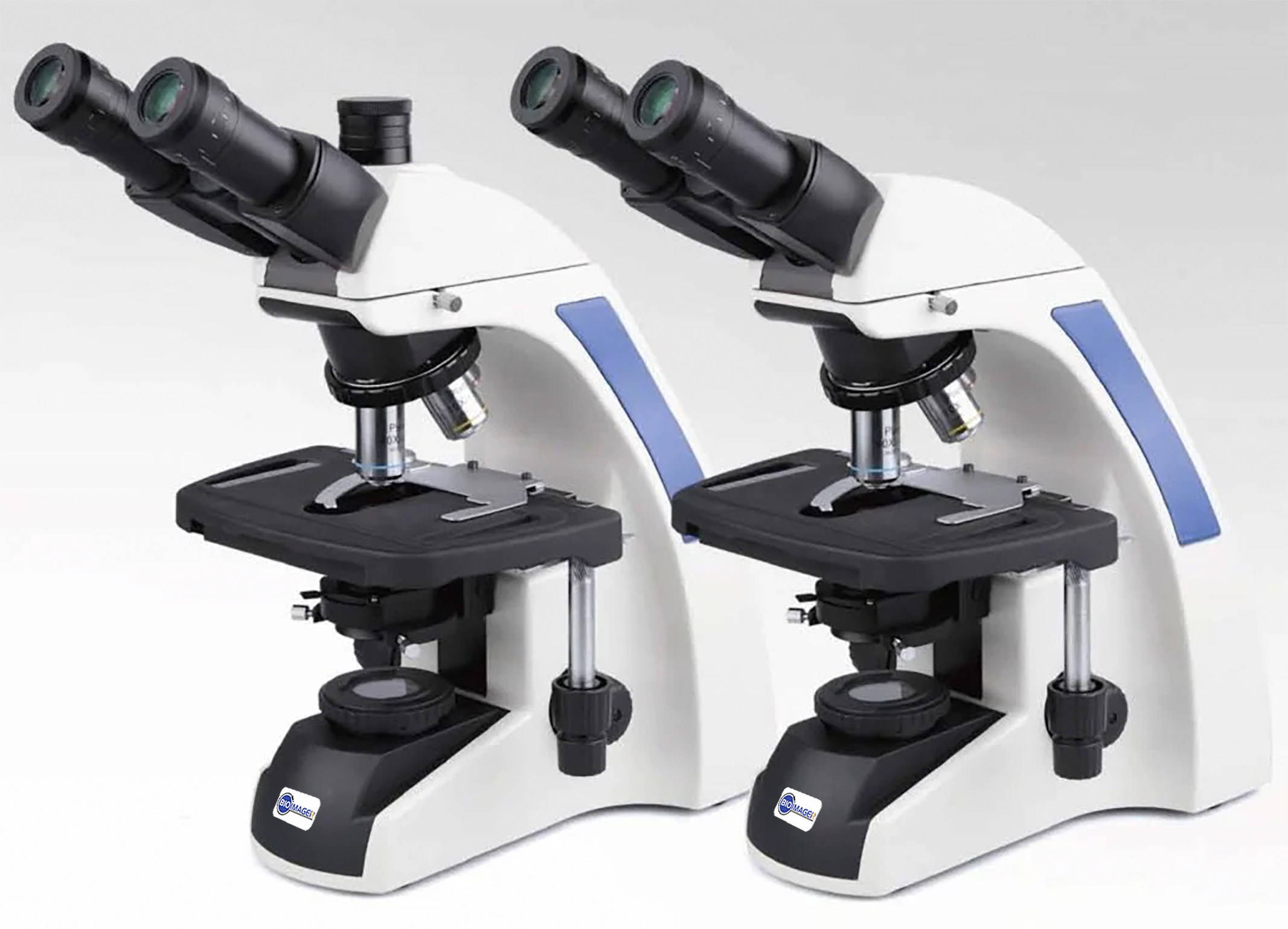

- Binocular or Trinocular viewing head
- Infinity Plan 4X, 10X, 40X(S), 100X(S,OIL)
- Total Magnifications 40x-1000x
- 9.7″ High Resolution Touch Screen LCD + built-in 5MP Camera

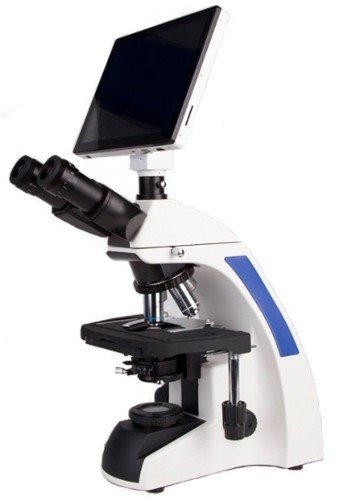

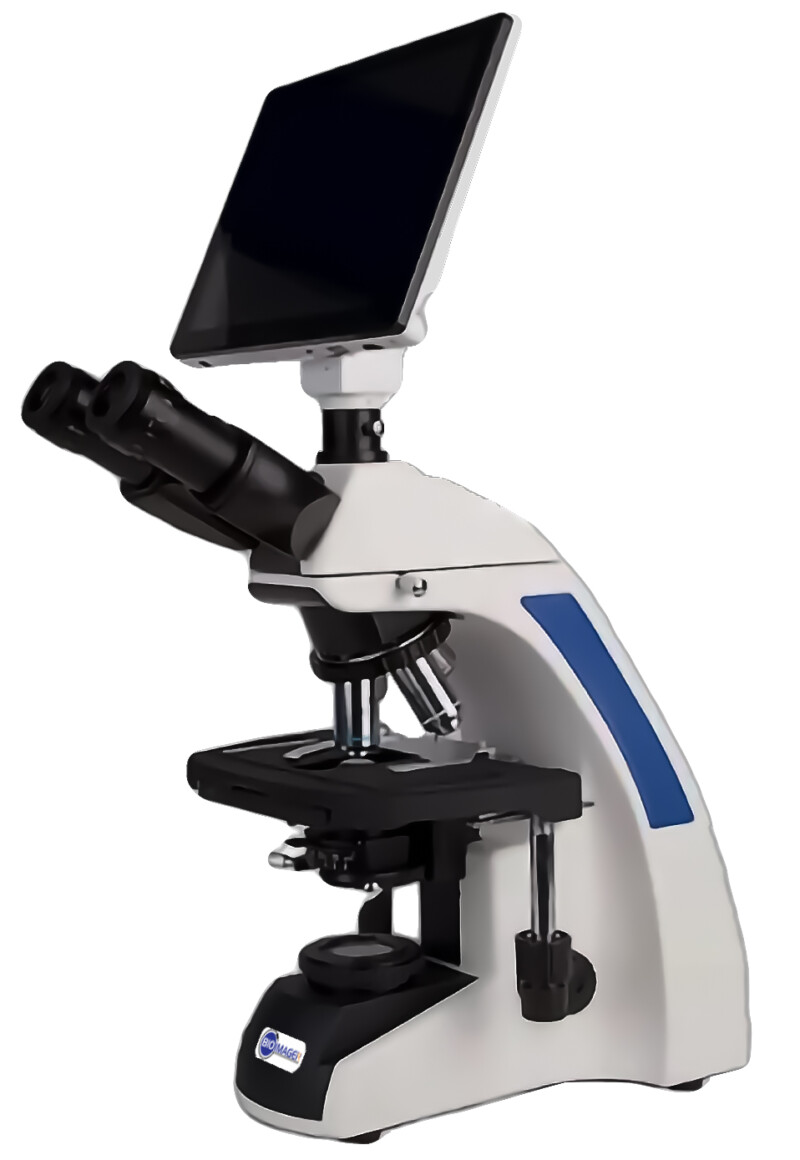

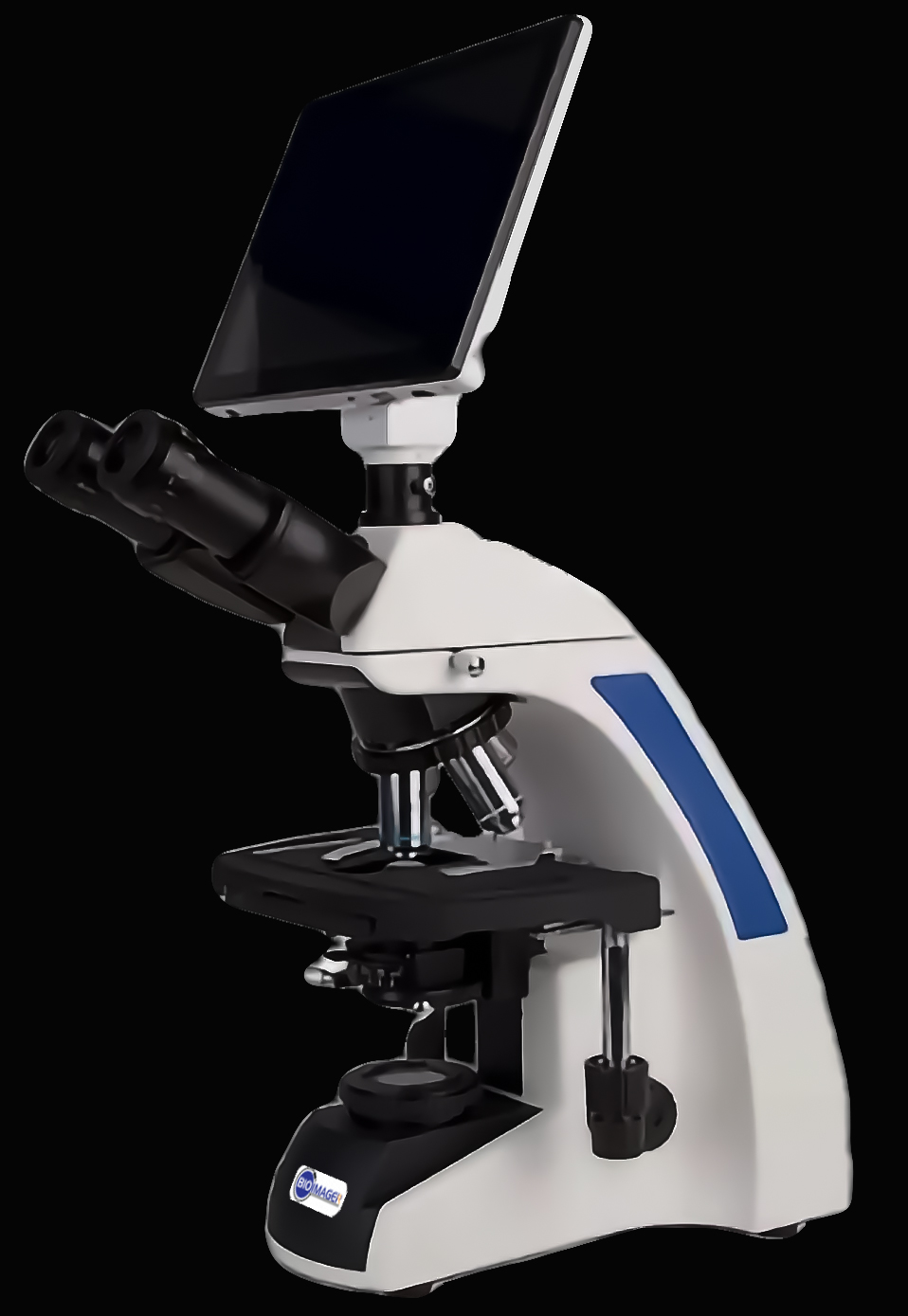

BUM300L LCD Laboratory Microscope
BUM300L LCD Series compound digital LCD biological microscope renovated the traditional way of microscope observation and thoroughly resolves the fatigue for a long time working with microscope. It can be used with both eyepieces and LCD Screen for convenient and comfortable viewing by individuals
and share with groups . It also comes with the latest 5.0MP camera and digital imaging microscopy softwrae for quick and easy snapshots of single or video images.
BUM300L LCD microscope is an ideal tool for medical and sanitary establishments, academic demonstration and research, laboratories, institutes, colleges and universities applications.
|Optical System||Infinity Optical System, Tube Length: 180|

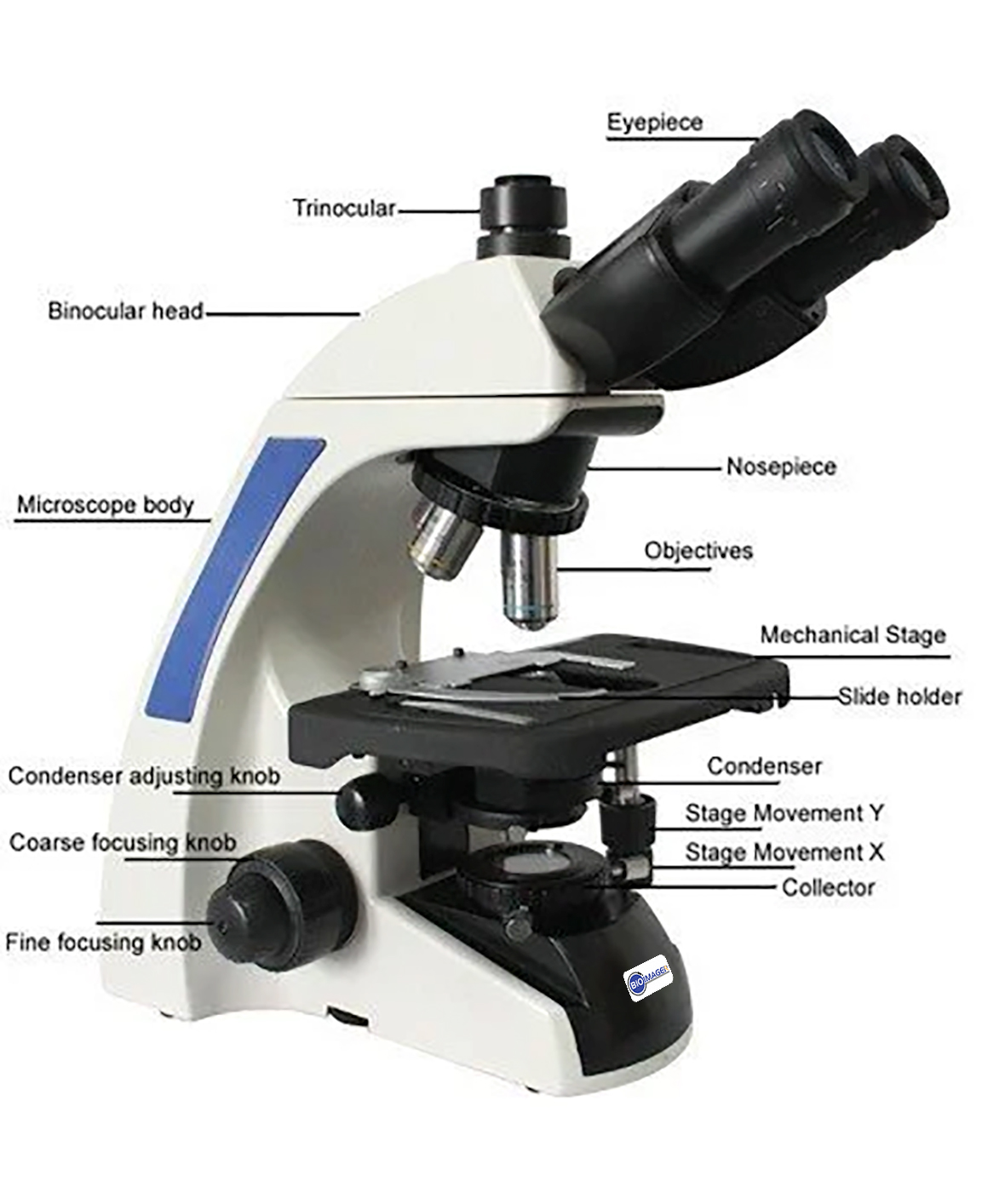

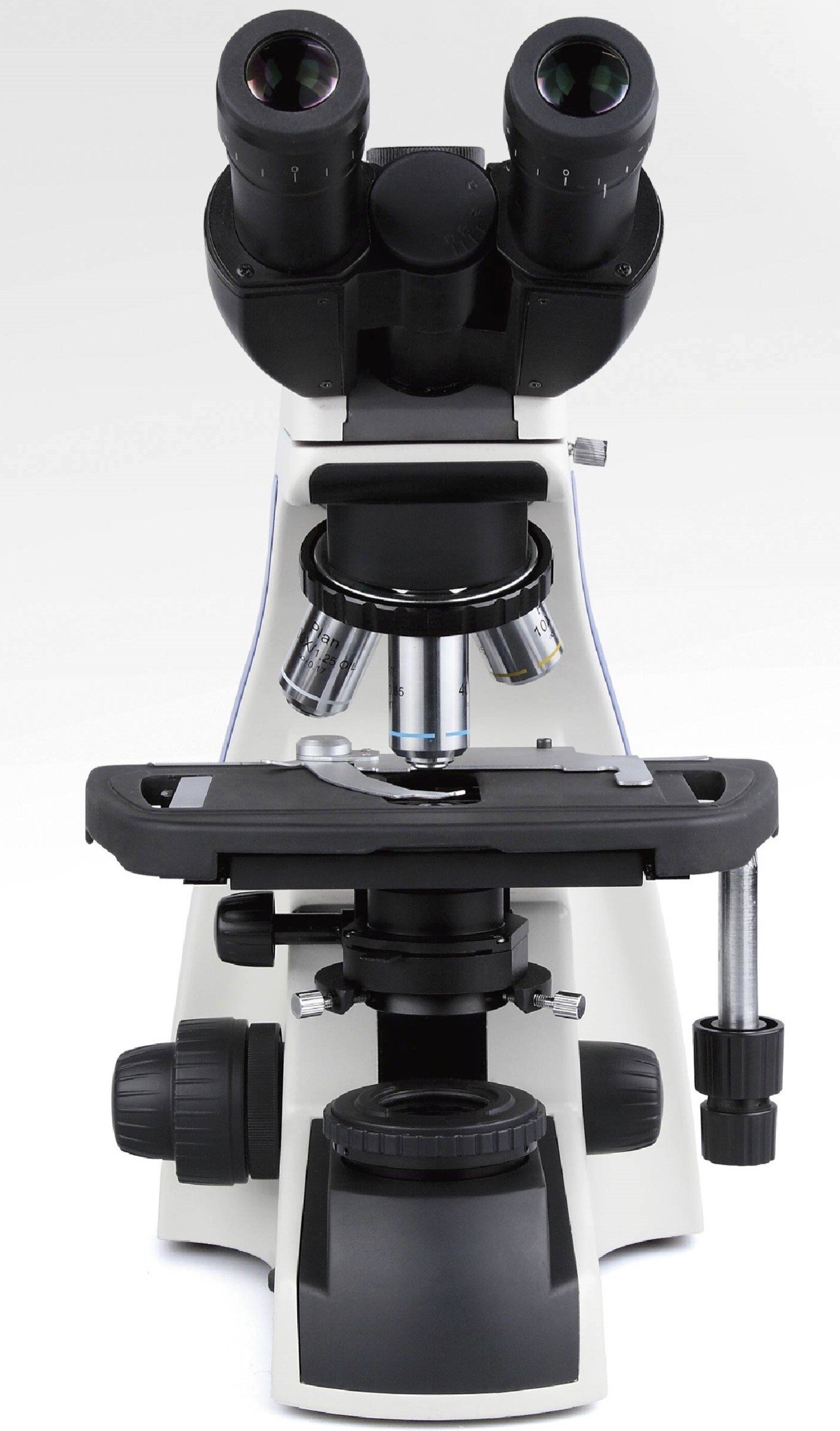

|Observation Head||Gemel Binocular Head, 30°inclined, 180°rotatable|
|Eyepiece||WF10X/22mm Eyepiece. Diopter Adjustment of Each Eyepiece|

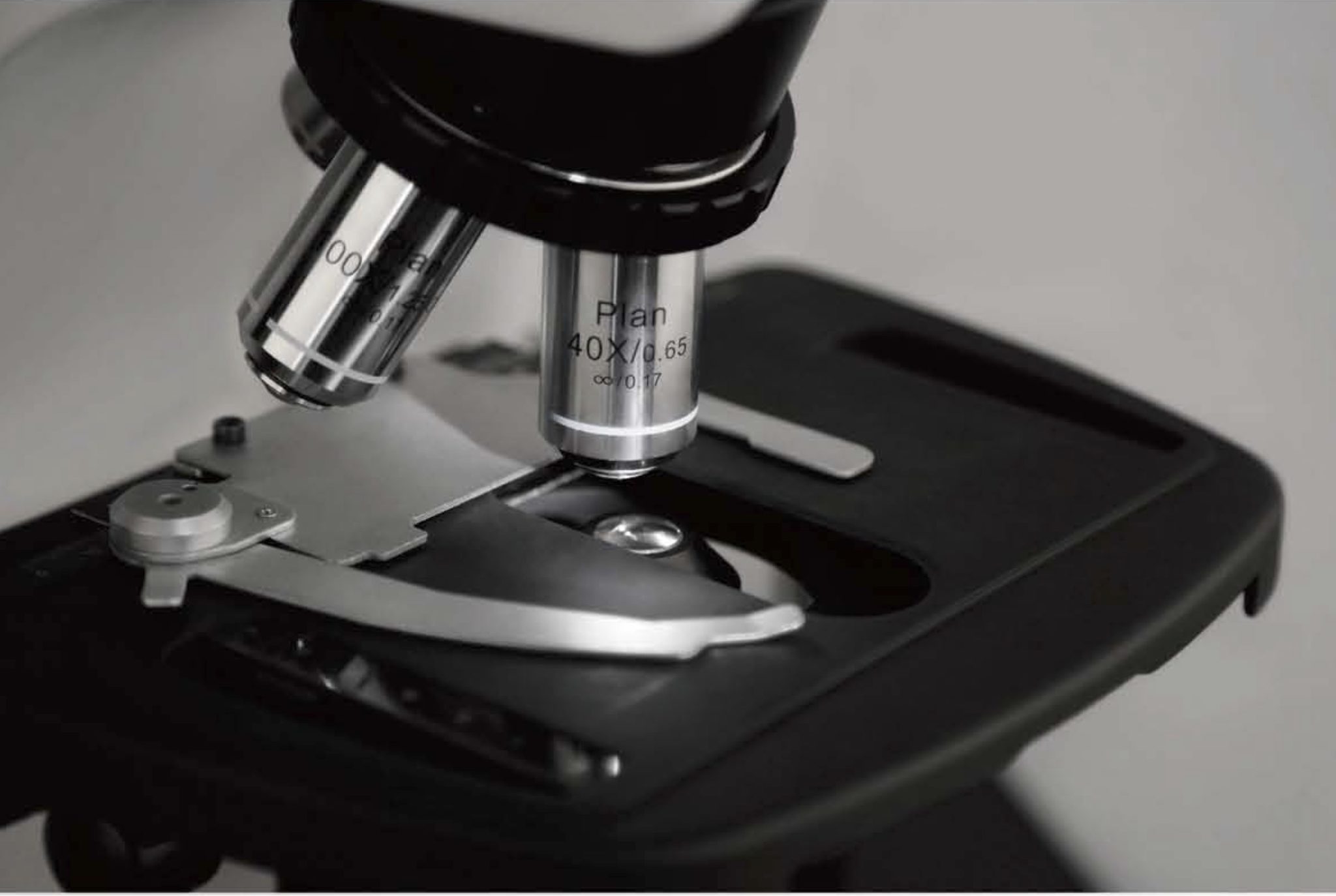

|Objective||Infinity Plan Achromatic Objective,
4X/0.10, 10X/0.25, 40X(S)/0.65, 100X(S, OIL)/1.25
|Nosepiece||Backward Quadruple Nosepiece|
|Stage||Double Layer Mechanical Stage, Stage Size, 216*150mm. Moving Range, 75mm*55mm. Graphite Surface.|
|Focusing System||Coaxial Coarse & Fine Focusing System. Fine Division, 0.002mm.
Coarse Stroke, 37.7mm/Rotation, Fine Stroke, 0.1mm/Rotation
|Condenser||N.A 1.25 Kohler Illumination Condenser with Diaphragm|
|Illumination||3W LED illumination, Brightness Adjustable|
|CPU||RK3066 dual-core processor, 1.5HZ|
|LCD Display||9.7”high-resolution colorful touch screen|
|Memory||RAM 1GB DDR3|
|External SD card, max. To 32GB|
|Camera||5.0MP CMOS camera|
|Input & Output||USB/Mini USB. Support USB keyboard & mouse|
|SD card slot|
|DC 5V input|
|Operation System||Android 4.2|
|Software||Built-in software. Support capture images, video and measurement.|

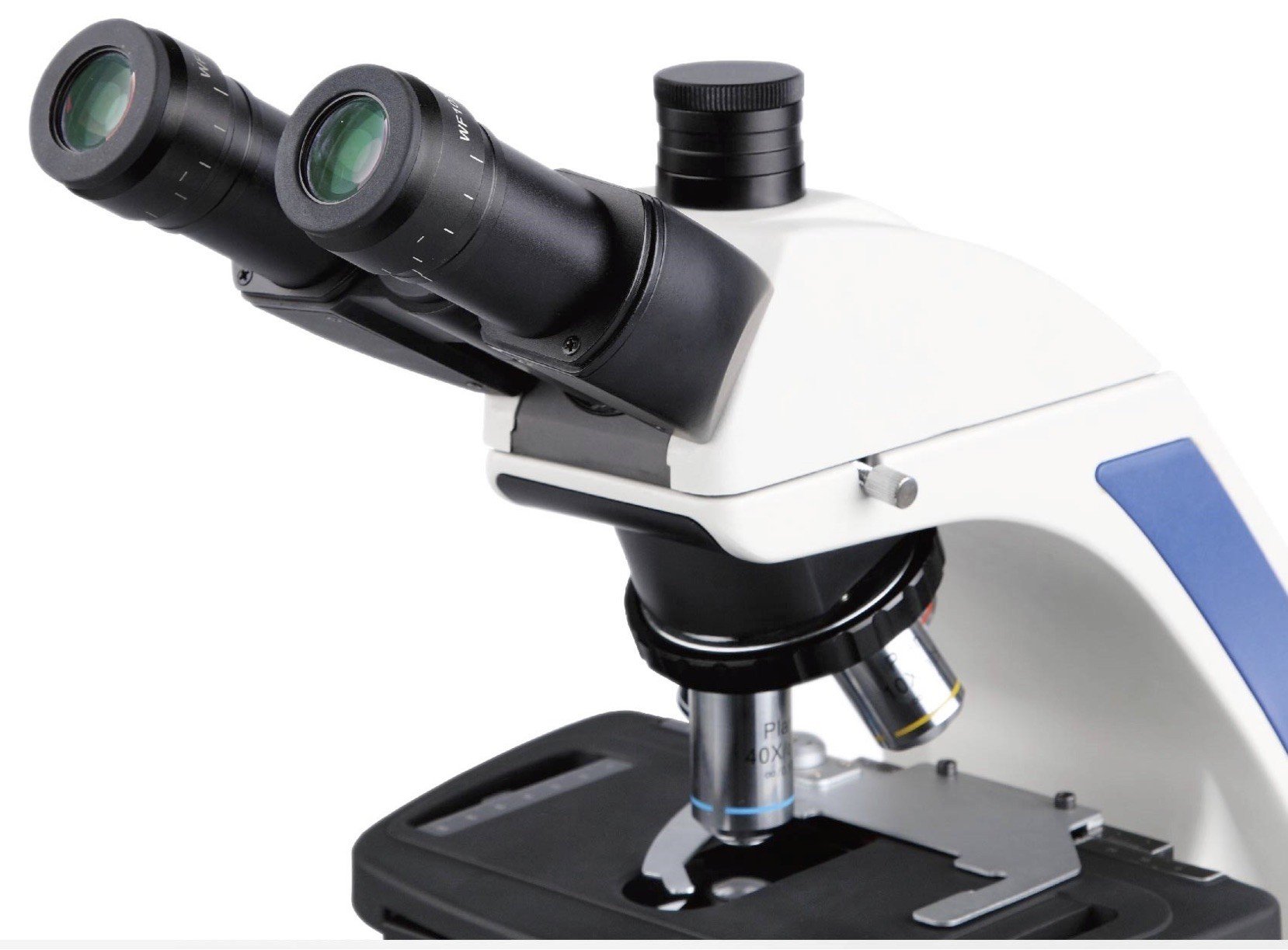

|Observation Head||Gemel Trinocular Head, 30°inclined, 180°rotatable|
|Objective||Infinity Plan Achromatic Objectives, 20X, 60X|
|Other Accessories||Dark field attachment, Simple Polarizing Kit, Phase Contrast Kit|
Video 1. Phase Contrast Kit and Sample Images
BUM-PHK Phase Contrast Kit for Upright Biological Microscopes is composed of 10x, 20x, 40x , 60x and 100x (oil) Phase contrast objective lenses, green filter, Phase alignment tool and turret condenser with different annulus.
In this video we look at the samples images of an Onion Skin thins section slide and Tilia (basswood) thin section slide, using this kit installed on Bioimager BUM800FL upright biological microscope and connected a 2.3MP USB3.0 CMOS Colorful Camera as well as a 0.5x C-Mount Adapter.
