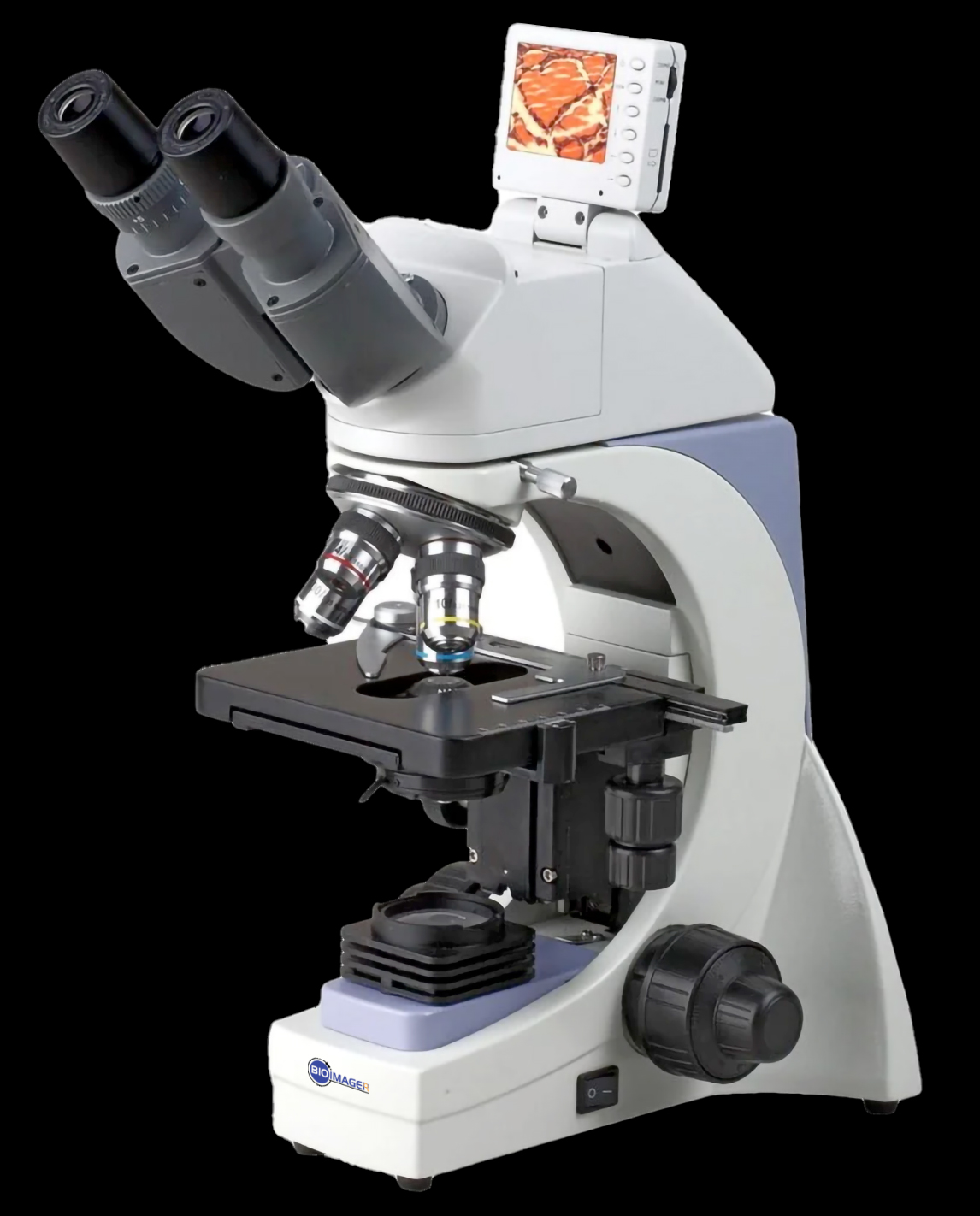

BUM250L LCD Upright Biological Microscope
Original price was: $USD 2,250.00.$USD 1,499.00Current price is: $USD 1,499.00.
-33%- 2.5” TFT LCD screen with 4× digital zooming, rotatable at maximum 100°elevation angle and 180°pivoting.
- 3.0 Mega Pixels CMOS sensor
- 32MB Build-in Memory and Expandable to Max 1GB SD Card
- Wide Field Eyepiece WF10×/18
- (Infinite) Semi-Plan Achromatic Objective 4×, 10×, 40×, 100×
BUM250L LCD Upright Biological Microscope
- Varity observation mode: Observe image on LCD screen and ocular at the same time; Support USB, AV, S-Video and Audio output and display real-time image on TV and PC at the same time.
- 2.5″ TFT LCD screen with 4× digital zooming, rotatable at maximum 100°elevation angle and 180°pivoting.
- Built-in 3M pixel digital camera facilitates capturing images, video and audio with no messy wires or power cords.
- Expandable to Max 1 GB SD Card slot for more storage capacity.
- Support Windows 2000/XP/Vista/7 and equipped with powerful image processing software.
- Integrated traditional optics and digital technology.

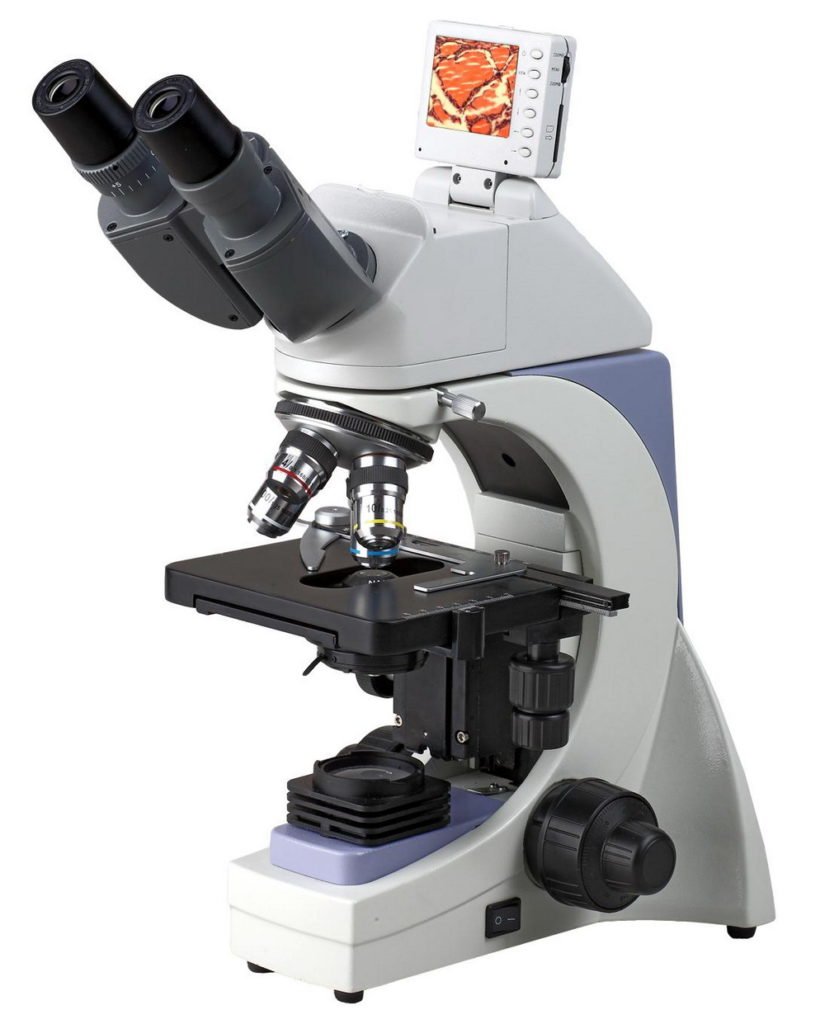

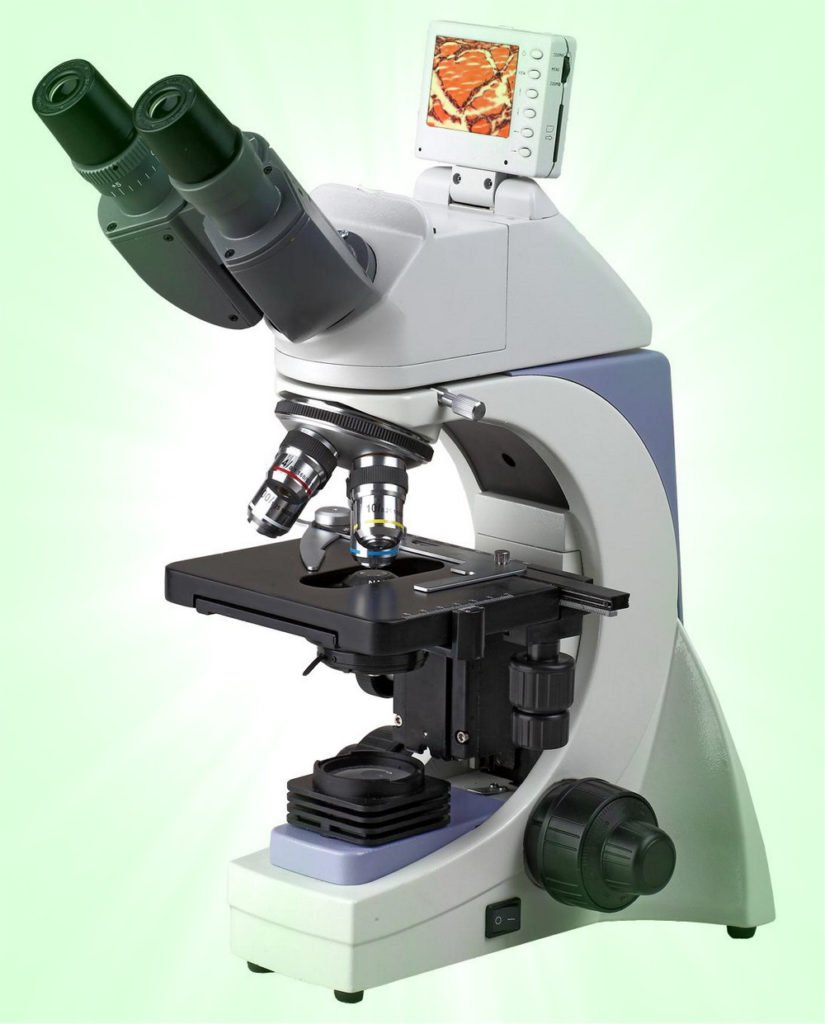

BUM250 LCD Upright Biological Microscope
Introduction
BUM250L series digital LCD biological microscopes integrate traditional optics and digital technology. A 3.0MP digital camera is built in the head of the microscope, users can observe image on LCD screen and ocular at the same time. It support USB, AV, S-Video and Audio output and display real-time image on TV and PC at the same time. These microscopes make the observation more comfortable and resolve the fatigue caused by using a traditional microscope for a long time.
These microscopes integrate magnification, digital enlarge, imaging display, capture photo and video, store captured photos and videos on the optional SD card. Users can transfer images and videos to PC via included USB cable.
Features
- Varity observation mode: Observe image on LCD screen and ocular at the same time; Support USB, AV, S-Video and Audio output and display real-time image on TV and PC at the same time.

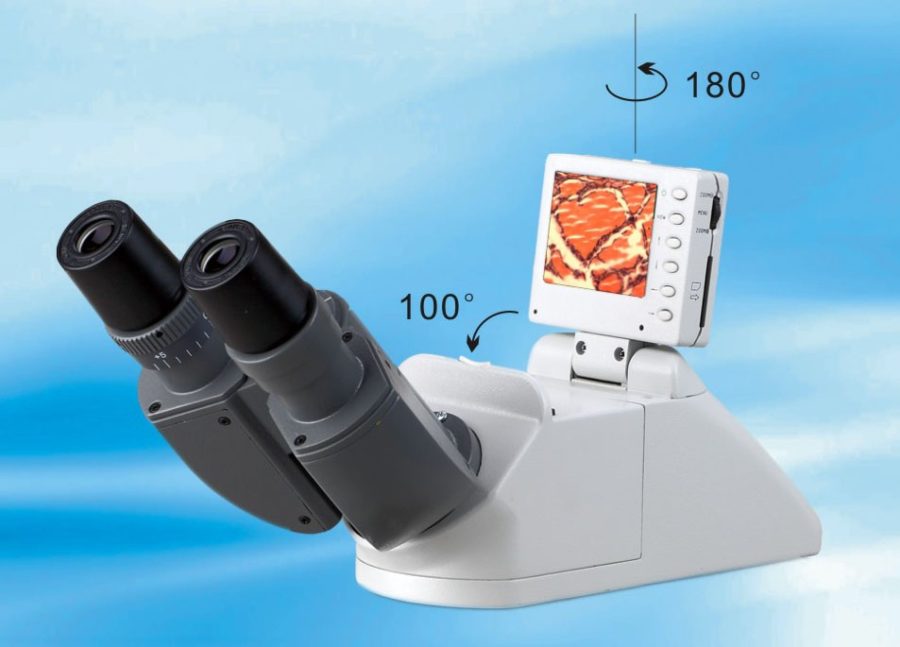

- 2.5″ TFT LCD screen with 4× digital zooming, rotatable at maximum 100°elevation angle and 180°pivoting.
- Built-in 3M pixel digital camera facilitates capturing images, video and audio with no messy wires or power cords.
- Expandable to Max 1 GB SD Card slot for more storage capacity.
- Support Windows 2000/XP/Vista/7 and equipped with powerful image processing software.
- Integrated traditional optics and digital technology.
.
Application
BUM250L series LCD microscopes are widely used in teaching, medical, biological and scientific research field.
Specification
| Model: BUM250L | A | B | ||
| Optical Part | Eyepiece | Wide Field Eyepiece WF10×/18 | ● | ● |
| Wide Field Eyepiece EW10×/20 | ○ | ○ | ||
| Objective | Semi-Plan Achromatic Objective 4×, 10×, 40×, 100× | ● | ||
| Plan Achromatic Objective 4×, 10×, 40×, 100× | ○ | |||
| Infinite Semi-Plan Achromatic Objective 4×, 10×, 40×, 100× | ● | |||
| Infinite Plan Achromatic Objective 4×, 10×, 40×, 100× | ○ | |||
| Condenser | Abbe NA1.25 Condenser with Iris Diaphragm and Filter | ● | ● | |
| Stage | Double Layers Mechanical Stage 140×140mm/75×50m | ● | ● | |
| Nosepiece | Quadruple Nosepiece | ● | ● | |
| Inverse Quadruple Nosepiece | ○ | ○ | ||
| Illumination | 6V/ 20W Halogen Lamp Illumination, Adjustable Brightness | ● | ● | |
| LED Illumination, Adjustable Brightness | ○ | ○ | ||
| Digital Head | LCD | 2.5″ Color TFT LCD display, 100°maximum elevation angle, pivoting LCD screen | ● | ● |

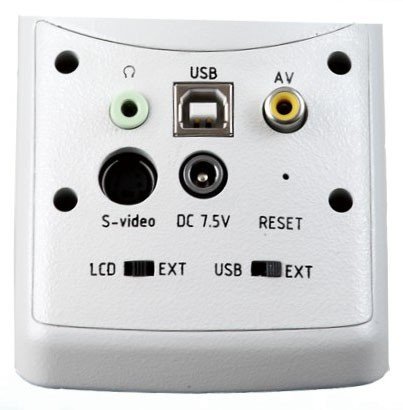

| Output | USB, AV, S-Video and Audio are available | ● | ● | |
| Image sensor | 3.0 Mega Pixels CMOS sensor | ● | ● | |
| Resolution | Static Image 2048×1536, Video 320×240 | ● | ● | |
| Memory | 32MB Build-in Memory and Expandable to Max 1GB SD Card | ● | ● | |
| System | Windows 2000, XP, Vista, 7 | ● | ● | |
| Software | ScopeImage Advanced | ● | ● | |
Note: ● Standard Outfit, ○ Optional

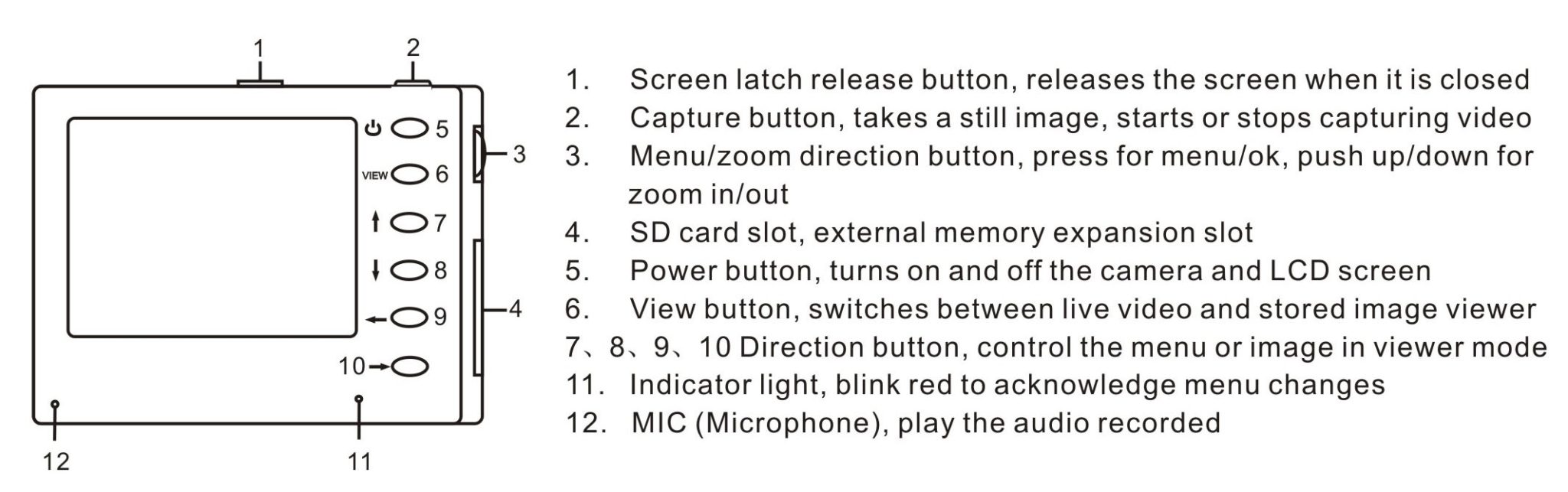

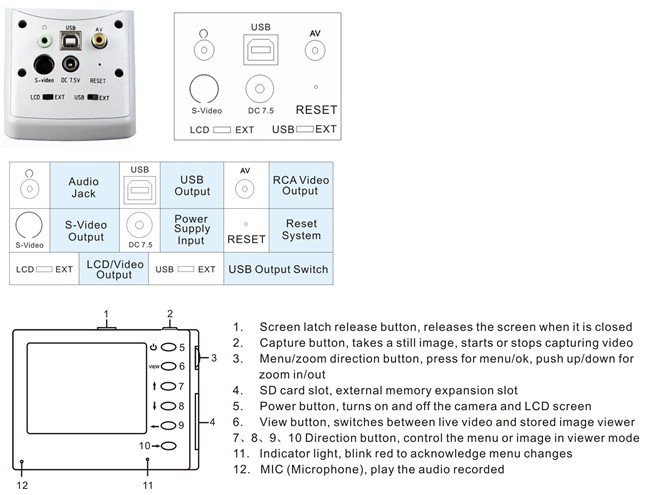

Function

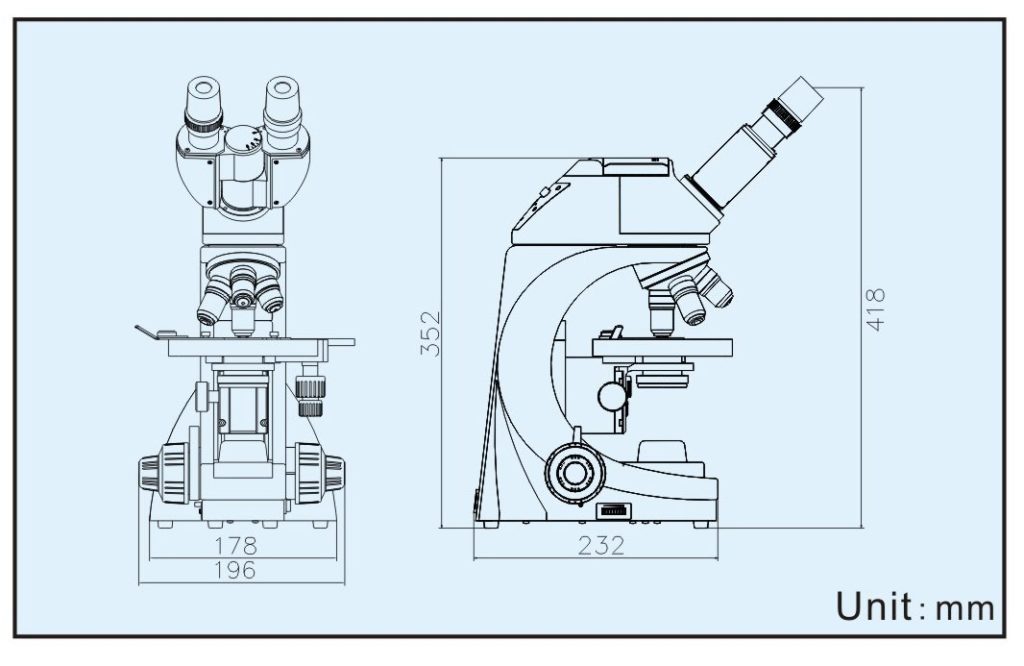

Dimension
