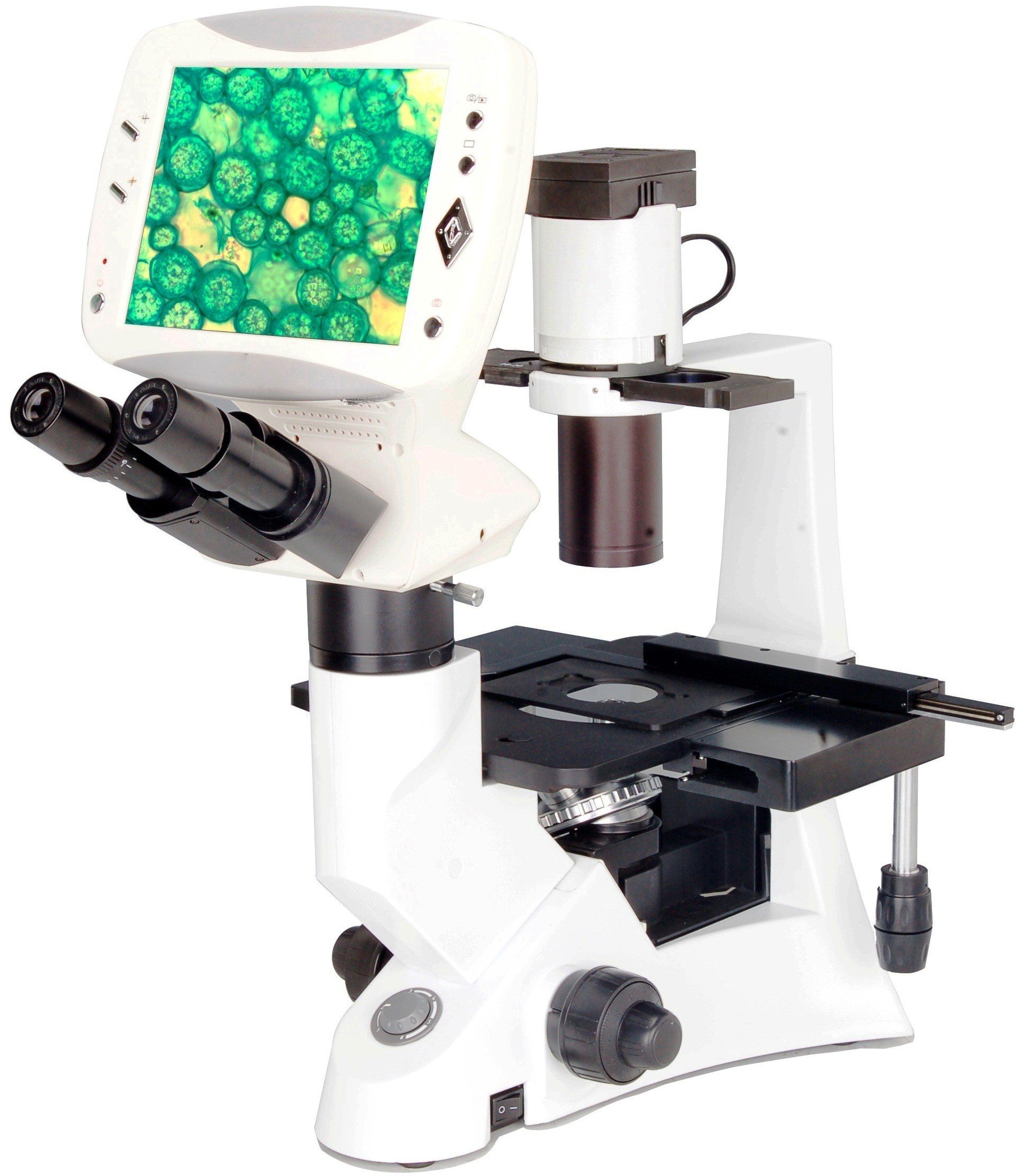

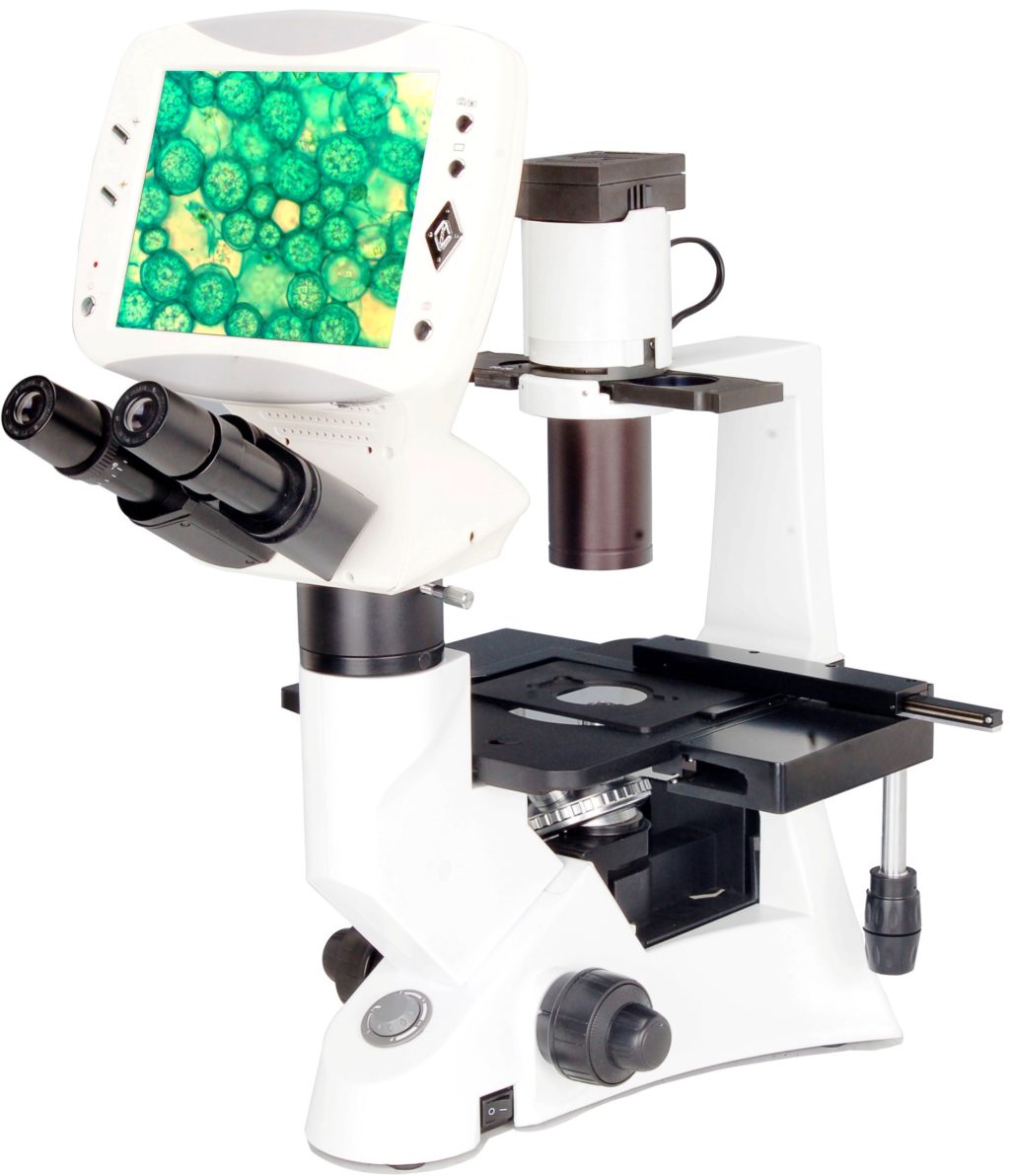

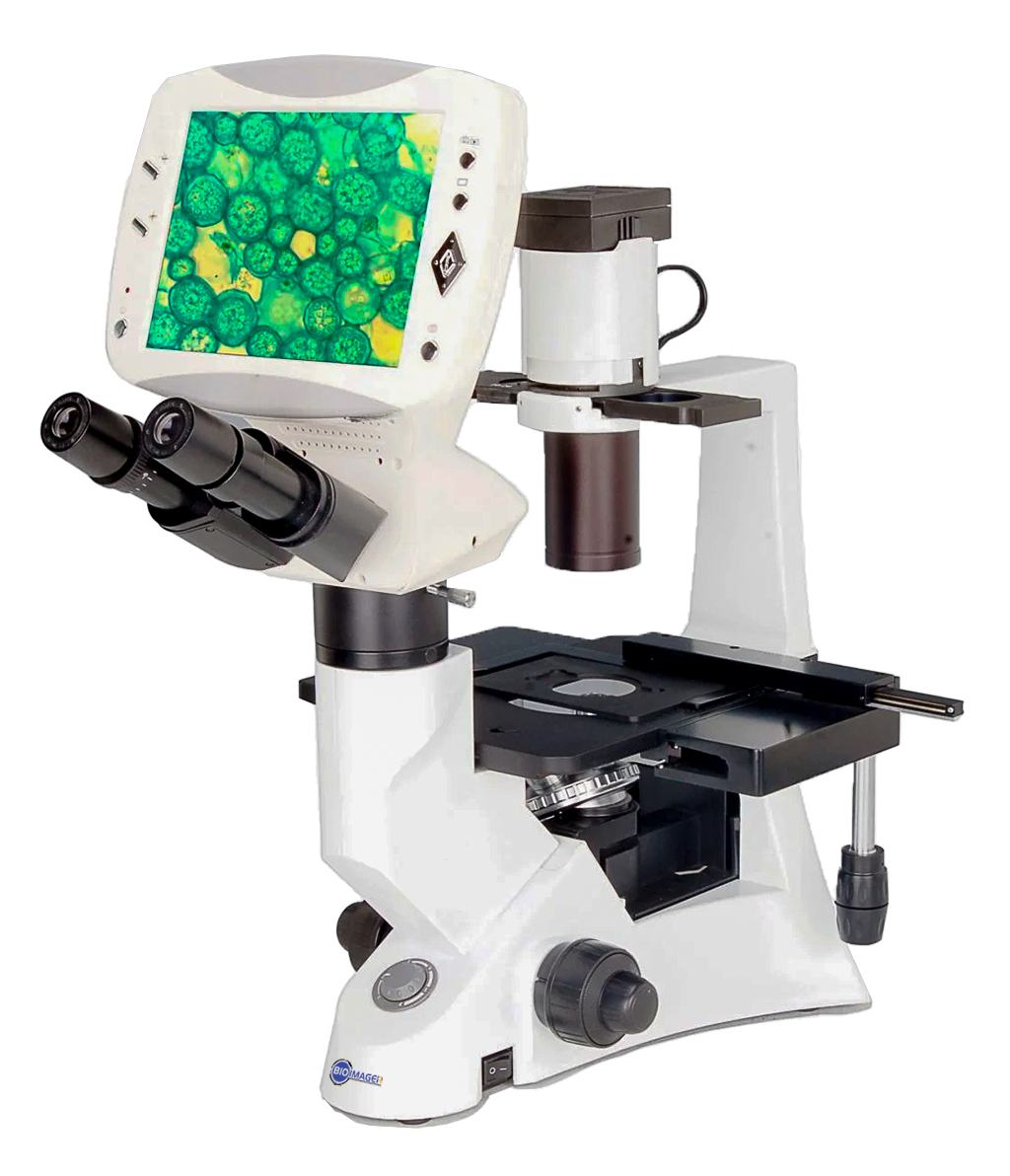

BIM500L Digital LCD Inverted Biological Microscope

Availability:

In stock


  • 9 Inches HD LCD Screen, Resolution is 1280×800
  • Pixel: 5 Mega Pixel
  • Compensation Free Binocular Head, Inclined at 30°, Interpupillary Distance 48-75mm
  • High-point, Extra Wide Field Eyepiece EW10×/ 22
  • LWD Infinite Plan Objective 4×/ 0.1,WD 18mm, 40×/ 0.6,WD 2.6mm, Infinite Plan Phase Objective PH10×/ 0.25,WD 10 mm, PH20×/ 0.4,WD 5.1mm

$3,588.00 $3,999.00

In stock

BIM-500L Digital LCD Inverted Biological Microscope


Introduction

This microscope is a high level microscope which is specially designed for medical and health units, universities, research institutes to observe cultured living cells. It adopts an Infinite optical system, reasonable structure and ergonomic design. With an innovative optical and structure design idea, excellent optical performance and easy to operate system, this inverted biological microscope makes your works enjoyable. It has a trinocular head, so digital camera or digital eyepiece can be add to the trinocular head take photos and videos.

Features

1. Excellent optical function with infinitive optical system.

2. Innovative stand structure, sharp image display, convenient and special for viewing incubating cell tissue.



binocular/BS-2090_f1.jpg

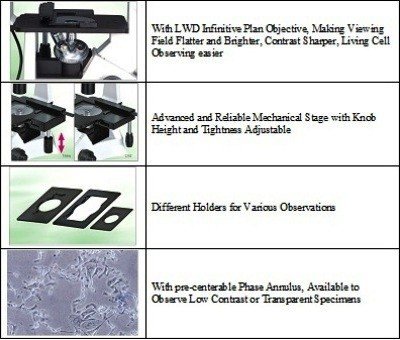

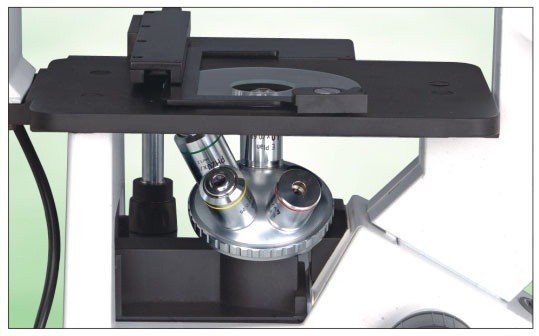

With LWD Infinitive Plan Objective, Making Viewing Field Flatter and Brighter, Contrast Sharper, Living Cell Observing easier

binocular/BS-2090_f2.jpg

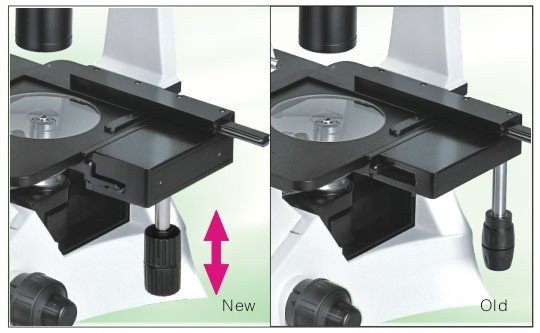

Advanced and Reliable Mechanical Stage with Knob Height and Tightness Adjustable

binocular/BS-2090_f3.jpg

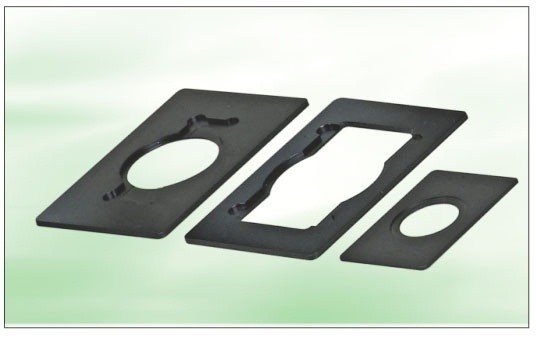

Different Holders for Various Observations

binocular/BS-2090_f4.jpg

With pre-centerable Phase Annulus, Available to Observe Low Contrast or Transparent Specimens

Applications

BIM500 Inverted microscope is used by medical and health units, universities, research institutes for observations of micro-organisms, cells, bacteria and tissue cultivation. It can be used for continuous observation of process of cells, bacteria grow and divide in the culture medium. Videos and images can be taken during the process. This microscope is widely used in cytology, parasitology, oncology, immunology, genetic engineering, industrial microbiology, botany and other fields.



1. Main Body

binocular/BS-2090.jpg

2. Optical System

binocular/BS-2090_f1.jpg
Ask us how to add or swap with Japanese objective lenses and save lots of money (2.5x, 4x, 10x, 20x, 40x (dry or oil), 50x(oil), 60x (dry), 100x (oil)).

binocular/BIM200-07.jpgbinocular/BIM200-08.jpg
Bright Field ObjectivesPhase Contrast Objective

3. Mechanical XY Stage

Attachable Mechanical Stage, X-Y Coaxial Control,Moving Rang120mm×78mm

binocular/bim500-02.jpg

binocular/BIM200-13.jpg binocular/BIM200-12.jpg  binocular/BIM200-11.jpg
 35mm Culture Dish Holder

 54mm Culture Dish Holder

& Glass slide holder

 65mm Culture Dish Holder

& Terasaki Holder

4. Observation Tube



 binocular/BIM200-05.jpgbinocular/BIM200-04.jpg
0.5X C-Mount1X C-Mount

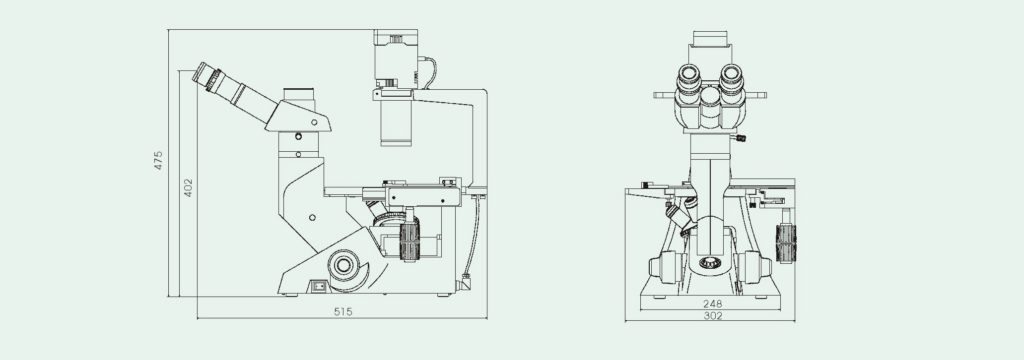

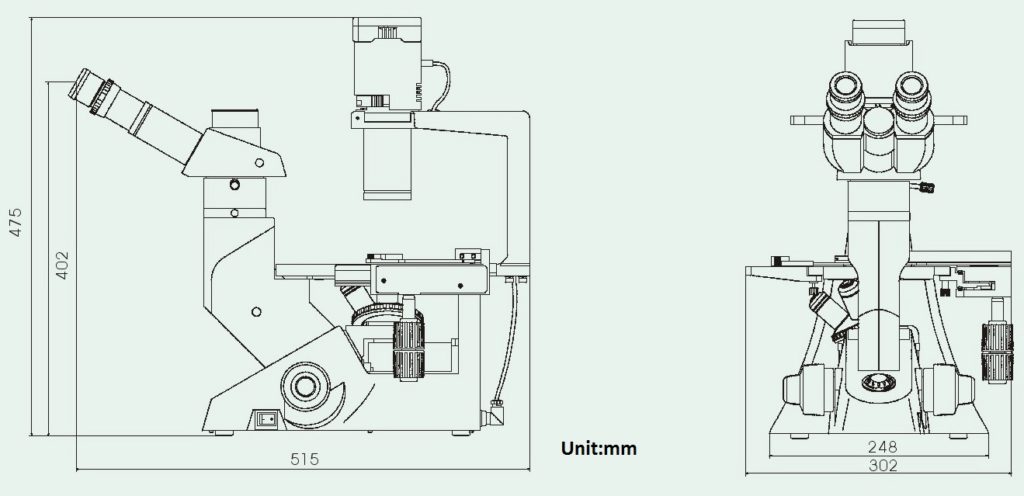

5. Dimension



binocular/bs-2090_dim2.jpg

Size (in mm)







Digital Parts

Pixel

5 Mega Pixel

Photo Resolution

2560X1920-1600X1200

Video Resolution

1280 x 800

Sensor Size

1/2.5 Inches

LCD Screen

9 Inches HD, Resolution is 1280X 800

Video Output

AV Output (NTSC/PAL)

Data Output

USB 2.0

Menu Language

Chinese / English

Storage

SD Card Slot with Optional Memory Cards (Maximal Storage Capacity is 4 GB)

Scene Mode

Standard / Softness / Vivid

Exposure Mode

Auto Exposure

Optical Parts

Viewing Head

Compensation Free Binocular Head, Inclined at 30°, Interpupillary Distance 48-75mm

Eyepiece

High-point, Extra Wide Field Eyepiece EW10×/ 22

Objective

LWD Infinite Plan Objective

4×/ 0.1,WD 18mm

40×/ 0.6,WD 2.6mm

Infinite Plan Phase Objective

PH10×/ 0.25,WD 10 mm

PH20×/ 0.4,WD 5.1mm

Nosepiece

Quintuple Nosepiece

Condenser

ELWD Condenser NA 0.3, LWD 72mm (Without Condenser 150mm)

Annulus

10×-20×, 40× Phase Annulus Plate

Stage

Plain Stage 160×250mm

Glass Insert

Auxiliary Stages 70×180mm

Focusing

Coaxial Coarse and Fine Adjustment, Vertical Objective Movement;Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation

Illumination

Halogen Lamp 6V/ 30W

Filter

Diameter 45mm, Blue, Green and Ground Glass

Optional Parts

Objective

LWD Infinite Plan Objective

10×/ 0.25, WD 10mm

20×/ 0.4, WD 5.1mm

Infinite Plan Phase Objective

PH40×/ 0.65, WD 0.35mm

Centering

Centering Telescope (Φ30MM)

Phase Annulus

10×-20×, 40× Phase Annulus Plate

Stage

Attachable Mechanical Stage, X-Y Coaxial Control,Moving Rang 120×78mm

Terasaki Holder

Φ38mm Petri Dish Holder

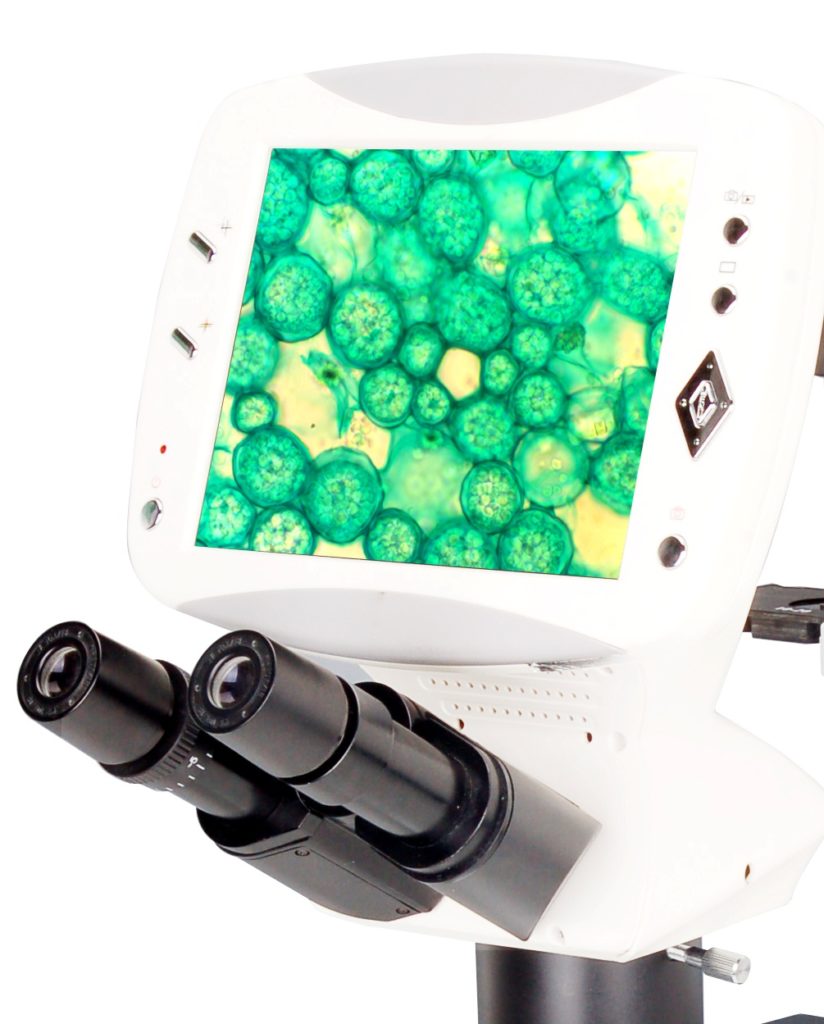

9" HD LCD with 1280×800 resolution & Built-in 5MP Camera

""

""

""""
