BIM500R Inverted Biological Microscope with Retina Display

Availability:

In stock


  • 11.7-inch Full HD Retina screen, high definition and true natural colors, easy for people to share.
  • Built-in 6 megapixel digital camera, image data can be easily stored on the SD card without external computers, can improve the efficiency of research and analysis.
  • Built-in software mouse-control and advanced sofwtae to control the camera via USB.
  • Compensation Free Trinocular Head, Inclined at 30°, Interpupillary Distance 48-75mm
  • High-point, Extra Wide Field Eyepiece EW10×/ 22
  • LWD Infinite Plan Objective 4×/ 0.1,WD 18mm, 40×/ 0.6,WD 2.6mm, Infinite Plan Phase Objective PH10×/ 0.25,WD 10 mm, PH20×/ 0.4,WD 5.1mm

$3,388.00 $4,500.00

In stock

""

Features

  • Built-in 6 megapixel digital camera, image data can be easily stored on the SD card without external computers, can improve the efficiency of research and analysis.
  • 11.7-inch Full HD Retina screen, high definition and true natural colors, easy for people to share.
  •  Large storage capacity, with SD card, print pictures instantly without being connected to PC.

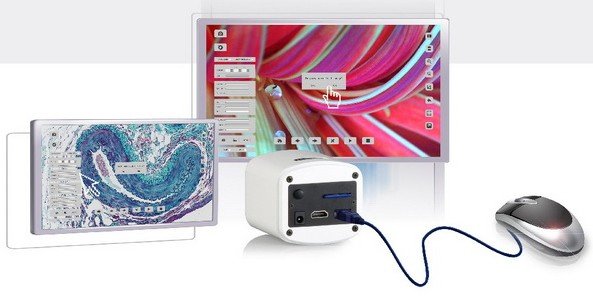

  • Built-in software mouse-control and advanced sofwtae to control the camera via USB.
  • 4x BF, 10x Ph, 20x Ph, 40x lenses

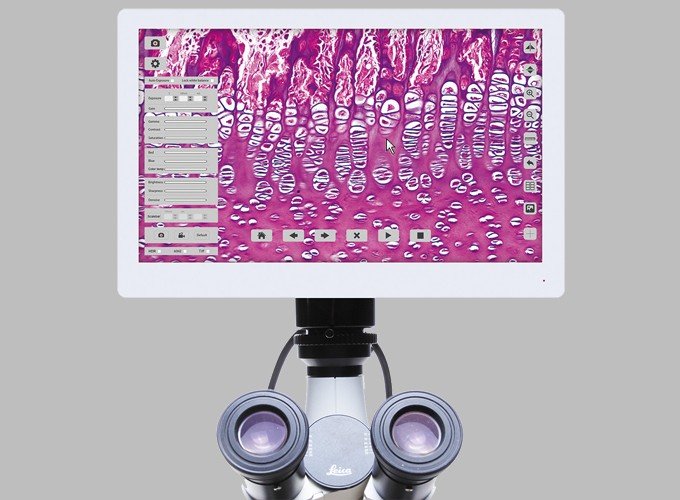

 BIM500R Inverted Biological Microscope with Retina Display Camera



Features

  • Built-in 6 megapixel digital camera, image data can be easily stored on the SD card without external computers, can improve the efficiency of research and analysis.
  • 11.7-inch Full HD Retina screen, high definition and true natural colors, easy for people to share.
  •  Large storage capacity, with SD card, print pictures instantly without being connected to PC.
  • Built-in software mouse-control and advanced sofwtae to control the camera via USB.
  • 4x BF, 10x Ph, 20x Ph, 40x lenses

Specifications

Sensor

IMX236

Sensor size

1/2.7″ (assemble with Exfocus05 to 80% field of view)

Live Resolution

1920×1080

Resolution

2MP Effective pixels; via USB

6MP with pixel shifting; via HDMI, USB, SD card

File format

HDMI mode: JPG, AVI USB mode: JPG, AVI, TIF, PNG.

Magnification rate

1X~10X

Frame speed

1920×1080 30fps via USB2.0 HDMI

1920×1080 60fps via USB2.0 HDMI

Image Record Video Record

High speed SD Card (8 GB)

1080p 30fps in SD Card

1080p 30fps in PC

Exposure time

0.001 sec ~ 10.0 sec

White balance

Auto

Settings

Gain, Gamma, Saturation, Contraction

Built- in software

Cloud 1.0 ver

PC software

iSCapture (for Mac and )

Output model 1

USB2.0

Output model 2

HDMI

System Compatible

Windows XP, 7/8; 32/64bit,

MAC OSX

Optical Parts

Viewing Head

Seidentopf Binocular Head, Inclined at 30°, Interpupillary Distance 48-75mm

Eyepiece

High-point, Extra Wide Field Eyepiece EW10×/ 22

Objective

LWD Infinite Plan Objective

4×/ 0.1,WD 18mm

40×/ 0.6,WD 2.6mm

Infinite Plan Phase Objective

PH10×/ 0.25,WD 10 mm

PH20×/ 0.4,WD 5.1mm

Nosepiece

Quintuple Nosepiece

Condenser

ELWD Condenser NA 0.3, LWD 72mm (Without Condenser 150mm)

Annulus

10×-20×, 40× Phase Annulus Plate

Stage

Plain Stage 160×250mm

Glass Insert

Auxiliary Stages 70×180mm

Focusing

Coaxial Coarse and Fine Adjustment, Vertical Objective Movement;Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation

Illumination

Halogen Lamp 6V/ 30W

Filter

Diameter 45mm, Blue, Green and Ground Glass

Optional Parts

Objective

LWD Infinite Plan Objective

10×/ 0.25, WD 10mm

20×/ 0.4, WD 5.1mm

Infinite Plan Phase Objective

PH40×/ 0.65, WD 0.35mm

Centering

Centering Telescope (Φ30MM)

Phase Annulus

10×-20×, 40× Phase Annulus Plate

Stage

Attachable Mechanical Stage, X-Y Coaxial Control, Moving Rang 120×78mm

Terasaki Holder

Φ38mm Petri Dish Holder
