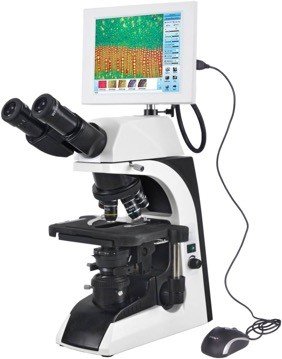

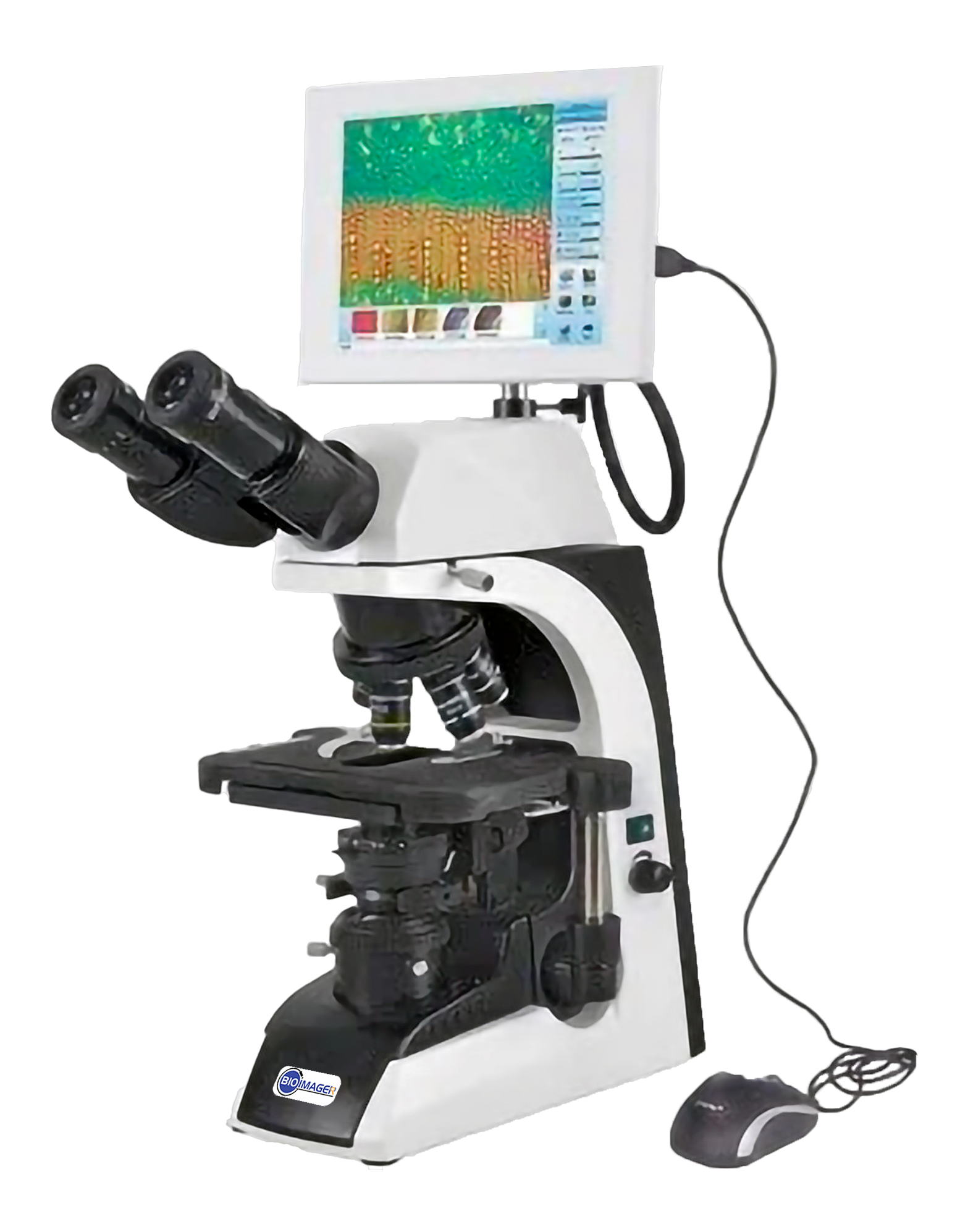

BUM270L Digital LCD Upright Biological Microscope
BUM270L LCD digital microscope is a wholly new generation microscope system that has an embedded system. With an 8.4” TFT screen, it works like a computer. You can take photos, take videos and make measurement on the machine. With W-LAN and LAN function, you can directly connect the microscope in to the Internet. Then you can transfer the images and videos to remote places. With friendly man-machine interface, powerful processing function (real-time preview, dynamic calibrating and measurement), multiple peripheral interfaces, easy to operate and comfortable mechanical design, it is your best assistant in teaching, electronic inspection, biological and medical research!
1. The BUM270 LCD digital microscope is a new generation microscope that with an embedded operation system WinCE 5.0, it can link mouse or keyboard, just like a mini-computer.

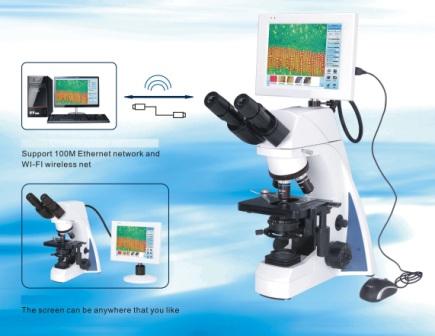

2. It supports 100M Ethernet network, WI-FI wireless net and can communicate with remote PC.
3. With 8.4 Inch TFT touching screen, friendly man-machine interface, multiple peripheral interfaces and powerful processing function, make it very easy to operate.
4. It can be used in various optical micro fields, such as teaching, biological and medical researching, electronic components inspection and so on.

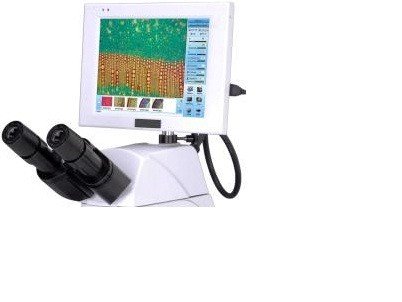

5. The screen can be separated from the microscope and placed anywhere you like.
With LCD Screen and data remote transfer function, this wonderful LCD digital microscope BUM270L can be used in high-level laboratories and universities for teaching, biological and medical research, it also can be used for electronics, circuit board and other industrial inspection.
|Optical System||Infinite Optical System||●|
|Digital part||2.0 Mega Pixels CMOS Sensor||●|
|W-LAN and LAN function||●|
|Viewing Head||Seidentopf Binocular Head, 30° inclined, 360° Rotatable, Interpupillary 48-75mm||●|
|Objective||Infinite Plan Achromatic Objective 4×, 10×, 40×, 100×||●|
|Infinite Plan Achromatic Objective 20×, 60×||○|
|Nosepiece||Backward Quadruple Nosepiece||●|
|Backward Quintuple Nosepiece||○|
|Stage||Double Layers Mechanical Stage 216mm×150mm/ 78mm×54mm||●|
|Condenser||Abbe Condenser NA1.25 with Aperture Diaphragm||●|
|Focusing||Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 22mm||●|
|Illumination||LED Illumination, Brightness Adjustable||●|
|12V/20W Halogen Lamp Illumination, Brightness Adjustable||○|
|LCD Screen||8.4 Inch TFT Touching screen||●|
|Output||USB2.0, AV and VGA Output, 100M Ethernet interface||●|
|System||Windows CE 5.0||●|
|Software||NMS (microscope software) & NMS Client(computer software)||●|
|SD Card||Expandable to Max 2GB Kinston SD Card||○|
Note: ● Standard Outfit, ○ Optional
