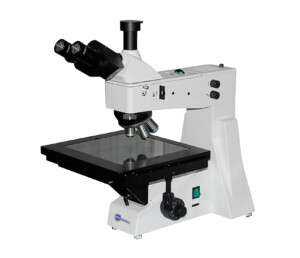

BMU200200 Metallurgical Microscope with 200x200mm XY Stage

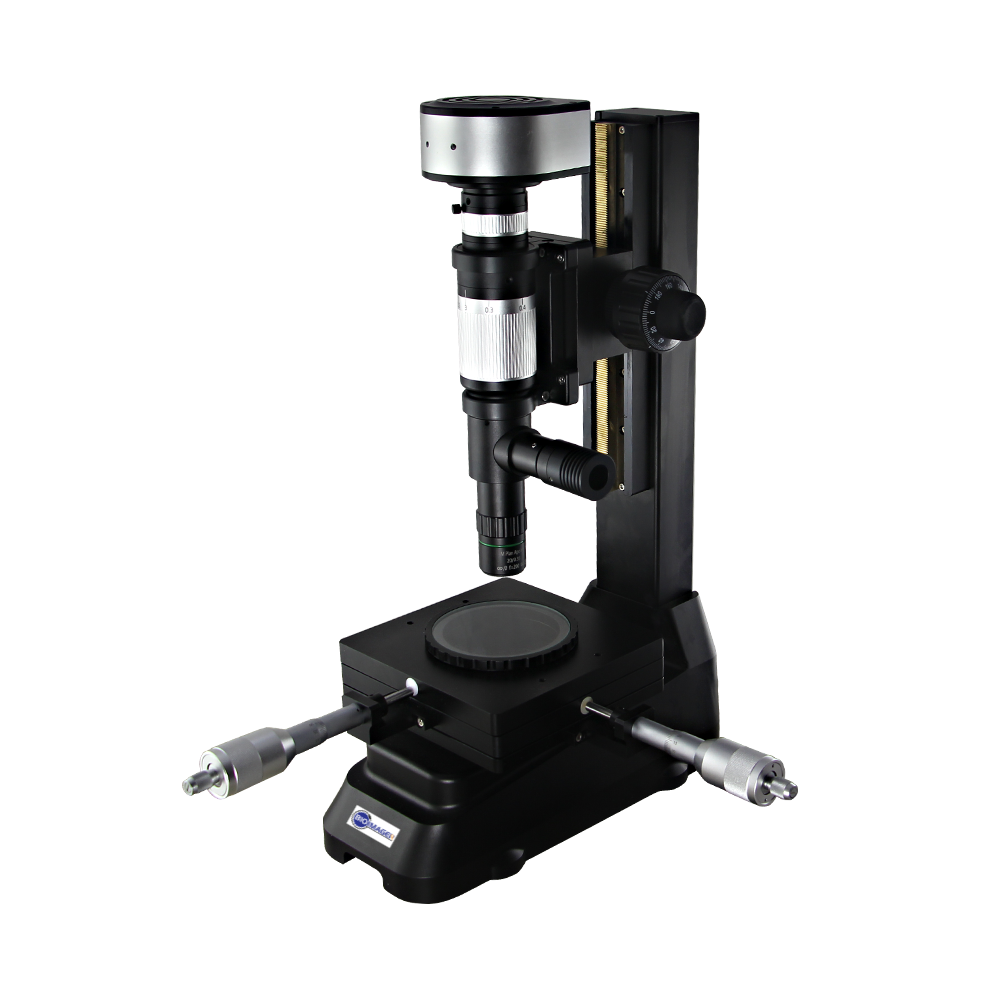

BVM300M Video Microscope with Measuring Tools
BMI250 Inverted Metallurgical Microscope with Darkfield Imaging
Original price was: $USD 8,000.00.$USD 3,995.00Current price is: $USD 3,995.00.
-50%- Inverted Metallurgical Microscope
- Reflected illumination and optional transmitted
- Brightfield, darkfield imaging and optional polarization
- Objective lenses: 5x, 10x, 20x, 50x and optional 2x, 25x, 40x, 60x, 80x and 100x
- Side Video Port
- Compact Design
- Fits inside an incubator

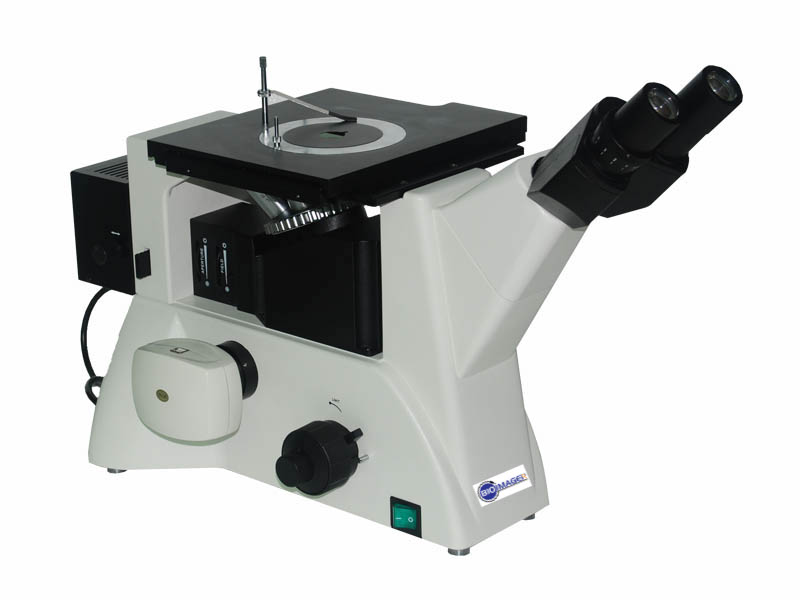

BMI250 Inverted Metallurgical Microscope with Darkfield Imaging
BMI250 Inverted Metallurgical Microscope with Darkfield Imaging

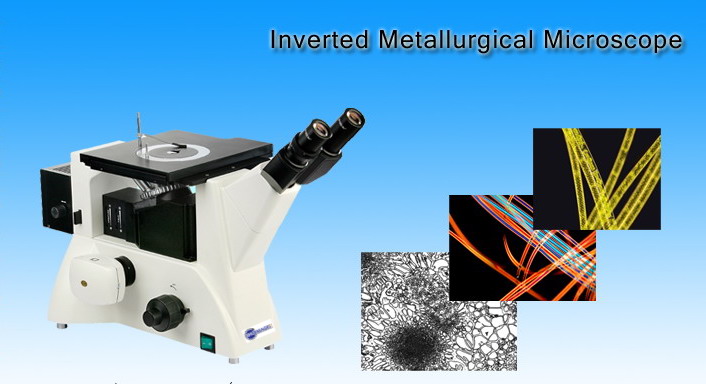

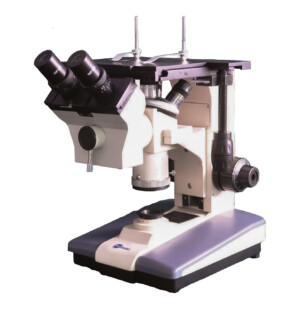

The BMI200 Inverted metallurgical microscope incorporates an outstanding UIS optical system and a modular design, allowing for convenient system updates and enabling polarization and dark field observation. Its compact and stable main frame body demonstrates excellent shock resistance. The unit’s ergonomic design ensures ease of operation and provides a spacious working area. This optical instrument is perfect for observing microstructures and surface morphology in metallography. It is well-suited for research applications in fields such as mineralogy, precision engineering, and metallography.
|

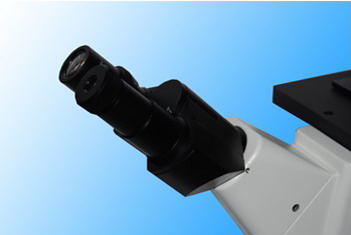

Binocular Viewing HeadEyepieces: Wide field WF10X (field number:Φ22mm) Optional: reticle |
|

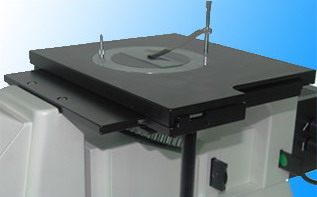

Mechanical stageOverall size: 242mm x 200mm Moving range : 30mmX30mm Rotundity and rotatable stage size: maximal measurement is Ф130mm and minimal clear aperture is less then Ф20mm. |
|

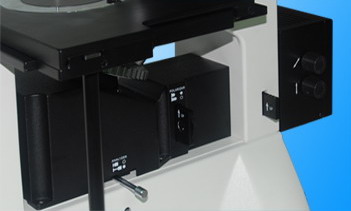

IlluminationFor BF imaging: 12V30W halogen with adjustable brightness For darkfield imaging: 12V50W halogen and brightness enable control Optional: 100W Halogen or its equal LED Possible optionally add a transmitted light like this. |
|

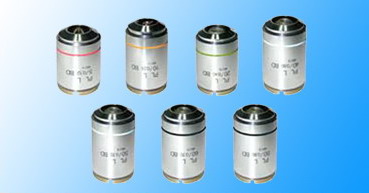

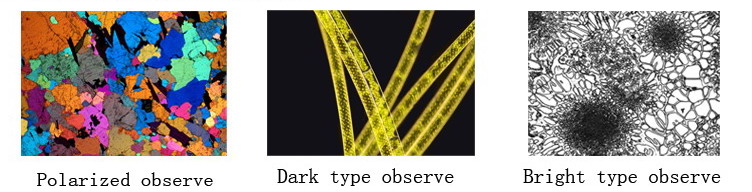

Brightfeild and Darkfield Imaging Objective LensesBrightfeid: 10x, 20x, 50x, 100x and optional: 2x, 5x, 25x, 40x, 60x, 80x Darkfield:5x, 10x, 20x, 50x BD and optional 40x, 60x, 80x and 100x BD |
|

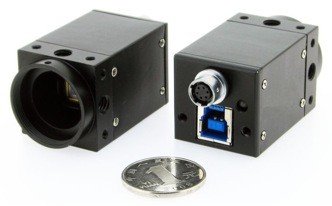

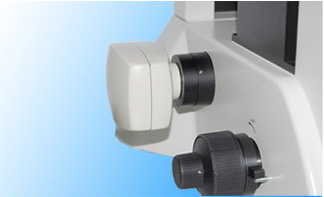

Side Video PortPlenty of cameras are available Requires a C-mount adapter to connect a camera to the microscope mechanically and optically. |
Technical Specifications
| Specification | ||
| Eyepiece | Wide field WF10X(field number:Φ22mm) | |
| Objective | XJL-20
Equipped with bright field objectives |
PL L10X/0.25 (Work distance)：5 mm |
| PL L20X/0.40 (Work distance)：8.80 mm | ||
| PL L50X/0.70 (Work distance)：3.68 mm | ||
| PL L100X/0.85（Dry） (Work distance)：0.40 mm | ||
| XJL-20BD
Equipped with bright & dark field objectives |
PL L5X/0.12 BD (Work distance)：8.05mm | |
| PL L10X/0.25 BD (Work distance)：7.86 mm | ||
| PL L20X/0.40 BD (Work distance)：7.23mm | ||
| PL L50X/0.70 BD (Work distance)：1.75mm | ||
| Eyepiece tube | Inclination angle is 45˚ and interpupillary distance is 53~75mm. | |
| Focus system | Coaxial coarse/fine focus, with tension adjustable，minimum division of fine focusing is 2μm. | |
| Nosepiece | Quintuple (Backward ball bearing inner locating) | |
| Stage | Mechanical stage overall size: 242mmX200mm and moving range : 30mmX30mm. | |
| Rotundity and rotatable stage size: maximal measurement is Ф130mm and minimal clear aperture is less then Ф20mm. | ||
| Illumination system | 12V30W halogen and brightness enable control., use in XJL-20 | |
| 12V50W halogen and brightness enable control., use in XJL-20BD | ||
| Integrated field diaphragm , aperture diaphragm and puller type polarizer. | ||
| Equipped with frosted glass and yellow ,green and blue filters | ||

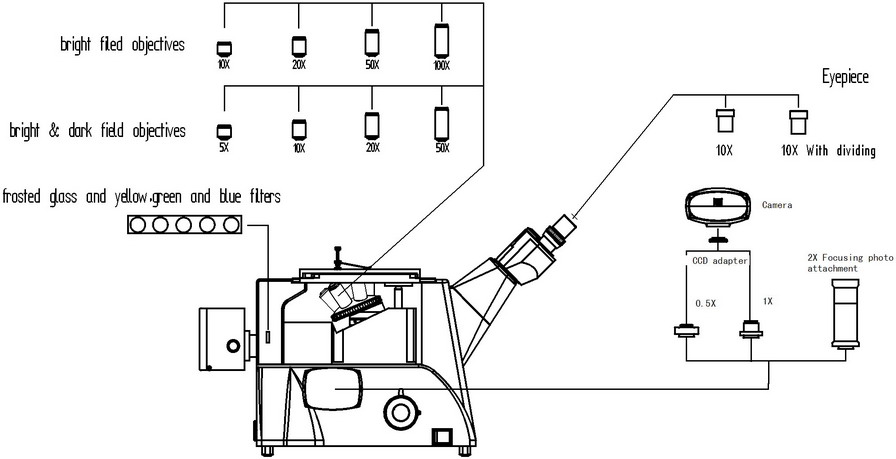

Optional accessories
| Name | Sort/Technique parameter | NO. | |
| Eyepiece | Dividing eyepiece(Φ22mm) | BMI25-RTC | |
| Objective | PL L5X/0.12 (Work distance)：26.1 mm | Equipped with bright field objectives | BMI25-5xBF |
| PL L40X/0.60 (Work distance)：3.98 mm | BMI25-40xBF | ||
| PL L60X/0.75 (Work distance)：2.03mm | BMI25-60xBF | ||
| PL L80X/0.80 (Work distance)：1.25 mm | BMI25-80xBF | ||
| PL L40X/0.60 BD (Work distance)：3.00 mm | Equipped with bright & dark field objectives | BMI25-40xBD | |
| PL L60X/0.7 BD (Work distance)：1.65mm | BMI25-60xBD | ||
| PL L80X/0.80 BD (Work distance)：0.80mm | BMI25-80xBD | ||
| PL L100X/0.85 BD (Work distance)：0.4 mm | BMI25-100xBD | ||
| CCD Adapter | 0.5X | BMI25-0.5xCA | |
| 1X | BMI25-1.0xCA | ||
| 0.5X with dividing 0.1mm/Div | BMI25-0.5xCAD | ||
| Digital camera adapter | CANON(EF) NIKON( F) | BMI25-DSLR-X | |

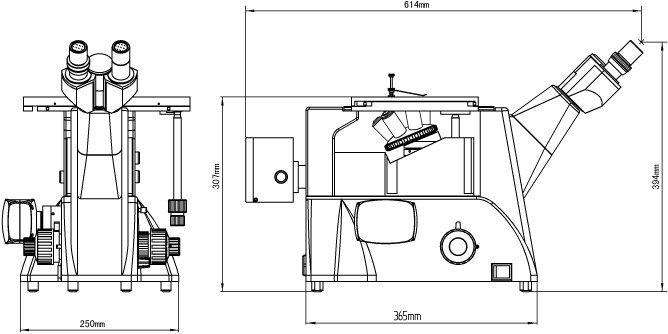

Dimensions
