Save $400

BRC-6012 Retina Display Camera: 11.6 Retina with 6MP True Color Camera

Availability:

In stock


Compare
  • 11.6″ Retina Display + 6MP Built-in Camera
  • True-Color Camera, Full HD
  • Built-in Mouse-Control Software and external software to use with a PC/Mac
  • High-speed  live imaging and recording (30 fps USB, 60 FPS HDMI)
  • Fluorescence imaging capability

In stock

$1,599.00 $1,999.00

11.6″ Retina Display + 6MP Built-in Camera



  • 11.6″ Retina Display + 6MP Built-in Camera
  • True-Color Camera, Full HD
  • Built-in Mouse-Control Software and external software to use with a PC/Mac
  • High-speed  live imaging and recording (30 fps USB, 60 FPS HDMI)
  • Fluorescence imaging capability
  •  Less icons
  • Built-in measurement function

BRC-6012 True Color Retina Display Camera

Retina Display Camera for any microscope

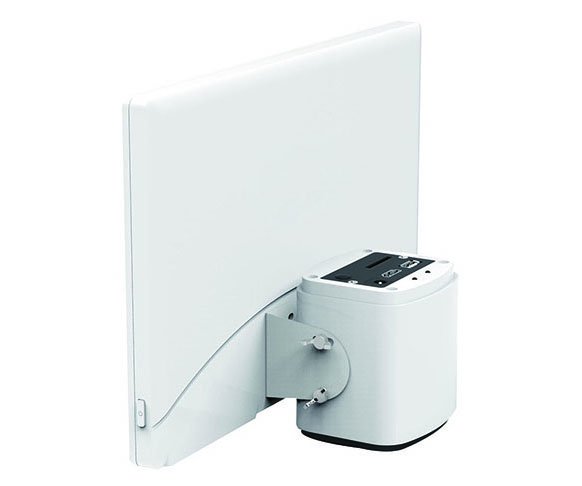

Compact Design, Well Engineered

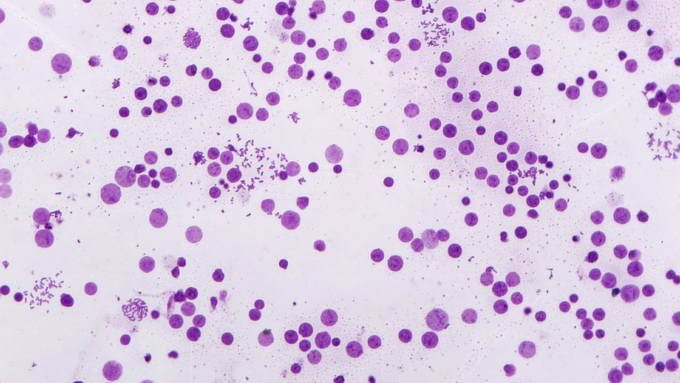

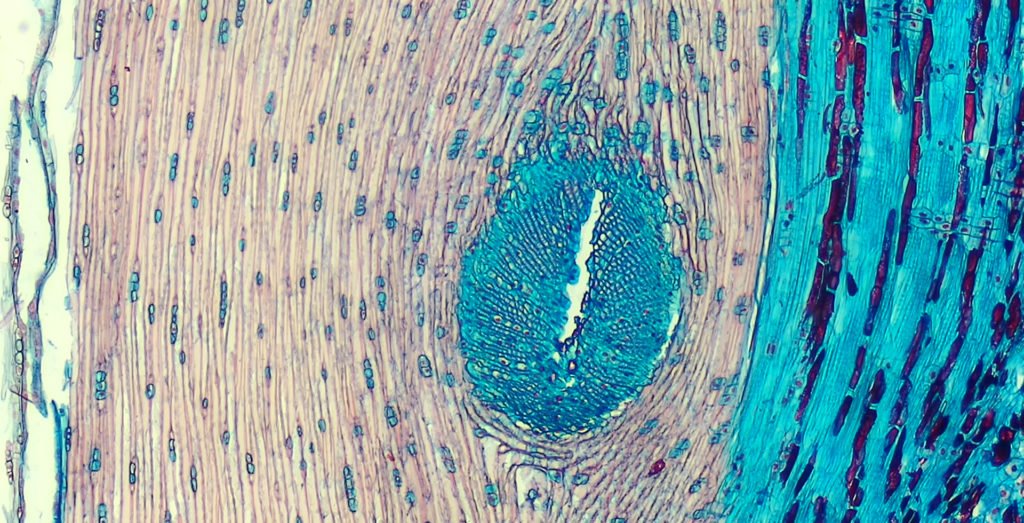

True Color Camera

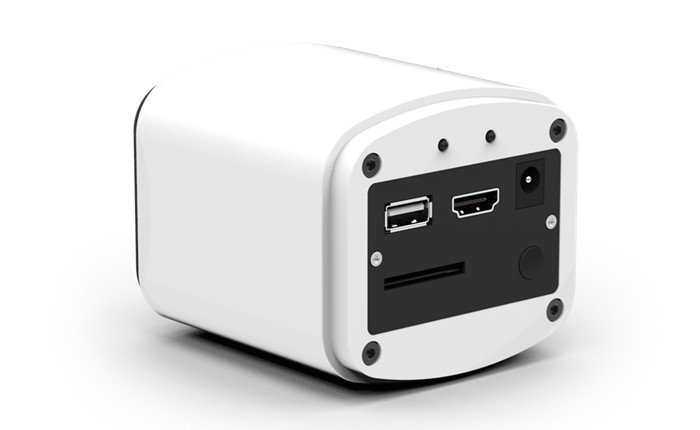

Amazing color fidelity offers a real solution for high definition scientific color imaging.The camera has standard USB 2.0 port and HDMI ports.

Users can capture images directly on a SD card and connect it to a monitor.

This is a perfect solution for life science, material science and clinical labs where a natural and true color is matter.



Natural Color Display

Retina display is what you may have experienced in an iPhone or other recent products of Apple, with higher pixel density in a way that a person is unable to discern individual pixels.

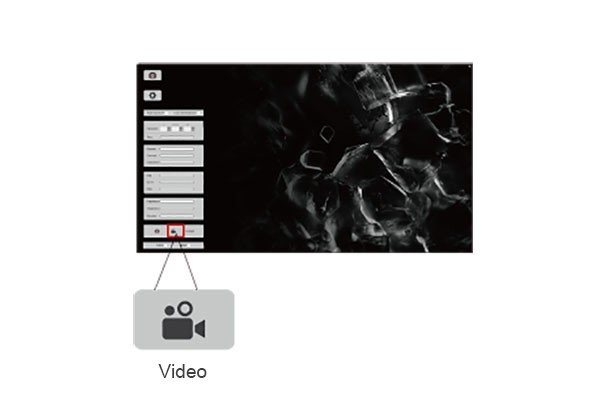

High Speed Live Imaging: 30 fps

Record high definition videos at 30 frames per second  / 1080p into the inserted SD card directly.

HDMI Fluorescence Imaging Capability

Taking the advantage of high S/N sensor allows you to set up to 10 seconds exposure time.

Incredibly efficient 3D noise reduction performance delivers finest detailed images for low light fluorescence.

Technical Specifications

MonitorActive display Area: 11.6 inch; 258mm(W) × 145mm(H)

HDMI Port

Resolution: 1920 x 1080

Pixel Pitch: 0.134(W) X 0.134(H) mm

Contrast: 1000:1

Color: 16.7 Million

Brightness: 350 cd/ sq.m ;400cd sq.m / Optional

View Angle: IPS Full View

Dimension: 281(L)*179(H)*15.6(W) mm

Weight: 400g

Camera SensorIMX236
Sensor size1/2.7″
Live Resolution1920×1080
Effective pixels6MP (3264×1840), 2MP (1920×1080)
File formatHDMI mode: JPG, AVI, USB mode: JPG, AVI, TIF, PNG.
Digital Magnification ratio1X-10X
Frame speed1920×1080 30fps via USB2.0

HDMI 1920×1080 60fps via USB2.0 HDMI

Image / Video RecordHigh speed SD Card (8 GB) 1080p 30fps in SD Card 1080p 30fps in PC
Exposure time0.001 sec ~ 1.0 sec
White balanceAuto /Manual
SettingsWhite-balance, Gain, Gamma, Saturation, Contrast
Software1)    Built- in software: Cloud 1.0 ver

2)    External software

OutputsUSB 2.0 and HDMI
System CompatibleWindows XP, 7 / 8 / 10; 32 / 64-bit, MAC OS X
ModelBRC-6012BRC-6012M (Plus)
HDMI CameraImage SensorCMOS, Sony IMX236CMOS, Sony IMX236
Chip Size1/2.8″1/2.8″
Video Resolution1920 × 10801920 × 1080
Captured Image Resolution3264 × 1836 on SD card to LCD monitor,

1920 × 1080 and 3264 × 1836 with software to PC

3264 × 1836 on SD card to LCD monitor,

1920 × 1080 and 3264 × 1836 with software to PC

Frame Rate1920 × 1080 30fps via USB2.0

1920 × 1080 60fps via HDMI

1920 × 1080 30fps via USB2.0

1920 × 1080 60fps via HDMI

Data RecordHigh speed SD Card (8G)High speed SD Card (8G)
Video Record1080p 30fps in SD Card

1080p 30fps in PC

1080p 30fps in SD Card

1080p 30fps in PC

Scan ModeProgressiveProgressive
Electronic ShutterElectronic Rolling ShutterElectronic Rolling Shutter
A/D conversion8 bit8 bit
Color Depth24bit24bit
Sensitivity510mV510mV
Dynamic Range68dB68dB
S/N ratio52dB52dB
Exposure time0.001 sec ~ 10.0 sec0.001 sec ~ 10.0 sec
ExposureAuto/ManualAuto/Manual
White balanceAutoAuto
SettingsGain,Gamma,Saturation,Contrast, scale bar functionGain,Gamma,Saturation,Contrast, scale bar function
Measurement Function when connected to LCD MonitorSimple measurement function, only lineComplete measurement function, including Anchor Point, Line, Freehand Line, Rectangle, Circle, Polygon, Point-line Distance, Concentric Circles, Bicircle, Angle etc.
PC softwareTCaptureTCapture
Output model 1USB2.0USB2.0
Output model 2HDMIHDMI
System CompatibleWindows XP, Vista, Win 7, Windows 8, Windows 10

(32 and 64-bit )

Windows XP, Vista, Win 7, Windows 8, Windows 10

(32 and 64-bit )

Optical portC- MountC- Mount
Power SupplyDC 12V /2ADC 12V /2A
Operational Temperature0-60°C0-60°C
Humidity45%-85%45%-85%
Storage Temperature-20-70°C-20-70°C
Retina ScreenScreen Size11.6 inch11.6 inch
Aspect Ratio16:916:9
Display Resolution1920 × 10801920 × 1080
Display TypeIPS-ProIPS-Pro
Brightness320cd/m2320cd/m2
Static Contrast Ratio1000:11000:1
Input1*HDMI Port1*HDMI Port
Power SupplyDC 12V /2A External AdapterDC 12V /2A External Adapter
Dimension282mm×180.5mm×15.3mm282mm×180.5mm×15.3mm
Net Weight600g600g

Possible Combinations

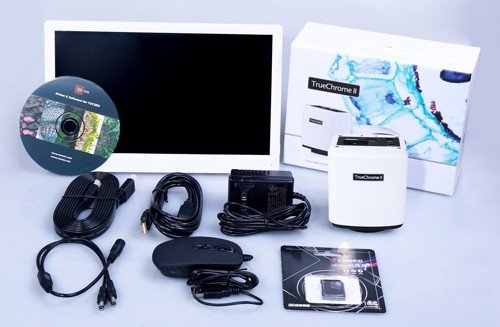

Package Contents
True Color 1/2.7″ HD Camera with built-in Cluod 1.0 software
11.6″ Retina Display
HDMI Cable
USB Cable
12V Power adapter
8GB SD Card
Mouse
software
Packing Box

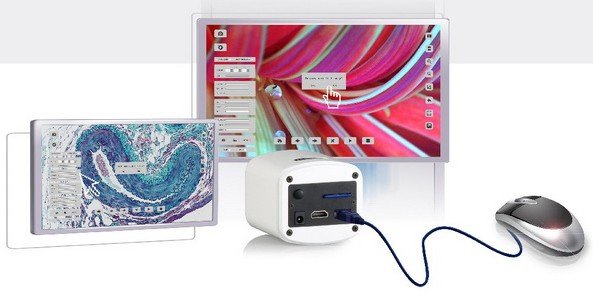

Built-in Mouse Control Software Camera

The significant innovation of this product is making the software implant inside the camera. This forward thinking feature frees users from cumbersome computers and annoying buttons.

You can simply control the camera by just a mouse.

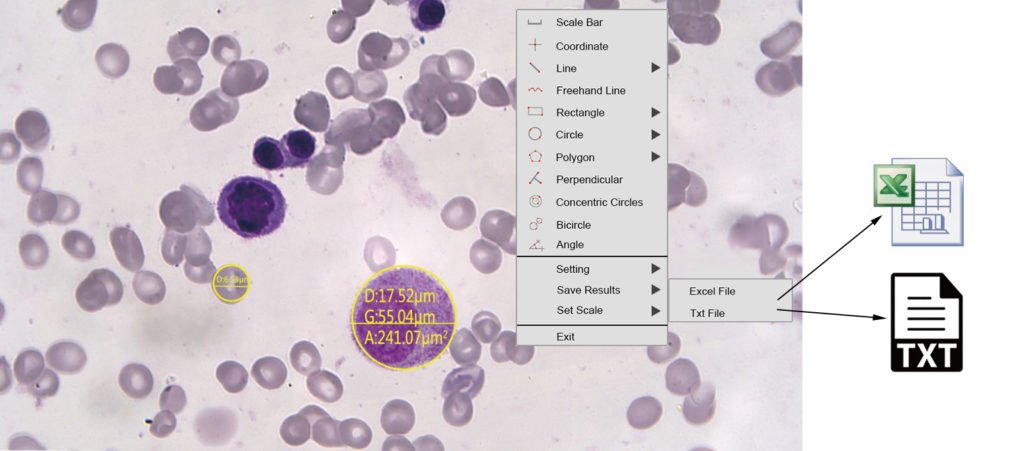

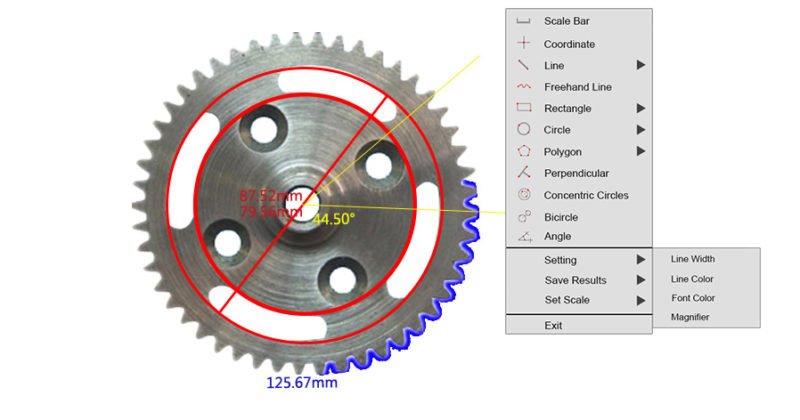

Measurement Function (Optional)

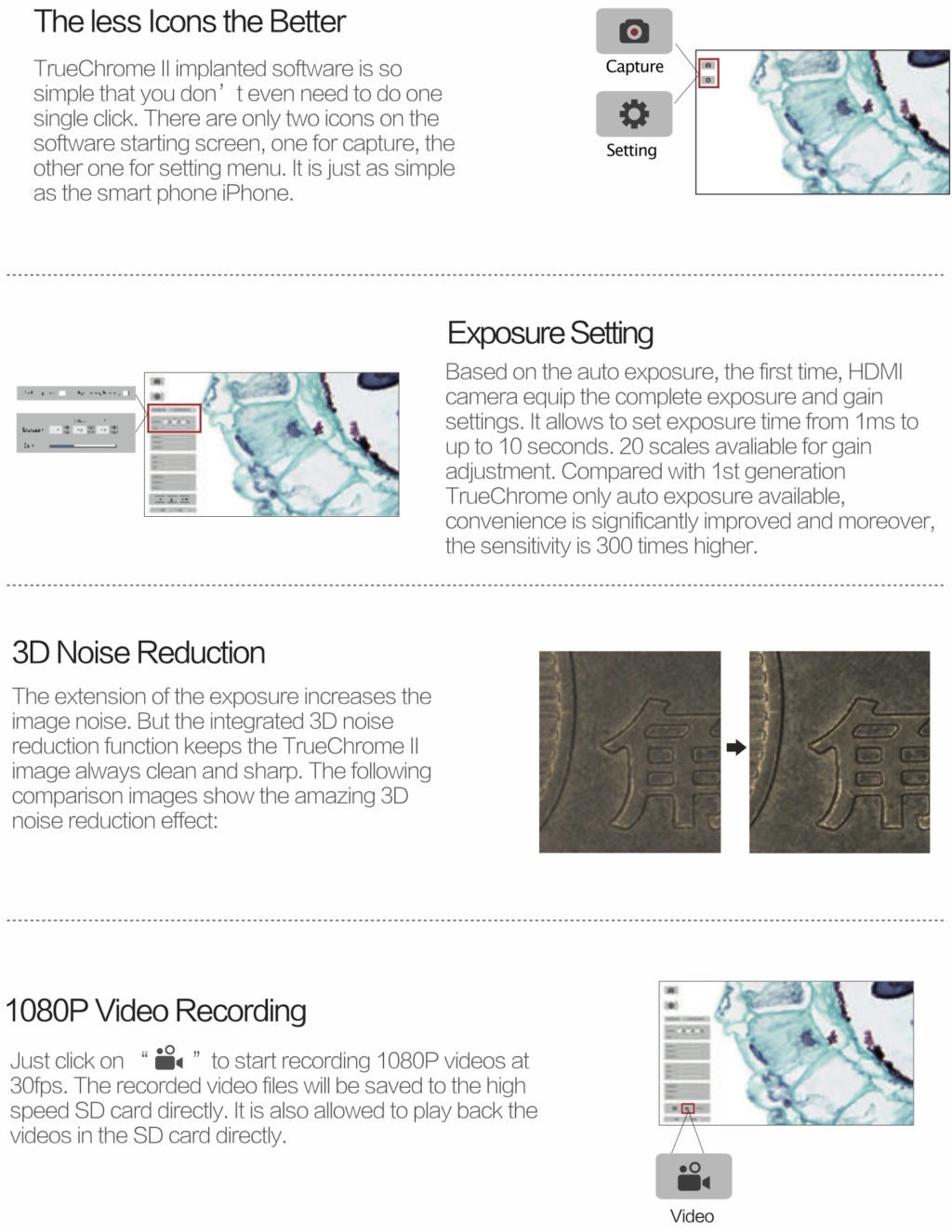

Smart Imaging Software

PC Imaging Software iS capture, a more powerful imaging software, is also offered free of charge with this camera.
It has image and video acquisition and analysis capabilities.



BRC-6012 Retina Display Camera: 11.6 Retina with 6MP True Color Camera
BRC-6012 Retina Display Camera: 11.6 Retina with 6MP True Color Camera

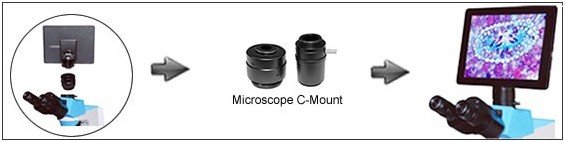

Video Tutorial on How to install the Retina Display Camera:
