BMU200200 Metallurgical Microscope with 200x200mm XY Stage

Original price was: $USD 20,000.00.Current price is: $USD 9,995.00.

Inverted metallurgical microscope
Large XY stage 204x204mm / 8x8in (and optional 154x154mm / 6in x6in)
Brightfield, darkfield, polarization and DIC Nomarski imaging modes
Reflected and transmitted lights
Much flexible design for upgrade while at reasonable price

Imaging Modes

Objective Lenses

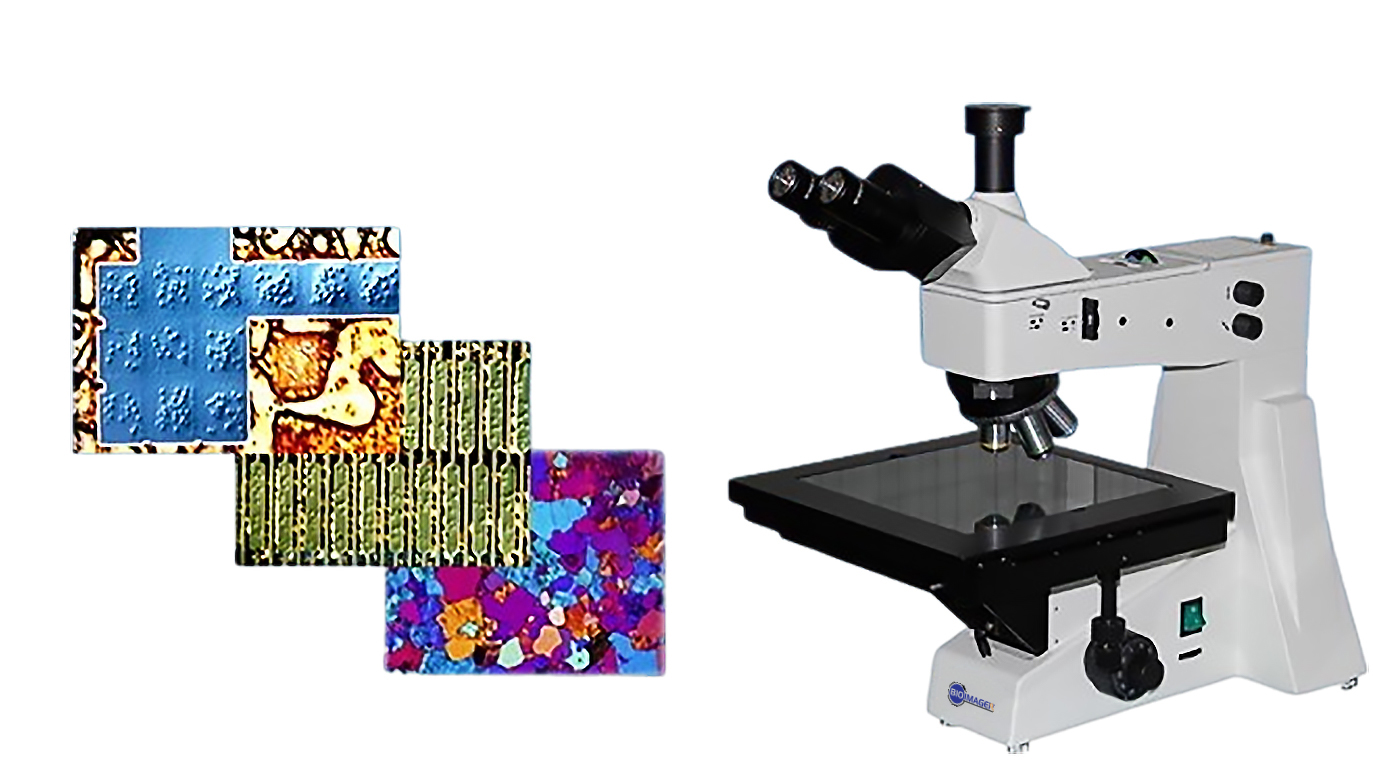

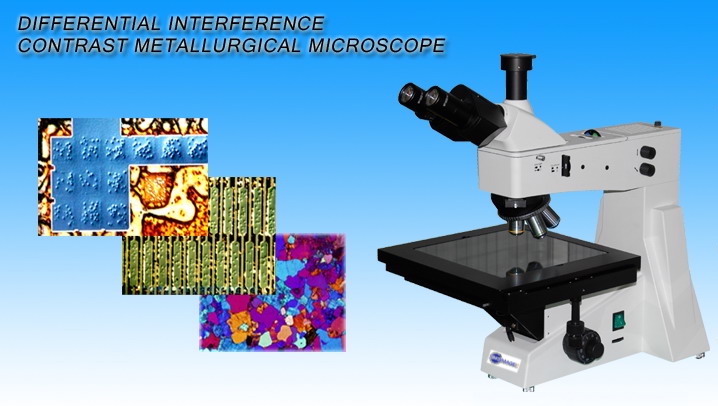

Introduction

The BMU200200 DIC (Differential Interference Contrast) microscope is a versatile instrument suitable for observing a wide range of objects. It is equipped with both a transmitted illuminator and a reflected DIC system, providing flexibility in observation techniques. The microscope features infinity plan achromatic objectives with long working distances, wide-field eyepieces, and a polarizer device, enabling high-quality imaging.

One of the key advantages of the BMU200200 DIC microscope is its ability to produce clear and three-dimensional images, revealing fine details and enhancing the visualization of object surfaces. The microscope offers beautiful sculpt-like imaging and provides convenient control for precise observations.

Due to its versatile capabilities, the BMU200200 DIC microscope finds applications in various research fields, including biology, metallography, mineralogy, precision engineering, electronics, and more. Its combination of advanced imaging features, adaptability to different samples, and suitability for diverse research areas makes it an ideal instrument for scientific investigations and studies.

Features

The inverted metallurgical microscope offers the following features:

Long working distance plan achromatic objectives without the need for a cover glass, ensuring clear and high-quality images. The wide-field eyepieces provide a wide view field for comprehensive observations.
The microscope is equipped with a large move range mechanical stage, offering a moving range of 8″ X 8″ (204mm X 204mm). This spacious stage allows for the positioning and examination of larger samples.
The coaxial coarse/fine focus system includes tension adjustment and an up stop mechanism. It provides precise control over focusing, with a minimum division of fine focusing at 0.8μm, enabling fine details to be brought into sharp focus.
The microscope is equipped with a 6V 30W halogen lamp with adjustable brightness. This lighting system ensures proper illumination for optimal sample visualization and analysis.
The trinocular configuration allows for versatile observation modes. Users can switch between normal and polarized observation, as well as brightfield and darkfield observation, offering flexibility for different sample types and imaging techniques. Additionally, the microscope provides the option to send 100% of the light either to the binocular eyepieces or to the top port for camera or imaging purposes.

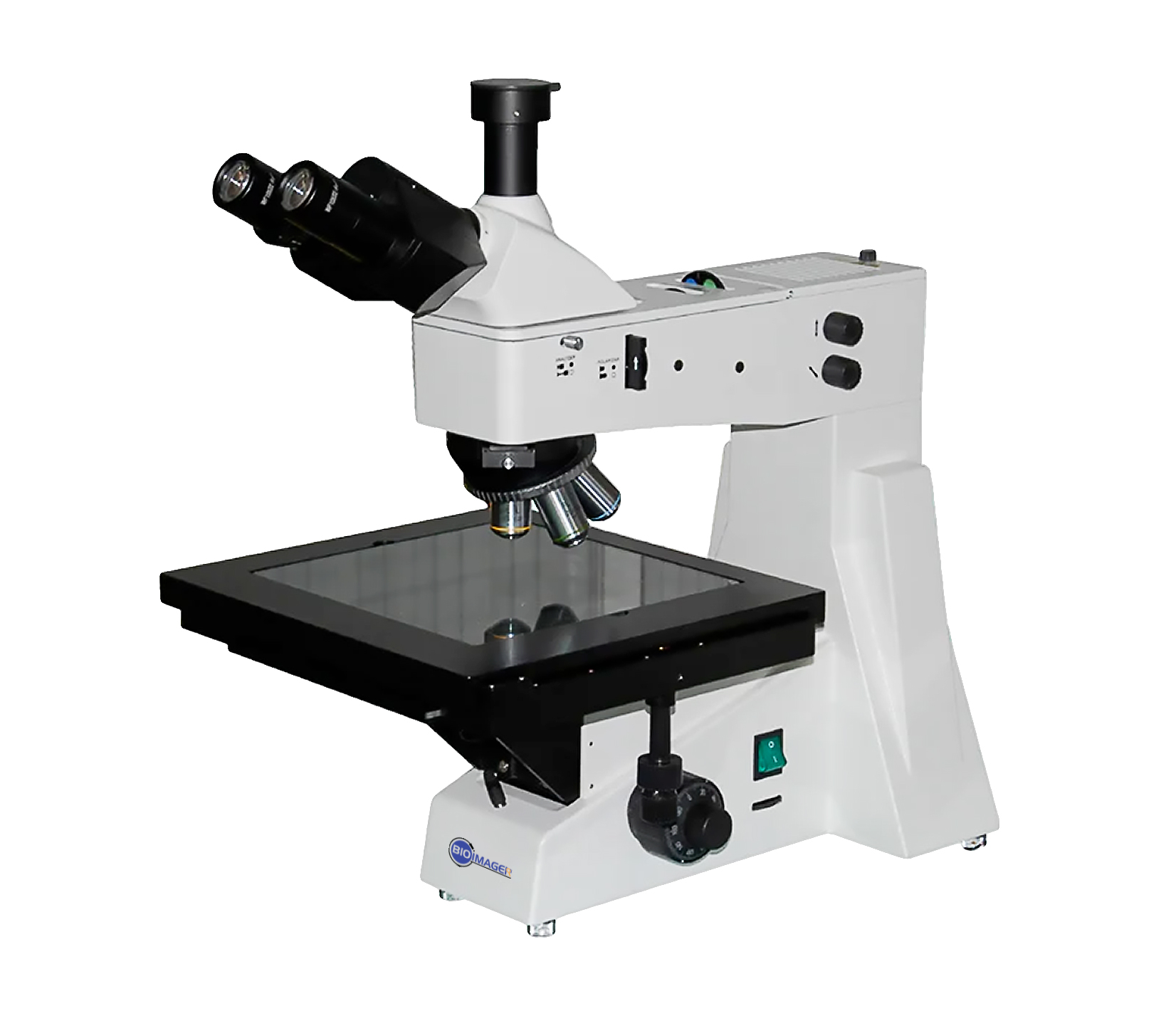

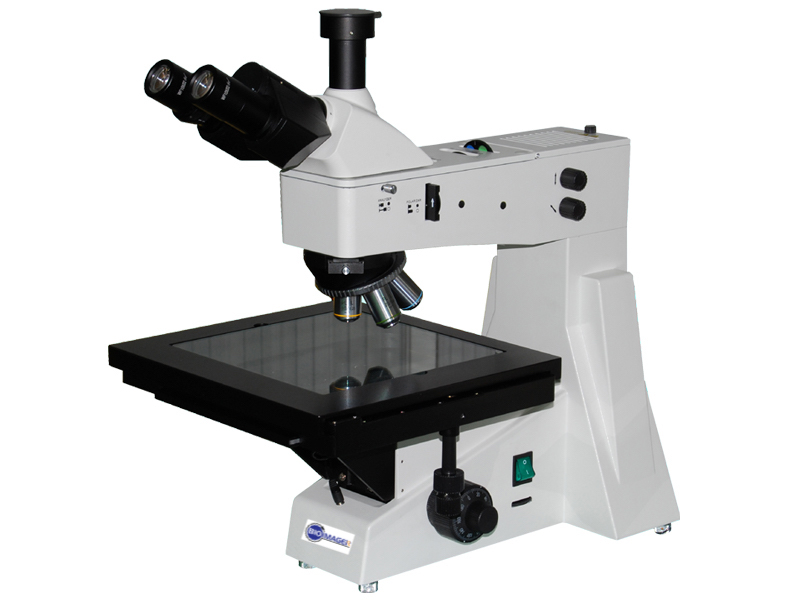

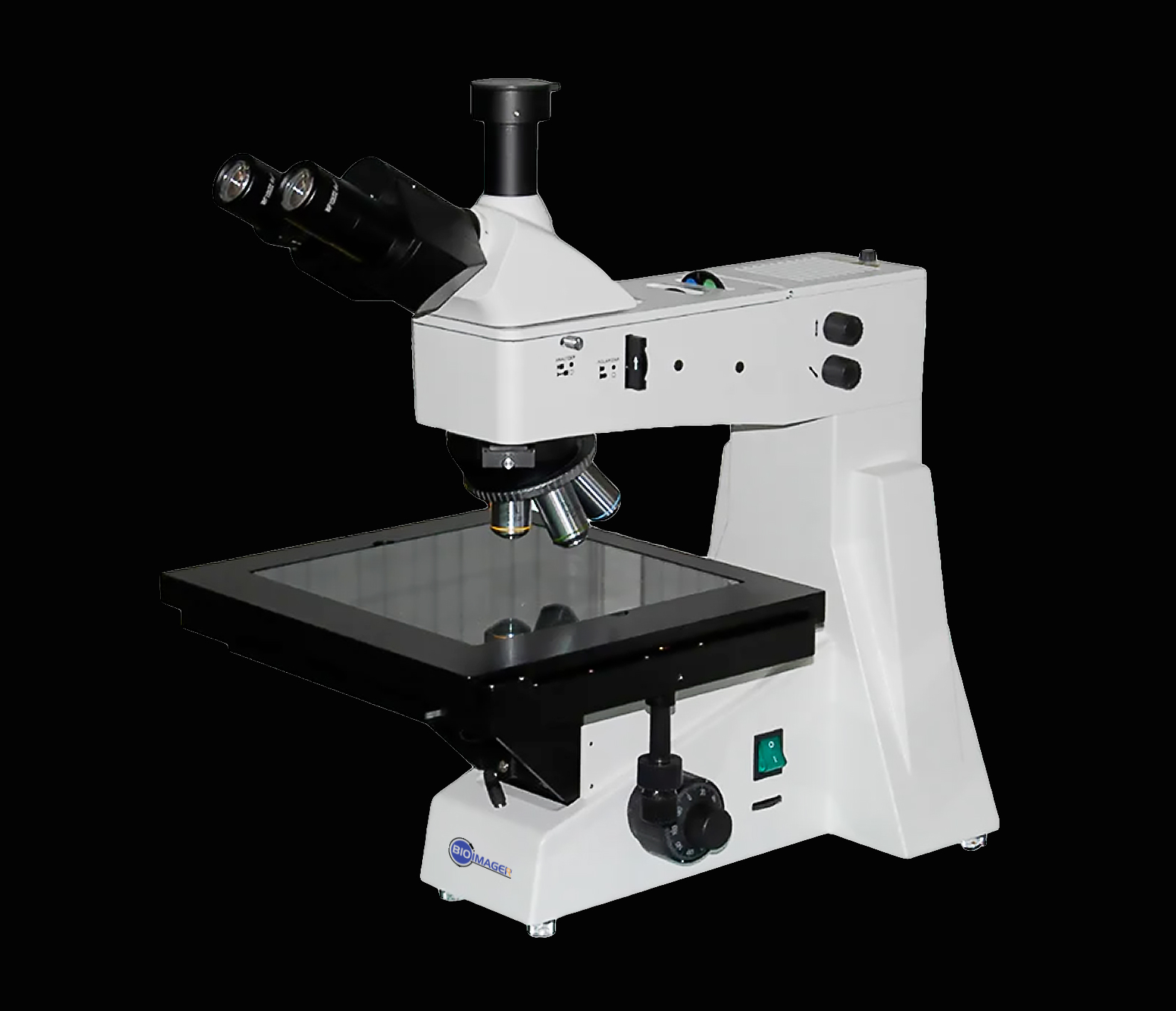

BMU200200 Metallurgical Microscope with 200x200mm XY Stage

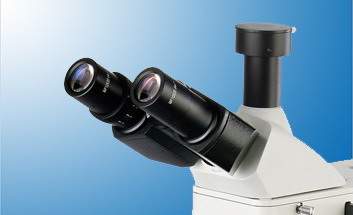

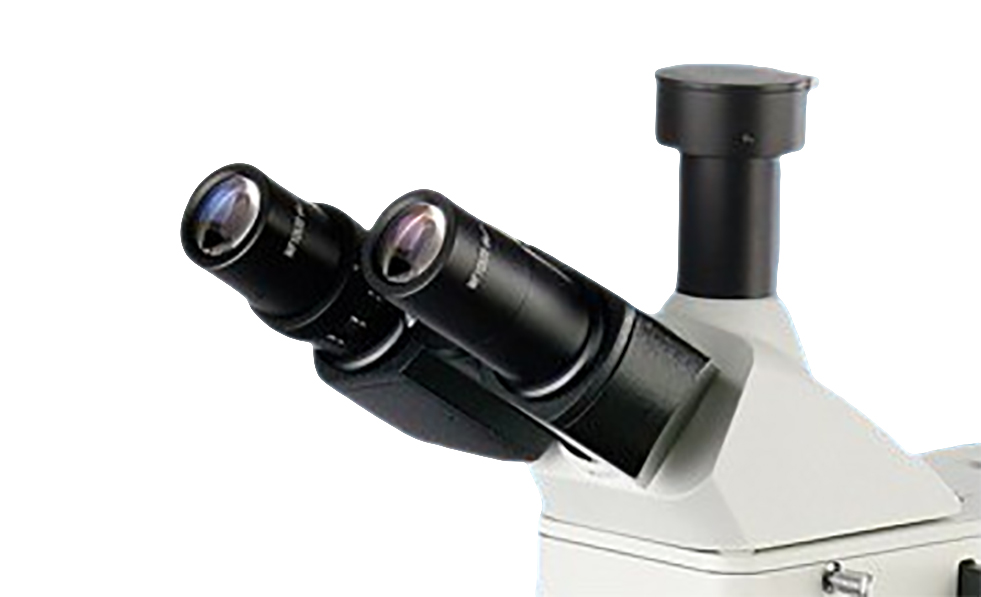

	Trinocular View Head

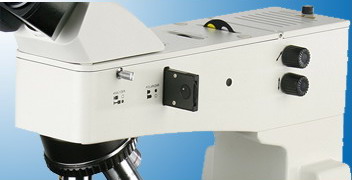

	Reflected attachment for opaque samples allows brightfield, darkfield, polarizationa nd DIC imaging modes

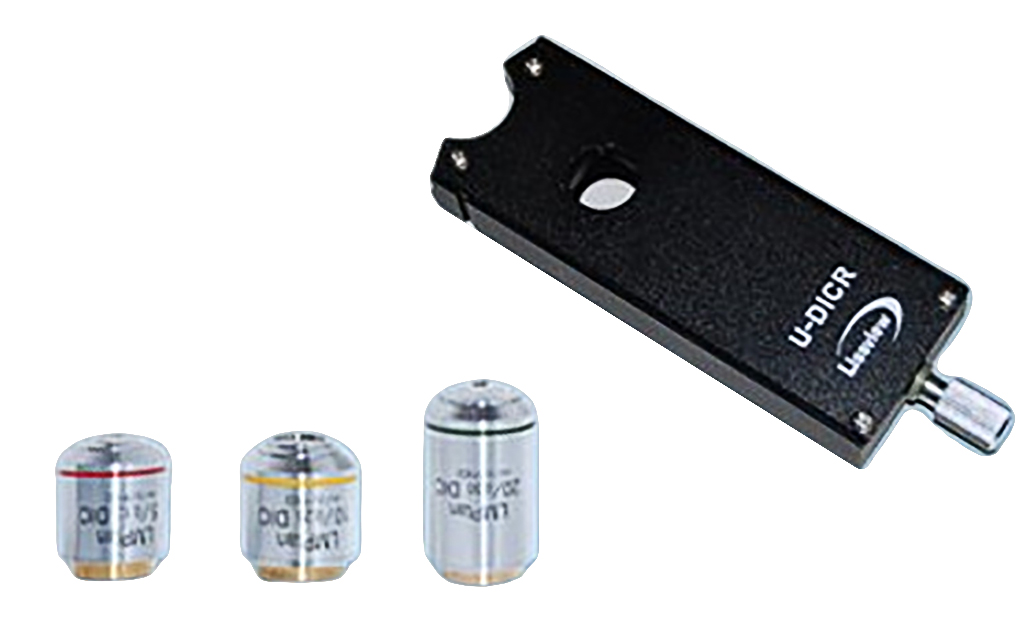

	OPTIONAL DIC Nomarski imaging 5x, 10x, 20x BD DIC objective lenses

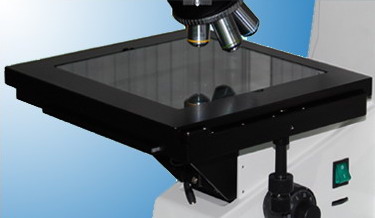

	Large XY stage Size: 280x279mm or 11in x 10.6in Travel range: 204x204mm or 8in x 8inch Optional XY stage: 154mm x 154mm or 6in x 6in (motion range)

Specifications

Eyepiece	SWF 10X Wide-field plan achromatic eyepiece field of view number Ф22mm
Objective (Infinity and long working distance plan achromatic objective)	Type	Magnification	Number aperture	Working distance (mm)	Thickness of cover glass (mm)	Remark
	Bright Field objective	LMPlan5X	0.12	18.2	0	BMU200200DIC
		LMPlan10X	0.25	20.2	0
		LMPlan20X	0.35	6.0	0
		50X	0.70	3.68	0
		80X	0.80	1.28	0
Eyepiece tube	Inclination of 30˚ and interpupillary distance is 53~75mm
Focusing system	Coaxial coarse/fine focus, with tension adjustable and up stop minimum division of fine focusing: 0.8μm
Nosepiece	Quintuple (Backward ball bearing inner locating)
Stage	Mechanical stage£¬size：280mmX270mm£¬moving range: 204mmX204mm (8in x 8inch)
Polarization Unit	Polarizer enable 360°rotate and switched in or out
	Analyzer can be switched in or out
Light source	12V50W halogen, brightness enable control
DIC observation system	Suitable to 5X/10X/20X objective

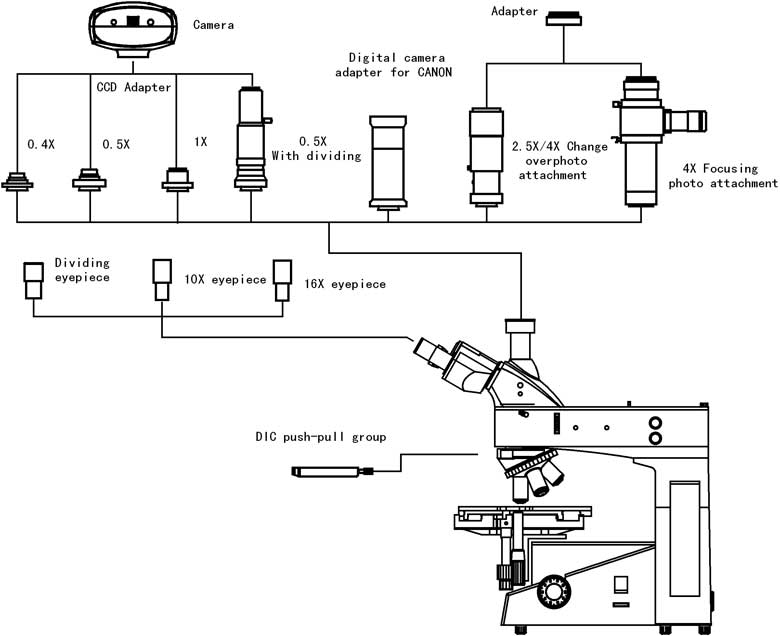

Optional accessories

name	Sort/Technique parameter				NO.
Eyepiece	Dividing eyepiece(field number:Ф22mm) 0.10mm / Div				BMU22-10×22
Objective	Magnification	Number aperture	Working distance (mm)	Remark
	40X	0.60	3.98	Bright field	BMU22-40xBF
	60X	0.70	2.08		BMU22-60xBF
	100X(Dry)	0.85	0.40		BMU22-100xBF
Stage	Mechanical stage, size: 250mmX230mm, moving range:154mmX154mm				BMU22-XY-6in
CCD adapter	0.5X				BMU22-0.5xCA
	1X				BMU22-1xCA
	0.5X with dividing 0.1mm/Div				BMU22-0.5xCAD

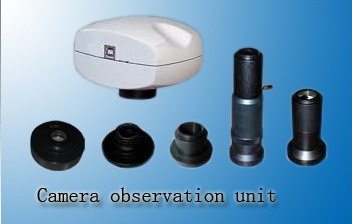

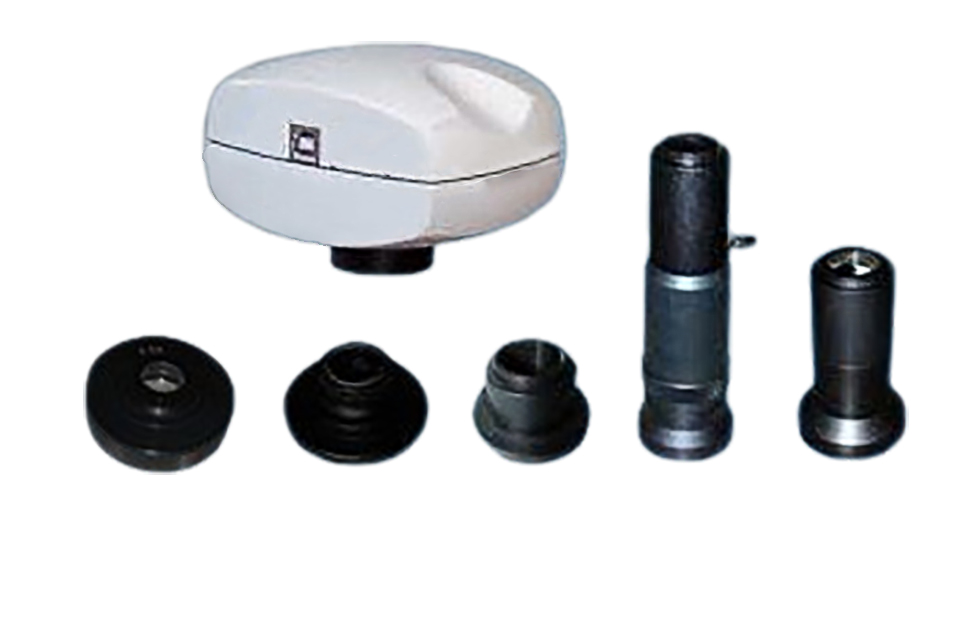

Digital Camera Adapter	CANON(EF) NIKON( F)				BMU22-SLR

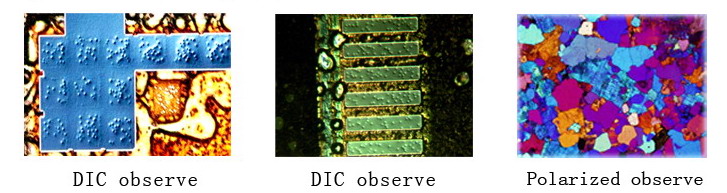

Sample Images
