BMSF1000 Epi-Fluorescent-Polarizing 3D Slide Scanner

Availability:

In stock


Compare

Winning Features · All-imaging methods are possible: brightfield, darkfield, polarized, epi-fluor and DIC · Reflected and transmitted lights · Sharp and uniform fluorescent imaging with LED illumination · Super high resolution of 10nm at Z direction over 30mm stroke · Automated XY stage with 0.1um resolution over 100x100mm travel range

In stock

$39,995.00

Why this product?

  • All-imaging methods are possible: brightfield, darkfield, polarized, epi-fluor and DIC
  • Reflected and transmitted lights
  • Sharp and uniform fluorescent imaging with LED illumination
  • Super high resolution of 10nm at Z direction over 30mm stroke
  • Automated XY stage with 0.1um resolution over 100x100mm travel range



Highlighted Featues:

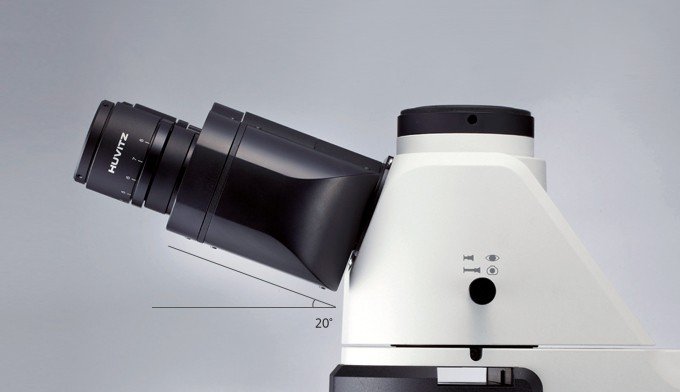

Comfortable Eyepiece
In order to reduce eyestrain, the HRM-300 eyepieces have an extra wide 25mm field number (F.N.).
The 20°angled head provides a comfortable viewing position. In addition, the prism is designed to minimize
the optical loss.
Superior Optical Performance
Optic System is designed to accommodate up to 6° stage. And they allow for a great
diversity of sample applications from a Wafer Holder to a Glass Plate for transmitted observation.
Z-Axis Control Pad
To help check the height at a glance, a display window is positioned at the front.
8 speed settings for controlling z-axis movement allows for precise and quick focusing.
In addition, an emergency stop button helps protect samples from unexpected situations.
ME Function
The current working magnification is displayed automatically and the auto-calibrated
value is measured through Panasis S/W.

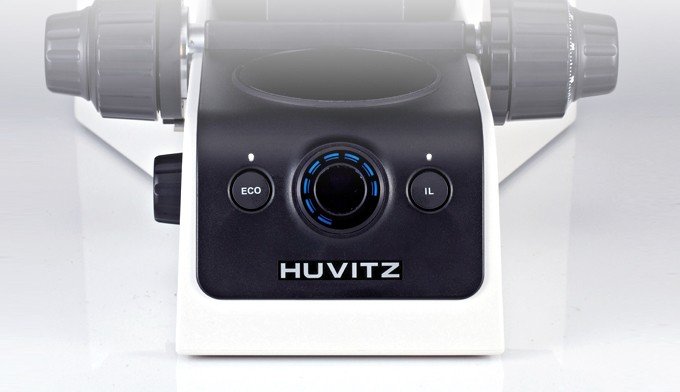

Constant Brightness of IL
The working efficiency is increased by providing optimized constant lighting brightness
to the images – even if the observation magnifications are changed during the operation of the microscope.
ECO Function
When an operator is absent temporarily from the work, the auto-power saving mode is enabled
protecting your samples from the heat of the illuminator, energy is saved and the lamp lifetime is extended.
(The sleep mode time is adjustable with Panasis S/W)

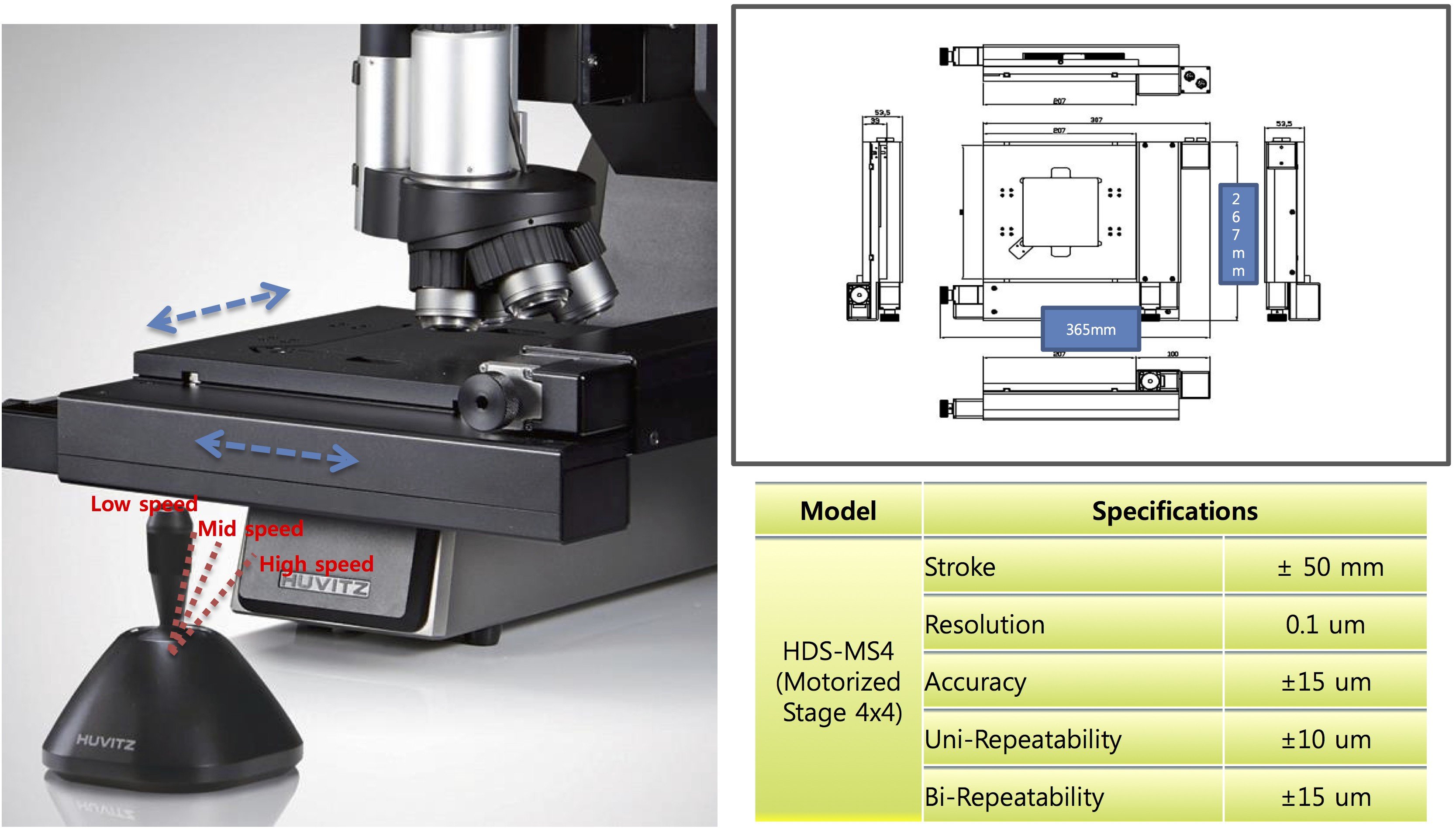

Automatic XY stage

Model

Specifications

HDS-MS4

(Motorized Stage 4×4)

Stroke

100mm x 100mm (X-Y)

Resolution

0.1 um

Accuracy

±15 um

Uni-Repeatability

±10 um

Bi-Repeatability

±15 um



Customizable Optics and Lighting System

Transmitted Light System and Condenser

ND6, ND25 and LB filters are built in for the observation of samples via transmitted light.

A variety of condensers are provided, allowing the best possible image clarity for the intended application.

Reflected Light Illuminator (Optional)

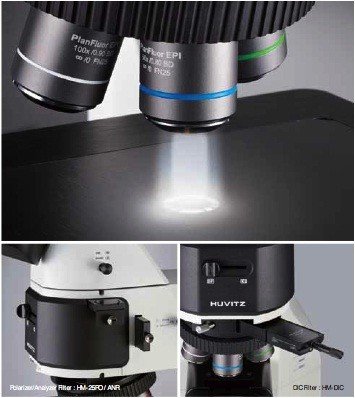

The reflected light illuminator provides a variety of observation methods such as  BF (bright field), BF/DF (dark field) or DIC (Differential Interference Contrast) to meet all researchers’ needs for mineralogy/gem/metallurgy slide samples.

Combined Switch for BF/DF and ND Filter (Optional)

With the  BF/DF converter switch on the front, it is easier to change observation modes as well as the interlocking ND filter, protecting observers’ eyes against dramatic changes of  brightness.

A Set of Polarizer and Analyser Filters (Optional)

A combined polarizer and analyzer filter set helps you to switch from the DIC/POL to other observation modes quickly and easily.
In addition, the polarizer and analyzer are designed as sliders and are accessible from either side of the microscope.

Optimum DIC provides the highest image quality (Optional)

Using a DIC slider with a single prism, Huvitz Nomarski DIC observation mode offers easy switching to other observation modes and facilitates observations on any range of magnifications because the position of the DIC prism is not changed.

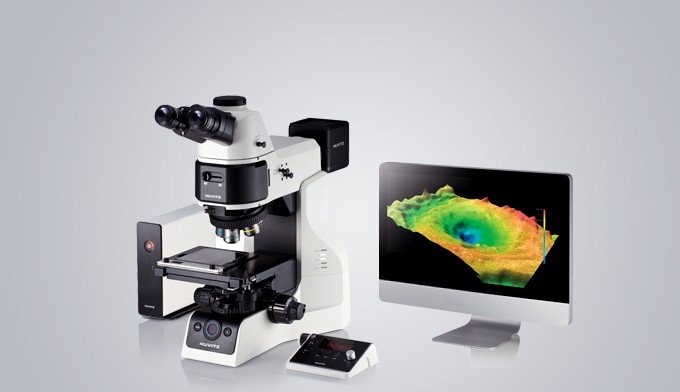

With Innovative Design, the HRM-300A Provides Clear and Accurate Results

Simple acquisition of 3D images is achievable through Z-axis control. Accurate 3D measurements and analyses are provided by capturing 2D images combined with software analysis. The control pad helps with quick and accurate adjustment of the focus.

Amazing results generated through the use of a highly accurate, user-friendly 3D Profiling System

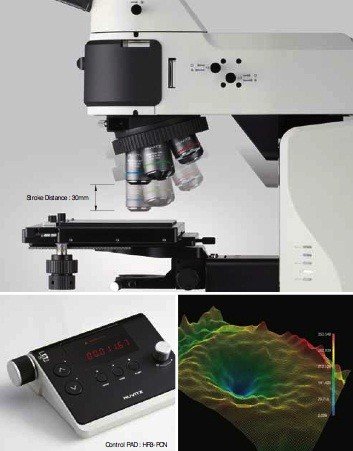

Z-Axis Profiler

The Z-axis Autofocus helps with simple acquisition of 2D images with samples of varying focal depths.
The Z-axis Profiler features Topographic Analysis and 3D Profiling through our Panasis Software, which generates a composition of all the 2D images into 3D Profiles.

Z-axis Module Specifications

  • Stroke Distance: 30mm;
  • Resolution: 0.01 μm or 10 nm;
  • Repeatability:  0.5 μm;
  • Max Speed: 1.4 mm/s;
  • Weight: 5 kg
  • Dimensions: W: 240 mm, D: 157 mm, H: 202.5 mm;
  • Load capacity: 15 kg

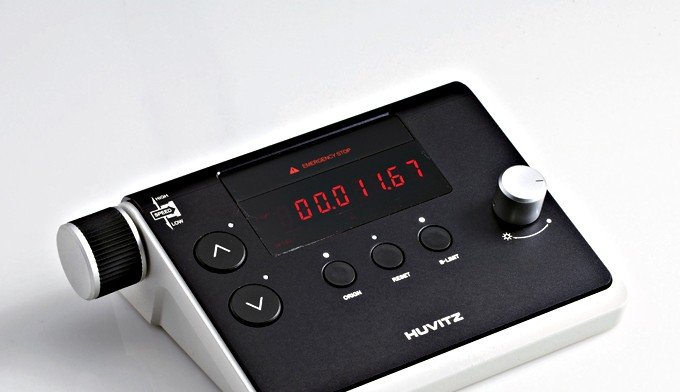

Convenient Control Pad

To help check the height at a glance, a display window is positioned at the front. 8 speed settings for controlling z-axis movement allows for precise and quick focusing. In addition, a big emergency stop button is also placed on the front to immediately protect samples from unexpected situations.

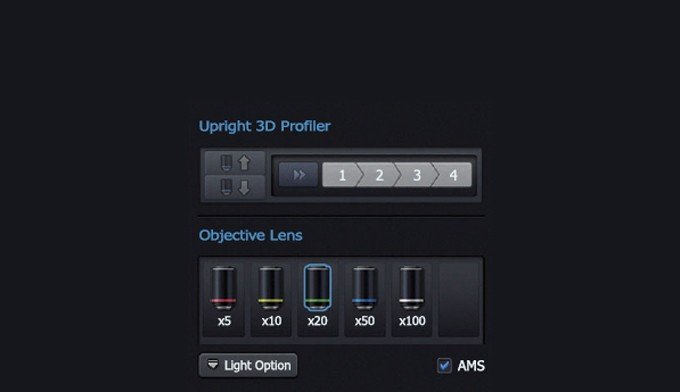

Powerful, stable and convenient measurement and analysis software suitable for all user environments



Fast and Convenient Live Multi-Focus and Auto-Focus

All the images, which have each different depth of focus, can be composed into a fully-focused image in real time by adjusting the focus through the height of sample using the Z-axis controller so that all the fields can be seen clearly.

Realistic Live Tiling

Live Tiling is a useful function for you to obtain a wide panorama image composed of several images captured while moving X/Y-stage. You can tile the adjoining fields extending the microscope’s field of view in real time as you need.

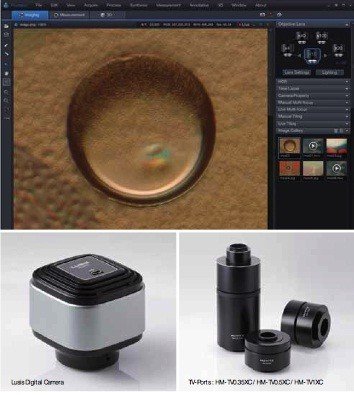

Professional LUSIS Digital Camera

Lusis Digital Camera is created to maximize the imaging reproduction faithfully to the original samples and enables the image quality be more improved. The default  Lusis  camera is suitable for BF imaging. For FL imaging, BIC-C30 a 3MP color sCMOS camera is suggested.

Customizable Optics and Lighting System

Specifications Microscope

HRM-300THRM300R
Optical SystemInfinity-Corrected Optical System
IlluminationTransmittedReflected (optional)
Base unitFocus
  • Stroke range: 29.5 mm
  • Coarse and Fine focusing knob
  • Coarse: 17.7 mm/revolution
  • Fine: 0.1 mm/revolution (1 µm scale)
  • Upper limit stopper, Torque adjustment ring
Electronics
  • Integrated power supply for 12V 100W light adjustment.
  • LED voltage indicator
  • IL switch and ECO switch
Reflected IlluminationBF/DF
  • HR3-RLI: Kohler illumination system
  • Brightfield / Darkfield, Normaski DIC, Polarized light
BF
  • HR3-RLIBI: Kohler illumination system
  • Brightfield, Normaski DIC, Polarized light
Light sourceHM-LH100: 12V 100W halogen
Transmitted Illumination
  • Kohler illumination system
  • Brightfield
  • Built-in filters (ND6, ND25, LB)
Light sourceHM-LH100: 12V 100W halogen
CondenserAbbeHR-ACD: N.A 1.20
Long-workingHR-LWCD: N.A 0.65

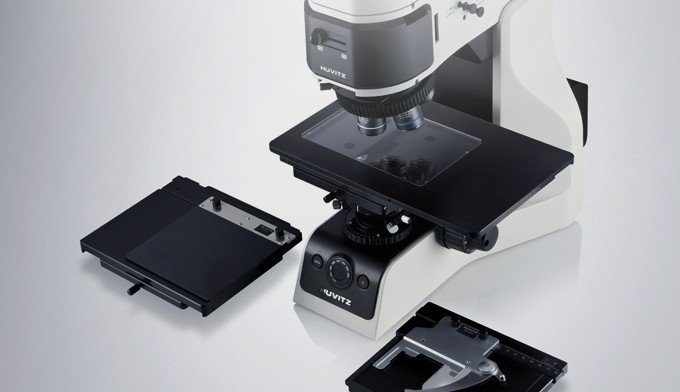

Stage3X2 inch
  • HR-ST3R: glass plate, specimen holder
  • Size 180(W) X 160(D) mm
  • Stroke 79(X) X 55(Y) mm
4X4 inch
  • HR-ST4R: metal plate, glass plate
  • Size 210(W) X 170(D) mm
  • Stroke 104(X) X 102(Y) mm
6X4 inch
  • HR-ST6X4R: metal plate, glass plate
  • Size 299(W) X 193(D) mm
  • Stroke 154(X) X 104(Y) mm
6X6 inch
  • HR-ST6R: metal plate, glass plate
  • Size 300(W) X 280(D) mm
  • Stroke 153(X) X 153(Y) mm
Observation TubeTrinocularHM-WETR: Erect type(F.N 25), Incline angle 20°
BinocularHM-WEBI: Erect type(F.N 25), Incline angle 20°
EyepiecesHM-EPA10X: 10X(F.N 25), Diopter adjustable
ReticleCrosshair, X-micrometer, XY-micrometer, Grid
Revolving NosepieceBF/DF
  • HM-D5BDRE: 5-position Nosepiece
  • for Dark-field objective lens with DIC slot
BF
  • HM-D5RE: 5-position Nosepiece
  • for Bright-field objective lens with DIC slot
DimensionsApprox. 246(W) X 572(D) X 514(H) mm
WeightApprox. 19 kg

-3D Profile Module for HRM-300A

MechanismHigh-resolution 5-phase stepping motor, Long cross-roller guide system
Stroke Distance30 mm
Resolution0.01 µm
Repeatability0.5 µm
Max Speed1.4 mm/sec
Dimensions240(W) X 157(D) X 202.5 (H) mm
Weight5 kg
Load capacity15 kg

Objective Lens

SKU: BMSF1000 Categories: , , ,

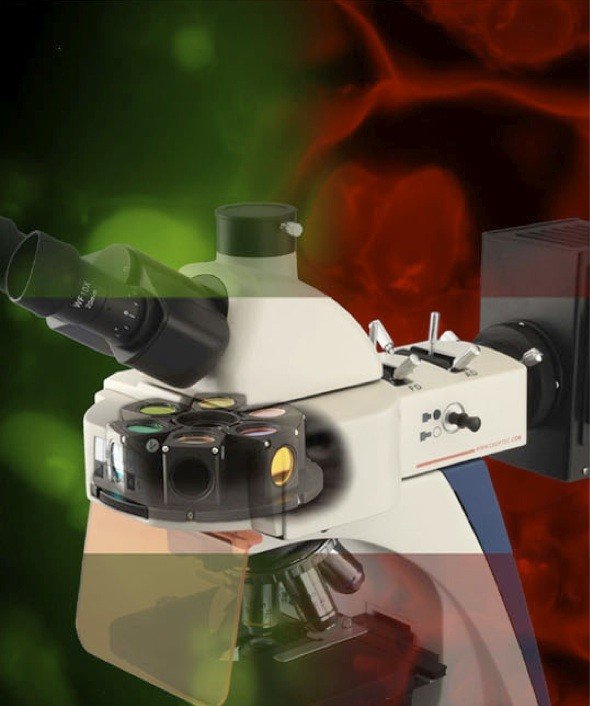

Epi-Fluorescent Attachment

Six-hole disc fluorescence unit. Maximum six fluorescence filters can be installed at the same time.



Items

Specification

FL2

FL4

Fluorescence AttachmentEpi fluorescence unit, 6-position filter wheel(B, G, UV, V)

Epi fluorescence unit, 3-position filter slider slider(B, G)

100W mercury lamp house

100Wmercury power source(optional: pointer or digital)

Centering objective

3W-LED Epi fluorescence unit(B, G)

“●”: Standard item (included), “○”: Optional Item

Specifications Microscope

HRM-300THRM300R
Optical SystemInfinity-Corrected Optical System
IlluminationTransmittedReflected (optional)
Base unitFocus
  • Stroke range: 29.5 mm
  • Coarse and Fine focusing knob
  • Coarse: 17.7 mm/revolution
  • Fine: 0.1 mm/revolution (1 µm scale)
  • Upper limit stopper, Torque adjustment ring
Electronics
  • Integrated power supply for 12V 100W light adjustment.
  • LED voltage indicator
  • IL switch and ECO switch
Reflected IlluminationBF/DF
  • HR3-RLI: Kohler illumination system
  • Brightfield / Darkfield, Normaski DIC, Polarized light
BF
  • HR3-RLIBI: Kohler illumination system
  • Brightfield, Normaski DIC, Polarized light
Light sourceHM-LH100: 12V 100W halogen
Transmitted Illumination
  • Kohler illumination system
  • Brightfield
  • Built-in filters (ND6, ND25, LB)
Light sourceHM-LH100: 12V 100W halogen
CondenserAbbeHR-ACD: N.A 1.20
Long-workingHR-LWCD: N.A 0.65
Stage3X2 inch
  • HR-ST3R: glass plate, specimen holder
  • Size 180(W) X 160(D) mm
  • Stroke 79(X) X 55(Y) mm
4X4 inch
  • HR-ST4R: metal plate, glass plate
  • Size 210(W) X 170(D) mm
  • Stroke 104(X) X 102(Y) mm
6X4 inch
  • HR-ST6X4R: metal plate, glass plate
  • Size 299(W) X 193(D) mm
  • Stroke 154(X) X 104(Y) mm
6X6 inch
  • HR-ST6R: metal plate, glass plate
  • Size 300(W) X 280(D) mm
  • Stroke 153(X) X 153(Y) mm
Observation TubeTrinocularHM-WETR: Erect type(F.N 25), Incline angle 20°
BinocularHM-WEBI: Erect type(F.N 25), Incline angle 20°
EyepiecesHM-EPA10X: 10X(F.N 25), Diopter adjustable
ReticleCrosshair, X-micrometer, XY-micrometer, Grid
Revolving NosepieceBF/DF
  • HM-D5BDRE: 5-position Nosepiece
  • for Dark-field objective lens with DIC slot
BF
  • HM-D5RE: 5-position Nosepiece
  • for Bright-field objective lens with DIC slot
DimensionsApprox. 246(W) X 572(D) X 514(H) mm
WeightApprox. 19 kg

-3D Profile Module for HRM-300A

MechanismHigh-resolution 5-phase stepping motor, Long cross-roller guide system
Stroke Distance30 mm
Resolution0.01 µm
Repeatability0.5 µm
Max Speed1.4 mm/sec
Dimensions240(W) X 157(D) X 202.5 (H) mm
Weight5 kg
Load capacity15 kg

Objective Lens

Objective LensMagnificationNumerical ApertureWD(mm)Resolution(µm)
PlanFluor EPI (Incldued)5X0.15202.24
10X0.30111.12
20X0.4530.75
50X0.8010.42
100X0.9010.37
PlanFluor EPI-BD (Brightfield-Drakfield)5X0.15202.24
10X0.30111.12
20X0.4530.75
50X0.8010.42
100X0.9010.37
LPlanFluor EPI (long working distance BF) lenses20X0.4012.00.84
50X0.5010.60.67
100X0.803.30.42
LPlanFluor EPI-BD20X0.4012.00.84
50X0.5010.60.67
100X0.803.30.42

Advanced Panasis Software

Panasis ST, is optimized to work smoothly and smartly with Huvitz Microscope HRM-300 series. It is professional software applicable to the microscopy research and inspection environments. In addition, working efficiency and stability are improved by the 3 Way Solution. A 3 Way Solution Device Auto On/Off Alarm/ One-Push Backup and Recovery/Remote Network Costumer Service Support
