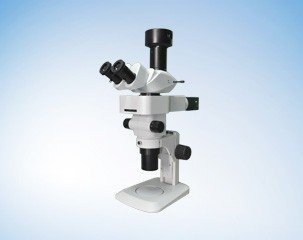

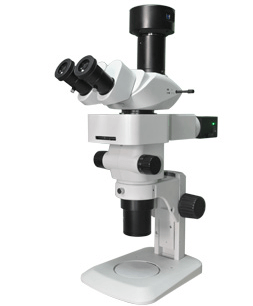

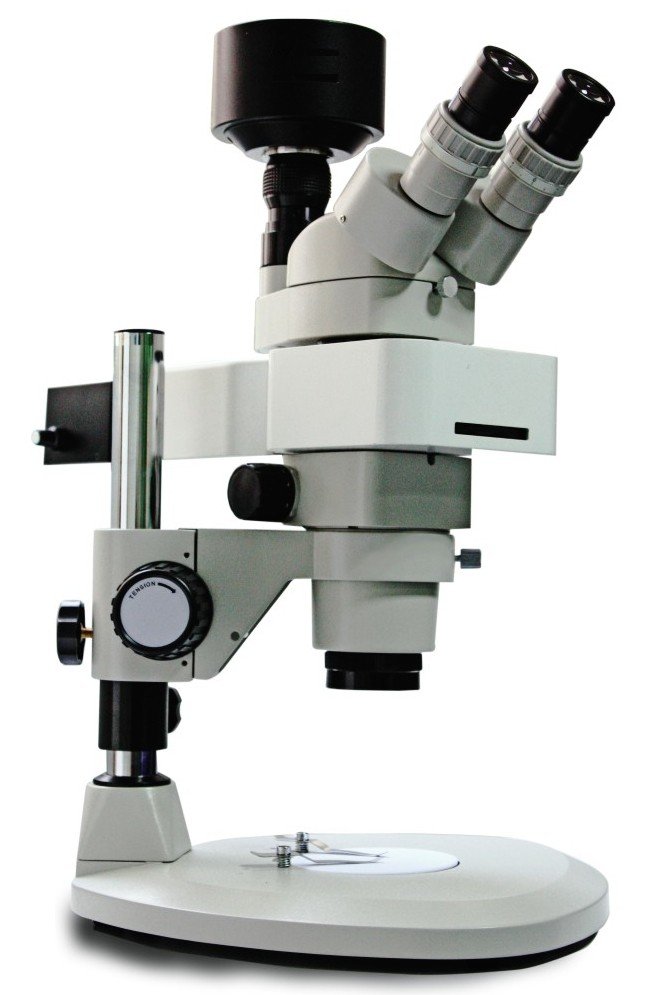

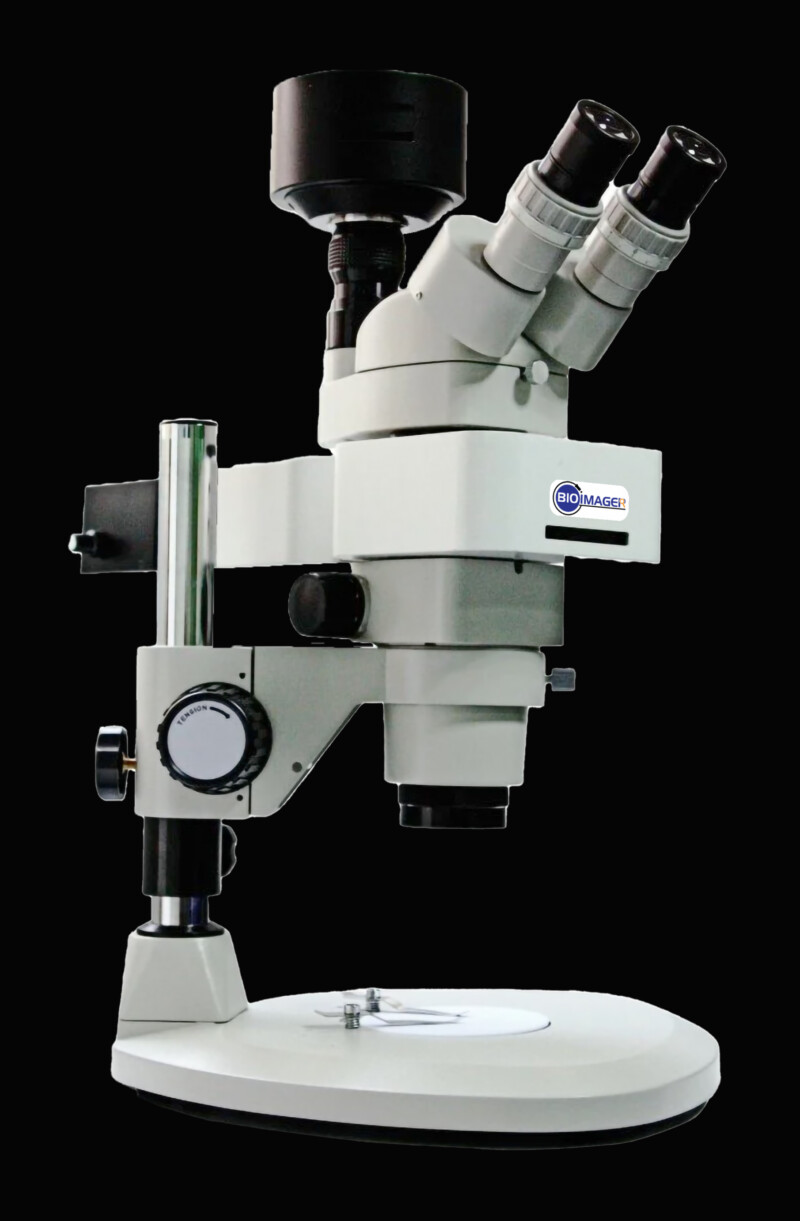

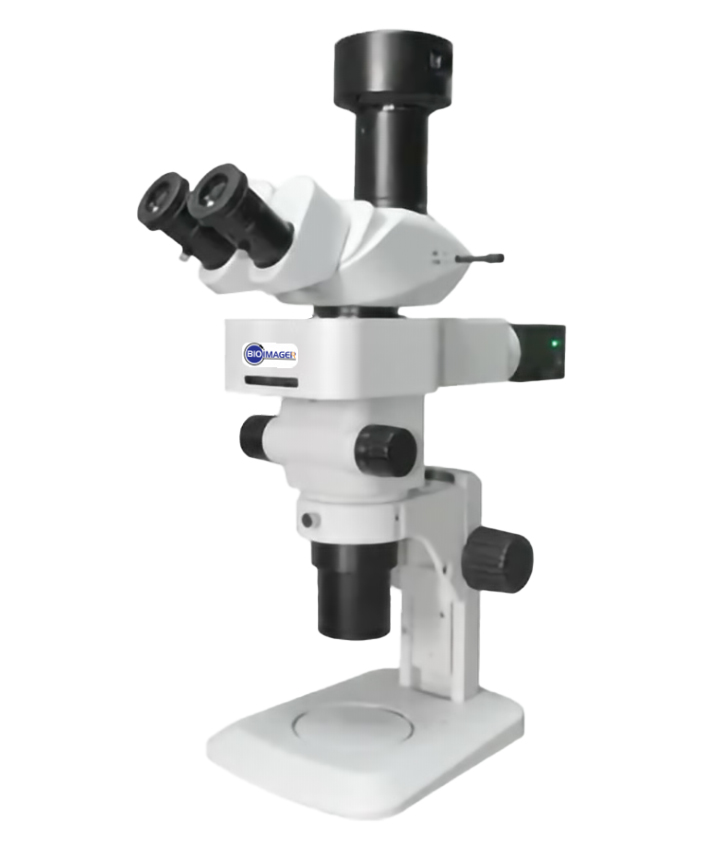

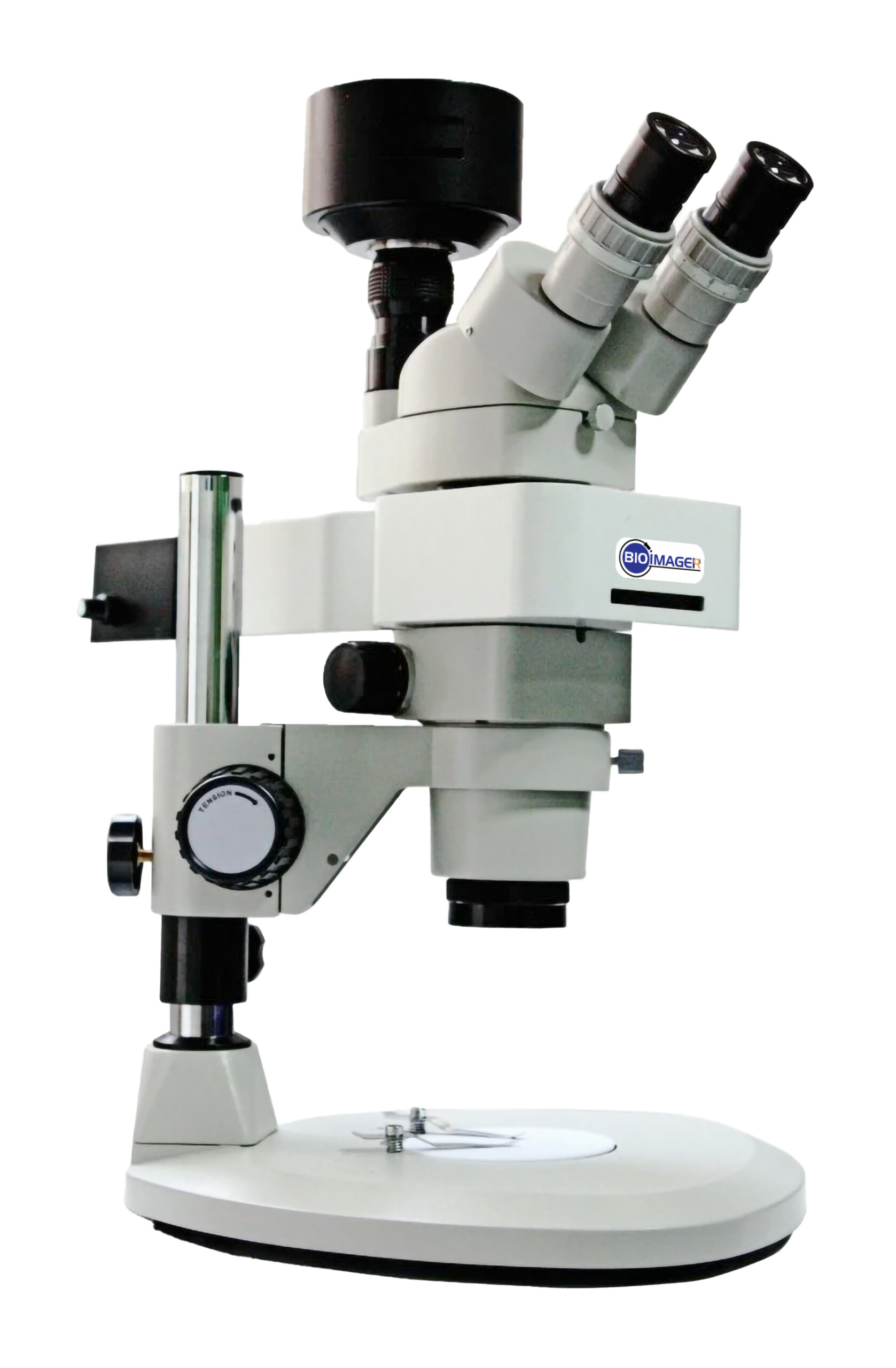

BSM400FL LED Fluorescence Stereo microscope

Availability:

In stock


Compare

Fluorescence stereo microscope BSM400FLL has excellent performance and it is high cost-effective. Fluorescence stereo microscope is the core technique of fluorescent imaging in vivo of living animals. BSM400FLL is widely used in the fields of biology, industrial inspection and criminal justice, etc. It is an essential instrument for fluorescent anti-counterfeiting printing detection and also an ideal device for mineral research.

In stock

$6,495.00 $10,000.00

BSM400FL LED Fluorescence Stereo microscope

  • BSM400FL Stereo fluorescence microscope  is consist of BSM400 stereo microscope and BIA-4FLE epi fluorescent attachment, the epi fluorscent attachment is equipment with super bright LED light sourc.
  • BSM400FL stereo microscope has excellent optical performance, bright fluorescent illumination system and provides a superior fluorescent observation performance.
  • The microscope can offer blue and green excitation groups in one unit, and support high quality GFP requirment.
  • It’s excellent for GFP,  nematode,drosophila,zebrafish and embryo fluorescence research. And widely used in biomedicine, in-vivo research, criminal investigation,mineral research ,etc.

BSM400FL LED Fluorescence Stereo microscope

Compare with mercury lamp,  LED fluorescence illumination have several benefits:

  • Bright and uniform fluorescence images
  • 20,000 hours lifetime vs (300 hours HBO).
  • No need to warm up or cool down
  • Adjustable light intensity to avoid fluorescence quenching.
  • Easy to install and friendly to use
  • Compact size

BSM400FL LED Fluorescence Stereo microscope

Fluorescence stereo microscope BSM400FL has excellent performance and it is very cost-effective. Fluorescence stereo microscope is the core technique of fluorescent imaging in vivo of living animals. BSM400FL is widely used in the fields of biology, industrial inspection and criminal justice, etc. It is an essential instrument for fluorescent anti-counterfeiting printing detection and also an ideal device for mineral research.

BSM400FL LED Fluorescence Stereo microscope

Stereo microscope BSM400FLL supports continuous zoom by 1:8.3 zoom radio. The BSM400FLL series stereo microscope adopts modular structure and it can easily get access to photography, video, coaxial lighting device and other functional parts. It supports accessories serialization and can connect with digital camera to achieve spot photography. BSF500L uses parallel optical path and shared objective non-coaxial imaging technology to improve the definition of the field edge and achieve strong sense of dimension and clear images of the objects under bright background. BSM400FLL is comfortable and convenient to operate with a large working stage and it is stable in performance. BSF500Lis widely used in health care center, agroforester geology, electronic precision machinery and other industry institutions.



Stereo microscope is particularly suitable for LC-die inspection, LCD printing paste inspection, LED production inspection, PCB board inspection, stamping plating inspection and electronics components inspection.

BSM400FL LED Fluorescence Stereo microscope

Specifications:

Zoom ratio1: 8.3
Objective zoom range0.6X-5X
EyepieceSWF10X/22mm
Working distance95mm
Interpupillary distance48mm-75mm
Binocular head45°inclined
Diopter adjustment± 5 diopter
Optical Body Rotation.360°
Input voltage110V/60HZ or 220V/50HZ
Reflective light source6V/12W brightness adjustable
Transmission fluorescent light source5W

Data sheet of LED fluorescence illuminator

Excitation color

LED lighting

central wavelength

Excitation filter

Dichroic

mirror

Emission

filter

Blue (GFP)

475nm

460-490nm

>500nm

>510nm

Green (RFP)

530nm

510-550nm

>570nm

>590nm

Based on the clients requirement, filters are offered from Chroma, Semrock or Omega.

BSM400FL LED Fluorescence Stereo microscope

BSM400FLL LED Epi-Fluorescent Research Stereo Microscope ; Zoom Obj: 0.6x-5.0x; GFP & TRITC filters.

Eyepieces

SWF 10X/F.N. 22.

Observation tube

Lead-free observation trinocular head, 30° inclination,  light path mode: eyepiece 100%, photography 80%, eyepiece 20%

Zoom system

Zoom radio: 7:1(0.8×~5.6×)
Magnification times calibration:0.8, 1, 1.25, 1.6, 2, 2.5, 3.2, 4, 5, 5.6.
Screw fixed objective mode

Objectives

1X
0.5X, 0.75X, 1.25X, 1.5 X, 2.0X(Optional)

Magnification times

8X — 56X

Working distance

90mm

Base

standard base with fluorescence plate M-FL
Transmitted fluorescence accessories SZ2-ILA, H-150(optional)

LED epi-fluorescence illumination MXZ-BG-LED

Blue

Green

LED light source

Central wavelength 475nm

Central wavelength 530nm

Excitation filter

460-490nm

510-550nm

Dichroic mirror

>500nm

>570nm

Emission filter

>510nm

>590nm

Optional fluorescent illumination BIA-4FLE

Excitation cube

Special for GFP

Green

Excitation filter

460nm~490nm

510nm~550nm

45º Dichroic mirror

>505nm

>570nm

Emission filter

510nm~550nm

>590nm
