Compact USB3.0 Mono/Color CMOS Digital Camera, BIC-B3C

Original price was: $USD 1,750.00.Current price is: $USD 1,499.00.

-14%

BIC-B3C series USB 3.0 industrial digital cameras adoptthe latest USB3.0 technology, the speed and performance are much higher than USB2.0 digital cameras. 5.0MP, 10.0MP and 14.0MPcameras are available. These cameras have high sensitivity, high dynamic range, rolling shutter, hardwareframe buffer and high-speed features. BUC5 series digital cameras can be widely used in machine vision and a variety of imageacquisition areas.

Add to Wishlist
Guaranteed Safe Checkout

Questions? Request a Call Back

Introduction

BIC3-B3C series USB 3.0 industrial digital cameras adoptthe latest USB3.0 technology, the speed and performance are much higher than USB2.0 digital cameras. 5.0MP, 10.0MP and 14.0MPcameras are available. These cameras have high sensitivity, high dynamic range, rolling shutter, hardwareframe buffer and high-speed features. BUC5 series digital cameras can be widely used in machine vision and a variety of imageacquisition areas.

Features

  1. Small size saves space,the dimension is 29mm × 29mm × 50mm, weight 60g;
  2. Multiplemounting angles, suitable for all kinds of industrial equipments installation;
  3. Real industrial colorful/mono CMOS image sensor with high sensitivity, high dynamic range, no compression, nointerpolation;
  4. High-speed USB3.0 interface, up to 5Gb/s;
  5. With board-level frame buffer, double frame buffer preview, double framebuffer with external trigger real-time acquisition;
  6. BIC-B3C-5MP supports SKIP 2/SKIP 3/ SKIP 4/SKIP8 extraction modes, BIC-B3C-10.0C and -14.0C support SKIP 1/SKIP 2/ SKIP 4 extraction modes, theimage frame rate multiplied after the extraction;
  7. Users can choose AOIarea (Area of Interest), the image frame rate will be greatly speed up;
  8. Separate image capture and preview, support high-speed preview, high resolution acquisition;
  9. The brightness of all modes and resolution switch is the same;
  10. Contrast and brightness adjustment, gamma correction, extended RGB gain, color reproductionis more realistic;
  11. Support still image capture (JPG, BMP), image color is richand realistic;
  12. Support 8-bit, 24-bit, 32-bit bitmap preview and capture. Monocamera support 16-bit bitmap, color camera support 48-bit “tiff” format image capture (12bit/pixel);
  13. Support 1 channel optical coupler isolated trigger input, 1 channel optical coupler flashoutput;
  14. Support uncompressed, compressed videos;
  15. Provide completed API for users’ secondary development, provide Demo Source Code;
  16. Software auto white balance, auto exposure, continuous auto exposure control;
  17. Users can program to control white balance and exposure area;
  18. Supportthe plug recovery during acquisition and preview;
  19. Support firmware upgrade on-line;
  20. Plug and play, dispense with external power supply;
  21. SupportWindows 2000 / XP / Vista / Win7/ Win 8 Operation Systems;
  22. Support VC, VB, C#, DELPHI, LABVIEWand other development language;
  23. Support ActiveX, TWAIN, VFW, Direct Show;
  24. Fix USB cable on the camera with bolt to prevent from falling off;
  25. Supportstandard C-mount lenses and all kinds of customized lenses;
  26. Durable aluminum alloy shell.

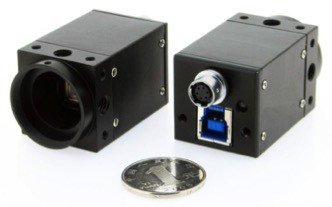

BIC-B3C Series Compact USB3.0 Digital Cameras

bic b3c 01
Compact USB3.0 Mono/Color CMOS Digital Camera, BIC-B3C
Application

  • License image capture
  • Medical diagnosis
  • Microscope system
  • Notes image capture
  • Industrial production line image capture
  • Fingerprint, palm printimage capture
  • Public Security investigation image capture
  • Desktop images, portraits, iris image capture
  • High speed vehicle license plate capture
  • Outdoor Monitoring

Specification

Model BIC-B3C-5.0C/M
Description USB3.0 colorful/mono CMOS 5.0MP industrial digital camera with frame buffer
Image Sensor 1/2.5 inch, colorful/mono 5.0MP CMOS Image Sensor
Pixel Size 2.2μm×2.2μm
Spectral Response 400nm～1000nm
Sensitivity 0.53V/lux-sec @550nm
Scan Mode Progressive Scan
Exposure Mode Electronic rolling shutter
Max Resolution 2592 × 1944
Frame Rate 14fps@2592×1944
White Balance Auto / Manual
Exposure Control Auto / Manual
Image Output USB3.0, 5Gb/s
Power USB3.0 Power Supply, 500mW
Dynamic Range 66.5dB
Signal to Noise Ratio 40.5dB
Programmable control Image size, Contrast, brightness, gain, exposure time
Software Function Image display, image processing, video
Working Temperature -30°C~70°C
Accessories Equipped with standard infrared filter (only in colorful camera), C-mount connecting ring, 1.5m USB cable, 1 CD with software and SDK.
Camera Net Weight 60g
Camera Dimension 29mm×29mm×50mm(length × width × height)
Box Dimension 118mm×108mm×96mm (length × width × height)



Model BIC-B3C-10.0C
Description USB3.0 colorful CMOS 10.0MP industrial digital camera with frame buffer
Image Sensor 1/2.3 inch, colorful 10.0MP CMOS Image Sensor
Pixel Size 1.67μm × 1.67μm
Spectral Response 400nm～1000nm
Sensitivity 0.31V/lux-sec @550nm
Scan Mode Progressive Scan
Exposure Mode Electronic rolling shutter
Max Resolution 3856 × 2764
Frame Rate 6fps@3856×2764
White Balance Auto / Manual
Exposure Control Auto / Manual
Image Output USB3.0, 5Gb/s
Power USB3.0 Power Supply, 500mW
Dynamic Range 66.2dB
Signal to Noise Ratio 34dB
Programmable control Image size, Contrast, brightness, gain, exposure time
Software Function Image display, image processing, video
Working Temperature -30°C~70°C
Accessories Equipped with standard infrared filter, C-mount connecting ring, 1.5m USB cable, 1 CD with software and SDK.
Camera Net Weight 60g
Camera Dimension 29mm×29mm×50mm(length × width × height)
Box Dimension 118mm×108mm×96mm (length × width × height)



Model BIC-B3C-15.0C
Description USB3.0 colorful/mono CMOS 14.0MP industrial digital camera with frame buffer
Image Sensor 1/2.3 inch, colorful/mono 14.0MP CMOS Image Sensor
Pixel Size 1.4μm×1.4μm
Spectral Response 400nm～1000nm
Sensitivity 0.724V/lux-sec@550nm
Scan Mode Progressive Scan
Exposure Mode Electronic rolling shutter
Max Resolution 4608 × 3288 = 15.15MP
Frame Rate 5fps@4608×3288
White Balance Auto / Manual
Exposure Control Auto / Manual
Image Output USB3.0, 5Gb/s
Power USB3.0 Power Supply, 500mW
Dynamic Range 65.3dB
Signal to Noise Ratio 36.5dB
Programmable control Image size, Contrast, brightness, gain, exposure time
Software Function Image display, image processing, video
Working Temperature -30°C~70°C
Accessories Equipped with standard infrared filter, C-mount connecting ring, 1.5m USB cable, 1 CD with software and SDK.
Camera Net Weight 60g
Camera Dimension 29mm×29mm×50mm(length × width × height)
118mm×108mm×96mm (length × width × height)

Specification

Model BIC-B3C-5.0C/M
Description USB3.0 colorful/mono CMOS 5.0MP industrial digital camera with frame buffer
Image Sensor 1/2.5 inch, colorful/mono 5.0MP CMOS Image Sensor
Pixel Size 2.2μm×2.2μm
Spectral Response 400nm～1000nm
Sensitivity 0.53V/lux-sec @550nm
Scan Mode Progressive Scan
Exposure Mode Electronic rolling shutter
Max Resolution 2592 × 1944
Frame Rate 14fps@2592×1944
White Balance Auto / Manual
Exposure Control Auto / Manual
Image Output USB3.0, 5Gb/s
Power USB3.0 Power Supply, 500mW
Dynamic Range 66.5dB
Signal to Noise Ratio 40.5dB
Programmable control Image size, Contrast, brightness, gain, exposure time
Software Function Image display, image processing, video
Working Temperature -30°C~70°C
Accessories Equipped with standard infrared filter (only in colorful camera), C-mount connecting ring, 1.5m USB cable, 1 CD with software and SDK.
Camera Net Weight 60g
Camera Dimension 29mm×29mm×50mm(length × width × height)
Box Dimension 118mm×108mm×96mm (length × width × height)



Model BIC-B3C-10.0C
Description USB3.0 colorful CMOS 10.0MP industrial digital camera with frame buffer
Image Sensor 1/2.3 inch, colorful 10.0MP CMOS Image Sensor
Pixel Size 1.67μm × 1.67μm
Spectral Response 400nm～1000nm
Sensitivity 0.31V/lux-sec @550nm
Scan Mode Progressive Scan
Exposure Mode Electronic rolling shutter
Max Resolution 3856 × 2764
Frame Rate 6fps@3856×2764
White Balance Auto / Manual
Exposure Control Auto / Manual
Image Output USB3.0, 5Gb/s
Power USB3.0 Power Supply, 500mW
Dynamic Range 66.2dB
Signal to Noise Ratio 34dB
Programmable control Image size, Contrast, brightness, gain, exposure time
Software Function Image display, image processing, video
Working Temperature -30°C~70°C
Accessories Equipped with standard infrared filter, C-mount connecting ring, 1.5m USB cable, 1 CD with software and SDK.
Camera Net Weight 60g
Camera Dimension 29mm×29mm×50mm(length × width × height)
Box Dimension 118mm×108mm×96mm (length × width × height)



Model BIC-B3C-15.0C
Description USB3.0 colorful/mono CMOS 14.0MP industrial digital camera with frame buffer
Image Sensor 1/2.3 inch, colorful/mono 14.0MP CMOS Image Sensor
Pixel Size 1.4μm×1.4μm
Spectral Response 400nm～1000nm
Sensitivity 0.724V/lux-sec@550nm
Scan Mode Progressive Scan
Exposure Mode Electronic rolling shutter
Max Resolution 4608 × 3288 = 15.15MP
Frame Rate 5fps@4608×3288
White Balance Auto / Manual
Exposure Control Auto / Manual
Image Output USB3.0, 5Gb/s
Power USB3.0 Power Supply, 500mW
Dynamic Range 65.3dB
Signal to Noise Ratio 36.5dB
Programmable control Image size, Contrast, brightness, gain, exposure time
Software Function Image display, image processing, video
Working Temperature -30°C~70°C
Accessories Equipped with standard infrared filter, C-mount connecting ring, 1.5m USB cable, 1 CD with software and SDK.
Camera Net Weight 60g
Camera Dimension 29mm×29mm×50mm(length × width × height)
118mm×108mm×96mm (length × width × height)



Spectral Response Curve

5MP-Color

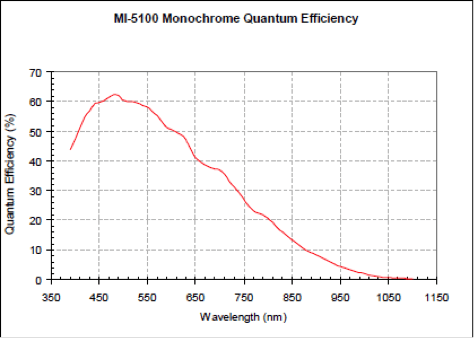

5MP-Mono

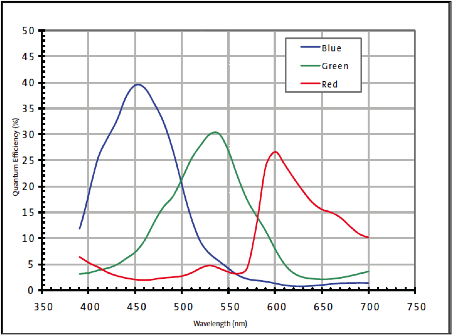

10MP

14MP
