BIM750DIC Inverted Biological Microscope with Brightfield, Polarized, DIC and Phase Contrast Imaging
This is an advanced multi-functional optical instrument. It is designed with fashion outlook and convenience operation. The system allows several methods of observations such as brightfield, polarization, phase-contrast and DIC Nomarski, as well as optional fluorescence imaging. This unit is suitable for the microscopic observation of cells, tissues and clear liquid tissues, and the dynamic microscopic observation of tissue cultures. Research labs working on C. Elegans, Zebrafish, embryo development, microfluidics device, chambers, bacteria, infection disease love this microscope.
DIC Nomarski Contrast
Differential interference contrast microscope uses are unlimited. Equipped with high-quality DIC objective lenses, and split DIC slide to divide polarizing light into O/E lights, after transmit the object, combine the O/E light with small optical path difference to create interfered image, make high-contrast, 3-D images under microscope.
Long Working Distance Condenser For DIC Observation
Three Culture Dish Holder For Different Size Culture Dish
Photo Adapter On Left Side Of Main Body, 100% Light Pass For Low Light Photography Condition
Features
Considers all the DIC Nomarski principles in the optomechanical desig and brings you in a user friendly environment.
Transmitted Light DIC Nomarski Split Slide
Transmitted Light DIC Nomarski Combine Slide
Pull and push polarization slides
Handle position for easy carrying and moving the microscope
One of the reasonable DIC Microscope price that you can find in the market
BIM750DIC Inverted Biological Microscope
with Brightfield, Polarized, DIC and Phase Contrast Imaging
BIM750DIC inverted contrast microscope is a new type of multifunctional optical instrument. It is equipped with excellent UIS optical system and modularization function design. This follows the all recently published and found DIC microscopy principle you that you can find in the literature and social media. The long working distance condenser system can be placed into or out of the light path, and is suitable for tissue observation in a culture dish. It is also designed according to man-machine engineering principles. The phase contrast device can be attached to the light path to perform transmitted phase contrast microscopic observation, such as phase contrast, modulation contrast and differential interference contrast (DIC Nomarski) observation.
This unit is suitable for the microscopic observation of cells, tissues and clear liquid tissues, and the dynamic microscopic observation of tissues cultured in a culture dish, well plate, T-Flask, chamber slide, and etc. It is recommended to scientific research institutions, colleges and universities, medical and health, inspection and quarantine agencies, agricultural, animal husbandry and dairy industries that look for a descent quality high-resolution high-contrast images for publication.

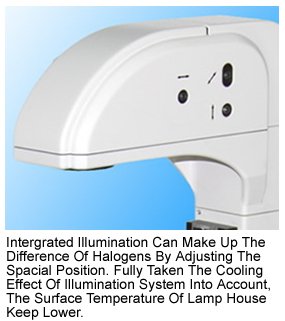

Integrated illumination system allows make up the difference of halogen heat generated by adjusting the spatial position of the bulb. The cooling effect of illumination was taken into account. The Surface temperature of lamphouse is always at low temperature.
Gemel mode design of trinocular viewing head, inclined at 45 degrees.
Ergonomically designed microscope never let the operator’s cervix or shoulder feel tired from long time working behind microscope.
Includes widefield 10x/field number 22mm wide field eyepieces.
Easy switch in / out or keep the condenser system from the light path away.
Excellent optical design for tissue observation in high or thick culture dish.

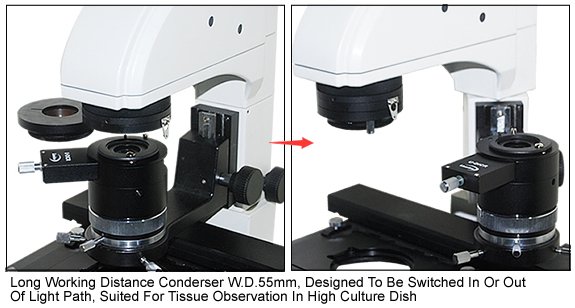

Long working distance condenser, WD=55mm
Designed to be switched in or out of light path.
Suitable for tissue culture observation in thick culture flasks.
Transmitted light DIC split slider
Transmitted light DIC combine slider
Pull and push polarization system
Easy handling and movement.

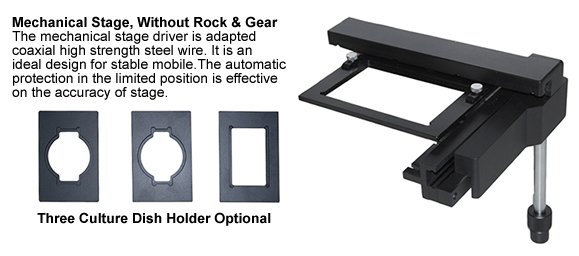

Mechanical XY Stage, without rock & gear
Sample holders for 35mm Petridish, 50mm, 60mm, 90mm, 100mm PD, Terasaki sample, glass slide, T-25 flask, T-75 flask and well-plate.
Coaxial Coarse & Fine Focus Knob, With Tension Adjustable And Limit Stopper,
Minimum Division 0.002mm
Condenser
Long Working Distance 55mm, N.A. 0.3.
For DIC Contrast View
Light Source
High Light 5W LED White, Input 3.9~3.0V ,
Brightness Adjustable
Optional Accessories
Adapter
CCD Adapter 0.5x
BIM75-0.5xCA
Digital SLR Camera Adapter for Canon EF Series
BIM75-SLR-X
Sample Images
Have you ever known that the DIC Nomarski images are always at the top best images of microscopy that win the prizes? At least 16 million people have watched these images. You may be the winner one day. Who know? To see the DIC vs brightfield images, you may check this:
To learn about the difference between the DIC, Polarization and Phase-Contrast Images, see this video.

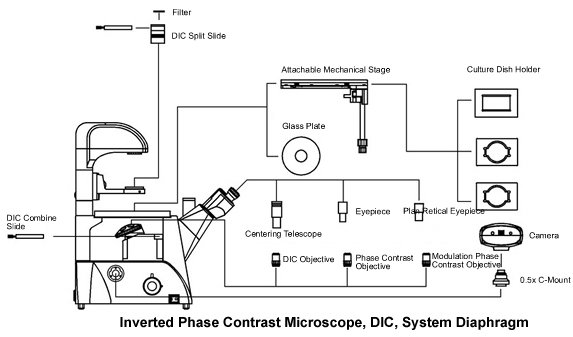

System Diagram
The BIm750DIC Microscope has transmission type differential interference contrast observation system. This includes Polarizer, DIC split board, Condenser, DIC combined board, Analyzer, centering eyepiece and the DIC objective. You will get all of these items.
To get fluorescnec imaging, please check BIM720FL and phase-contrats imaging, see BIM720 model, which are compatible with this series.
Imaging Software
The microscope does not come with a camera, but selecting a right camera is crucial. Couple of things before you buy a camera:
A camera which has high sensitivity of color and shows natural color. Note: For any camera you use, please do white balance before using.
A camera WHICH can offer an EDF or extended depth of focus feature to be able to do 3D images.
Among the big list of USB 3.0 digital cameras we offer, we suggest taking a look at the following items:
To see the difference between the DIC Nomarski image versus polarization and or phase contrast, check this video: https://www.youtube.com/watch?v=czFJBtqzlhw
What is DIC Microscopy imaging principle?
Answer is in this video: https://www.youtube.com/watch?v=2xRrFEjB00Q
