Introduction to BVM300M Video Microscope with Measuring Tools
Sale!
BVM300M Video Microscope with Measuring Tools
$USD 2,499.00
-50%- The most configurable video microscope for inspection and measurement
- 0.3x-3x zoom magnification main body
- Easy combine with a plan apo long working distance lenses from 5x to 100x
- Mechanical XY stage with measuring tools
- Advanced digital measurement features via software
- Optional 4k HD or Ultra HD resolution image

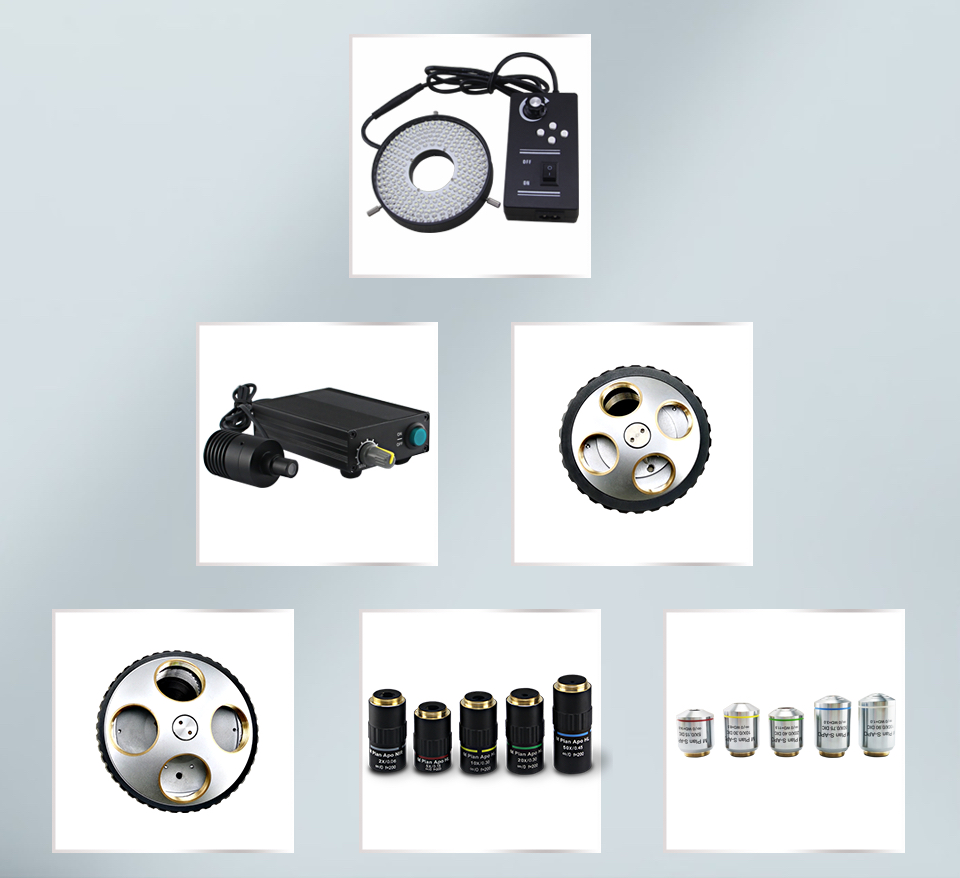

- Different C-mount adapters and aux lenses

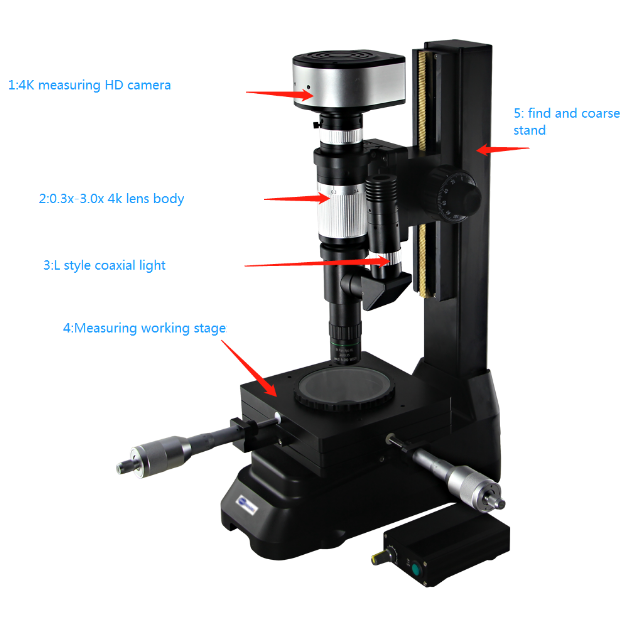

BVM300M Video Microscope with Measuring Tools
Features
- The most configurable video microscope for inspection and measurement
- 0.3x-3x zoom magnification main body, 10:1 zoom ratio
- Easy combine with a plan apo long working distance lenses from 5x to 100x
- Mechanical XY stage with measuring tools
- Advanced digital measurement features via software
- High Precision fine and coarse focusing mechanism
- Optional 4k HD or Ultra HD resolution image
- Different C-mount adapters and aux lenses
BVM300M Video Microscope with Measuring Tools
| The most configurable video microscope | |
|
|
|
|
|
|
Specifications
|
Model
|
BVM300M-0330-1xCA
|
BVM300M-0550-1.67xCA
|
|
Zoom body
|
0.3-3.0X with 1X C mount
|
0.5-5.0X with 1.67X C mount
|
|
Optical magnification
|
0.3-3.0X
|
0.5-5.0X
|
|
FOV
|
25.6×14.4 – 2.56×1.44mm
|
15.36×8.64 – 1.54×0.86mm
|
|
Working distance
|
100mm
|
|
|
Lens mount
|
Standard C mount
|
|
|
Resolution
|
3840 x 2160
|
|
|
Output
|
HDMI output or GigE to PC
|
|
|
Pixel size
|
2.0μm x 2.0μm
|
|
|
Optical size
|
1/1.8”
|
|
|
Frame rate
|
60FPS
|
|
|

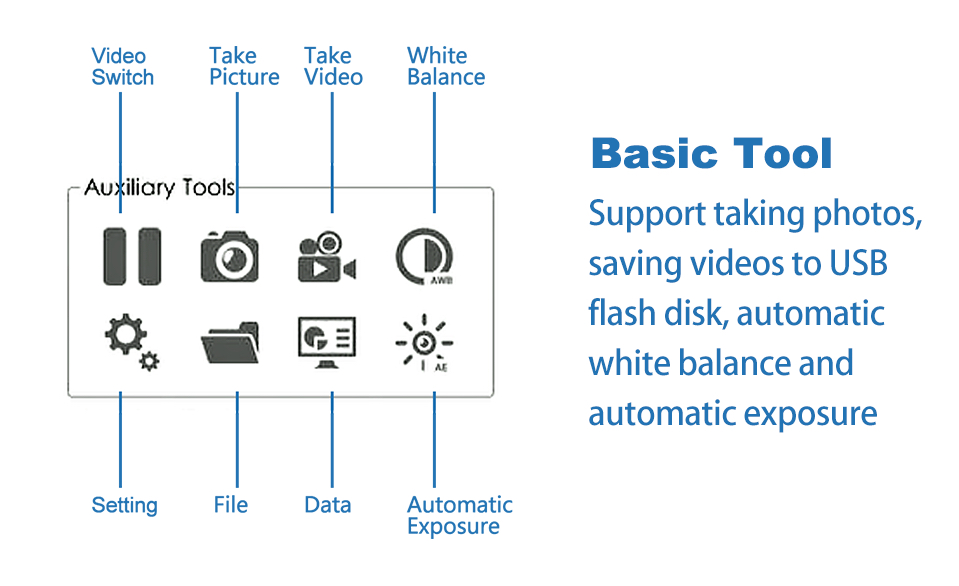

Memory
|
Support to take pictures and video, save to U disk, also can browse directly
|
|
|

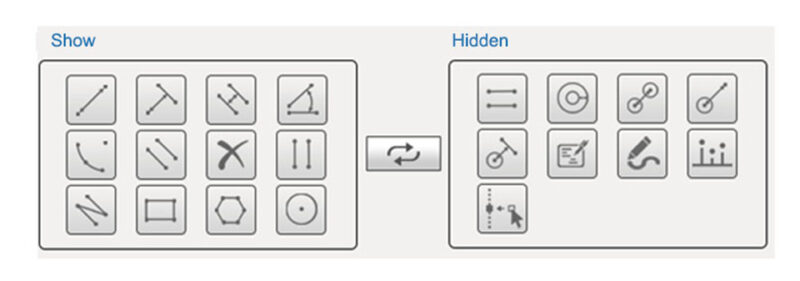

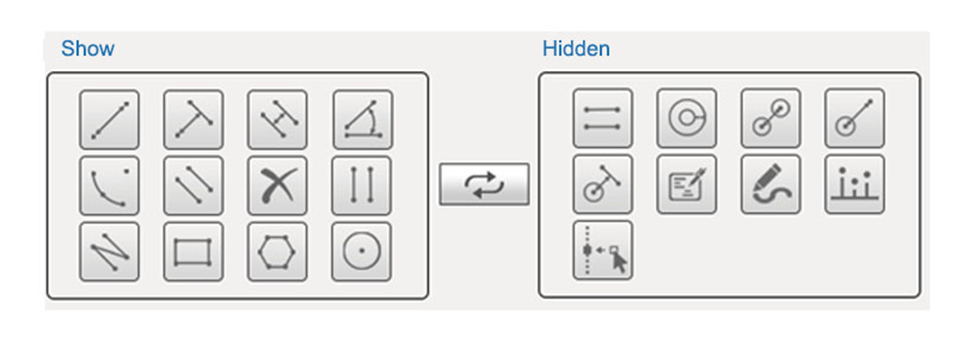

Measuring function
|
Support point, line, circle, arc, Angle, rectangle, polygon measurement
|
|
|
Height of stand
|
350mm
|
|
|
Focus
|
Fine focus, precision is fine focusing is 0.002mm.0.214mm/circle
|
|
|
Measuring stage
|
Travel distance：50x50mm，
Size：160x160x42mm 360°rotation glass stage，diameter of glass is φ65mm |
|

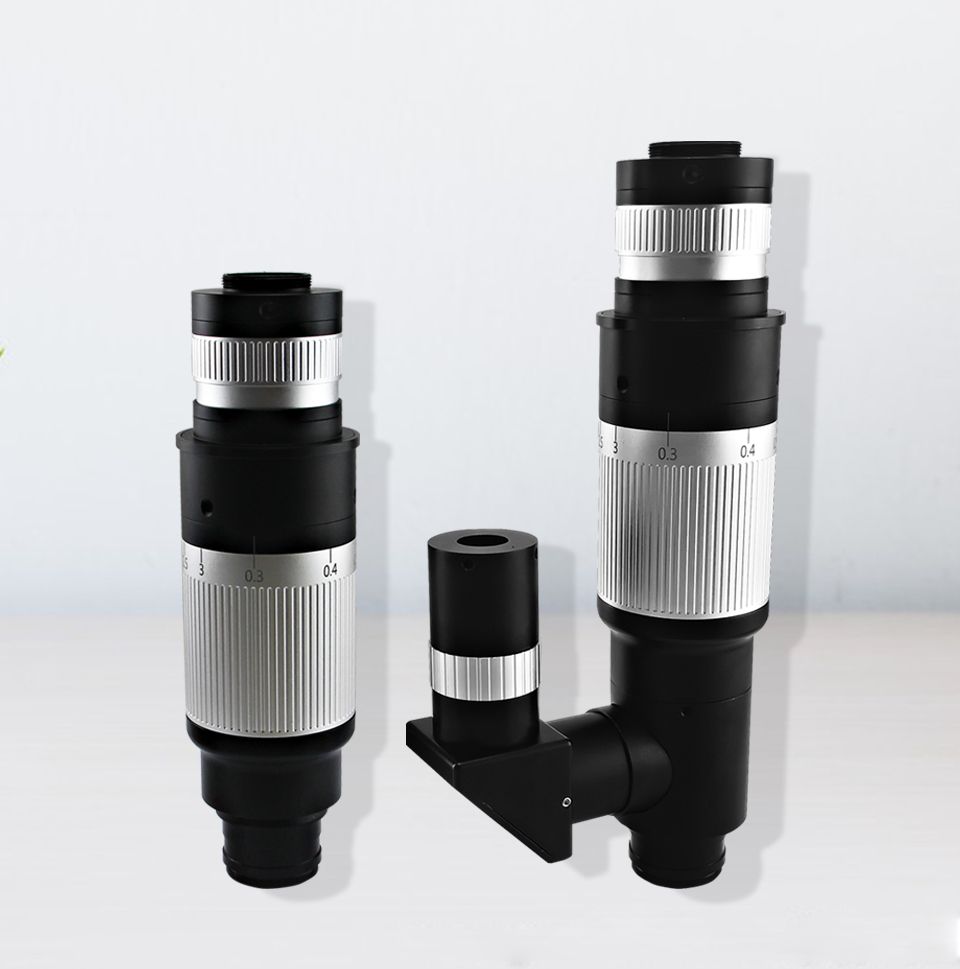

BVM300M-0330 0.3-3.0X Ultra Resolution 4K Zoom Lens
|
Model
|
BVM300M-0330
|
||||
|
Magnification
|
0.3X
|
0.5X
|
1.0X
|
2.0X
|
3.0X
|
|
Focus distance(mm)
|
27
|
45
|
90
|
180
|
270
|
|
Working distance(mm)
|
100
|
100
|
100
|
100
|
100
|
|
Depth of field（mm）
|
5.80
|
2.16
|
0.63
|
0.22
|
0.12
|
|
NA(mm)
|
0.023
|
0.037
|
0.063
|
0.090
|
0.107
|
|
Resolution(mm)
|
0.015
|
0.009
|
0.005
|
0.004
|
0.003
|
|
F/#
|
6.5
|
6.8
|
7.9
|
11.1
|
14.0
|
|
Dist%
|
3.90%
|
1.90%
|
0.55%
|
-0.04%
|
-0.23%
|
|
CCD
|
2/3”
|
2/3”
|
2/3”
|
2/3”
|
2/3”
|
|
Mount
|
C
|
C
|
C
|
C
|
C
|
|
F/#
|
21.7
|
13.5
|
7.9
|
5.6
|
4.7
|
BVM300M-0550 0.5-5.0X Ultra Resolution 4K Zoom Lens
|
Model
|
BVM300M-0550
|
|||||
|
Magnification
|
0.5X
|
1.0X
|
2.0X
|
3.0X
|
4.0X
|
5.0X
|
|
Focus distance(mm)
|
45
|
90
|
180
|
270
|
360
|
450
|
|
Working distance(mm)
|
100
|
100
|
100
|
100
|
100
|
100
|
|
Depth of field（mm）
|
3.48
|
0.93
|
0.29
|
0.16
|
0.10
|
0.07
|
|
NA(mm)
|
0.023
|
0.043
|
0.070
|
0.085
|
0.097
|
0.107
|
|
Resolution(mm)
|
0.015
|
0.008
|
0.005
|
0.004
|
0.003
|
0.003
|
|
F/#
|
10.9
|
11.6
|
14.3
|
17.6
|
20.6
|
23.4
|
|
Dist%
|
2.97%
|
1.10%
|
0.20%
|
-0.03%
|
0.13%
|
0.20%
|
|
CCD
|
1”
|
1”
|
1”
|
1”
|
1”
|
1”
|
|
Mount
|
C
|
C
|
C
|
C
|
C
|
C
|
|
F/#
|
21.7
|
11.6
|
7.1
|
5.9
|
5.2
|
4.7
|

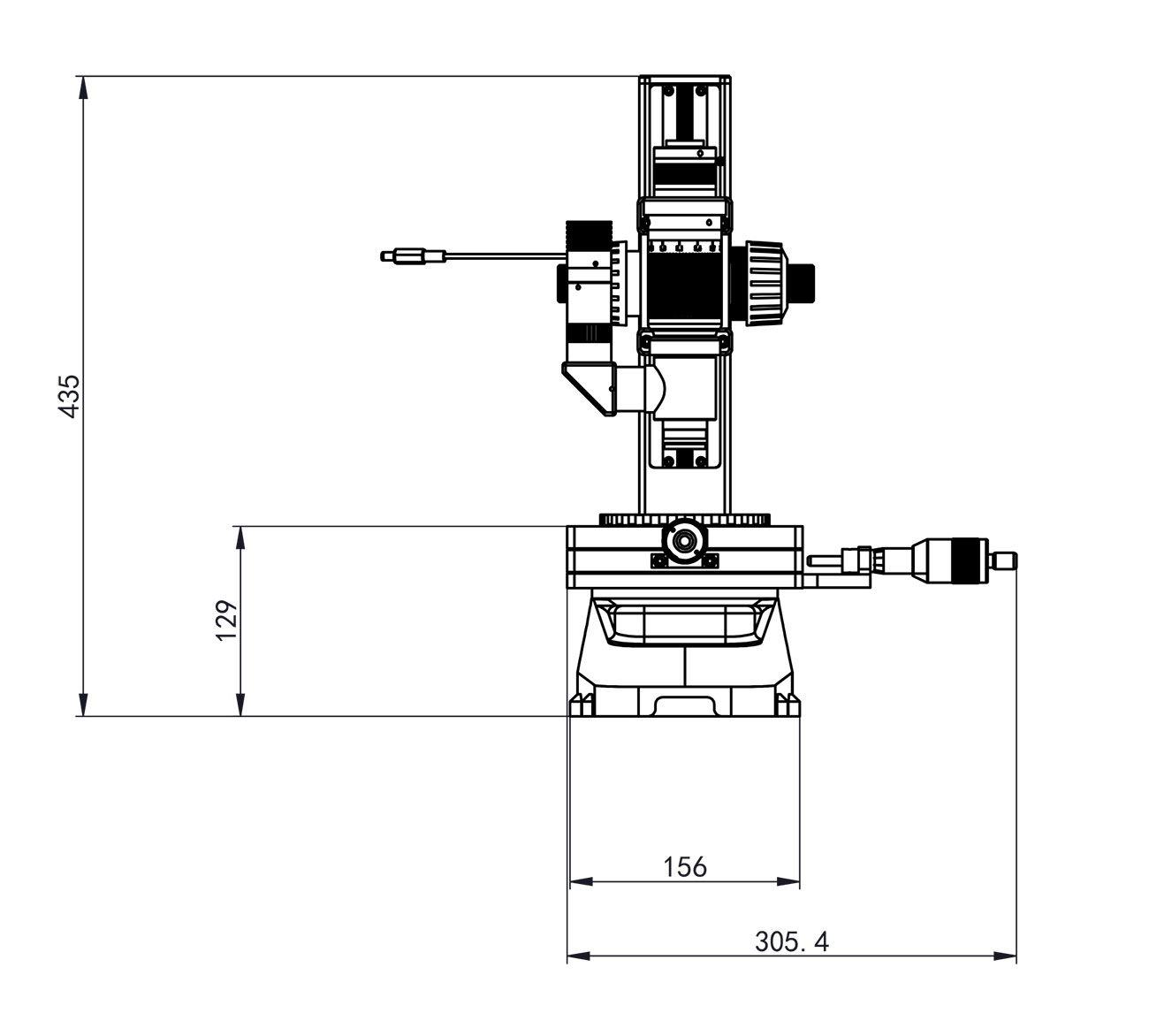

Dimension
|
BVM300M with single objective lens 20x |

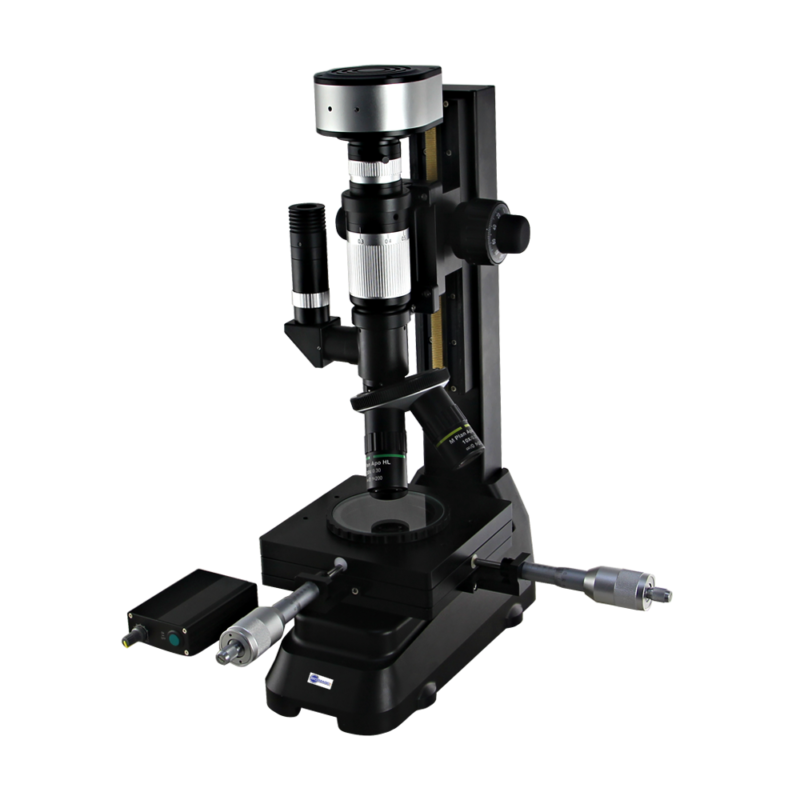

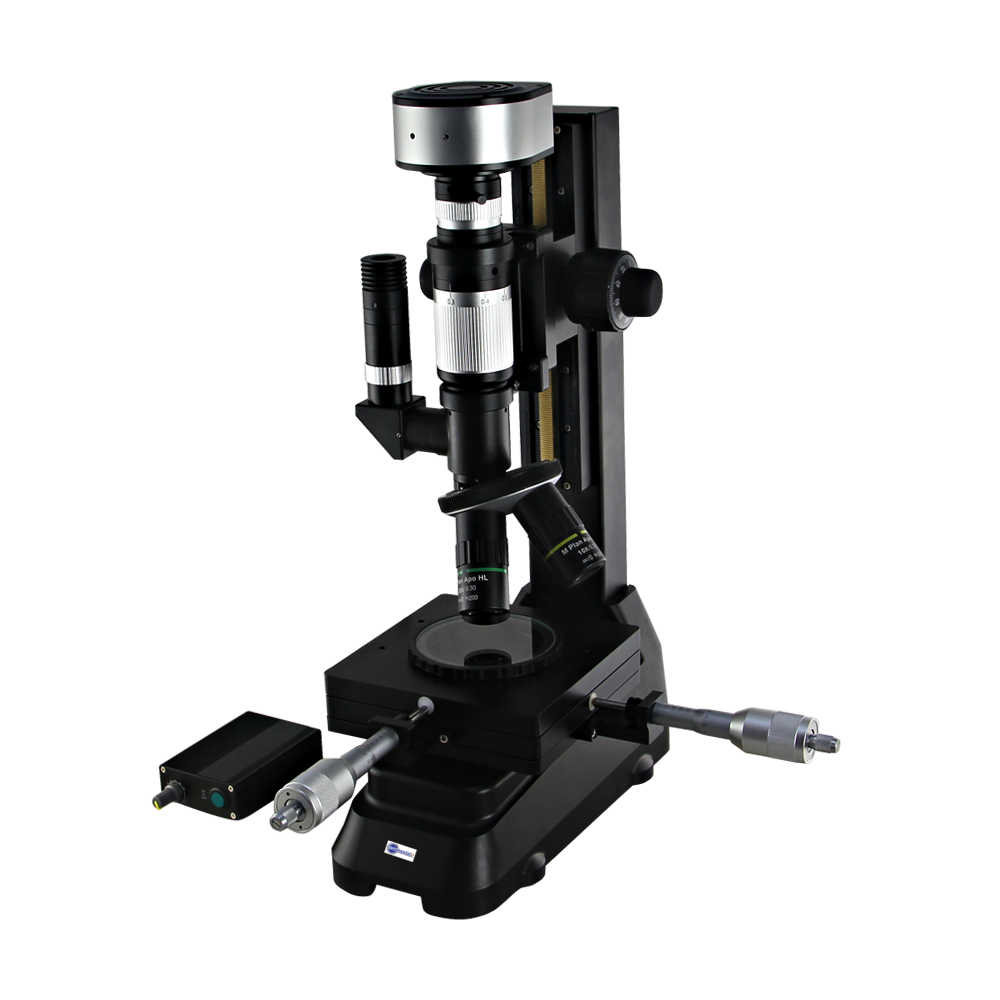

BVM300M with a nosepiece, 10x and 20x objective lenses |
