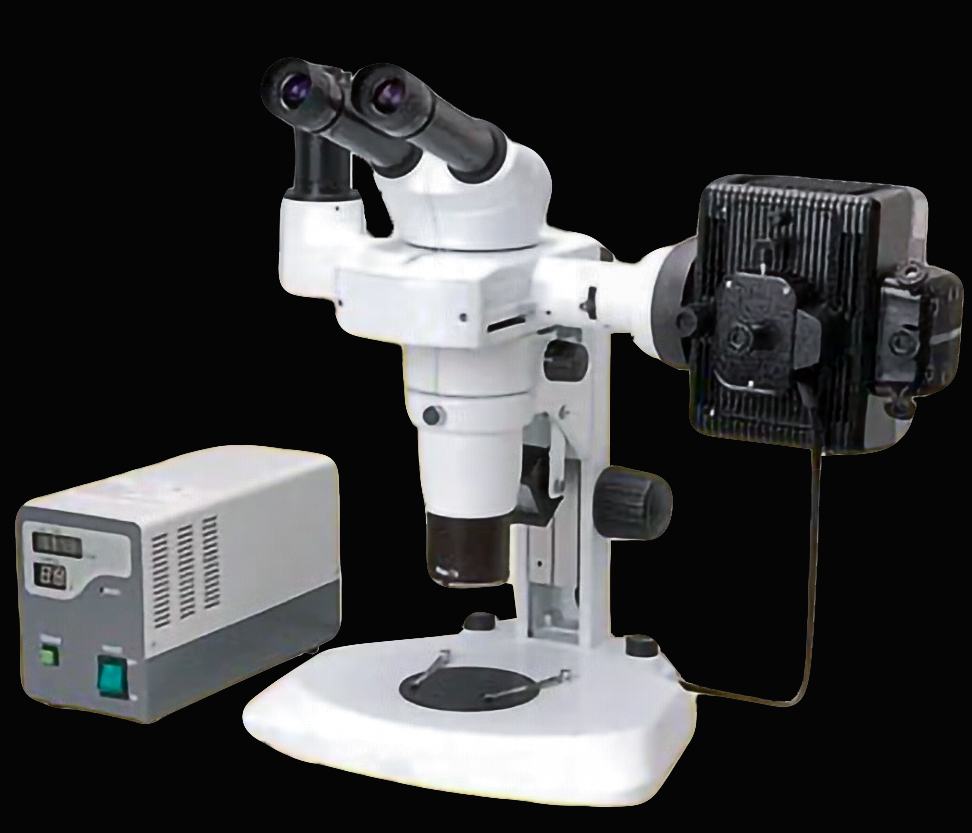

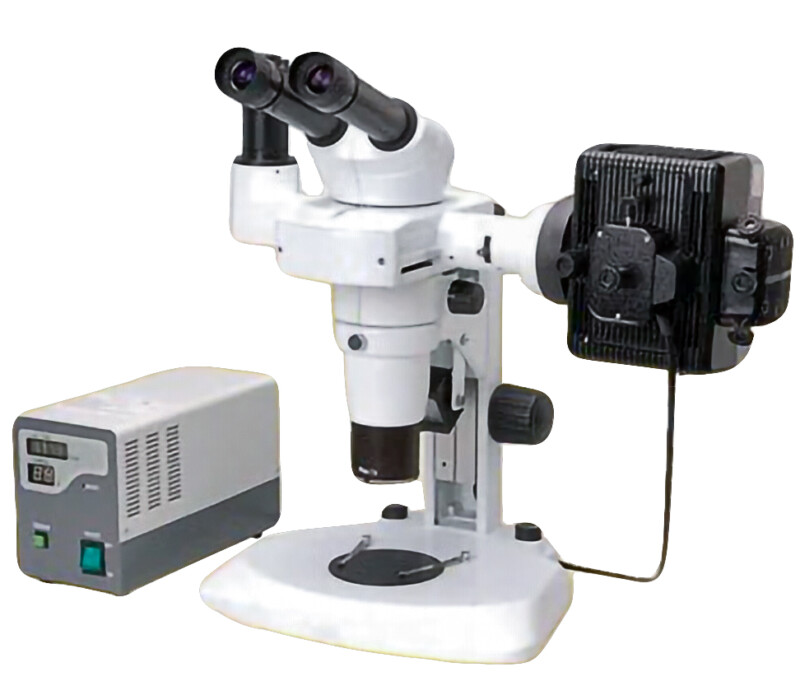

BSM500FL Stereo EpiFluorescence Microscope (Nikon SMZ800 Clone)

Availability:

In stock


Compare
  • Zoom Stereo Epi-Fluorescence Microscope
  • Transmitted & Reflected LED;
  • Zoom Obj: A: 0.8x-5.0x, B: 0.8-6.4x, C: 0.8-8x;
  • with GFP filters and optional RFP/TRITC, YFP, etc
  • Fine & Coarse Focus

In stock

$6,599.00 $8,800.00

Epi-Fluorescence Stereo Microscopes

Now, for the first time, end-users of stereoscopes can get benefits from the same advanced imaging techniques that upright microscopes users have long enjoyed. The new epi-fluorescence illuminator of BioImager stereo-microscopes allows 3D observation of samples such as living organisms using fluorescence methods such as green fluorescence protein (GFP), red fluorescence protein (RFP) or Texas Red, Dapi/Hoechst, as well as photo resistant semiconductor wafers and printed circuit boards (PCB). Best of all, it provides all the advantages of advanced fluorescence microscopy along with ultra-long working distances for easy specimen manipulation and true three-dimensional stereo vision.

Last but not least, we offer LED epi-fluorescence stereo-microscopes and attachment to use with your own microscopes.

Features

  • Ideal Screening Fluorescence Microscopes
  • We offer a low-price solution for stereo fluorescence imaging, screening and manipulation of transgenic species.
  • Long working distance
  • Base configurations available for fluorescence only or with LED transmitted light source.
  • Bright, easily visible outputs. Multi-wavelength excitation.
  • Custom light adapter source, upgradable for bright GFP or any custom design.
  • Perfect tool for Zebrafish, embryo development studies, and Vet Labs.
  • #1 choice for Drosophila, C. Elegans fluorescent Imaging, macroscopic pictures of bacterial colonies, semi-conductor and microfluidic chips.
  • Tens of accessories and optional items to complete your imaging need
  • We offer up to 40 different specialized filter cubes.Please contact us for the listing.
  • Ideal Screening Fluorescence Microscopes
  • We offer a low-price solution for stereo fluorescence imaging, screening and manipulation of transgenic species.
  • Long working distance
  • Base configurations available for fluorescence only or with LED transmitted light source.
  • Bright, easily visible outputs. Multi-wavelength excitation.
  • Custom light adapter source, upgradable for bright GFP or any custom design.
  • Perfect tool for Zebrafish, embryo development studies, and Vet Labs.
  • #1 choice for Drosophila, C. Elegans fluorescent Imaging, macroscopic pictures of bacterial colonies, semi-conductor and microfluidic chips.
  • Tens of accessories and optional items to complete your imaging need
  • We offer up to 40 different specialized filter cubes.Please contact us for the listing.
  • High Quality Fluorescence observation of living cells, biology slides, industrial inspection specimen and criminal justice samples.
  • Excellent Image Quality & Optical Performance with Infinity Parallel Optical System.
  • Comfortable Operation with Ergonomic Design Principle.
  • With LED light for both incident and transmitted illumination, Providing even illumination and life expectancy can reach 6,000 hours.
  • A Wide Range of Accessories to be Equipped with the Microscope for Multi-purpose. It is an outstanding assistant in Industrial, Medical and Scientific Research Areas.

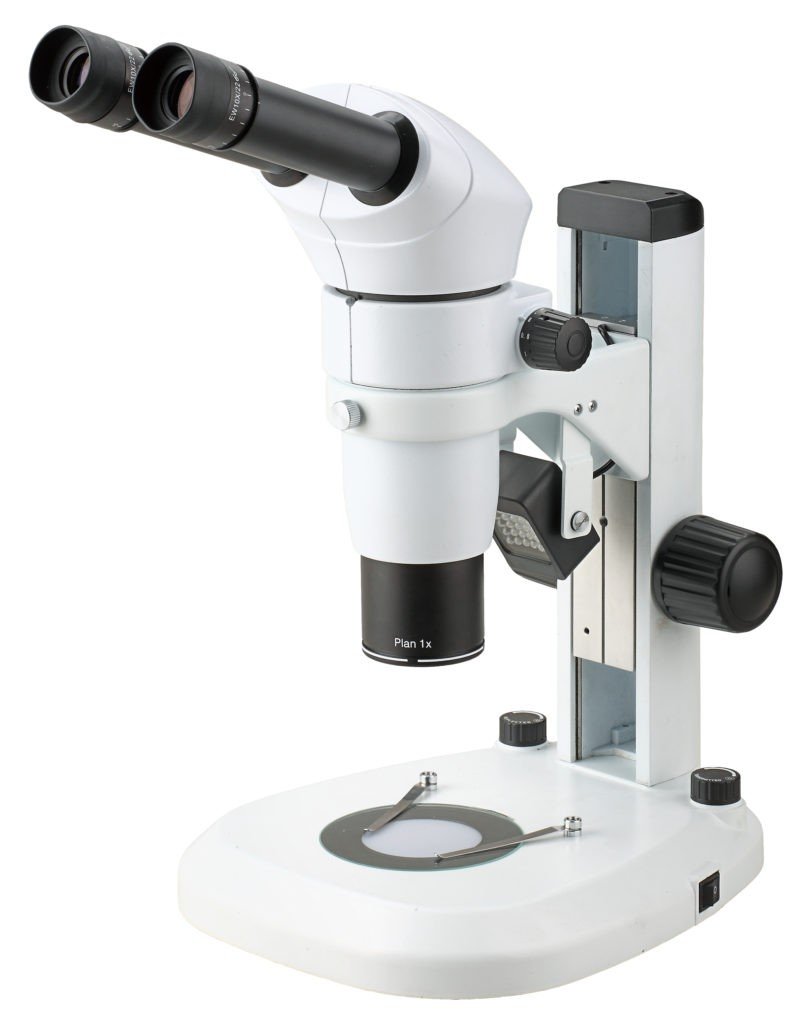

1. Setreoscope

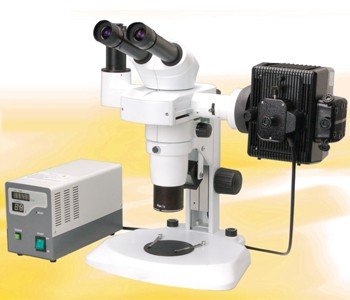

BSM500FL Stereo EpiFluorescence Microscope

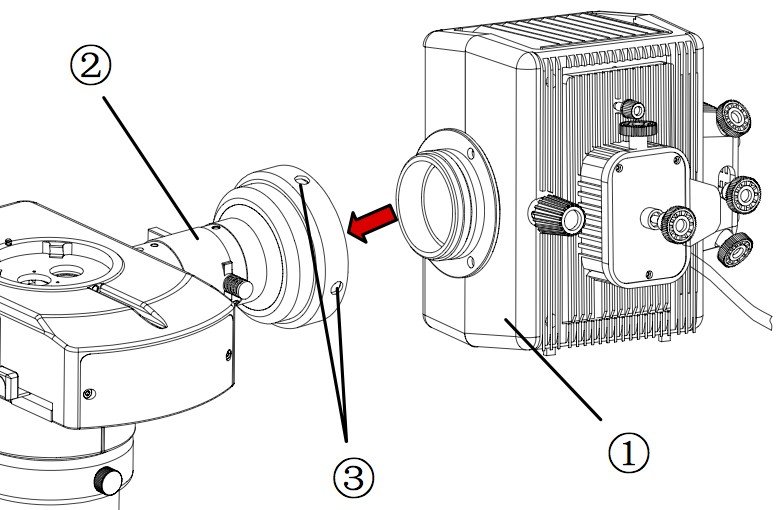

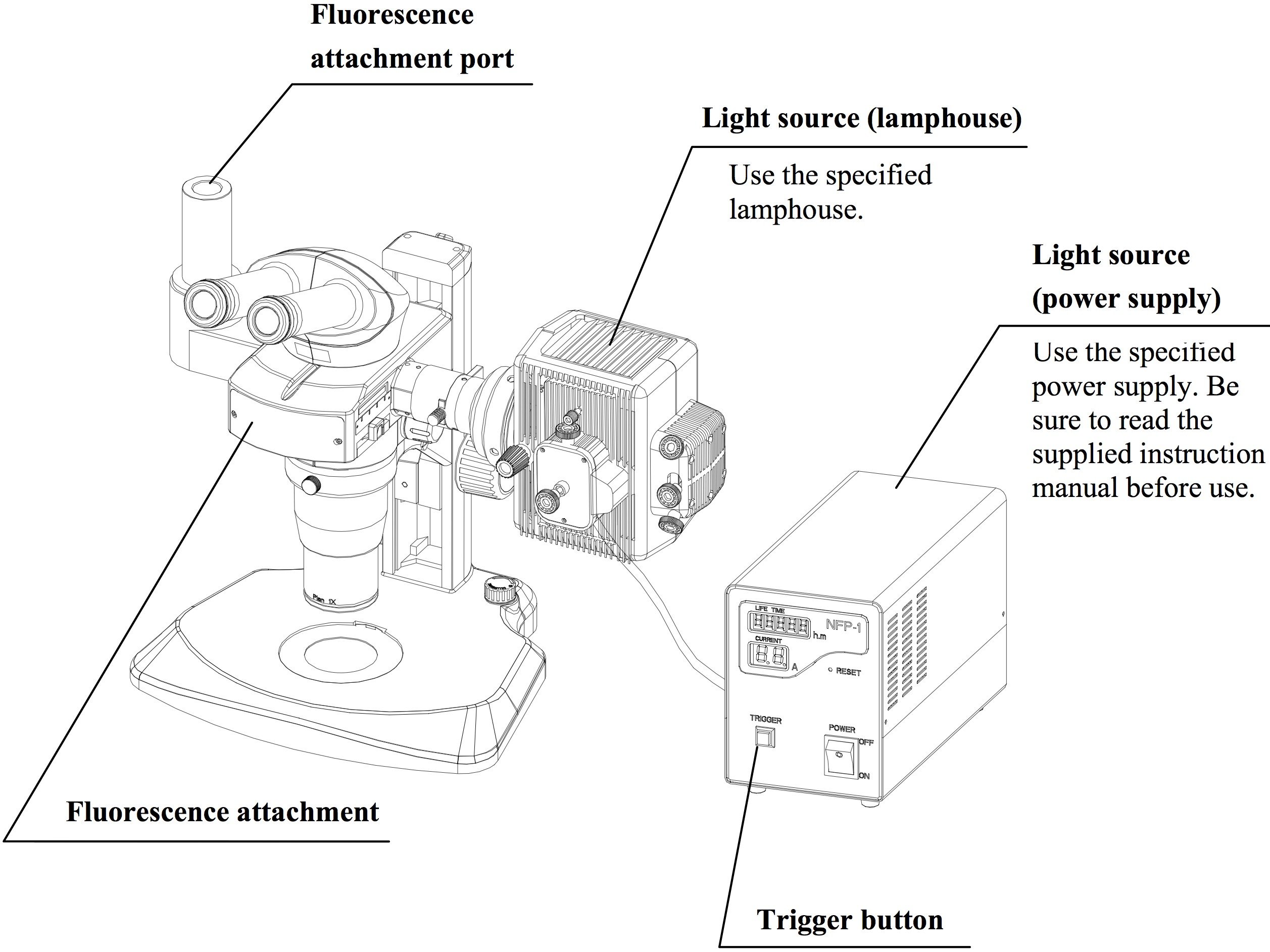

2. Epi-Fluorescent System

 Stereo/FL800-3.jpg

 BSM500FL Stereo EpiFluorescence Microscope

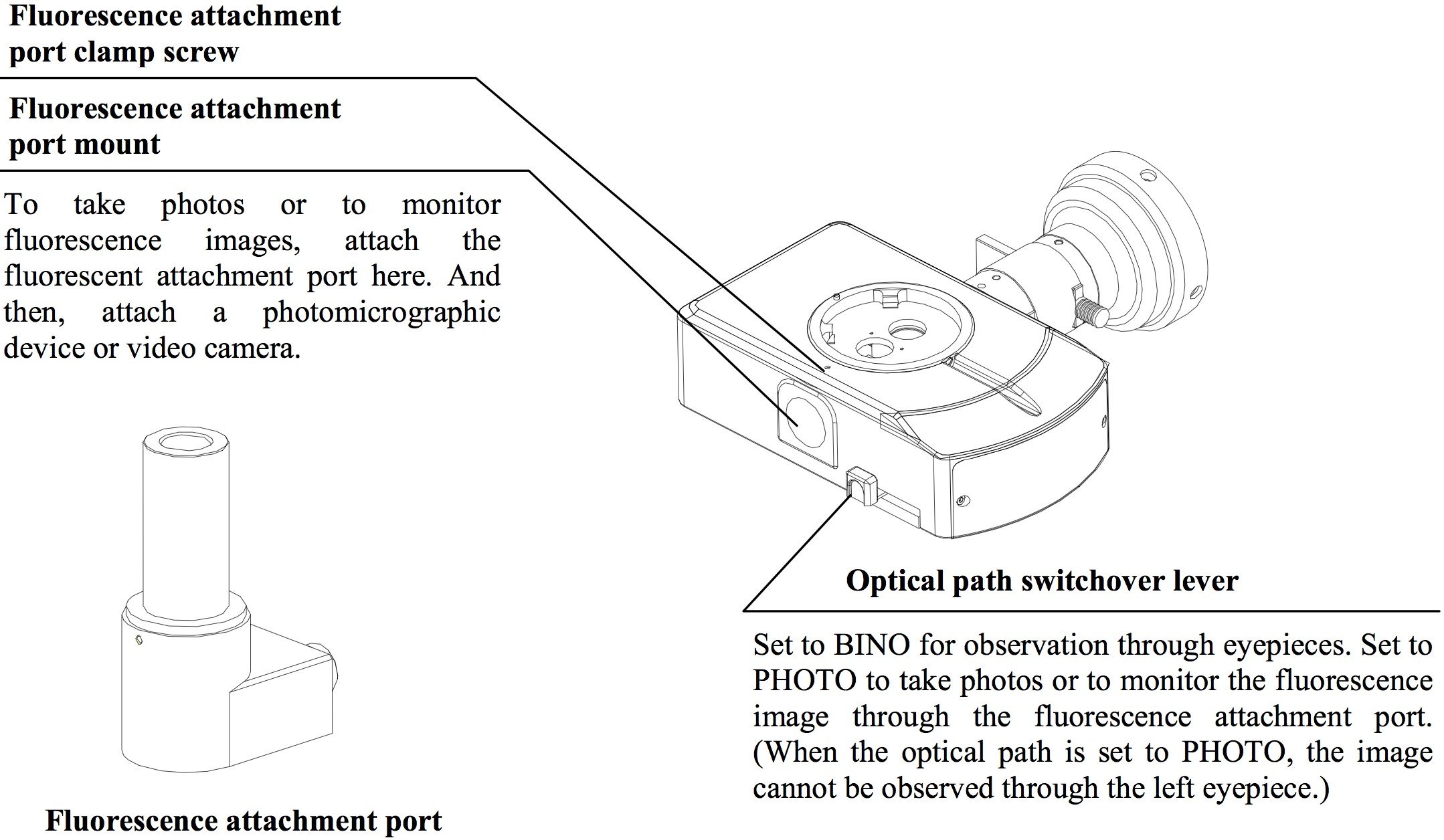

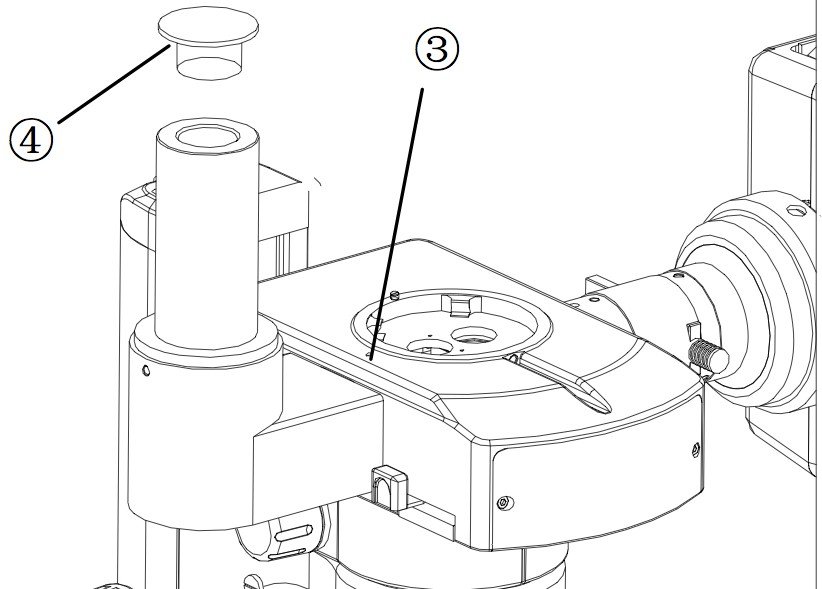

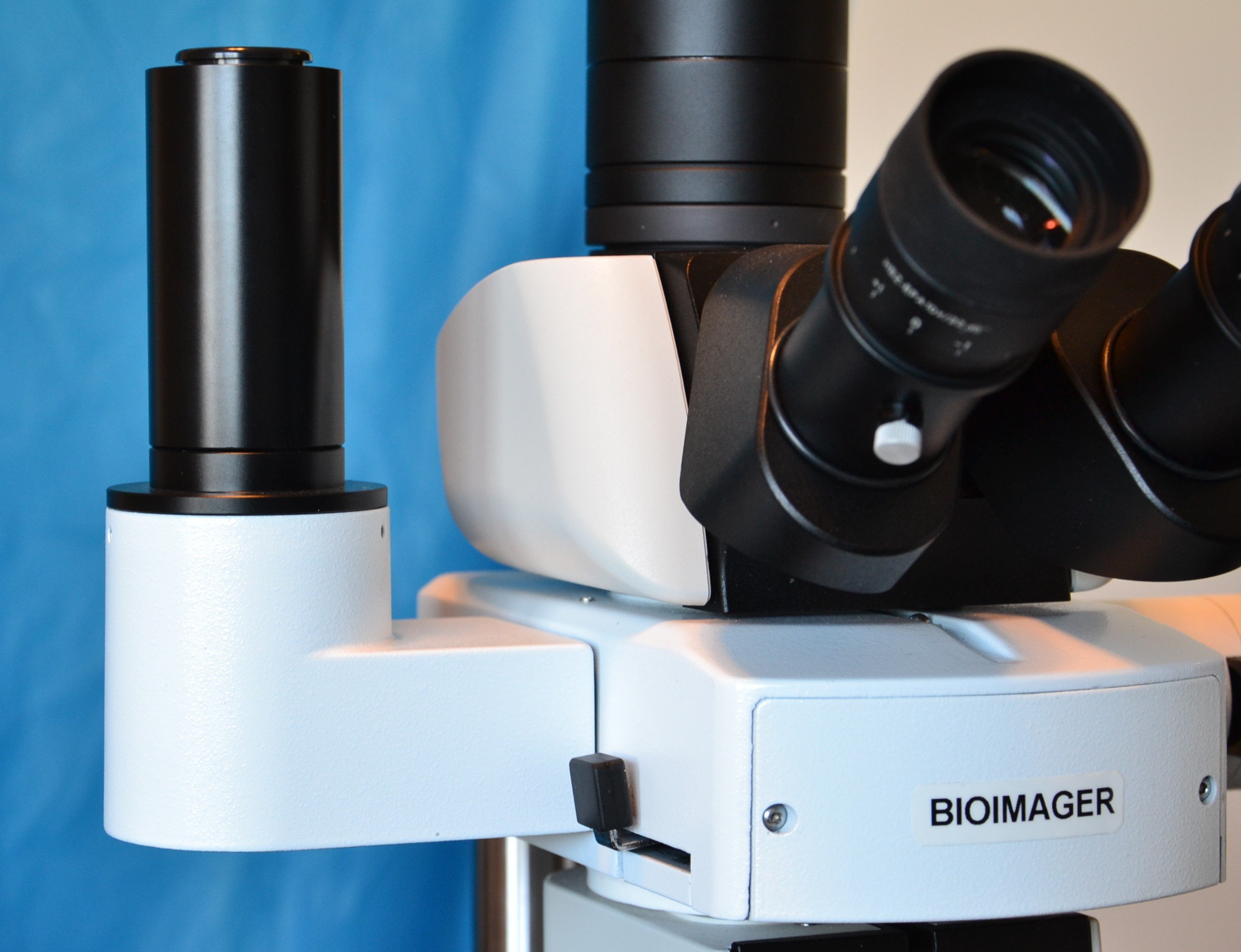

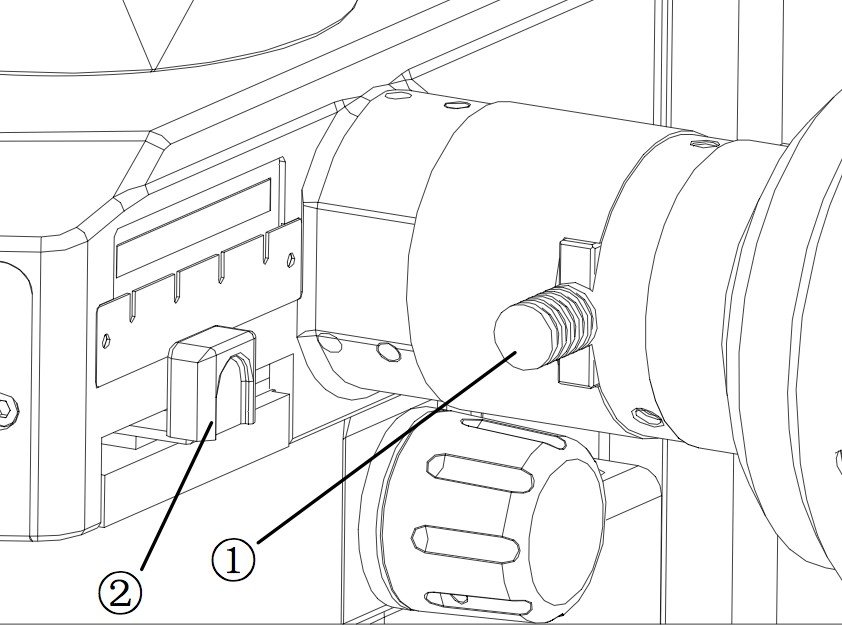

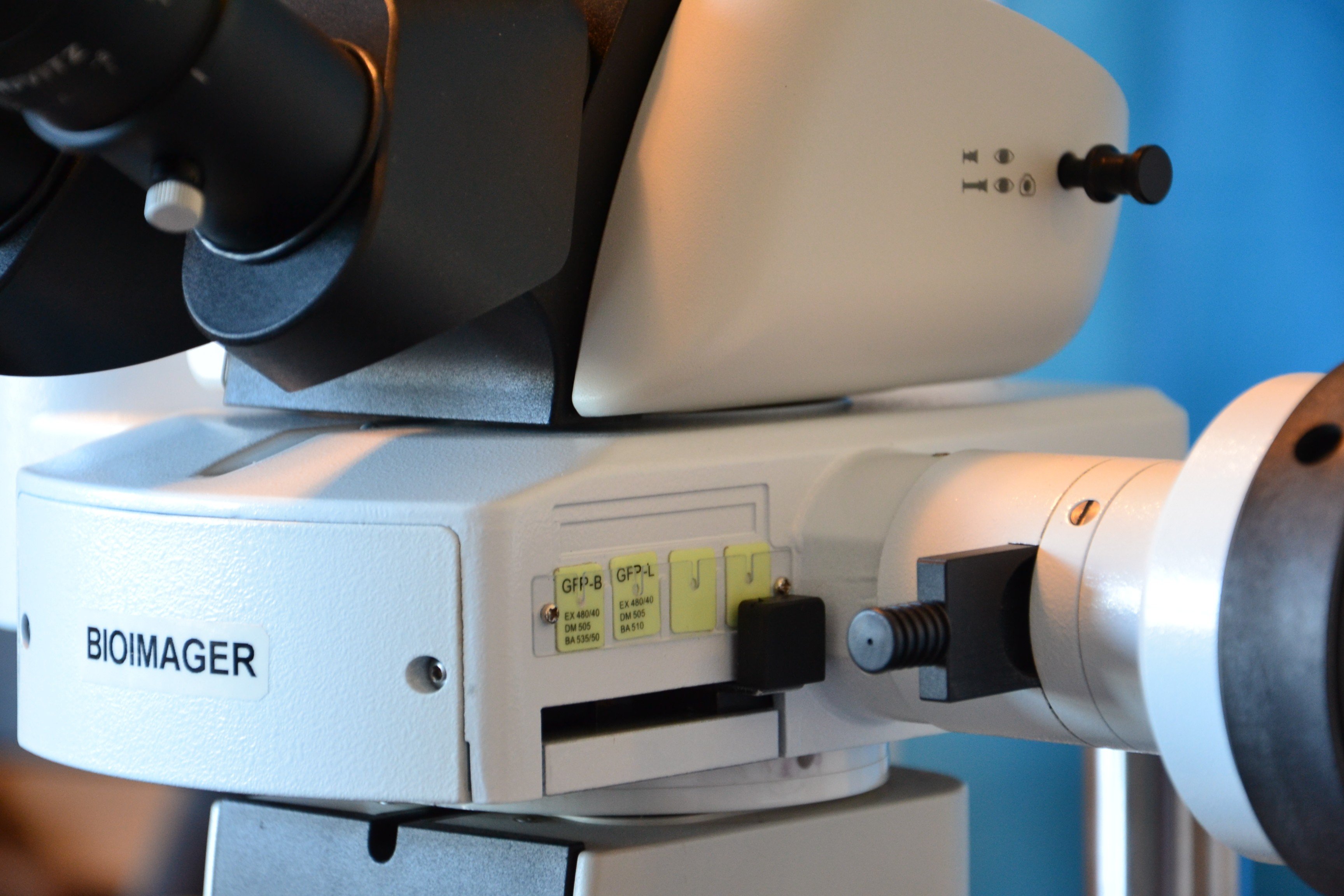

100% Epi-fluorescent light from the specimen goes to a cameraEasy filter switch with a shutter to avoid photobleaching & phototoxicity
BSM500FL Stereo EpiFluorescence MicroscopeBSM780FL BIOIMAGER Epi-Fluorescence Stereoscopy Package

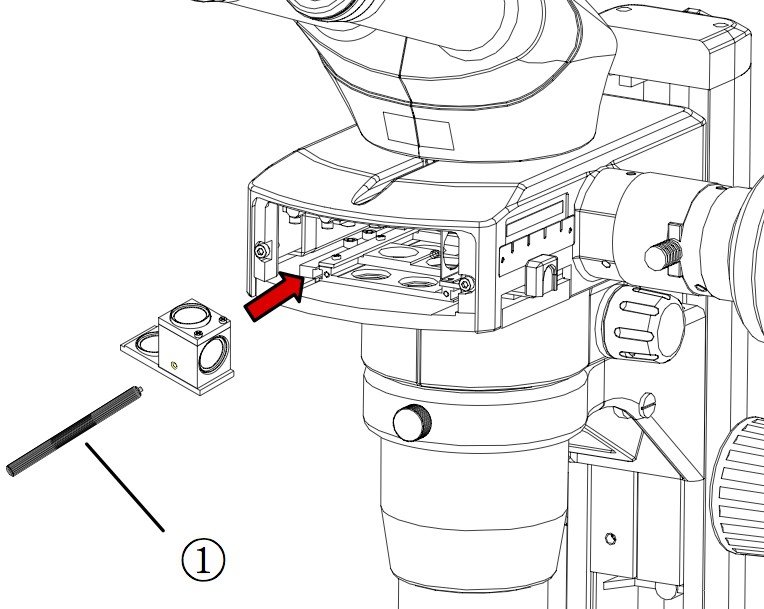

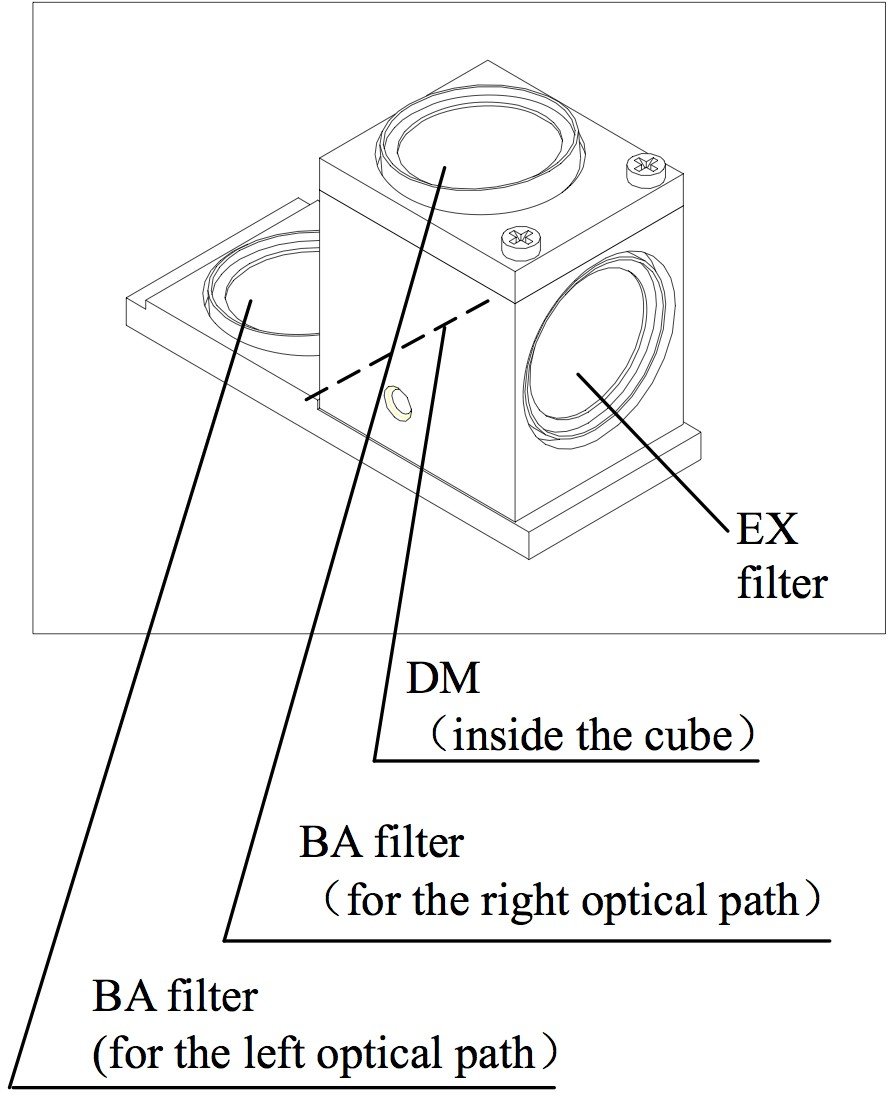

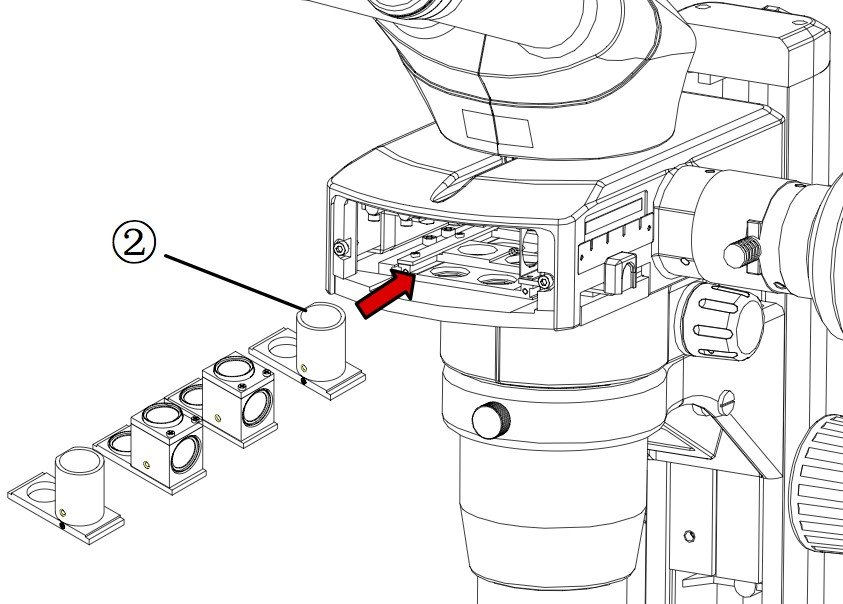

Four-position filter slider (3 Fluor+1 open/BF)  Customized filter is available

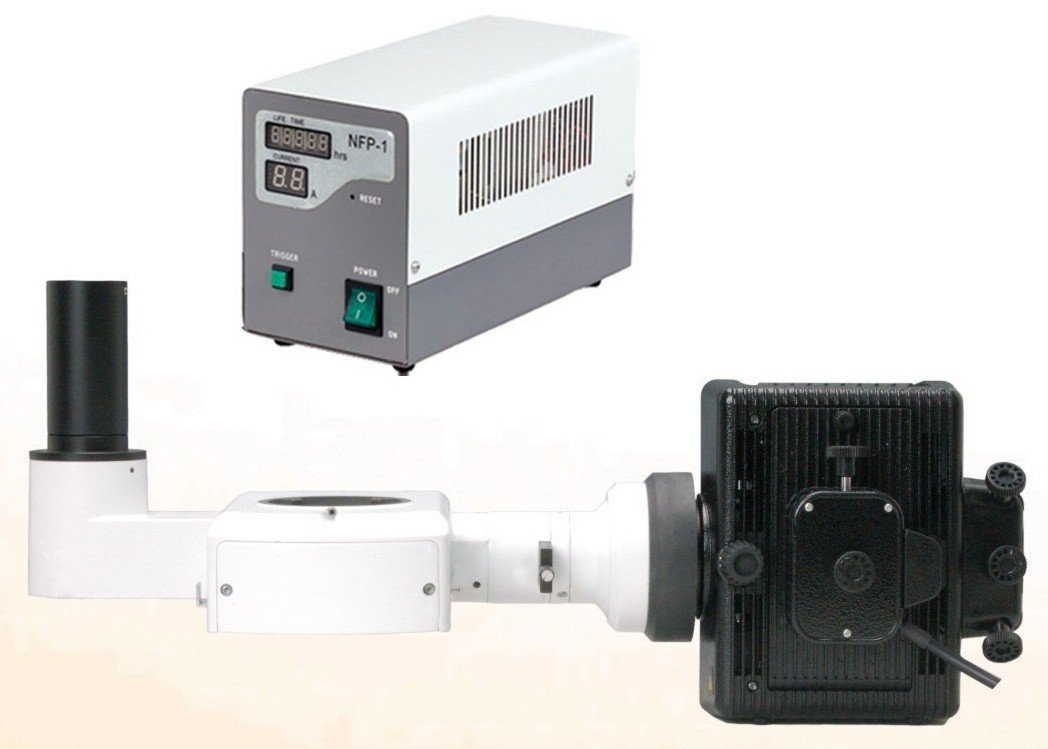

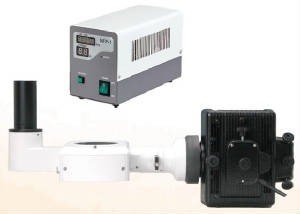

FLS800

Fluorescent Attachment

GFP-BP   (EX460-500, DM505, BA510-560)

GFP-LP (EX460-500, DM505, BA510)

CFP-B (EX430-450, DM455, BA465-495)

YFP-B (EX490-510, DM525, BA530-560)
TRITC/DsRed (EX 545/30, DM 570LP, EM 620/60)
RFP-B (EX525-555, DM570, BA585)

Illumination

100W Ultra hi-voltage spherical mercury lamp, power supplier NFP-1, digital display, shutter.

Note: Custom fluorescent filters such as DAPI/Hoechst, CFP, YFP, etc are available.  Contact us for further details.

Models of BSM500FL

A

B

C

Optical System

Infinite Parallel Zoom Optical System

Viewing Head

Binocular Head, 20°Inclination, Interpupilary Distance 55-75mm

Tilting Binocular Eyepiece Tube, 5°-35° Inclined, Interpupilary Distance 55-75mm

Eyepiece

EW10×/Φ22

WF15×/Φ16

WF20×/Φ12

WF30×

Fluorescent Attachment

GFP-B (EX460-500, DM505, BA510-560)

GFP-L (EX460-500, DM505, BA510)

CFP-B (EX430-450, DM455, BA465-495)

YFP-B (EX490-510, DM525, BA530-560)

G (EX515-550, DM570, BA590)

RFP-B (EX525-555, DM570, BA585)

Zoom Objective

0.8×-5×

0.8×-6.4×

0.8×-8×

Objective

Plan Achromatic Objective 1×

Achromatic Objective 0.3×

Plan Apochromatic Objective 0.5×

Plan Achromatic Objective 2×

Zoom Ratio

1: 6

1: 8

1: 10

Working Distance

78mm

Focusing Range

105mm

Stand

Stand

Coaxial coarse & fine focusing stand

Illumination

Transmission & Reflection LED Illumination, Brightness Adjustable

100W Ultra hi-voltage spherical mercury lamp, power supplier NFP-1, digital display

Note: ● Standard Outfit, ○ Optional

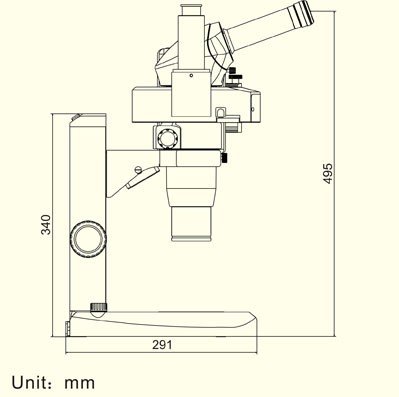

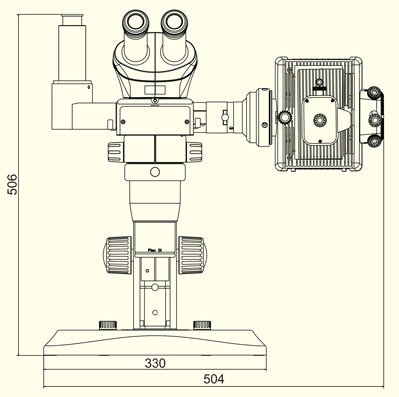

Dimension

BSM500FL Stereo EpiFluorescence Microscope

BSM500FL Stereo EpiFluorescence Microscope

FLS800

Fluorescent Attachment

GFP-BP   (EX460-500, DM505, BA510-560)

GFP-LP (EX460-500, DM505, BA510)

CFP-B (EX430-450, DM455, BA465-495)

YFP-B (EX490-510, DM525, BA530-560)
TRITC/DsRed (EX 545/30, DM 570LP, EM 620/60)
RFP-B (EX525-555, DM570, BA585)

Illumination

100W Ultra hi-voltage spherical mercury lamp, power supplier NFP-1, digital display, shutter.
