BUM500MH Multi-Head Biological Microscope

$USD 3,999.00

-50%
  • Multi-head biological upright microscope
  • Great for 2, 3 or 4 people to see simultaneously
  • With 4, 6 or 10 eyepieces
  • Infinite optical system
  • High-Power long-standing LED illumination

Free worldwide shipping on all orders over $50

  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

Questions? Request a Call Back

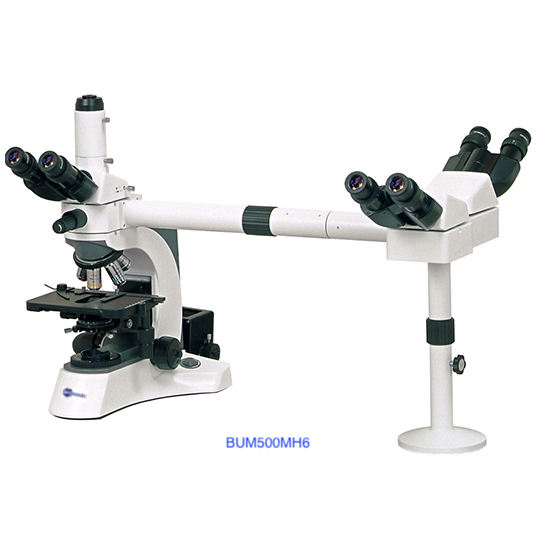

BUM500MH Multi-Head and Training Biological Microscope

The BUM500MH Series Multi-Head Microscopes are advanced microscopes designed with multiple viewing heads, enabling multiple individuals to simultaneously observe specimens. These microscopes are equipped with an infinite optical system, efficient high-intensity illumination, an LED illumination, and exceptional image coherence. This microscope has extensive applications in clinical medicine, scientific research, and educational demonstrations.



Features

  • Outstanding image clarity achieved through the exceptional infinite optical system.
  • Efficient space utilization due to the integrated stand design, minimal environmental impact
  • Thanks anti-mold technology.
  • User-friendly and comfortable operation facilitated by ergonomic design.
  • Excellent choice for training, clinical and stained slide viewing
  • with Standard 4x, 10x, 40x and 100x objective lenses and optional 2x to 200x lenses



BUM500MH Multi-Head Biological Microscope

The primary applications of the BUM500MH Series Multi-Head Microscopes include (but not limited to) medical and biological education. They also excel in facilitating collaborative biological analyses among multiple experts. These microscopes have broad utility in medical and healthcare facilities, research laboratories, academic institutions, and universities. Viewing stained slides such as hematoxylin and eosin and special stained can be gretaly done with this microscope.

This dual- or multi- headed side by side brightfield microscope can be utilized to view completed slides Histology. Having a high-quality microscope with necessary magnification is essential to determine what steps to take next to get publication quality slides. This microscope adds more benefits to a core imaging facility.

Specification

Item Specification BUM500

MH4/4A

BUM500

MH6

BUM500

MH10
Optical System Infinite Optical System ● ● ●
Viewing Head Seidentopf Trinocular Head, Inclined at 30°, 360° Rotatable, Interpupilary Distance 48-75mm 1PC 1PC 1PC
Seidentopf Binocular Head, Inclined at 30°, 360° Rotatable, Interpupilary Distance 48-75mm 1PC 2PCS 4PCS
Eyepiece Extra Wide Field Eyepiece EW10×/ 20mm 4PCS 6PCS 10PCS
Nosepiece Backward Quintuple Nosepiece ● ● ●
Objective Infinite Plan Achromatic Objective 4×, 10×, 40×, 100× ● ● ●
Infinite Plan Achromatic Objective 20×, 60× ○ ○ ○
Condenser Swing Condenser N.A.0.9/ 0.25 ● ● ●
Focusing Coaxial Coarse & Fine Focus Adjustment, Fine Division 0.001mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.1mm per Rotation, Moving Range 24mm ● ● ●
Stage Double Layers Mechanical Stage 185×142mm, Moving Range 75×55mm ● ● ●
Kohler Illumination External Illumination, Halogen Lamp 24V/ 100W ● ● ●
5W LED Illumination ○ ○ ○
Pointer Green LED Pointer, Brightness Adjustable ● ● ●
Dual Color LED Pointer, Brightness Adjustable ○ ○ ○
Photo Adapter Used to connect Nikon or Canon DSLR camera to the microscope ○ ○ ○
Video Adapter C-Mount 1× ○ ○ ○
C-Mount 0.5× ○ ○ ○

Note: ●Standard Outfit, ○Optional
