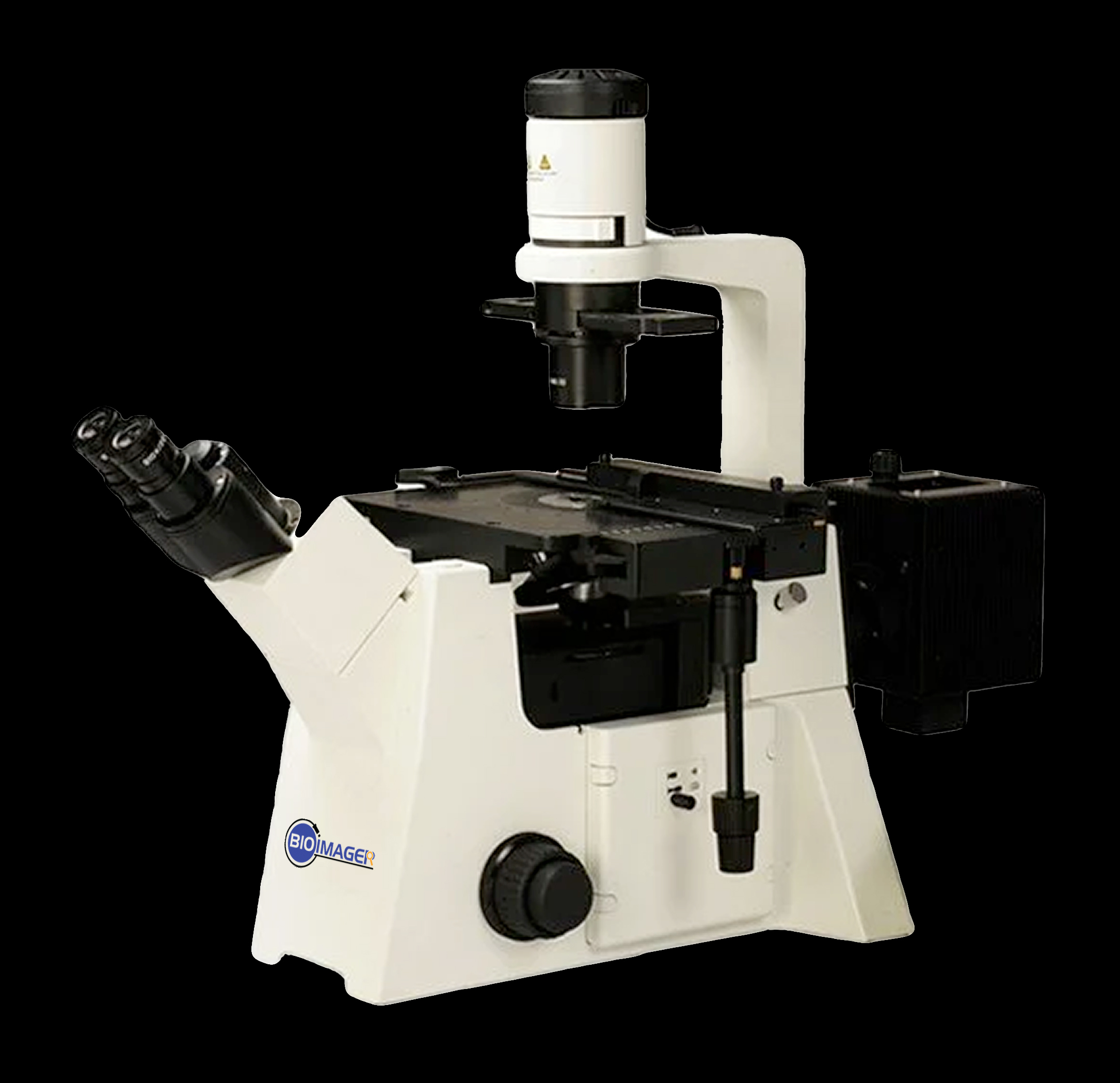

BIM800FLW Inverted Epi-Fluorescence Biological Microscope

Availability:

In stock


Compare

Inverted Fluorescence Microscope

10x, 20xPh, 40x lenses incldued, with tens of optional LWD lenses

Positive & Negative Phase Contrast Lenses

GFP, RFP and Dapi Filters, mounted on a 5-position filter wheel

XY stage with 96-well plate markers

100W HBO/Mercuyry illumination

In stock

$6,195.00 $8,000.00

Introduction

BIM800FLW is clone to Olympus IX51/IX53 series Inverted Fluorescent Biological Microscope is specifically designed for the observation of cell culture with high quality optics and advanced fluorescent imaging capability. Infinity corrected optical system gives excellent imaging performance. Super high resolution fluorescent objectives are offered to generate high quality fluorescent images. This user-friendly microscope acquisition systems allows undergraduate and graduate students with various degrees of microscopy experience to examine a wide range of samples  such as live cells, fixed cell, histological preps, microfluidic devices, bead samples, range of fluorophores, etc with high reproducibility.

Overview

  •  UCIS Infinity Independent Achromatic Optical System
  •  WF10x plan eyepieces, 20mm field of view, high eye point up to 21mm
  • Seidentopf binocular viewing head; inclined45º
  • 52-75mm interpupillary distance settings
  • ±5 Diopter adjustment
  • Quintuple nosepiece inward facing with positive click stops
  • Infinity long work distance plan Achromatic 10x, 20x, 40x and Infinity long work distance phase-contrast 20x objectives
  • Right hand controls, low position, fixed stage, 240mm x 260mm, movement range 135mm x 85mm
  • N.A. 0.30 Abbe condenser with iris diaphragm, with phase-contrast slide, long work distance 72mm.
  • Coaxial coarse and fine focus mechanism with markings. Fine focus sensitivity 0.001mm
  • 6 volt 30 watt halogen illumination
  • Fluorescence illumination system: 100W mercury lamphouse and power supply, B/G/UV/V fluorescence filter block
  • Dust cover, power cord

Applications

It can be used to observe transparent livings which are not stained, particularly living cells, tissues, fluids, sediments etc. It is an ideal instrument for biology, cytology, oncology, genetics, immunology and other research works. It can be used in scientific research institutes, universities, medical care centers, disease prevention, quality inspection, agriculture, animal husbandry and other departments. It can also be used in venereal disease examination and immune diagnosis.

Features

Infinity flat-field fluorescence objective lens, providing high-quality optical imaging and ensuring clear images.
Negative & Positive Phase Contrast Lenses & Kit (optional)
Bright Fluorescent illumination
Filter wheel with 5 spots
High-quality filters (Chroma Technologies)
 Side video port

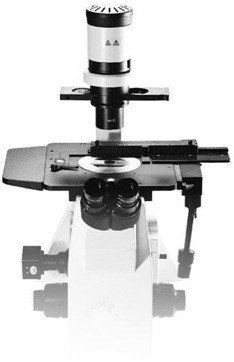

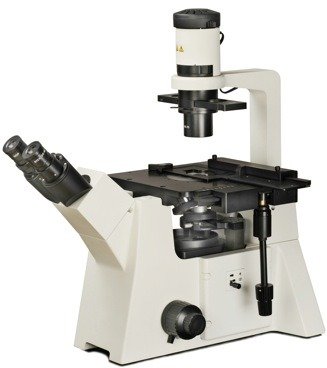

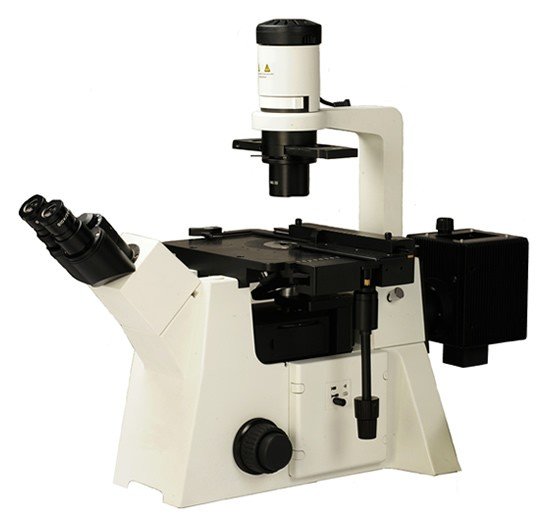

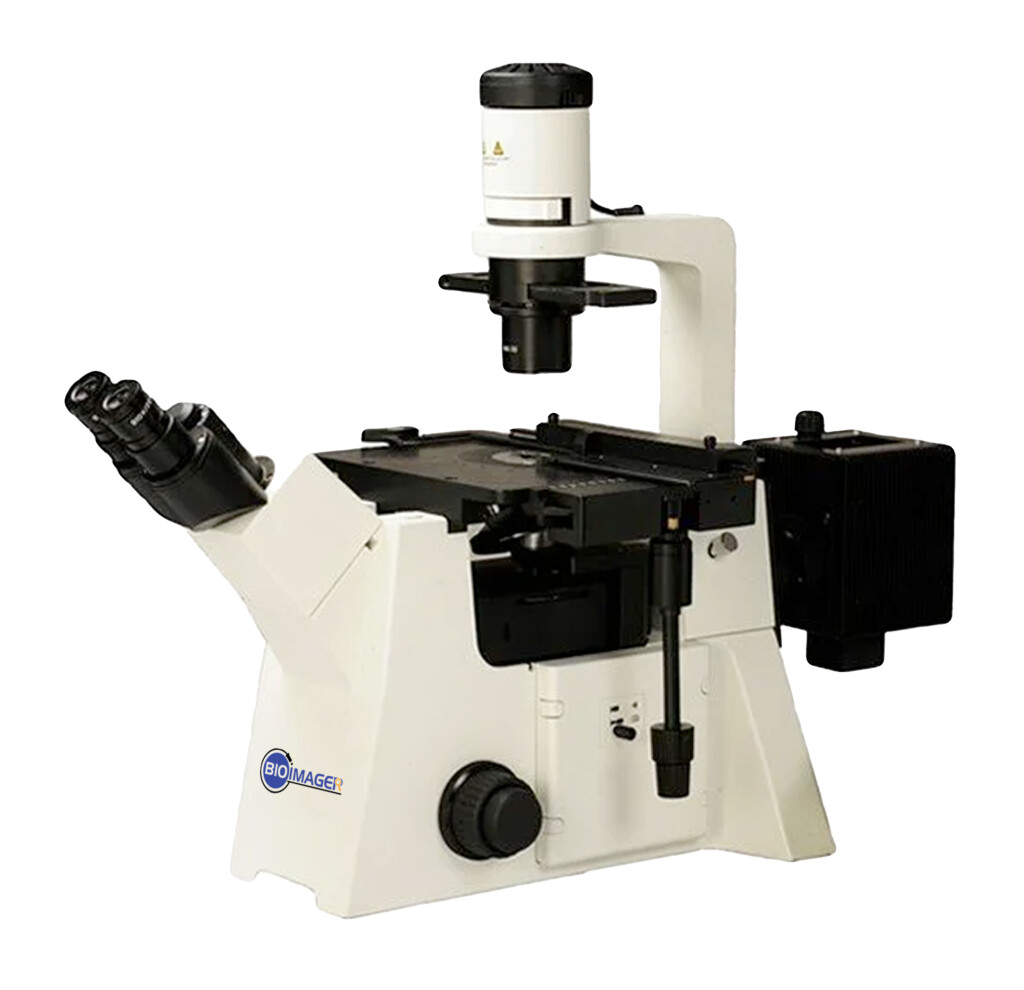

BIM800FLW Inverted Epi-Fluorescence Biological Microscope

1. Main Body

2. Optical System

Ask us how to add or swap with Japanese objective lenses and save lots of money (1.25x, 2.5x, 4x, 10x, 20x, 40x (dry or oil), 50x (dry or oil), 60x (dry), 100x (oil)).

Bright Field & Fluor Objective LensesPhase Contrast Objectives and Slider

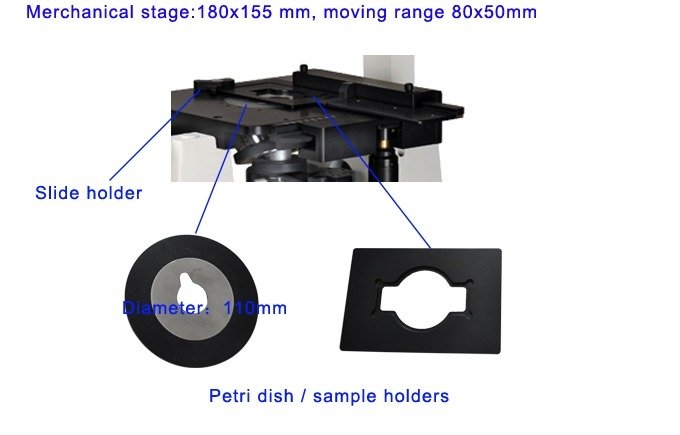

3. Mechanical XY Stage

Attachable Mechanical Stage, X-Y Coaxial Control,Moving Rang120mm×78mm (Optional)

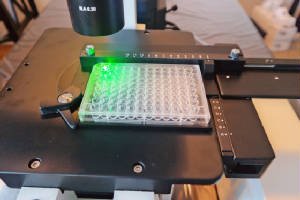

BIM800FLW/bim800flw-96wellplate-Green-1.JPGRuler to show a micro-well location in a 96-well plate

4. Video Imaging

BIM800FLW/bim800-side-camera.JPG

BIM800FLW/bim800-side-vidoe-switch.JPG

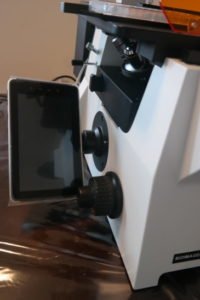

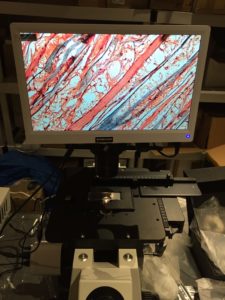

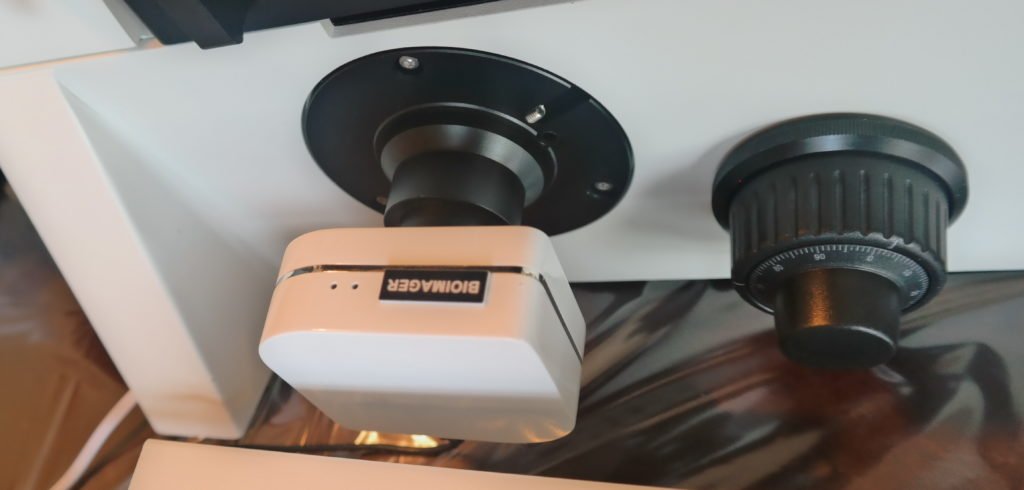

Easy install a camera from the side video portswitch between eyepieces & camera (0/100%), perfect for epi-fluor applicationInstall a side or top tablet camera for professional observation

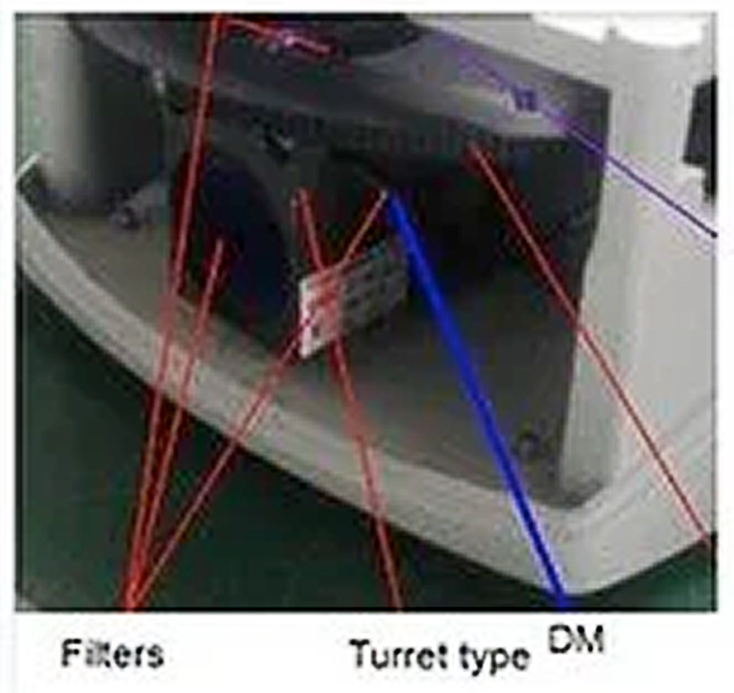

5. Epi-Fluorescent Components:

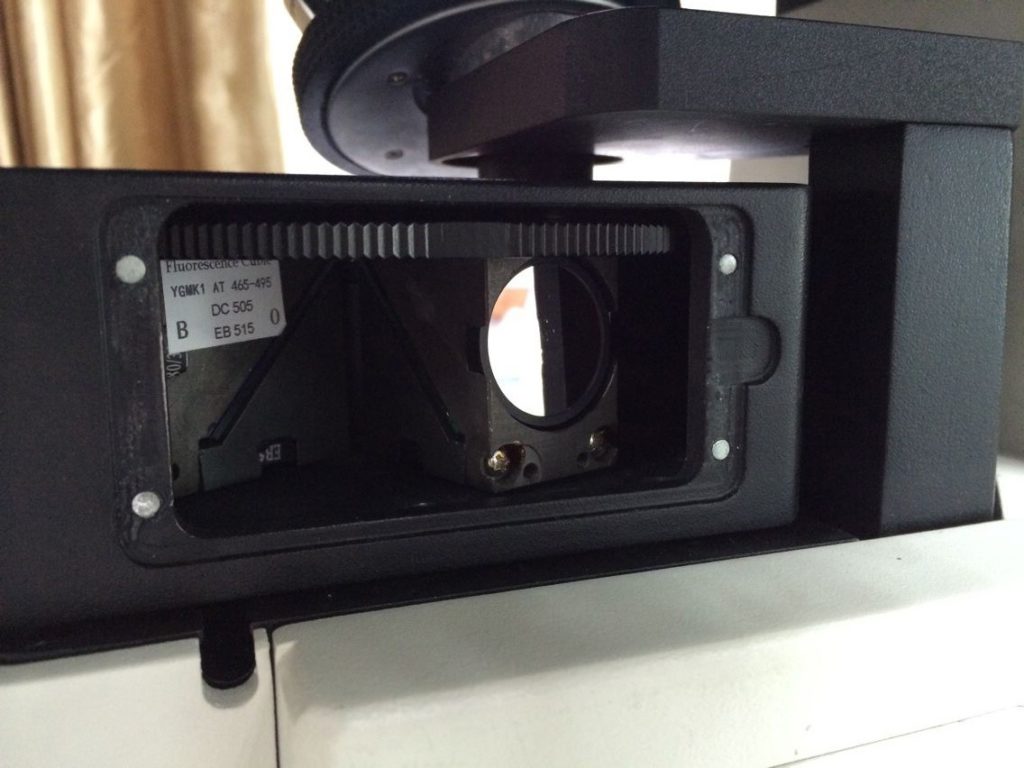

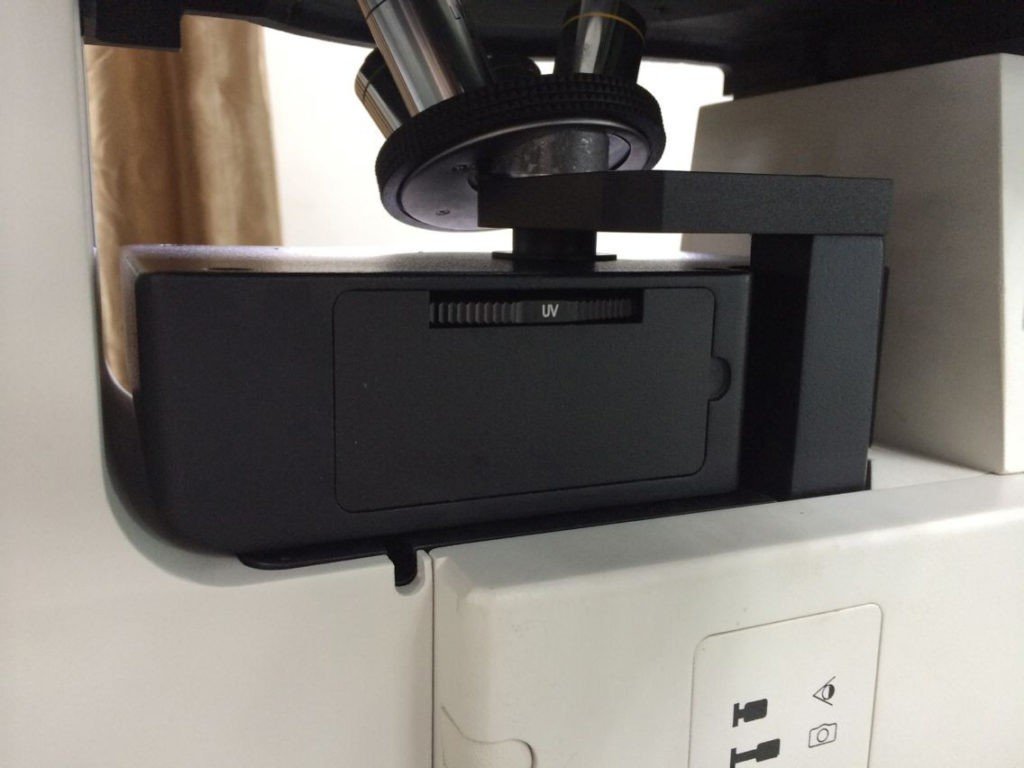

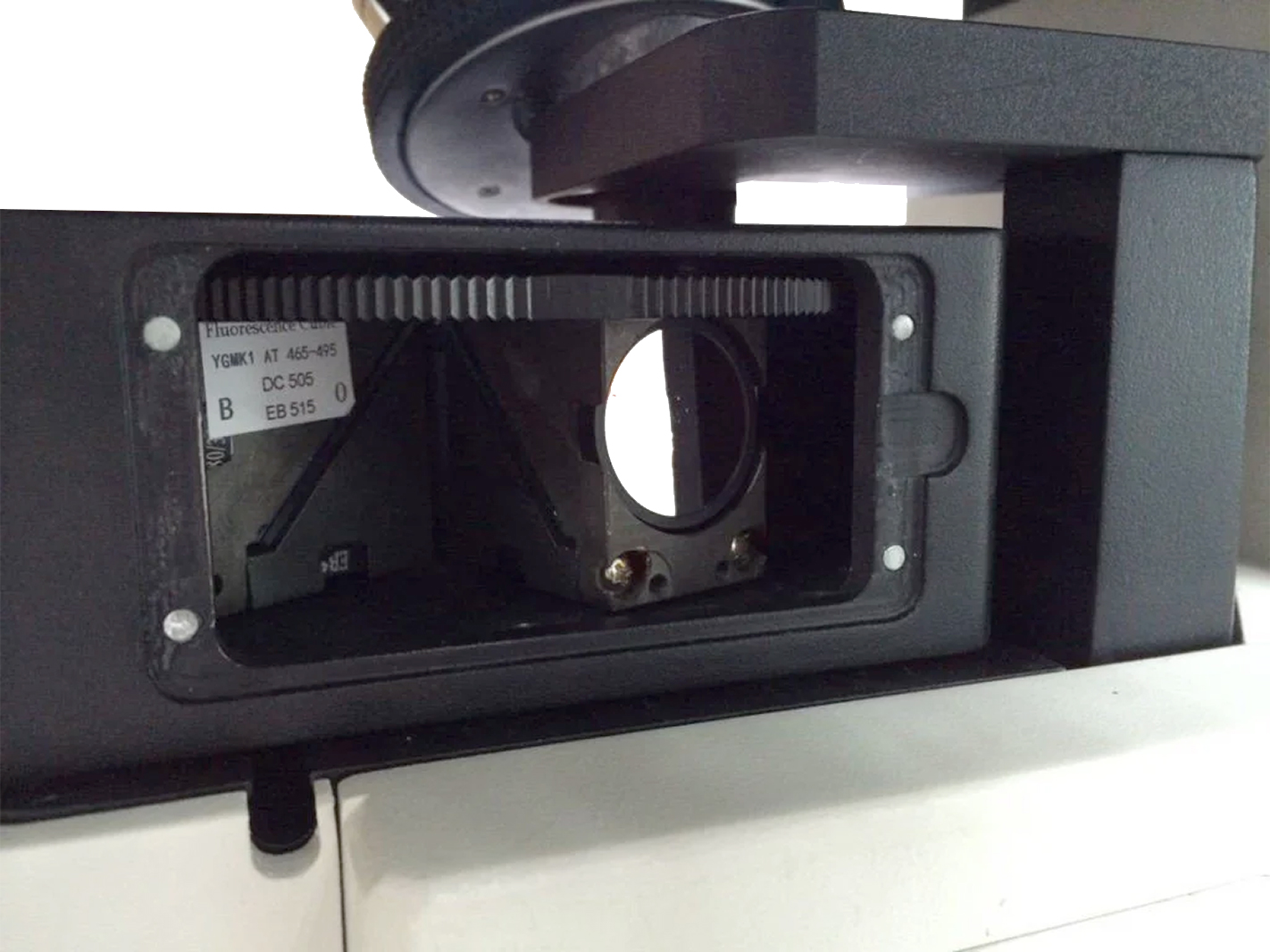

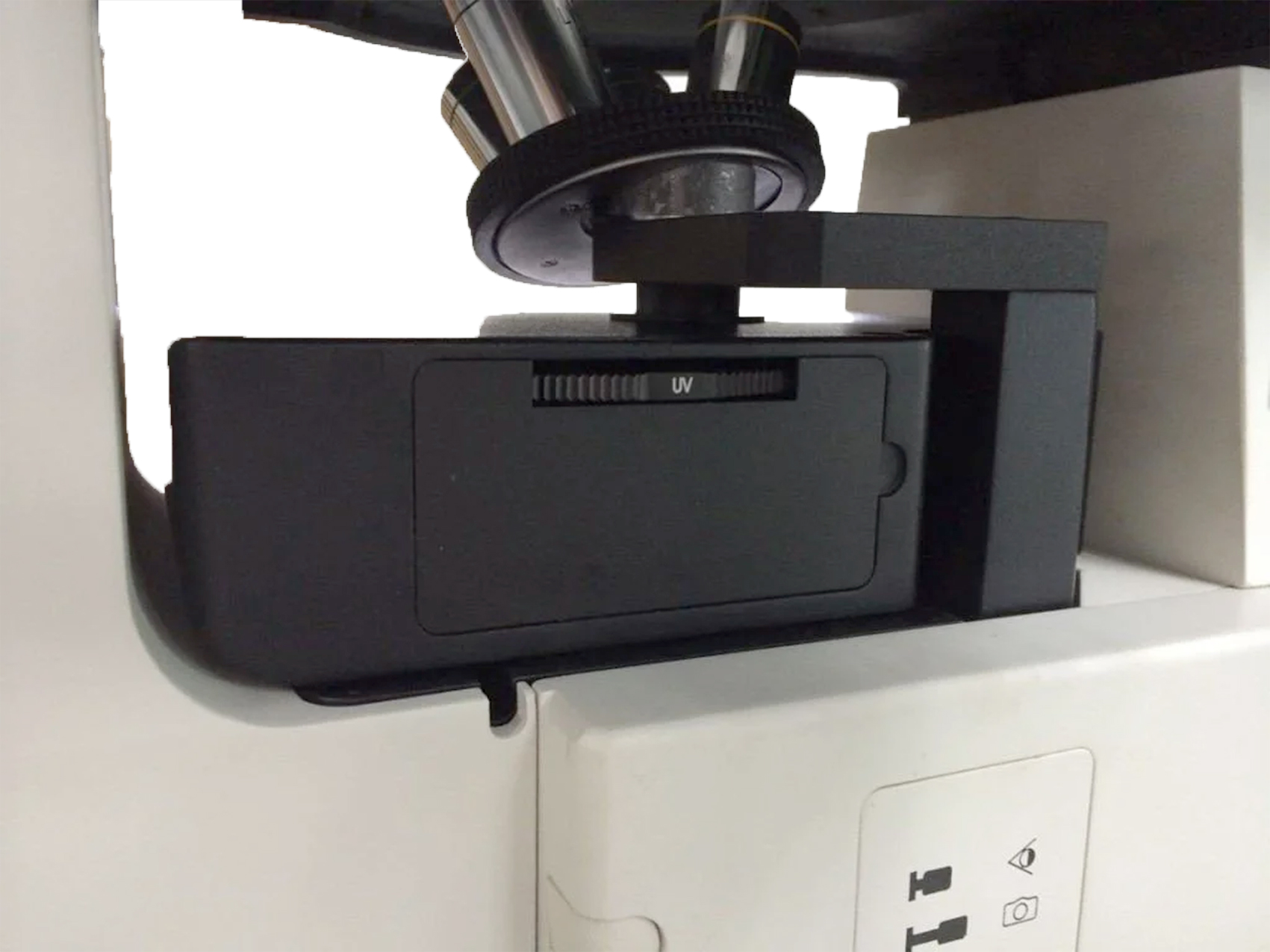

a) Filter Wheel with 5 spot

b) Filter  Sets: B, G, UV, V

Excitation filter B/G/U/V, CHROMA Brand

  • Blue Excitation Filter, BP460~490, DM500, BA520
  • Green Excitation Filter, BP510~550, DM570, BA590
  • Ultraviolet Excitation Filter, BP330~385, DM400, BA420
  • Violet Excitation Filter, BP400~410, DM455, BA455

Ask us how to add a new  filter set with any specification you want.

c) illumination

 BIM800FLW/bim800-HBo-lamp-house.JPG

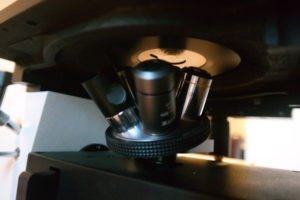

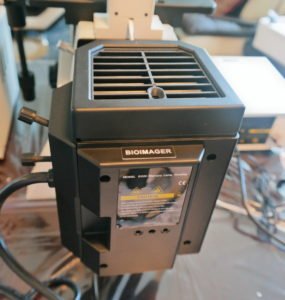

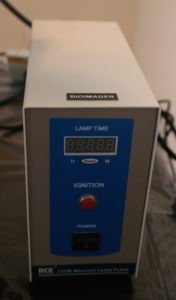

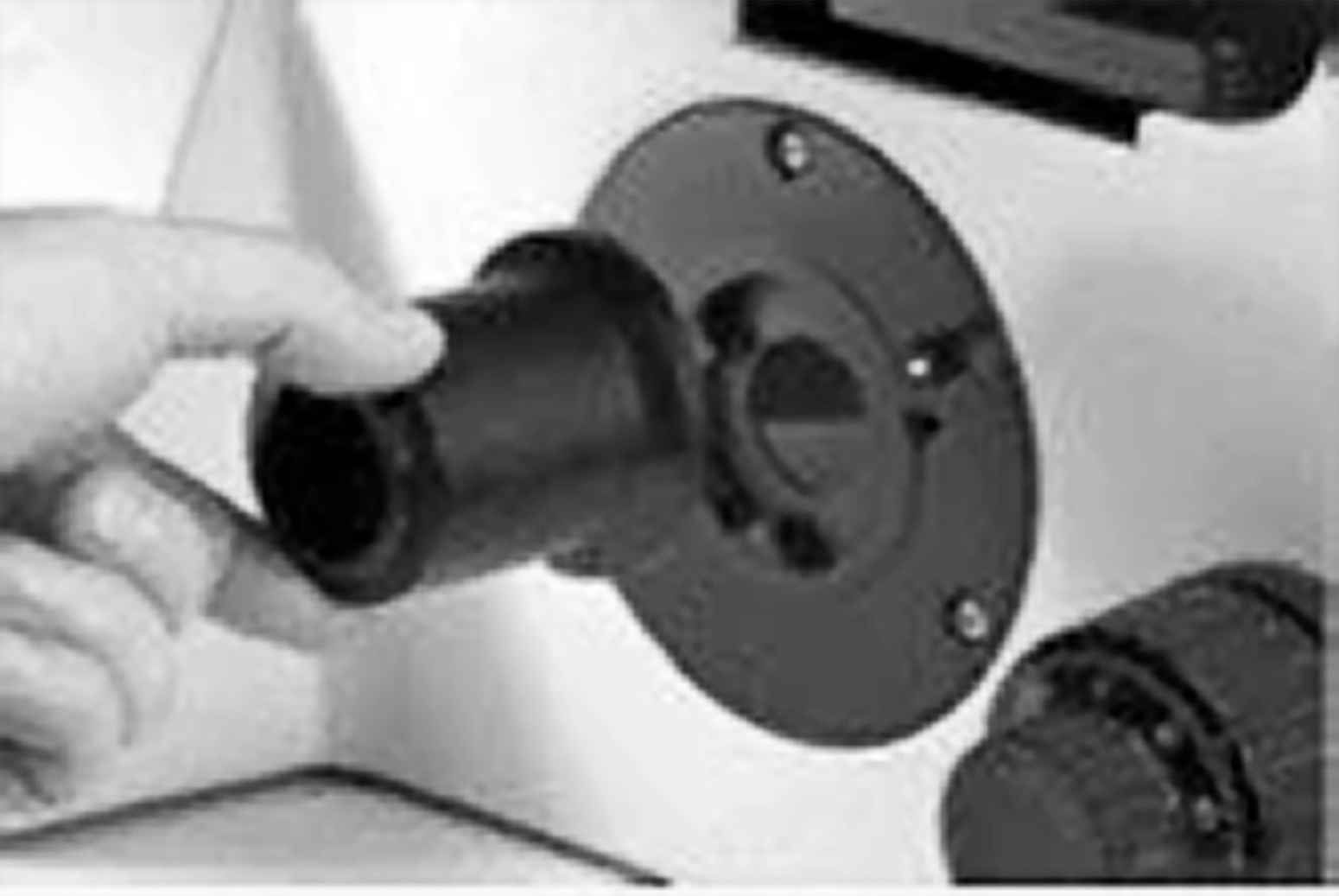

100W Mercury Lamp-HouseHBO Power SourceFluor alignment obj lens (optional, recommended)
SpecificationBIM800FLW Inverted Fluorescent Microscope24
Optical SystemUCIS infinity independent achromatic optical system
FrameOne-piece construction from arm to base
HeadSeidentopf trinocular head, 45° inclined, interpupillary distance 52-75mm, ±5 diopter adjustment
EyepieceWF10x/20mm, plan, high eyepoint up to 21mm,
Centering AttachmentCentering telescope
ObjectiveInfinity LWD plan achromatic objective 10x/0.25  WD9.67
Infinity LWD plan achromatic objective 20x/0.40  WD7.97,
Infinity LWD plan achromatic objective 40x/0.60  WD3.76
Infinity LWD plan phase contrast objective 20x/0.40  WD7.97
Focus SystemLow positioned, coaxial coarse & fine focusing system with adjustable tension control and upper limit stop, minimum reading 1μm, moving range 12mm

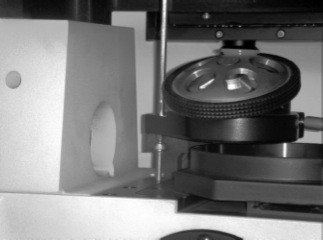

NosepieceQuintuple, reversed type with positive click stops
CondenserAbbe condenser N.A. 0.30 with iris diaphragm, with phase contrast slider & filter (φ34) blue,green & yellow, long work distance 72mm
StageRight hand controls, low position, mechanical stage, size 240x260mm, moving range 135x85mm.
Drop specimen holder(φ118)
Specimen holder (76×26, φ54)
Light Source6V30W Halogen lamp house
Electrical part for 6V30W halogen lamp
6V30W halogen bulb (Osram)
250V/3.15A Φ5X20 Fuse
Power supply 110-240V,50/60Hz
Fluorescence100W DC Mercury lamp house
Power supply unit for 100W DC mercury lamp
Epi-fluorescent illumination,multi-functional semi-reflector
100W Mercury bulb (Osram)
250V/5A Φ5X20 Fuse
Excitation filter B/G, CHROMA Brand
–Blue Excitation Filter, BP460~490, DM500, BA520
–Green Excitation Filter, BP510~550, DM570, BA590
o
Excitation filter B/G/U/V, CHROMA Brand
–Blue Excitation Filter, BP460~490, DM500, BA520
–Green Excitation Filter, BP510~550, DM570, BA590
–Ultraviolet Excitation Filter, BP330~385, DM400, BA420
–Violet Excitation Filter, BP400~410, DM455, BA455
o

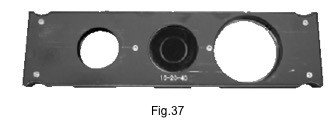

Phase ContrastPhase contrast slider for 10x,20x,40x
Adapter0.5x, C-Mount
OtherAllen screw driver 2mm
Allen screw driver 2.5mm
Dust cover
Power cord

Optional Accessories

Item No.
HeadSeidentopf binocular head, 45° inclined, interpupillary distance 48-75mm, diopter adjustableBIM8-VH
EyepieceWF10x/22mm plan eyepiece, high eyepointBIM8-1022
WF10x/20mm, plan, high eyepoint up to 21mm, diopter adjustableBIM8-1020
WF16x/13mm, planBIM8-1613
ObjectiveInfinity plan achromatic objective 4xBIM8-04x
Infinity LWD plan achromatic objective 60xBIM8-60LB
Infinity LWD plan phase-contrast objective 10x (positive)BIM8-10PB
Infinity LWD plan phase-contrast objective 40x (positive)BIM8-40PB
Infinity LWD Plan Phase-Contrast Objective 10x (Negative)BIM8-10NB
Infinity LWD Plan Phase-Contrast Objective 20x (Negative)BIM8-20NB
Infinity LWD Plan Phase-Contrast Objective 40x (Negative)BIM8-40NB
StageMechanical Stage, Size 350x208mm,Moving Range 50x50mmBIM8-XY50
Adapter0.25x C-MountBIM8-0.25xca
Digital camera adapter (need to know camera brand)BIM8-SLR
Bulb6V30W Halogen bulbBIA-6V30W
Specimen Holder125×85BIM8-WPH
Fluorescence Attachment100W DC Mercury lamp houseBIM8-LHM
Power supply unit for 100W DC mercury lampBIM8-PSH
Epi-fluorescent illumination,multi-functional semi-reflectorBIM8-IHH
Excitation Filter B, CHROMA BrandBIM8-IB
Excitation Filter G, CHROMA BrandBIM8-IG
Excitation Filter U, CHROMA BrandBIM8-IU
Excitation Filter V, CHROMA BrandBIM8-IV
100W Mercury bulbBIA-100WHB
100W Mercury bulb (Osram)BIM8-100W
Empty Filter CubeA5F.2727

This microscope has been sold to several places. Here are some examples:

  • University of California, Physical Science, Riverside, CA, USA
  • Rice University, Houston, Texas, USA
  • Arkansas Tech University, Russell ville, AR, USA
  • PRIVATE Biomed Company, Athens, Georgi, USA
  • Private Company in Redmond, WA, USA
  • Private Company in Oxfordshire,OX, England
  • Leeds University, Leeds, West Yorkshire, UK
  • Private Company in Germany

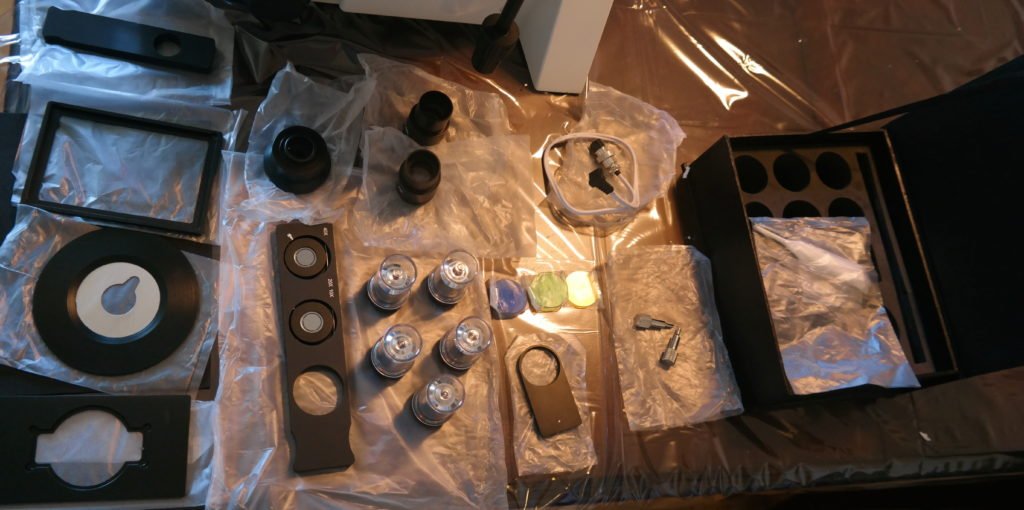

Plenty of Accessories

Please visit either of the following links to select a camera for image acquisition based on your budget:

Cooled CCD Camera

sCMOS cameras

– add a Retina Display

Following images were collected using this microscope, BIC-C30 3MP sCMOS Camera, BIM800-0.5x 0.5x C-mount adapter and the below-mentioned objective lenses. merged images were generated using Image software.

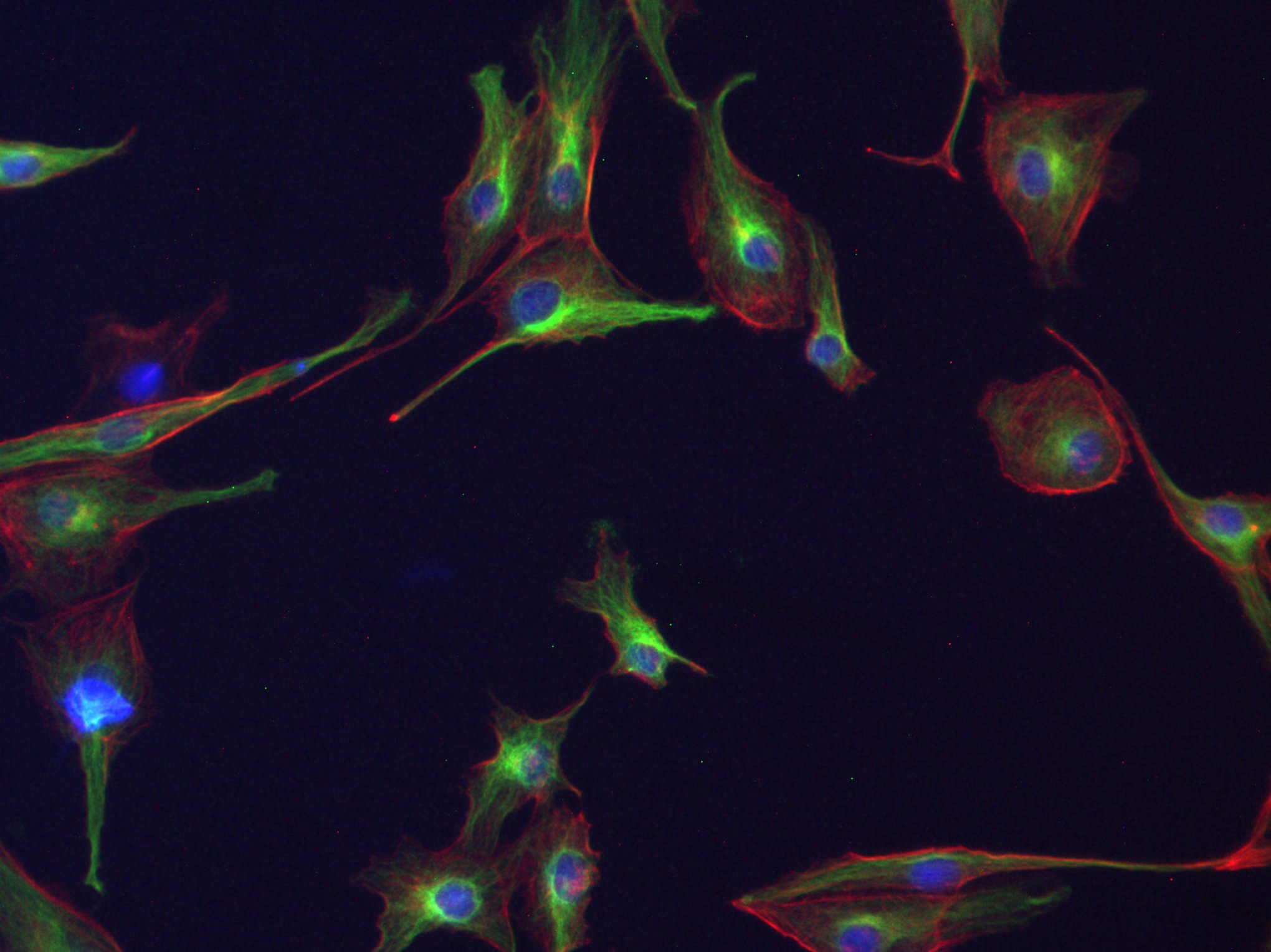

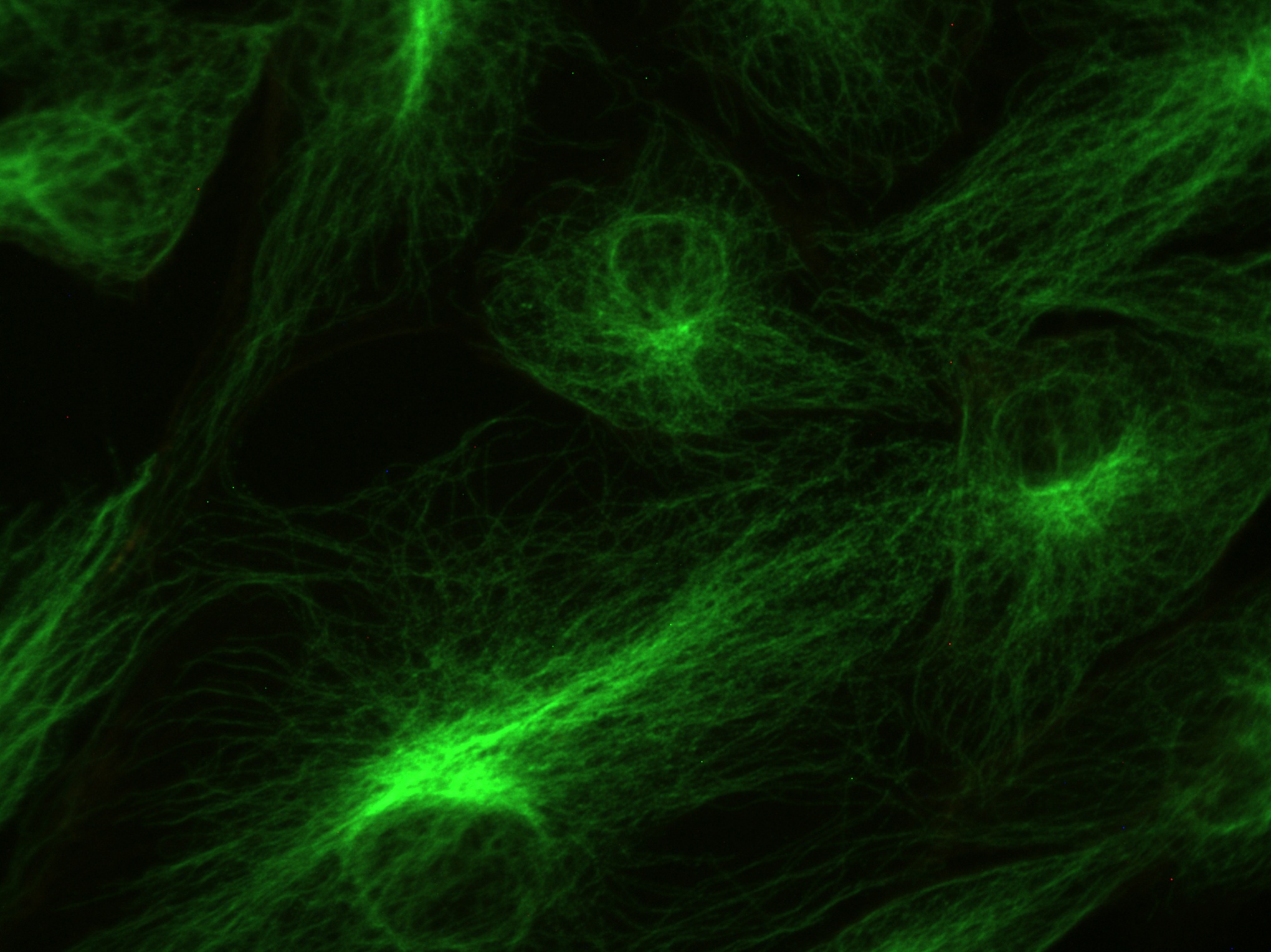

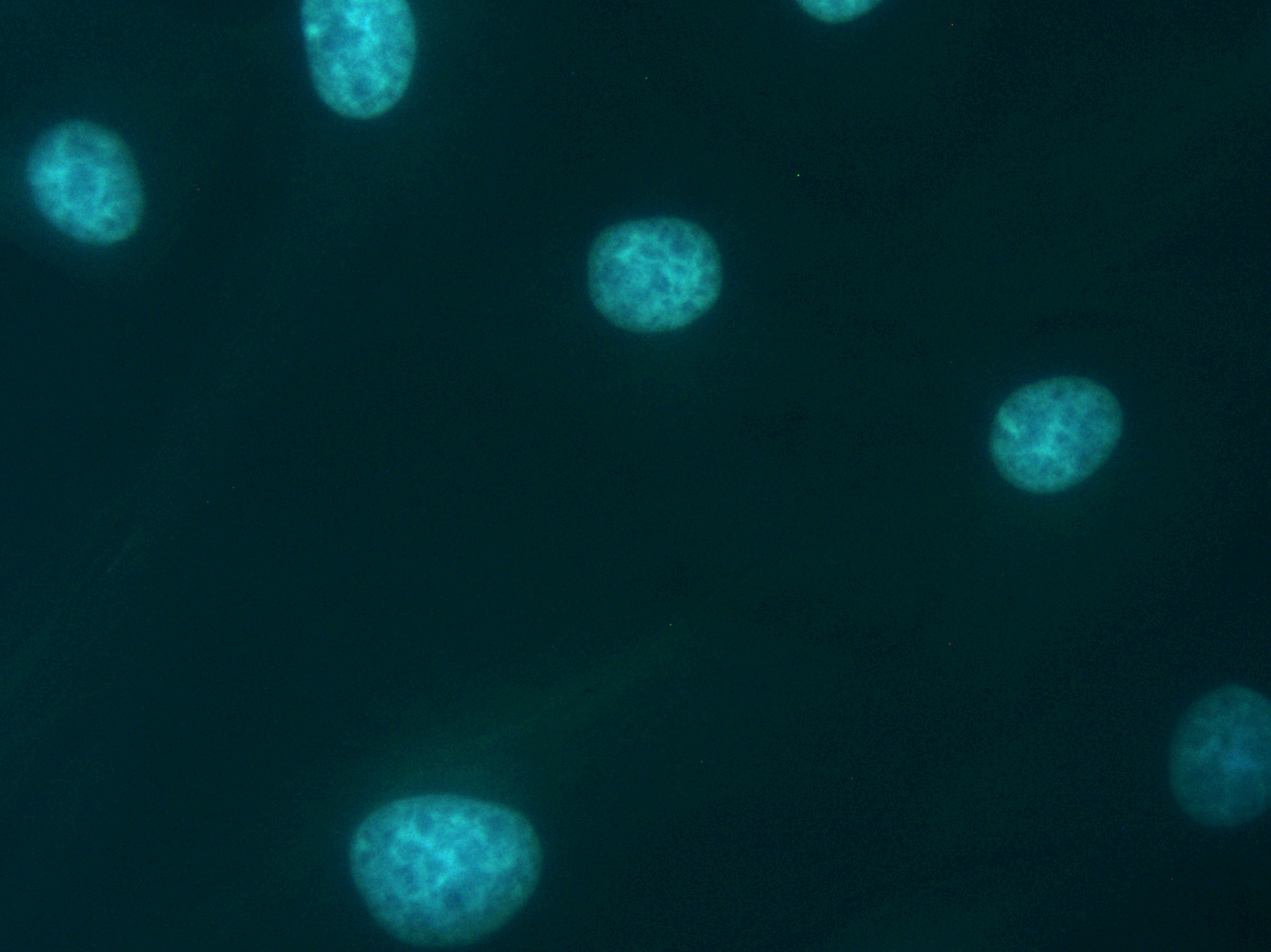

FluoCells® Prepared Slide #2: bovine pulmonary artery endothelial cells (BPAE) cells with Mouse Anti-α-tubulin, BODIPY FL Goat Anti-Mouse IgG, Texas Red-X Phalloidin, and DAPI), (Molecular Probes)

BIHR-20xBF PlanFluor EPI20XBF Plan Semi Apochromat 20X/NA0.45/WD3 Lens:

BIHR-50xBFL 50x LWD: PlanFluor EPI 50X LWD BF  Plan Semi Apochromat BF/FL Objective 50X/NA 0.50/W.D 10.6mm:

BIMJ969-60x: 60x /NA0.80/WD0.23 Plan Objective Lens:

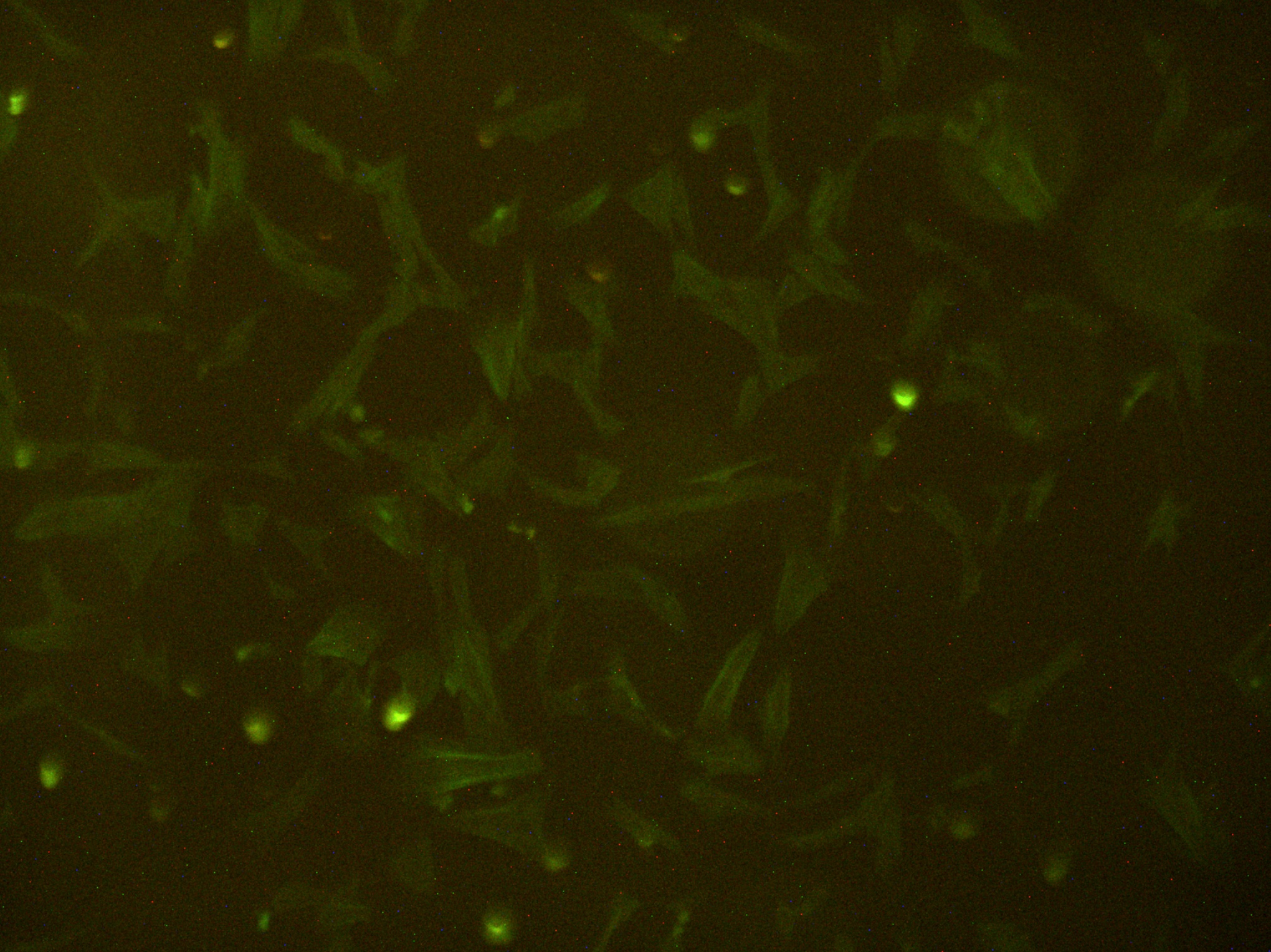

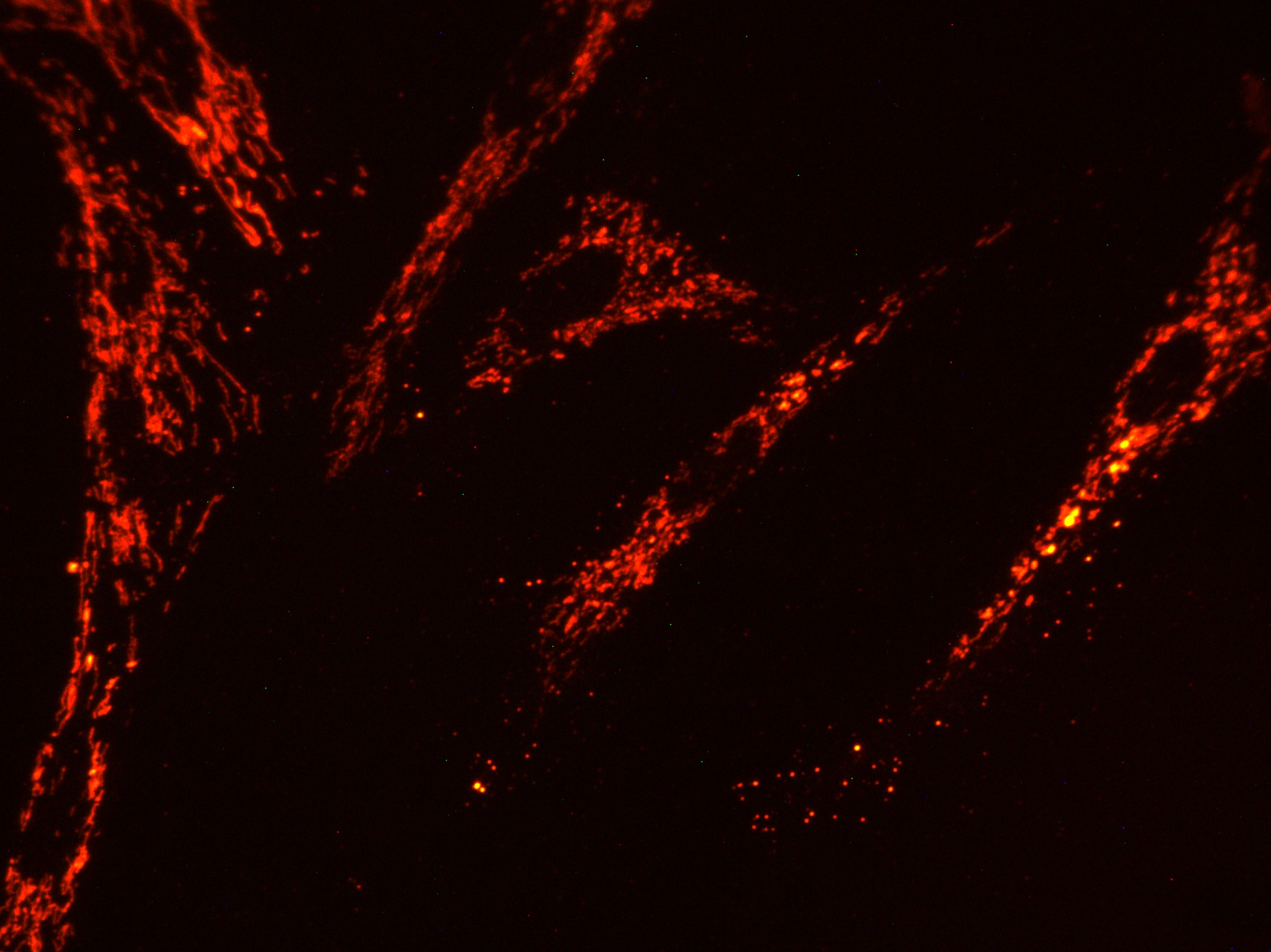

FluoCells® Prepared Slide #6 (Muntjac cells with Mouse Anti-OxPhos Complex V Inhibitor Protein, Alexa Fluor 555 Goat Anti-Mouse IgG, Alexa Fluor 488 Phalloidin, and TO-PRO-3) (Molecular Probes)

BIMJ969-60x: 60x /NA0.80/WD0.23 Plan Objective Lens:
