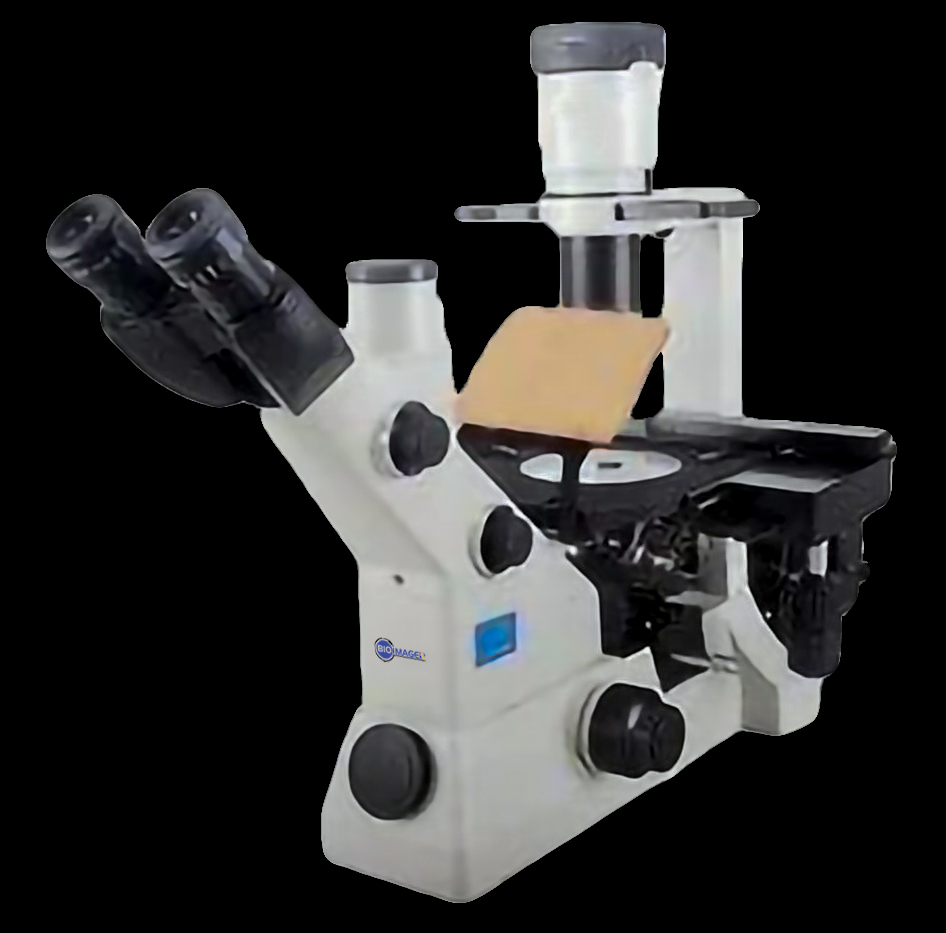

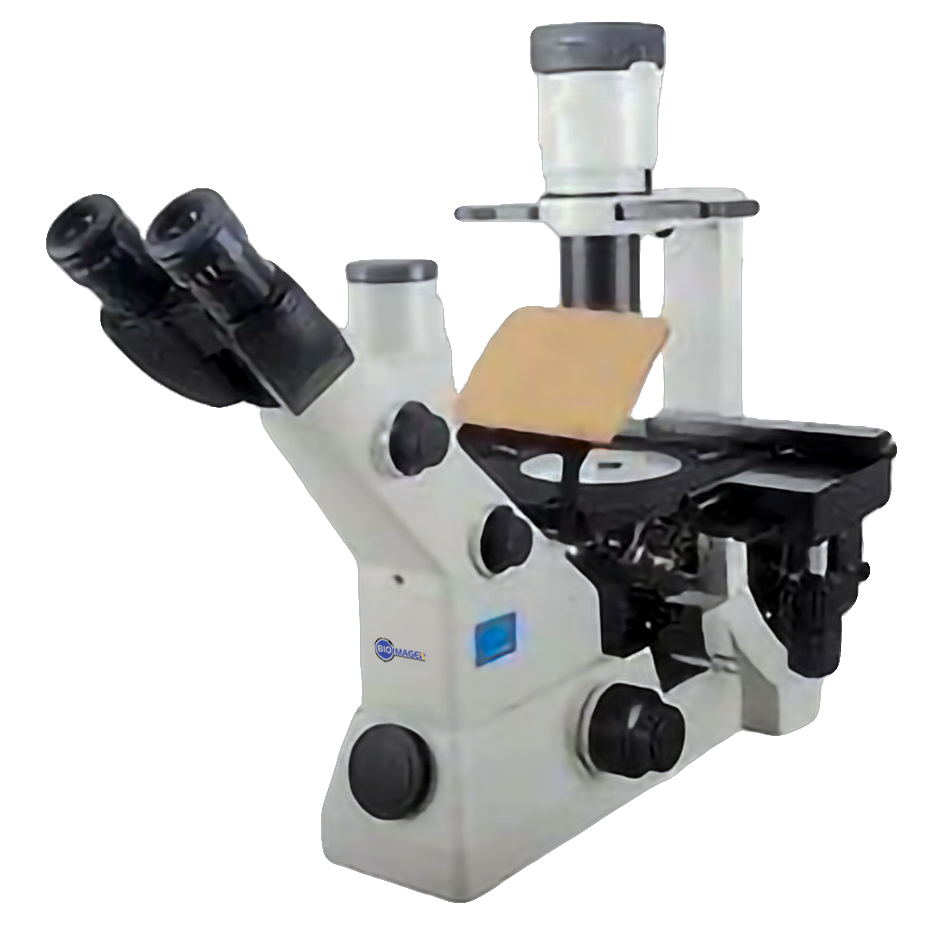

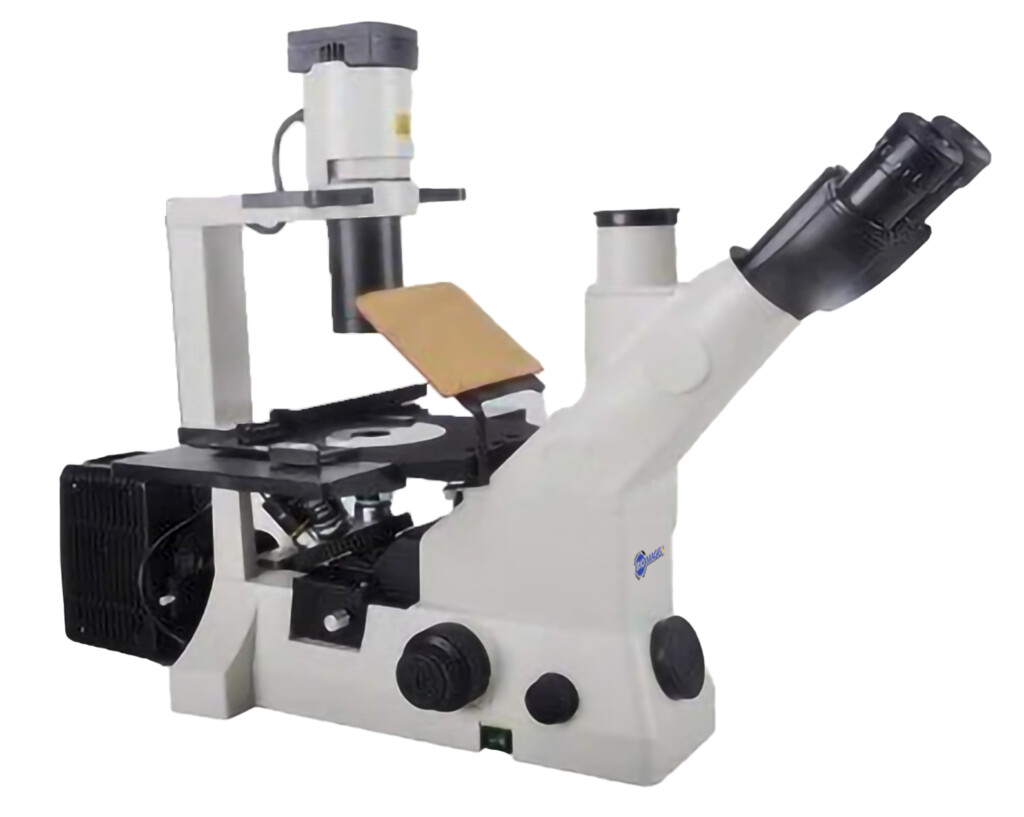

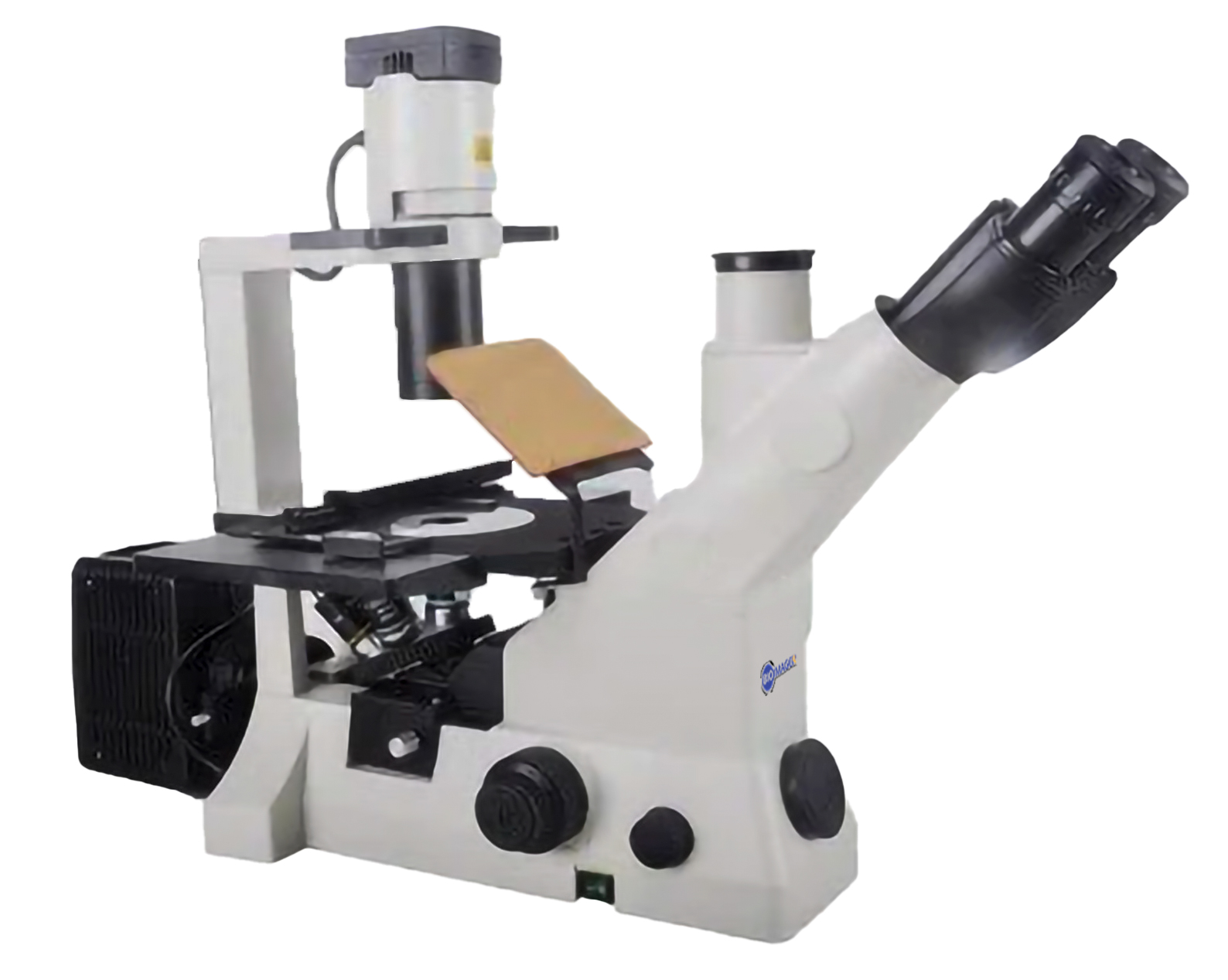

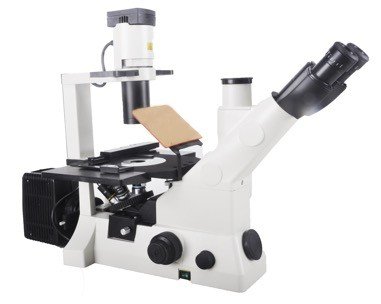

BIM600FL Inverted Fluorescence Biological Microscope has special design to mount two microscopy cameras, SLR cameras, Tablet Cameras or spectrophotometer, and is mainly used for the observation of cell cultures, cell biology research / teaching labs.

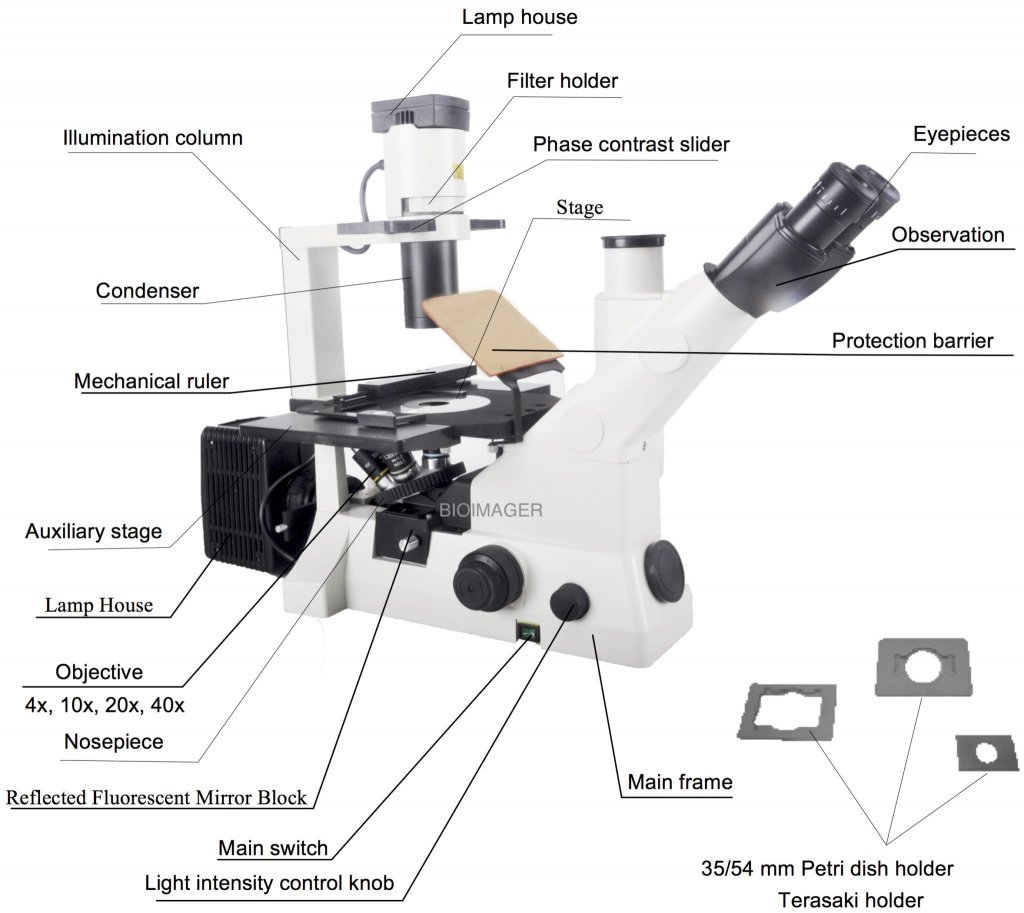

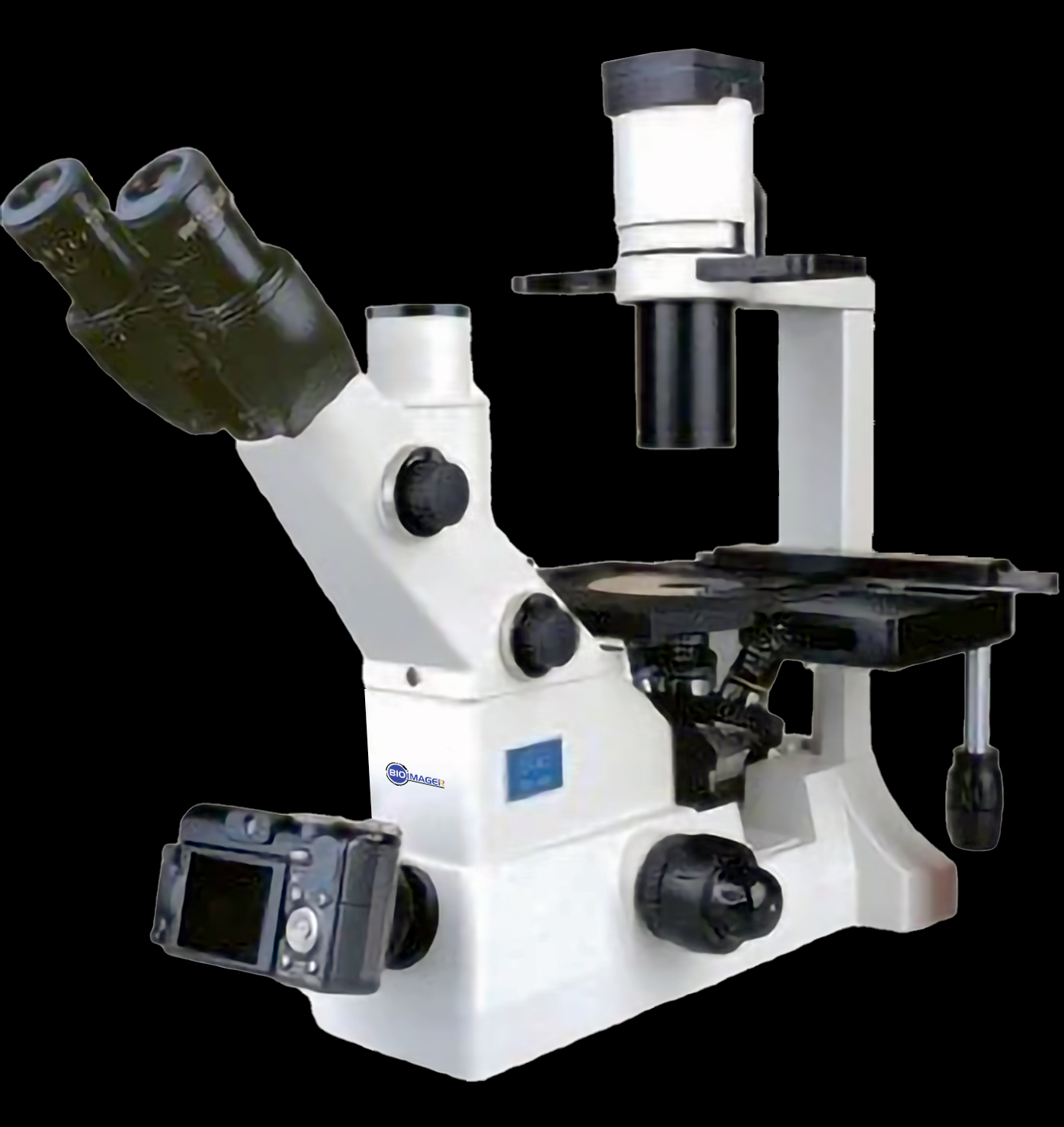

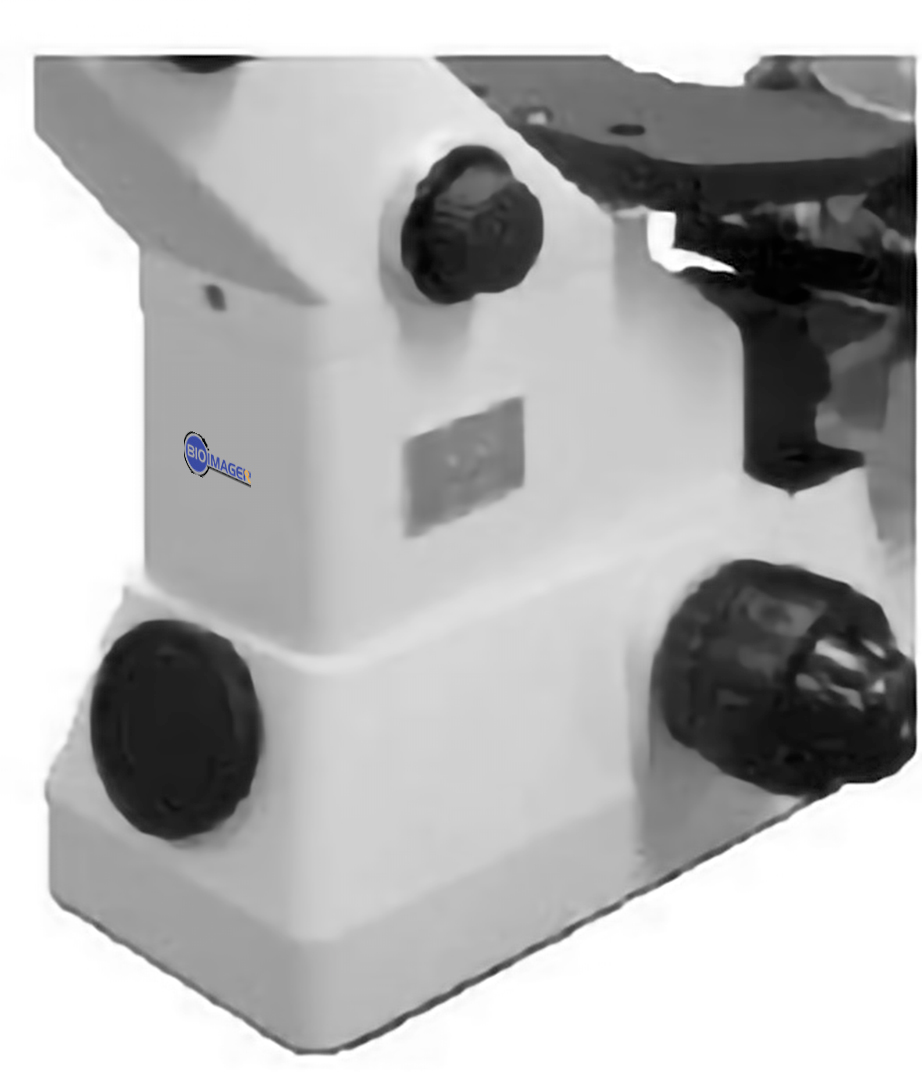

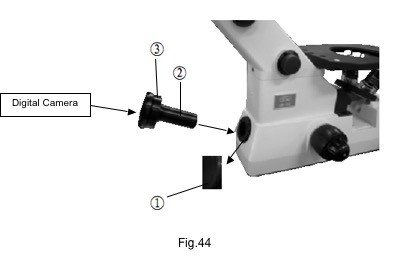

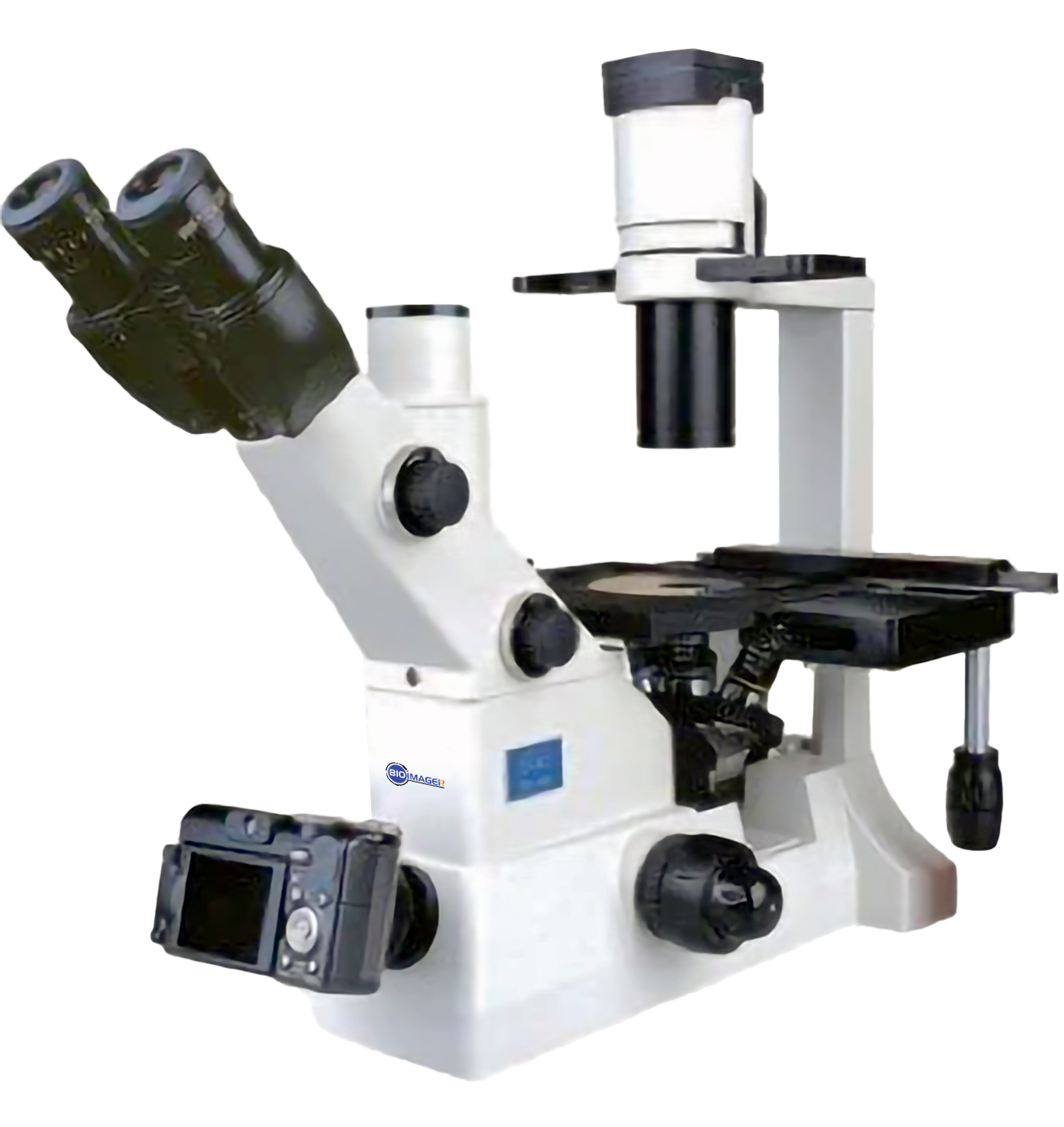

BIM600FL is an inverted fluorescence microscope with HBO /Mercury light source for epi-fluorescence imaging and halogen/LED for brightfield imaging. The beauty of BIM600FL microscope is its special optical design which has a front camera port beside the top video port in the trincoular viewing head. This allows you to mount two microscopy cameras , SLR cameras, Tablet Cameras or spectrophotometer. BIM600FL is very popular for cell biology labs and particularly for the observation of cell cultures. It has great high resolution phase contrast and fluorescent objective lenses. It has infinite Optical System which gives excellent optical performance.
| Optical System | Infinite Optical System | ● | |
| Viewing Head | Seidentopf Trinocular Viewing Head, Inclined at 45°, 360° Rotatable, Interpupillary Distance 48-75mm | ● | |
| Eyepiece | Wide Field Eyepiece WF10×/ 22, Eyepiece Tube Diameter 30mm | ● | |
| Wide Field Eyepiece WF15×/ 16 | ○ | ||
| Wide Field Eyepiece WF20×/ 12 | ○ | ||
| Objective | LWD (Long Working Distance) Infinite Plan Achromatic Objective 4×/0.1,WD 18mm | ● | |
| LWD (Long Working Distance) Infinite Plan Achromatic Phase Objective | 10x/ 0.25, WD 6mm | ● | |
| 20x/ 0.4, WD 3.1mm | ● | ||
| 40x/ 0.55, WD 2.2mm | ● | ||
| Lamp House Adjustment Objective | ○ | ||
| Nosepiece | Backward Quintuple Nosepiece | ● | |
| Condenser | ELWD (Extra Long Working Distance) Condenser NA 0.3, LWD 72mm (Without Condenser 150mm) | ● | |
| Centering Telescope | Centering Telescope (Φ30mm) | ● | |

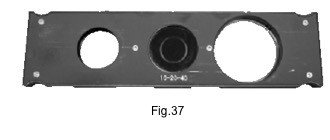

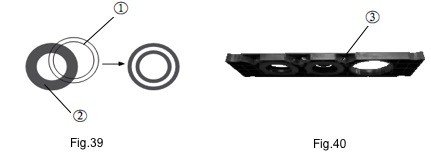

| Phase Annulus | 10×, 20×, 40× Phase Annulus Plate (Center Adjustable) | ● | |
| Stage | Plain Stage 170×230mm | ● | |
| Glass Insert | ● | ||
| Attachable Mechanical Stage, X,Y Coaxial Control, Moving Rang120mm×80mm | ● | ||
| Auxiliary Stages 70mm×180mm | ● | ||
| Terasaki Holder | ● | ||
| Φ38mm Petri Dish Holder | ● | ||
| Φ54mm Slide Glass Holder | ● | ||
| Focusing | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Moving Range up 4.5mm, down 4.5mm | ● | |
| Illumination | Halogen Lamp 6V/30W, Brightness Adjustable | ● | |
| Filter | Blue, Green and Ground Glass, Diameter 45mm | ● | |
| Accessories | Photo tube Attachment (used to connect microscope adapter and camera) | ○ | |

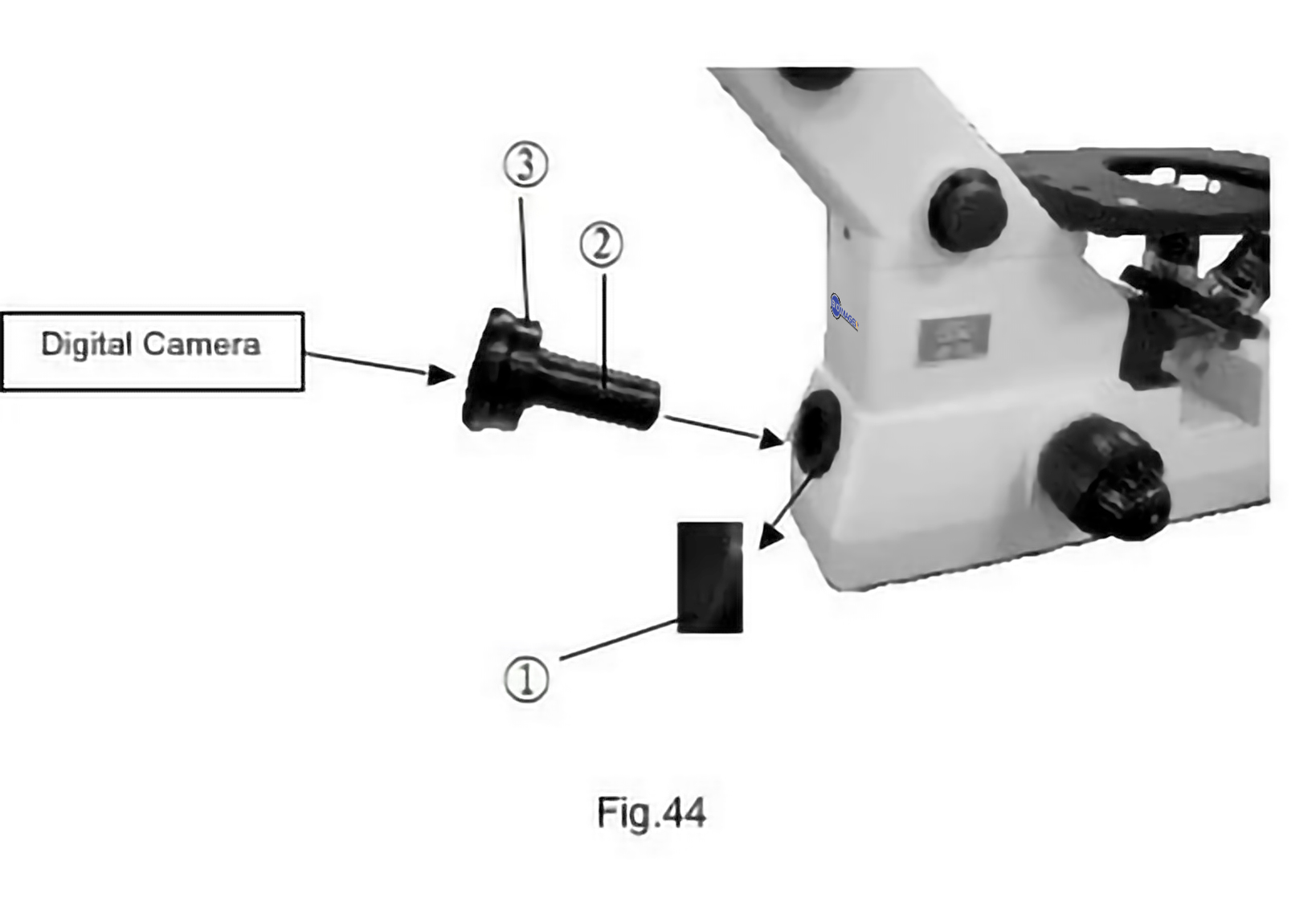

| C-Mount (Used to directly connect to a digital camera) | ○ | ||
Fluorescence attachment specification
| Reflected Light Source | Excitation | Dichroic Mirror | Barrier Filter | ||
| Blue excitation | BP460～490 | DM500 | BA520 | ● | |
| Blue excitation (B1) | BP460～495 | DM505 | BA510-550 | ○ | |
| Green excitation | BP480～550 | DM570 | BA590 | ● | |
| Ultraviolet excitation | BP330～385 | DM400 | BA420 | ○ | |
| Violet excitation | BP400～410 | DM455 | BA455 | ○ | |
| Lamp | 100W HBO Ultra Hi-voltage Spherical Mercury Lamp | ● | |||
| Protection barrier | Barrier to Resist the Ultraviolet Light | ● | |||
| Power Supplier | Power Supplier NFP-1, 220V/ 110V interchangeable, Digital Display | ● | |||
| Immersion Oil | Fluorescent Free Oil | ● | |||
| Filter | Neutral ND25/ ND6 Filter | ○ | |||
| Centering Plate | ● | ||||
| Dimension& G.W. | 46.5cm*39.5cm*64cm, 18kg | ● | |||
Note: ● Standard Outfit, ○ Optional
You can add any microscopy camera with this microscope and use the camera software or choose one from our software list.
