Save $USD 3,125

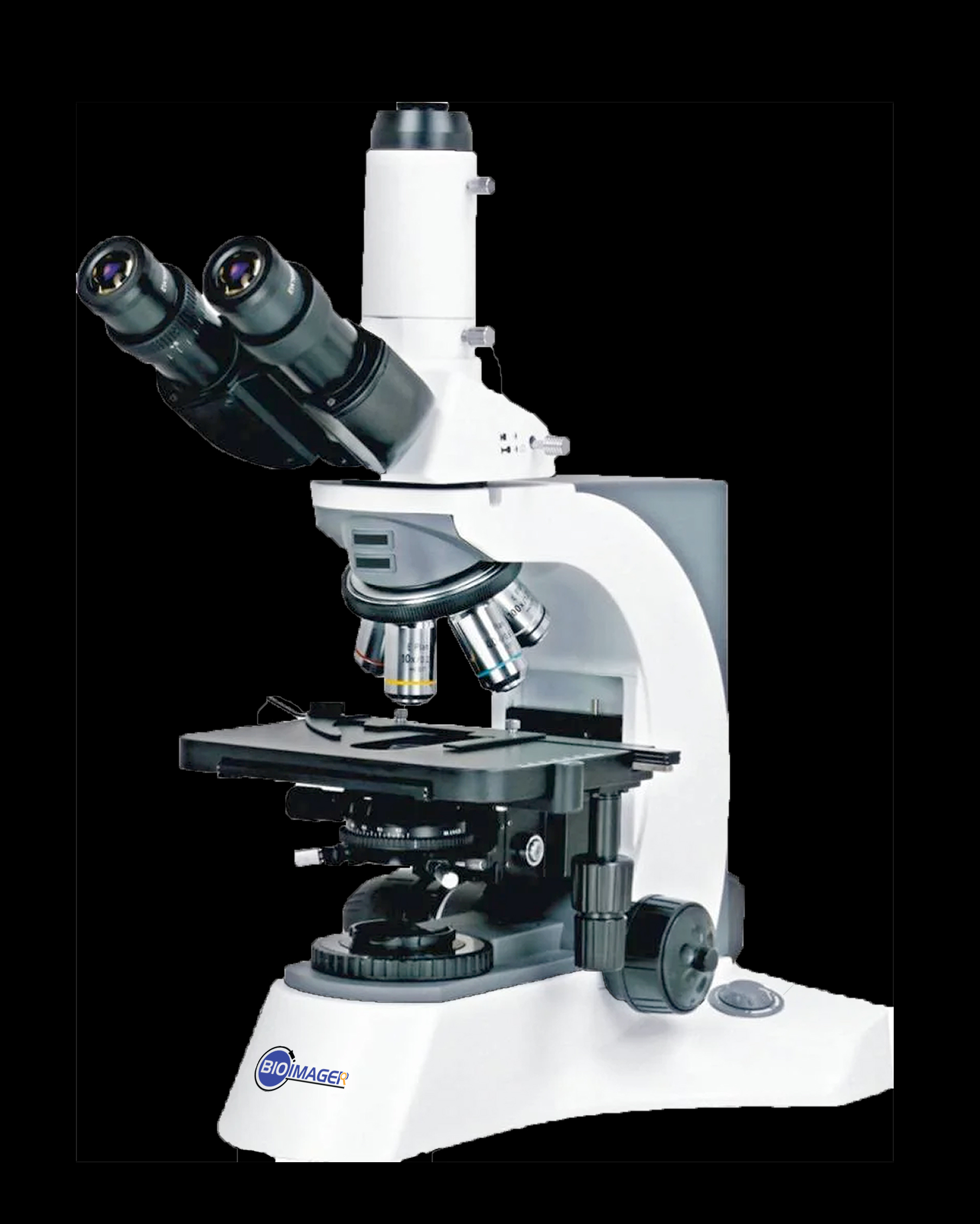

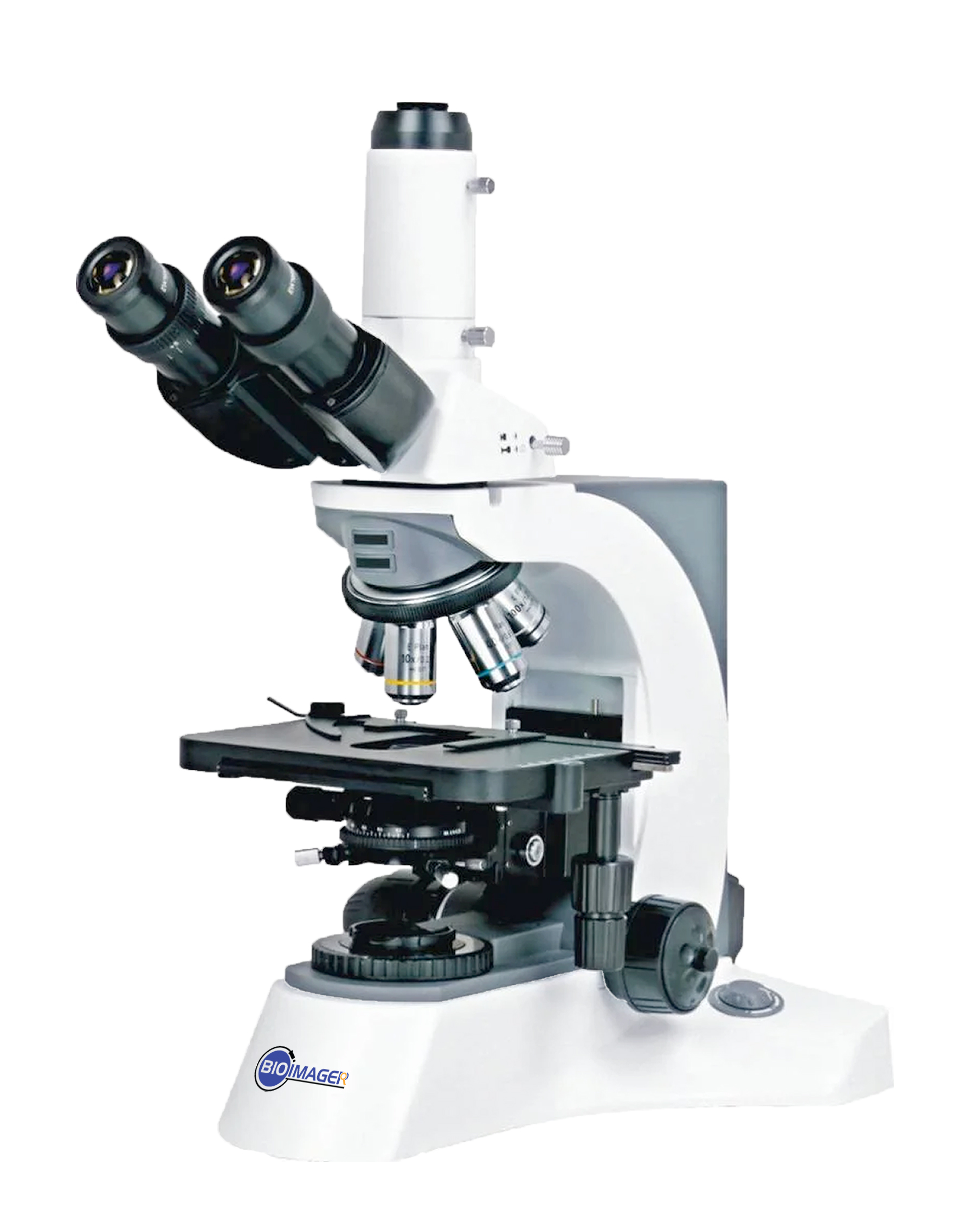

BUM500DIC Upright Biological Microscope with DIC and Phase Contrast Imaging


  • Upright Biological Microscope
  • Brightfield, Phase-Contrast, Polarized and DIC Nomarski imaging capability and Optional Fluorescnce imaging
  • Super Bright Transmitted Halogen illumination and optional Reflecetd light
  • Trinocular Head
  • 4x, 10x, 40x and 100x (oil) Phase Contrast and 20x and 100x (dry) DIC lenses

$USD 8,875.00 $USD 12,000.00

Customer Story:

I am interested in a DIC Phase contrast microscope under $10,000 (can be used). Not reflected DIC, but transmitted for cells.Ā I can live without Phase but I need DIC for sure.Ā I can take an upright or inverted microscope, but not reflected DI. I need transmitted DIC to view cells not electronics. I work onĀ Pond organisms, algae, rotifers etc. I need a photo tube for attaching Nikon or Canon DSLR.

Features:

  • Comfortably observing with compensation free trinocular head Inclined
    at 30°
    Suitable for observer with wide interpupillary range of 48-75mm
  • Larger viewing area with extra wide field eyepiece EW10Ɨ/ 22
    Focus control with diopter adjustable
  • Big operating space with backward quintuple nosepiece
  • Rectangle double layers mechanical stage 185Ɨ142mm, moving range
    75Ɨ55mm, comfortable operation with low position adjustable knobs
  • Perfect image with infinite plan achromatic objective
  • Overcoming illumination asymmetry at low magnification observation
  • With aspherical condenser and Kohler illumination, providing enough, even and high contrast illumination for various objective observations.
  • External illumination, halogen lamp 6V/ 30W, brightness adjustable, 24V/ 100W for optional

1. Biological Microscope

BUM500DIC
Viewing HeadSeidentopf Trinocular Headā—
TiltableĀ Binocular/Trinocular Headā—‹
EyepieceExtra Wide Field Eyepiece EW10Ɨ/ 22ā—
NosepieceBackward Quintuple Nosepieceā—
Backward Sextuple Nosepieceā—‹
ObjectiveInfinite Plan Achromatic
Objective
4Ć—ā—
10Ć—ā—
20Ć—ā—
40Ć—ā—
100Ć—ā—
Objectives for Dark Field100Ć—ā—‹
CondenserSwing-out Condenser NA 0.9/ 0.25ā—
StageDouble Layers Mechanical Stage 185Ɨ142/ 75Ɨ55ā—
IlluminationExternal Illumination, Aspherical Collector, Halogen Lamp 6V/ 30Wā—
External Illumination, Aspherical Collector, Halogen Lamp 24V/ 100Wā—‹
LED Illuminationā—‹
Photo Attachmentā—‹
Video AdapterC Mount 1Ć—ā—‹
C Mount 0.5Ć—ā—‹
FilterBlue Filterā—
Green Filterā—
Multi Viewing AttachmentsMulti Viewing Attachments for 5 personsā—‹
Multi Viewing Attachments for 3 personsā—‹
Multi Viewing Attachments for 2 personsā—‹
Polarization Attachmentā—
Phase Contrast KitTurret Phase Contrast Kitā—
Dark Field Attachmentā—‹
Epi-fluorescent Attachmentā—‹
DIC Filterā—
Drawing Attachmentā—‹

Note: ā—Standard Outfit, ā—‹Optional

2. Phase Contrast Kit

  • 4x, 10x, 40x and 100x (oil) Phase Contrast lenses
  • Phase contrast alignment tool
  • Phase contrast turret condenser

(Please see the video and sample images in the Images/Videos Tab).

3. DIC Kit

  • Polarizer
  • 360 rotating Analyzer
  • DIC Filter
  • 20x and 100x DIC Lenses

Video 1: Main Body and Performance Overview:

Video 2: Imaging Capability: Brightfield imaging with transmitted or Reflected Light

Video 3. Phase Contrast Kit and Sample Images

BUM-PHK Phase Contrast Kit for Upright Biological Microscopes is composed of 10x, 20x, 40x , 60x and 100x (oil) Phase contrast objective lenses, green filter, Phase alignment tool and turret condenser with different annulus.
In this video we look at the samples images of an Onion Skin thins section slide and Tilia (basswood) thin section slide, using this kit installed on Bioimager BUM800FL upright biological microscope and connected a 2.3MP USB3.0 CMOS Colorful Camera as well as a 0.5x C-Mount Adapter.
