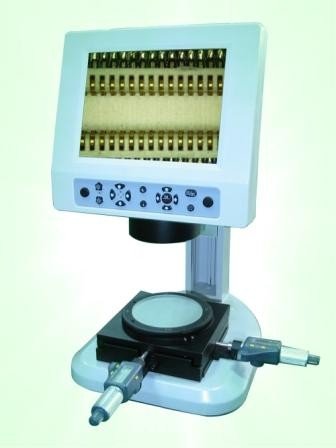

BLM320M LCD Stereo Measuring Microscope
Introduction
BLM320M Digital LCD Stereo Measuring Microscope has renovated the traditional way of microscopic observation and adopted a modern way of electronic imaging. 9x-240x zoom magnification. This patented microscope makes the observation more comfortable and thoroughly resolves the fatigue caused by using a traditional microscope at work for a long time. It features high resolution of LCD display to generate genuine photo and video .This unit integrates X/Y digital micrometer and moving measuring stage for measuring functions.
Features
- It features a high resolution LCD screen to reverting genuine photo and video. This product integrates magnification, imaging, display and built-in LED illumination functions.
- X/Y digital micrometer and moving stage for accurate measuring.
- With a 5.0MP high definition built-in camera, 8 inches high resolution LCD screen, images can be easily view through the screen.
- Images and videos can be stored in the SD card.
Application
BLM320M can be conveniently applied to testing and inspecting in product assembly, research and teaching fields.

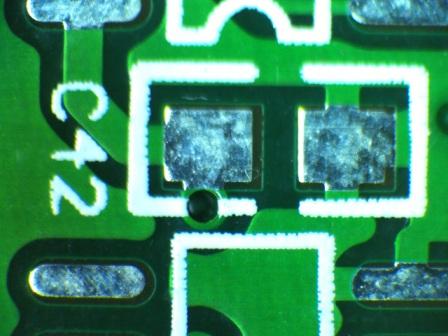

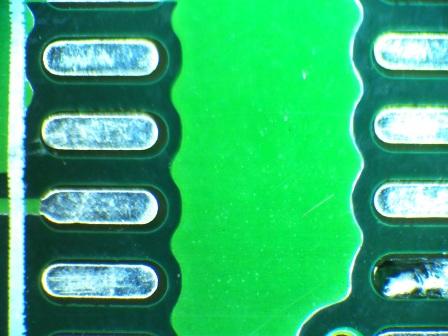

Sample Images
Specification
| Digital Parts | Pixel | 5 Mega Pixel |
| Photo Resolution | 2560×1920~ 1600×1200 | |
| Video Resolution | 640×480 | |
| Data Output | USB2.0 | |
| Menu Language | Chinese / English | |
| Storage | SD Card slot with optional memory cards (Maximal Storage Capacity is 4 GB) | |
| Exposure Mode | Auto Exposure | |
| Date mode | Year, Month, Day, Hour, Minute | |
| Sensor Size | 1/2.5 Inches | |
| LCD Screen | 8 inches TFT screen, Resolution is 800X 600 | |
| Video Output | AV output (NTSC/PAL) | |
| Voltage | 100v-240v 60HZ/50HZ | |
| Optical Part | Objective Zoom Range | 0.7×-4.5 |
| Zooming Ratio | 1:6.5 | |
| Magnification | 19×-120× | |
| Visual Field | 6.8×8.9-1.0×1.3mm | |
| Working Distance | 88mm | |
| X-Y Axis Moving Survey Range | 30X30mm | |
| Minimum Measuring Reading | 0.001mm | |
| Measurement Accuracy | ＜7um | |
| Optional Part | Objective | 0.5X/0.75X/1X/1.5X/2X |
| Base Light | Built-in LED base illumination: 5W , 45pcs LED bulbs | |
| Longer stand and base: | Using 0.5X objective lens ,working distance is 175mm(Max) |
Item #BLM320M
