BSM500E Ergonomic Tilted Stereo Microscope

$USD 2,969.00

-15%
  • Infinite Parallel Zoom Optical System
  • Zoom lens of 0.8x-5x (A), 0.8x-6.4x (B) or 0.8x-8x (C) / Zoom Ratio 1:6, 1:8, 1:10
  • Ergonomic Binocular Head, adjustable from 5 to 35°Inclination with optional video port
  • EW10×/Φ22 Eyepiece
  • Plan Achromatic Objective 1× with optional 0.5x, 2x  lenses
  • An outstanding product for industrial, medical and scientific research fields.
Add to Wishlist
Guaranteed Safe Checkout

Questions? Request a Call Back

Features

  • Excellent Image Quality & Optical Performance with Infinity Parallel Optical System.
  • Comfortable Operation with Ergonomic Design Principle.
  •  With LED light for both incident and transmitted illumination, Providing even illumination and life expectancy can reach 6000 hours.
  •  A Wide Range of Accessories to be Equipped with the Microscope for Multi-purposeIt is an Outstanding Assistant in Industrial, Medical and Scientific Research Areas.


Specifications:

BS500 Stereo Microscope

A

B

C
Head Tilting Binocular Head, 0°-35°

●

●

●
Eyepiece EW10X/22

●

●

●
Zoom Objective 0.8x-5x

●
0.8x-6.4x

●
0.8x-8x

●
Zoom Ratio 1: 6

●
1: 8

●
1: 10

●
Objective Plan Achromatic Objective 1x

●

●

●
Working Distance 78mm

●

●

●
Focusing Focusing Range 105mm

●

●

●
Coaxial Coarse & Fine Focusing Unit

●
Illumination Transmission or Reflection LED Illumination, Brightness Adjustable

●

●

●

Optional Accessories

Name of Parts
Drawing Tube Photo Attachment (one way photo tube)
Photo Attachment (two way photo tube)
Eyepiece WF15x/16
WF20x/12
Objective Plan Apo-chromatic Objective 0.5x
Achromatic Objective 0.5x
Plan Achromatic Objective 2x
Achromatic Objective 0.3x
Fluorescent Attachment
Dark Field Attachment
Simple Polarization Set
Iris Diaphragm
Stage Mechanical Stage
Temperature Stage
Photo Attachment
Video Attachment

BS500 Stereo Microscope

A

B

C
Head Tilting Binocular Head, 0°-35°

●

●

●
Eyepiece EW10X/22

●

●

●
Zoom Objective 0.8x-5x

●
0.8x-6.4x

●
0.8x-8x

●
Zoom Ratio 1: 6

●
1: 8

●
1: 10

●
Objective Plan Achromatic Objective 1x

●

●

●
Working Distance 78mm

●

●

●
Focusing Focusing Range 105mm

●

●

●
Coaxial Coarse & Fine Focusing Unit

●
Illumination Transmission or Reflection LED Illumination, Brightness Adjustable

●

●

●

Optional Accessories

Name of Parts
Drawing Tube Photo Attachment (one way photo tube)
Photo Attachment (two way photo tube)
Eyepiece WF15x/16
WF20x/12
Objective Plan Apo-chromatic Objective 0.5x
Achromatic Objective 0.5x
Plan Achromatic Objective 2x
Achromatic Objective 0.3x
Fluorescent Attachment
Dark Field Attachment
Simple Polarization Set
Iris Diaphragm
Stage Mechanical Stage
Temperature Stage
Photo Attachment
Video Attachment

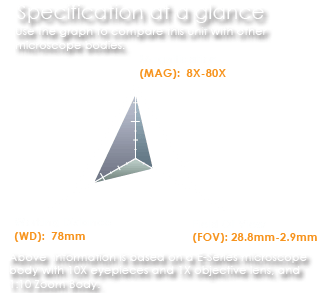

OPTICAL SPECIFICATIONS

Objective

Lens

 Working Distance

(mm)

 Zoom Body Eyepieces
10X 20X 30X
Mag FOV (mm) Mag FOV (mm) Mag FOV (mm)
0.5X 187mm
1:6 4X – 25X 57.5 – 9.2 8X – 50X 35 – 5.6 12X – 75X 25 – 4
1:8 4X – 32X 57.5 – 7.2 8X – 64X 35 – 4.4 12X – 96X 25 – 3.1
1:10 4X – 40X 57.5 – 5.8 8X – 80X 35 – 3.5 12X – 120X 25 – 2.5
1X 78mm
1:6 8X – 50X 28.8 – 4.6 16X – 100X 17.5 – 2.8 24X – 150X 12.5 – 2
1:8 8X – 64X 28.8 – 3.6 16X – 128X 17.5 – 2.2 24X – 192X 12.5 – 1.6
1:10 8X – 80X 28.8 – 2.9 16X – 160X 17.5 – 1.8 24X – 240X 12.5 – 1.3
2X 35mm
1:6 16X – 100X 14.4 – 2.9 32X – 200X 8.8 – 1.4 48X – 300X 6.3 – 1
1:8 16X – 128X 14.4 – 2.3 32X – 256X 8.8 – 1.1 48X – 384X 6.3 – 0.8
1:10 16X – 160X 14.4 – 1.8 32X – 230X 8.8 – 0.9 48X – 480X 6.3 – 0.6

BSM500E Stereo Microscope with ergonomical tilted head

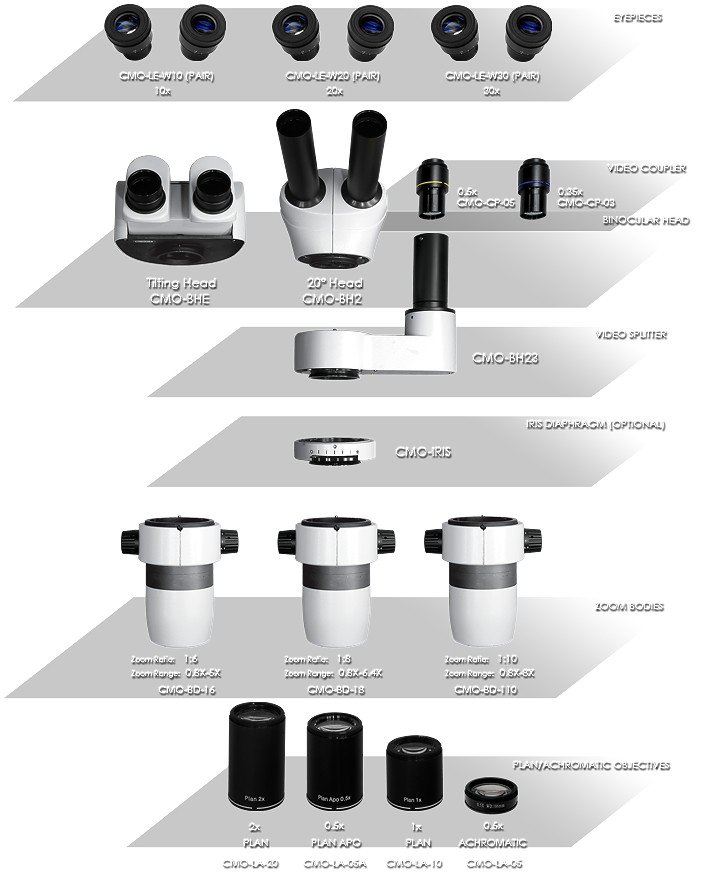

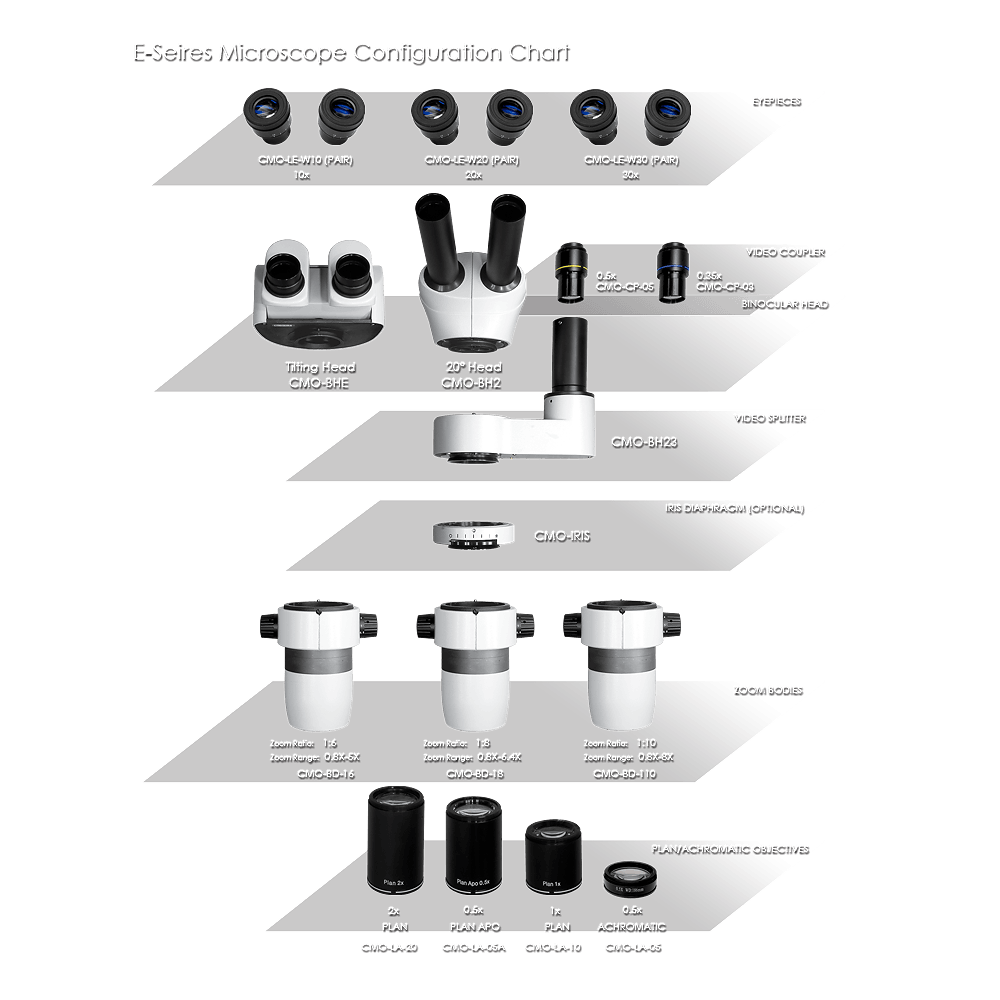

System Diagram
