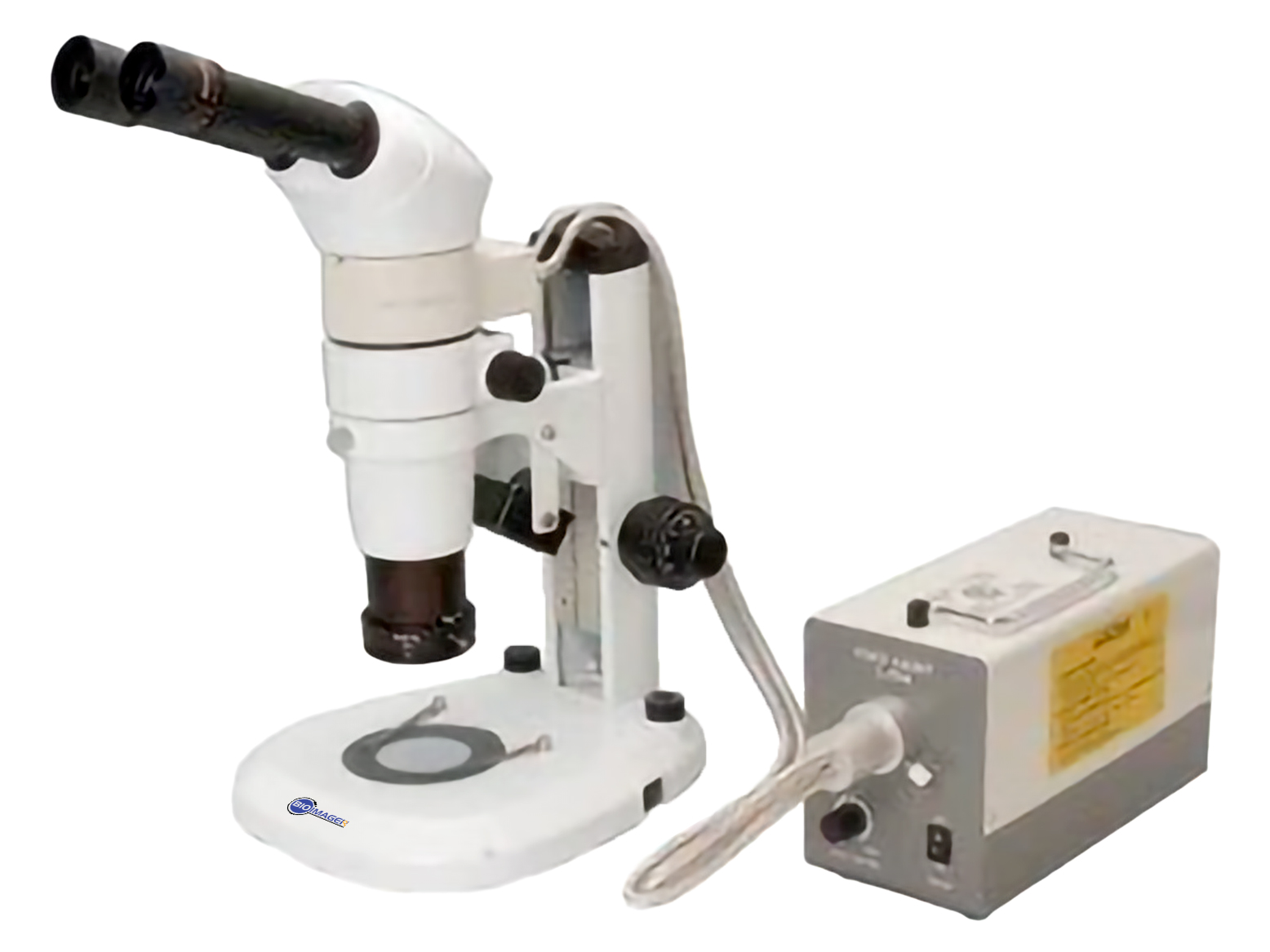

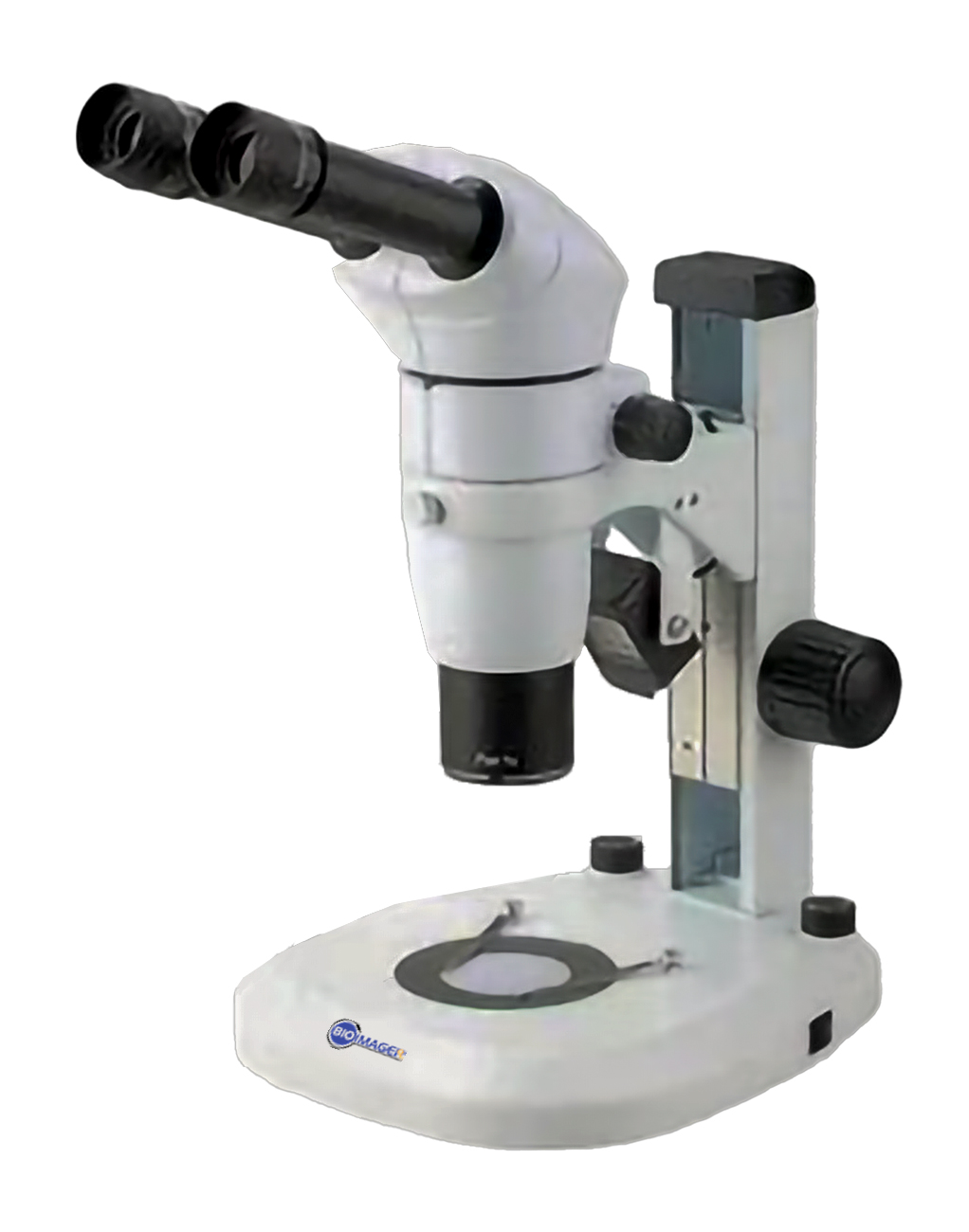

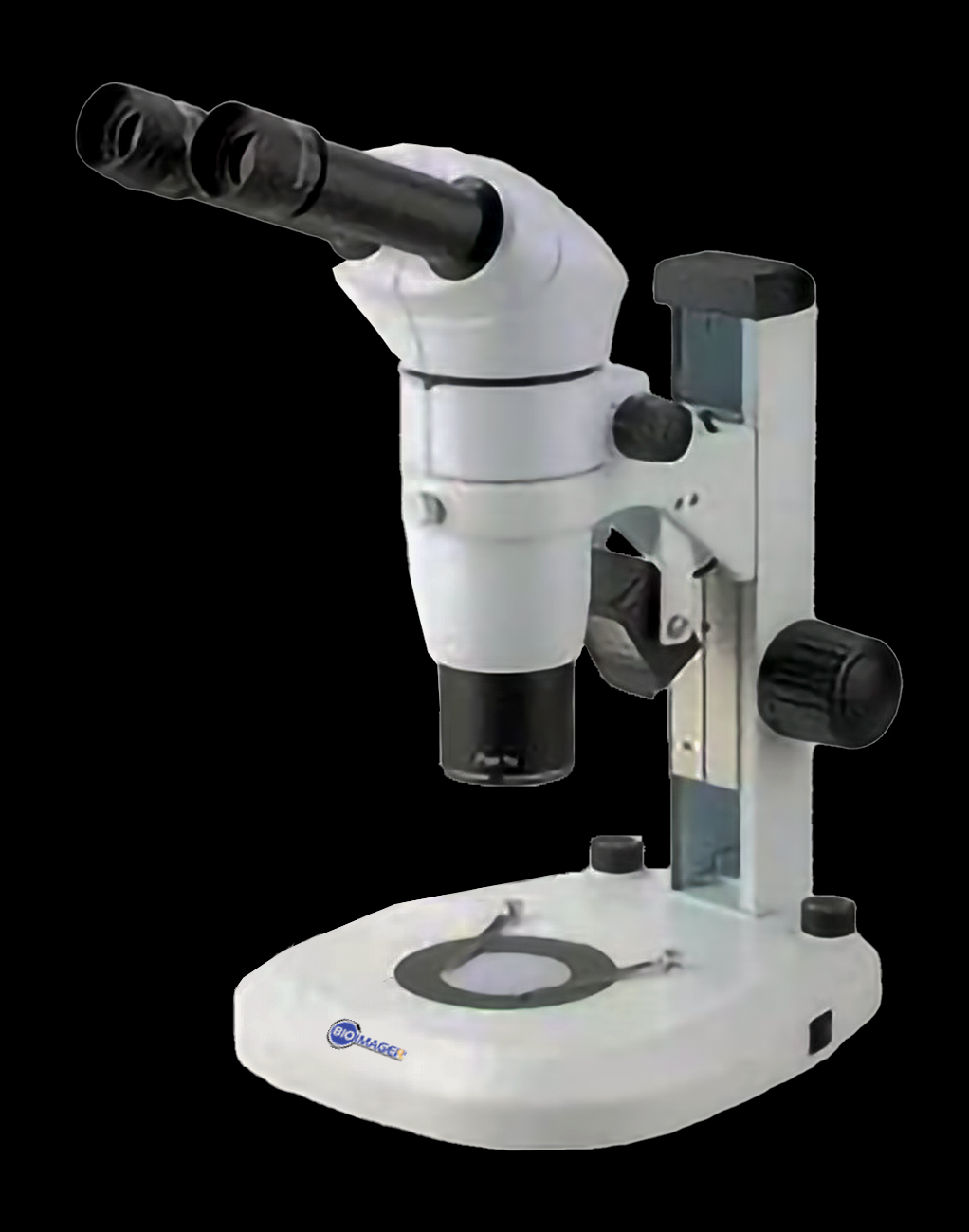

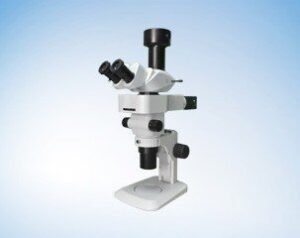

BSM500P Stereo Zoom Microscope with Episcopic Illumination

BSM500P Stereo Zoom Microscope with Episcopic Illumination

$USD 2,895.00

Episcopic illumination module
Infinite Parallel Zoom Optical System
Including submodels A, B, C based on different Zoom Objective (0.8x-5x, 0.8x-6.4x, 0.8x-8x) and Zoom Ratio 1:6, 1:8, 1:10
Binocular (Trinocular) Head, 20°Inclination
EW10×/Φ22 Eyepiece
Plan Achromatic Objective 1×
It is an outstanding product for industrial, medical and scientific research fields.

Attachments

illumination

Other Accessories

Video Ouput

Viewing Head

Zoom Objective

Introduction

Stereo microscopes are also known as low magnification and dissecting microscopes. BSM500 Series Zoom Stereo Microscope with Infinity Parallel Optical System on a post stand offers upright, un-reversed 3-D images that remain in focus throughout the zoom range. Optional eyepieces and auxiliary objectives expand magnification range and working distances.

This is a high level stereo microscope. Optional cold light and ring light can be chosen for this microscope. You can also choose trinocular head to add digital camera with the appropriate camera adapter. In summary BSM500 series Parallel Stereo Microscopes give the greatest range of magnifications, working distances, photo options, accessories and are the most convenient to use – no wonder they are popular!

Application area

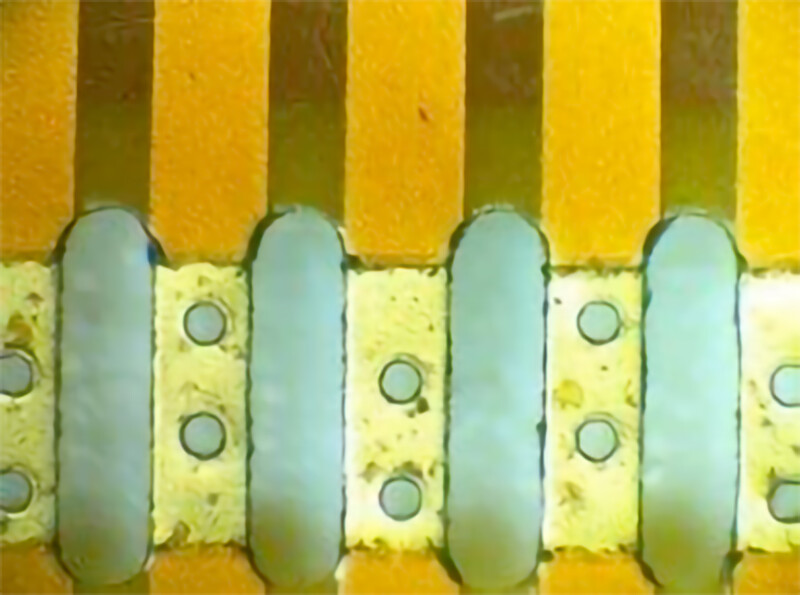

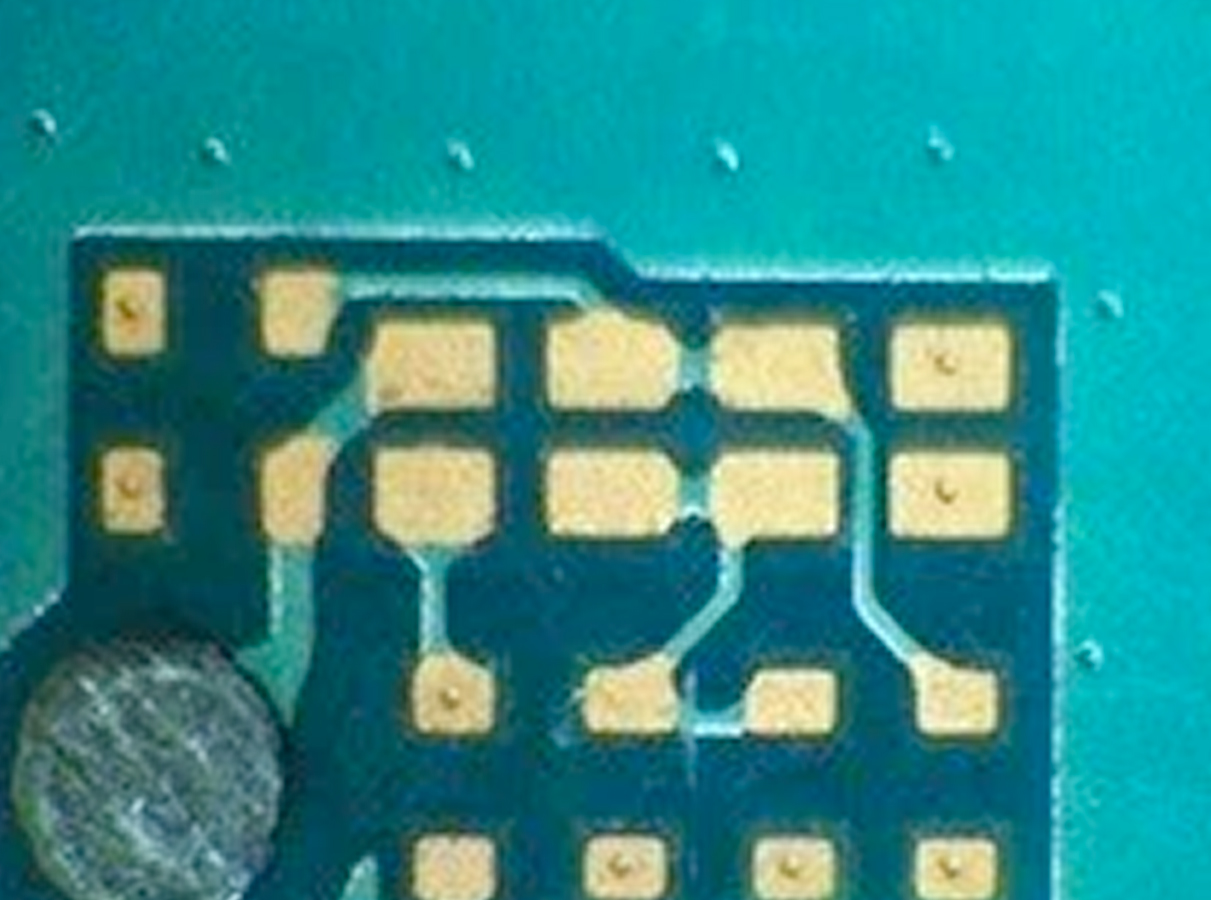

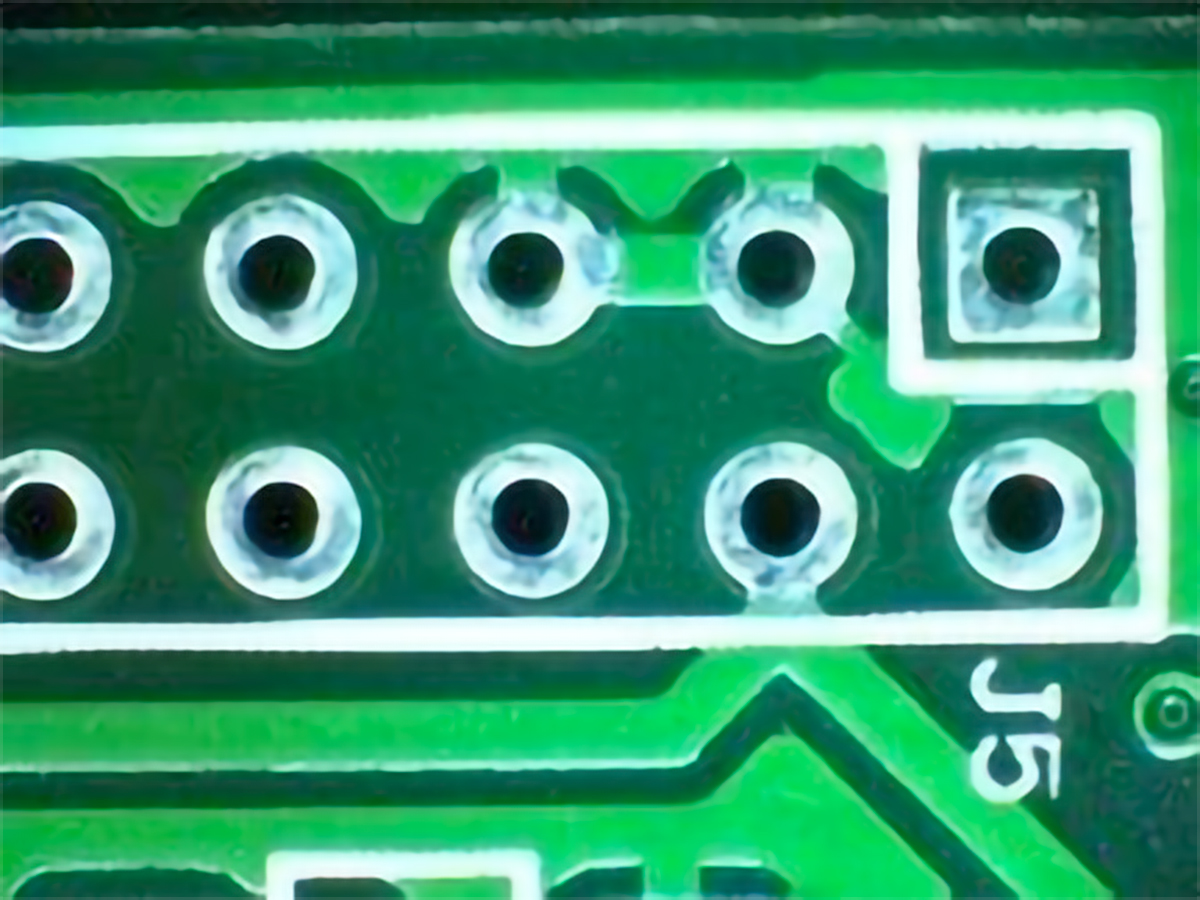

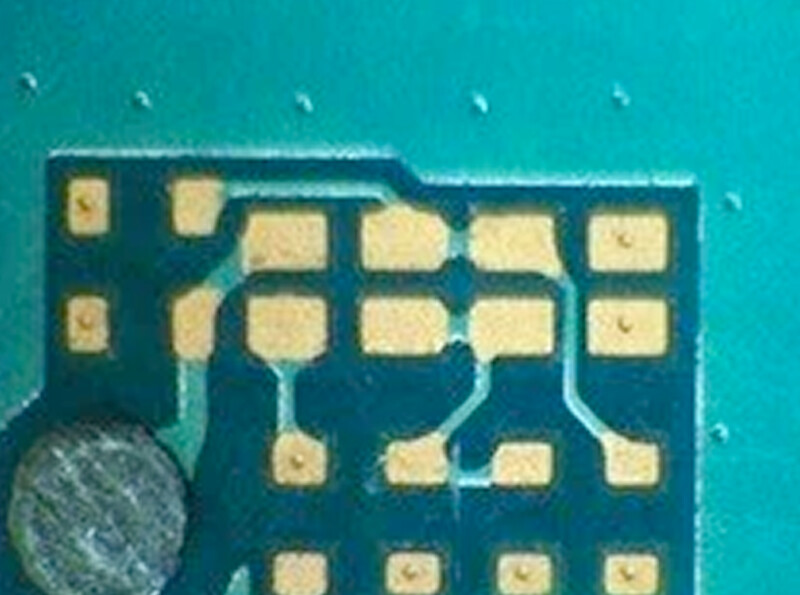

BSM500P series stereo zoom microscopes with Infinity Parallel Optical System is of great value in a variety of applications such as Industrial, Medical and Scientific Research Areas, circuit board repair, circuit board inspection, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, and repair and inspection of small parts.

Features

Excellent Image Quality & Optical Performance with Infinity Parallel Optical System.
Comfortable Operation with Ergonomic Design Principle.
With LED light for both incident and transmitted illumination, Providing even illumination and life expectancy can reach 6000 hours.
A Wide Range of Accessories to be Equipped with the Microscope for Multi-purpose. It is an Outstanding Assistant in Industrial, Medical and Scientific Research Areas.

BSM500P Stereo Zoom Microscope with Episcopic Illumination

Introduction

Features

Excellent Image Quality & Optical Performance with Infinity Parallel Optical System.
Comfortable Operation with Ergonomic Design Principle.
With LED light for both incident and transmitted illumination, Providing even illumination and life expectancy can reach 6000 hours.
A Wide Range of Accessories to be Equipped with the Microscope for Multi-purpose. It is an Outstanding Assistant in Industrial, Medical and Scientific Research Areas.

Application area

Model		BSM500 A	BSM500 B	BSM500 C
Optical System	Infinite Parallel Zoom Optical System	●	●	●
Viewing Head	Binocular Head, 20°Inclination, Interpupilary Distance 55-75mm	●	●	●
Viewing Head	Tilting Binocular Eyepiece Tube, 5°-35° Inclined, Interpupilary Distance 55-75mm	○	○	○
Eyepiece	EW10×/Φ22	●	●	●
	WF15×/Φ16	○	○	○
	WF20×/Φ12	○	○	○
	WF30×	○	○	○
Zoom Objective	0.8×-5×	●
	0.8×-6.4×		●
	0.8×-8×			●
Objective	Plan Achromatic Objective 1×	●	●	●
	Achromatic Objective 0.3×	○	○	○
	Plan Apochromatic Objective 0.5×	○	○	○
	Plan Achromatic Objective 2×	○	○	○
Zoom Ratio	1: 6	●
	1: 8		●
	1: 10			●
Working Distance	78mm	●	●	●
Focusing Range	105mm	●	●	●
Illumination	Transmission & Reflection LED Illumination, Brightness Adjustable	●	●	●
Optional Accessories	Coaxial Illumination	○	○	○
	Epi-Fluorescent Attachment	○	○	○
	Dark Field Attachment	○	○	○
	Simple Polarization Set	○	○	○
	Iris Diaphragm	○	○	○
	Beam splitter (one port)	○	○	○
	Beam splitter (two ports)	○	○	○
	Photography & video attachment	○	○	○
	Moveable Stage	○	○	○
	Temperature controlled Stage	○	○	○
	Universal Table Stand/Table clamp stand	○	○	○
	Coaxial Coarse & Fine Focusing Unit	○	○	○

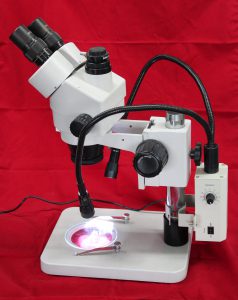

	Cold light illumination with dual light guide	○	○	○
	LCD Attachment	○	○	○
Package & Dimension	49cm40cm56cm, 1pc/carton, 9.5kg

Note: ● Standard Outfit, ○ Optional
Optical Specifications

Obj. Lens	Working Distance	Zoom Ratio	Eyepieces
			10X		20X		30X
			Mag	FOV (mm)	Mag	FOV (mm)	Mag	FOV (mm)
0.5X	187mm	A: 1:6	4X – 25X	57.5 – 9.2	8X – 50X	35 – 5.6	12X – 75X	25 – 4
		B: 1:8	4X – 32X	57.5 – 7.2	8X – 64X	35 – 4.4	12X – 96X	25 – 3.1
		C: 1:10	4X – 40X	57.5 – 5.8	8X – 80X	35 – 3.5	12X – 120X	25 – 2.5
1X	78mm	A: 1:6	8X – 50X	28.8 – 4.6	16X – 100X	17.5 – 2.8	24X – 150X	12.5 – 2
		B: 1:8	8X – 64X	28.8 – 3.6	16X – 128X	17.5 – 2.2	24X – 192X	12.5 – 1.6
		C: 1:10	8X – 80X	28.8 – 2.9	16X – 160X	17.5 – 1.8	24X – 240X	12.5 – 1.3
2X	35mm	A: 1:6	16X – 100X	14.4 – 2.9	32X – 200X	8.8 – 1.4	48X – 300X	6.3 – 1
		B: 1:8	16X – 128X	14.4 – 2.3	32X – 256X	8.8 – 1.14	8X – 384X	6.3 – 0.8
		C: 1:10	16X – 160X	14.4 – 1.8	32X – 230X	8.8 – 0.9	48X – 480X	6.3 – 0.6

FOV=Field of View, Mag.=Magnification

Application area

BSM500 series stereo zoom microscopes with Infinity Parallel Optical System is of great value in a variety of applications such as Industrial, Medical and Scientific Research Areas, circuit board repair, circuit board inspection, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, and repair and inspection of small parts.
