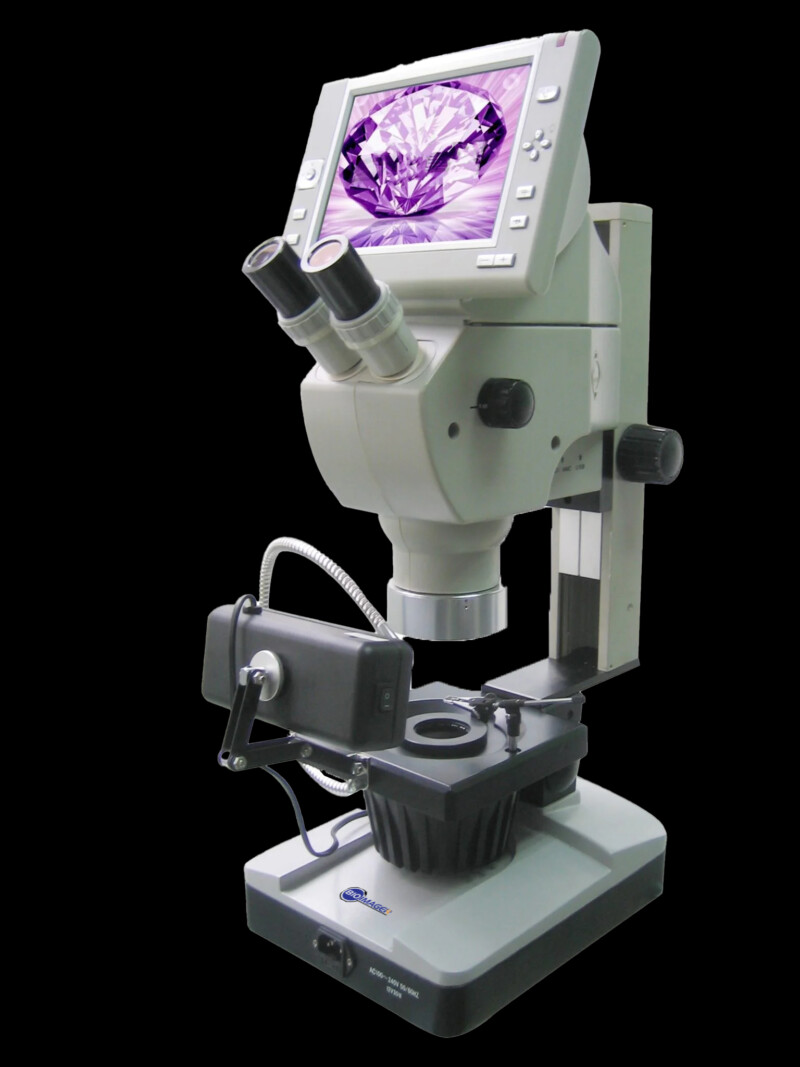

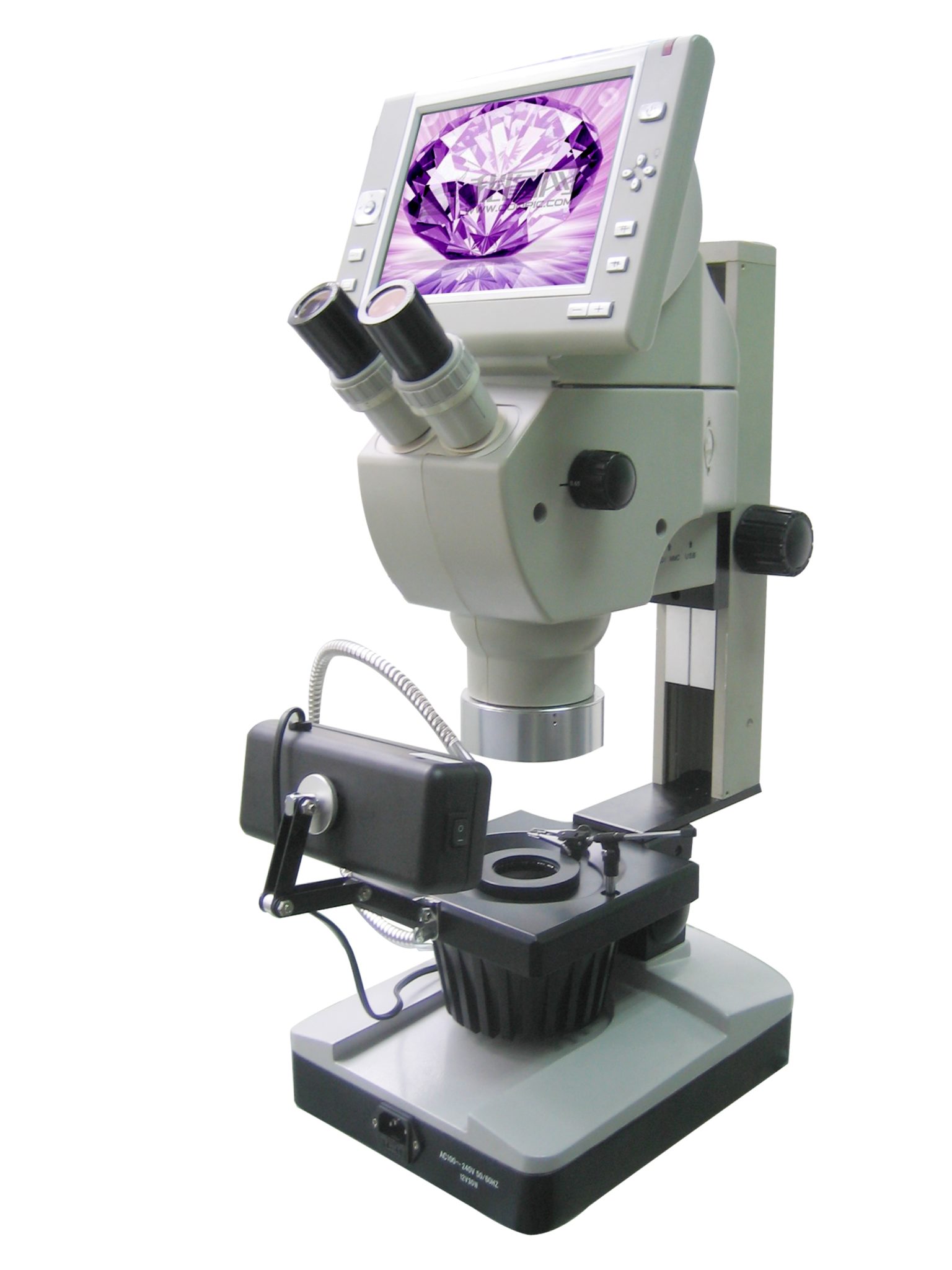

BDM400L Gemological Microscope with LCD Screen & Built-in Camera
Introduction
BDM400L digital LCD Gemological microscope renovated the traditional way of microscopic observation and thoroughly resolves the fatigue for a long time working. Eyepieces and LCD Screen can both be used for convenient and comfortable viewing by individuals and share with other people. It features an especially designed stand to view, identify and analyze precious stone samples and the pieces of jewelry in them.
Features
1. Offering crisp sharp and high resolution image with high bright LED point light, dark field illumination and fluorescence light source. It is a high level professional gemological microscope.
2. Designing with very good idea can greatly improve the working efficiency, it is also easy to operate and makes operators feel more comfortable.
Application
BDM400 is a precision microscope that is capable of inspecting diamonds, emeralds, rubies, and all other types of precious stones, it is usually used to inspect gemstones and in the design, production and repair of jewelry. This microscope is an ideal instrument for jewelers and gem stone experts, it is the most important tool in their jobs.
Specification
Digital Parts |
Pixel |
5 Mega Pixel |
Photo Resolution |
2560×1920-1600×1200 |
|
Video Resolution |
640×480 |
|

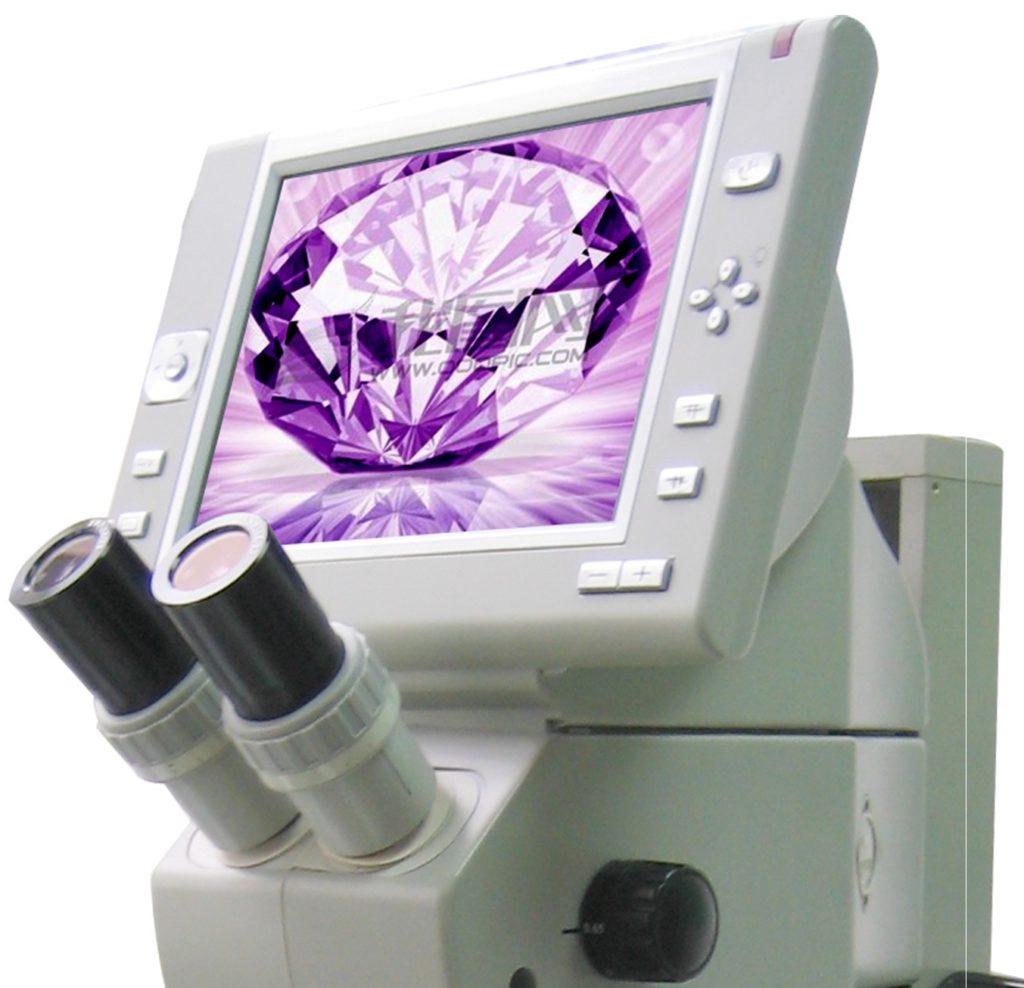

LCD Screen |
8 Inches TFT Screen, Resolution is 800 × 600 |
|
Video Output |
AV output (NTSC/PAL) |
|
Data Output |
USB2.0 |
|
Storage |
SD Card (Maximal Storage Capacity is 4 GB) |
|
Exposure Mode |
Auto Exposure |
|
Date Mode |
Year, Month, Day, Hour, Minute |
|
Optical Parts |
Viewing Head |
Binocular Head, Inclined 45°, interpupillary distance: 55mm-75mm |
Eyepiece |
SWF10X/22mm |
|
Zooming Ratio |
1:7.0 |
|
Eyepiece Diopter Correction |
±5 Diopters |
|
Working Distance |
103mm |
|
Objective Zoom Range |
0.65X-4.5X |
|
Illumination System |
Bright / dark Field Illumination (Light aperture: 41mm~2mm changeable diaphragm, it can adjust the beam of illumination. ) |
|
Gem Lamp, 8W daylight fluorescence lamp(6000)K |
||
Single Cold Light Illuminator |
||
Plat Clamp |
Moderate to hold hard, conveniently. |
|
Optional Parts | Eyepiece |
10X /20mm with a Reticle, Single Line 10mm/100 ,Cross Hair (0.1mm Micrometer) 15X/20X/25X |

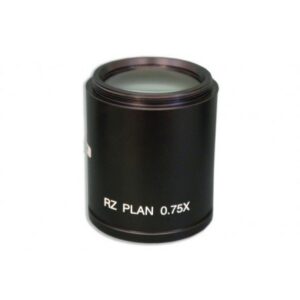

Objective |
0.5X/0.75X |
|
Longer Stand and Base |
Using 0.5X Objective Lens ,Working Distance is 175mm (Max) |
|
Clamp |
Alligapor Clamp or Steel Clamp |
