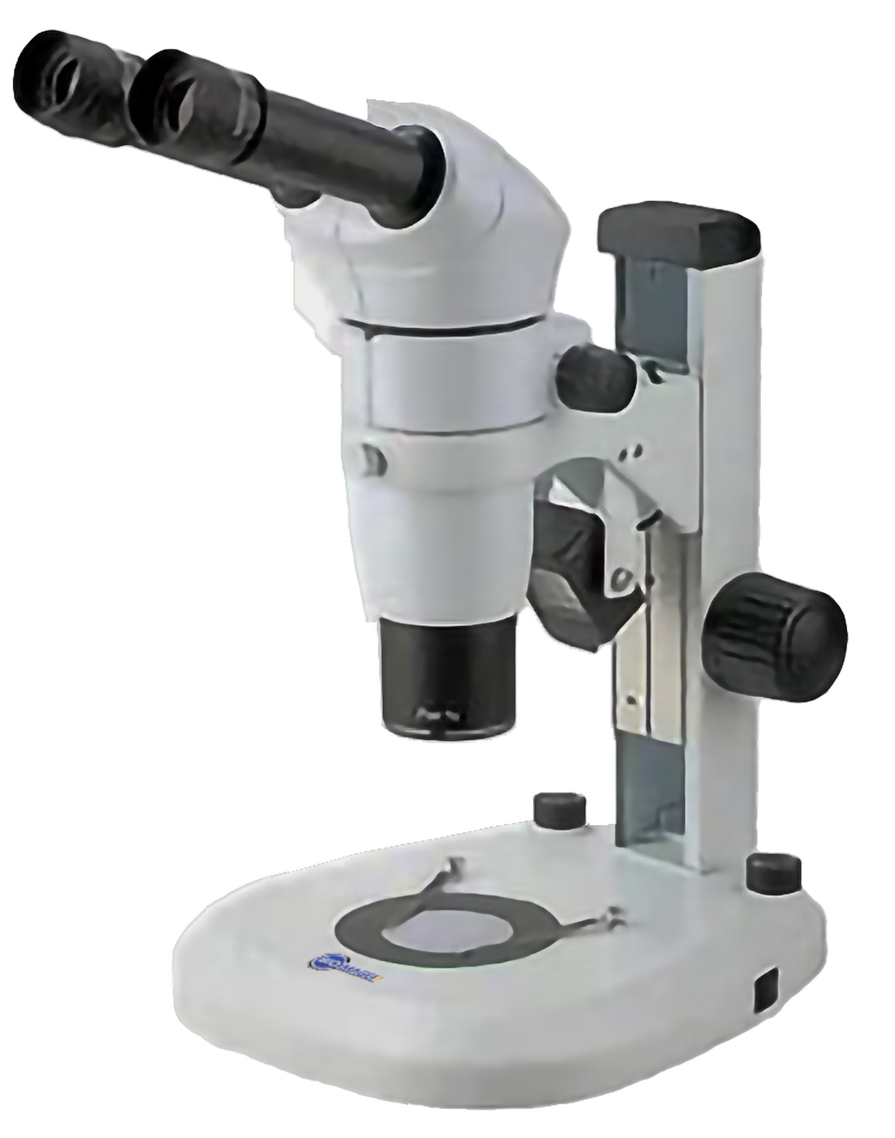

BSM500Bi Bincoular Series Stereo Microscoope


Compare

Stereo microscopes are also known as low magnification and dissecting microscopes.

Request a Quote

BSM500 Series Microscope Configuration

Stereo/bs900-03.jpgStereo/bs900-02.jpg
Ergonomic tilting and rotating headEyepieces tilt and rotate to adjust for operator height. Eyepieces rotate 180Eyepeices tilt with 3″ travel. Inclination is adjustable from 0° to 45° for optimum user comfort.20° fixed head
Eyepiece inclination of 20° allow you to observe without having the lean forward which reduces fatigue during long hours of operation.

Stereo/bs900-01.jpg

System Diagram

Stereo/SZM-900-2.jpg

OPTIONAL ITEMS

BSL-150A Series Cold Light Illumination

Stereo/bsl150-1.jpgStereo/bsl150-2.jpgStereo/K2.jpg



BSL-150A ModelsA1

(○)

A2

(●)

A0

(○)

Power SupplierSwitch Power 110V/ 220V
T-H Lamp with Reflector 20V/ 150W
Brightness Adjustable
Multi-coated IR Cutoff Filter for Heat Insulation
Fan Cooling
Size: 260×120×150mm
Weight 3.3 kg
Single Light GuideRigid Flectional Tube, Length 500mm
Dual Light GuideRigid Flectional Tube, Length 500mm
Ring Light GuideFlexible Tube, Length 1000mm, Adapter Ring Size Φ50mm/ Φ60mm
Kohler Illumination AttachmentAttached on Single or Dual Light Guide to adjust and obtain Even Illumination

LED Ring Light (for brightfield imaging)

Stereo/led-ring01.jpg Stereo/HSZ780-Refl_2.jpg

Digital High- Precision XY Micrometer Stage

Stereo/measurement_stage2.jpgStereo/measurement_stage.JPG



Specification of Stage:–Stage size: 140 x 140 x 65mm (L x W x H)
–Net Weight: 2.5kgs
–Connection size for stand: 95mm
Specification of Micrometer:–Measuring: 0-25mm/0-1″
–Resolution: 0.001mm/0.00005″
–Accuracy: 0.002mm
–Power supply: one silver-oxide button battery SR44 (1.5V)
–Operating temperature: 0-+40°
–Storage temperature: -20-70°
–No influence within relative humidity <80%

Mechanical XY Stage

Stereo/HSZ700_XY_Stage.JPG

Heating Stage

Stereo/heating_stage.JPG

Check the detailed specs and other options here.

Episcopic Illumination

Stereo/Episcopic2.JPGStereo/bs3060ct.jpg

Other Accessories

Stereo/Polarzier_Analayzer_HSZ700.JPGStereo/darkfield_hsz700_1.jpg
Polarizer & AnalyzerDarkfield Imaging
