| Brand | Huvitz | Olympus | Nikon |
| Model |
HRM-300 |

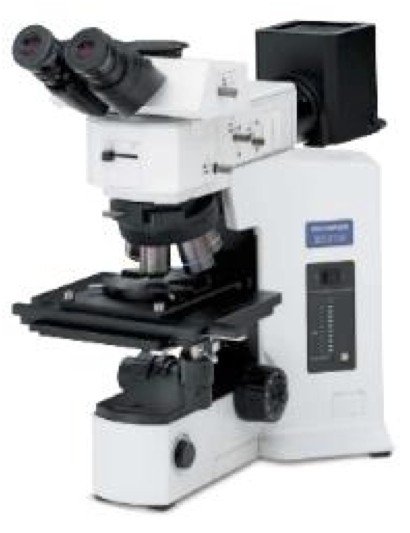

BX51 |

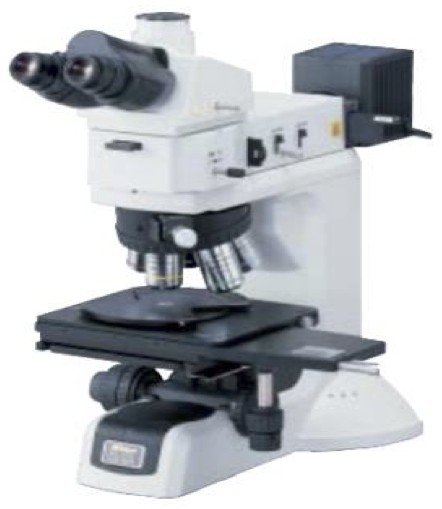

LV150 / LV100 |
| EYEPIECE Field number | 25mm (wide visual field) | 22mm | 22mm |
| Highest magnification | 1000x | 1000x | 1000x |
| Observation methods | BF/DF/POL/DIC | BF/DF/POL/DIC | BF/DF/POL/DIC |
| Maximum Sample Size | 6″ | 4″ | 6″ |
| Additional function | IL (intelligent lighting), ECO (auto-power saving), AMS (auto measurment system) | X | X |
| Height measurement | Optional 3D Profiler and EDF | X | X |
| 3D Measurement | Optional | X | X |
| Price | The lowest price and the best performance per price is guaranteed | 30% expensive than HRM at the similar configuration | 40% expensive than HRM at the similar configuration |

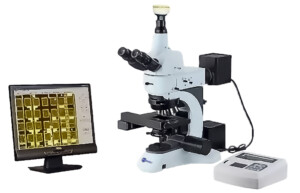

BMU500A Fully Motorized Auto-Focus Metallurgical Microscope

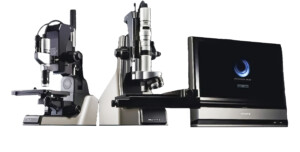

HDS-5800 Digital Automated 3D Imaging System

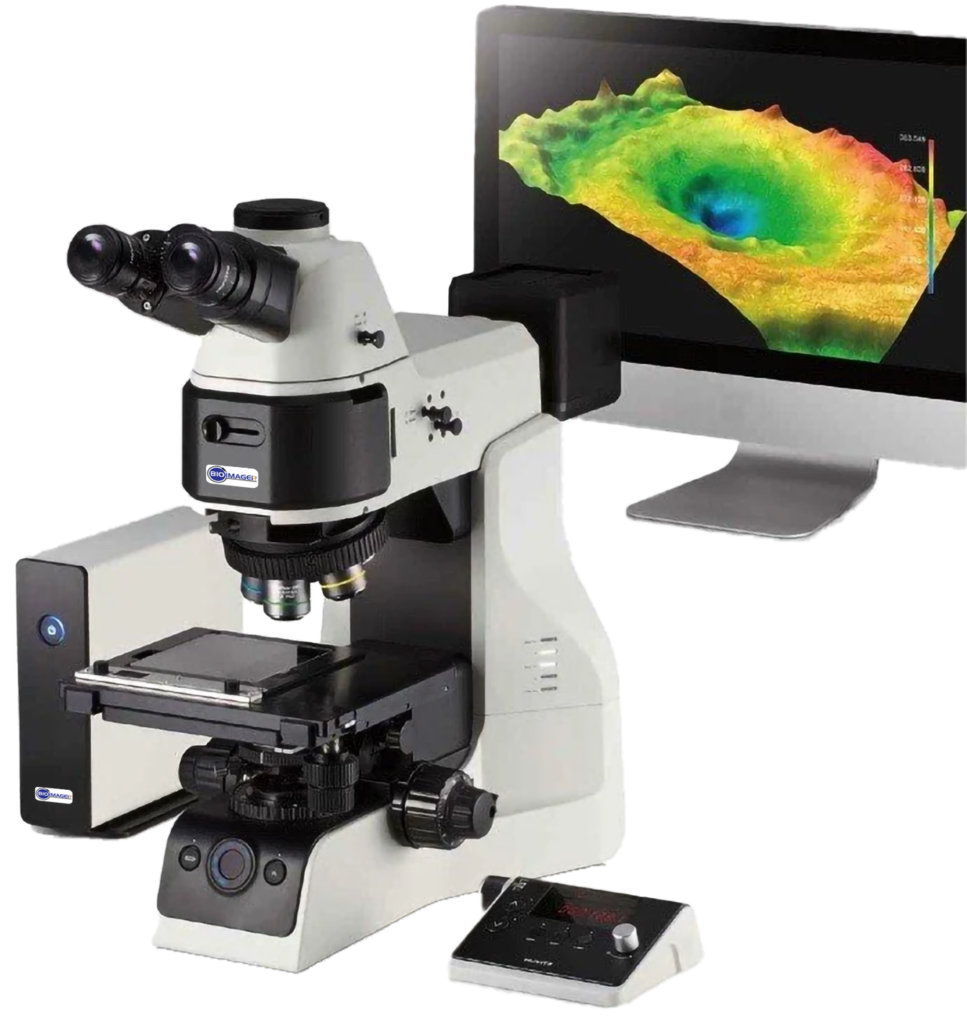

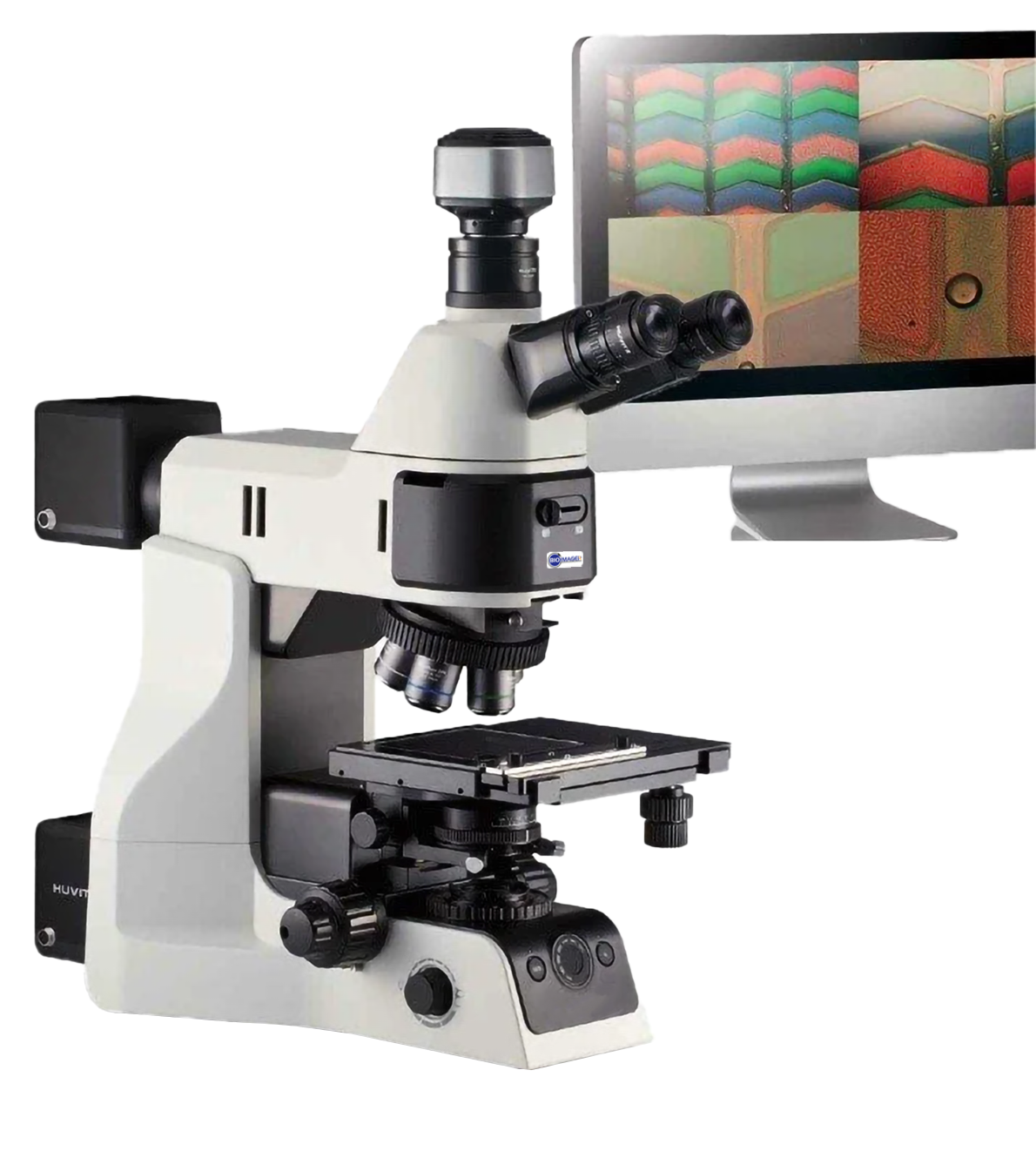

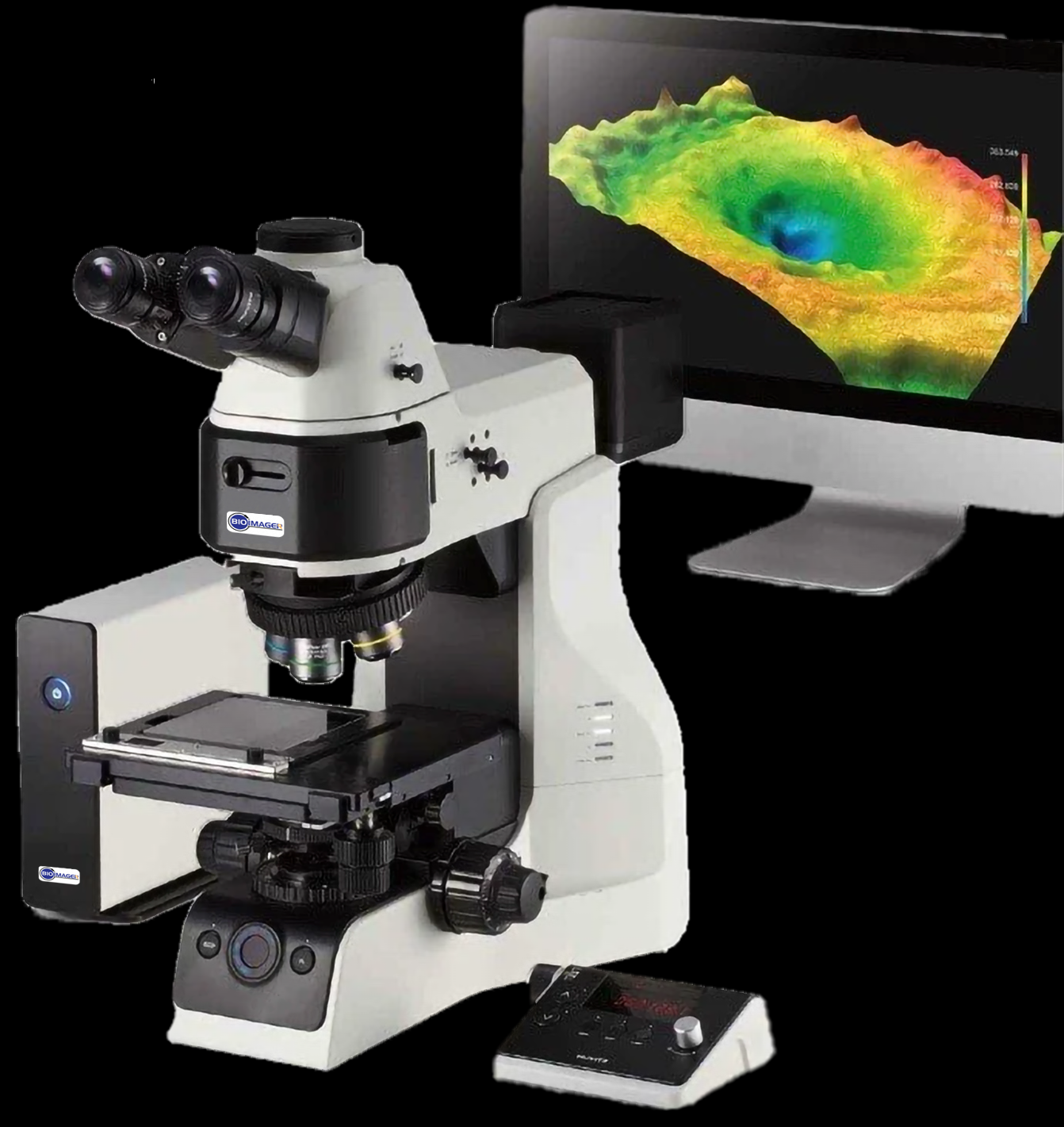

HRM300 Upright Metallurgical Microscope with 3D Profiler
- Advanced Upright Metallurgical Microscope
- Guarantees 40% saving in cost compared to Olympus BX 51, Nikon LV100 & LV150 and even superior image quality
- With Reflected Only or Reflected & Transmitted illumination
- Brighfield Imaging and Optional Darkfield, Polarizer or DIC;
- Plan Fluor Epi 5x, 10x, 20x, 50x and 100x obj lenses; optional LWD 20x, 50x and 100x.
- 3D Profile at 10nm resolution over 30mm stroke (Z)
- Control Box & Pad.
- 4-in, 6-in and larger manual XY Stage (8,10,12″) is available
- Automatic XY Stage of 4-in, 6-in and larger
- Professional Image Analysis Software (Panasis)
- 3D image output at .STL and .PLY format to use with a 3D printer!

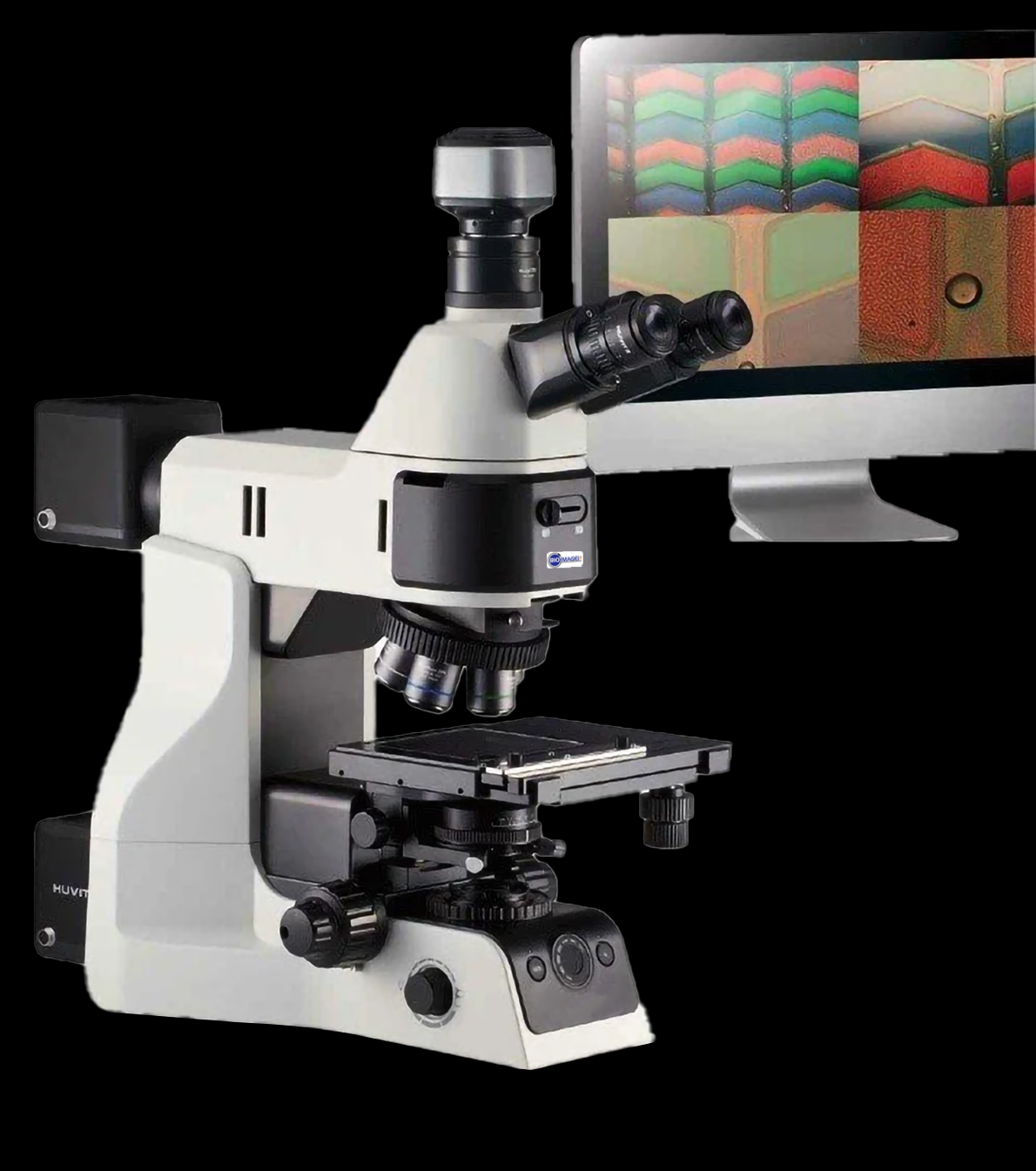

HRM300 Upright Metallurgical Microscope with 3D Profiler

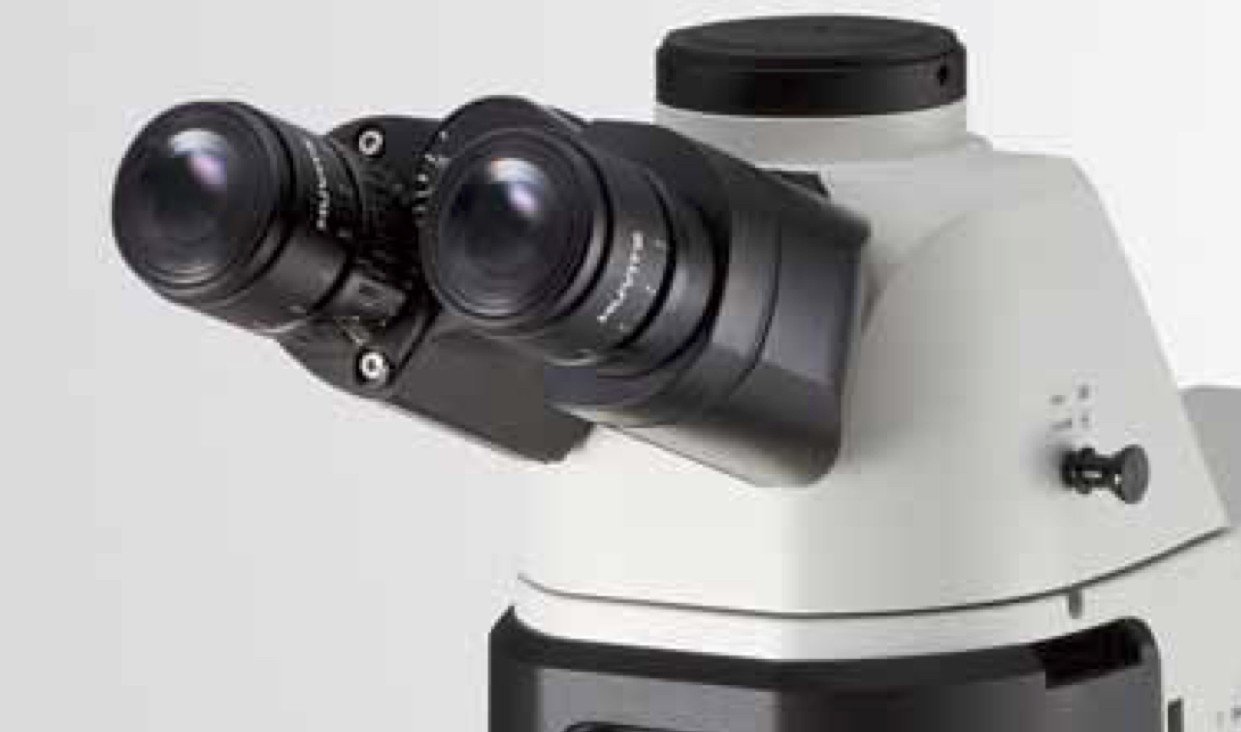

1. Comfortable Eyepiece
In order to reduce eyestrain, the HRM-300 eyepieces have an extra wide 25mm field number (F.N.)
The 20°angledhead provides a comfortable viewing position. In addition, the prism is designed to minimize the optical loss.
2. Superior Optical Performance
Optic System is designed to accommodate up to 6-in stage. And they allow for a great diversity of sample applications from a Wafer Holder to a Glass Plate for transmitted observation.

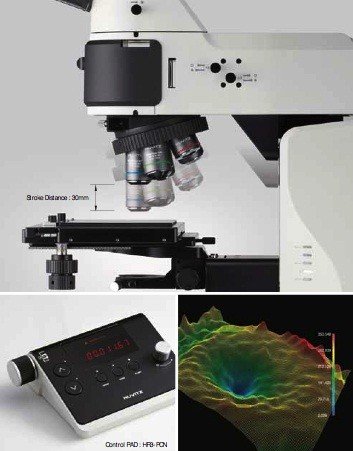

3. Z-Axis Focus-Module
The Z-axis Focus-Module features Topographic Analysis and 3D Profiling through our Panasis Software,
which generates a composition of all the 2D images into 3D Profiles.
(Z-Axis Stepping Motor Resolution : Max 0.01um / Stroke : Max 30mm)
4. ME Function
The current working magnification is displayed automatically and the auto-calibrated
value is measured through Panasis S/W.
5. Constant Brightness of IL
The working efficiency is increased by providing optimized constant lighting brightness
to the images – even if the observation magnifications are changed during the operation of the microscope.
6. ECO Function
When an operator is absent temporarily from the work, the auto-power saving mode is enabled protecting your samples from the heat of the illuminator, energy is saved and the lamp lifetime is extended.
(The sleep mode time is adjustable with Panasis S/W)

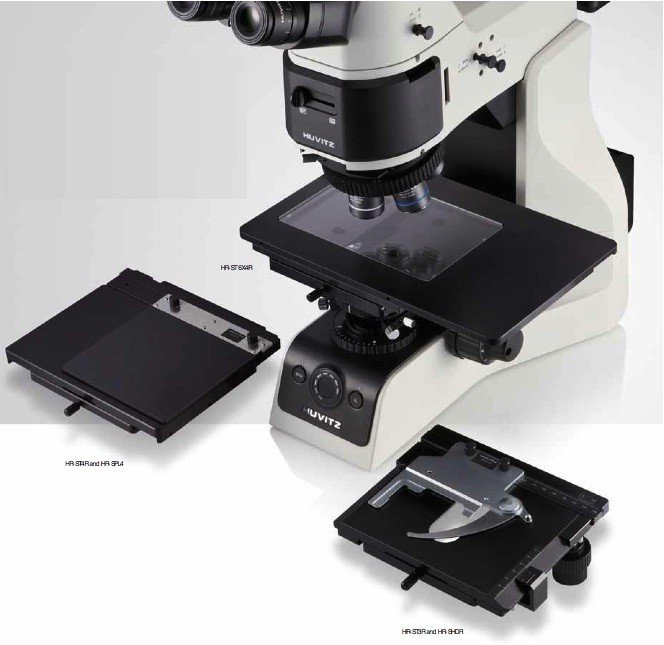

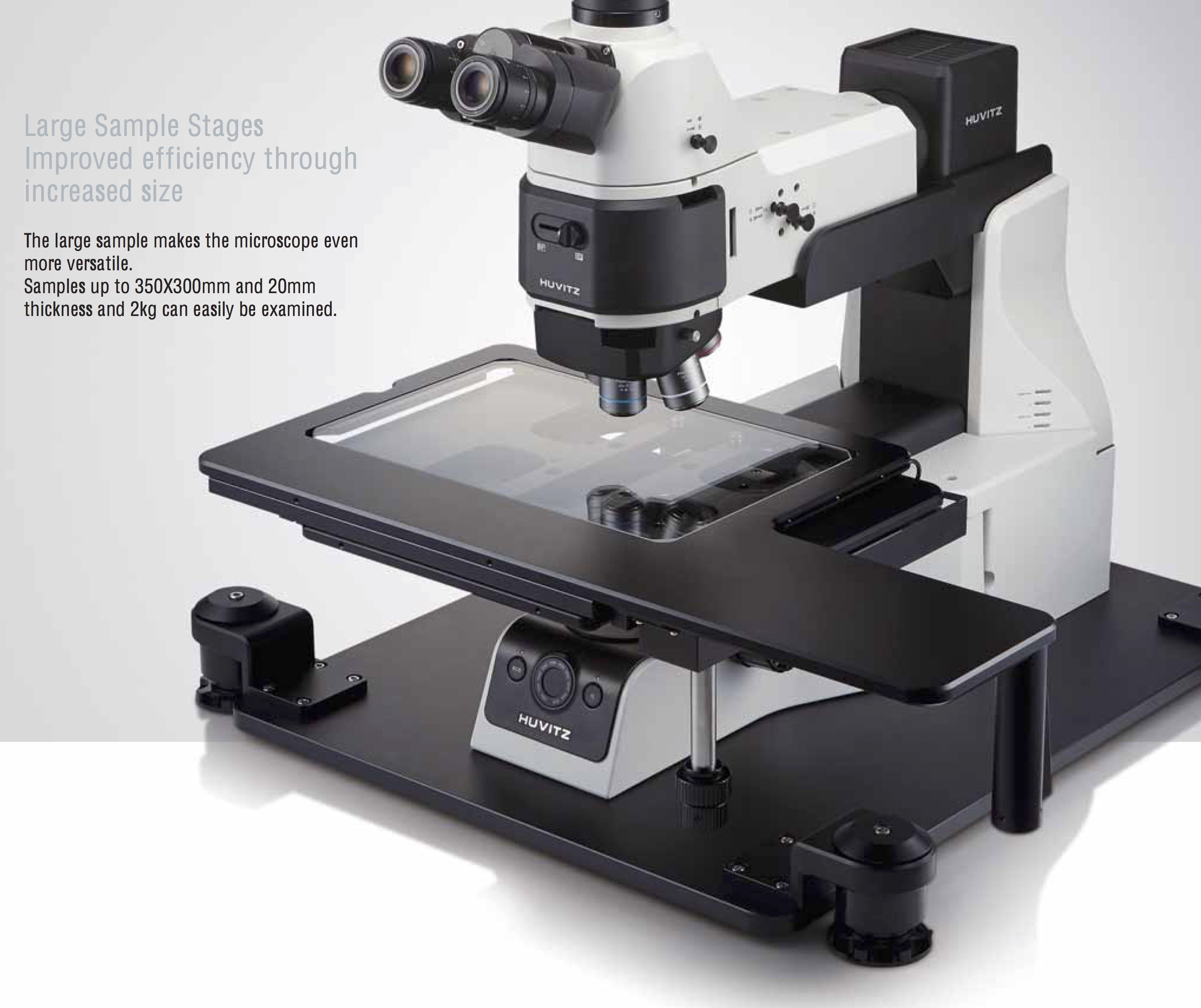

7. Large Stage
Stage in travel range of 350*300mm and 300*200mm provide the best efficiency to examine samples in various sizes.

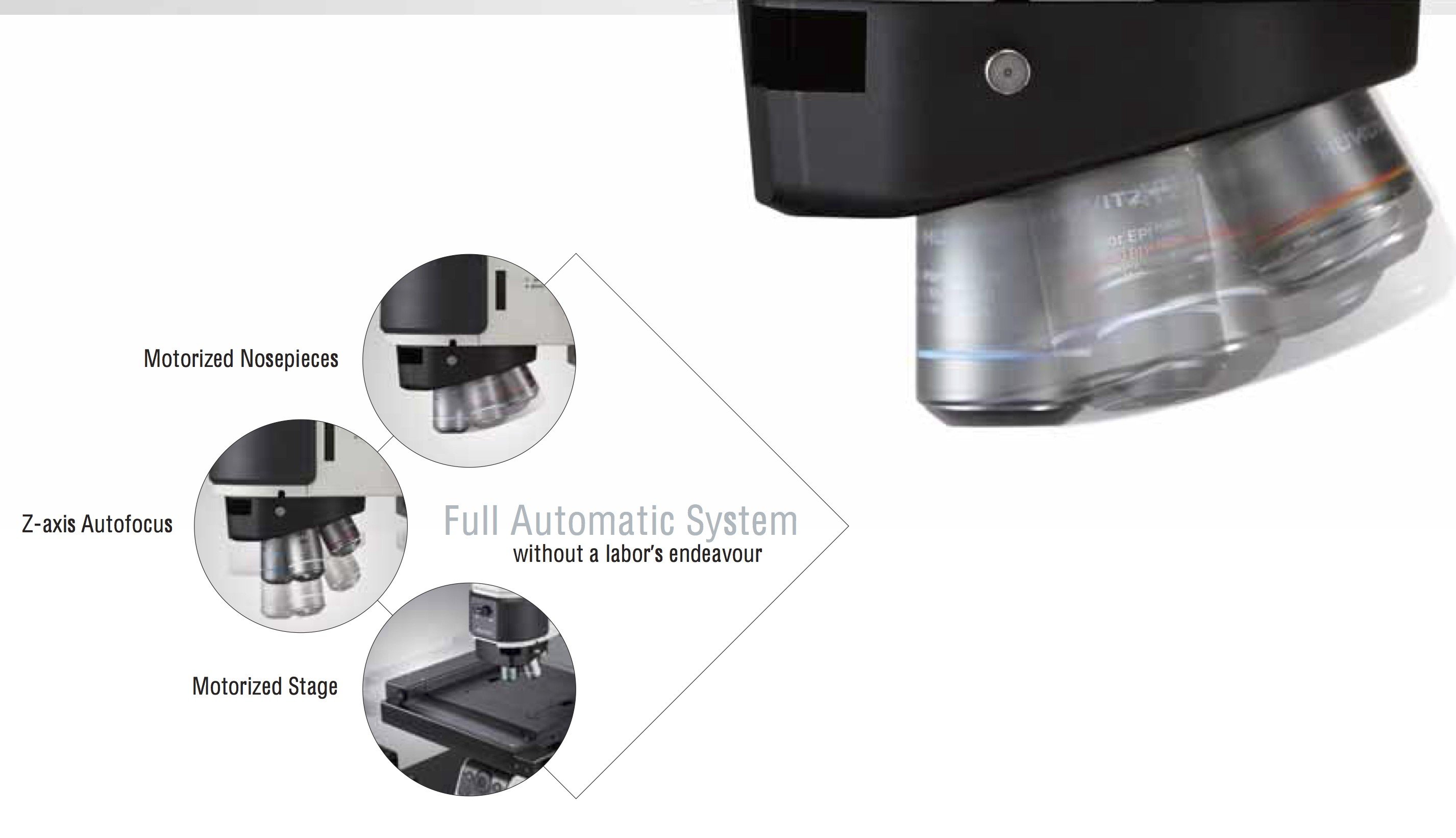

8. Full Automation System
The full automation system consists of a motorized nosepieces, Z-axis Autofocus, motorized stage. The user can observe more quickly and accurately by this system.

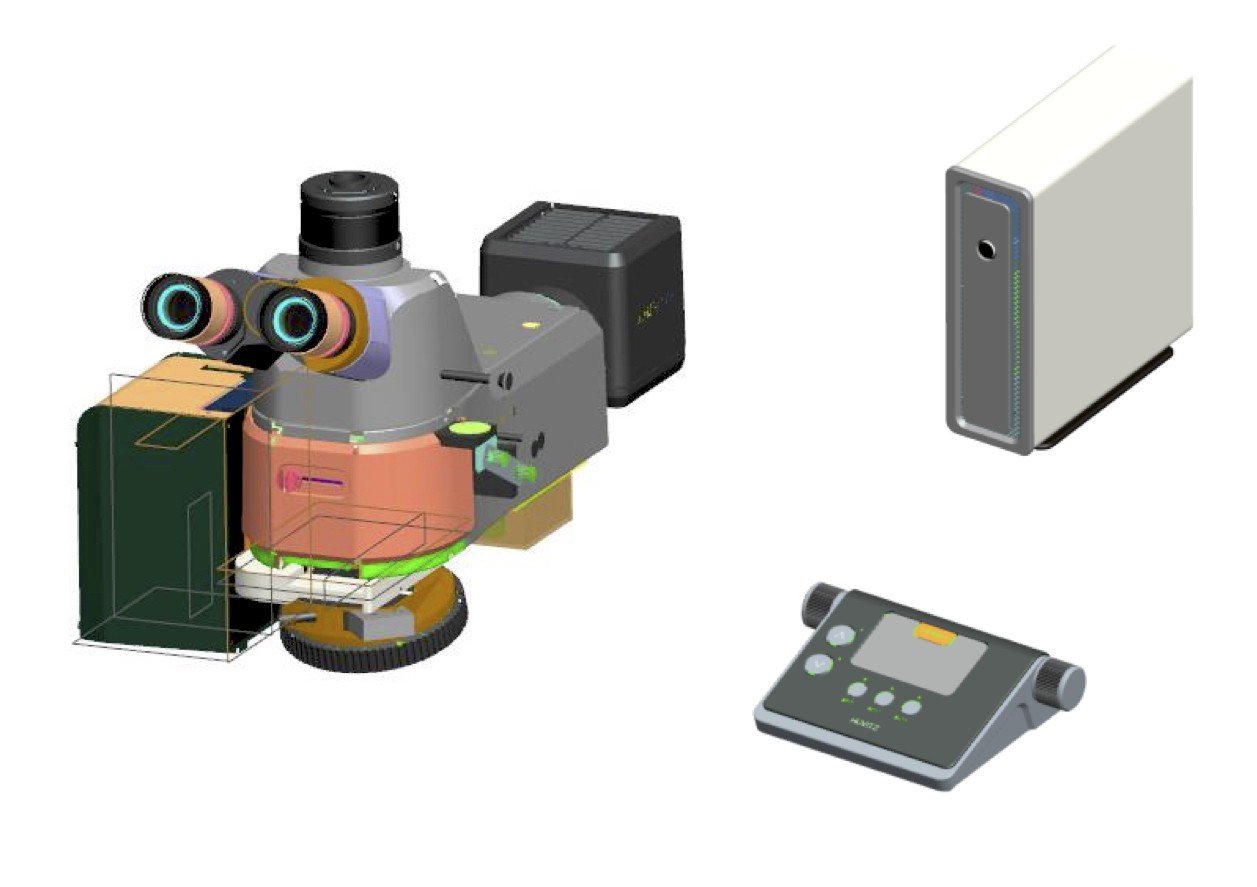

9. HSIA Module
HSIA Module provides convenience to apply to the environmental of the various users. It also can be easily applied customized software.
 |
|
|
|
HRM-300R Reflected Only |
HRM300T Reflected & Transmitted Lights |
HRM-300A Automated 3D profiler hardware at 10 nm resolution |
|
Brightfield optional darkfield, polarizing, DIC and Epi-Fluor |
Brightfield optional darkfield, polarizing, DIC and Epi-Fluor |
Brightfield optional darkfield, polarizing, DIC and Epi-Fluor |
Huvtiz Optilution

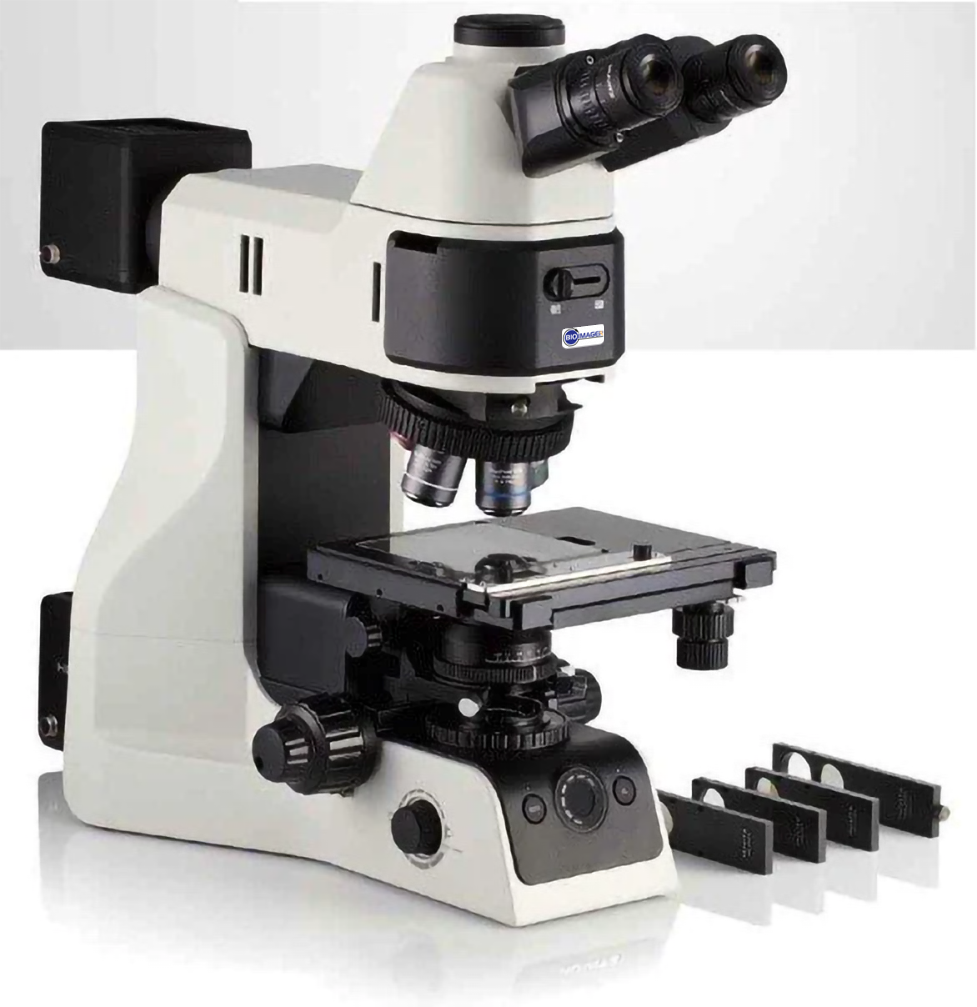

Integrated with knowledge, technology and creativity, the Huvitz HRM-300 series offers superior optical performance as well as ergonomic design, futuristic digital capability and innovative modules:
Huvitz, The Newest Optical Solution.
Huvitz Optical Solution employs perfect optical performance and next generation technology

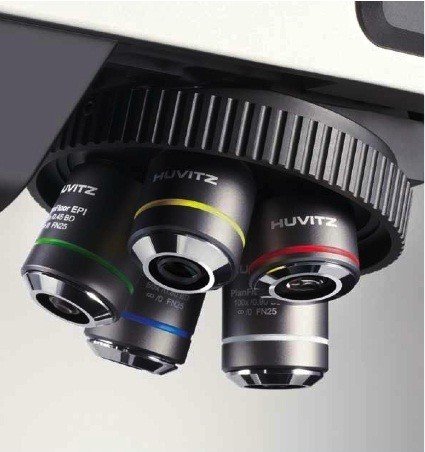

Superior Optical Performance
The high-performance objective lenses provide excellent clarity in any demanding observation environment.
Now, experience Huvitz optical technology approved by well-known researchers all over the world.
Intelligent and Smart Design

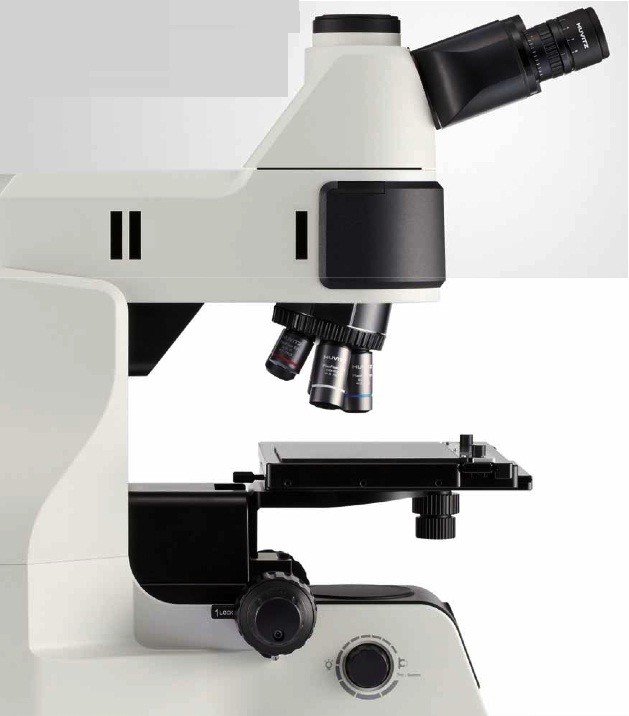

The ergonomic design, compact size, high-quality materials and versatile digital capability ensure minimal operator fatigue during extended periods of operation.
Innovative Module Design
The compact size minimizes the installation space. Interchangeable individual modules meet the needs of any application, you can select the right optional accessory for your task such as a reflected light illuminator, transmitted light illuminator, XY stage, Z-axis, etc.

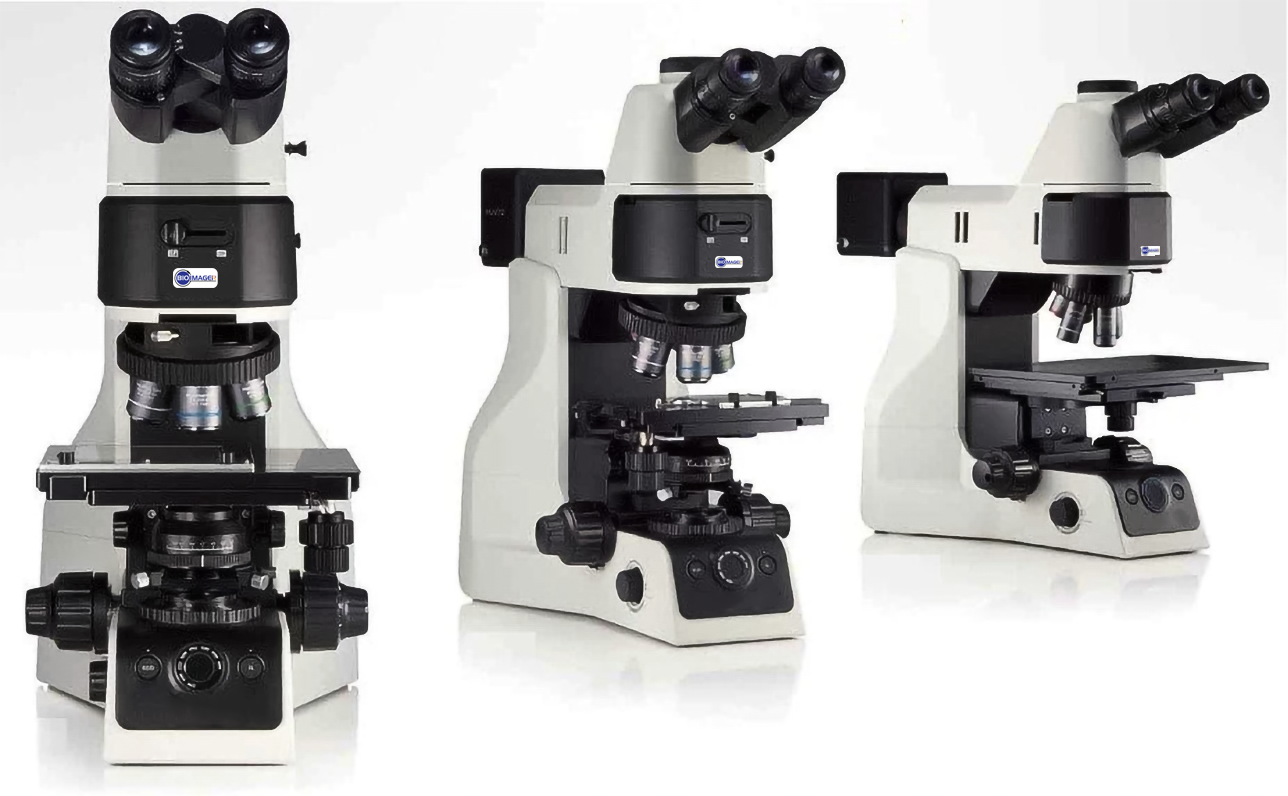

HRM-300/300M – the ‘Optimum Optical System’ Demonstrates Flexibility in a Vast Number of Inspection Tasks.
Clear, vivid images are provided through use of the finest quality objective lenses and illuminators which have been designed with aspheric lenses. A variety of observation methods make it easier for the operator to obtain the required images for a range of applications. <span >
Customizable Optics and Lighting System
Reflected Light Illuminator

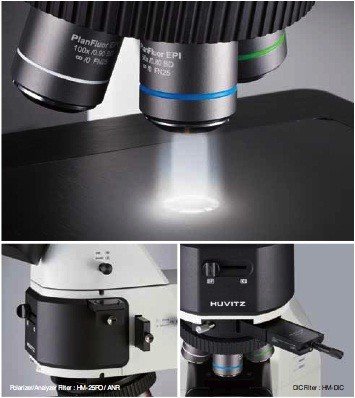

The reflected light illuminator provides a variety of observation methods such as BF (bright field), BF/DF (dark field) or DIC (Differential Interference Contrast) to meet all researchers’ needs.
Combined Switch for BF/DF and ND Filter
With the BF/DF converter switch on the front, it is easier to change observation modes as well as the interlocking ND filter, protecting observers’ eyes against dramatic changes of brightness.
A Set of Polarizer and Analyser Filters
A combined polarizer and analyzer filter set helps you to switch from the DIC/POL to other observation modes quickly and easily.
In addition, the polarizer and analyzer are designed as sliders and are accessible from either side of the microscope.
Optimum DIC provides the highest image quality
Using a DIC slider with a single prism, Huvitz Nomarski DIC observation mode offers easy switching to other observation modes and facilitates observations on any range of magnifications because the position of the DICprismisnot changed.
Transmitted Light System and Condenser
ND6, ND25 and LB filters are built in for the observation of samples via transmitted light.
A variety of condensers are provided, allowing the best possible image clarity for the intended application.
With Innovative Design, the HRM-300A Provides Clear and Accurate Results
Simple acquisition of 3D images is achievable through Z-axis control. Accurate 3D measurements and analyses are provided by capturing 2D images combined with software analysis. The control pad helps with quick and accurate adjustment of the focus.
Amazing results generated through the use of a highly accurate, user-friendly 3D Profiling System
Z-Axis Profiler
The Z-axis Autofocus helps with simple acquisition of 2D images with samples of varying focal depths.

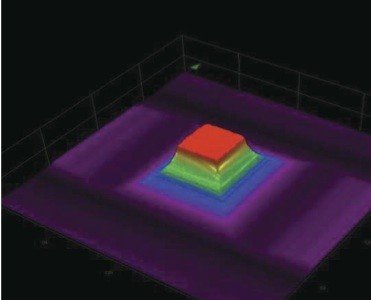

The Z-axis Profiler features Topographic Analysis and 3D Profiling through our Panasis Software, which generates a composition of all the 2D images into 3D Profiles.
Z-axis Module Specifications
- Stroke Distance: 30mm;
- Resolution: 0.01 μm (or 10nm);
- Repeatability: 0.5 μm;
- Max Speed: 1.4 mm/s;
- Weight: 5 kg
- Dimensions: W: 240 mm, D: 157 mm, H: 202.5 mm;
- Load capacity: 15 kg
Convenient Control Pad
To help check the height at a glance, a display window is positioned at the front. 8 speed settings for controlling z-axis movement allows for precise and quick focusing. In addition, a big emergency stop button is also placed on the front to immediately protect samples from unexpected situations.
High speed, high efficiency and intelligent functionality from our latest digital technology
Convenient, Multi-Function Illumination Selection Knob
Work efficiency and convenience are enhanced by the development of a versatile selection knob combining the all the functions for engaging reflected/transmitted illumination as well as brightness control.

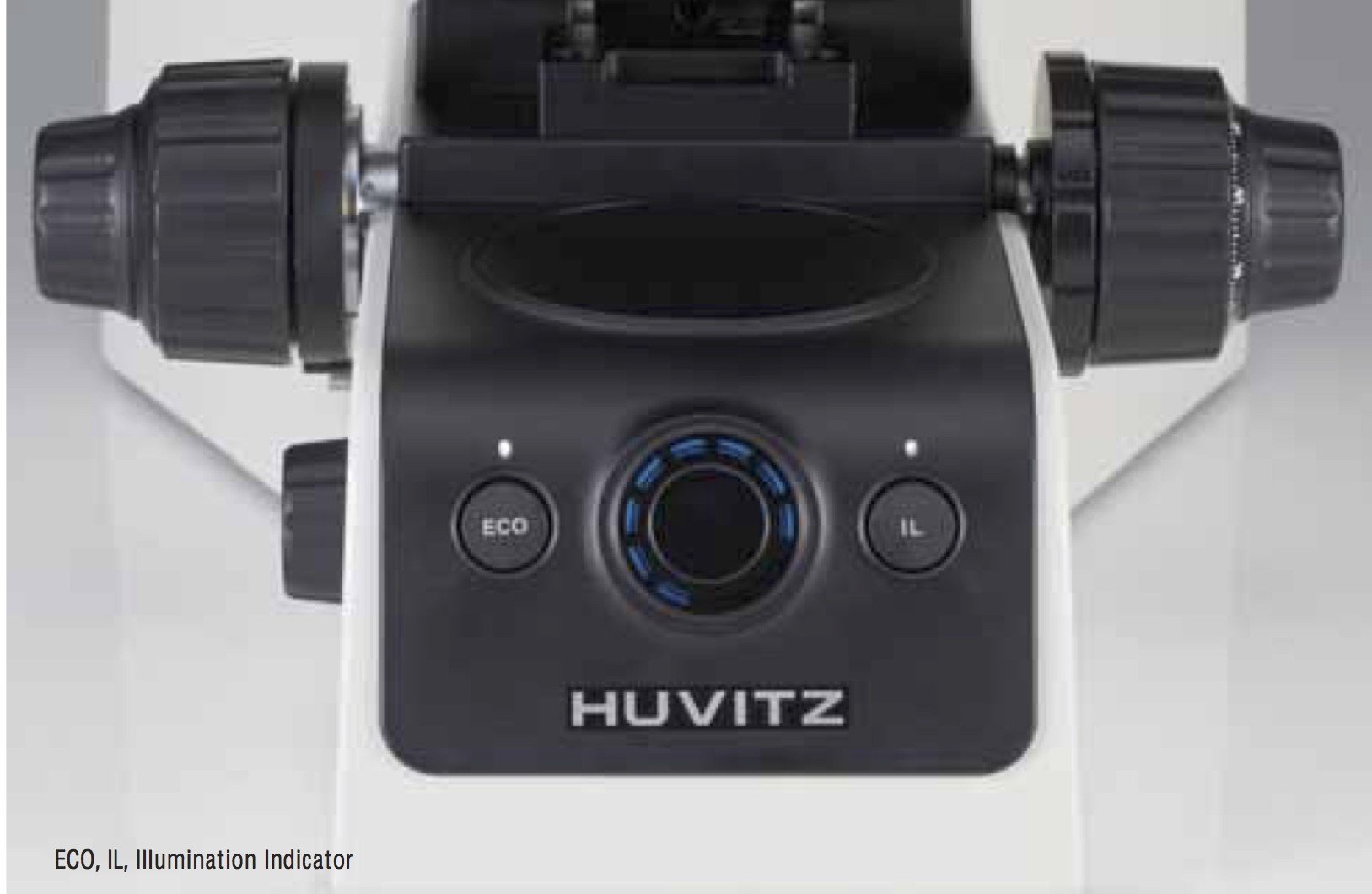

Illumination Selection Indicator
Reflected/Transmitted Illumination, Max/Min-Brightness, ECO On/Off and Z-axis position can be checked easily at a glance and any wrong selections, which could occur during the operation, are minimized.
Environment-Friendly ECO Function
When an operator is absent temporarily from the work, the auto-power saving mode is enabled to protect your samples from the heat of the illuminator, energy is saved and the lamp lifetime is extended. (The sleep mode time is adjustable with Panasis S/W).
Constant Brightness of IL
The working efficiency is increased by providing optimized constant lighting brightness to the images – even if the observation magnifications are changed during the operation of the microscope.

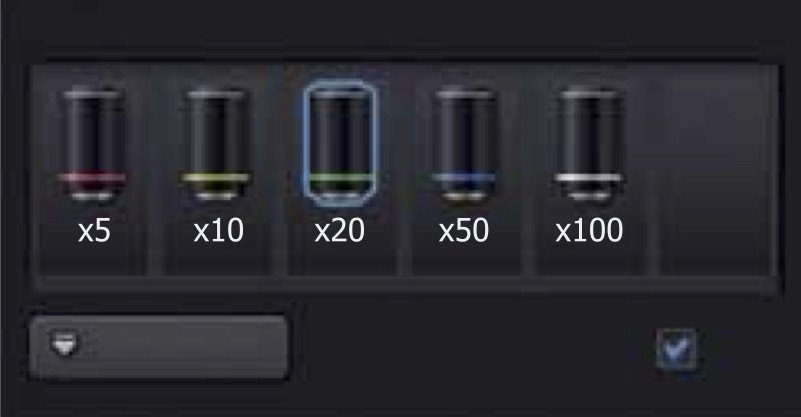

Convenient, Automated Magnification Display with the ‘ME’
The current working magnification is displayed automatically and the auto-calibrated value is measured through Panasis S/W.

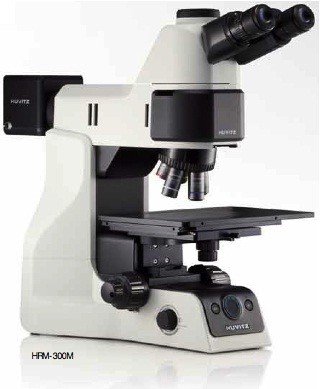

1. Microscope Specifications
| HRM-300 | HRM-300M | ||
| Optical System | Infinity-Corrected Optical System | ||
| Illumination | Reflected / Transmitted | Reflected | |
| Base unit | Focus | Stroke range: 29.5 mm
Coarse and Fine focusing knob Coarse: 17.7 mm/revolution Fine: 0.1 mm/revolution (1 µm scale) Upper limit stopper, Torque adjustment ring |
|
| Electronics | Integrated power supply for 12V 100W light adjustment.
LED voltage indicator IL switch and ECO switch |
||
| Reflected Illumination | BF/DF | HR3-RLI: Kohler illumination system
Brightfield / Darkfield, Normaski DIC, Polarized light |
|
| BF | HR3-RLIBI: Kohler illumination system
Brightfield, Normaski DIC, Polarized light |
||
| Light source | HM-LH100: 12V 100W halogen | ||
| Transmitted Illumination | Kohler illumination system
Brightfield Built-in filters (ND6, ND25, LB) |
– | |
| Light source | HM-LH100: 12V 100W halogen | ||
| Condenser | Abbe | HR-ACD: N.A 1.20 | – |
| Long-working | HR-LWCD: N.A 0.65 | ||
| Stage | 4X4 inch | HR-ST4R: metal plate, glass plate
Size 210(W) X 170(D) mm Stroke 104(X) X 102(Y) mm |
|
| 6X4 inch | HR-ST6X4R: metal plate, glass plate
Size 299(W) X 193(D) mm Stroke 154(X) X 104(Y) mm |
||
| 6X6 inch | HR-ST6R: metal plate, glass plate
Size 300(W) X 280(D) mm Stroke 153(X) X 153(Y) mm |
||
| 10X8 inch | HR-ST10X8R: metal plate, glass plate
Size 610(W) X 319(D) mm Stroke 255(X) X 205(Y) mm |
||
| 14X12 inch | HR-ST14X12R: metal plate, glass plate
Size 710(W) X 419(D) mm Stroke 356(X) X 305(Y) mm |
||
| Observation Tube | Trinocular | HM-WETR: Erect type (F.N 25), Incline angle 20° | |
| Binocular | HM-WEBI: Erect type (F.N 25), Incline angle 20° | ||
| Eyepieces | HM-EPA10X: 10X (F.N 25), Diopter adjustable | ||
| Reticle | Crosshair, X-micrometer, XY-micrometer, Grid | ||
| Revolving Nosepiece | BF/DF | HM-D5BDRE: 5-position Nosepiece
for Dark-field objective lens with DIC slot |
|
| BF | HM-D5RE: 5-position Nosepiece
for Bright-field objective lens with DIC slot |
||
| Dimensions | Approx. 246(W) X 572(D) X 514(H) mm | ||
| Weight | Approx. 19 kg | ||
2. Objective Lenses
| Objective Lens | Magnification | Numerical Aperture | WD (mm) | Resolution (µm) |
| PlanFluor EPI | 5X | 0.15 | 20 | 2.24 |
| 10X | 0.30 | 11 | 1.12 | |
| 20X | 0.45 | 3 | 0.75 | |
| 50X | 0.80 | 1 | 0.42 | |
| 100X | 0.90 | 1 | 0.37 | |
| PlanFluor EPI-BD | 5X | 0.15 | 20 | 2.24 |
| 10X | 0.30 | 11 | 1.12 | |
| 20X | 0.45 | 3 | 0.75 | |
| 50X | 0.80 | 1 | 0.42 | |
| 100X | 0.90 | 1 | 0.37 | |
| LPlanFluor EPI | 20X | 0.40 | 12.0 | 0.84 |
| 50X | 0.50 | 10.6 | 0.67 | |
| 100X | 0.80 | 3.3 | 0.42 | |
| LPlanFluor EPI-BD | 20X | 0.40 | 12.0 | 0.84 |
| 50X | 0.50 | 10.6 | 0.67 | |
| 100X | 0.80 | 3.3 | 0.42 |
3. The 3D Profile Module for HRM-300A
| Mechanism | High-resolution 5-phase stepping motor, Long cross-roller guide system |
| Stroke Distance | 30 mm |
| Resolution | 0.01 µm |
| Repeatability | 0.5 µm |
| Max Speed | 1.4 mm/sec |
| Dimensions | 240(W) X 157(D) X 202.5 (H) mm |
| Weight | 5 kg |
| Load capacity | 15 kg |

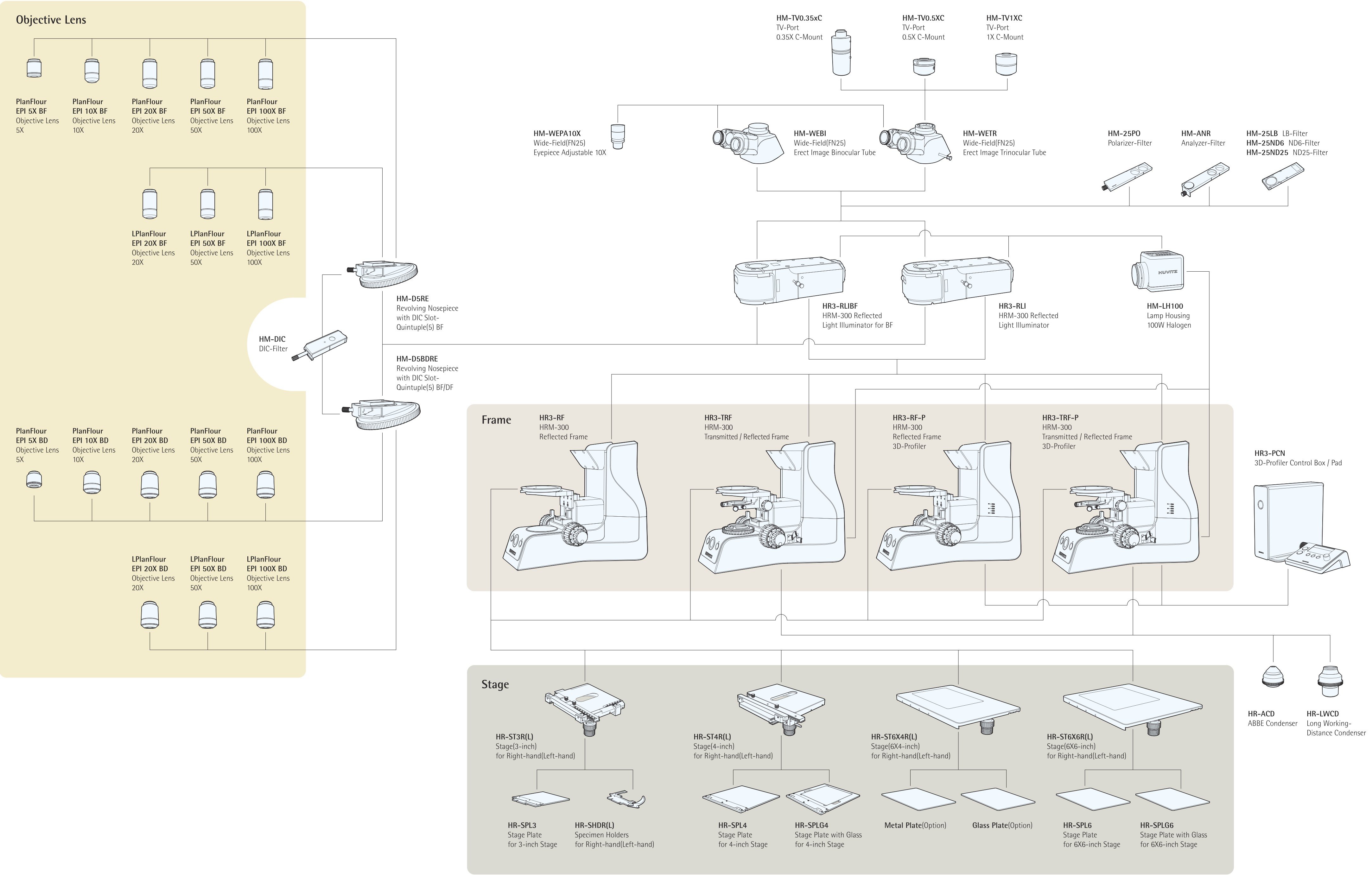

An Example of a configuration:
| HRM300T-6-BDPF | |||||
| Optical System | Infinity-Corrected Optical System | ● | |||
| Illumination | Reflected | ● | |||
| Transmitted | ● | ||||
| Frame | Reflected | Reflected frame | ○ | ||
| Reflected frame with built-in 3D module | ○ | ||||
| Reflected & Transmitted | Reflected & Transmitted frame | ○ | |||
| With built-in 3D module | ● | ||||
| Size | Supports max 6×6-in XY stage | ● | |||
| Supports max 14×12-in XY stage | ○ | ||||
| Foot set | With anti-vibration | ○ | |||
| Observation Tube | Binocular | Erect type (F.N 25), Incline angle 20° | ○ | ||
| Trinocular | Erect type (F.N 25), Incline angle 20° | ● | |||
| Trinocular-3 | 3-Step functional trinocular tube | ○* | |||
| Eyepieces | 10X (F.N 25), Diopter adjustable | ● | |||
| Reticle | Crosshair, X-micrometer, XY-micrometer, Grid | ○* | |||
| Revolving Nosepiece | BF | 5-position Nosepiece for Bright-field objective lens with DIC slot, manual | ○ | ||
| BF-A | Motorized 5-position Nosepiece for Bright-field objective lens with DIC slot | ○ | |||
| BF/DF | 5-position Nosepiece for Dark-field objective lens with DIC slot, manual | ● | |||
| BF/DF-A | Motorized 5-position Nosepiece for Dark-field objective lens with DIC slot, | ○* | |||
| Reflected Illumination | BF | Kohler illumination system
Brightfield, Nomarski DIC, Polarized light |
○ | ||
| BF/DF | Kohler illumination system
Brightfield / Darkfield, Nomarski DIC, Polarized light |
● | |||
| Light source | 12V/100W halogen | ● | |||
| Transmitted Illumination | Kohler illumination system
Brightfield Built-in filters (ND6, ND25, LB) |
● | |||
| Light source | 12V/100W halogen | ● | |||
| Objective lenses
(Plan Fluor Epi, Semi-Apo) |
BF (Pol, DIC, FL) |
5X, NA 0.15, WD: 20mm, Res: 2.24 µm | ○ | ||
| 10X, NA 0.30, WD: 11mm, Res: 1.12 µm | ○ | ||||
| 20X, NA 0.45, WD: 3mm, Res: 0.75 µm | ○ | ||||
| 50X, NA 0.80, WD: 1mm, Res: 0.42 µm | ○ | ||||
| 100X, NA 0.90, WD: 1mm, Res: 0.37 µm | ○ | ||||
| LWD BF (Pol, DIC, FL) |
20X, NA 0.40, WD: 12.0mm, Res: 0.84 µm | ○ | |||
| 50X, NA 0.50, WD: 10.6mm, Res: 0.67 µm | ○ | ||||
| 100X, NA 0.80, WD: 3.3mm, Res: 0.42 µm | ○ | ||||
| BF, DF
(Pol, DIC, FL) |
5X, NA 0.15, WD: 20mm, Res: 2.24 µm | ● | |||
| 10X, NA 0.30, WD: 11mm, Res: 1.12 µm | ● | ||||
| 20X, NA 0.45, WD: 3mm, Res: 0.75 µm | ● | ||||
| 50X, NA 0.80, WD: 1mm, Res: 0.42 µm | ● | ||||
| 100X, NA 0.90, WD: 1mm, Res: 0.37 µm | ○* | ||||
| LWD BF, DF Pol, DIC, FL |
20X, NA 0.40, WD: 12.0mm, Res: 0.84 µm | ○* | |||
| 50X, NA 0.50, WD: 10.6mm, Res: 0.67 µm | ○* | ||||
| 100X, NA 0.80, WD: 3.3mm, Res: 0.42 µm | ○* | ||||
| Filters | ND6, ND25, LBD filters for reflected light | ● | |||
| Polarizer for reflected light | ● | ||||
| Polarizer for transmitted light | ○* | ||||
| 360° Rotation analyzer Filter | ● | ||||
| Differential Interference Contrast (DIC) Nomarski | ○* | ||||
| Condenser | Abbe | N.A 1.20 | ● | ||
| Long-working | N.A 0.65 | ○ | |||
| Manual Mechanical XY Stage | 4X4 inch | BST4R: metal plate, glass plate
Size 210(W) X 170(D) mm Stroke 104(X) X 102(Y) mm |
○ | ||
| 6X4 inch | BST6X4R: metal plate, glass plate
Size 299(W) X 193(D) mm Stroke 154(X) X 104(Y) mm |
○ | |||
| 6X6 inch | BST6R: metal plate, glass plate
Size 300(W) X 280(D) mm Stroke 153(X) X 153(Y) mm |
● | |||
| 10X8 inch | BST10X8R: metal plate, glass plate
Size 610(W) X 319(D) mm Stroke 255(X) X 205(Y) mm |
○ | |||
| 14X12 inch | BST14X12R: metal plate, glass plate
Size 710(W) X 419(D) mm Stroke 356(X) X 305(Y) mm |
○ | |||
| Automated Mechanical XY Stage |
4X4 inch | BMST4: metal plate, glass plate
Size 210(W) X 170(D) mm Stroke 104(X) X 102(Y) mm |
○ | ||
| 6X6 inch | BMST6: metal plate, glass plate
Size 300(W) X 280(D) mm Stroke 153(X) X 153(Y) mm |
○ | |||
| Base Unit | Focus | Stroke range: 29.5 mm
Coarse and Fine focusing knob Coarse: 17.7 mm/revolution Fine: 0.1 mm/revolution (1 µm scale) Upper limit stopper, Torque adjustment ring |
● | ||
| Electronics | Integrated power supply for 12V 100W light adjustment.
LED voltage indicator IL switch and ECO switch |
● | |||
| 3D Profile Module |
|
● | |||
| 3D Profiler Control Box and Pad | ● | ||||
| 3D Profiler Software | ● | ||||
| Camera: 2MP CCD | ○ | ||||
| FL Attachment | LED Epi-Fluorescence attachment with UV, V, B and G wavelengths. | ● | |||
| Accessories | C-mount adapter | 0.35x | ○ | ||
| 0.5x | ○ | ||||
| 0.6x | ● | ||||
| 1.0x | ● | ||||
| SLR adapter | For Nikon or Canon cameras | ● | |||
| Calibration slide | 0.1mm | ● | |||
| Dust Cover | ● | ||||
| RMS thread objective lens adapter | ○ | ||||
| Dimensions | Approx. 246(W) X 572(D) X 514(H) mm | ||||
| Weight | Approx. 19 kg | ||||
●: Included, ○: optional item, ○* receommended item to add.
The Deafult softwrae with this package is Panasis 3D. Please visis the Panasis page.
Metallurgical Microscopy Basics & Applications
HRM-300 Upright Microscope Brochure
HRM-300 Microscope Field of View
Only logged in customers who have purchased this product may leave a review.
Reviews
There are no reviews yet.
