BIM500FLD Digital LCD Inverted Epi-Fluorescnce Biological Microscope

Availability:

In stock


  • BIM500FL Inverted Fluorescence Microscope
  • 4x, 10xPh, 20xPh, 40x lenses incldued plus tens of optional obj lenses.
  • with GFP, RFP & optional UV or V Excitation filters.
  • 9″ LCD viewing head plus a 5MP built-in camera
  • HBO illumination

$5,888.88 $7,000.00

In stock

INTRODUCTION

BIM500FL Inverted Fluorescent Biological Microscope is specifically designed for the observation of cell culture and particularly those stained with GFP or RFP. Infinite optical system gives excellent optical performance. Excellent high resolution fluorescent objectives are optional to generate high quality fluorescent images. This microscope can be your best assistant in laboratory research for brightfield, phase contrast and epi-fluor imaging.

BIM500P Polarized Biological Inverted Microscope 40x-400x-10706

Application area

BIM500FL Inverted Fluorescent Biological Microscope is mainly used in live cell imaging, epi-fluorescence imaging in general, disease examination, bacteria, viral studies,  immune diagnosis and laboratory research fields.



 Quick View

  • BIM500FL Inverted Fluorescence Microscope
  • 4x, 10xPh, 20xPh, 40x lenses included plus tens of optional obj lenses.
  • with GFP, RFP & optional UV or V Excitation filters.
  • 9″ LCD viewing head plus a 5MP built-in camera
  • HBO illumination

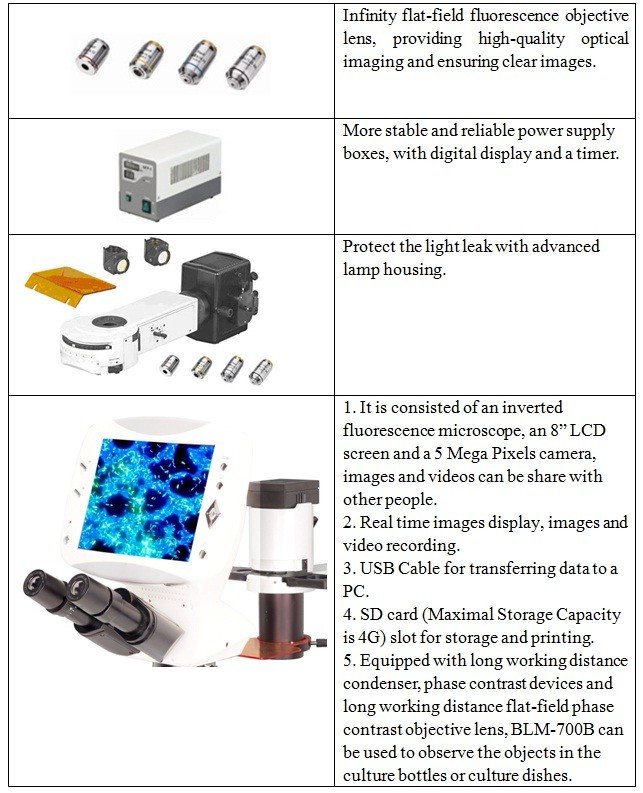

Features

  • Excellent fluorescent image with high resolution fluorescent objectives.
  • Protect the light leak with advanced lamp housing.
  • Excellent Optical Performance with Infinite Optical System.
  • Innovative Stand structure, Sharp Image Display, Convenient and Special for Viewing Incubating Cell Tissue.
  • More stable power supply, digital display and timer.

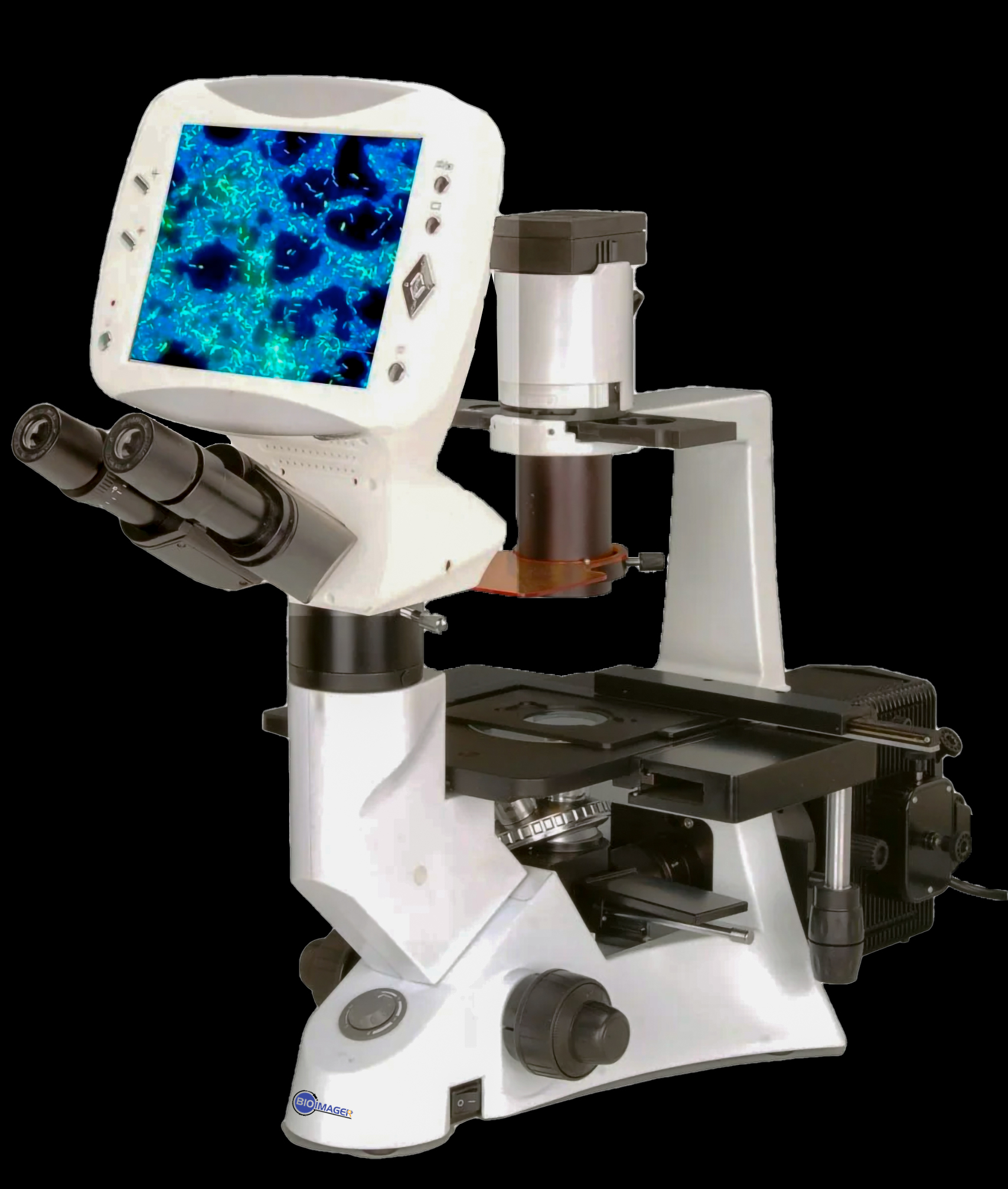

BIM500FLD Digital LCD Inverted Epi-Fluorescnce Biological Microscope

BIM500FLD Digital LCD Inverted Epi-Fluorescnece Biological Microscope

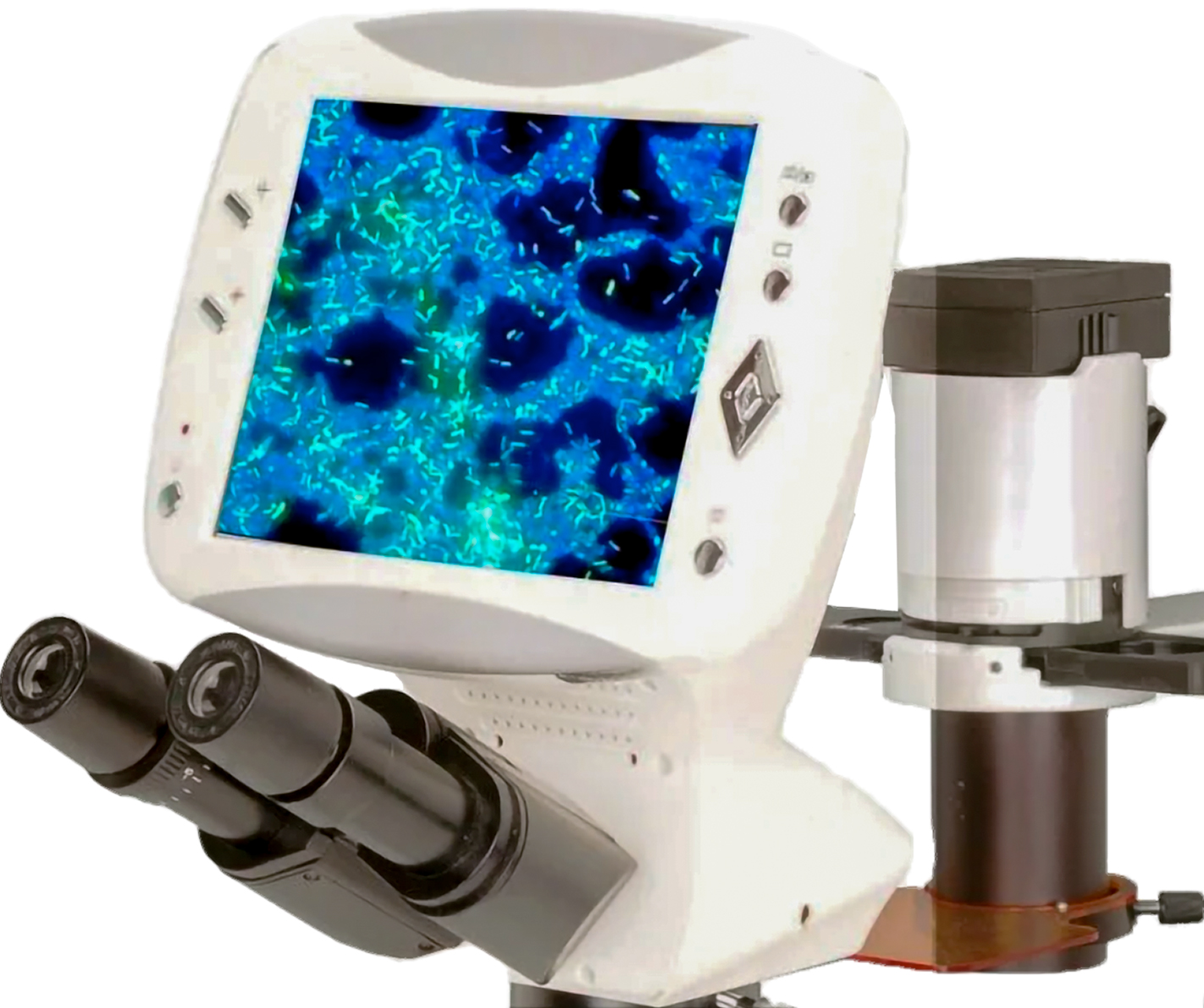

BIM500FLD is an LCD Inverted Fluorescence Microscope, with New Developed Digital LCD Head. This has a built-in CCD camera & LCD screen. No need to purchase a CCD camera or computer again. You can view & show your observation clearly before everyone!

  • 5.0 Mega pixels CCD built-in
  • Upgrade to 9 Inches Screen, Resolution is up to1280*800
  • Capture picture or video by one button
  • Built-in SD card to store your picture or video
  • Upgrade to HDMI & USB output
  • Mark date, time on your picture

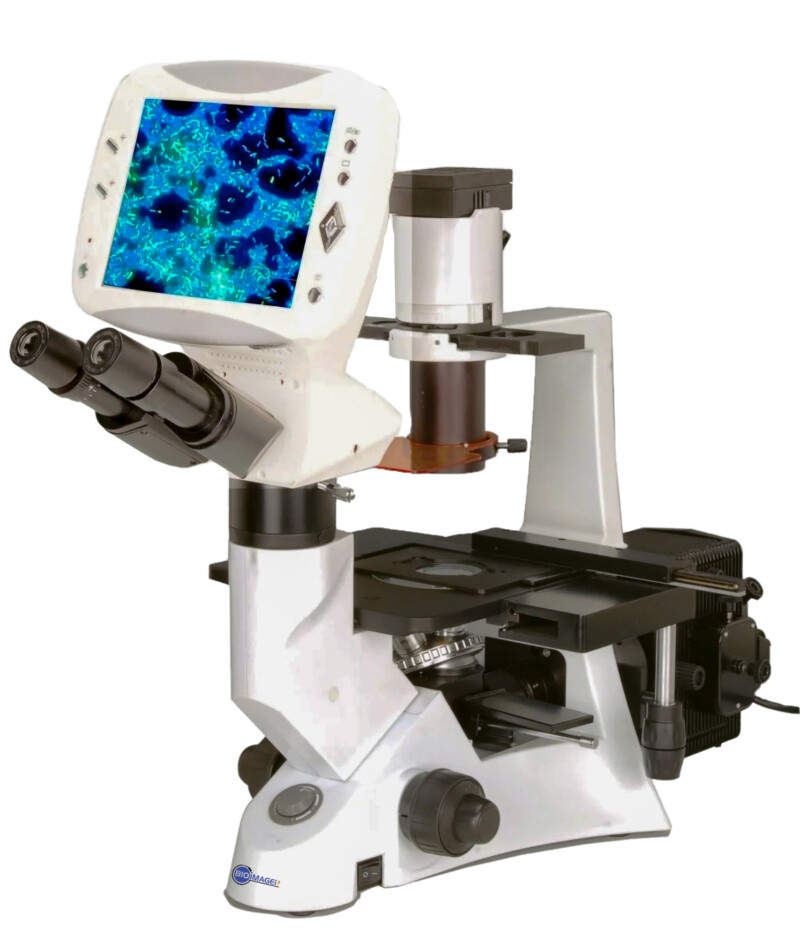

BIM500FLD Digital LCD Inverted Epi-Fluorescnce Biological Microscope


Digital LCD Head
BIM500P Polarized Biological Inverted Microscope 40x-400x-10706
Pixel 5.0 Mega
Digital Magnification
Photo Resolution2560X1920-1600X1200
Video Resolution1080*720
Sensor Size1/2.5 Inches
LCD Screen9 HD Inches, Resolution is 1280*800
Video OutputAV Output (NTSC/PAL)
Data OutputHDMI & USB
LanguageChinese / English Menu
StorageSD Card Slot with Memory Cards (Optional, Maximam 4G)
Scene ModeStandard / Softness / Vivid
Exposure ModeManual/Auto
Date Mode Year, Month, Day, Hour, Minute
External InterfacePC/Projector/Monitor
EyepieceWF10X
White BalanceManual/Auto
Color ModeColor/Black& white/Negative
MeasurementCrosshair
PositioningCrosshair/ Arrow pointer
Coordinate ColorsBlack/White/Red/Blue/Green
Optical System
BIM-500FLD Digital Inverted Epi-Fluorescent Biological Microscope
Viewing head
Trinocular head inclined at 30o,interpupillary48-75mm
Eyepiece
High-point ,extra wide field eyepiece EW10×/20
Objective Infinitive plan LWD lens4X/0.1,WD18mm
10X/0.25,WD10mm
O
20X/0.4,WD5.1mm
O
40X/0.6,WD2.6mm (cover glass 1.2mm)
Infinitive plan Phase contrast lens PH10X/0.25,WD10 mm
PH20X/0.4,WD5.1mm
Nosepiece
Quintuple Nosepiece

Condenser

NA0.3 Condenser, ELWD72mm; (Without condensor, LWD150mm)
Centering telescopetube ф30MM

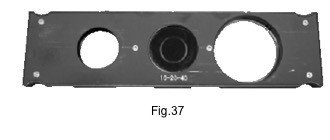

Phase annulus plate10x-20 phase annulus plate
Stage
Plain stage 160×250mm mm
Glass insert
Optional XY mechanical stage, coaxial control, moving 120 x78mm
O
Auxiliary stage 70x180mm
Terasaki holder
O
Petri dish holder Dia:35mm
O
Slide holder Holder Dia:54mm
O
Focusing
Coaxial Coarse and Fine Focusing, vertical objective movement.Coarse Range 37.7mm/per rotation, Division 0.2mm/per rotation
Illumination
Halogen Lamp 6V30W, Brightness Adjustable
FilterBlue green and ground glass
Attachment adapter
C-mount video adapter
O

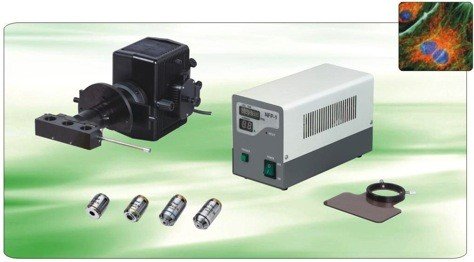

EPI-Fluorescence Kit specification, Please see following details

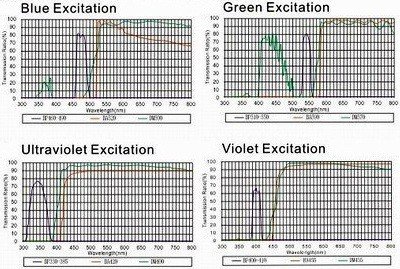

Epi-Fluorescent illumination

ExcitationDichroic MirroBarrier filter
B(Blue)excitation filter system BP460-490DM500BA520
G(Green)excitation filter systemBP-480-550DM570BA590
U(Ultraviolet) excitation filter systemBP330-385DM400BA420
O
V(Violet) excitation filter systemBP400-410DM455BA455
O
Lamp100WHBO Ultra Hi-voltage Spherical Mercury Lamp
Protection BarrierBarrier to Resist the Ulraviolet Light
Power SupplierPower Supplier NFP-1,220V/110V interchangeable, Digital Display
ObjectiveInfinity Plan Fluorescent objective 4x
O
Infinity Plan Fluorescent objective 10x
O
Infinity Plan Fluorescent objective 20x
O
Infinity Plan Fluorescent objective 40x
O
Infinity Plan Fluorescent objective 100x
O
Immersion OilFluorescence Free Oil
Neutral ND25 filter
O
Centering Plate
O
Filament Adjuster
O



Digital LCD Head
BIM500P Polarized Biological Inverted Microscope 40x-400x-10706
Pixel5.0 Mega
Digital Magnification
Photo Resolution2560X1920-1600X1200
Video Resolution1080*720
Sensor Size1/2.5 Inches
LCD Screen9 HD Inches, Resolution is 1280*800
Video OutputAV Output (NTSC/PAL)
Data OutputHDMI & USB
LanguageChinese / English Menu
StorageSD Card Slot with Memory Cards (Optional, Maximam 4G)
Scene ModeStandard / Softness / Vivid
Exposure ModeManual/Auto
Date ModeYear, Month, Day, Hour, Minute
External InterfacePC/Projector/Monitor
EyepieceWF10X
White BalanceManual/Auto
Color ModeColor/Black& white/Negative
MeasurementCrosshair
PositioningCrosshair/ Arrow pointer
Coordinate ColorsBlack/White/Red/Blue/Green
Optical System
BIM-500FLD Digital Inverted Epi-Fluorescent Biological Microscope
Viewing head
Trinocular head inclined at 30o,interpupillary48-75mm
Eyepiece
High-point ,extra wide field eyepiece EW10×/20
ObjectiveInfinitive plan LWD lens4X/0.1,WD18mm
10X/0.25,WD10mm
O
20X/0.4,WD5.1mm
O
40X/0.6,WD2.6mm (cover glass 1.2mm)
Infinitive plan Phase contrast lensPH10X/0.25,WD10 mm
PH20X/0.4,WD5.1mm
Nosepiece
Quintuple Nosepiece

Condenser

NA0.3 Condenser, ELWD72mm; (Without condensor, LWD150mm)
Centering telescopetube ф30MM
Phase annulus plate10x-20 phase annulus plate
Stage
Plain stage 160×250mm mm
Glass insert
Optional XY mechanical stage, coaxial control, moving 120 x78mm
O
Auxiliary stage 70x180mm
Terasaki holder
O
Petri dish holder Dia:35mm
O
Slide holder Holder Dia:54mm
O
Focusing
Coaxial Coarse and Fine Focusing, vertical objective movement.Coarse Range 37.7mm/per rotation, Division 0.2mm/per rotation
Illumination
Halogen Lamp 6V30W, Brightness Adjustable
FilterBlue green and ground glass
Attachment adapter
C-mount video adapter
O
EPI-Fluorescence Kit specification, Please see following details

Epi-Fluorescent illumination

ExcitationDichroic MirroBarrier filter
B(Blue)excitation filter systemBP460-490DM500BA520
G(Green)excitation filter systemBP-480-550DM570BA590
U(Ultraviolet) excitation filter systemBP330-385DM400BA420
O
V(Violet) excitation filter systemBP400-410DM455BA455
O
Lamp100WHBO Ultra Hi-voltage Spherical Mercury Lamp
Protection BarrierBarrier to Resist the Ulraviolet Light
Power SupplierPower Supplier NFP-1,220V/110V interchangeable, Digital Display
ObjectiveInfinity Plan Fluorescent objective 4x
O
Infinity Plan Fluorescent objective 10x
O
Infinity Plan Fluorescent objective 20x
O
Infinity Plan Fluorescent objective 40x
O
Infinity Plan Fluorescent objective 100x
O
Immersion OilFluorescence Free Oil
Neutral ND25 filter
O
Centering Plate
O
Filament Adjuster
O



Summary of Package

  • BIM500FLD Inverted Fluorescence Microscope
  • 4x, 10xPh, 20xPh, 40x lenses incldued plus tens of optional obj lenses.
  • with GFP, RFP & optional UV or V Excitation filters.
  • 9″ LCD viewing head plus a 5MP built-in camera
  • HBO illumination

9″ HD LCD with 1280×800 resolution & Built-in 5MP Camera



BIM500FLD Digital LCD Inverted Epi-Fluorescnce Biological Microscope



BIM500FLD Digital LCD Inverted Epi-Fluorescnce Biological Microscope

BIM500FLD Digital LCD Inverted Epi-Fluorescnce Biological Microscope

Weight25 kg
