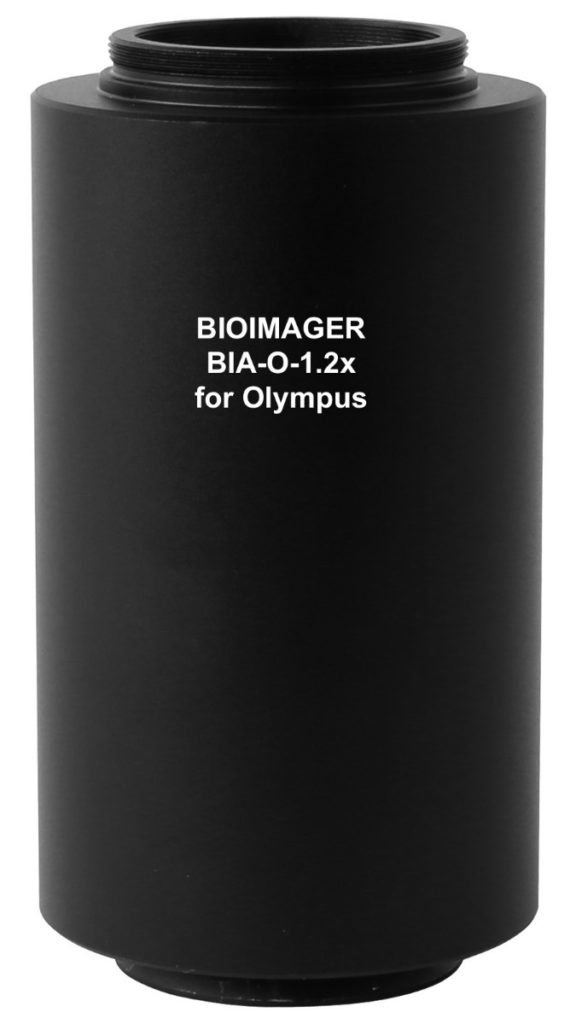

1.2x, 1.5x, 2.25x C-Mount Adapter for 1″, 4/3″, 2″, 2.7″ Cameras & Z, L, N, O or H Microscopes

Original price was: $USD 650.00.Current price is: $USD 449.00.

-31%
Guaranteed Safe Checkout

Guaranteed Safe Checkout

1.2x, 1.5x or 2.25x C-Mount, T-Mount or  F-Mount Adapter to use for Cameras with 4/3″ chip and Zeiss, Leica, Nikon, Olympus, Labomed or Huvitz Microscope

  • Convert the brand trinocular microscope phototube/head/port outer diameter for the insertion end to phototube) to traditional C-Mount type (25.4 mm or 1 inch diameter with 32 threads per inch);
  • With 1.20x built-in reduction lens for achieving better field of view from microscope trinocular head(suitable for 4/3″,1”, 2/3”, 1/1.8”, 1/2”, 1/2.5”, 1/3” or 1/4” inch CCD or CMOS sensor chips);
  • will be customzied and Can be installed in big brand UIS trinocular tube such as Zeiss, Leica, Nikon, Olympus or Huvitz microscope
  • Build of material: anodized aluminum;
  • Telecentric optics with low light deficiency;
  • Parfocal with different microscope objective lenses;
  • Diffraction limited MTF;
  • Aperture totally coupled with UIS microscope objective’s exit pupil;

We also have 1.5x and 2.25x c-mount adapters for cameras with larger sensors such as 2″, 2.5″, 2.7″ sizes.

1.2x, 1.5x or 2.25x C-Mount, T-Mount or  F-Mount Adapter to use for Cameras with 1″, 4/3″ or 2.7″ chip and Zeiss, Leica, Nikon, Olympus, Labomed or Huvitz Microscope

Brand-Specific Compatibility

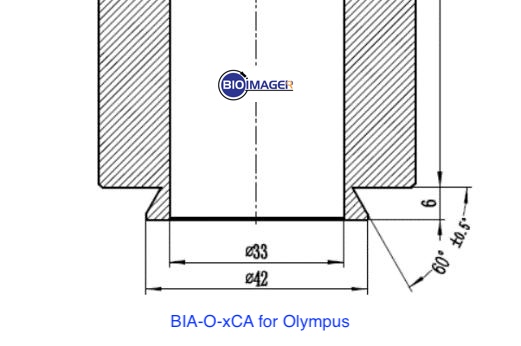

1. Olympus Microscopes

  • Trinocular Port Standard: 42 mm (1.65-inch) inner diameter.
  • UIS Tube Series: BX series, BX2 series, CX series, CX2 series, MX series.
  • Mount Conversions: C-Mount, T2, M52.
  • Lens Options: 2.25X, 1.5X, 1.2X, 1X, 0.8X, 0.63X, 0.5X, 0.35X.

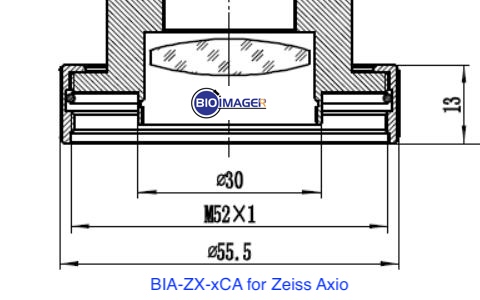

2. Zeiss Microscopes

  • Trinocular Port Standards:
    • ISO 30 mm (1.18-inch) inner diameter.
    • M52×1 mm outer diameter.
  • Compatible Models:
    • PrimoStar, Primo Vert, Axio series.
  • Mount Conversions: C-Mount, T2, M52.
  • Lens Options: 2.25X, 1.5X, 1.2X, 1X, 0.8X, 0.63X, 0.5X, 0.35X.

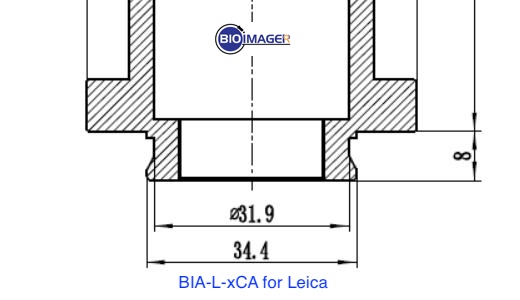

3. Leica Microscopes

  • Trinocular Port Standard: 34.4 mm (1.35-inch) inner diameter.
  • Compatible Series: Leica DM series (biology/industrial).
  • Mount Conversions: C-Mount, T2, M52.
  • Lens Options: 2.25X, 1.5X, 1.2X, 1X, 0.8X, 0.63X, 0.5X, 0.35X.
  • Build Material: Stainless steel (C-Mount end) or anodized aluminum (varies by configuration).

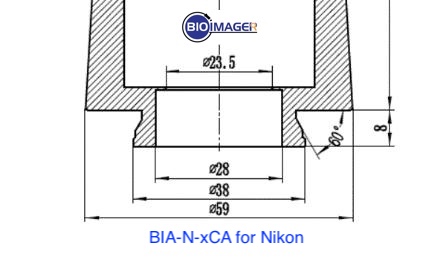

4. Nikon Microscopes

  • Trinocular Port Standard: 38 mm (1.50-inch) inner diameter.
  • Compatible Models: E100/E200, Ni/Ci series, Eclipse LV100N, 50i/55i/80i/90i, Alphaphot-2, Labophot-2, Optiphot-2, Optiphot 100S/150/200/300, Epiphot 300/200, MM-40/MM-60, Diaphot 200/300, TS100-F, TE2000.
  • Mount Conversions: C-Mount, T2, M52.
  • Lens Options: 2.25X, 1.5X, 1.2X, 1X, 0.8X, 0.63X, 0.5X, 0.35X.
  • Build Material: Stainless steel (C-Mount end) and spray-painted aluminum (phototube end).

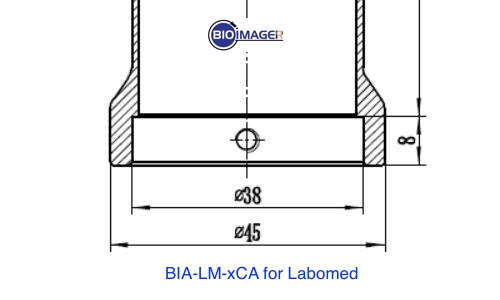

5. Labomed Microscopes

  • Trinocular Port Standard: 38 mm (1.50-inch) outer diameter.
  • Compatible Series: LB series.
  • Mount Conversions: C-Mount.
  • Lens Options: 1X, 0.63X, 0.5X, 0.35X.
  • Build Material: Anodized aluminum.

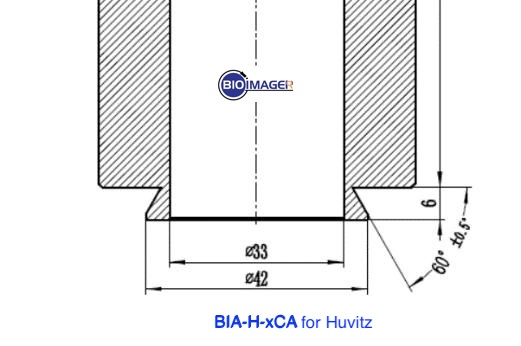

6. Huvitz Microscopes

  • Trinocular Port Standard: 42 mm (1.65-inch) inner diameter.
  • Compatible Series: HRM, HSZ.
  • Mount Conversions: C-Mount, T2, M52.
  • Lens Options: 2.25X, 1.5X, 1.2X, 1X, 0.8X, 0.63X, 0.5X, 0.35X.
  • Build Material: Anodized aluminum.

Why Choose Our Universal Microscope Phototube Adapters?

  1. Versatile Camera Compatibility
    Attach everything from large-format 4/3” sensors to compact 1/4” sensor cameras.

  2. High Optical Performance
    Achieve superior image quality with telecentric designs and diffraction-limited optics.

  3. Simple Integration
    Easily install into existing trinocular heads without compromising microscope stability or alignment.

  4. Enhanced Imaging & Measurement
    Enjoy consistent focus (parfocal) across various objectives and accurate measurements with minimal optical distortion.

  5. Robust Construction
    Anodized aluminum or stainless steel components stand up to rigorous laboratory or industrial use.


Elevate Your Microscope Imaging Today
Upgrade to our universal phototube adapters for Olympus, Zeiss, Leica, Nikon, Labomed, and Huvitz microscopes. Experience unprecedented flexibility, superior optical quality, and a future-proof solution for your imaging tasks—whether it’s research, clinical diagnostics, or industrial inspection.

Contact Us for more information, customized recommendations, and pricing details. Our team is ready to help you find the perfect adapter configuration for your microscope system.





Specifications

Model Microscope

Brand (X)

Magnification Camera

Sensor Size

Mount Type
BIA-x-2.25xFM Huvitz (H)

Leica (L)

Nikon (N)

Olympus (O)

Zeiss (Z)

Zeiss Axio (ZX)

2.25X 2.7”,1.8”, 4/3”, 1” M52, F-Mount
BIA-x-1.5xTA 1.5X 1.8”, 4/3”, 1”,2/3” T2-Mount, T-Mount
BIA-x-1.2xTA 1.2X 4/3”,1” T2-Mount, T-Mount
BIA-x-1.0xCA 1.0X 1”, 2/3” C-Mount, 1in











Here are examples of our customer that have used these products recently

  1. University of California, Los Angeles (UCLA) , Department of Materials Sciences, Los Angeles, CA, USA
2. The University of Texas Medical Branch at Galveston (UTMB), Galveston, TX, USA
