1. Allin One Revolver Adopted Type; up to 2520x magnifications.
2. Motorized Stage in two models: Without Linear Scale (Accuracy: 0.5um) & With Linear Scale (Accuracy:0.1um); Precision Measurement, Auto-Measurement, Auto-Tiling
3. Flexible Report Format, MS-Excel supported. No manufacturer supports ‘Report Format’ compatible with Microsoft Excel, unless you pay extra
4. Excellent Tiling: Speed, Stability and Imaging Quality are more competitive than others.
5. Powerful Measuring Tool, adopted from Confocal Microscopes

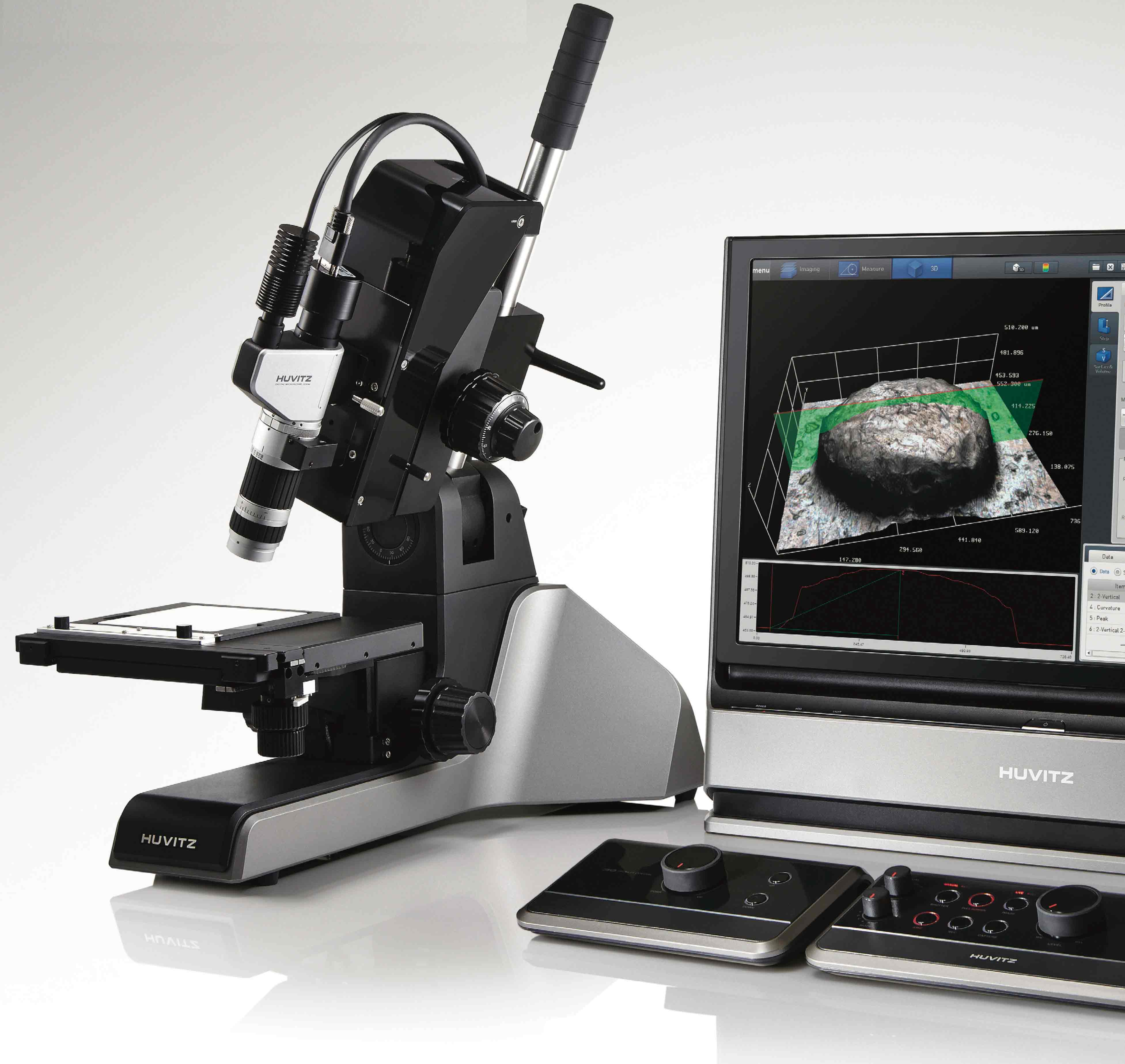

Close Look at the HDS-2520 Digiatl Microscope
Smart Optical Solutions
The Huvitz HDS series offres a wide range of analysis based upon the integration of optical and digital technology. Easy Image acquistion and easy analytical processes tranbslats into precise and accurate results.
The Most advance all in one system
All functions for observation, recording, measurement and reporting have been integrated into a single unit, making it one of the most versatile digital microscopes in the market.
Observation of high resolution depth with 3D
The components of the HDS system are high resolution optics, precise digital image capture, image processing software and high resolution LCD image display.
The image processing includes image management, 2D image capture, 3D image creation and very accurate measurement profiles for height, volume, angles and length. Especially, it’s possible to generate and observe full-focused expansion 3D display through one click.
Huvitz’s advanced optical technology aiming for No.1
The powerful objective lenses, precise digital technology coupled with HDR image processing technology produces an optimized inspection system. The achieved image clarity and resolution exceeds simple visual inspection by eliminating glare, reflection. The combination of ease of use, high optical clarity, and rapid, accurate image processing provides efficient inspection and reliable data.
|Extensive magnification and easy conversion of powerful lens
With the zoom lens, a wide variety of inspection functions become easy task. However, when the need arises for structural inspection and metallurgical evaluation, the addition of the revolving turret with four high resolution objective lenses extends capability beyond what is currently available in the market.
|A world-class zoom body in terms of color reproduction
Huvitz is known for its optical quality in the field of optometry. The process of superior optical design and lens coating technology has been demonstrated on the delicate and crucial structures of the eye. With the HDS system, those same technological capabilities have been extended with a semi-apochromat lens system that provides improved resolution and superior color reproduction.
| The LED designed to optimize the realistic high resolution image
It provides transmitted vertical illumination source so that its lights can be cast brightly with various samples and convenient without waiting time for warming up.
|Easy rotating and tilting stand-up to 150 degree
The standard HDS stand provides flexibility for imaging from a wide range of angles to acquire images of the most difficult specimens. The stand can be tilted through 150°, and objects can be easily rotated. It is recognized that not all specimens will fit on the stand. For this reason, the system has anti-vibration/image stabilization Camera features. In addition, for hand-held, close-up imaging, the system has an auto-focus feature.
|Super-high speed camera acquiring consecutive images up to 20 per a second
The high speed camera generates up to 20 frames consecutively. This rapid acquisition speeds data collection. Combined with rapid image processing, this contributes to the efficient completion of inspection projects.
|21.5″ Full HD LCD monitor with realistic definition like seeing by eyes
The HDS system incorporates a 21.5″ HD LCD display monitor. This monitor provides 1920×1080 display (full HD). Free Angle The wide screen monitor has 250cd/m brightness and high contrast for brilliant images.
Smart Accessory – Entertaining than expectation
A revolutionary system optimized to the accuracy, stability and reliability assurance. The wide range of accessories suiting the requirement of numerous conditions is available to maximize the efficiency of the observer.
Optimally designed motorized stage
Auto tiling obtains image sequentially by moving the stage in X/Y directions. The automatic visual connection comes on display.
Navigation : There are provisions in the software to assist in navigation. Especially with high magnification tasks, this feature is extremely helpful.
By clicking on a position on the image, with the motorized stage functions, the software will automatically position the stage in the correct position.
There is also the capability to couple a larger stage with up to 150mmx150mm X/Y travel for imaging larger areas / specimens.
Large-area measurement: Supported by 100x100mm stage measures size over a large area of the stage.
Various stage options: Increased accuracy, precision and repeatability
The diverse power stages up to the 6×4 size provide observers with various features designed to meet various needs for sample types.
Available glass plate for transmitted observation and wafer holder plate can also be applied.
Various adapters and filters – minimizes errors
Provide great accuracy of the measurement with various choices of adapters and filter types
Observation of fully-focused depth of field even at high magnification
Create fully-focused, high depth of field images, even at high magnification. The optical technology and precise z-axis control provides image acquisition from different focal depths.
These images are then converted into composite, 3D images for multi- layered in-focus images.
The process works by capturing a series of images in a z-axis stack.
These images from different depths of focus are then selected to be processed into an in-focus image.
The software processing does the rest. The controls are easy and intuitive.
|EDF(Extended Depth of Focus) function – Accurate construction of 3D imageAll the images, which have different depth of focus can be composed with EDF function by using Z axis module.
It’s possible for deeper depth sample to be fully-focused and composed quickly with high magnification
The 3D image display features at a glance on the highest and the lowest points
After multiple images have been acquired and converted to a 3D image, the image can then be displayed in a 360° panoramic view.
Various heights can be visually displayed in different colors.
Full-focused real time connection by pressing the button
Perform the calibration pressing the button for each lens and magnification by X-Y-Z motorized control
Sophisticated 3D measurement
The system can easily acquire professional profile data.
In addition, various measurement tools such as horizontal and vertical line measurement, or two, three or more point circle measurement processes are provided to aid collection, verification and accuracy of measurements.
– Other 3D measurement tools
High speed image acquisition and processing
The days of waiting for extended periods for image analysis functions to be completed are over.
The HDS system integrates optical functions, digital image and image processing and analysis into a highly efficient system.
Even as the initial images are displayed, the image processing is commencing to provide high volume output.
Huvitz’s combination of technologies maximizes convenience and efficiency of measurement and results reporting.
Reduced error, increased stability High speed real-time tiling
High speed tiling is a useful function to obtain composition images of larger samples.
It is composed of captured images along the X/Y axis combined into a single image.
These combined images are processed as the lens moves along the X/Y axis. The speed of composition is twice as rapid as other brands and the quality of the tiled sections is excellent and natural.
In addition, the use of navigation reference points reduces artifacts and image failure.
The high speed tiling process can include up to 400 megapixels in a single composite image.
This provides the capability to display a significant portion of the specimen in a single image.
HDR(High Dynamic Range)
The camera captures multiple color images at different brightness level by varying the shutter speed.
The image processing then produces an image with high level gradation of data.
The range of obtainable brightness widens, resulting in the accurate representation of targets without glare and reflection.
AMS(Automatic Magnification Sensor)
The HDS system automatically recognizes the lens setting and the magnification in use at any specific point in time.
Calibration is not required every time that magnification is changed.
In addition, the magnification setting, required for 3D observation, is not required to be input manually because it is provided automatically.
Real-time measurement during observation
The system allows users to complete all measurements directly on the screen in real time on a live image. The process requires only a couple of clicks with the mouse. The process is significantly easier and faster than previous methods.
It offers a variety of measurement tools such as line, circle, arc, angle, polyline, polygon, vertical, width, parallel, count suitable for measurement result
Multi view measurement
Multi-view image’s partial display is fixed by previous saved calibration data so that the accuracy of measurement will be increased
One click report creation
All of the data and analysis in the HDS system can rapidly be integrated into a report generator.
The creation of reports using standard templates or customized templates(previously developed) can speed the complete of reports on various analytical functions. These reports can automatically include captured date, time, lens, magnification, and the various measurement data.
Advanced,flexible and detailed analysis in excellent durability, diverse and reliable accessary attachments realizes widely use in various fields by Huvitz’s digitalized-optical technology.
|A variety of applications
Low power to high-power zoom lens in a single test or observation allows wide range of use in semiconductor, car-metal, chemical, materials, electro-transfer and medical industry.
Quick observation without additional work on samples – Looking directly through display at the spot discussion with multi co-operation.
In addition, cost-effective in the advanced features with detailed analysis of the entire acquisition phase. Supporting the inexperienced by flexible usage in college, government institute or research center.
