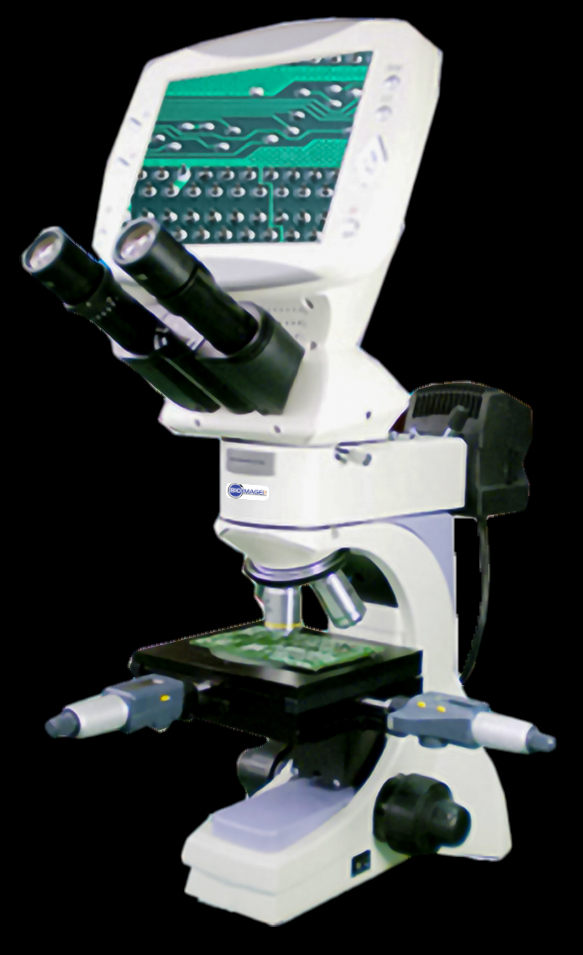

BMU600LM Metallurgical Upright Transmitted/Reflected LCD Measuring Scope
$USD 6,000.00 Original price was: $USD 6,000.00.$USD 3,999.00Current price is: $USD 3,999.00.
- 9 Inches HD LCD Screen, Resolution is 1280×800
- With a 5 Mega Pixel high resolution camera
- Compensation Free Binocular Head, 30° Inclined
- Wide Field Eyepiece WF10X/18
- Infinity Plan Achromatic: 4x,10x, 20x, 40x
- X-Y Axis Moving Survey Range: 30 X 30mm
- Minimum Reading: 0.001mm, Measurement Accuracy < 7um

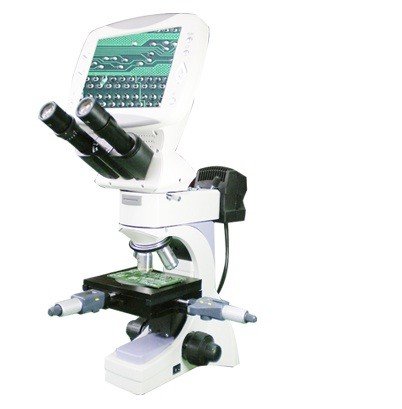

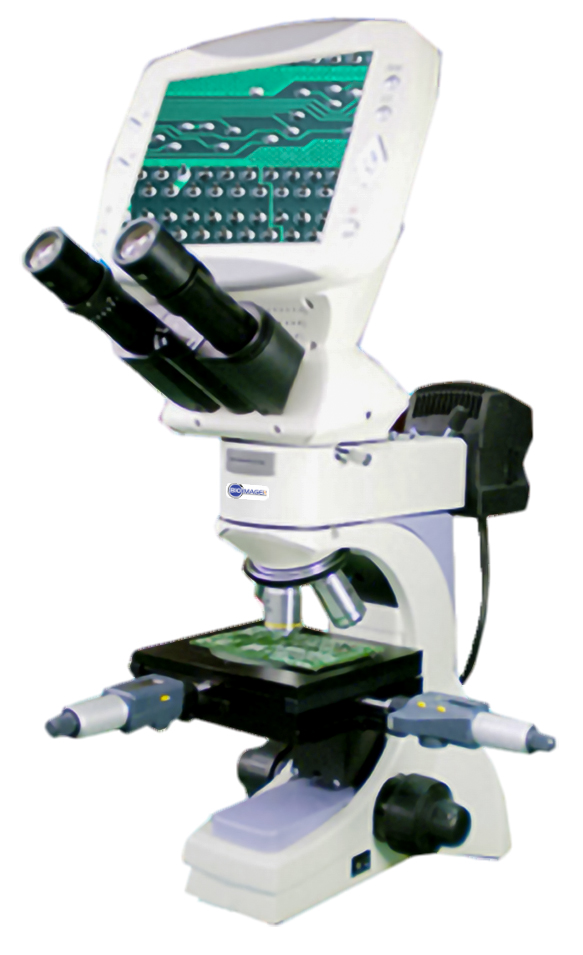

BUM600LM Metallurgical Upright Transmitted LCD Measuring Scope
Introduction
BUM600L Digital LCD Metallurgical Measuring Microscope is consisted by a metallurgical microscope, a high definition LCD screen, a 5 Mega Pixel camera and a measuring stage. This microscope is designed to observe surfaces of opaque object. It is very professional and easy to operate. This is also an ideal optical instrument for micro observation and measuring in metallographic structure and surface morphology.
Features
- Special designed metallurgical analysis optical system and an 9” LCD screen, images and videos can be share with other people.
- 2. 5 Megapixel with real time imaging display, images and video recording and re-playing function.
- X/Y digital micrometer and moving stage for accurate measuring.
- 12V DC power supply, safety and reliability of low voltage (Input Voltage 90-240V).
- SD Card for storage and printing.
Application
With the X/Y digital micrometer and moving measuring stage, BLM-600AM is suitable for research in metallographic, mineralogy, precision engineering, etc. .
Specification
Digital Parts | Resolution | 5Mega Pixel | |

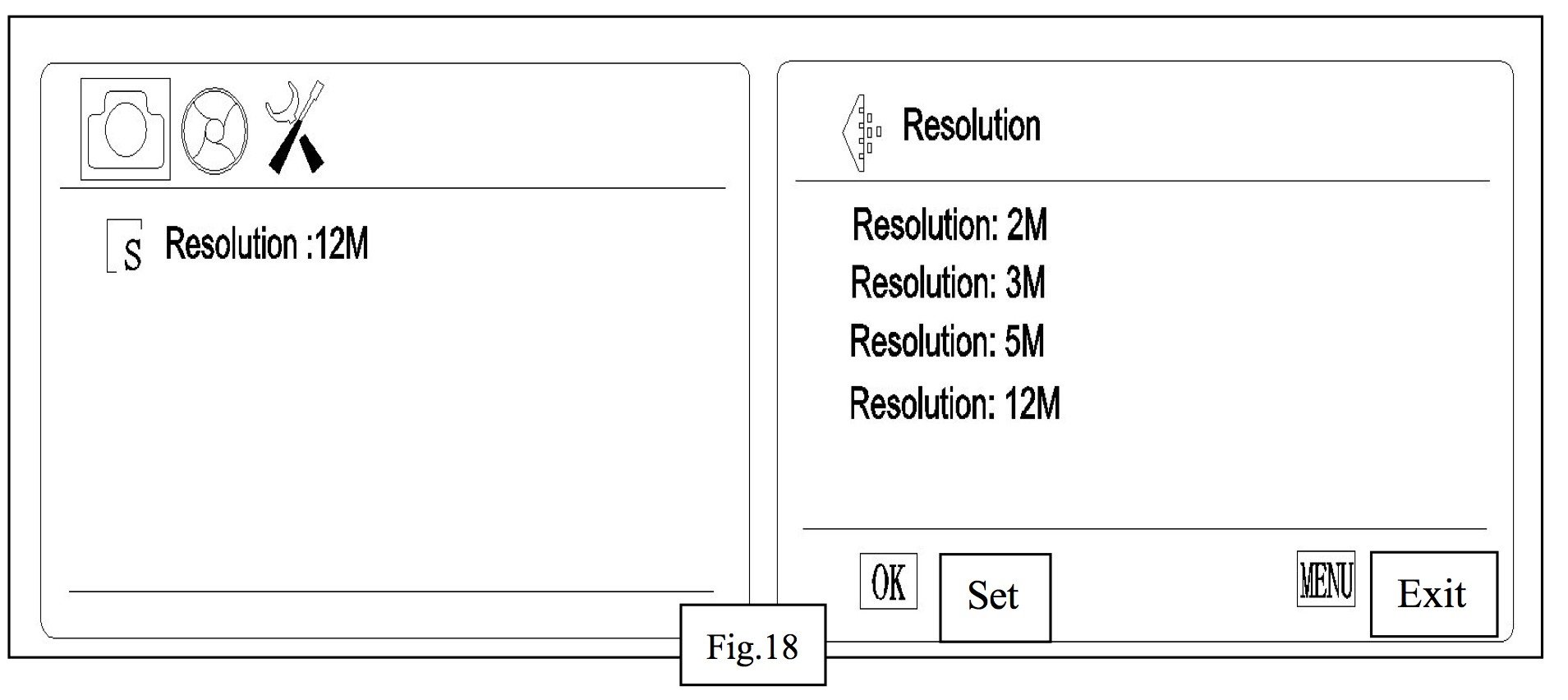

Photo Resolution | 2560×1920 | ||

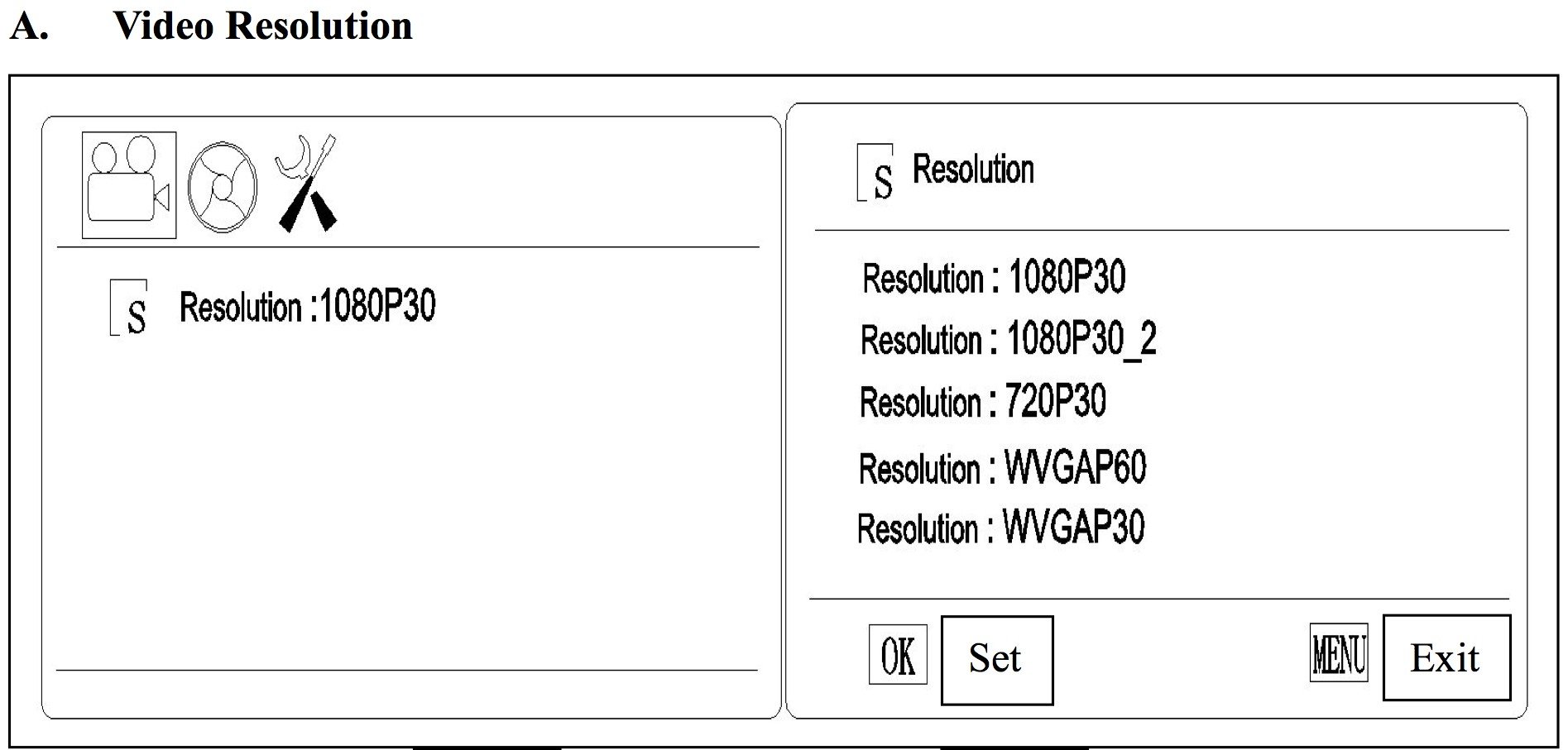

Video Resolution | 1280×720/30fps | ||
Sensor Size | 1/2.5 Inches | ||
LCD Screen | 9 Inches HD LCD Screen, Resolution is 1280×800 | ||
Video Output | HDMI | ||
Menu Language | Nine Languages (English, Germany, French, Spanish, Russia, Japanese, Korean, Latin, Arabic) | ||
Storage | SD Card(4G) | ||
Exposure Mode | Auto Exposure | ||
Date Mode | Year, Month, Day, Hour, Minute | ||
Optical Parts | Viewing Head | Seidentopf Binocular Head, 30° Inclined, Interpupillary Distance 55-75mm | |
Eyepiece | Wide Field Eyepiece WF10×/18 | ||
Objective | Infinity Plan Achromatic | 4×/0.1/∞/- WD25.4mm | |
10×/0.25/∞/- WD11.0mm | |||
20×/0.40/∞/- WD6.0mm | |||
40×/0.60/∞/0 WD3.7mm | |||
Nosepiece | Quadruple Nosepiece | ||
Stage | Double Layers Mechanical Stage 150mm×140mm / 75mm×50mm | ||
Focusing System | Coaxial Coarse/Fine Focus System | ||
Illumination | Kohler Illumination, Epi-illuminator with Iris Aperture Diaphragm and Iris Field Diaphragm, 6V/20W Halogen Lamp, Brightness Adjustable | ||
Filter | Blue, Green, Yellow & Ground Glass | ||
Measurement Stage | X-Y Axis Moving Survey Range 30×30mm | ||
Minimum Measuring Reading 0.001mm | |||
Measurement Accurary <7um | |||
Optional Parts |
Eyepiece | WF8×/18 | |
WF10×/18 with 0.1mm Micrometer & Cross Hair | |||
WF12.5×/15 | |||
Objective | Infinity Plan Achromatic | 40×/0.65/∞/- WD0.78mm | |
50×/0.75/∞/- WD0.32mm | |||
80×/0.90/∞/- WD0.2mm | |||
100×/0.90/∞/0 WD0.7mm | |||
Illumination | Diascopic Illumination, 6V/20W Halogen Lamp, Brightness Adjustable | ||
Polarization Set | Simple Polarization Attachment |
Sample Images

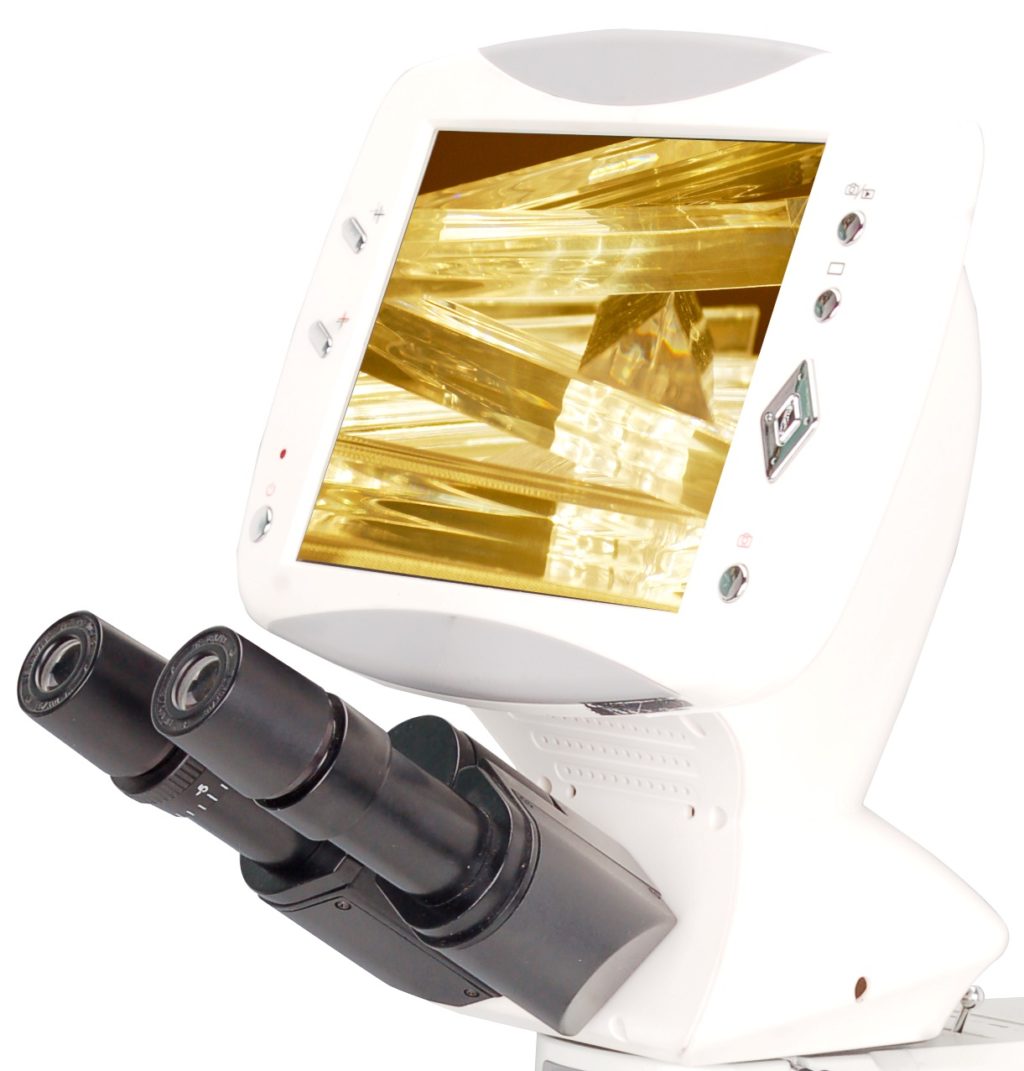

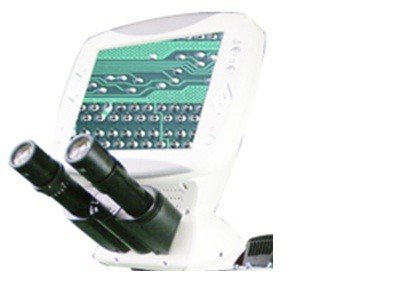

9″ HD LCD with 1280×800 resolution & Built-in Camera
