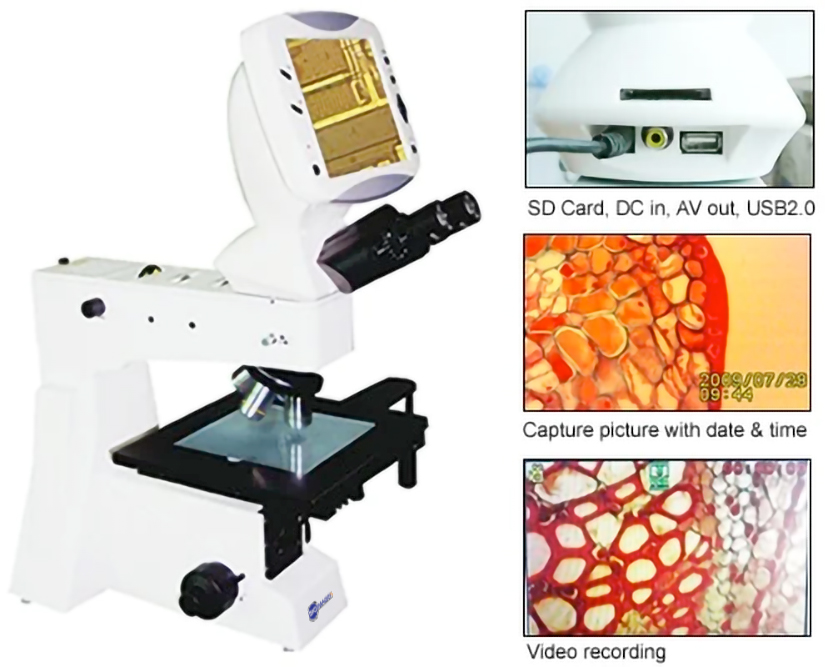

BLC33757 LCD Metallurgical Microscope


BLC33757 LCD Metallurgical Microscope, widely used in institute and laboratory to observe and identify the structure of various metal and alloy, with New Developed Digital LCD Head, with CCD camera & LCD screen, no need to purchase CCD camera or computer again, you can view & show your observation clerly before everyone

$4,625.00 $5,500.00

Basics & Principles of a Metallurgical Microscope

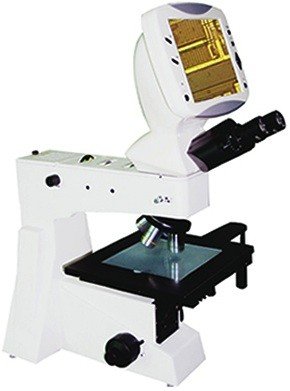

BLC33757 LCD Metallurgical Microscope

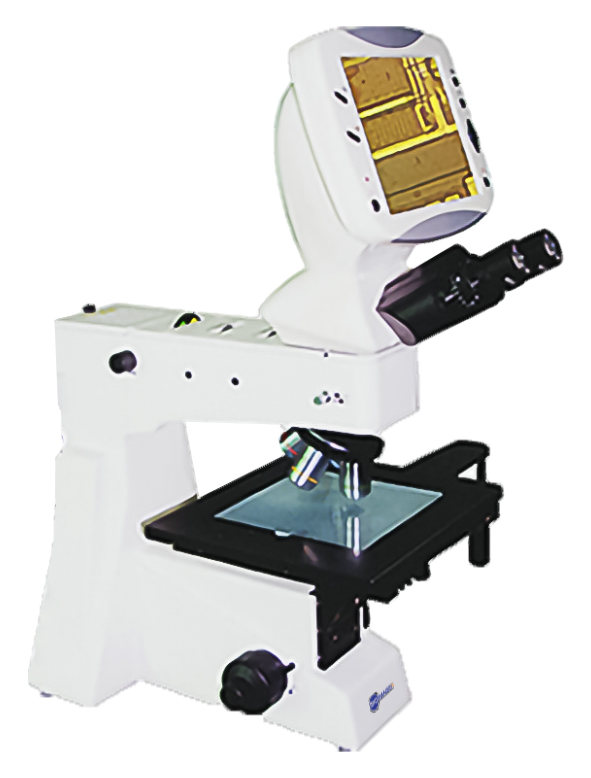

BLC33757 LCD Metallurgical Microscope

Features

BLC33757 LCD Metallurgical Microscope, widely used in institute and laboratory to observe and identify the structure of various metal and alloy, with New Developed Digital LCD Head, with CCD camera & LCD screen, no need to purchase CCD camera or computer again, you can view & show your observation clerly before everyone!

–5.0 Mega pixels CCD built-in
–Upgrade to 9 Inches Screen, Resolution is up to1280*800
–Capture picture or video by one button
–Built-in SD card to store your picture or video
–Upgrade to HDMI & USB output
–Mark date, time on your picture
–Infinityoptical system providing excellent optical functions
–Stable stand structure, advanced stage design and comfortable operation,

Specifications

ModelBLC33757
Digital LCD Head
Pixel5.0 Mega
Digital Magnification
Photo Resolution2560X1920-1600X1200
Video Resolution1080*720
Sensor Size1/2.5 Inches
LCD Screen9 HD Inches, Resolution is 1280*800
Video OutputAV Output (NTSC/PAL)
Data OutputHDMI & USB
LanguageChinese / English Menu
StorageSD Card Slot with Memory Cards (Optional, Maximam 4G)
Scene ModeStandard / Softness / Vivid
Exposure ModeManual/Auto
Date ModeYear, Month, Day, Hour, Minute
External InterfacePC/Projector/Monitor
EyepieceWF10X
White BalanceManual/Auto
Color ModeColor/Black& white/Negative
MeasurementCrosshair
PositioningCrosshair/ Arrow pointer
Coordinate ColorsBlack/White/Red/Blue/Green





Optical SystemAB
HeadTrinocular head inclined at 30 degree,interpupillary 55-75mm
EyepieceWide field eyepiece WF10x/22mm
Infinity Plan
Achromatic
Objective
Bright FieldPL L5X/0.12 (Work Distance): 26.1mm
PL L10X/0.25 Work Distance): 20.2mm
PL L20X/0.40 (Work Distance): 8.80mm
PL L50X/0.70 Spring (Work Distance): 3.68mm
PL L80X/0.80 Spring (Work Distance): 1.25mm
Infinity Plan
Achromatic
Objective
Bright/Dark
Field
PL L5X/0.12 (Work Distance): 9.7mm
PL L10X/0.25 Work Distance): 9.3mm
PL L20X/0.40 (Work Distance): 7.23mm
PL L50X/0.70 Spring (Work Distance): 2.50mm
PL L80X/0.80 Spring (Work Distance): 1.25mm
(Bright Field Objective)
FocusingCoaxial Coarse/Fine Focus System, with Tension Adjustable and Limit Stopper, Minimum Division of Fine Focusing: 0.7um.
NosepieceQuintuple (Backward Ball Bearing Inner Locating)
StageDouble Layers Mechanical Stage 280mmX270mm, moving range 204mmX204mm
Epi-Illumination
System
6V 30W, Halogen Lamp, Adjustable Brightness
12V 50W, Halogen Lamp, Adjustable Brightness
Integrated Field Diaphragm, Aperture Diaphragm and Filter Switching Device (Y,B,G, Ground Glass). Push-pull Type Analyzer and Polarizer



Optional Accessories
EyepieceWF10x/18mm, with 0.1mm micrometer
Infinity Plan
Achromatic
Objective
BLC33757A
Bright
Field
PL L40X/0.66 (Work Distance): 0.66mm
PL L60X/0.85 (Work Distance): 0.25mm
PL L100X/0.85 Spring (Work Distance): 0.4mm
Infinity Plan
Achromatic
Objective
BLC33757B
Bright/Dark
Field
PL L50X/0.70 (Work Distance): 2.03mm
PL L60X/0.70 (Work Distance): 1.90mm
PL L80X/0.80(Work Distance): 0.80mm
PL L100X/1.25 Spring (Work Distance): 0.36mm
StageMechanical Moving Device, Moving Range 250x230mm/154x154mm
