Save $USD 230

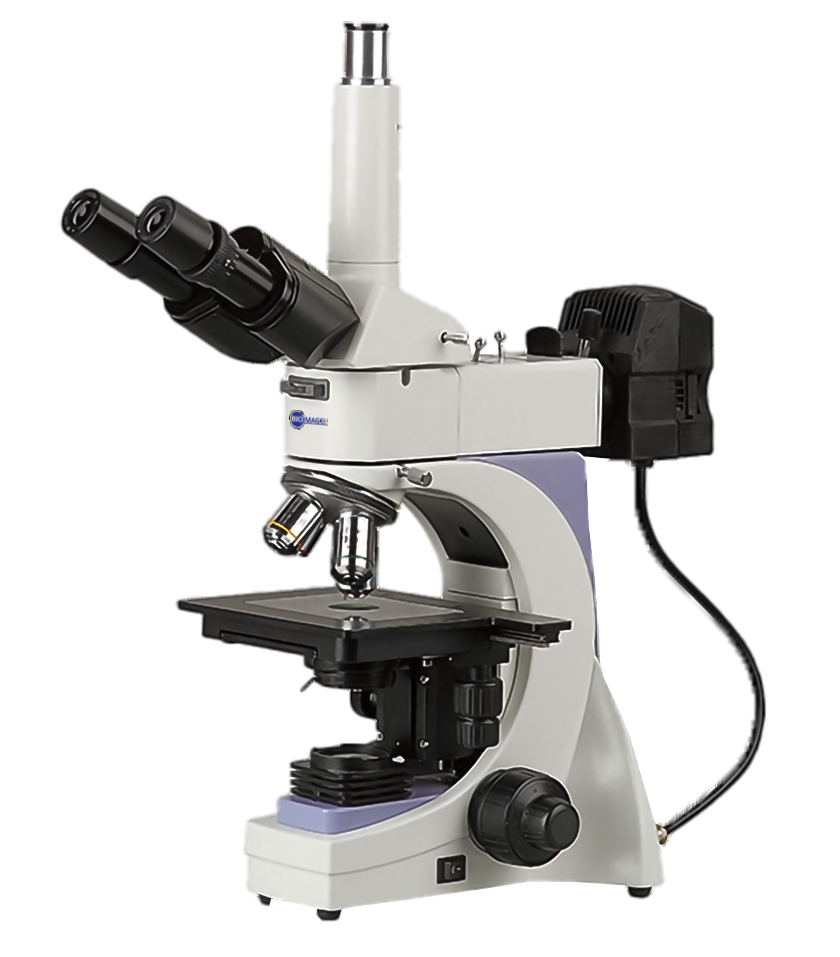

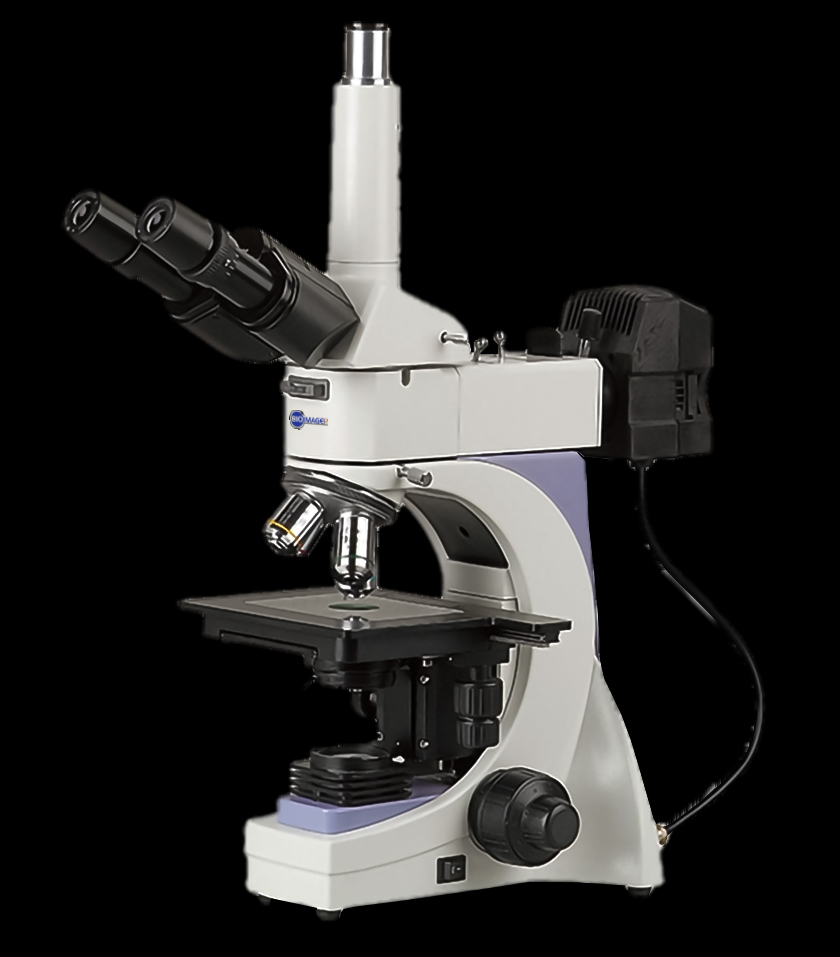

BMU300RF/TRF Metallurgical Upright Reflected/Transmitted BF Microscope


  • Binocular or Trinocular Head, WF10x/18 Eyepiece
  • Reflecetd Only or Reflected & Transmitted illumination; i.e. light form top and bottom.
  • Infinitive plan achromatic objectives 4x/0.1/∞/- WD25.4mm, 10x/0.25/∞/- WD11.0mm, 40x/0.60/∞/0 WD3.7mm
  • Coaxial Fine & Coarse Adjustment
  • Kohler Illumination, Epi-illuminator with iris aperture diaphragm and iris field diaphragm, 6V/20W Halogen Lamp, Brightness Adjustable

$USD 1,495.00 $USD 1,725.00

Introduction

BMU300 Metallurgical Microscopes are very professional microscopes which are specially designed for metallurgical analysis. With excellent optical system, Ingenious stand and convenient operation, they will be your best choice.

Application

BMU300 Metallurgical Microscope is widely used for PCB board, LCD display and metal structure observation and inspection. It also can be used for analysis of mineral stones.

Quick View:

  • Binocular (Trinocular) Head, WF10×/18 Eyepiece
  • Reflecetd Only or Reflected & Transmitted illumination; i.e. light form top and bottom.
  • Infinitive plan achromatic objectives 4×/0.1/∞/- WD25.4mm, 10×/0.25/∞/- WD11.0mm, 40×/0.60/∞/0 WD3.7mm
  • Coaxial Fine & Coarse Adjustment
  • Kohler Illumination, Epi-illuminator with iris aperture diaphragm and iris field diaphragm, 6V/20W Halogen Lamp, Brightness Adjustable

Quick View

  • Binocular (Trinocular) Head, WF10×/18 Eyepiece
  • Reflecetd Only or Reflected & Transmitted illumination; i.e. light form top and bottom.
  • Infinitive plan achromatic objectives 4×/0.1/∞/- WD25.4mm, 10×/0.25/∞/- WD11.0mm, 40×/0.60/∞/0 WD3.7mm
  • Coaxial Fine & Coarse Adjustment
  • Kohler Illumination, Epi-illuminator with iris aperture diaphragm and iris field diaphragm, 6V/20W Halogen Lamp, Brightness Adjustable

BMU300 Metallurgical Microscope is widely used for PCB board, LCD display and metal structure observation and inspection. It also can be used for analysis of mineral stones.

SKU: BMU300RF/TRF Categories: ,
ModelBMU300

RF

BMU300

TRF

Viewing HeadSeidentopf type binocular head, inclined at 30°, interpupillary distance 48-75mm
Seidentopf type trinocular head, inclined at 30°, interpupillary distance 48-75mm
EyepieceWF10×/18
WF8×/18
WF10×/18 with 0.1mm Micrometer & cross hair
WF12.5×/15
Infinite Plan Achromatic Objectives4×/0.1/∞/- WD 17.3mm
5×/0.12/∞/- WD 15.5mm
10×/0.25/∞/- WD 10.0mm
20×/0.40/∞/0 WD 5.8mm
40×/0.60/∞/0 WD 2.9mm
40×/0.65/∞/0 WD 0.52mm

Note: ●Standard parts ○Optional parts
