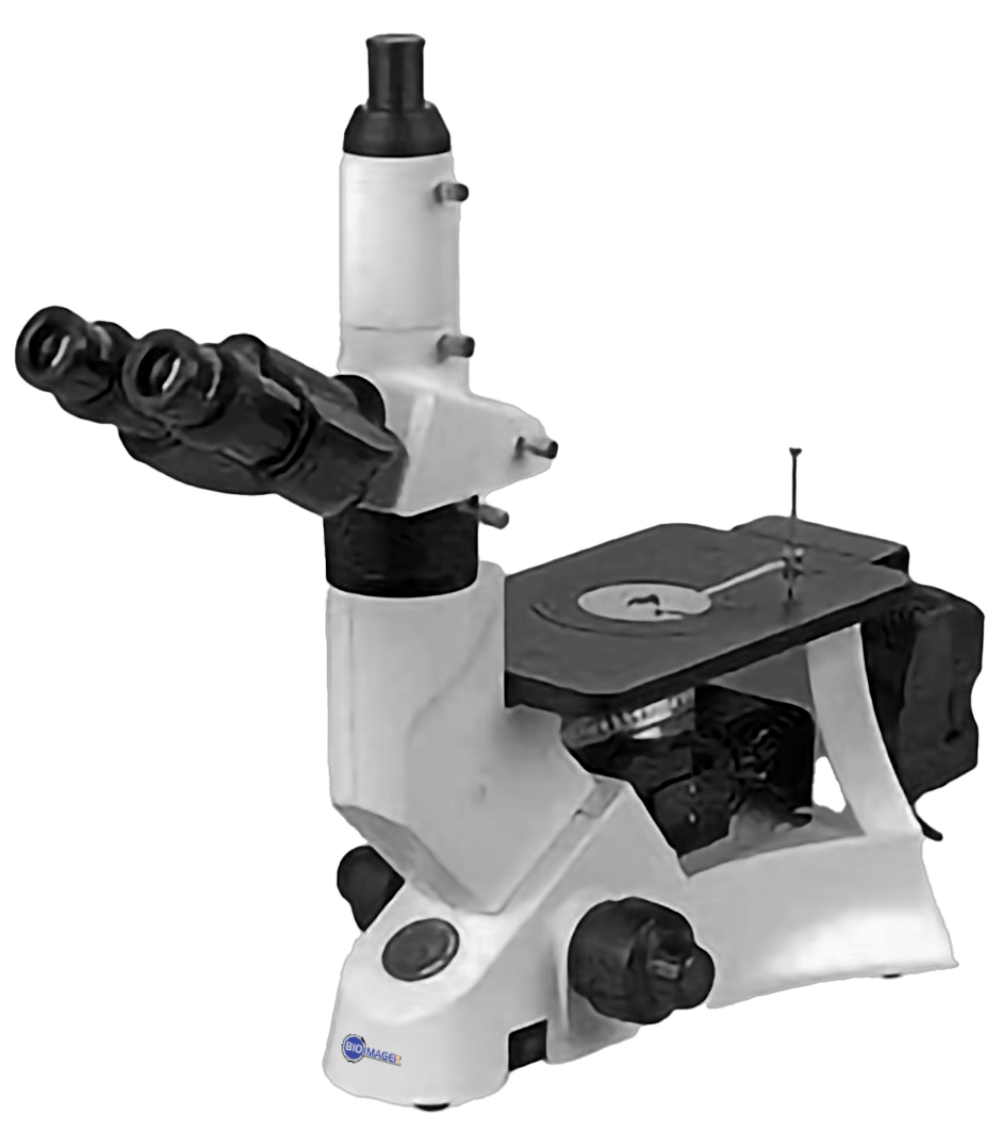

BMI500 Metallurgical Inverted Transmitted Microscope

Availability:

In stock


Compare

BS-6000B not only can identify and analyze a variety of metals, alloys, non-metallic material and the organizational structure and integrated circuits, but also micro-particles, wires, fibers, surface coating such as some of the surface conditions. Digital cameras can be added to the trinocular tube to take images and make image analysis.

In stock

$2,199.00 $2,700.00

BS6000B Metallurgical Inverted Transmitted Microscope

BS-6000B Inverted Metallurgical Microscope

BMI500 Metallurgical Inverted Transmitted Microscope

Introduction

BS-6000B not only can identify and analyze a variety of metals, alloys, non-metallic material and the organizational structure and integrated circuits, but also micro-particles, wires, fibers, surface coating such as some of the surface conditions. Digital cameras can be added to the trinocular tube to take images and make image analysis.

Features

1. Infinite optical system provides excellent optical functions.

2. With the stable stand structure, advanced stage design and comfortable operation.

Application

BS-6000B is widely used in institutes and laboratories to observe and identify the structure of various metal and alloy, it also can be widely used in electronics, chemical and instrumentation industry, observe the opaque material and transparent material, such as metal, ceramics, integrated circuits, electronic chips, printed circuit boards, LCD panels, film, powder, toner, wire, fibers, plated coatings, and other non-metallic materials and so on.

Specification

Viewing HeadTrinocular head inclined at 30°, interpupillary distance 48-75mm
EyepieceHigh-point, extra wide field eyepiece EW10×/ 20
Infinite Plan Achromatic Objective4×/ 0.1/∞/-    WD 17.3mm
5×/0.12/∞/-    WD 15.4mm
10×/0.25/∞/-   WD 10.0mm
20×/0.40/∞/0   WD 5.8mm
40×/0.65/∞/0   WD 0.52mm
40×/0.60/∞/0   WD 2.9mm
50×/0.75/∞/0   WD 0.32mm
80×/0.90/∞/0   WD 0.2mm
100×/0.80/∞/0  WD 2mm
NosepieceQuintuple nosepiece
StagePlain stage with slide clips
Attachable mechanical stage, X-Y coaxial control, moving range 120×78mm
Double layer mechanical stage 226×178mm, Moving range 50×50mm
Auxiliary stage
FocusingCoaxial coarse & fine adjustment, Vertical objective movement, Coarse stroke 37.7mm per rotation, Fine stroke 0.2mm per rotation
Kohler IlluminationHalogen lamp 6V/ 30W, Kohler illumination
FilterBlue, Yellow, Green and Frosted filters
Polarization Attachment
Photo Attachment
Video AdapterVideo adapter with C mount

Note: ●Standard parts  ○Optional parts

Sample Images

Metallurgical/BS6000B-3.jpgMetallurgical/BS6000B-2.jpg

Item #BS6000B
