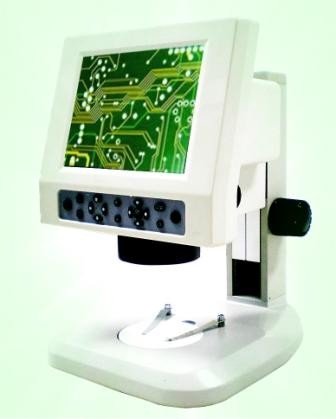

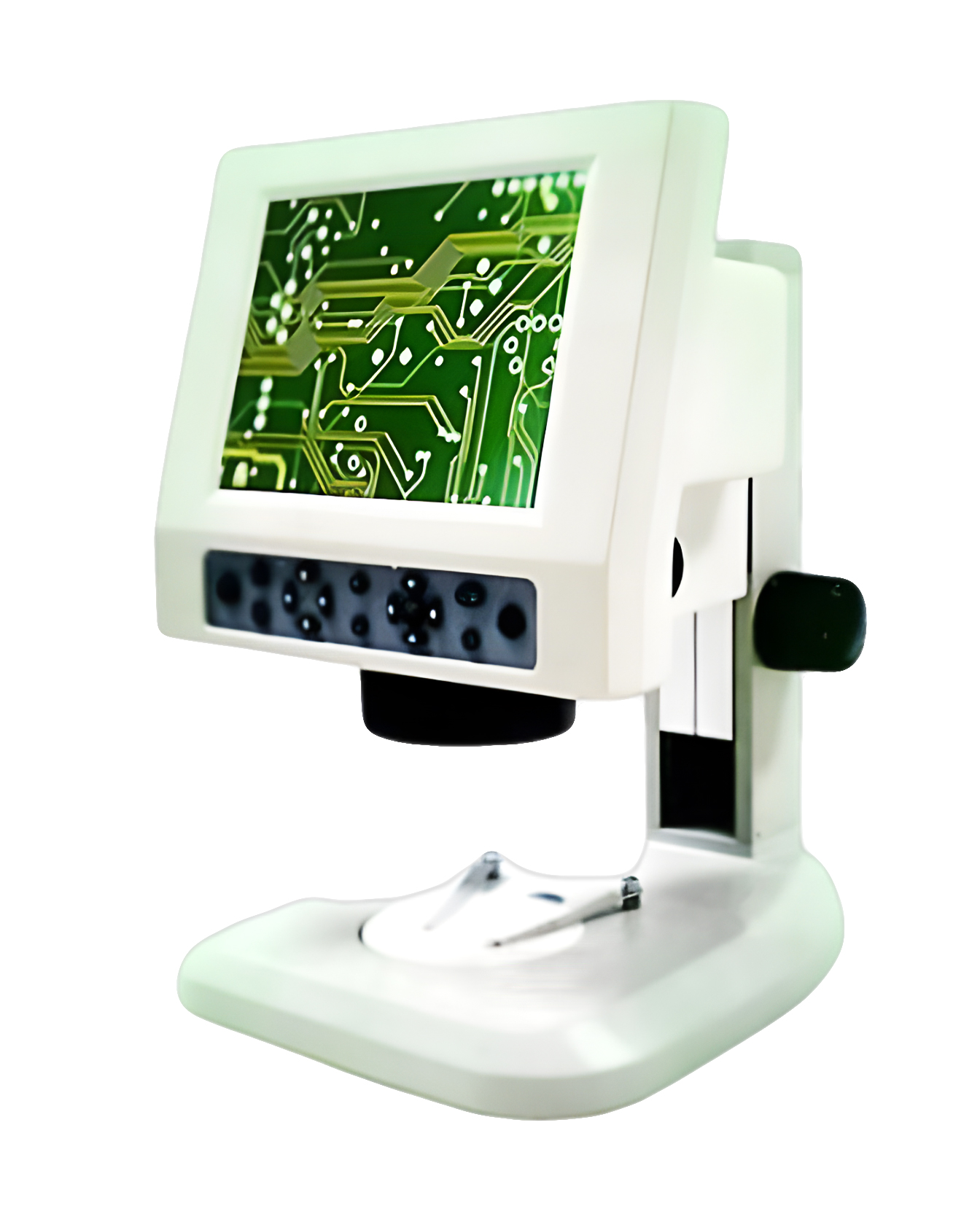

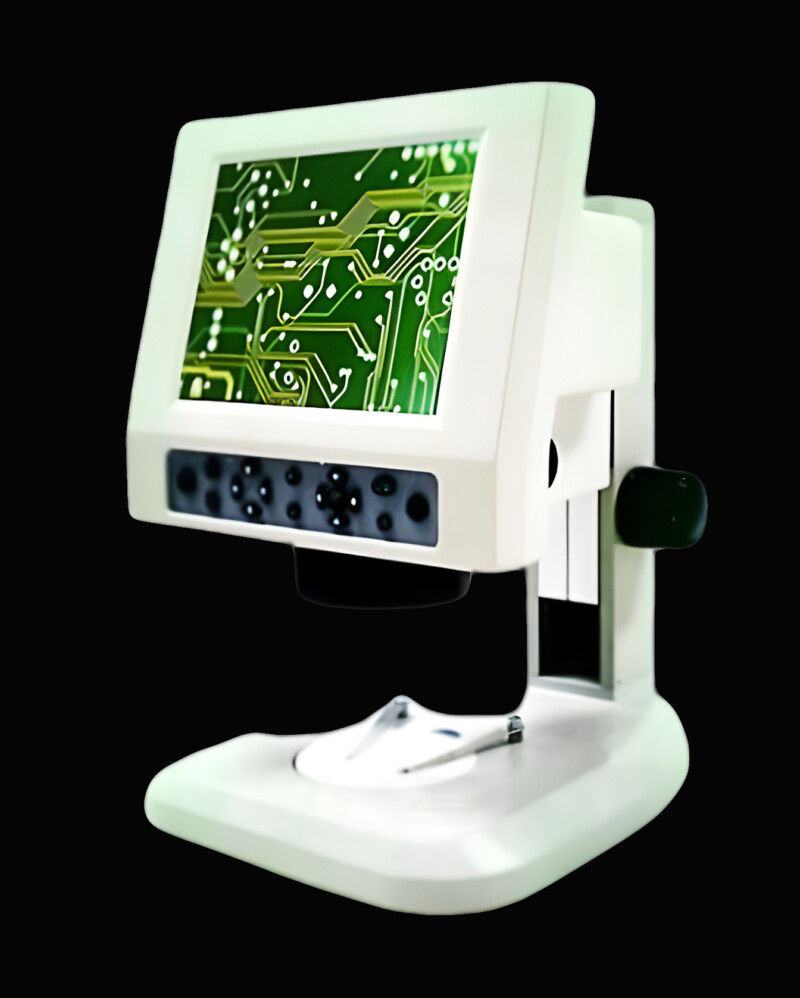

BLM320 LCD Stereo Microscope
Introduction
BLM-320 series LCD stereo microscope has renovated the traditional way of microscopic observation and adopted a modern way of electronic imaging and a high resolution LCD screen. Magnification range is 9x-240x. This patented microscope makes the observation more comfortable and thoroughly resolves the fatigue caused by using a traditional microscope at work for a long time.
Features
1. It features a high resolution LCD screen to reverting genuine photo and video. This product integrates magnification, imaging, display and built-in LED illumination functions.
2. Based on 2D observation, 3D angle attachment is added to obtain 3D multi-angle observation, which makes inspection easy and comfortable.
3. With a 5.0MP high definition built-in camera, 8 inches high resolution LCD screen, images can be easily view through the screen.
4. Images and videos can be stored in the SD card.
Application
This product can be easily used to test and inspect product assembly, research and teaching fields.

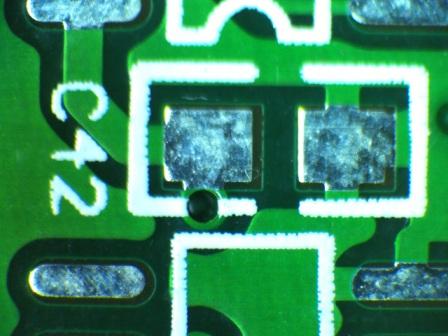

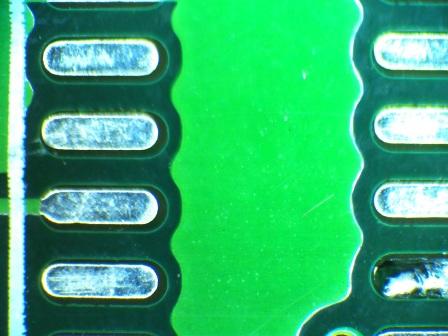

Sample images
Specification
| Digital Parts | Resolution | 5 Mega Pixel |
| Maximal Resolution | 2560×1920 | |
| Photo Resolution | 2560×1920∽1600×1200 | |
| Video Resolution | 640×480 | |
| Sensor Size | 1/2.5 Inches | |
| LCD Screen | 8 Inches TFT Screen, Resolution is 800 X 600 | |
| Video Output | AV Output (NTSC/PAL) | |
| Data Output | USB2.0 | |
| Menu Language | Chinese / English | |
| Storage | SD Card Slot with Optional Memory Cards (Maximal Storage Capacity is 4G) | |
| Scene Mode | Standard / Softness / Vivid | |
| Exposure Mode | Auto Exposure | |
| Date Mode | Year, Month, Day, Hour, Minute | |
| Voltage Input | 100V-240V 60HZ/50HZ | |
| Optical Parts | Objective Zoom Range | 0.7×-4.5 |
| Zooming Ratio | 1：6.5 | |
| Magnification | 19×-120× | |
| Visual Field | 6.8×8.9-1.0×1.3mm | |
| Working Distance | 88mm | |
| Optional Part | Objective | 0.5X/0.75X/1X/1.5X/2X |
| Base Light | Built-in LED Base Illumination: 45pcs LED Bulbs，5W | |
| Longer Stand and Base: | Using 0.5X Objective Lens ,Working Distance is 175mm (Max) |
Item #BLM320
