Save $USD 810

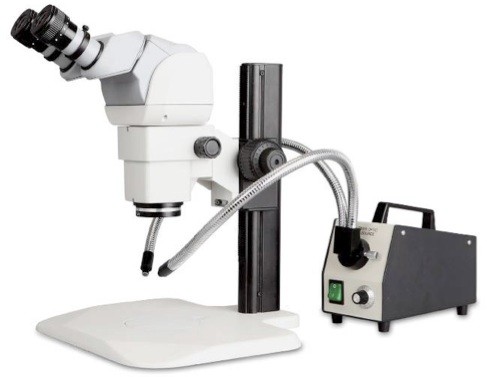

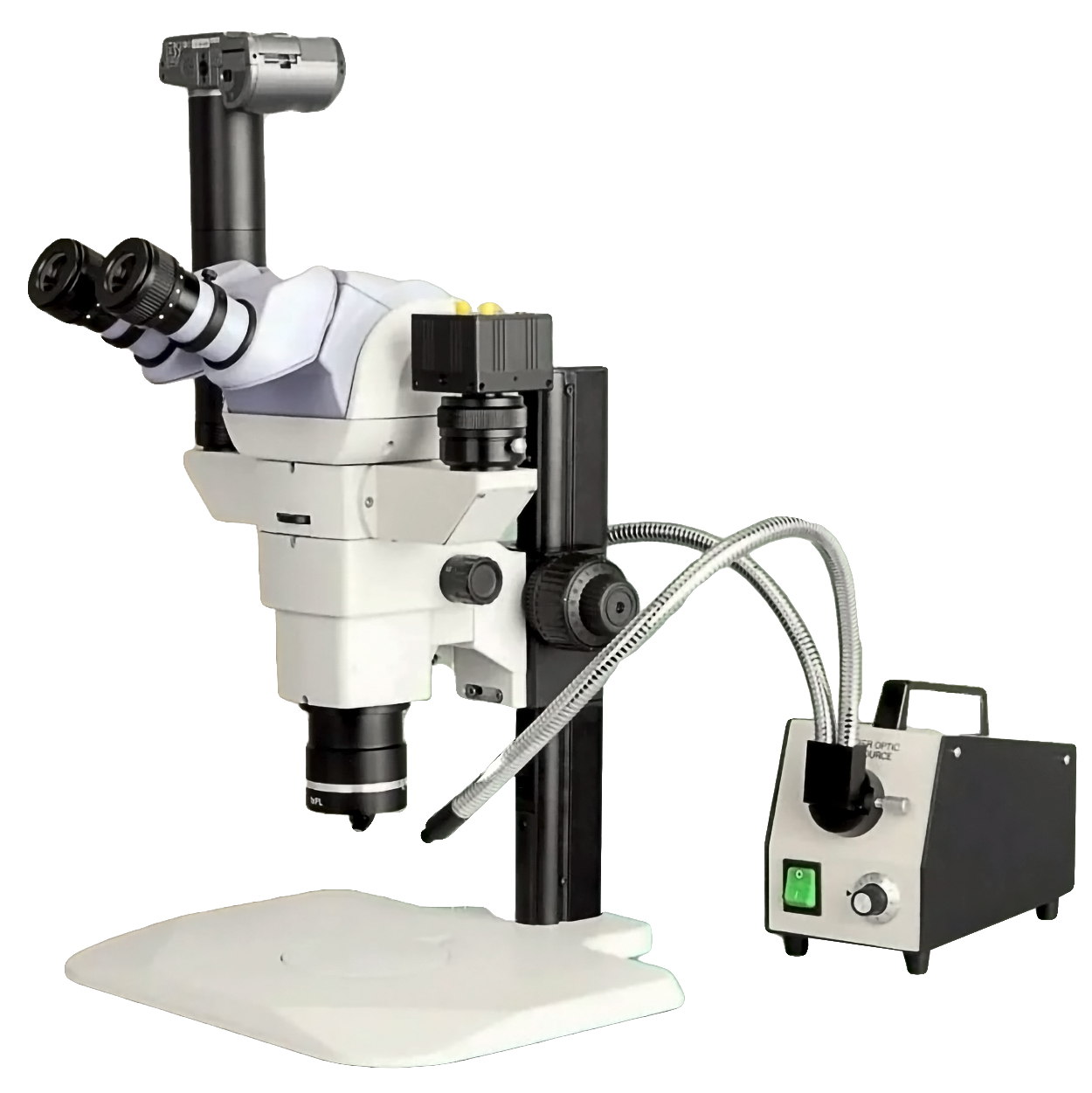

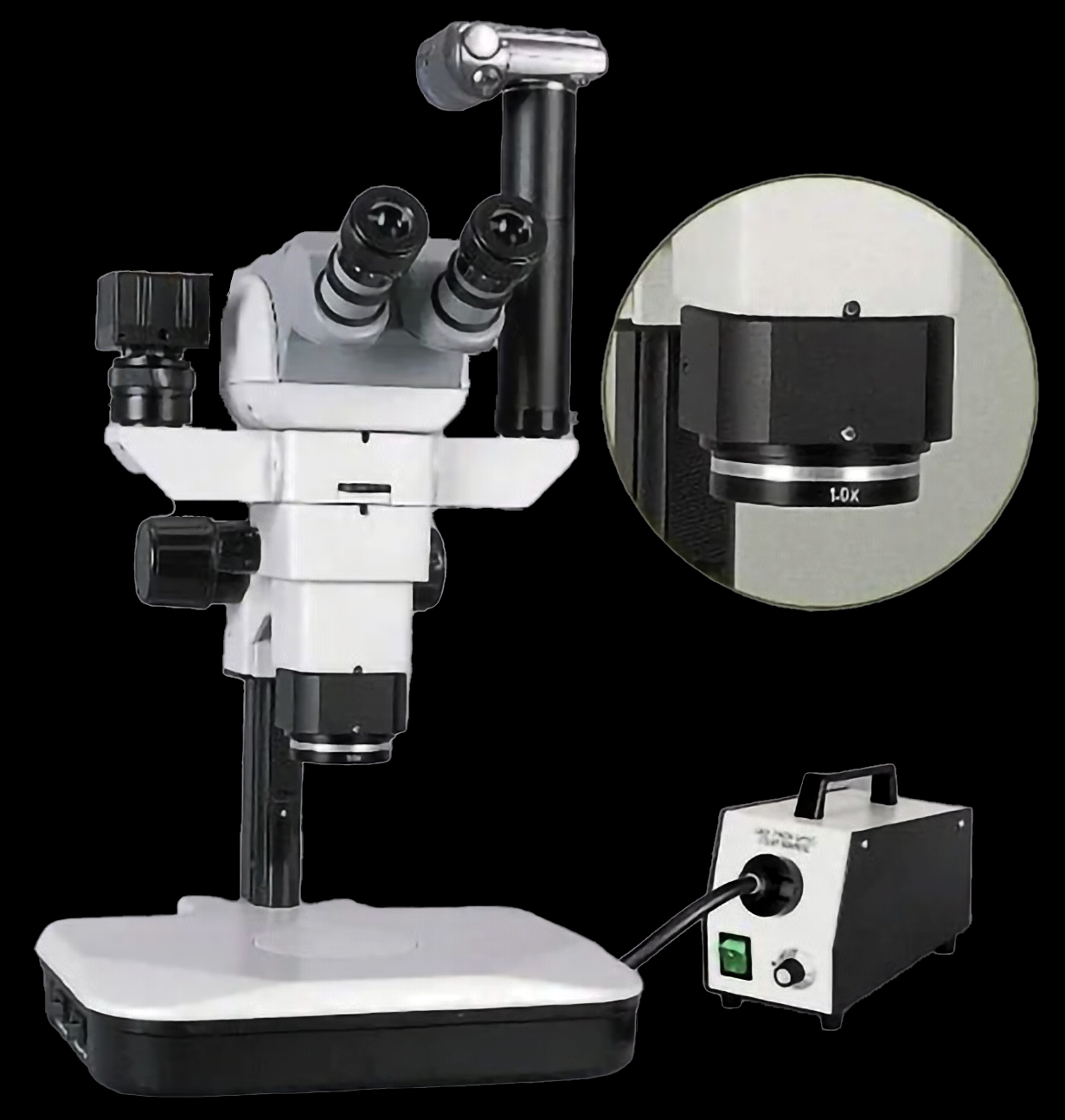

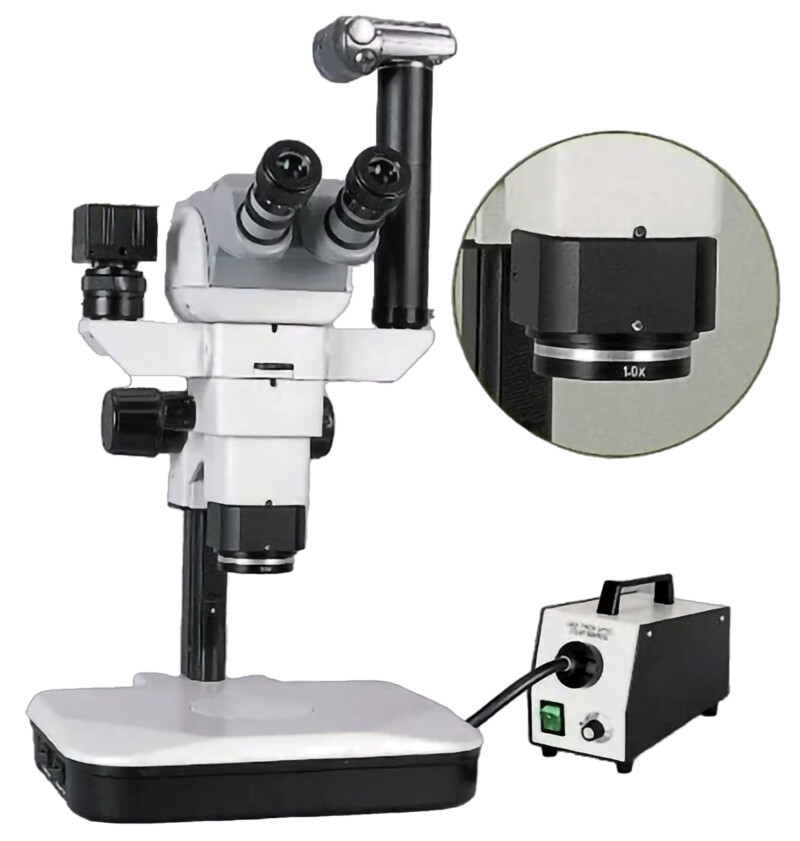

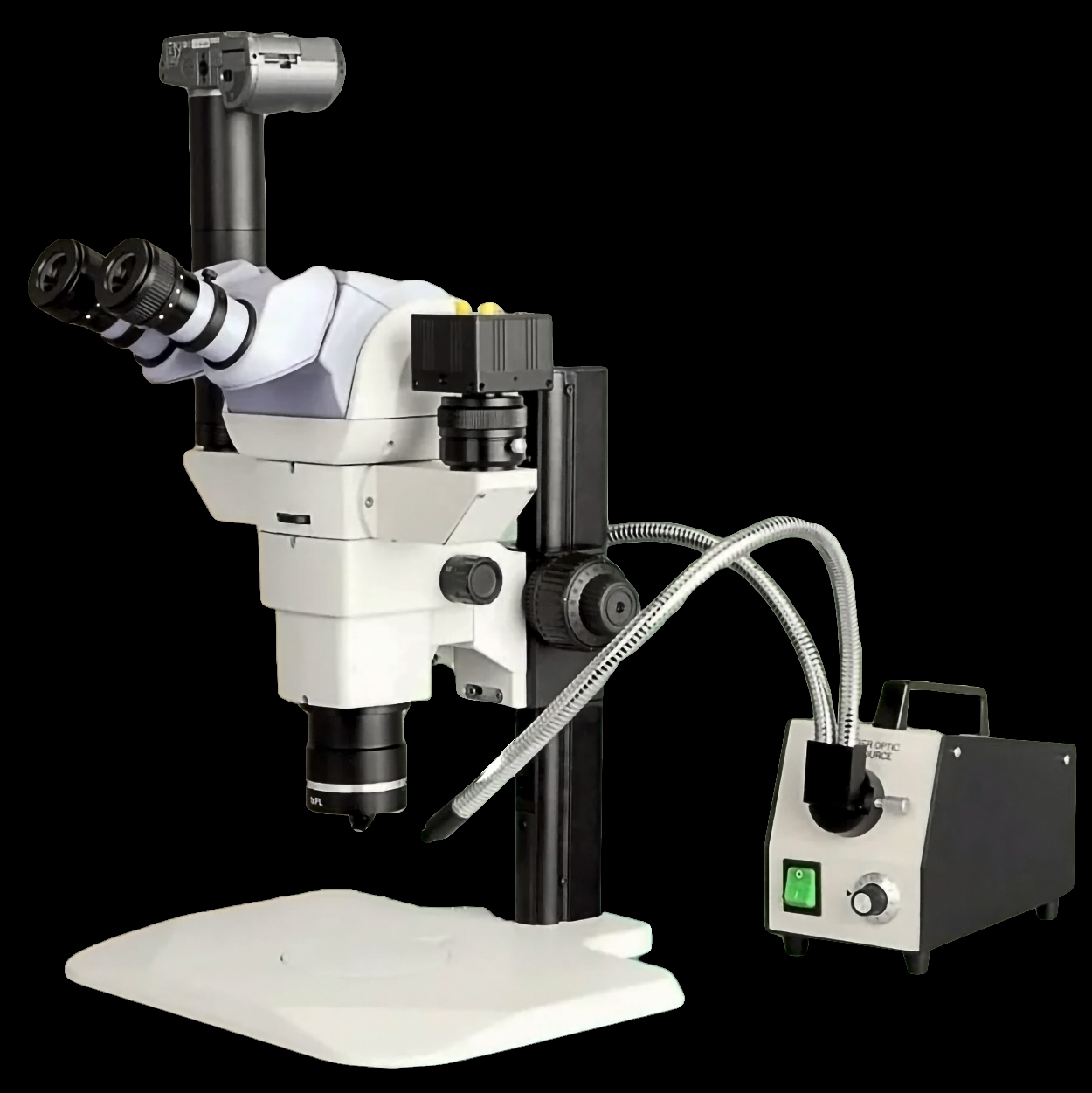

BSM700 Research Zoom Stereo Microscope


  • Galileo Optical System
  • Depth of field control iris Aperture
  • 0.68x-4.5x objective zoom range, 6.6:1 zoom ratio
  • Aux lens: 0.3x, 0.5x, 0.7x, 1x (included), 1.5x, 2x, 2.5x
  • WD: 22.53mm-329mm and standard 85 or 94mm at 1x
  • Total magnifications: 68x-45x which can be extended to 2x-337.5x
  • coaxial illumination
  • Inclined adjustment vieiwng head, 0-30°, 180° rotation
  • Eyepieces: 10x/23 (included), and optional 16x/14, 20x/12, 25x/9, 30x/8
  • Fine & Coarse focusing mechanism

$USD 2,690.00 $USD 3,500.00

BSM700 Research Zoom Stereo Microscope

BSM700 Research Zoom Stereo Microscope

Features

  • Galileo Parallel Optical System
  • Blocks Structure
  • Inclined Adjustment

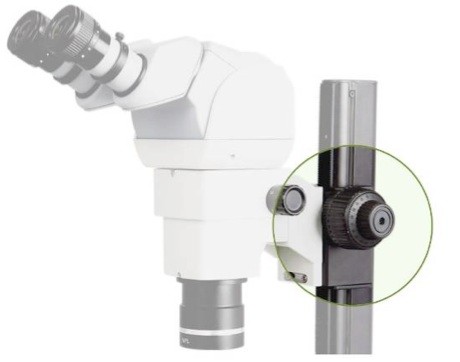

  • Coaxial Coarse and Fine Focusing
  • Depth of Field Control Structure
  • Multi-optical Path Output
  • Coaxial Illumination Unit

Specifications

Item

Specification

Outfits

Cat. No.

Objective Body

Galileo optical system, Left and right parallel optical path, Non-coaxial image, Zoom range: 0.68X-4.5X

BSM7-MB

Viewing Head

Head incline is adjustable from 0°-30°, 180° outside rotation and higher eye point to 80mm,Eyepiece locked ring

BSM7-VHE

Focusing System

Coaxial coarse and fine focusing system, Coarse stroke 240mm, Fine division 0.002mWithout illumination

BSM109101

With 6V/15W

Halogen reflecting illumination

BSM109102

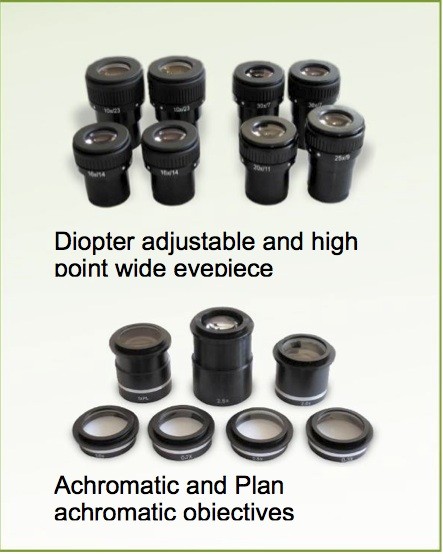

Eyepiece

(Diopter Adjustable)

WF10X/23mm

●●

BSM7-10X

WF10X/23mm (Reticule, X axis: 0.1mm/100 division)

BSM7-10XR

WF10X/23mm (Reticule, X axis: 0.05mm/200 division)

BSM7-10XR2

WF10X/23mm (Grid, X axis: 0.1 X 0.1mm/100 division)

BSM7-10XR3

WF16X/14mm

BSM7-16X

WF20X/12mm

BSM7-20X

WF25X/9mm

BSM7-25X

WF30X/8mm

BSM7-30X

Objective

0.3X achromatic objective (W.D=328.93mm)

BSM7-0.3X

0.5X achromatic objective (W.D=197.19mm)

BSM7-0.5X

0.7X achromatic objective (W.D=148.00mm)

BSM7-0.7X

1Xachromatic objective (W.D=93.87mm)

BSM7-1.0X

1X plan achromatic objective (W.D=84.92mm)

BSM7-1.0XPL

1.5X achromatic objective (W.D=46.69mm)

BSM7-1.5X

2X achromatic objective (W.D=34.04mm)

BSM7-2.0X

2.5X achromatic objective (W.D=22.53mm)

BSM7-2.5X

Image Output

Unit

One side image output unit

BSM7-TR

Double sides image output unit

BSM-TRS

Coaxial Illumination Unit

1W/LED illumination unit

BSM7-TZLED/1W

Single soft optical fiber 5W/LED cold light unit, Fiber length: 550mm, Light passed diameter: 8mm

BSM7-TZLED/5W

Base

Standard base (without illumination)

BSM7-STB

Transmitting illumination base, output: 6V/15W halogen lamp

BSM7-STT

C-mount

0.35X C-mount

BSM7-0.35XC

0.5X C-mount

BSM7-0.5XC

1X C-mount

BSM7-1XC

Adaptor for

Digital Camera

 BSM7-SLR

Optical Fiber Cold Lighting

Unit (5W/LED)

Ring soft optical fiber cold lighting unit, Fiber length: 550mm, Light passed diameter: 8mm

LGY-R/LED

Double hard optical fibers cold lighting unit, Fiber length: 550mm, Light passed diameter: 8mm

LGY-D/LED

Single soft/hard optical fiber cold lighting unit, Fiber length: 550mm, Light passed diameter: 8mm

LGY-S/LED

Optical Fiber Cold Lighting Unit

(150W/Halogen)

Ring soft optical fiber cold lighting unit, Fiber length: 550mm, Light passed diameter: 8mm

LGY-R

Double hard optical fibers cold lighting unit, Fiber length: 550mm, Light passed diameter: 8mm

LGY-D

Single soft/hard optical fiber cold lighting unit, Fiber length: 550mm, Light passed diameter: 8mm

LGY-S

Note: “●”In Table Is Standard Attachment. “○” Is Optional Accessories

SKU: bsm700 Categories: ,

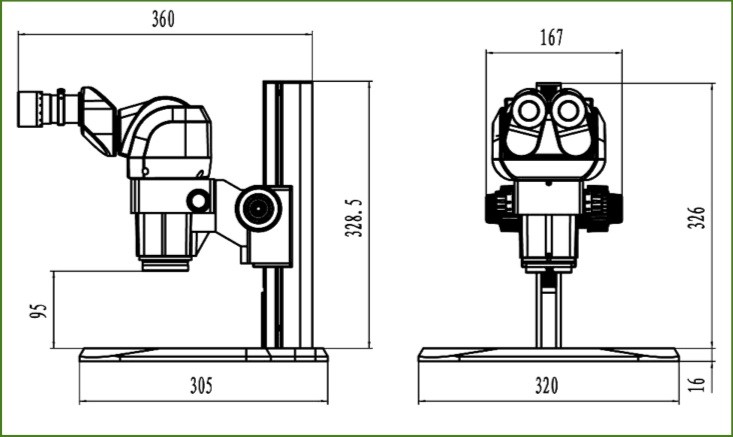

Dimension

BSM700 Research Zoom Stereo Microscope

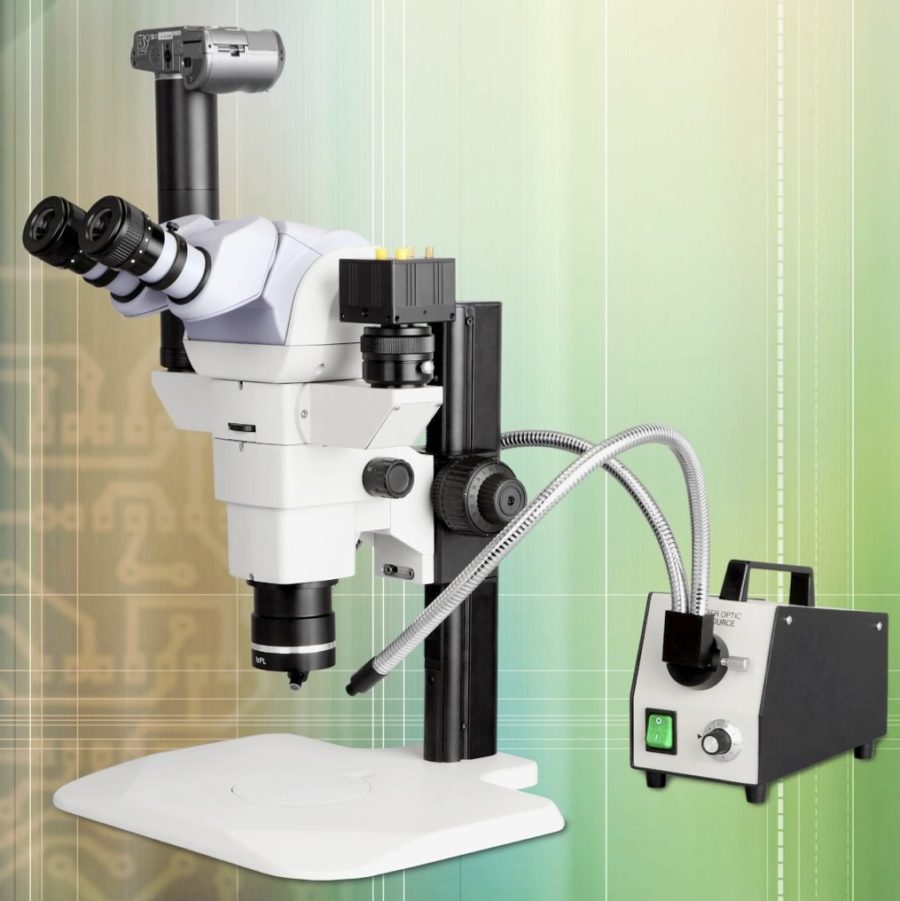

Blocks StructureCamera, Photo, Coaxial illumination and Iris Aperture are put into the main optical path, and camera and photograph can be connected at the same time to observe a same image asynchronously.

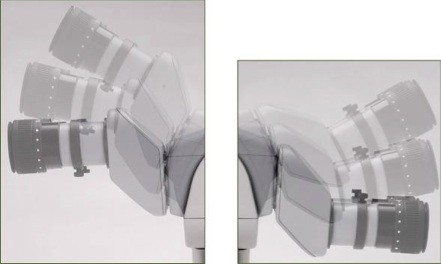

Incline Adjustment

  • Head incline is adjustable from 0-30°to ensure the comfortable position.
  • 180°rotation for eyepiece tube

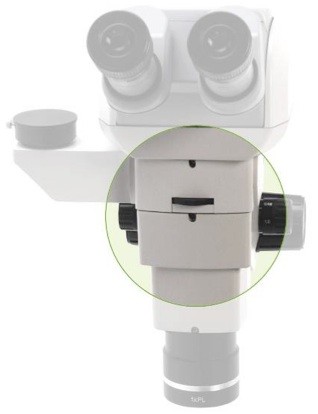

Depth of Field Control Structure

Change the aperture of optical path by iris aperture knob to larger the depth of field and improve the image clear.

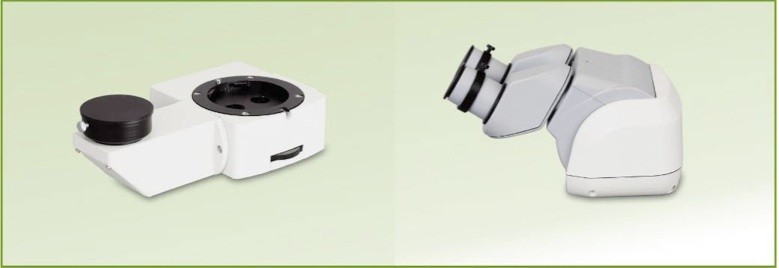

Multi-optical Path output

  • One side optical path distribution: 50:50
  • Double side optical path distribution: 50:50, two different images output equipment can be Used at the same time.

Depth of field control iris Aperture

Coaxial Illumination UnitLED cold lighting fiber connecting coaxial illumination unit ensures the illumination in the filed uniform and prevent the influence to the sample from the light heat.
