BSM500L Stereo Zoom Microscope

Availability:

In stock


Compare

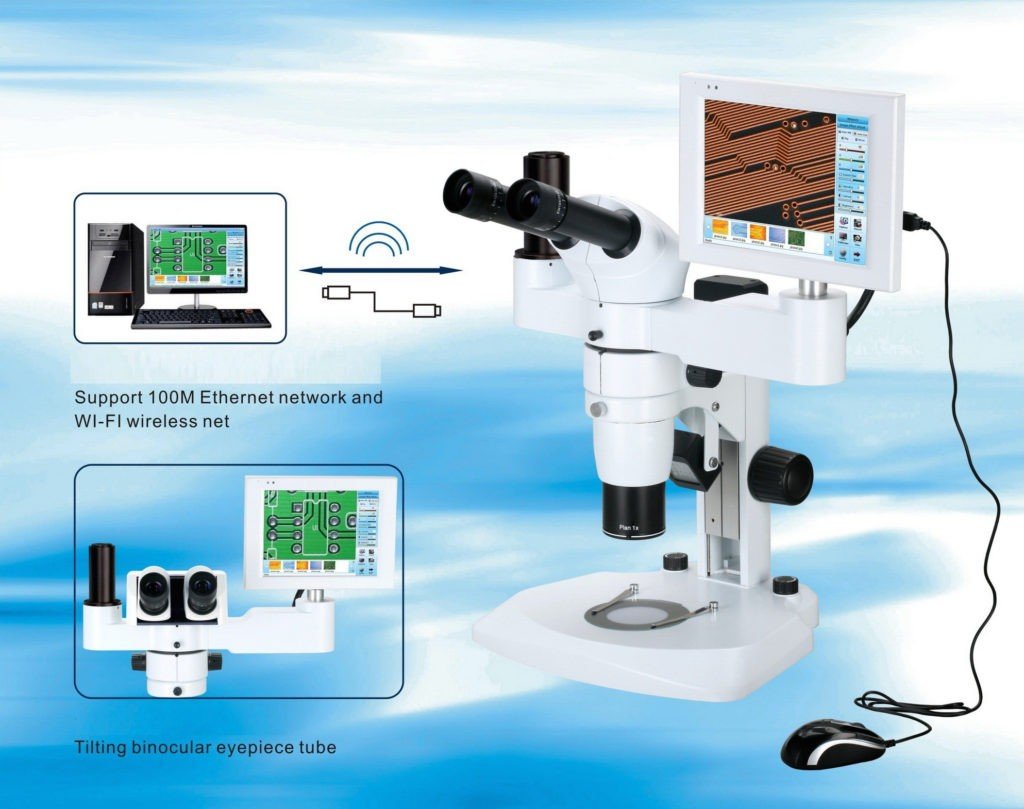

  • 8.4″ TFT Touch Screen, user-friendly interface
  • Infinite Parallel Zoom Optical System
  • Including submodels A, B, C based on different Zoom Objective (0.8x-5x, 0.8x-6.4x, 0.8x-8x) and Zoom Ratio 1:6, 1:8, 1:10
  • Binocular (Trinocular) Head, 20°Inclination
  • EW10×/Φ22 Eyepiece
  • Plan Achromatic Objective 1×
  • It is an outstanding product for industrial, medical and scientific research fields.

In stock

$2,288.00

Introduction

Stereo microscopes are also known as low magnification and dissecting microscopes. BSM500 Series Zoom Stereo Microscope with Infinity Parallel Optical System on a post stand offers upright, un-reversed 3-D images that remain in focus throughout the zoom range. Optional eyepieces and auxiliary objectives expand magnification range and working distances.

This is a high level stereo microscope. Optional cold light and ring light can be chosen for this microscope. You can also choose trinocular head to add digital camera with the appropriate camera adapter. In summary BSM500 series Parallel Stereo Microscopes give the greatest range of magnifications, working distances, photo options, accessories and are the most convenient to use – no wonder they are popular!

Application area

BSM500L series stereo zoom microscopes with Infinity Parallel Optical System is of great value in a variety of applications such as Industrial, Medical and Scientific Research Areas, circuit board repair, circuit board inspection, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, and repair and inspection of small parts.

Features

  • Excellent Image Quality & Optical Performance with Infinity Parallel Optical System.
  • Comfortable Operation with Ergonomic Design Principle.
  • With LED light for both incident and transmitted illumination, Providing even illumination and life expectancy can reach 6000 hours.
  • A Wide Range of Accessories to be Equipped with the Microscope for Multi-purpose. It is an Outstanding Assistant in Industrial, Medical and Scientific Research Areas.

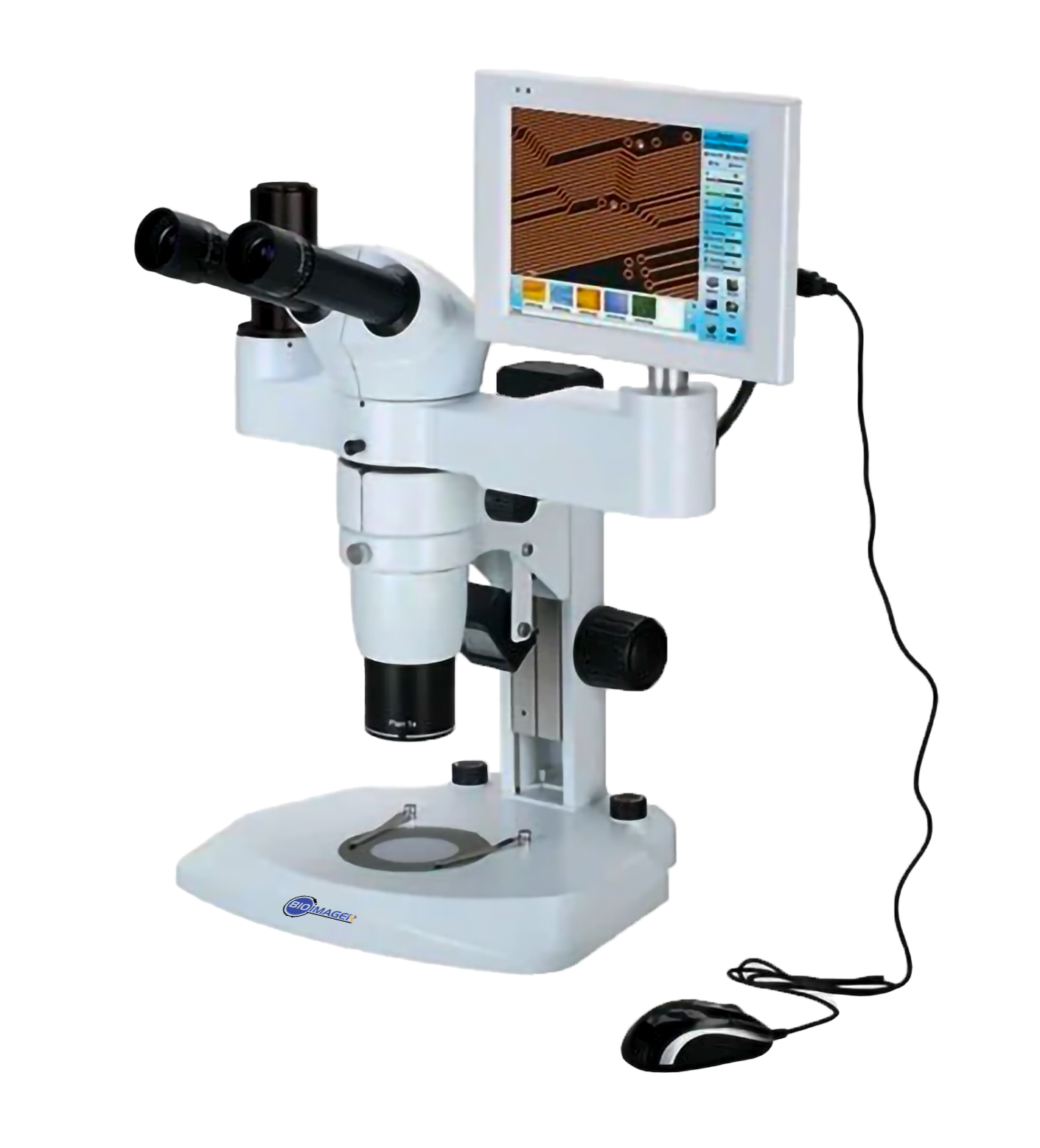

BSM500L LCD Stereo Zoom Microscope

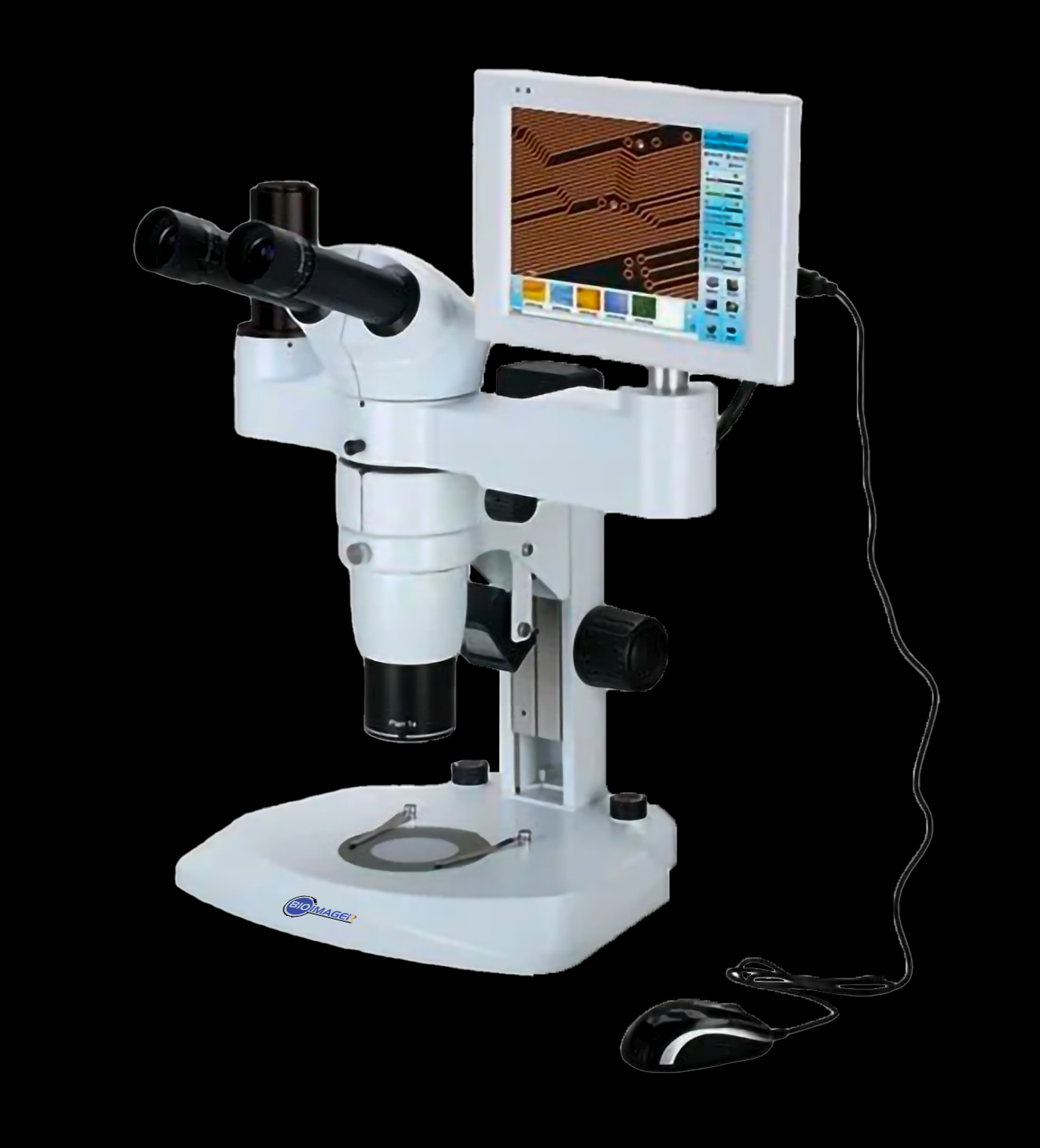

BSM500L Stereo Zoom Microscope

Introduction

Stereo microscopes are also known as low magnification and dissecting microscopes. BSM500 Series Zoom Stereo Microscope with Infinity Parallel Optical System on a post stand offers upright, un-reversed 3-D images that remain in focus throughout the zoom range. Optional eyepieces and auxiliary objectives expand magnification range and working distances.

This is a high level stereo microscope. Optional cold light and ring light can be chosen for this microscope. You can also choose trinocular head to add digital camera with the appropriate camera adapter. In summary BSM500 series Parallel Stereo Microscopes give the greatest range of magnifications, working distances, photo options, accessories and are the most convenient to use – no wonder they are popular!

Features

  • Excellent Image Quality & Optical Performance with Infinity Parallel Optical System.
  • Comfortable Operation with Ergonomic Design Principle.
  • With LED light for both incident and transmitted illumination, Providing even illumination and life expectancy can reach 6000 hours.
  • A Wide Range of Accessories to be Equipped with the Microscope for Multi-purpose. It is an Outstanding Assistant in Industrial, Medical and Scientific Research Areas.

Application area

BSM500L series stereo zoom microscopes with Infinity Parallel Optical System is of great value in a variety of applications such as Industrial, Medical and Scientific Research Areas, circuit board repair, circuit board inspection, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, and repair and inspection of small parts.

Specifications

ModelBSM500

A

BSM500

B

BSM500

C

Optical SystemInfinite Parallel Zoom Optical System
Viewing HeadBinocular Head, 20°Inclination, Interpupilary Distance 55-75mm

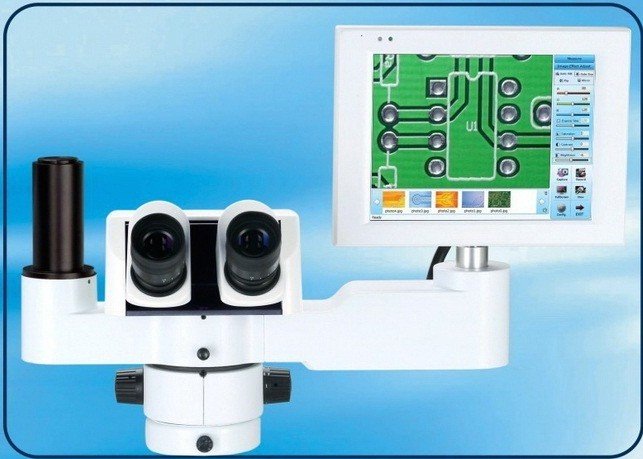

Tilting Binocular Eyepiece Tube, 5°-35° Inclined, Interpupilary Distance 55-75mm
EyepieceEW10×/Φ22
WF15×/Φ16
WF20×/Φ12
WF30×
Zoom Objective0.8×-5×
0.8×-6.4×
0.8×-8×
ObjectivePlan Achromatic Objective 1×
Achromatic Objective 0.3×
Plan Apochromatic Objective 0.5×
Plan Achromatic Objective 2×
Zoom Ratio1: 6
1: 8
1: 10
Working Distance78mm
Focusing Range105mm
IlluminationTransmission & Reflection LED Illumination, Brightness Adjustable
Optional AccessoriesCoaxial Illumination
Epi-Fluorescent Attachment
Dark Field Attachment
Simple Polarization Set
Iris Diaphragm
Beam splitter (one port)
Beam splitter (two ports)
Photography & video attachment
Moveable Stage
Temperature controlled Stage
Universal Table Stand/Table clamp stand
Coaxial Coarse & Fine Focusing Unit
Cold light illumination with dual light guide
LCD Attachment
Package & Dimension49cm*40cm*56cm, 1pc/carton, 9.5kg

Note: ● Standard Outfit, ○ Optional
Optical Specifications

Obj. LensWorking DistanceZoom RatioEyepieces
10X20X30X
MagFOV (mm)MagFOV (mm)MagFOV (mm)
0.5X187mmA: 1:64X – 25X57.5 – 9.28X – 50X35 – 5.612X – 75X25 – 4
B: 1:84X – 32X57.5 – 7.28X – 64X35 – 4.412X – 96X25 – 3.1
C: 1:104X – 40X57.5 – 5.88X – 80X35 – 3.512X – 120X25 – 2.5
1X78mmA: 1:68X – 50X28.8 – 4.616X – 100X17.5 – 2.824X – 150X12.5 – 2
B: 1:88X – 64X28.8 – 3.616X – 128X17.5 – 2.224X – 192X12.5 – 1.6
C: 1:108X – 80X28.8 – 2.916X – 160X17.5 – 1.824X – 240X12.5 – 1.3
2X35mmA: 1:616X – 100X14.4 – 2.932X – 200X8.8 – 1.448X – 300X6.3 – 1
B: 1:816X – 128X14.4 – 2.332X – 256X8.8 – 1.148X – 384X6.3 – 0.8
C: 1:1016X – 160X14.4 – 1.832X – 230X8.8 – 0.948X – 480X6.3 – 0.6

FOV=Field of View, Mag.=Magnification

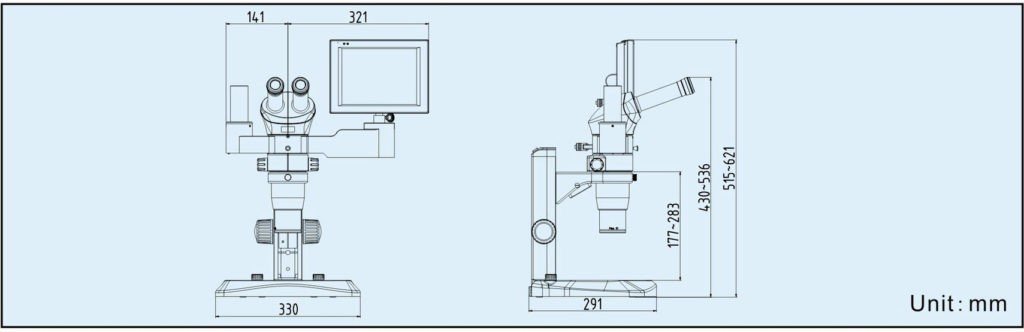

Dimensions
BSM500L Stereo Zoom Microscope

Accessories to add on:

L-Shape Video TubeTwo-Port Beam SplitterDrawing attachment

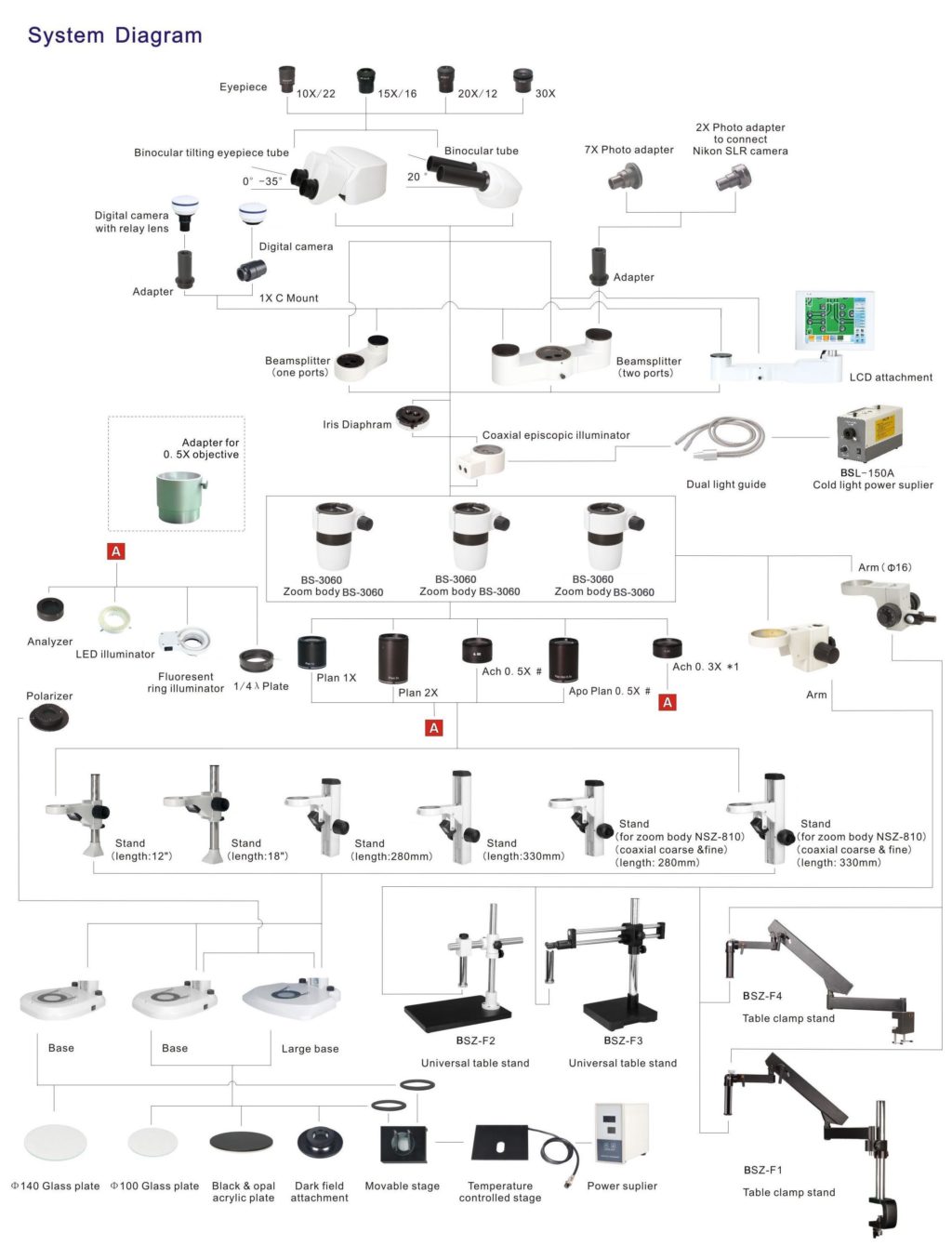

System Diagram:

Models to consider:

BSM500 Stereo Zoom Microscope

Binoculari

BSM500 Stereo Zoom Microscope

Trinocular Head with fine focus

BSM500 Stereo Zoom Microscope
BSM500P with coaxial episocopic illuminator
BSM500L Stereo Zoom Microscope

BSM500L with LCD

BSM500E with ergonomic vieiwing head


BSM500FL with Epi-fluor attachment

Application area

BSM500 series stereo zoom microscopes with Infinity Parallel Optical System is of great value in a variety of applications such as Industrial, Medical and Scientific Research Areas, circuit board repair, circuit board inspection, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, and repair and inspection of small parts.

Sample Images

BSM500 Stereo Zoom MicroscopeBSM500 Stereo Zoom Microscope
BSM500 Stereo Zoom Microscope BSM500 Stereo Zoom Microscope
