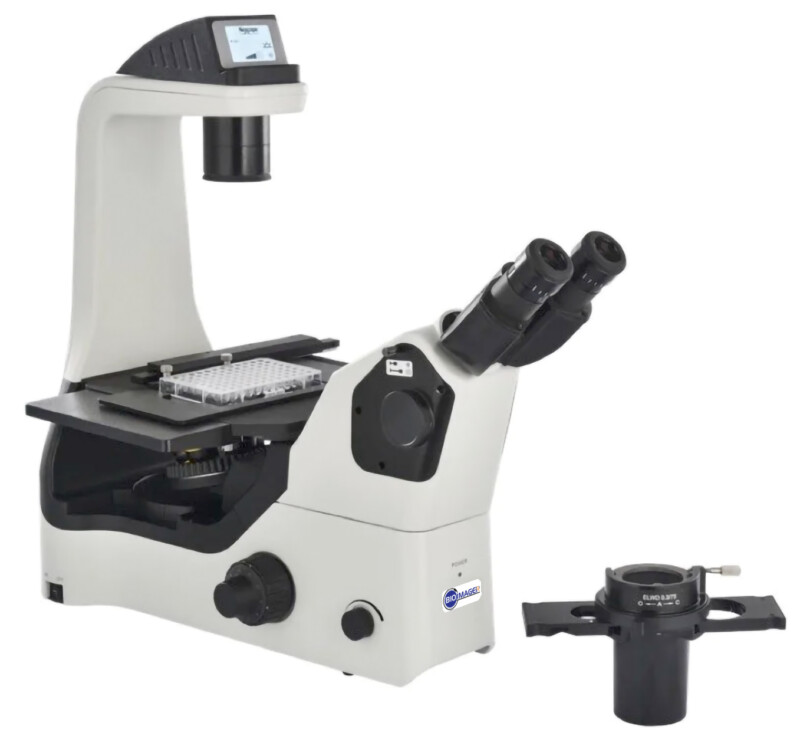

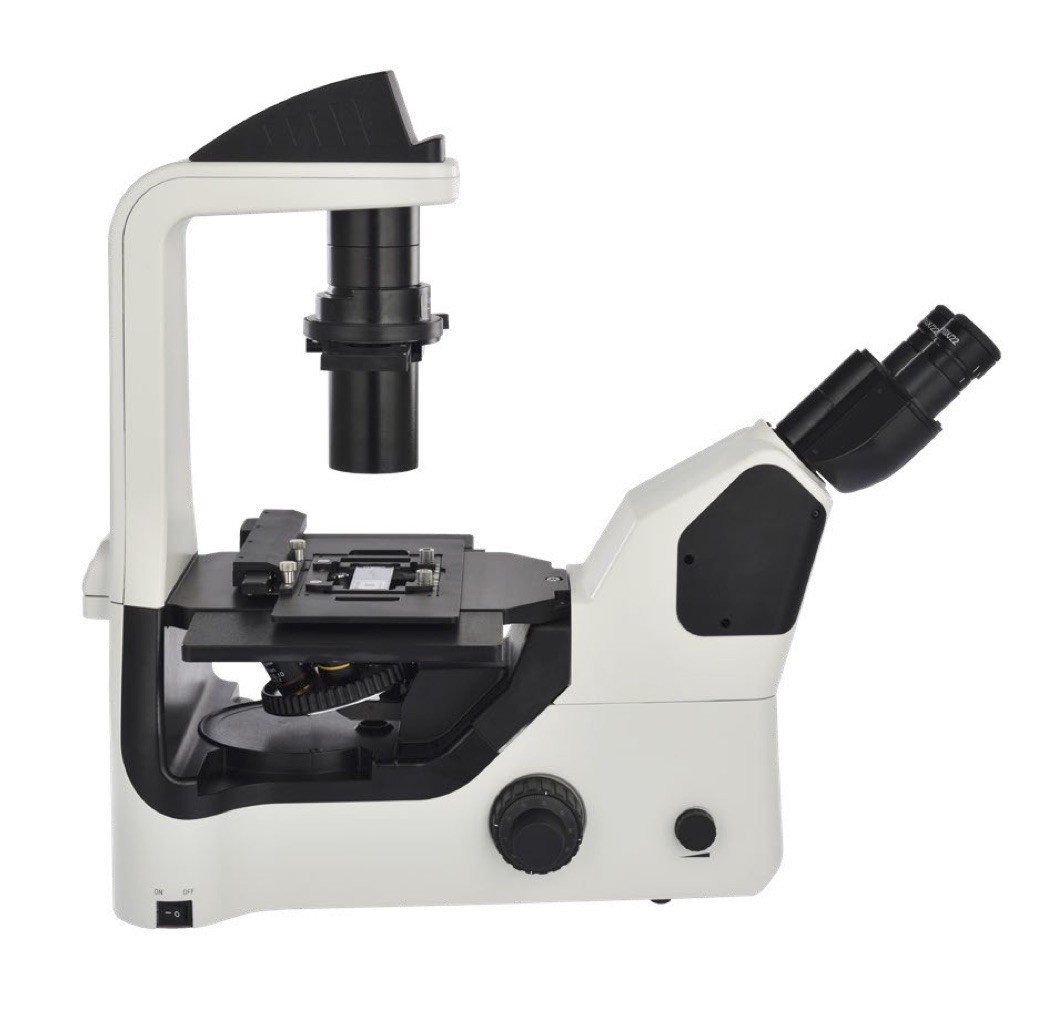

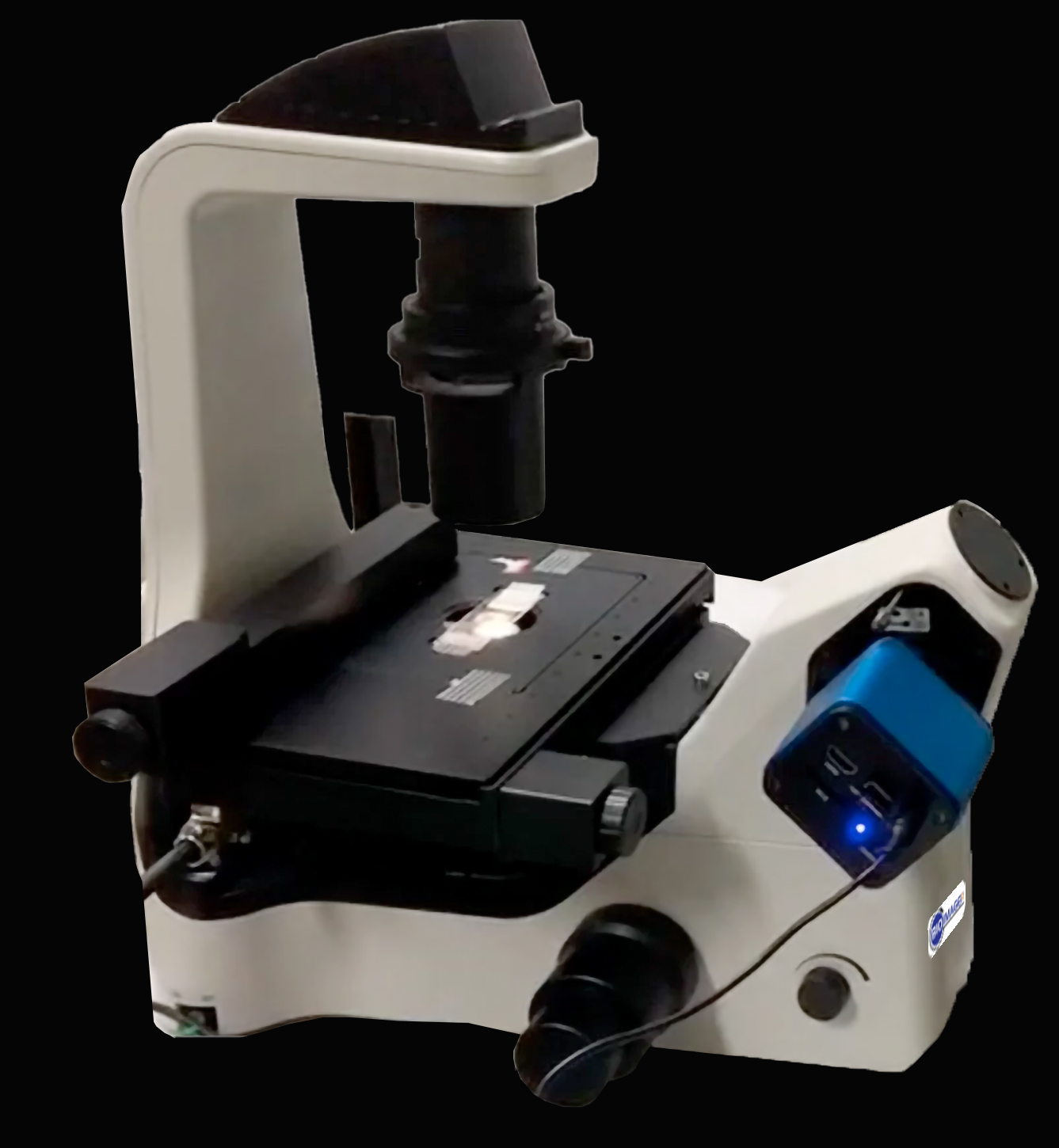

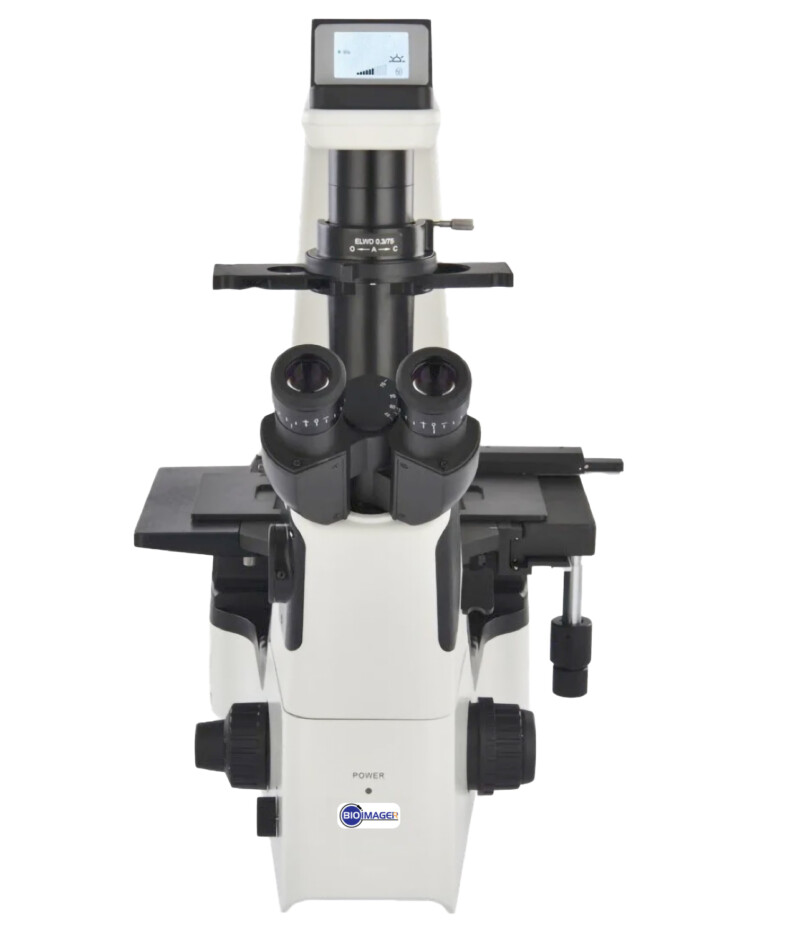

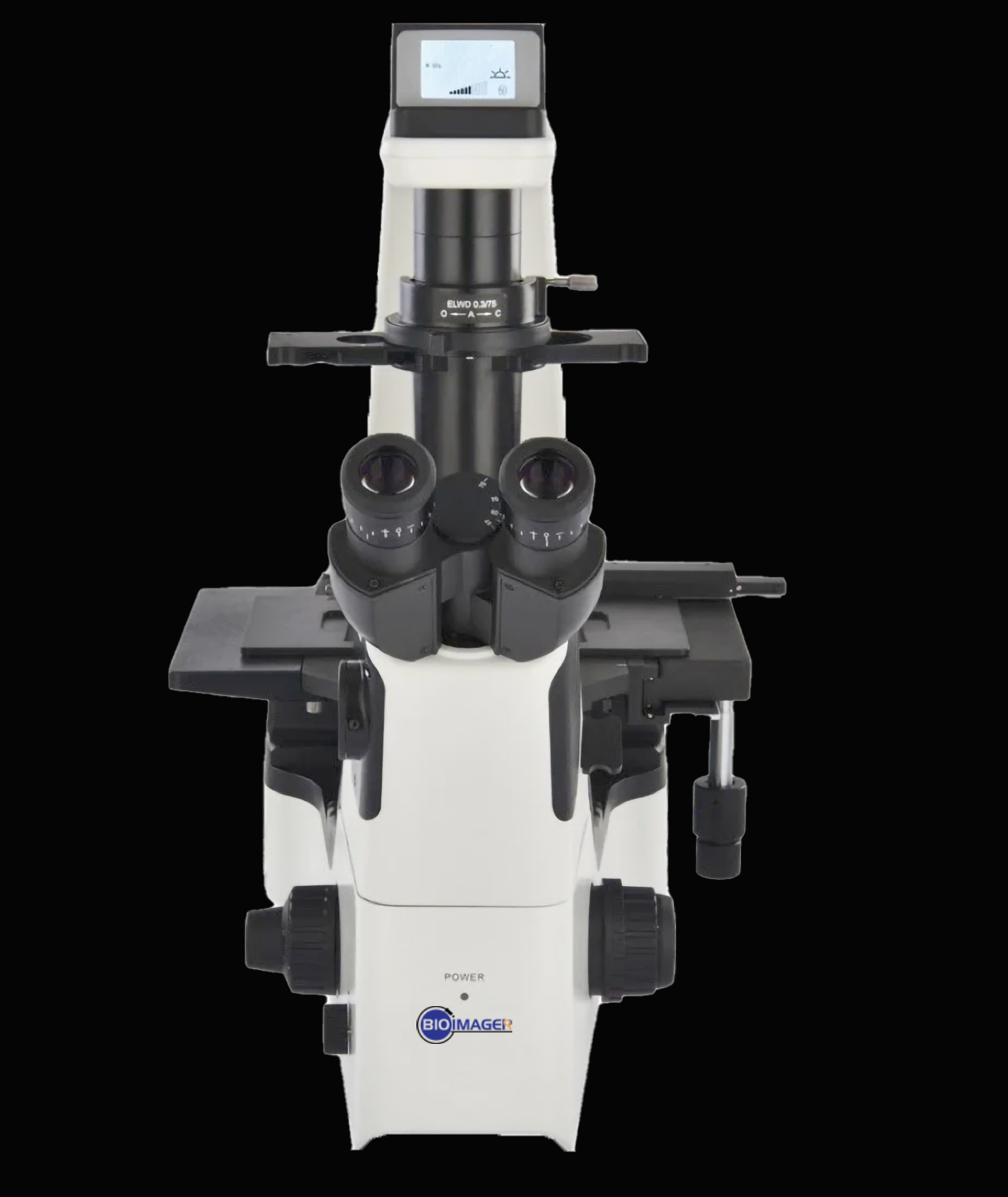

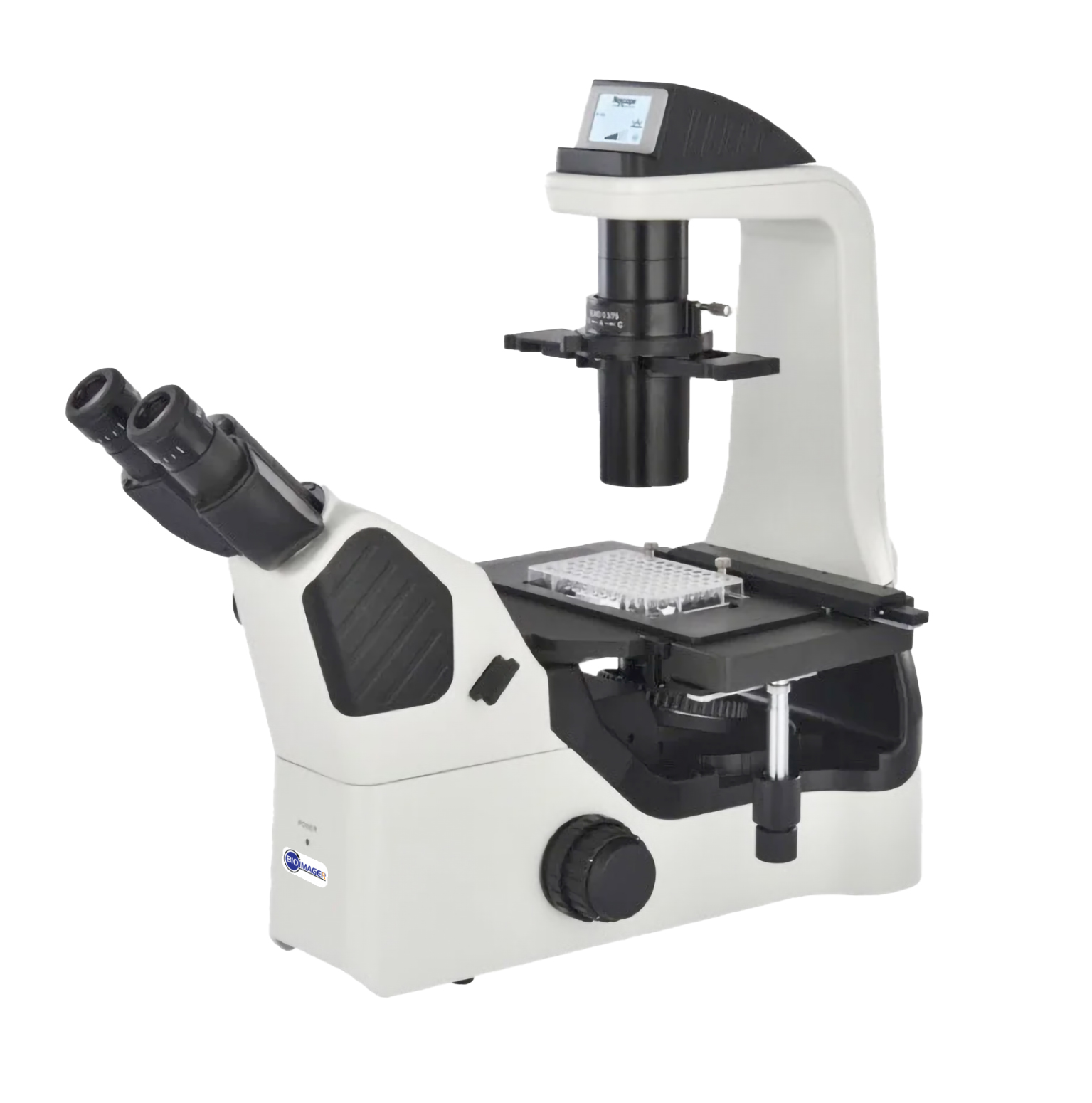

BioScan-i600A Inverted Smart Slide Scanning System

Original price was: $USD 17,750.00.Current price is: $USD 7,792.00.

-56%

The first smart inverted slide scanning system in the world
Scans up to 4 standard (25x75mm / 1x3in) or 2 double size (50x75mm /2x3in) glass slides
Two objective lenses included from 2x to 100x
Optional obj lenses of 2x, 4x, 10x, 20x, 40x, 60x, 100(oil)
Various camera option from 2MP to 32MP

Stitching mode

Manual

Automated +$USD4,996.00

Select Included Two Obj lenses

Extra Plan Objective lenses

Plan S Apo Lenses (for FL or High qaulity Images))

Imaging Capability

Slide Holder

Add to Wishlist

Questions? Request a Call Back

Smart Simple and Cost Effective Slide Scanning System with AI

Our BioScan-i600A is the first inverted slide scanning system which is smart and simple to use. An inverted slide scanning system is a setup designed for digitizing pathology, histology, hematology, mineralogy or geology slides into digital format. It typically involves an inverted microscopy system with multiple objective lenses and automated XYZ that allows you to capture high-resolution images of the slides and save them as digital files.

Here’s a general overview of how this inverted slide scanning system works:

Slide Holder: The system usually includes a slide holder or tray that securely holds the slides in place during the scanning process. The holder is designed to accommodate multiple slides simultaneously. You can have a combination of standard 25x75mm or 1x3in glass slides. Normally it takes up to four 25x75mm or two 50x75mm. A combination of these two and custom slide holder is also available.
Inverted vs Upright: The system allows putting the slides on a large stage in an inverted position, i.e. a coverslip facing down rather than up. Objective lenses are from the bottom of the stage allowing a plenty of space for micro-manipulation, micro-injection and automation of slide feeding.
Imaging modes: the default imaging mode is brightfield. You can easily upgrade it to phase contrast, 3d contrast module, polarization and epi-fluorescence (that requires configuring during the order not later).
Camera: The system is offered with several types of cameras, from 2MP to 32MP.
Digital Conversion: all standard types of the image are offered: .jpg, .tiff, .bmp, etc.
Software: scanning can be done quickly and you have option to let the SW do only scanning or scanning and stitching together. More features of the SW is coming up.

BioScan-i600A Inverted Smart Slide Scanning System

1. BioScan-i600A Inverted Biological Microscope

Model			BioScan	i610	i620
Optical System	NIS Infinite Optical System (F200)			●	●
Observation Method	Brightfield Phase Contrast Hoffman Phase Contrast Emboss Contrast Epi Fluorescence			● ○ ○ ○ ○	● ○ ○ ○ ○
Illumination	Transmitted Illumination	3W S-LED		●
	Transmitted Illumination	3W S-LED Kohler Illumination			●
	Episcopic Illumination	LED Illuminator Built-in Fly-eye Lens Configure up to 3 channels LED Units Available Wavelengths: 365, 405, 485, 525nm		○	○

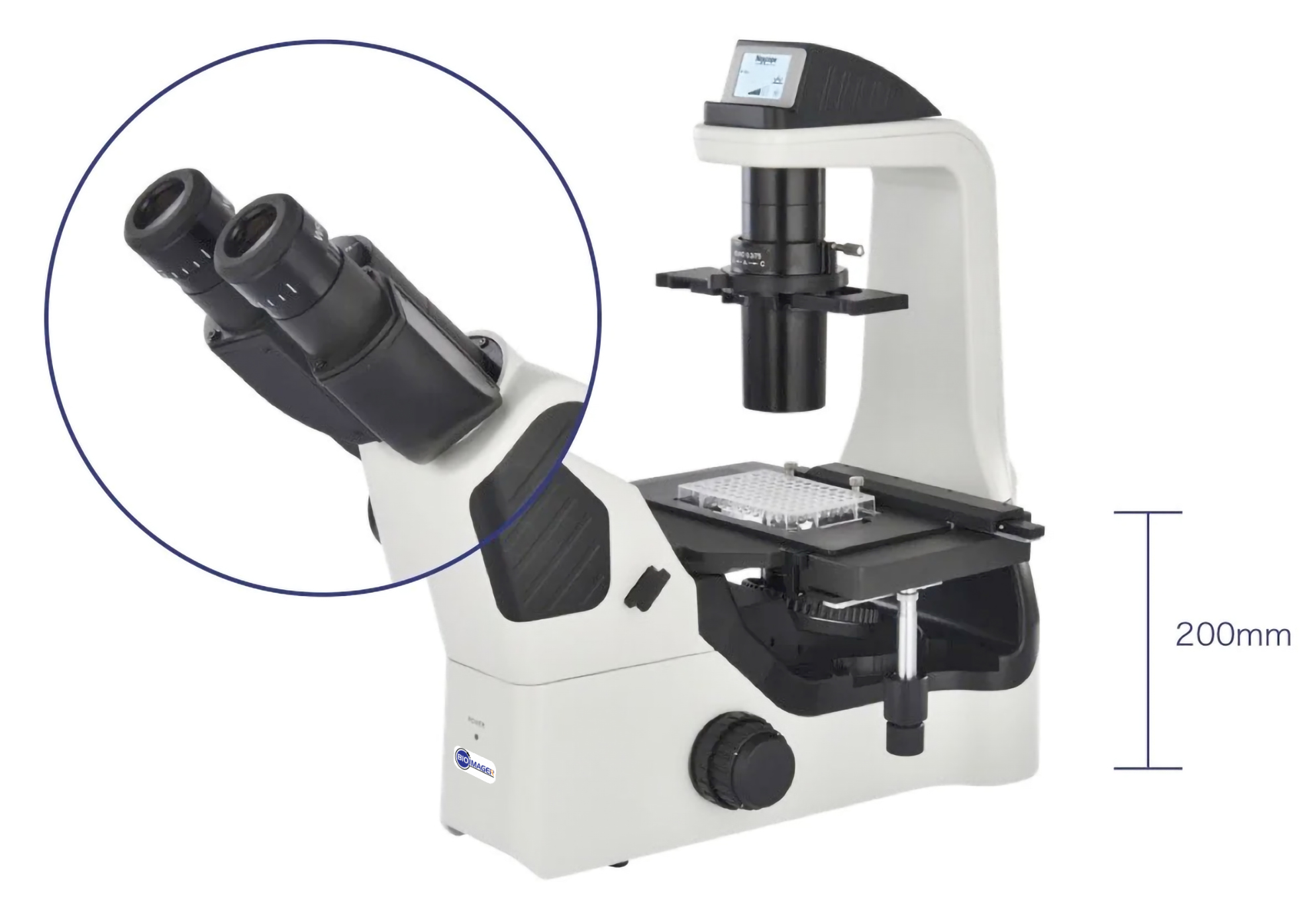

Viewing Head	Seidentopf Viewing Head, Inclined at 45°, Interpupillary 48-75mm; Additional Camera Port, Eyepiece /Port 100/0 ∶ 0/100			●	●
Eyepiece	Magnification (FOV)		SW10x (22) WF15x (16) WF20x (12)	● ○ ○	● ○ ○
Focusing	Coaxial Coarse and Fine Adjustment, the Function of Coarse Tightness Adjustment, Fine Division 1 um, Fine Stroke 0.2mm per Rotation, Coarse Stroke 37.5mm per Rotation. Up 7mm, Down 1.5mm.			●	●
Nosepiece	Quintuple Nosepiece Coded Quintuple Nosepiece			●	●
LCD Screen	Function Display Magnification, Sleep time, Brightness Indication, Lock mode, etc.			x	●
Condenser	Condenser NA 0.3, WD 75mm, without Condenser WD 187mm			●	●
Stage	Stage: 170(X)× 250(Y)mm Attachable Mechanical Stage: 128(X)× 80(Y), Accepts 5 Types of Microtest plate, well Clamper and Stage Clip.			●	●
Holder for glass slide	One 25x75mm /1×3 in glass slide Two 25x75mm /1×3 in glass slide Four 25x75mm /1×3 in glass slide One 50x75mm /2×3 in glass slide Two 50x75mm /2×3 in glass slide One 25x75mm /1×3 in , One 50x75mm /2×3 in Two 25x75mm /1×3 in , One 50x75mm /2×3 in			● ○ ○ ○ ○ ○ ○	● ○ ○ ○ ○ ○ ○
Phase System	Condenser with 4x Phase Annulus Plate 10x, 20x, 40x Universal Phase Annulus Plat			○	○
Hoffman Phase	10x, 20x, 40x Hoffman Condenser, Special Objective			○	○
LWD Infinity Plan Phase Contrast Objective	4x/0.10, W.D.30.0mm 10x/0.25, W.D.10.2mm 20x/0.40, W.D.12.0mm 40x/0.60, W.D.2.20mm			○ ○ ● ○	○ ○ ● ○
Relief 3D Contrast	Condenser and Eyepiece with Emboss Contrast 10x, 20x, 40x, Universal Emboss Contrast Slide			○	○
LWD Infinity Plan Semi-APO Fluorescent Objective	4x/0.13, W.D.17.0mm, Cover Glass – 10x/0.30, W.D.7.4mm, Cover Glass1.2mm 20x/0.45, W.D.8.0mm, Cover Glass1.2mm 40x/0.60, W.D.3.3mm, Cover Glass1.2mm			○ ○ ○ ○	○ ○ ○ ○
Epi-Fluorescence Attachment	Epi-fluorescence Filter Turret, Configure with up to 3 Filter Cubes. Attachable Contrast Shield.			○	○
Video Adapter	0.5x C Mount Adapter 1x C-Mount Adapter			○ ○	○ ○
Optional	ECO (No Operator, Turn off the Light Source Automatically in 15 Minutes); Heating Stage			○	○
Dimension	44(W)×559(D)× 526(H) mm			●	●

Note: ● Standard Outfit, ○ Optional

2. Automation:

Model	i600A
Moving Range	X: 125mm x Y: 75mm
Min step size	0.1um
Repeated positioning accuracy	±1.5um
Max speed	20mm/s
Size	27523944.5 (mm)
Limitation	Software limitation Mechanical position limitation Photoelectric switch limitation
Z Repeated positioning accuracy	Average: ±1.5um Near the focus: ±0.1um
Z Max speed	10 r/s
Rocker	3D controllable rocker: Four speed
Port	USB2.0 and RS232
BAUD	9600

3. Camera

Order Code	Sensor & Size (mm)	Pixel (μm)	G Sensitivity Dark Signal(with 1/30s)	FPS/Resolution	Binning	Exposure
BIC-E3S-2.0	2.0MP IMX385(C) 1/2″ (7.20×4.05)	3.75 x3.75	2350mv 0.15mv	125 @1920×1080	1×1	0.1ms -15s
BIC-E3S-3.1G	3.1MP IMX265 (C, GS) 1/1.8″(7.07×5.30)	3.45×3.45	1146mv 0.15mv	53 @2048×1536 85 @1024×768	1×1	0.1ms -15s
BIC-E3S-5G	5.0MP IMX264(C, GS) 2/3” (8.45×7.07)	3.45×3.45	1146mv 0.15mv	35 @2448×2048 50 @1224×1024	1×1	0.1ms -15s
BIC-E3S-8.3C	8.3MP IMX485(C) 1/1.2″(7.68×4.32)	2.9×2.9	2188mv 0.15mv	45 @3840×2160 70 @1920×1080	1×1 2×2	0.02ms -15s
BIC-E3S-9.0G	9M IMX305 (C, GS) 1″(14.13×7.45)	3.45 x3.45	1146mv 0.15mv	34@4096×2160 60@2048×1080	1×1, 2×2,3×3	0.1ms -15s
BIC-E3S-20.0	20MP IMX183(C) 1″ (13.06×8.76)	2.4 x 2.4	462mv 0.21mv	15@5440×3648 50 @2736×1824 60@1824×1216	1×1, 2×2, 3×3	0.1ms~15s
BIC-E3S-21.0	20MP IMX269(C) 4/3″ (13.06×8.76)	3.3 x 3.3	399mv 0.21mv	17@5280×3954 17@3952×3952 56@2640×1976 67@1760×1316 192@584×438	1×1, 2×2, 3x39x9	0.1ms~15s

C: Color, GS: Global Shutter.

BioScan_i610A_10x_15.6MP_1xCA

Dr C_Sample C_i610A_40x_15.6MP_1xCA_37x33

Dr.C_Sample ABC_i610A_20x_15.6MP_1xCA_200umDOFB

Dr.C_Sample ABC_i610A_20x_15.6MP_1xCA_800umDOF

Dr.C_Sample B_i610A_20x_15.6MP_1xCA_400umDOF
