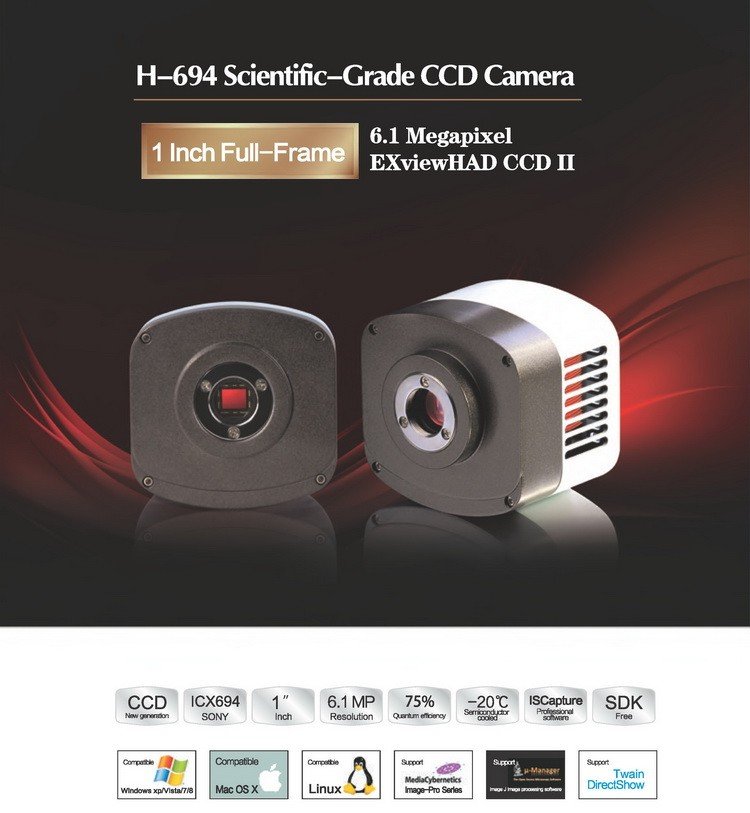

BIC-6100 (H-694) Series 6.1MP 1″ High Sensitivite Cooled CCD Microscope Camera
- 1- or 2-stage cooled CCD,
- Mono or Color; USB2.0,
- 6.1MP (2728 x 2192), 1″ Sony ICX694, 4.54μm/pixel, 3.5-9fps, 12bit.
- Software compatible: Windows/Mac. SDK
$USD 3,400.00 $USD 4,250.00
BIC6100 (H-694) Series 6.1MP 1″ High Sensitivite Cooled CCD Microscope Camera
| Sensor | ICX694 |
| Color/monochrome | Monochrome/Color |
| Sensor size | 1″ |
| Pixel size(μm) | 4.54μm x4.54μm |
| Effective pixels | 6MP |
| Max.resolution (H×V) | 2736Hx2200V |
| Scan mode | Progressive |
| Shutter | Electronic shutter |
| Frame rate | 3.5fps (2728×2192) |
| 6.5fps (1620×1072 ) | |
| 9fps(1080×720) | |
| Color depth | ― |
| A/D | 12 bit |
| Exposure Control | Manual/Auto |
| Exposure time | 1ms-160minute |
| White Balance | Manual/Auto |
| Dynamic range | 75dB |
| Operating temperature | 0-60℃ |
| Cooling | Semiconductor refrieration |
| Operating humidity | 45%-85% |
| Storage temperature | -20-70℃ |
| Cooling temperature | -10 |
| Operating system | Windows/ Linux / Mac |
| Optical port | C-Mount |
Specifications
| Sensor | ICX694 |
| Color/monochrome | Monochrome/Color |
| Sensor size | 1″ |
| Pixel size(μm) | 4.54μm x4.54μm |
| Effective pixels | 6MP |
| Max.resolution (H×V) | 2736Hx2200V |
| Scan mode | Progressive |
| Shutter | Electronic shutter |
| Frame rate | 3.5fps (2728×2192) |
| 6.5fps (1620×1072 ) | |
| 9fps(1080×720) | |
| Color depth | ― |
| A/D | 12 bit |
| Exposure Control | Manual/Auto |
| Exposure time | 1ms-160minute |
| White Balance | Manual/Auto |
| Dynamic range | 75dB |
| Operating temperature | 0-60 ℃ |
| Cooling | Semiconductor refrieration |
| Operating humidity | 45%-85% |
| Storage temperature | -20-70℃ |
| Cooling temperature | -10 |
| Operating system | Windows/ Linux / Mac |
| Optical port | C-Mount |
Package Contets
The cooled CCD cameras are packed in aluminum cases, the package includes:
| Digital camera (standard C-mount) | 1 |
| 1.8 meters USB cable | 1 |
| Peltier cooled power supply | 1 |
| Peltier cooled cable | 1 |
| CD (Driver, software) | 1 |
| Manual (soft copy) | 1 |
| Aluminum case | 1 |
Two softwrares are offered at no extra cost. Free updated version will be avilable too.
SDK driver is avilable too.
Two softwrares are offered at no extra cost. Free updated version will be avilable too.
SDK driver is avilable too.
