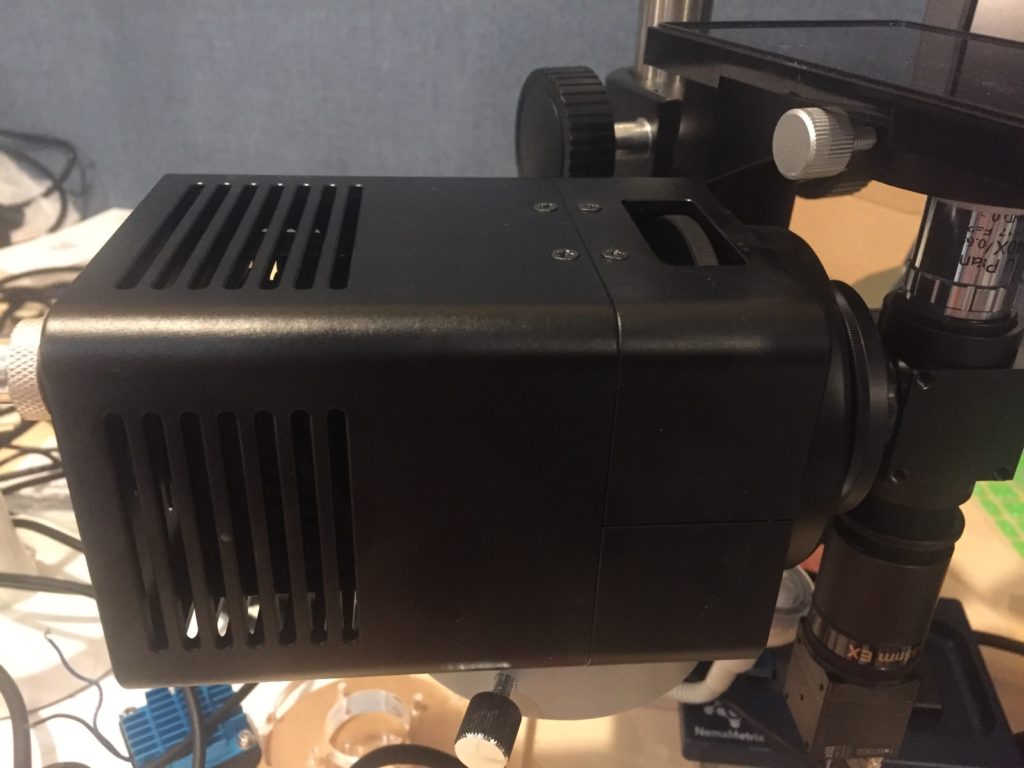

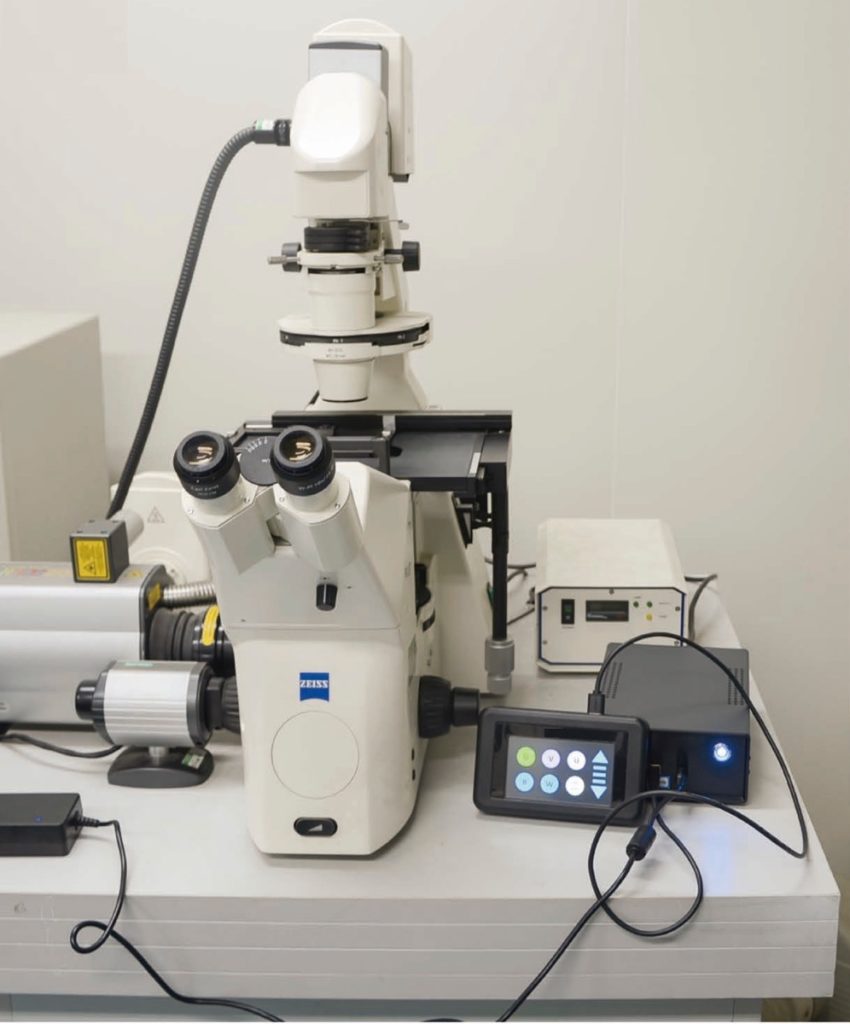

The BIA-FL-IS is an LED fluorescence illuminator designed for fluorescence microscopes. It has universal design, comes with an adapter for all big brands of Zeiss, Leica, Nikon and Olympus or custom-made microscopes, and for inverted, upright or stereoscope.

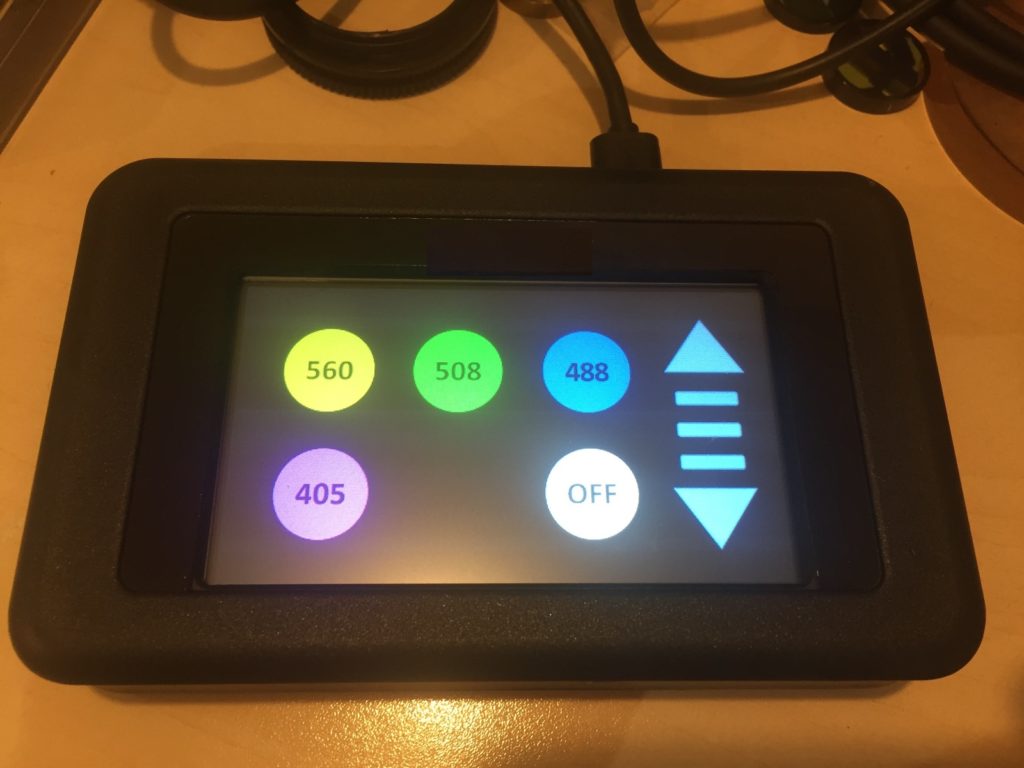

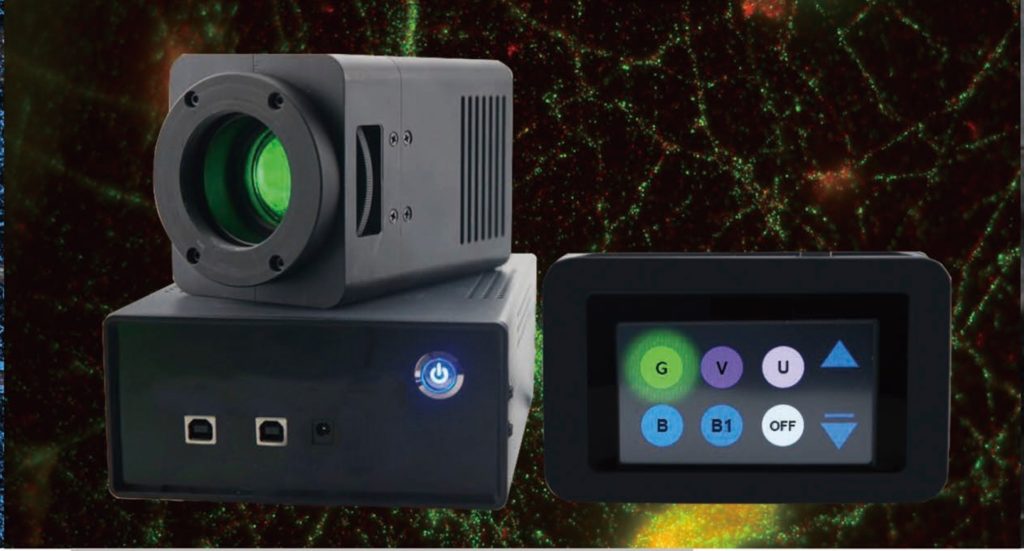

It has 5W power, comes with controller and touch-pad to select the channel and adjust the light intensity.



• Time-lapse mode
• Controls each LED separately
• Turn ON/OFF option for the LEDs, i.e. digital shutter
• Live view and image capture
• label image color
• Merge images
• Color and monochrome images
• Manual and automatic exposure time and gain
• Captures BF and FL images separately
• Zoom in / Zoom out with a touch of mouse wheel
• Full screen of the live image, resizable tabs

• Wavelength range: 260nm-1100nm
• LEDE Response time: 1mS
• LED Life-Time: 30,000 hours
• External Power Supply:  110-240V  / 50/60Hz

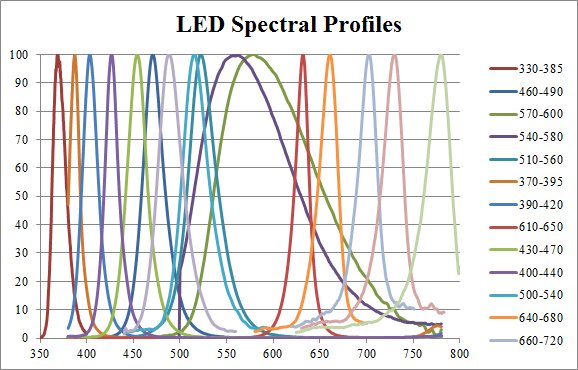

• Popular LED Selection: 388/13nm,  403/19nm, 454/25nm, 523/36nm
• Power Consumption: 40W

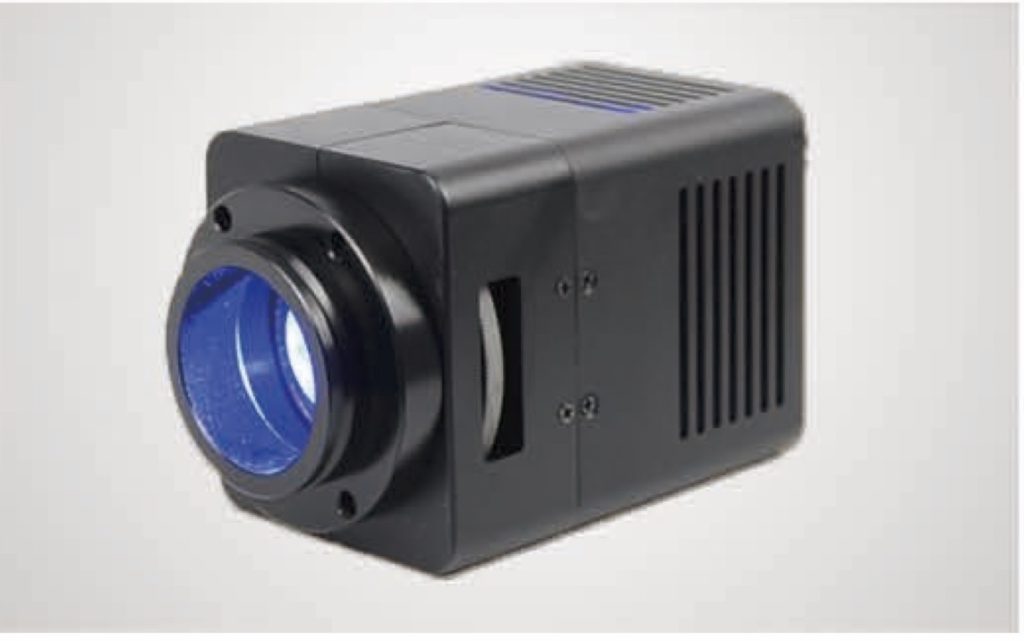

• Attachment Size: 156x95x84mm  (LxWxH)
• Touchpad Size: 155x95x29mm  (LxWxH)
• Controller Size: 206x150x76mm (LxWxH)
• Control Method: RS-232
• Optional Control Method: USB to a PC
• Optional software for advanced live cell imaging as used in Incuscope

Configurations:

Three Models of IS3, IS5, IS9 are available.

• IS3 Light source optical output parameter index

Wavelength（nm）	Channel	FHWM（nm）	10X Lens Outlet Energy（mW）
365	330-380	≤16	≥50mW
470	450-490	≤28	≥85mW
525	510-545	≤36	≥45mW



• IS3 Light source performance index/parameter

External Power Supply	Universal input 110-240V，50/60Hz,
Power Consumption	At 100% intensity 40W;（Stand by 0.5W）

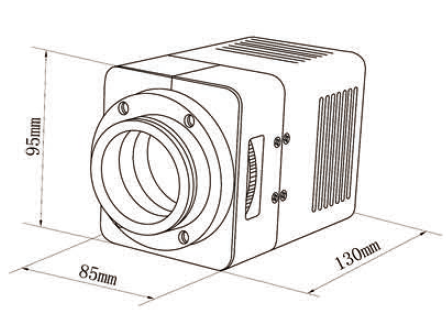

Dimension Lamp House	122×95×85mm (L×W×H)
Dimension Touch Pad	130×126×20mm (L×W×H)
LED Delay	≤1ms
I/O Connector	PS/2
Control communication method	RS-232
Life	20,000 Hours
Supported microscope interface manufacturers	Nikon, Zeiss, Olympus, Leica



• IS5 Light source optical output parameter index

Wavelength（nm）	Channel	FHWM（nm）	10X Lens Outlet Energy（mW）
365	330-380	≤16	≥15mW
450	430-465	≤25	≥100mW
470	450-495	≤28	≥45mW
525	505-545	≤36	≥55mW
560	545-600	≤118	≥60mW

• IS5 Light source performance index/parameter

External Power Supply	Universal input 110-240V，50/60Hz,
Power Consumption	Single Channel at 100% intensity 25W;（Stand by 0.5W）
Dimension Lamp House	156×95×84mm (L×W×H)
Dimension Control box	206×150×76mm (L×W×H)
Dimension Touch Pad	155×95×29mm (L×W×H)
LED Delay	≤1ms
I/O Connector	PS/2
Control communication method	RS-232
Life	20,000 Hours
Supported microscope interface manufacturers	Nikon, Zeiss, Olympus, Leica





• IS9 Light source optical output parameter index

Wavelength（nm）	Channel	FHWM（nm）	10X Lens Outlet Energy（mW）
365	330-380	≤21	≥100mW
385	370-400	≤21	≥100mW
425	400-440	≤25	≥200mW
450	430-470	≤25	≥300mW
470	450-490	≤28	≥200mW
525	510-545	≤25	≥100mW
560	545-580	≤55	≥100mW
680	670-690	≤20	≥100mW
710	700-720	≤20	≥100mW



• IS9 Light source performance index/parameter

External Power Supply	Universal input 110-240V，50/60Hz
Power Consumption	Single channel at 100% intensity 12W;（Stand by 0.5W）
Dimension Lamp House	124×161×114mm (L×W×H)
Dimension Touch Pad	126×130×20mm (L×W×H)
LED Delay	≤1ms
I/O Connector	PS/2
Control communication method	RS-232
Life	50,000Hours（Decay to 70%，25,000Hours）
Supported microscope interface manufacturers	Nikon, Zeiss, Olympus, Leica

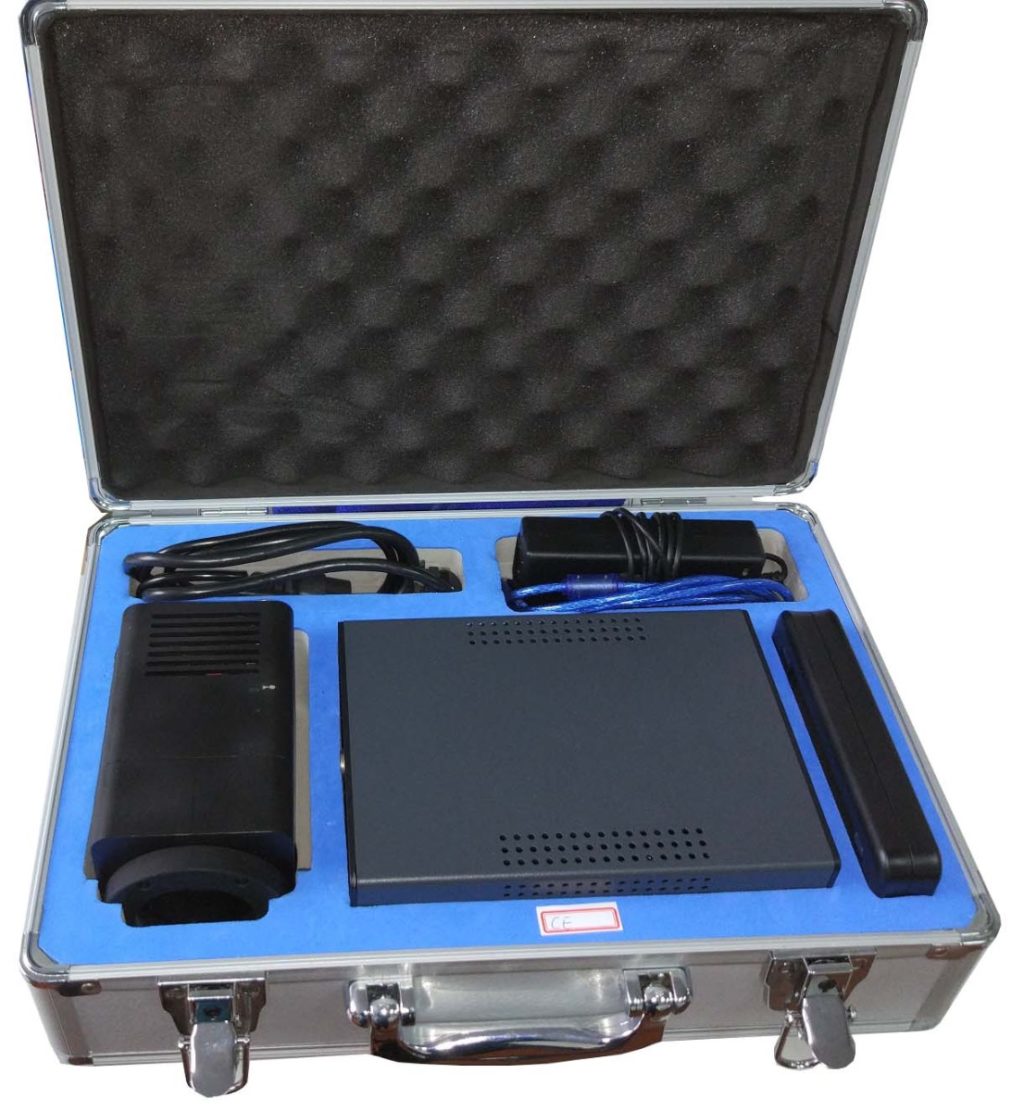

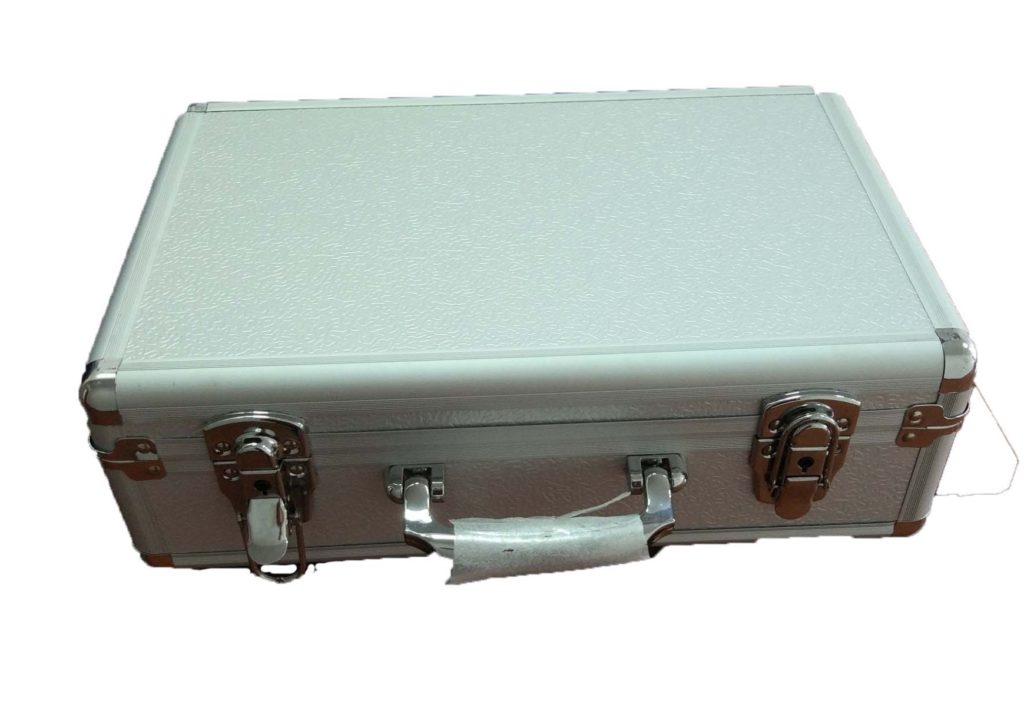

Package Contents:

Using RS-232 interface, you can control the light.
