Universal Fluorescent Attachment for Stereo Microscopes BSM300FLA

Original price was: $USD 3,000.00.Current price is: $USD 1,969.00.

-34%
  • Universal stereo fluorescence illuminator
  • Fits to all brands of stereoscopes such as Bioimager, Leica, Meiji Techno, Motic, Nikon, Olympus, Zeiss, etc.
  • It includes excitation, emission filters, UV protector and power supply
  • High Power 3W LED
  • Uniformed vertical illumination
  • High quality filters
  • Various channels are available for Dapi/Hoechst, GFP/FITC/AlexaFluor 488, RFP/Cy3/TRITC
  • Custom channel is available
  • Applications: Zebrafish, C. Elegans, bacteriophage, Drosophila, mineral and microfluididc channels.
Guaranteed Safe Checkout

  • Universal stereo fluorescence illuminator
  • Fits easily to all brands of stereoscopes such as Bioimager, Leica, Meiji Techno, Motic, Nikon, Olympus, Zeiss, etc.
  • Simple, easy and cheap upgrade of your current microscope in less than 20 seconds

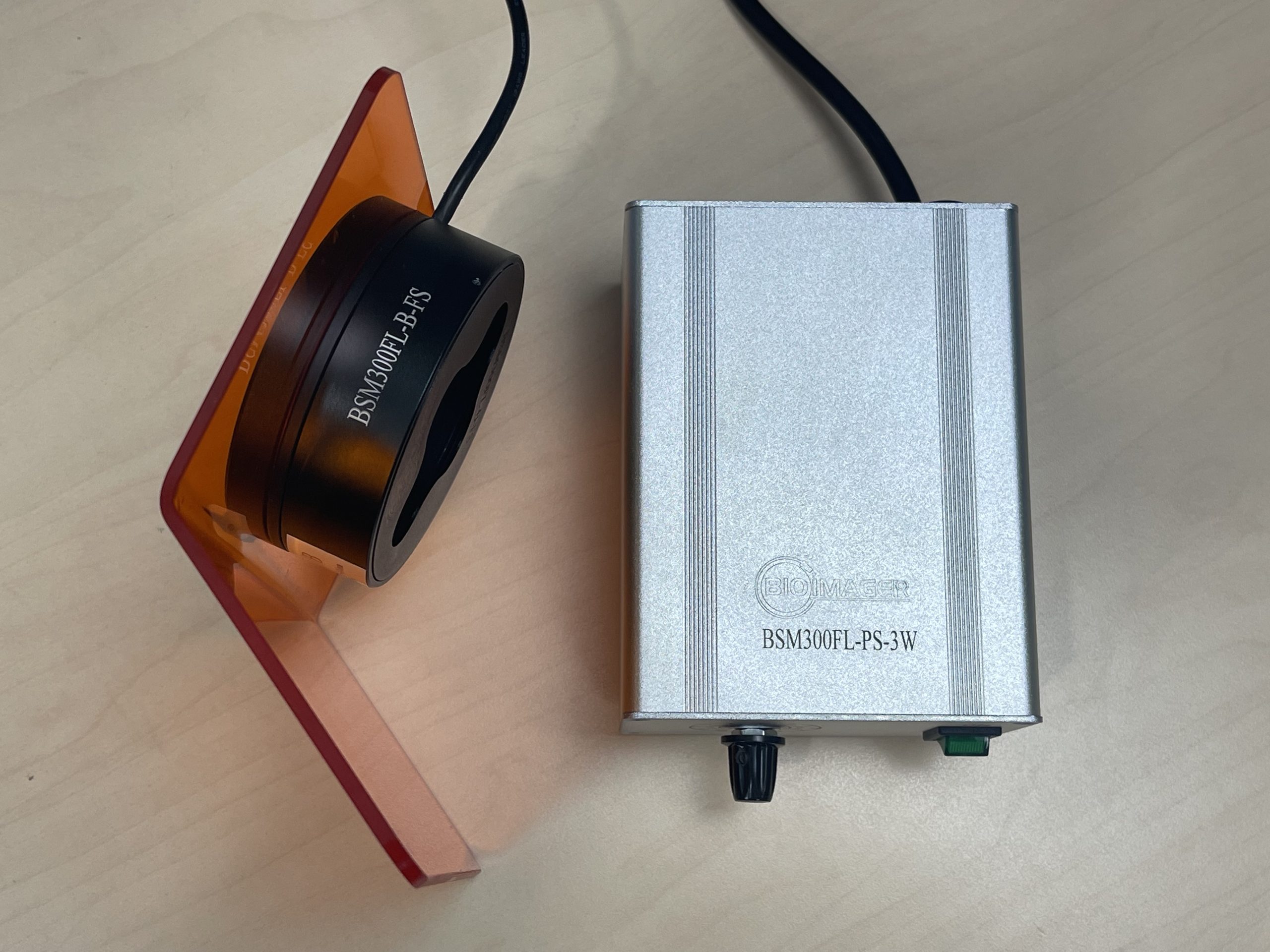

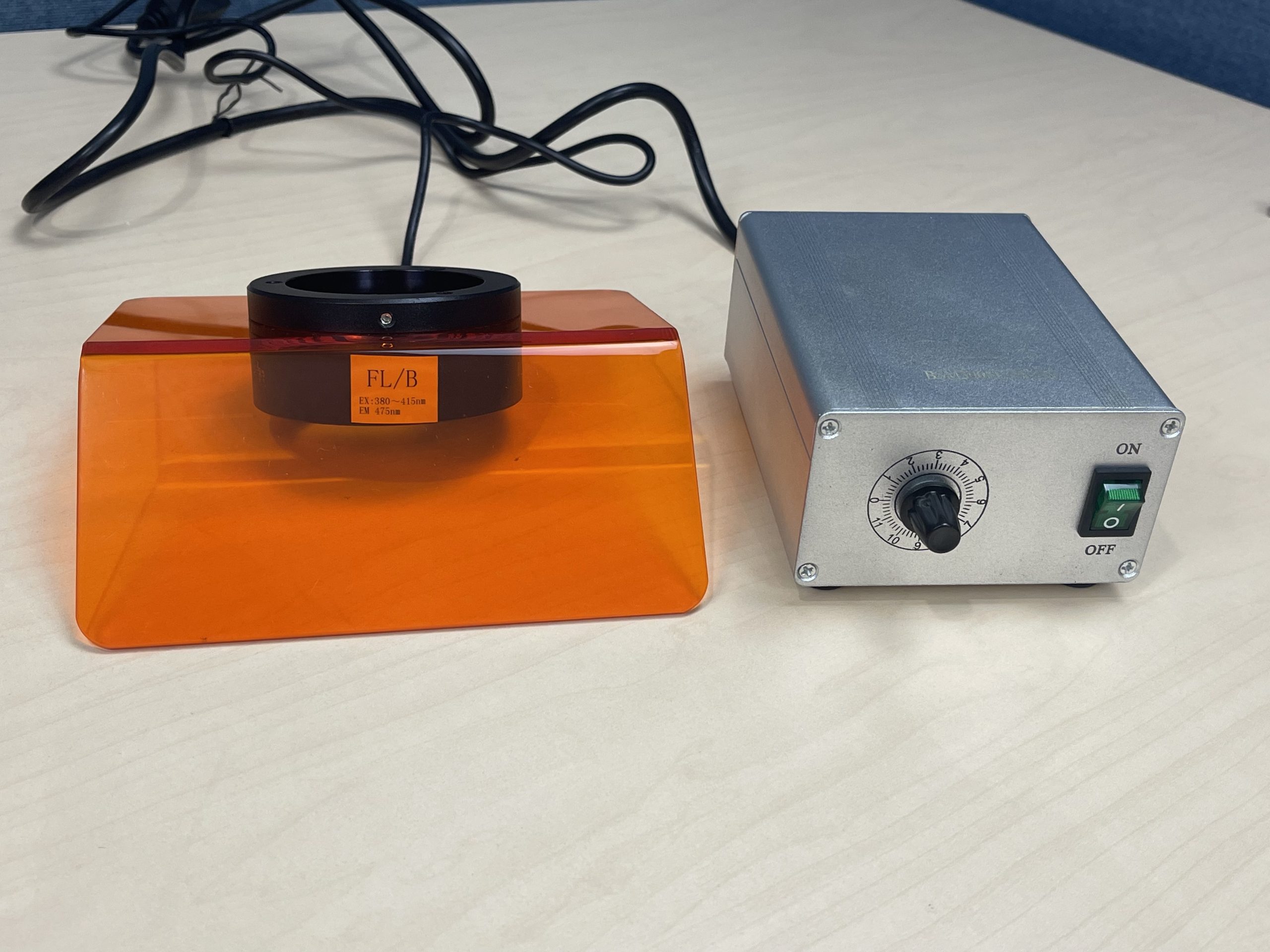

  • It includes excitation, emission filters, UV protector and power supply
  • High Power 3W LED
  • High quality filters
  • Various channels are available for Dapi/Hoechst, GFP/FITC/AlexaFluor 488, RFP/Cy3/TRITC
  • Custom channel is available
  • Excellent choice for

Universal Fluorescent Attachment for Stereo Microscopes BSM300FLA

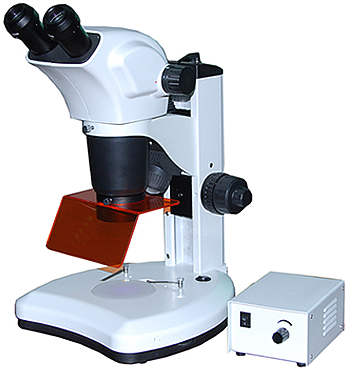

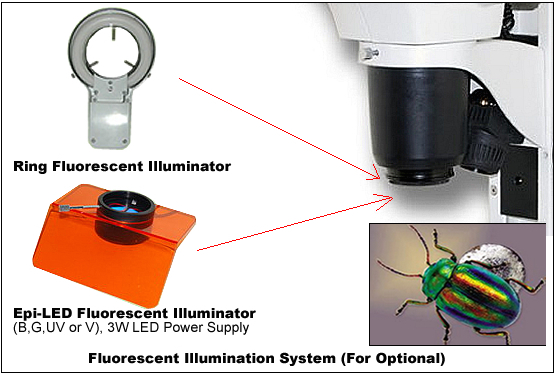

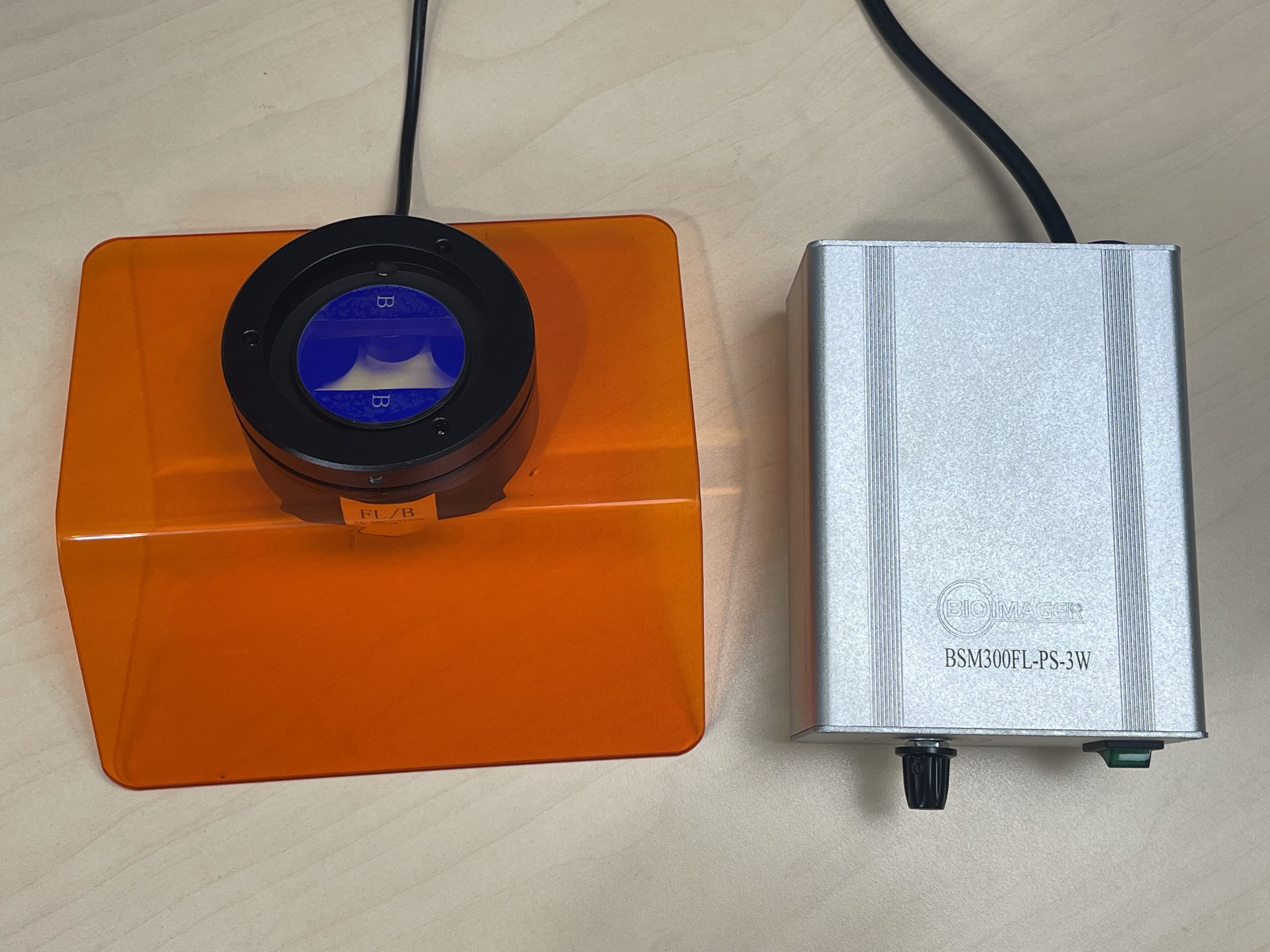

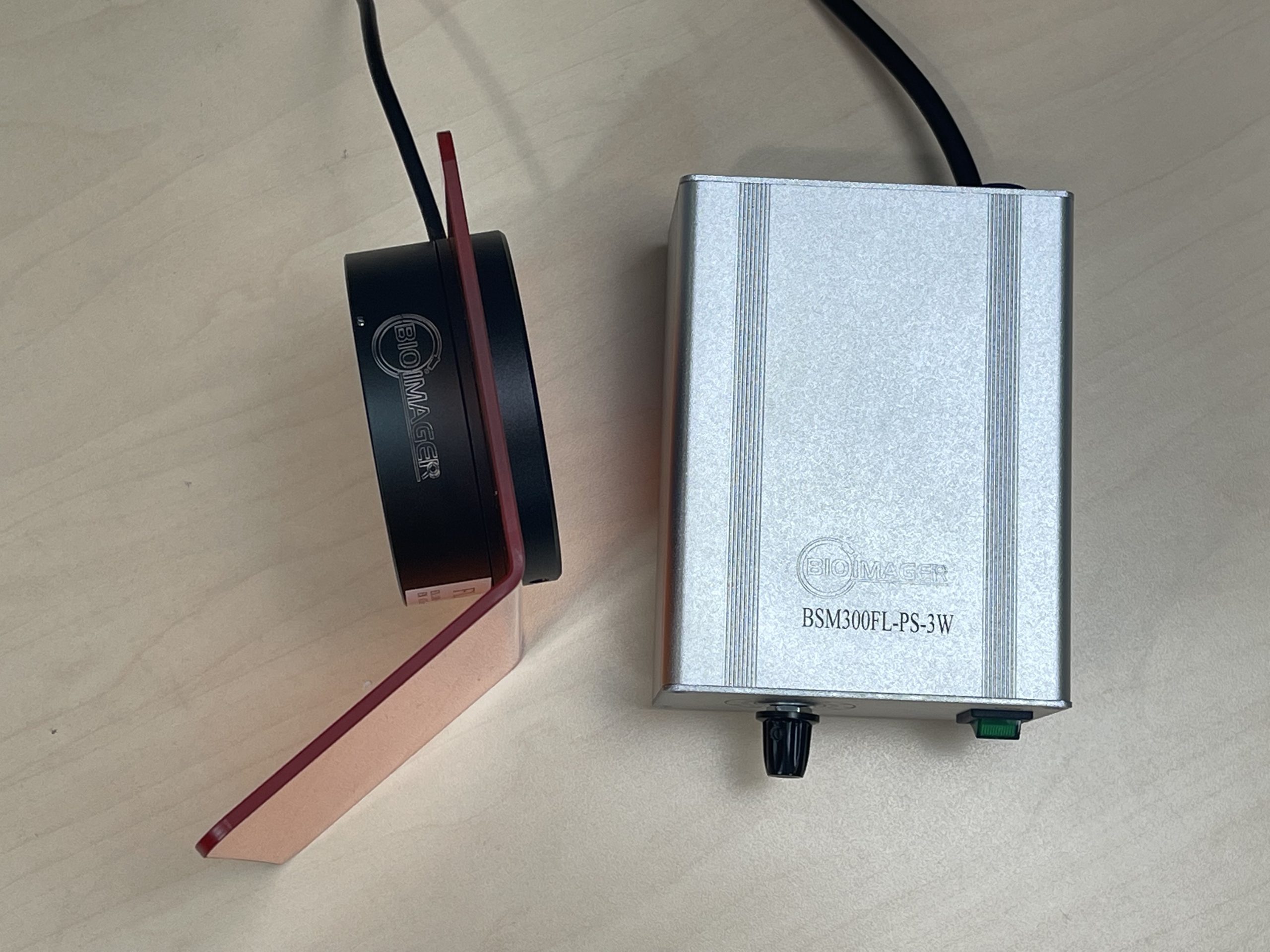

The BSM300FLA universal stereo fluorescence illuminator is a specialized attachment designed to provide fluorescence illumination for stereo microscopes. It is designed to fit various brands of stereoscopes, including (but not limited to) Bioimager, Leica, Meiji Techno, Motic, Nikon, Olympus, Zeiss, and others. This external illuminator typically includes essential components such as excitation and emission filters, a UV protector, and a power supply.

Here are some key features commonly found in a universal stereo fluorescence illuminator:

  1. Excitation and Emission Filters: The illuminator includes a set of high-quality filters that are specifically designed to match the excitation and emission wavelengths of commonly used fluorophores. These filters ensure efficient excitation of the fluorophores and effective isolation of the emitted fluorescence, allowing for accurate imaging and analysis.
  2. UV Protector: A UV protector is an essential component that prevents harmful UV radiation from reaching the observer’s eyes or camera. It ensures user safety while working with fluorescence samples and minimizes the potential for photo damage.

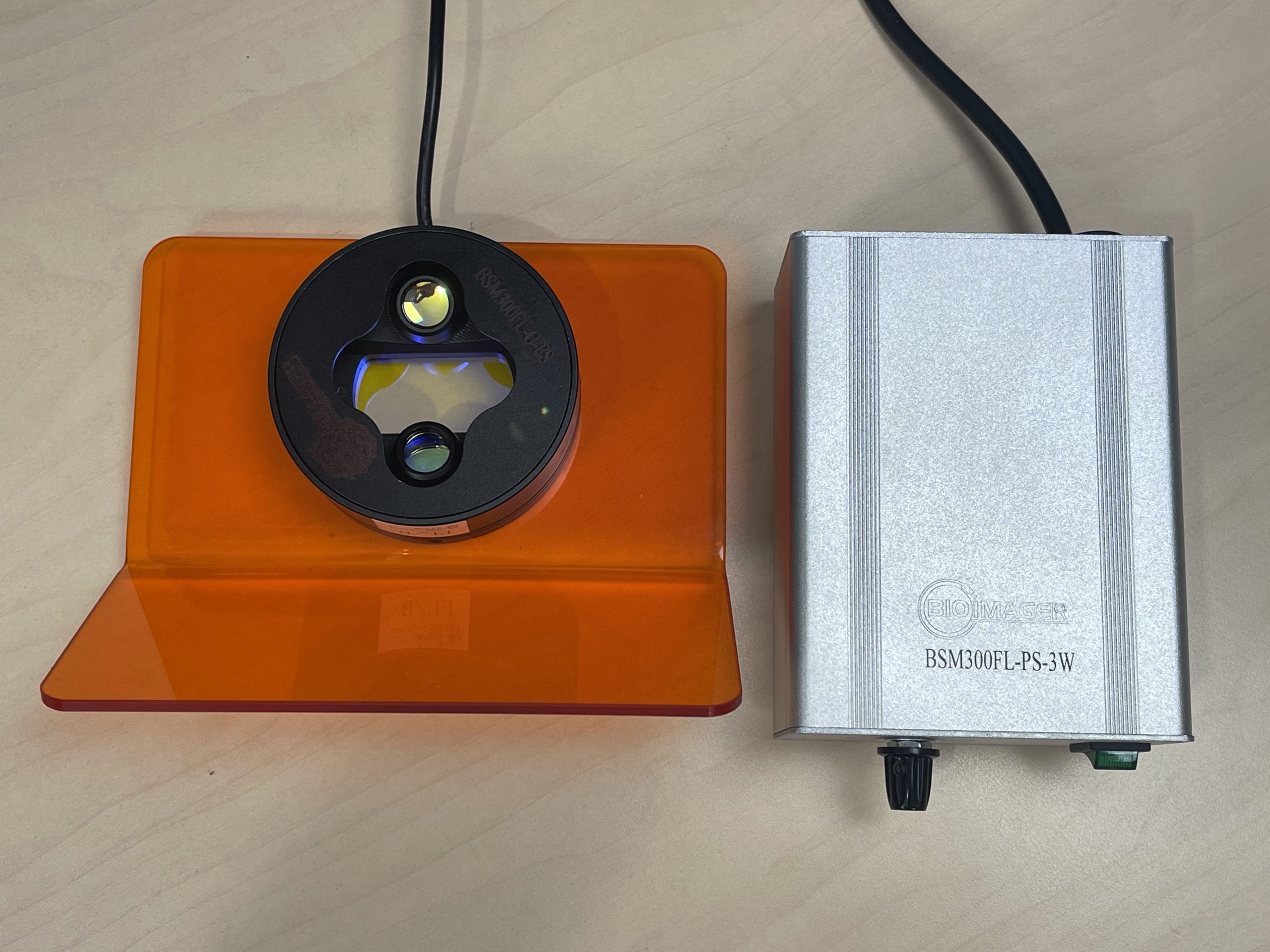

  3. High Power LED: The illuminator is equipped with a high-power LED as the excitation light source. A 3W LED is mentioned, which provides sufficient intensity for excitation while also offering long-lasting performance and energy efficiency.

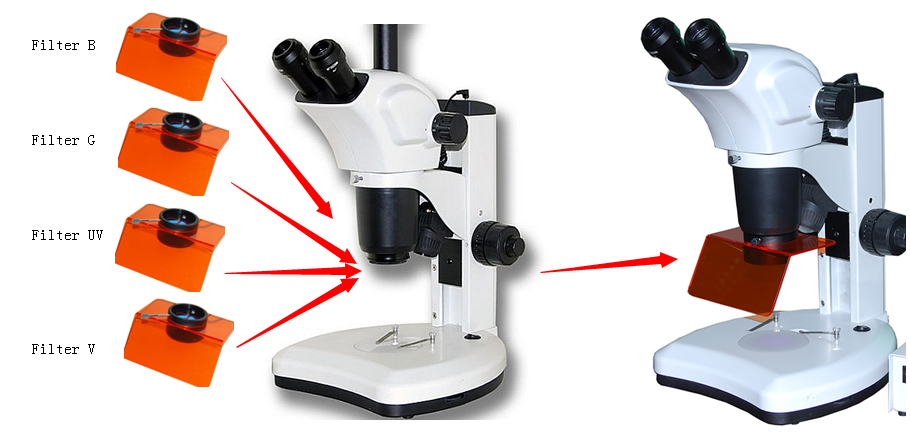

  4. Various Channels: The illuminator typically offers multiple channels or filter sets to accommodate different fluorophores and imaging requirements. Common channels include DAPI/Hoechst for blue fluorescence, GFP/FITC/AlexaFluor 488 for green fluorescence, and RFP/Cy3/TRITC for red fluorescence. These predefined channels allow users to easily switch between different fluorophores without having to manually adjust filters.
  5. Custom Channel: In addition to the predefined channels, some universal stereo fluorescence illuminators may offer the option for a custom channel. This allows users to select specific excitation and emission filters to match their unique fluorophores or experimental requirements.
  6. It is an economical choice while it has much better quality of illumination than all other competitors in the market.
  7. It is an excellent choice to upgrade your current microscope to use for imaging of Zebrafish, C. Elegans, bacteriophage, Drosophila, mineral and microfluididc channels.

Why BSM300FLA (vs competitors)?

There are plenty of options in the market with the similar concepts. One of them is NightSea.

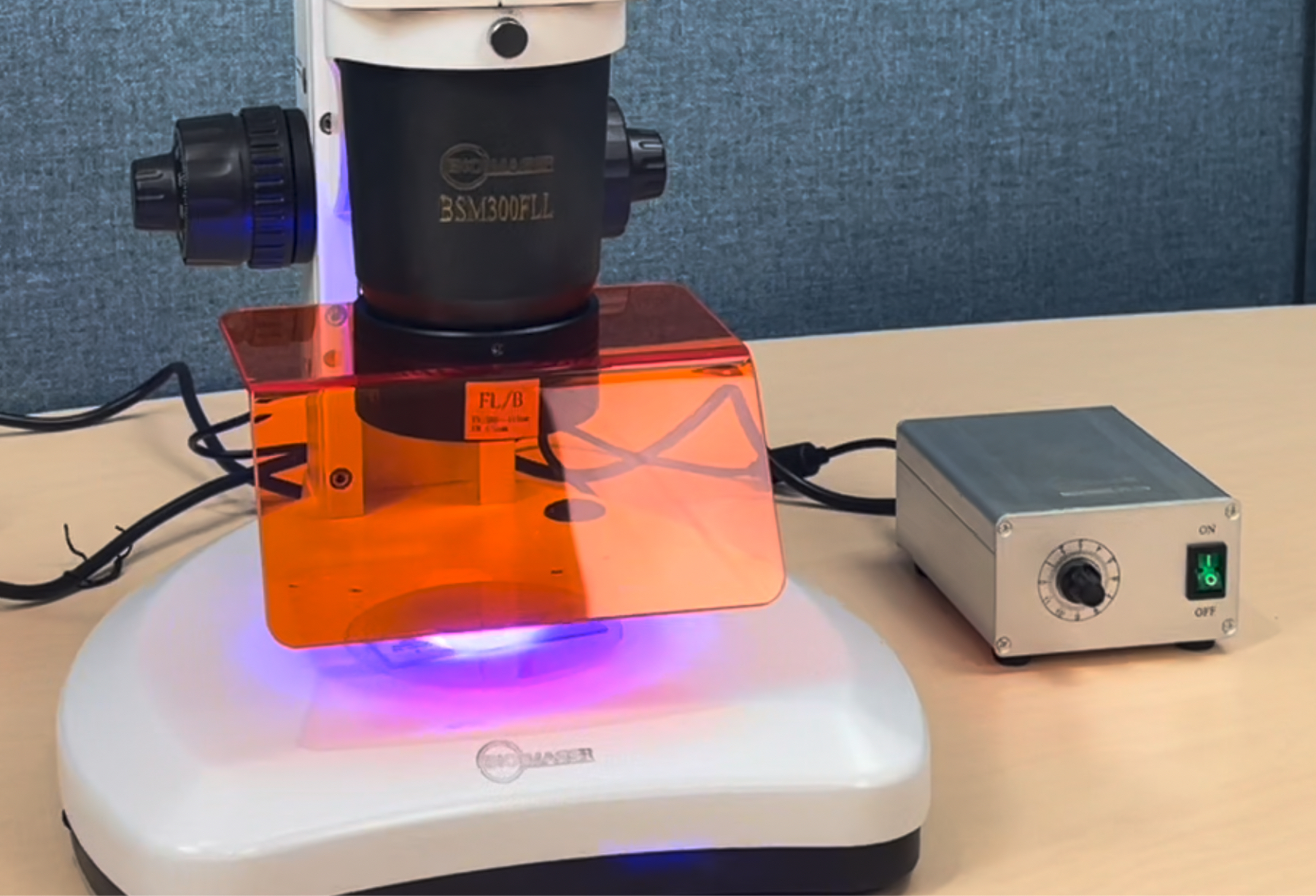

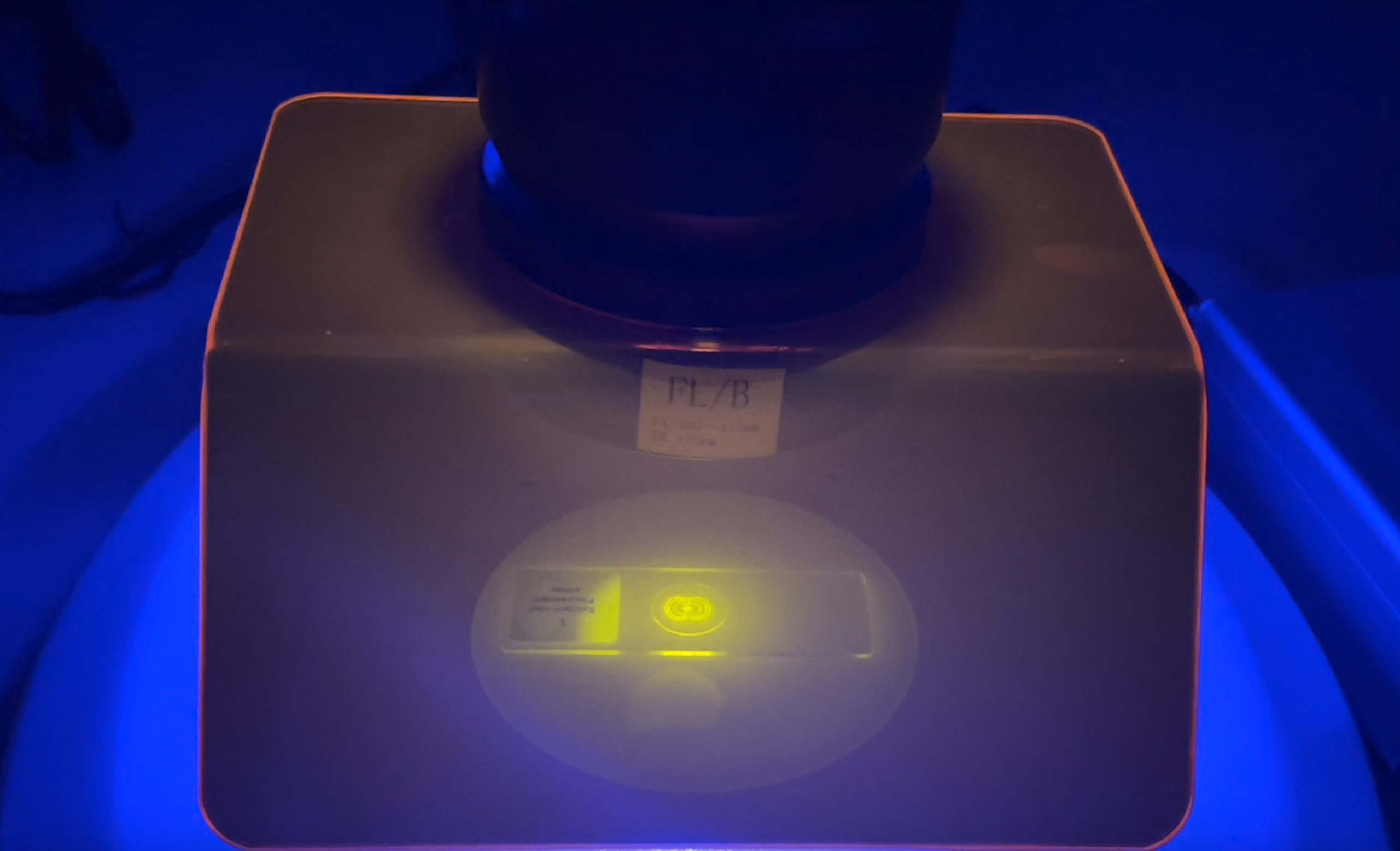

1. The main issue with that product is it has illumination from the side while ours is mounted in a fully vertical position, i.e. perpendicular to the sample. If illumination is from side it will generate an ellipse rather than circle, i.e. the closer area will get stronger light intensity while the far area will be darker and dimmer. It is impossible to tackle this issue even by image processing.
2. Bioimager offers over 40 different filter sets, all with high quality coatings
3. Better price, at least 25% lower price.



Specifications

Name Excitation Emission Fluorophores
U 330-400nm >= 425nm Dapi/Hoechst
B 420-485nm >= 515nm GFP, FITC, AlexaFluor 488
G 460-550nm >= 590nm RFP, TRITC, TexasRed, mCherry, Cy3
V 395-415nm >= 455nm BFP
C Custom Custom Cy5, Cy7, IR, Far infrared, etc
