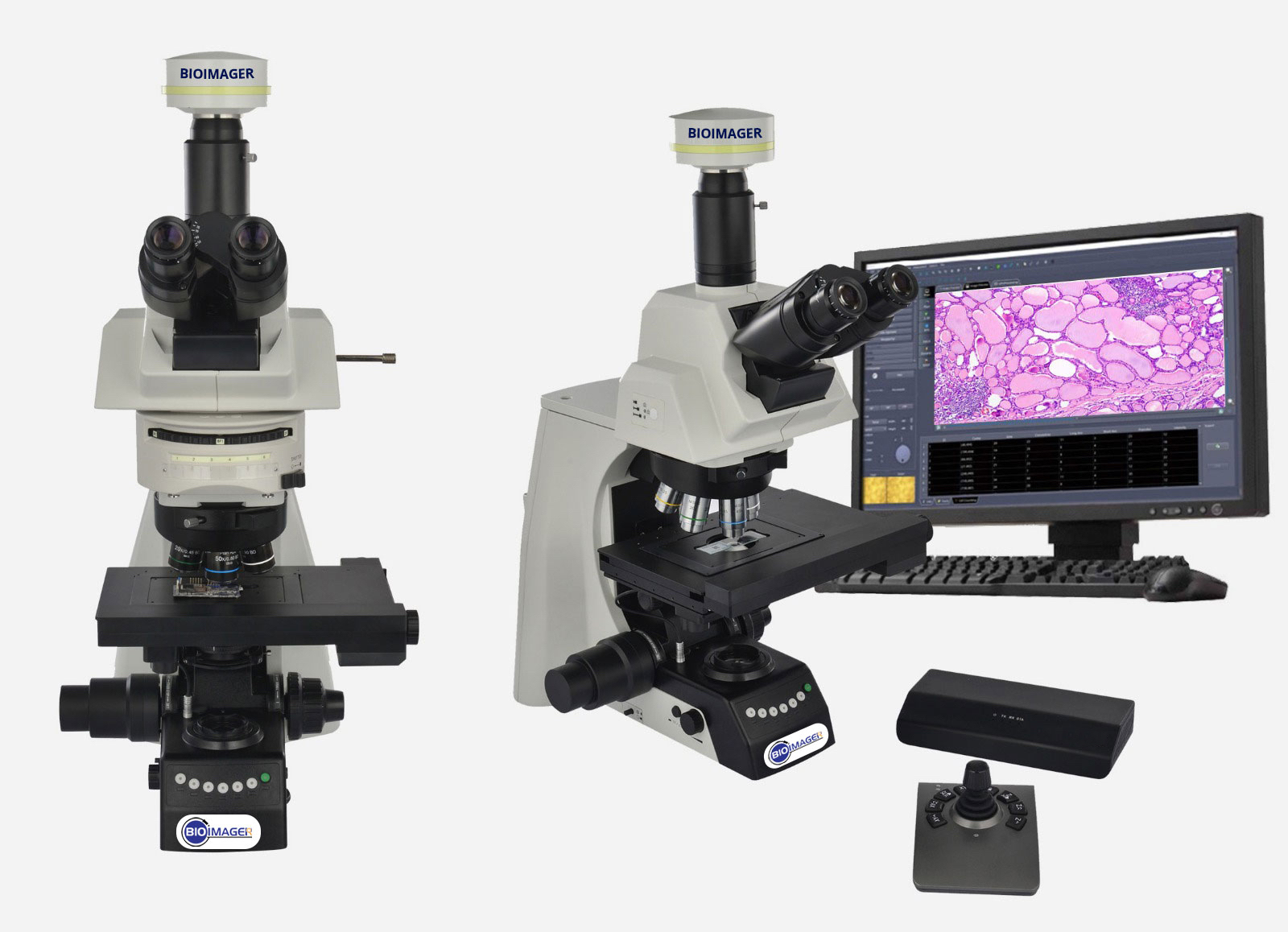

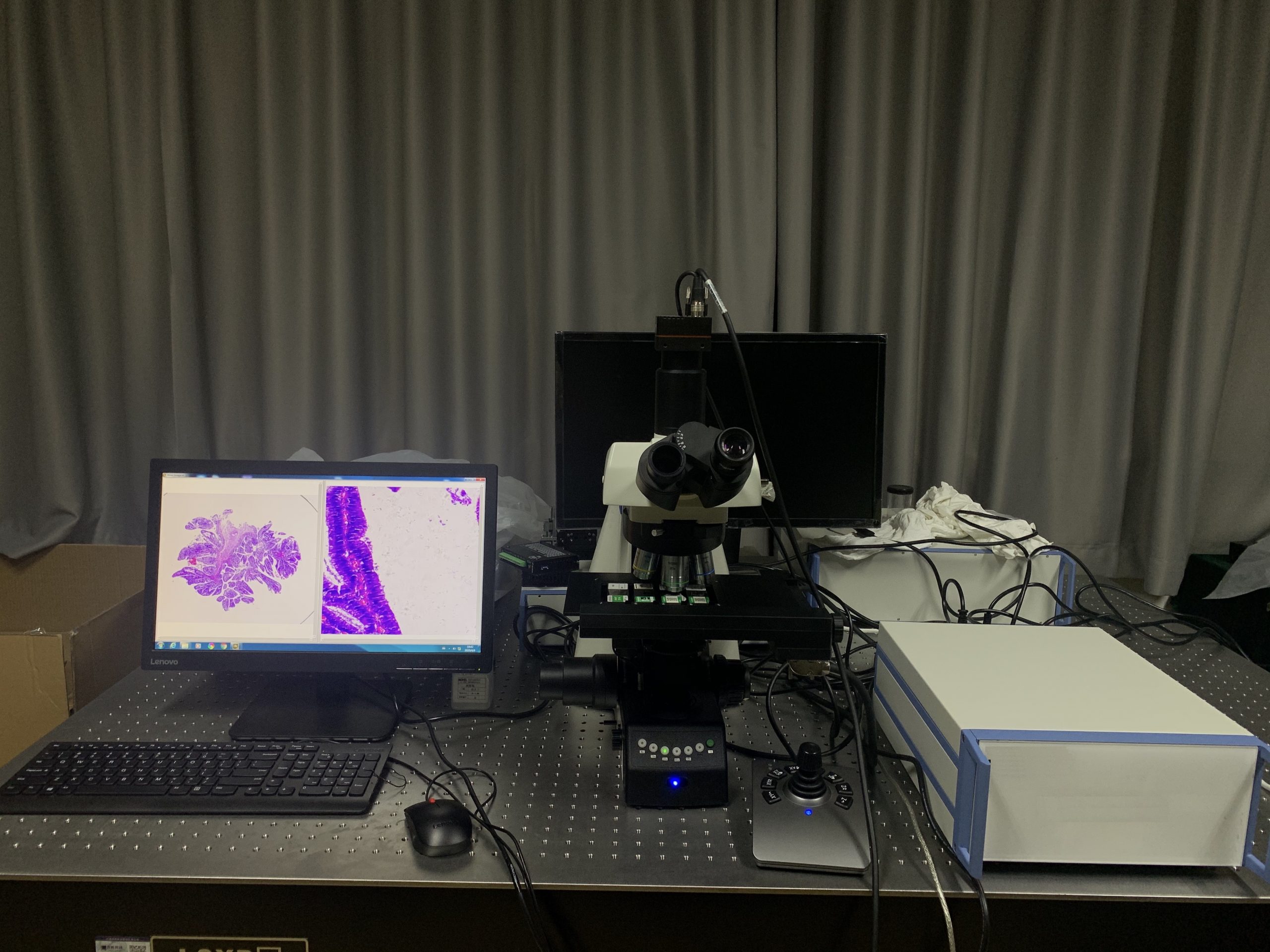

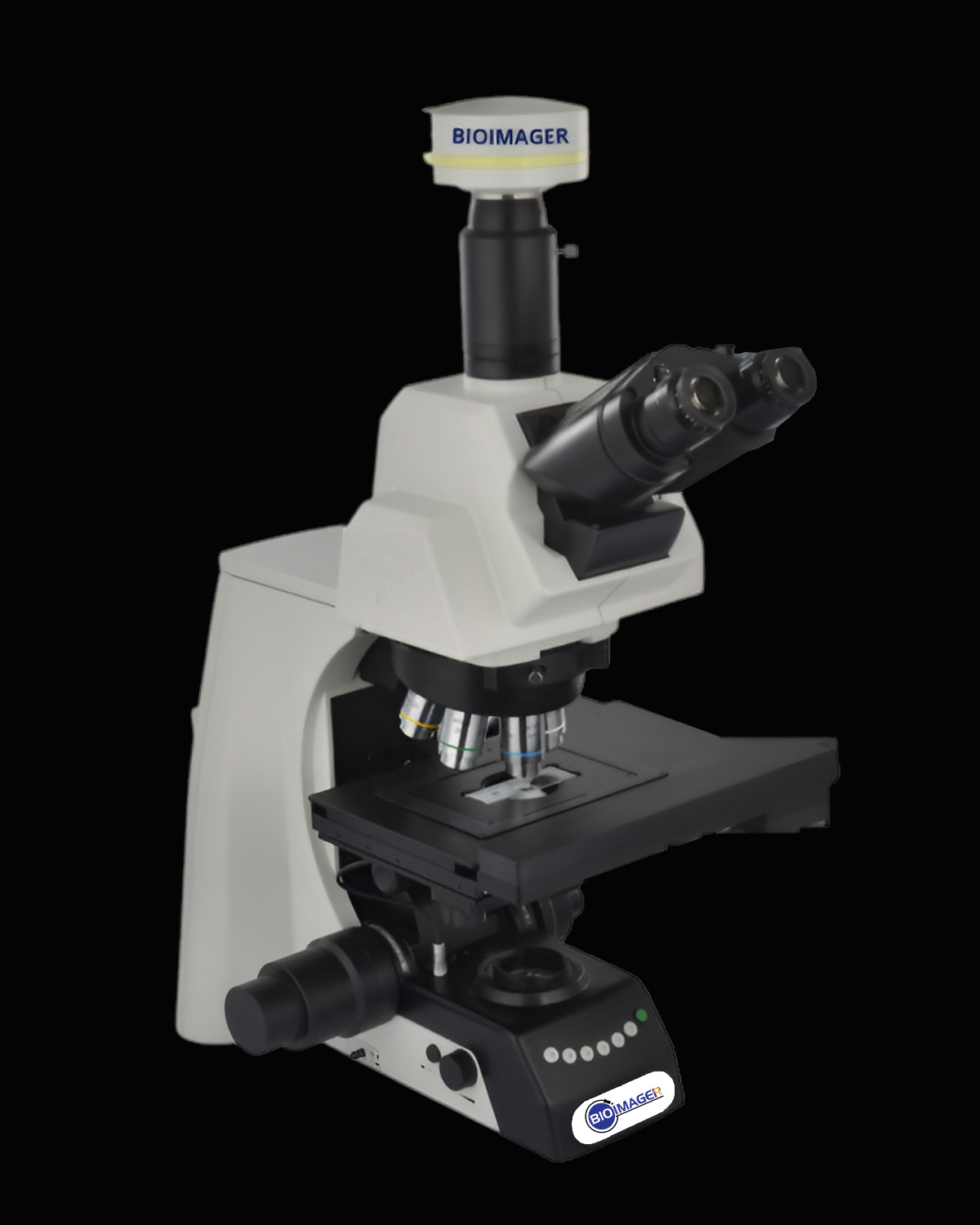

BUM950A Digital Microscopy Slide Scanning System


  • Digital upright motorized biological microscope
  • Super Fast Slide Scanning System
  • 4k line scan camera, with 7 um pixel size
  • Plan Apo and high N.A. 4x, 10x, 20x objective lenses

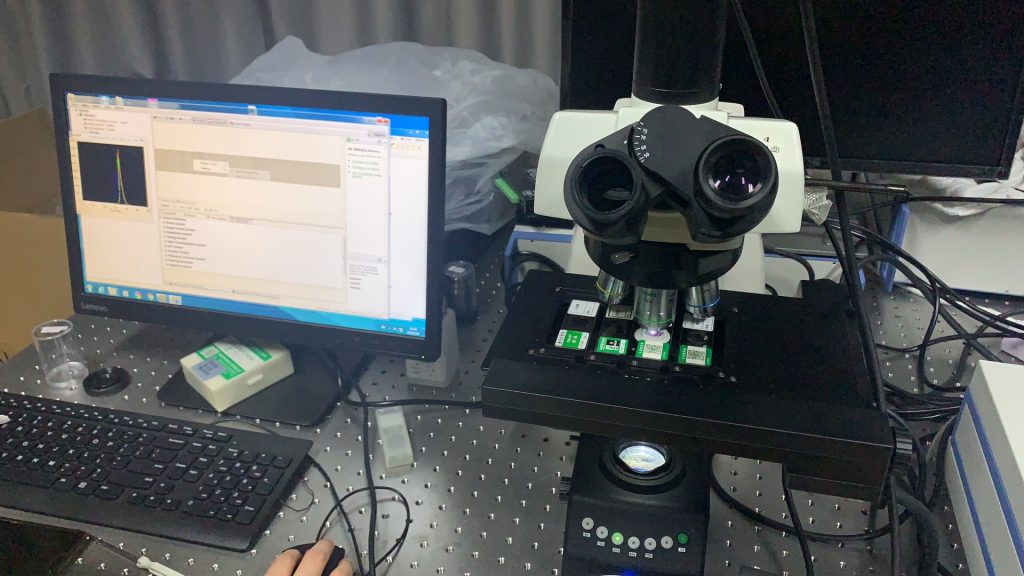

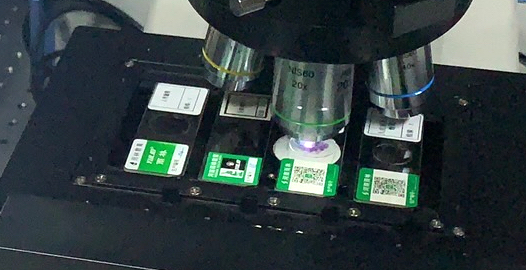

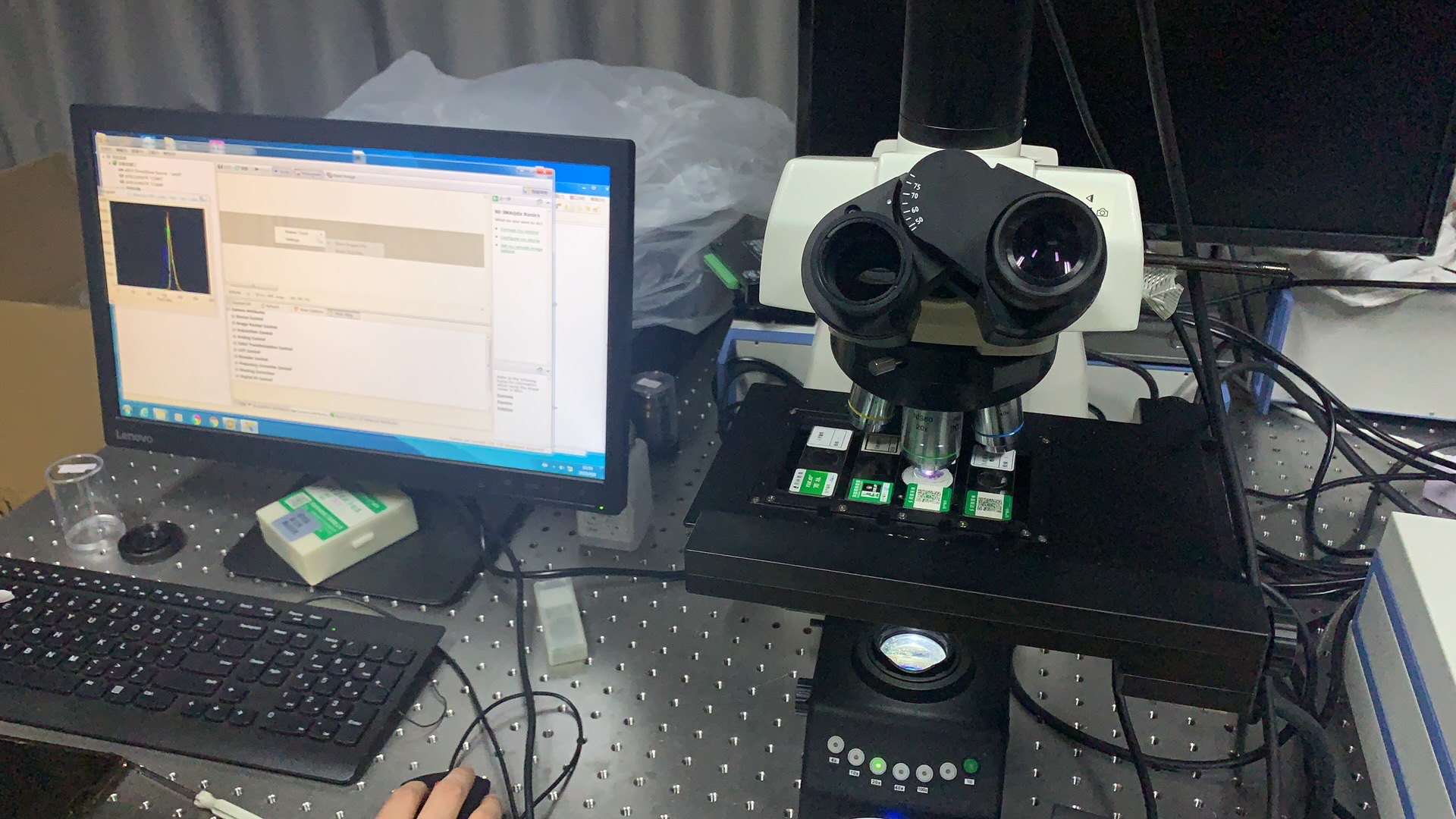

  • Automated scanning of 4 slides at a time
  • Scanning type: line scan
  • Great Autofocus feature, with user set point array to focus at the desired points
  • Autofitting focus map
  • Scan area: whole size: 75x25mm / 1″ x 3″
  • Travel speed: 25mm/s
  • Scan Speed Example: 15mmx16mm coverslip, with 50 autofocus points (5×10), using 40x takes 151seocnds (2min, 31 seconds)

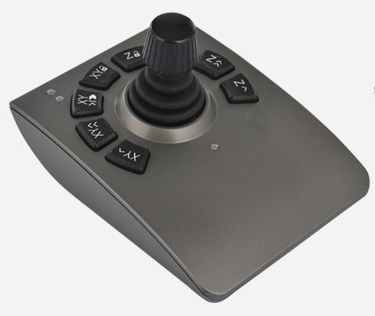

  • Includes a joystick to control XY, Z and speed

Request a Quote

BUM950A Fast Digital Microscopy Slide Scanning System



BUM950A is an upright biological microscope is designed specifically for the fast digital slide scanning purpose. It can scan up to 4 slides at at time. Its speed, image quality, autofocusing and autostitching the images are amazingly great.



This motorized automated biological/ epi-fluorescnce microscope is an ideal instrument for the research labs in biology, histology, pathology, bacteriology, immunization, microbiology, immunobiology, virology,Ā  and pharmaceutical fields as well as geology, mineralogy field. The system can be used for teaching or archiving purpose in these laboratories, institutes, academic laboratories, colleges and universities as well as mueseums.

  • Digital upright motorized biological microscope
  • Super Fast Slide Scanning System
  • 4k line scan camera, with 7 um pixel size
  • Plan Apo and high N.A. 4x, 10x, 20x objective lenses
  • Automated scanning of 4 slides at a time
  • Scanning type: line scan
  • Great Autofocus feature, with user set point array to focus at the desired points
  • Autofitting focus map
  • Scan area: four whole size: 75x25mm / 1″ x 3″
  • Travel speed: 25mm/s
  • Scan Speed Example: 15mmx16mm coverslip, with 50 autofocus points (5×10), using 40x takes 151seocnds (2min, 31 seconds)
  • Includes a joystick to control XY, Z and speed

BUM950A Digital Microscopy Slide Scanning System

Microscopy System

Optical SystemĀ·Ā Ā Ā Ā Ā  Upright Biological Microscope

Ā·Ā Ā Ā Ā Ā  Transmitted 30W Halogen or 3W LED

Ā·Ā Ā Ā Ā Ā  Brightfield observation and optional Polarized, Darklfield, Phase Contrast, DIC Nomarski and Fluorescence imaging

Ā·Ā Ā Ā Ā Ā  Trinocular viewing head

Ā·Ā Ā Ā Ā Ā  Wide field eyepiece EW10Ɨ/22

Ā·Ā Ā Ā Ā Ā  Plan Apo Objective lenses 4x, 10x, 20x, 40x

Ā·Ā Ā Ā Ā Ā  Auxiliary 2x lens (in c-mount adapter)

AutomationĀ·Ā Ā Ā Ā Ā  Scans up to 4 slides at a time

Ā·Ā Ā Ā Ā Ā  Stage travel range: 125×75 x 20mm (X x Y x Z)

·      Minimum Step Size: 0.1μm

·      Repeated positioning accuracy: ±1.5μm

Ā·Ā Ā Ā Ā Ā  Max XY Speed: 20mm/s

·      Z repeated position accuracy: average: ±1.5μm, Near the focus: ±0.1μm

Ā·Ā Ā Ā Ā Ā  Z Max Speed: 10 r/s

Ā·Ā Ā Ā Ā Ā  Size: 275x239x44.5mm

Ā·Ā Ā Ā Ā Ā  Rocker: 3D controllable rocker, Four speed

Ā·Ā Ā Ā Ā Ā  Port: USB 2.0, RS232

Ā·Ā Ā Ā Ā Ā  BAUD: 9600

Ā·Ā Ā Ā Ā Ā  Speed Example: 15mm x16mm coverslip using 20x x2=40x magnification takes 151seconds (2min, 31 sec)

CameraĀ·Ā Ā Ā Ā Ā  4K Line Scan

·      Pixel size: 7μm

Ā·Ā Ā Ā Ā Ā  Color sensor

Ā·Ā Ā Ā Ā Ā  C-Mount Adapter

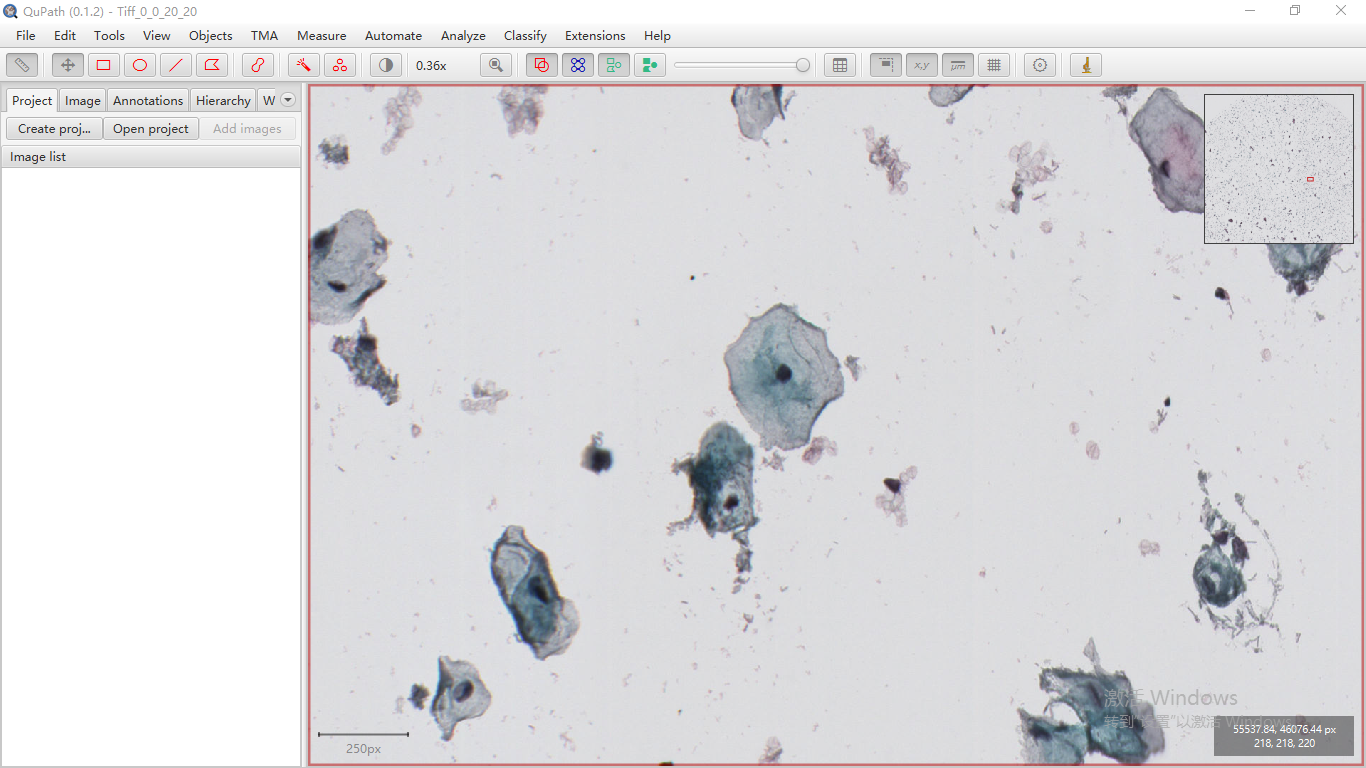

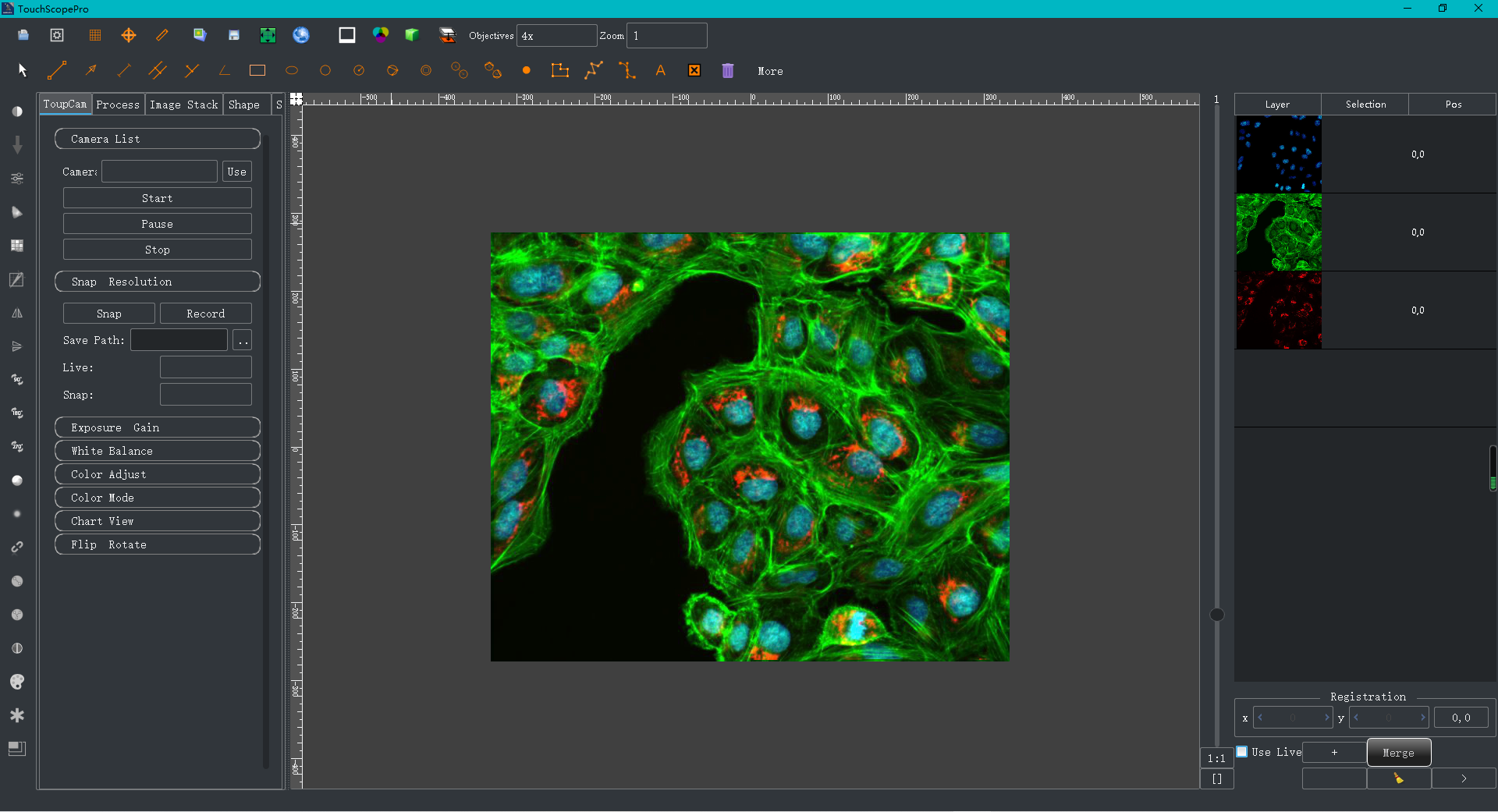

SoftwareĀ·Ā Ā Ā Ā Ā  Image Display and Capture Software

Ā·Ā Ā Ā Ā Ā  Automatic Focus and Scanning Software

Ā·Ā Ā Ā Ā Ā  Graphic Reports and Print Software

Ā·Ā Ā Ā Ā Ā  Graphic Database Management Platform

Fluorescence Attachment (Optional)

LED*FluorophoresFilters
NameEXNameEXEMEXDMEM
Ultraviolet (UV)365nmDapi / Hoechst350 nm470 nm330-385nm400420-470nm
Blue light (B)470nmFITC / GFP490 nm525 nm460nm-495nm505510-550
Green light (G)505nmAlexa Fluor 555555 nm580 nm460nm-550nm570590-650
Red (R)

(Optional)

625nmAlexafluor 647650 nm665 nm600-660nm660660nm
ItemSpecificationBUM950

A

BUM950

AFL

Optical SystemĀ Infinite Color Corrected Optical Systemā—ā—
Viewing HeadErgo Tilting Trinocular Head, adjustable 0-35° inclined, interpupillary distance 47mm-78mm; splitting ratio Eyepiece:Trinocular = 100:0m 20:80 or 0:100ā—ā—
Seidentopf Trinocular Head, 30° inclined, interpupillary distance: 47mm-78mm; splitting ratio Eyepiece:Trinocular=100:0 or 20:80 or 0:100ā—‹ā—‹
Seidentopf Binocular Head, 30° inclined, interpupillary distance: 47mm-78mmā—‹ā—‹
EyepieceSuper wide field plan eyepiece SW10X/25mm, diopter adjustableā—ā—
Super wide field plan eyepiece SW10X/22mm, diopter adjustableā—‹ā—‹
Extra wide field plan eyepiece EW12.5X/17.5mm, diopter adjustableā—‹ā—‹
Wide field plan eyepiece WF15X/16mm, diopter adjustableā—‹ā—‹
Wide field plan eyepiece WF20X/12mm, diopter adjustableā—‹ā—‹
ObjectiveN-PLN Plan ObjectiveN-PLN 2X/NA=0.06, WD=7.5mmā—‹ā—‹
N-PLN 4X/NA=0.10, WD=30mmā—ā—
N-PLN 10X/NA=0.25, WD=10.2mmā—ā—
N-PLN 20X/NA=0.40, WD=12mmā—ā—
N-PLN 40X/NA=0.65, WD=0.7mmā—ā—
N-PLN 100X(Oil)/NA=1.25, WD=0.2mmā—ā—
N-PLN 50X(Oil)/NA=0.95, WD=0.19mmā—‹ā—‹
N-PLN 60X/NA=0.80, WD=0.3mmā—‹ā—‹
N-PLN-I 100X (Oil, with Iris Diaphragm)/ NA=0.5-1.25, WD=0.2mmā—‹ā—‹
N-PLN PH Plan Phase Contrast ObjectiveN-PLN PH 10X/NA=0.25, WD=10.2mmā—‹ā—‹
N-PLN PH 20X/NA=0.40, WD=12mmā—‹ā—‹
N-PLN PH 40X/NA=0.65, WD=0.7mmā—‹ā—‹
N-PLN PH 100X(Oil)/NA=1.25, WD=0.2mmā—‹ā—‹
N-PLFN Plan Semi-apochromatic Fluorescent ObjectiveN-PLFN 4X/NA=0.13, WD=17.2mmā—‹ā—‹
N-PLFN 10X/NA=0.30, WD=16.0mmā—‹ā—‹
N-PLFN 20X/NA=0.50, WD=2.1mmā—‹ā—‹
N-PLFN 40X/NA=0.75, WD=1.5mmā—‹ā—‹
N-PLFN 100X(Oil)/NA=1.4, WD=0.16mmā—‹ā—‹
NosepieceMotorized Backward Sextuple Nosepiece (with DIC slot)ā—ā—
CondenserSwing-out type condenser N.A.0.9/0.25(Auto)ā—ā—
Turret Phase Contrast Condenserā—‹ā—‹
Dark-field Condenser (Dry), used for objectives lower than 100Xā—‹ā—‹
Dark-field Condenser (Oil), used for 100X objectiveā—‹ā—‹
Transmitted Illumination3W S-LED lamp, center pre-set, intensity adjustableā—ā—
12V/100W halogen lamp, center pre-set, intensity adjustableā—‹ā—‹
FocusingMotorized auto focusing, fine division 0.1μm, Max. speed 10 r/s, moving range: 30mmā—ā—
StageMotorized double layers mechanical stage, size 275 X 239 X 44.5 mm; moving range 125mmX75mm (X-Y); precision: 0.1μm, Max. Speed: 20mm/sā—ā—
DIC Kit10X DIC Objective Lensā—‹ā—‹
20X DIC Objective Lensā—‹ā—‹
Polarizer for DIC Kitā—‹ā—‹
DIC insert plate(10X/20X), can be inserted into the DIC slot on nosepieceā—‹ā—‹
DIC insert plate(40X/100X) can be inserted into the DIC slot on nosepieceā—‹ā—‹
DIC Turret Condenserā—‹ā—‹
Reflected fluorescence illuminatorTurret with 6 filter block cubes position, with iris field diaphragm and aperture diaphragm, central adjustable; with filter slot and polarizing slot; with fluorescence filters (B,G fluorescent filters).ā—‹ā—
B1, U, V, R fluorescent filtersā—‹ā—‹
100W mercury lamp house, filament center and focus adjustable; with reflected mirror, mirror center and focus adjustable.ā—‹ā—
Digital power controller, wide voltage 100-240VACā—‹ā—
ND6/ND25 Filterā—‹ā—‹
Control Handle3D control handle, 4 gears speedā—ā—
ControllerCommunication interface: USB2.0 and RS232ā—ā—
Other Accessories0.5X C-mount Adapterā—‹ā—‹
USB3.0 Digital camera (5.0MP, Sony IMX250, 2/3ā€ CMOS sensor, [email protected]Ɨ2048)ā—ā—
1X C-mount Adapterā—‹ā—‹
Dust Coverā—ā—
Power Cordā—ā—
Cedar Oil 5mlā—ā—
Simple Polarizing kitā—‹ā—‹
Calibration slide 0.01mmā—‹ā—‹
Multi Viewing Attachment for 2, 3, 5, 7 or 10 peopleā—‹ā—‹

Note: ā— Standard Outfit, ā—‹ Optional
