Save $2,712

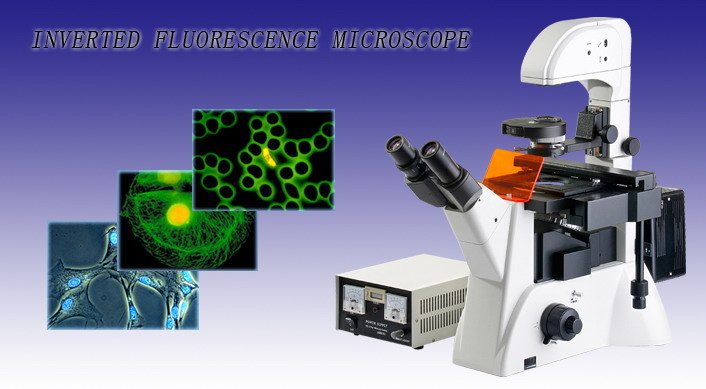

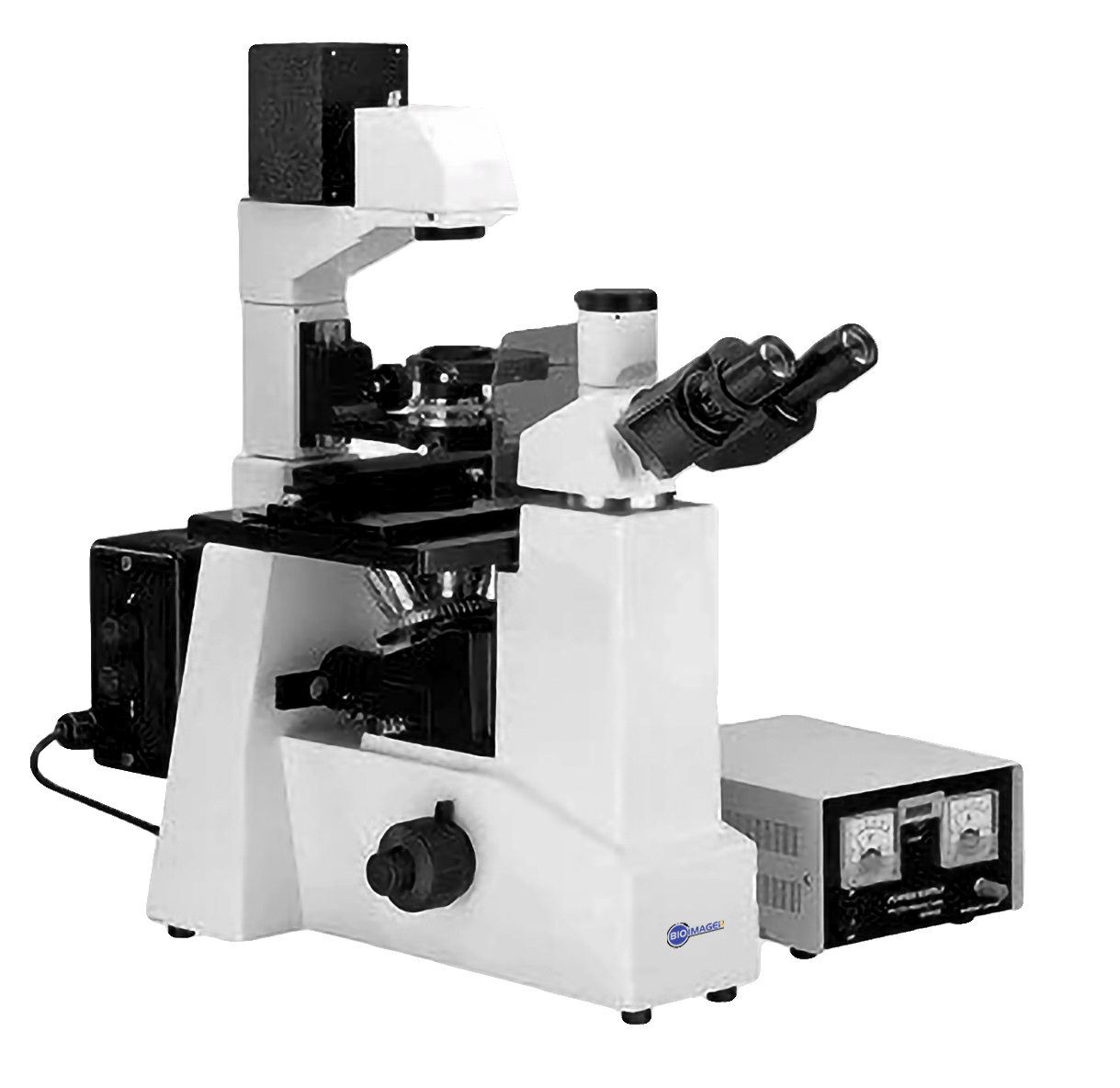

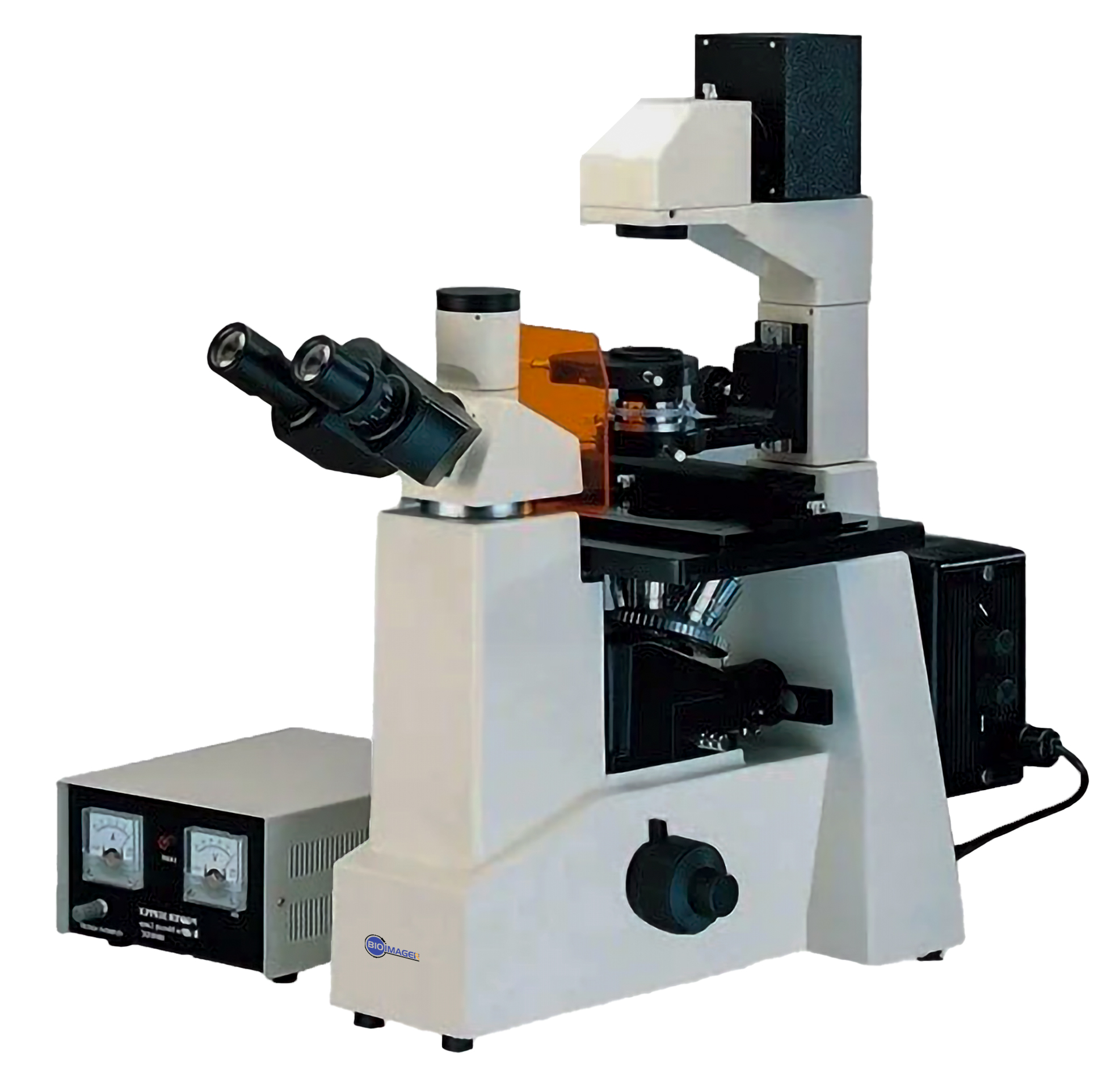

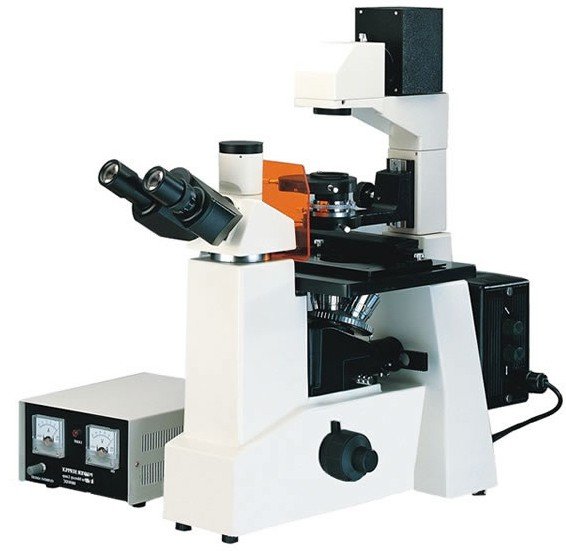

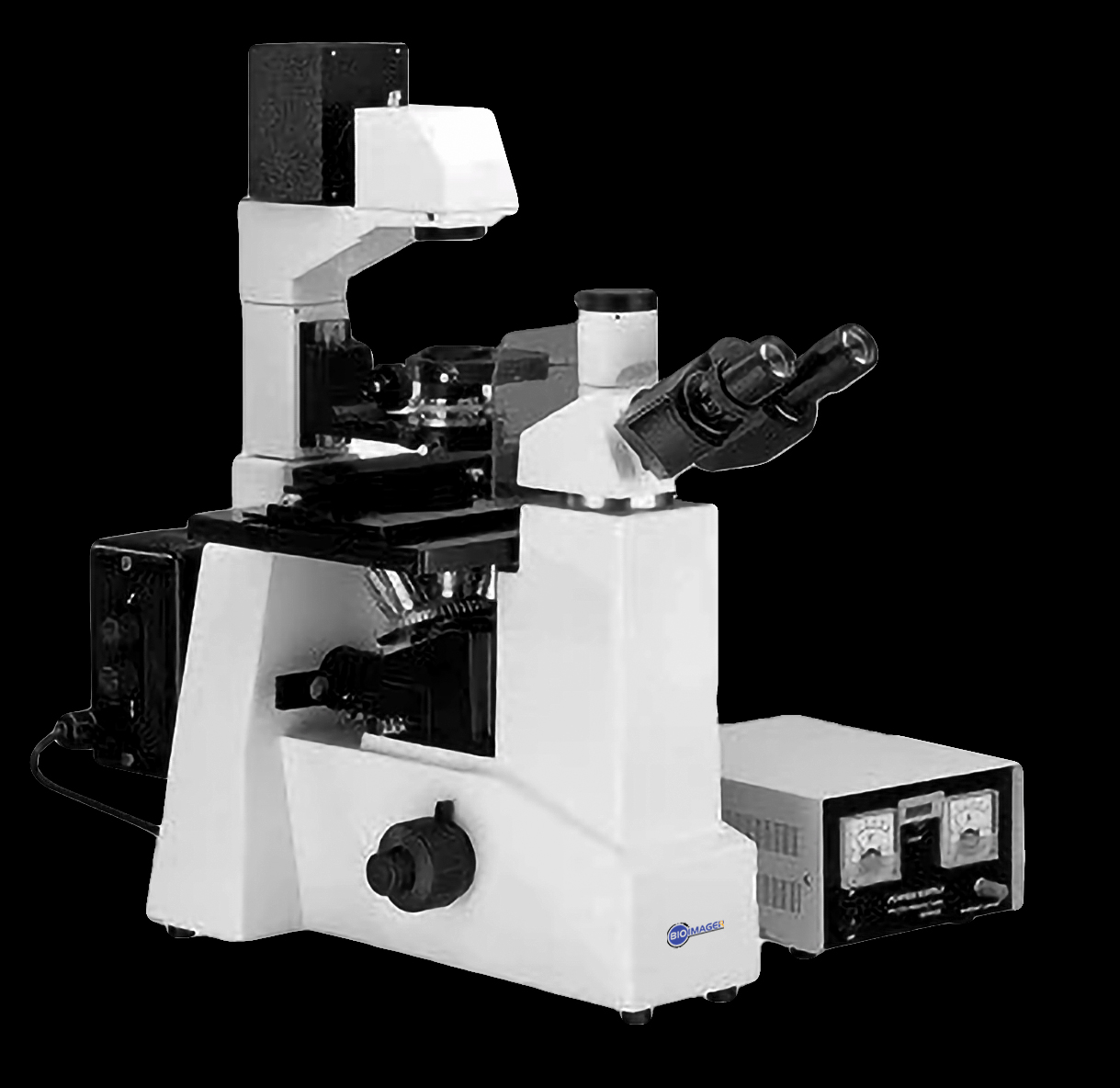

BIM700FL Inverted Epi-Fluorescnce Biological Microscope

Availability:

In stock


Compare
  • Inverted Epi-Fluorescence Microscope
  • Excellent Phase Contrast imaging; Hoffman Modulation Contrast, Puller-type phase contrast condenser
  • 10x Ph, 25x Ph, 40x Ph obj lenses
  • B, G, UV, V filter sets installed on a filter slider with easy switch
  • LWD Condenser

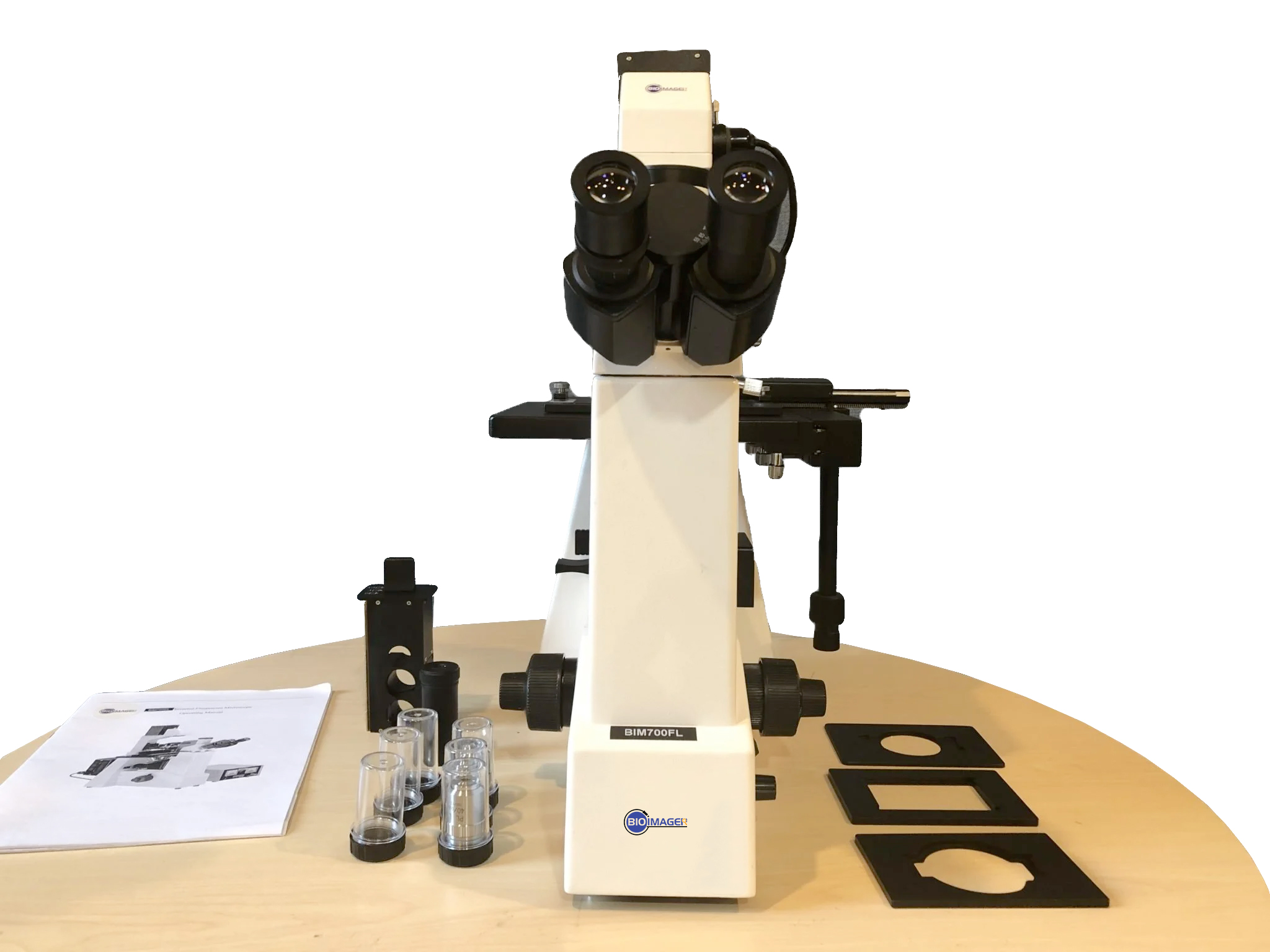

  • XY stage ans sample holder are included
  • Trinocular Viewing Head, Top Video Port

In stock

$5,288.00 $8,000.00

Introduction

BIM700FL Inverted Fluorescence Microscopes is composed with inverted microscope and reflected fluorescence microscope, equipped with long working distances plan achromatic objectives and wide field eyepieces, you can use long working distance phase contrast objectives and special long working distance condenser with phase contrast unit in an inverted mode, and change the fluorescence excitation system easily. The microscope has clear image, wide field, compact framework, beautiful sculpt and comfortable operation. It is mainly used to observe the living cell and tissue culture, transparent living organisms without staining and fluorescence slides. It is an ideal instrument for research labs in general biology, cellular biology, cytology, oncology, genetics, immunology  and so on. The microscope can be used for scientific research, medical treatment, epidemic prevention, animal husbandry and clinical works.

Application

It’s mainly applied to observe the living cell and tissue, liquid and deposits etc, also to observe transparent living organisms without staining and fluorescence slice up, it is the ideal instrument for researching in biology, cells cytology, oncology, genetics, immunology etc. The microscope can be used for scientific researching, medical treatment, epidemic prevention and animal husbandry etc.

  • With wide field eyepieces, Long distance plan achromatic objectives the field of view is widely and clear.
  • Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.
  • The mechanical stage movement mechanism can be taken out.
  • Equipped with phase contrast unit, include long working distance condenser, phase contrast objective and centering telescope
  • Equipped with fluorescence unit, include four group of fluorescence filter.
  • 6V 30W halogen lamp transmission illumination with brightness control. 100W high voltage mercury lamp, with outside power supply unit

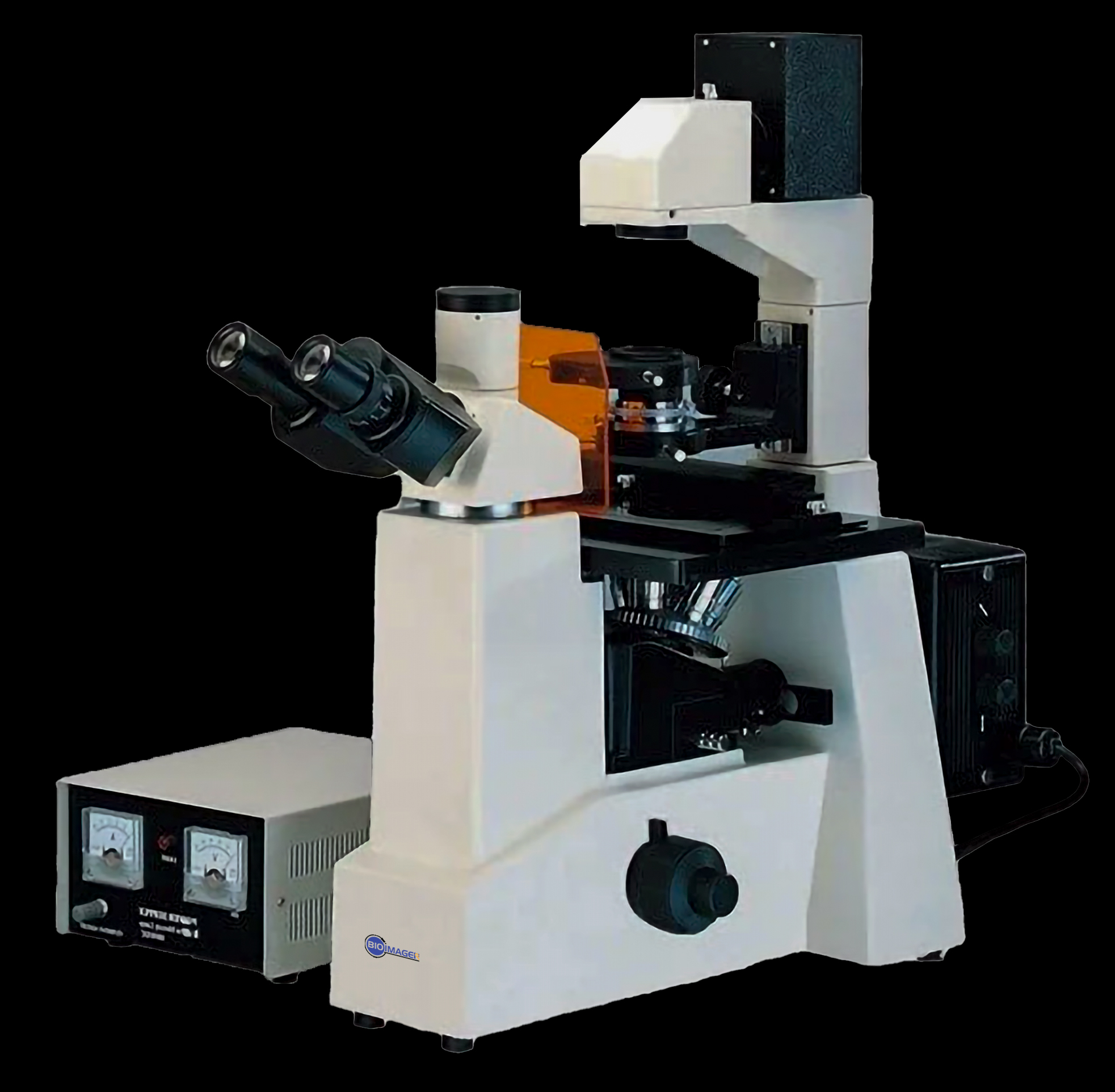

BIM700FL Inverted Epi-Fluorescnce Microscope with Great Phase Contrast Imaging

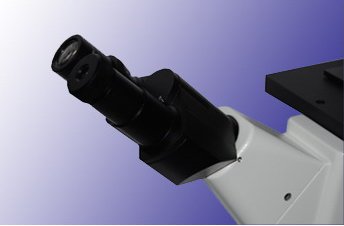

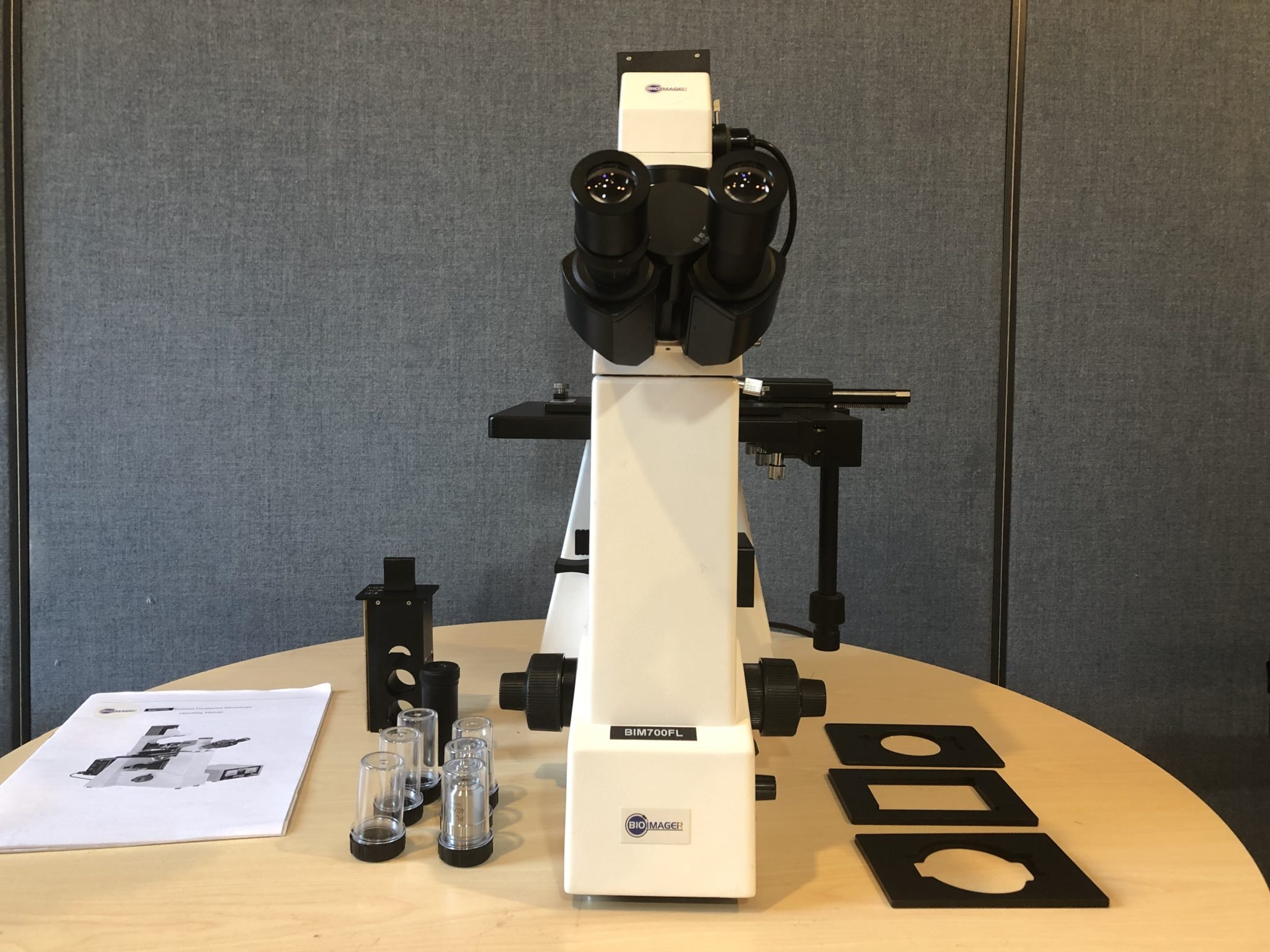

Observation System

  • Binocular Viewing Head, single diopter adjustment, inclined 30’, comfortable and good-looking.
  • Trinocular head can be used to connect to a camera.
  • It comes with 10x eyepieces with field number of 20mm.

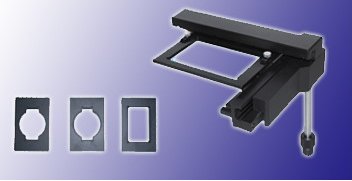

Mechanical Moving Stage
The disassembly type mechanical moving stage enables to fill the requirements to observe all types of culture dishes.Double layer mechanical (Size: 224mmX208mm, moving range: 112mmX79mm)

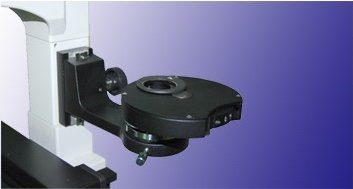

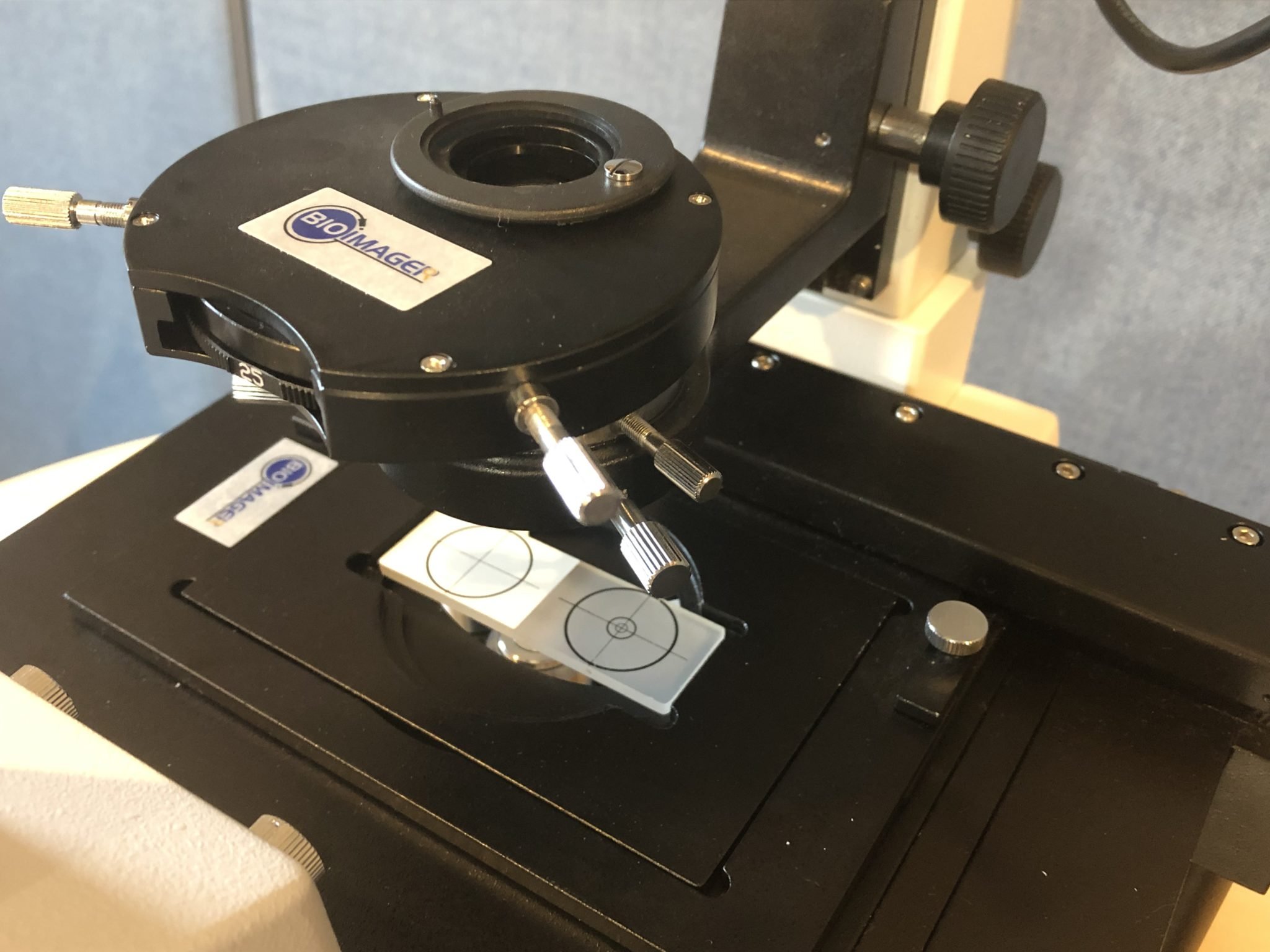

Turning out Phase condenser
Transmitted illuminations
6V30W Halogen   Koehler illuminationoptional: upgrade to LED

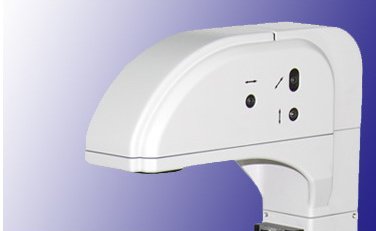

Reflected illumination / Epi-Fluorescence

  • Mercury lamp house 100W/DC
  • Power supply unit:AV:110V or 220V

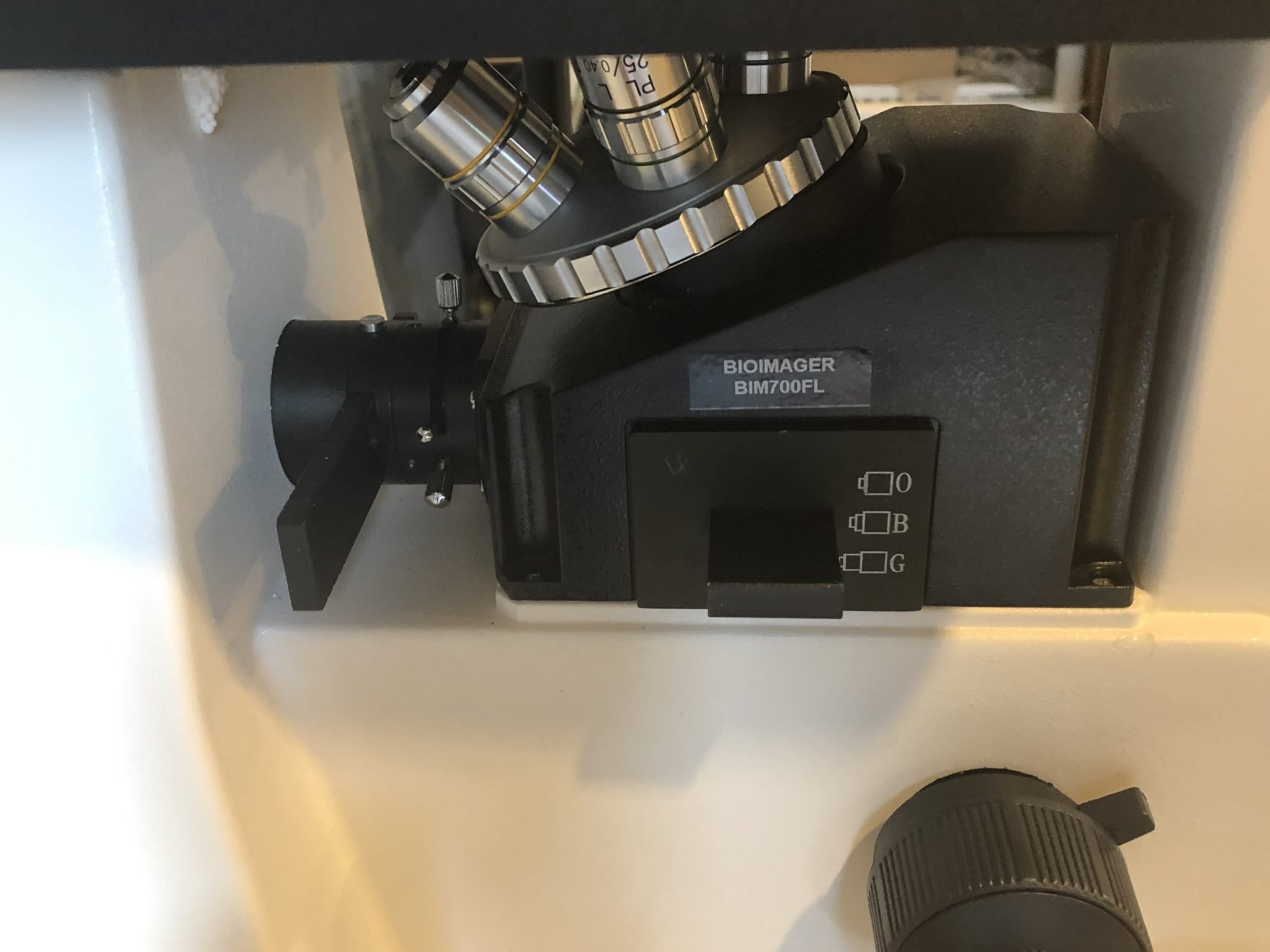

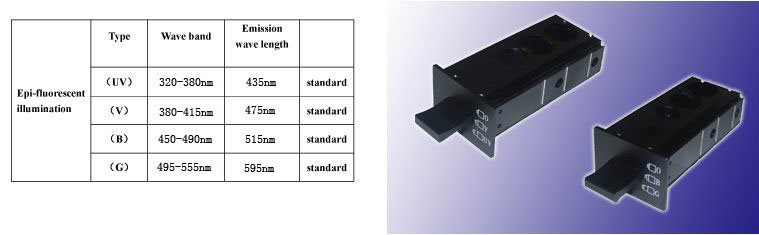

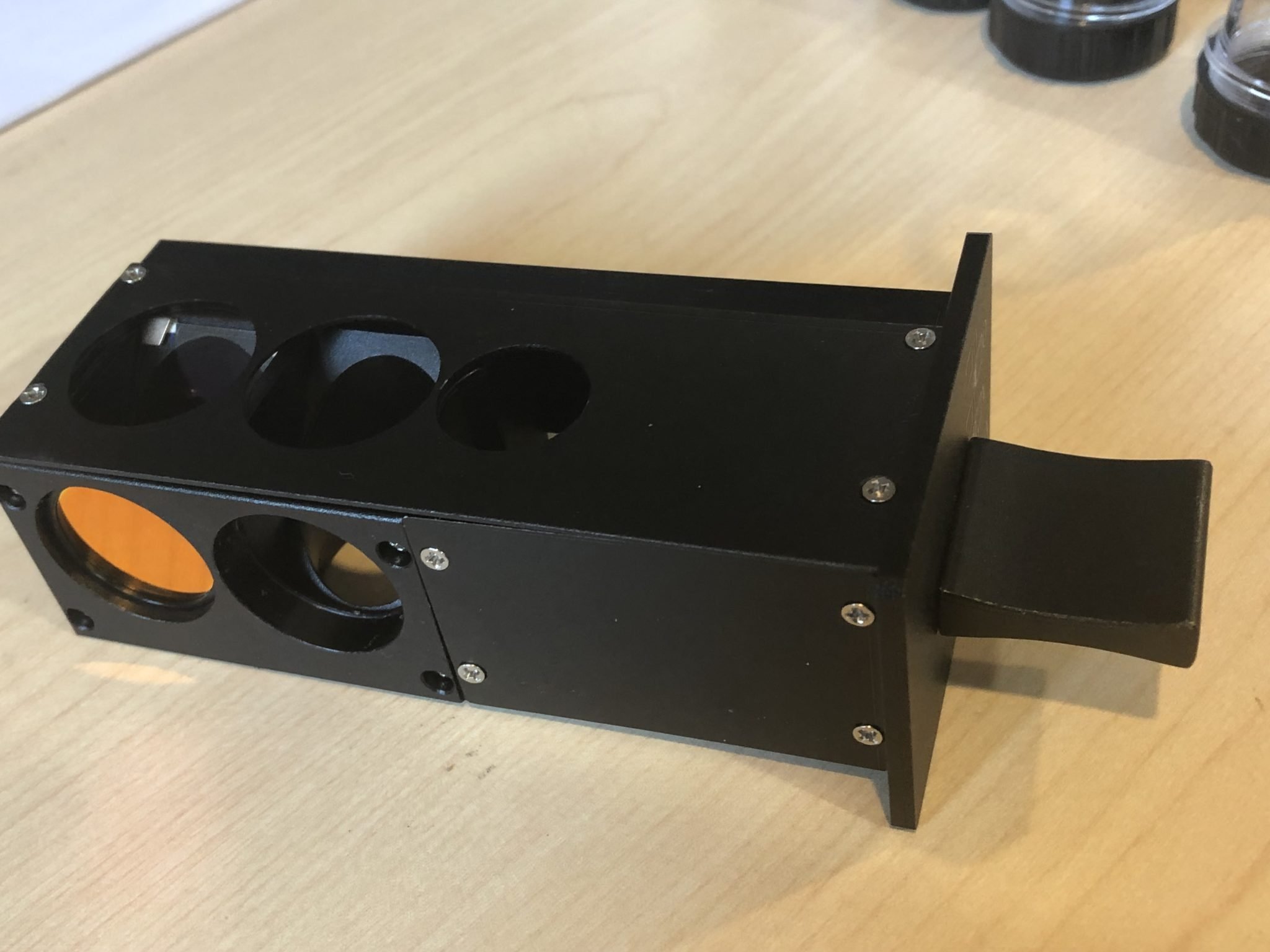

Filters
UV, V, B and G insert filter sliders:

  • Fluorescence filter system B exciton wavelength:450~490nm
  • Fluorescence filter system G exciton wavelength:495~555nm
  • Fluorescence filter system UV exciton wavelength:320~380nm
  • Fluorescence filter system V exciton wavelength:380~415nm
  • Custom filter sets are available
Phase Contrast Observation

  • Condenser Rack & pinion adjustable, NA=0.4,working distance: 50mm
  • Long working distance plan achromatic phase contrast objective PL L 10X/0.25 PHP2
  • Long working distance plan achromatic phase contrast objective PL L 25X/0.40 PHP2
  • Long working distance plan achromatic phase contrast objective PL L 40X/0.60 PHP2
  • Centering telescope
ModelBIM700FL
EyepieceWide field eyepiece WF10X(¦µ20mm)
ObjectiveLong working distance plan achromatic objectives PL L 10X/0.25
Long working distance plan achromatic objectives PL L 25X/0.40
Long working distance plan achromatic objectives PL L 40X/0.60
Long working distance plan achromatic phase contrast objective PL L 10X/0.25 PHP2
Long working distance plan achromatic phase contrast objective PL L 25X/0.40 PHP2
Long working distance plan achromatic phase contrast objective PL L 40X/0.60 PHP2
Eyepiece tubeTrinocular (Inclination of 30°, 100% image light for photography capable)
Focus systemCoaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm
NosepieceQuintuple (Ball bearing inner locating)
StageDouble layer mechanical (Size: 224mmX208mm, moving range: 112mmX79mm)
Filter
Blue filter
Green filter

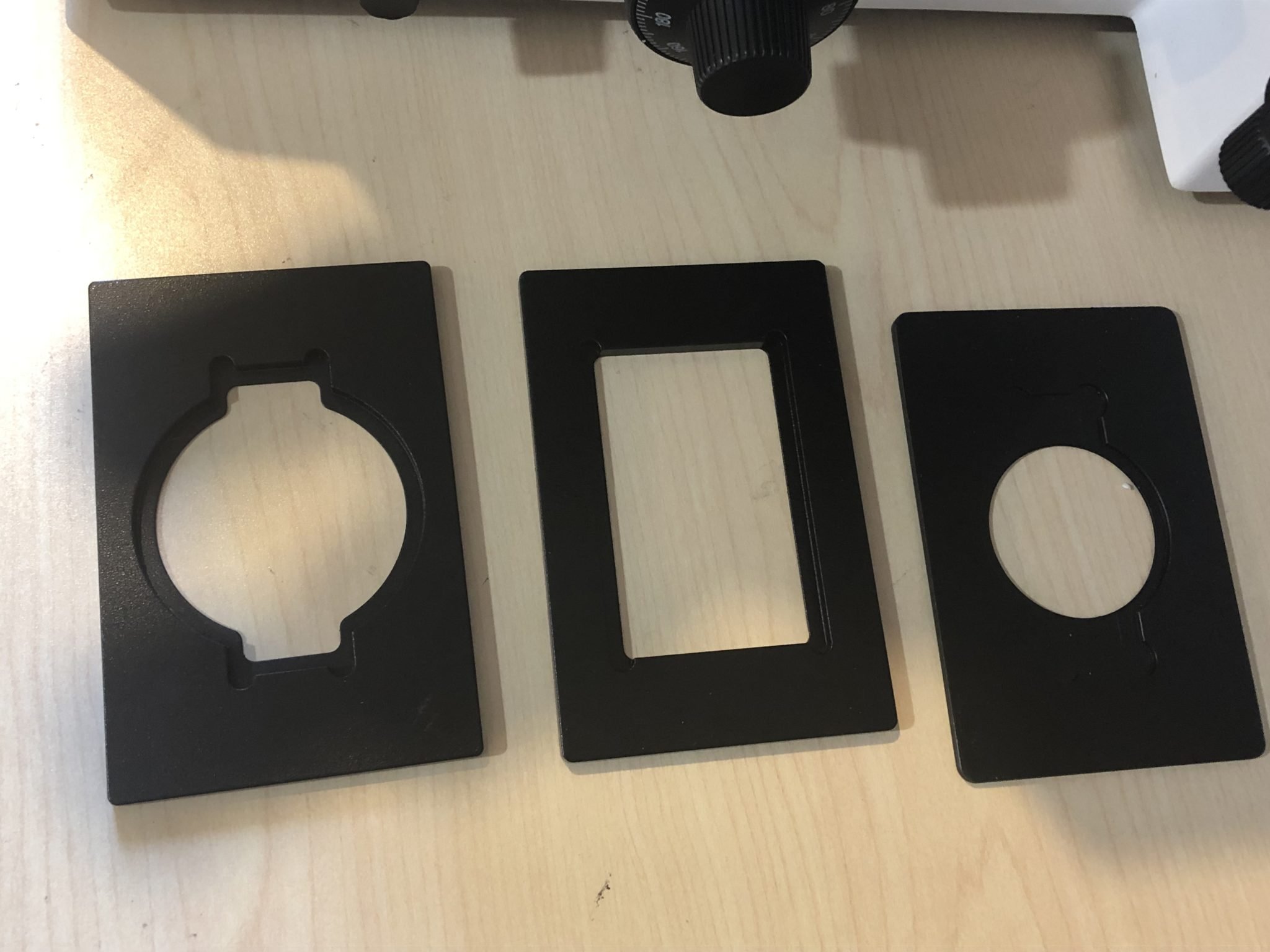

Shelf of specimenMatch to install ¦µ68mm or 77mmX29mm culture utensil
Match to install 82mmX57mm culture utensil
Match to install 128mmX85mm 96 holes culture utensil
Reflected fluorescence systemMercury lamp house 100W/DC
Power supply unit:AV:110V or 220V
Fluorescence filter system B exciton wavelength:450~490nm
Fluorescence filter system G exciton wavelength:495~555nm
Fluorescence filter system UV exciton wavelength:320~380nm
Fluorescence filter system V exciton wavelength:380~415nm
Turnplate phase contrast unitCentering telescope
Condenser Rack & pinion adjustable, NA=0.4,working distance: 50mm

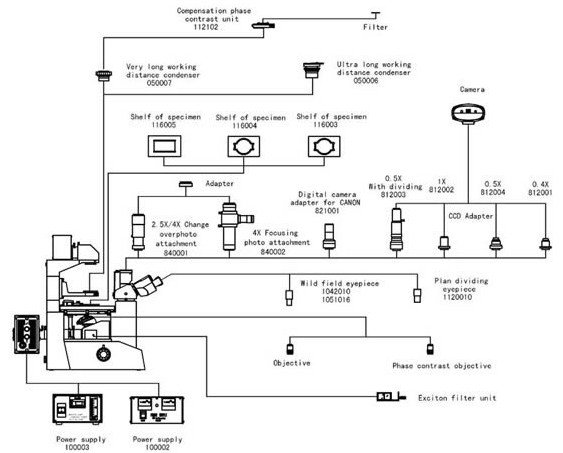

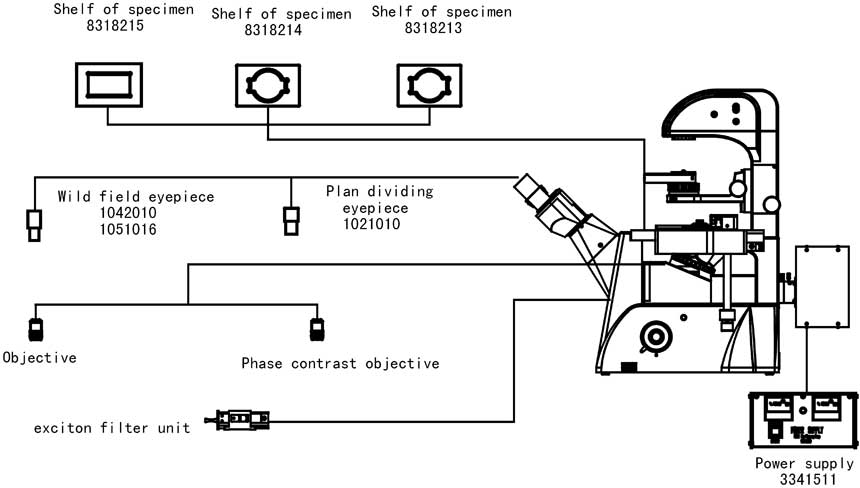

Accessories (Optional)

Optional AccessoriesCat No.
EyepieceWide field eyepiece WF16x/11mmBIM700-16×11
Dividing 10x/20mm, 0.1mm/DivBIM700-10×22
CondenserUltra long working distance,W.D.:70mmBIM700-WDCL70
FilterYellow filterBIM700-FY
Power Supply100W fluorescence power supply (Wide voltage range, constant power , calculagraph)BIM700-FLPS
Phase ContrastCompensation phase contrast setBIM700-PhS
CCD Adapter0.4XBIM700-0.4xC
0.5XBIM700-0.5xC
1XBIM700-1xC
0.5X with dividing 0.1mm/DivBIM700-0.5xDC
DC AdapterDigital camera adapter CANON (A610,A620,A630,A640)BIM700-DSLR
Photo Adapter2.5X/4X Change over photograph adapter with 10X viewing eyepieceBIM700-2.5xSLR
4X Focusing photograph adapterBIM700-4xSLR
MD AdapterBIM700-MDA
PK AdapterBIM700-PKA

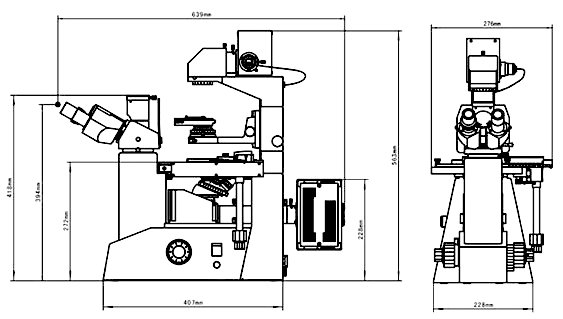

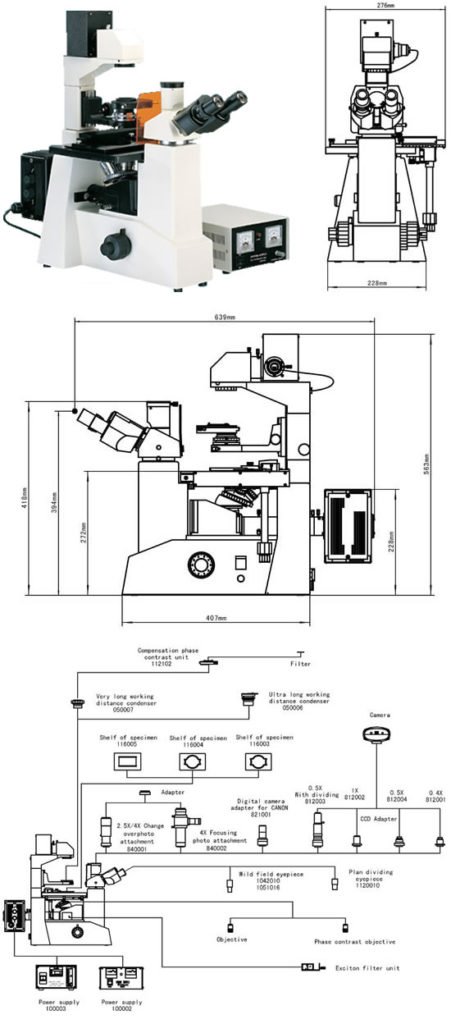

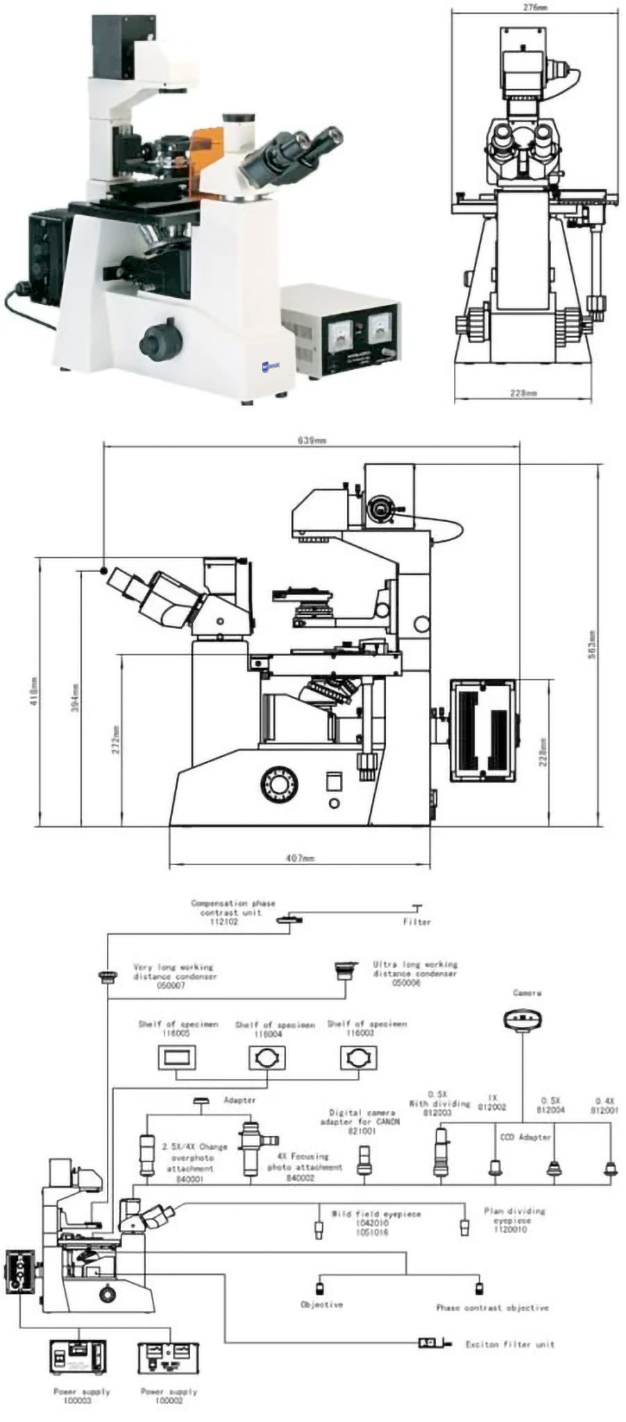

Dimensions
