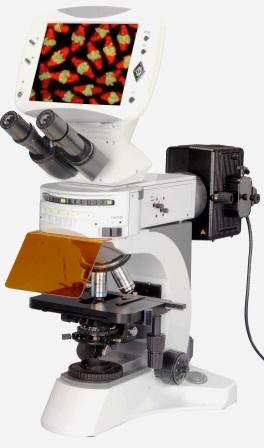

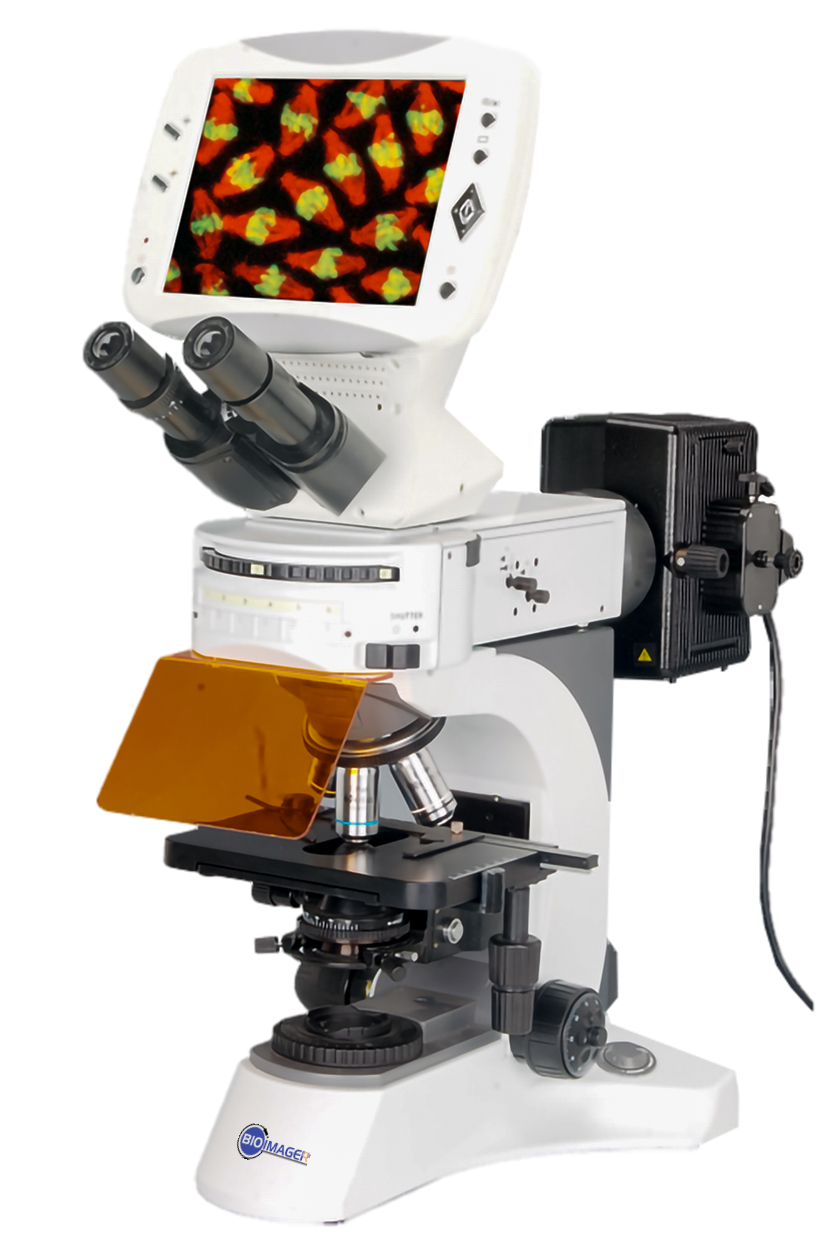

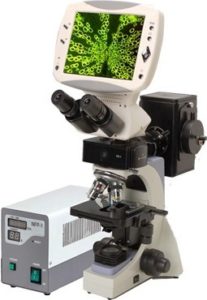

BUM500FLD LCD Upright Fluorescence Microscope

Sale!

BUM500FLD LCD Upright Fluorescence Microscope

Original price was: $USD 6,499.00.Current price is: $USD 5,888.00.

Digital LCD Compound Fluorescence Microscope
9 Inches HD LCD Screen, Resolution is 1280×800
Pixel: 5 Mega Pixel (Built-in Camera)
Infinite Plan Achromatic Objective 4×, 10×, 40×, 100×
Swing Condenser NA 0.9/ 0.25
Coaxial Coarse & Fine Adjustment, Fine Division 0.001mm
External Illumination, Aspherical Collector, Halogen Lamp 6V/ 30W

BUM500FLD compound digital LCD fluorescence microscope renovated the traditional way of microscopic observation and thoroughly resolves the fatigue for a long time working. Eyepieces and LCD Screen can both be used for convenient and comfortable viewing by individuals and share with groups. It is also feature the latest 5 Mega Pixels digital imaging microscopy techniques for quick and easy snapshots or videos.

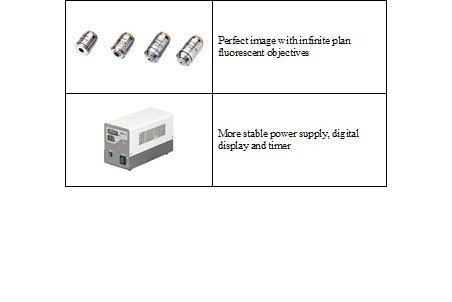

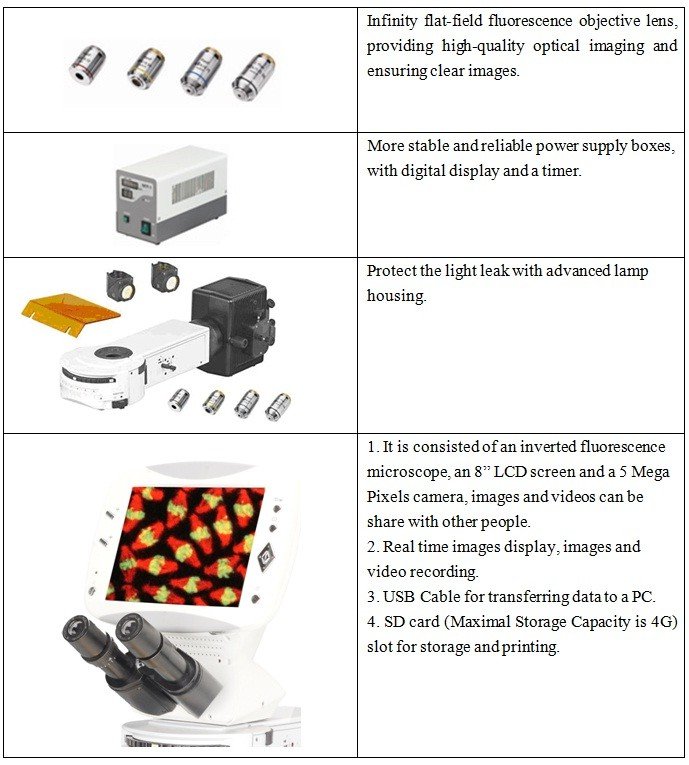

	Infinity flat-field fluorescence objective lens, providing high-quality optical imaging and ensuring clear images.
	More stable and reliable power supply boxes, with digital display and a timer.
	Protect the light leak with advanced lamp housing.
	1. It is consisted of an inverted fluorescence microscope, a 9” LCD screen and a 5 Mega Pixels camera, images and videos can be share with other people. 2. Real time images display, images and video recording. 3. USB Cable for transferring data to a PC. 4. SD card (Maximal Storage Capacity is 4G) slot for storage and printing.

BUM500FLD LCD Upright Fluorescence Microscope

Introduction
BUM500FLD compound digital LCD fluorescence microscope renovated the traditional way of microscopic observation and thoroughly resolves the fatigue for a long time working. Eyepieces and LCD Screen can both be used for convenient and comfortable viewing by individuals and share with groups. It is also feature the latest 5 Mega Pixels digital imaging microscopy techniques for quick and easy snapshots or videos.

Application
This microscope is an ideal instrument for biology, cytology, oncology, genetics, immunology and other research works, it can be used in scientific research institutes, medical care, vaccination, animal husbandry and other departments, it also can be used in venereal disease examination and immunity diagnosis.

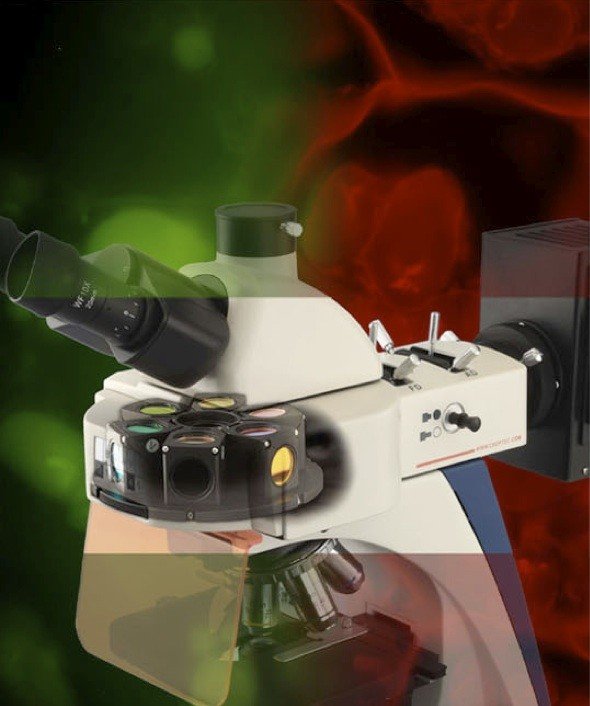

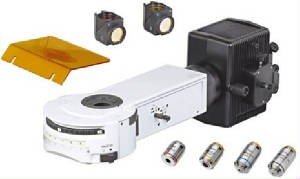

Epi-fluorescent Attachment

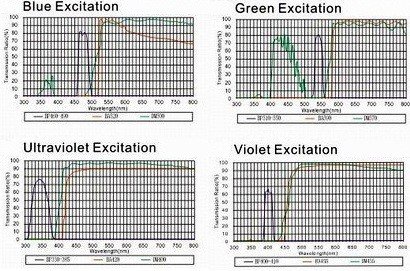

Characteristics of Mirror Units Wavelength

Digital Parts	Resolution				5 Mega Pixel
	Photo Resolution				2560X1920-1600X1200
	Video Resolution				1280*800
	Sensor Size				1/2.5 Inches
	LCD Screen				9 inches HD, Resolution is 1280*800
	Video Output				AV Output (NTSC/PAL)
	Data Output				USB2.0
	Menu Language				Chinese / English
	Storage				SD Card Slot with Optional Memory Cards (Maximal Storage Capacity is 4G)
	Scene Mode				Standard / Softness / Vivid
	Exposure Mode				Auto Exposure
	Date Mode				Year, Month, Day, Hour, Minute
Optical Parts	Viewing Head				Seidentopf Binocular, Head Inclined at 30°,Interpupillary Distance 48-75mm
	Eyepiece				Extra Wide Field Eyepiece EW10×/22
	Objective				Infinite Plan Achromatic Objective 4X/ 10X/ 40X/ 100X
	Nosepiece				Backward Quintuple Nosepiece
	Condenser				Swing Condenser NA 0.9/ 0.25
	Focusing System				Coaxial Coarse & Fine Adjustment, Fine Division 0.001mm
	Stage				Double Layers Mechanical Stage 185×142/ 75×55 mm
	Kohler Illumination				External Illumination, Aspherical Collector, Halogen Lamp6V/ 30W
	Reflected Light Source						Excitation		Dichroic Mirror		Barrier Filter
			Blue excitation				BP460~490		DM500		BA520
			Green excitation				BP510~550		DM570		BA590
	Lamp			100W HBO Ultra Hi-voltage Spherical Mercury Lamp
	Protection Barrier			Barrier to Resist the Ultraviolet Light
	Power Supplier			Power Supplier NFP-1, 220V/ 110V Interchangeable, Digital Display
	Immersion Oil			Fluorescent Free Oil
Optional Parts	Objective			Infinite Plan Achromatic Objective 20×
				Infinite Plan Fluorescent Objective 4×/ 10×/ 20×/ 40×,/ 100×
	Reflected Light Source					Excitation		Dichroic Mirror		Barrier Filter
		Blue one excitation				BP460~495		DM505		BA510-550
		Ultraviolet excitation				BP330~385		DM400		BA420
		Violet excitation				BP400~410		DM455		BA455
	Neutral ND25/ ND6 Filter
	Centering Target

Sample Images

Video 1: Main Body and Performance Overview:

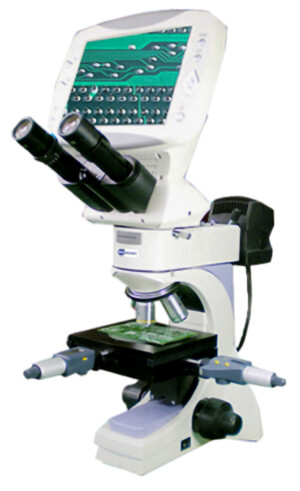

Video 2: Imaging Capability: Brightfield imaging with transmitted or Reflected Light

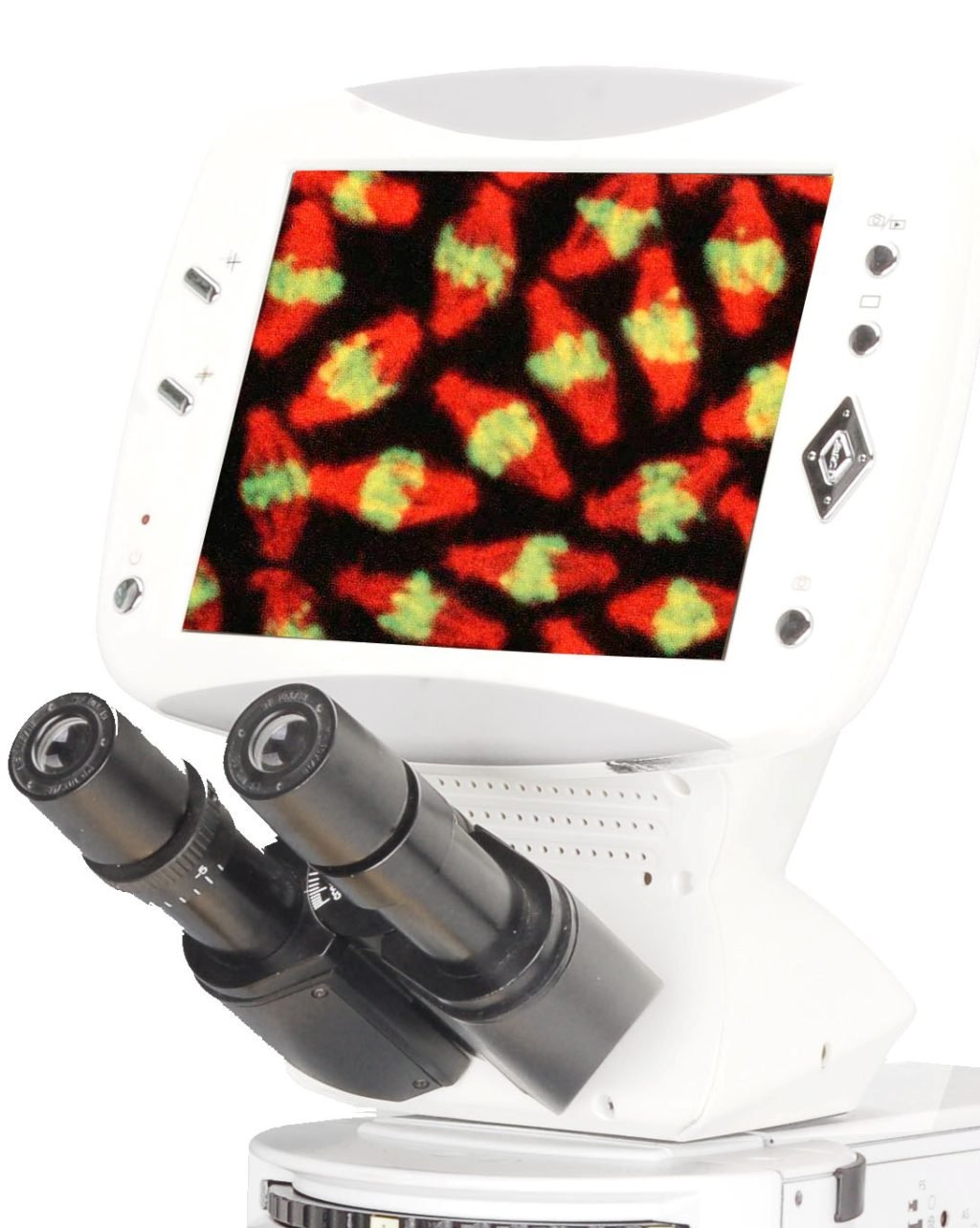

9″ HD LCD with 1280×800 resolution & Built-in 5MP Camera
