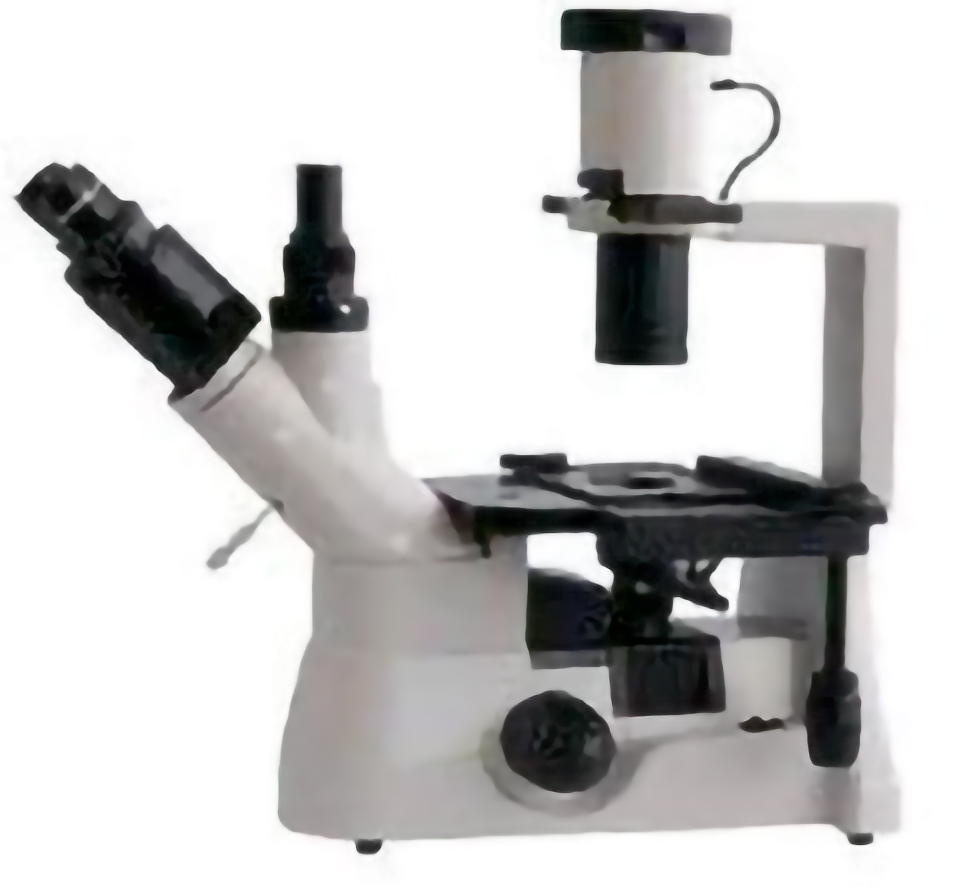

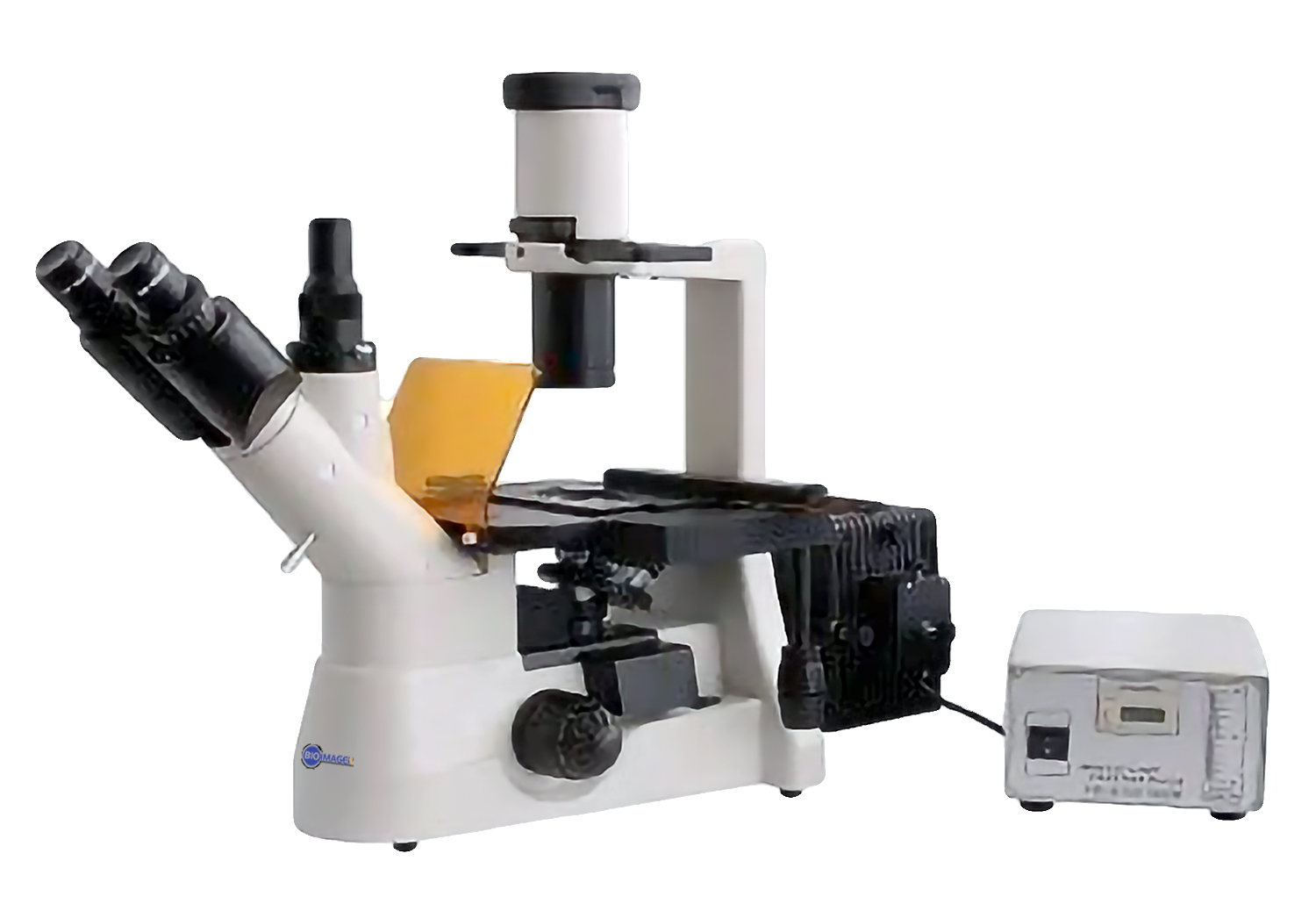

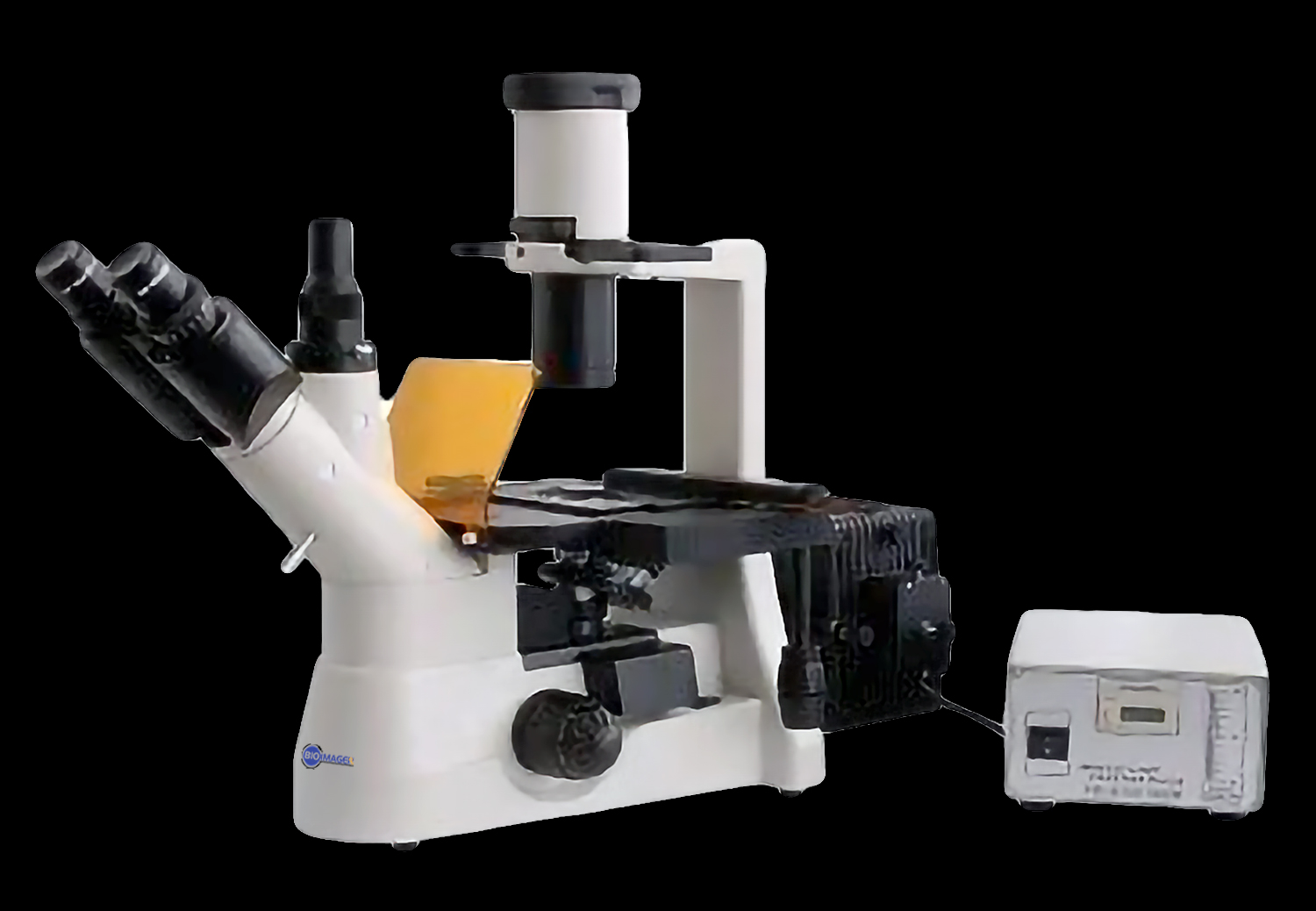

BIM550FL inverted fluorescence microscope is composed of inverted microscope and Epi-fluorescent microscope. The inverted microscope has the feature to observe the specimen in Culture flask and Petri dish. Epi-fluorescent device applies to the fluorescent microscopy. It is equipped with long wording distance plan achromatic objectives, wide field eyepiece, binocular observation head, phase contrast kit and phase contrast objectives. The transparent alive objects can be observed without dyeing. Epi-fluorescent microscope adopts to Epi-illumination excitation to make fluorescent image clear. Long working distance condenser can contain higher culture dish and specimen. This equipment is specially suitable for research on living cells, medical treatment, epidemic prevention department and farming, stock raising,etc.

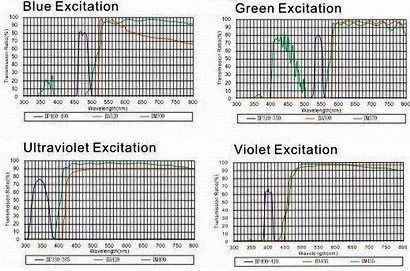

1. B,G or U,V waveband
2. long working distance objective lenses
3. Trinocular viewing head
4. Great price per performance
Trinocular Viewing head

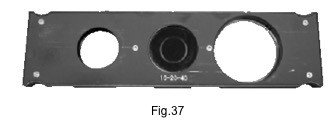

Phase Contrast Slider
Large Deck equipped with an XY stage and sample holders (optional)
Easy switch between GFP and RFP filters.
Viewing Head Compensation Free Trinocular Head, Inclined 45°(50mm-75mm) Eyepiece WF10×/22mm Objective Long working distance plan achromatic objectives: 4×,10×(phase contrast),20×(phase contrast),40×(s) Stage Double layer mechanical stage Stage Size: 242mm×172mm Central stage: Φ110mm Moving Range: 75mm×40mm Filter N.A.0.3 Abbe Condenser with iris diaphragm, Working Distance:75mm Focusing Coaxial coarse and fine focusing system With tension adjustment Fine focusingscale value 0.002mm Light Source Transmission Illumination: Halogen Bulb 12V/30W, Adjustable Brightness Epi-Fluorescent illumination: 220V(110V) Ultra-high pressure MercuryLamp100W/DC. Digital display mercury lamp constant power Fluorescenceattachment B,G Wave band OptionalAccessory 1.3Mega,2.0 Mega,3.0 Mega,5.0 Mega,pixels CMOS Digital camera eyepiece Objective:40×phase contrast U,V Wave band Photography attachment and CCD Adapter 0.5×,0.57×,0.75×
