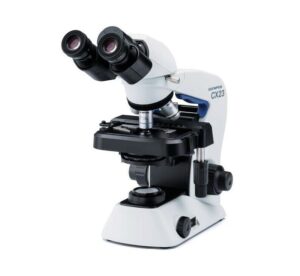

Olympus CX23 Biological Microscope

$USD 2,750.00

-31%
  • Infinity-corrected Plan Achromat objectives (4x, 10x, 40x, 100x oil)
  • 10X F.N. 18 eyepieces
  • Anti-fungus treatment helps protect optical parts even in high humidity work conditions

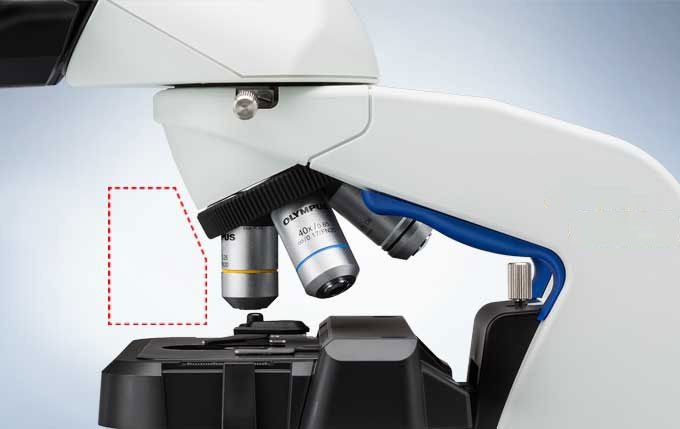

  • Ultra-smooth, quadruple revolving nosepiece
  • Fixed Abbe condenser N.A. 1.25, aperture stop position for each objective
  • LED illumination. The built-in aspherical collector lens

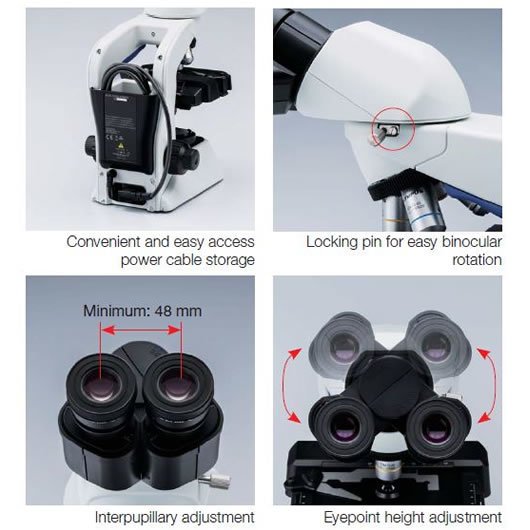

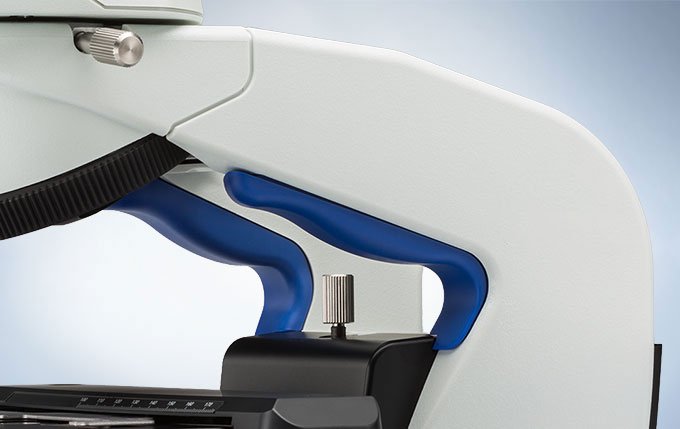

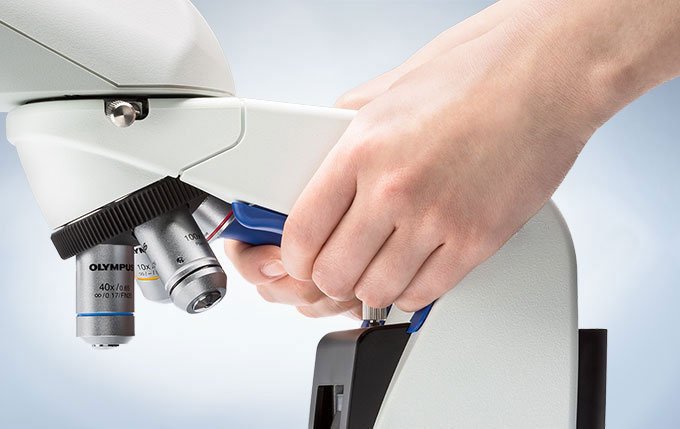

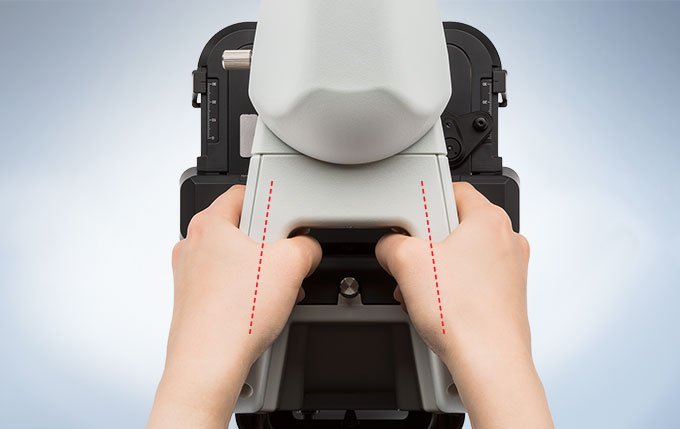

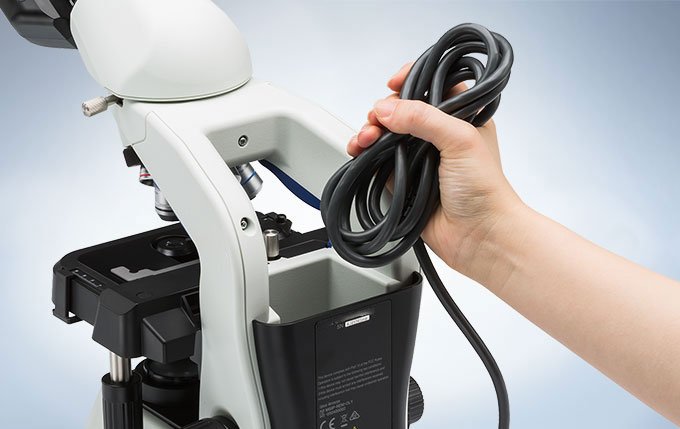

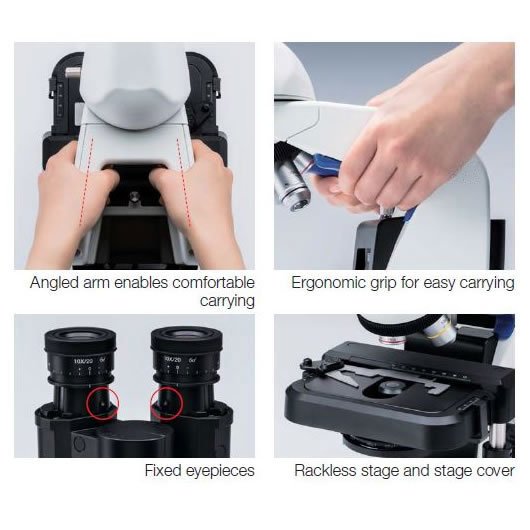

  • Compact design with ergonomic grip for easy portability and storage in a typical classroom cabinet

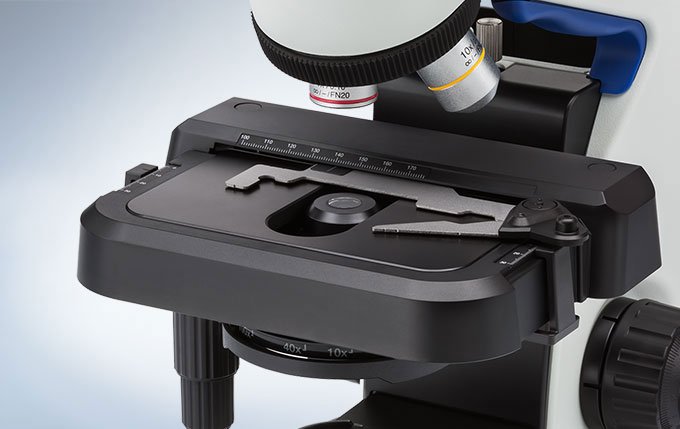

  • Built-in right-hand stage with rackless design, low positioned X, Y controls
  • Student proof – The eyepieces, objectives, and condenser are all factory attached to the microscope body

Free worldwide shipping on all orders over $50

  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

Introduction to Olympus CX23 Biological Microscope

The Olympus CX23 biological microscope is a versatile and affordable upright microscope that is commonly used in educational settings, clinical laboratories, and research applications. It features high-quality optics and a durable, ergonomic design that make it well-suited for a variety of microscopy applications.

The Olympus CX23 biological microscope is a reliable and affordable option for researchers, educators, and clinical professionals who need a high-quality microscope for routine microscopy applications. Its high-quality optics, sturdy construction, and ergonomic design make it a popular choice for a wide range of applications, including histology, microbiology, and cytology.

Key features of the Olympus CX23 biological microscope include:

  • Optics: The microscope features high-quality UIS2 optics that provide excellent image clarity and contrast. The objectives have a magnification range of 4x to 40x, and the eyepieces have a magnification of 10x.
  • Illumination: The microscope has a built-in LED illumination system that provides bright, uniform lighting to the specimen being observed. The intensity of the light can be adjusted to suit the needs of the user.
  • Stage: The microscope’s stage is large and sturdy, and it has coaxial coarse and fine focus controls for precise movement of the specimen. The stage also has a slide holder and two slide clips for securing the specimen in place.
  • Condenser: The microscope has an Abbe condenser with an adjustable aperture diaphragm that collects and focuses the light from the illumination source onto the specimen to improve image quality.
  • Ergonomic design: The microscope has a compact, lightweight design that makes it easy to transport and store. It also has ergonomic features, such as a low-positioned focus knob and a height-adjustable stage, that make it comfortable to use for extended periods of time.

Olympus CX23 Biological Microscope

The Olympus CX23 is an economically priced Olympus microscope that achieves a high standard of optical and mechanical quality for educational applications. The binocular head is inclined and features Olympus WF 10x eyepieces. Simple enough for even first-time microscope users to master, the CX23 achieves a high standard of optical and mechanical quality for educational microscopes. Conveniently placed controls and a slim base make for comfortable viewing and efficient adjustments. A graduated mechanical stage is included for precise slide movement. Includes Plan achromat, anti-fungus 4x, 10x, 40x and 100x objectives. This microscope is ideal for educational and medical school applications and comes with a five year warranty.

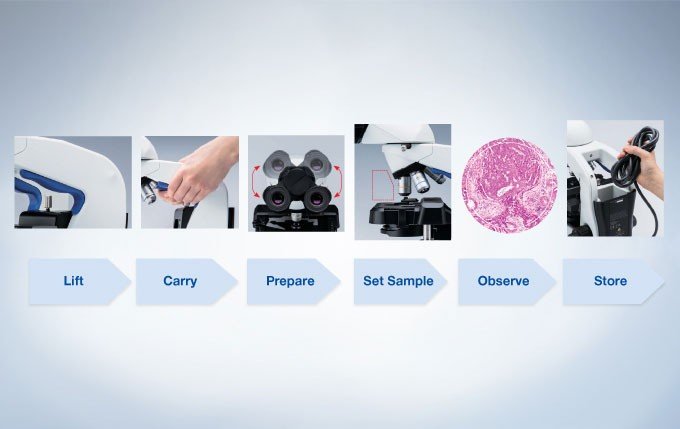

Designed for operational ease, the CX23 microscope’s unique features accommodates the student and every requirement in the educational setting. This cost-effective system provides easy and safe operation throughout the workflow and ensures outstanding optical performance with large field number (FN) 20. Also, the built-in LED light source provides uniform and stable illumination for long term with low power consumption, and its reduced blue color preserves vivid colors of the sample.

 Olympus CX23 Biological Microscope

Optical System UIS2 Infinity Optical System
Head

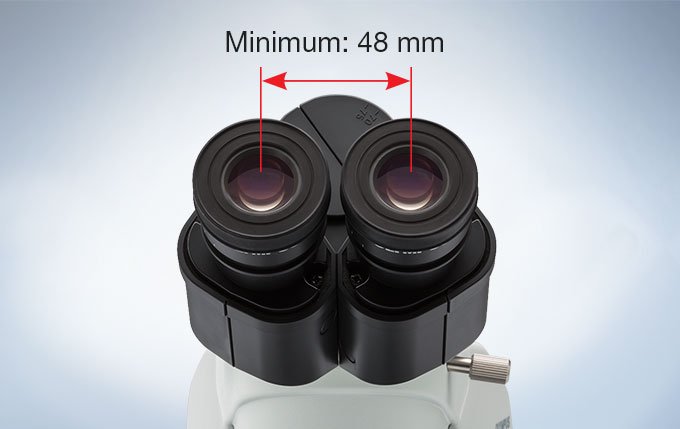

Binocular Head, 30° Inclined, Interpupillary Distance 48~75mm, High Eyepoint Adjustable 377.8-427.7mm
Eyepiece

WF10x/20mm

Nosepiece
Quadruple Nosepiece
Objective
Plan Achromatic Objective:
4× N.A.0.1, W.D. 27.8mm
10× N.A.0.25 W.D. 8.0mm
40× N.A.0.65 W.D. 0.6mm
100× N.A.1.25 W.D. 0.13mm
Working Stage Mechanical Working Stage, Moving Range 76*30mm
Focusing Coaxial Coarse 15mm per circle, Fine Focus Knob, Minimum Division 0.0025mm
Condenser Abbe Condenser N.A.1.25
Light Source Transmit Illumination, 0.5W LED, Kohler Illumination
Size 198 (W) x 258 (D) x 384 (H) mm
Weight Gross Weight 5.9Kgs
Power Supply AC 100–240 V 50/60 Hz 0.4 A, With Power Cord
Dust Cover Dust Cover Type 015 For CX21/31/41 (L 450mm x H 460mm)

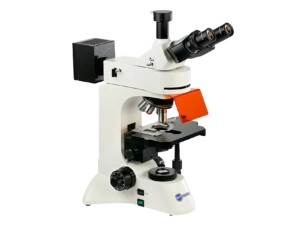

Optional Fluorescence Imaging:

Single Wavelength Options:

Mode LED lighting central wavelength Excitation filter wavelength Dichroic mirror wavelength Emission filter wavelength
FITC / GFP 475nm 460-490nm >500nm >510nm
Royal Blue 450nm 420-480nm >500nm >510nm
TRITC / TX RED / Rhodamine 530nm 510-550nm >570nm >590nm
DAPI 365nm 330-380nm >400nm >420nm
Violet 405nm 395-415nm >420nm >440nm



Dual Wavelength Option 1:

Mode LED lighting central wavelength Excitation filter wavelength Dichroic mirror wavelength Emission filter wavelength
FITC / GFP 475nm 460-490nm >500nm >510nm
TRITC / TX RED / Rhodamine 530nm 510-550nm >570nm >590nm



Dual Wavelength Option 2:

Mode LED lighting central wavelength Excitation filter wavelength Dichroic mirror wavelength Emission filter wavelength
Royal Blue 450nm 420-480nm >500nm >510nm
TRITC / TX RED / Rhodamine 530nm 510-550nm >570nm >590nm
