Zeiss Axio Series Microscope TV Adapters
- Convert the Zeiss Axio trinocular microscope phototube head port (have standard ISO 30 mm (1.18 inch) outer diameter for the insertion end to phototube) to traditional C-Mount type (25.4 mm or 1 inch diameter with 32 threads per inch);
- With different built-in reduction lens (1.2X,1X, 0.8x 0.65X, 0.5X, 0.35X) for achieving better field of view from microscope trinocular head;
- Compatible with Zeiss 60N-C microscope adapter
- Build of material: anodized aluminum;
- Telecentric optics with low light deficiency;
- Parfocal with different microscope objective lenses;
- Diffraction limited MTF;
- Aperture totally coupled with UIS microscope objective’s exit pupil;
Zeiss Axio Phototube to C-Mount or T2-Mount Adapter (Zeiss TV Adapter)
| Model | Magnification | Sensor Size | Mount Type |
|---|---|---|---|

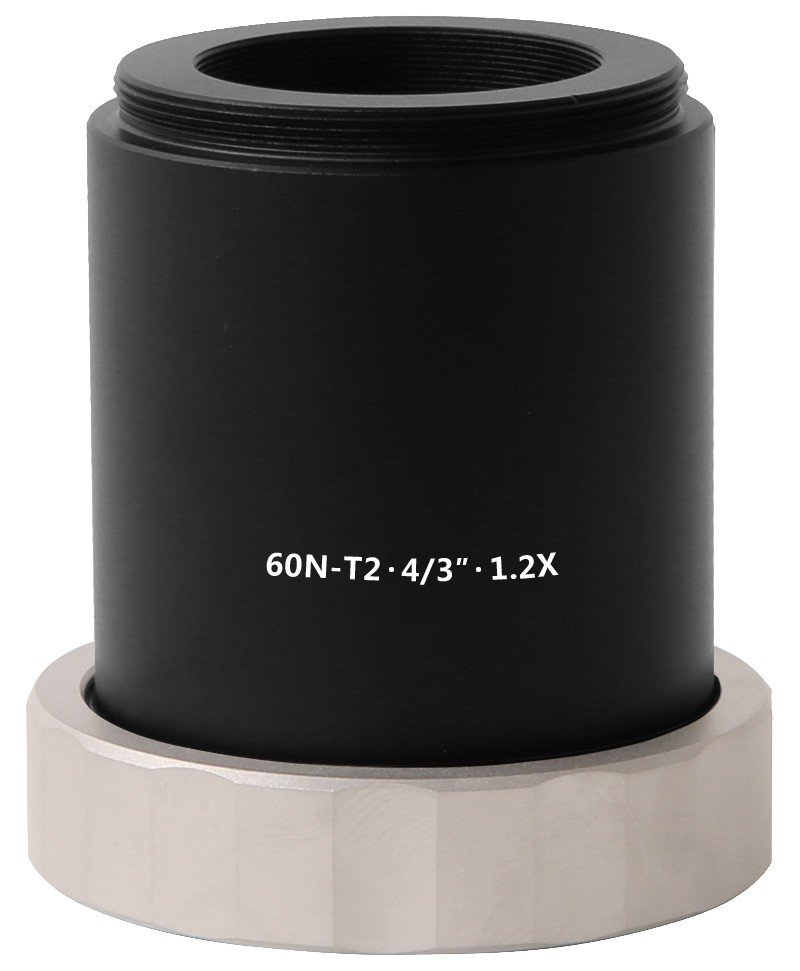

| BIA-ZA-1.2X(New) | 1.2X | 4/3”,1” | T2-Mount |
| BIA-ZA-1.0x | 1X | 1”, 2/3” | C-Mount |

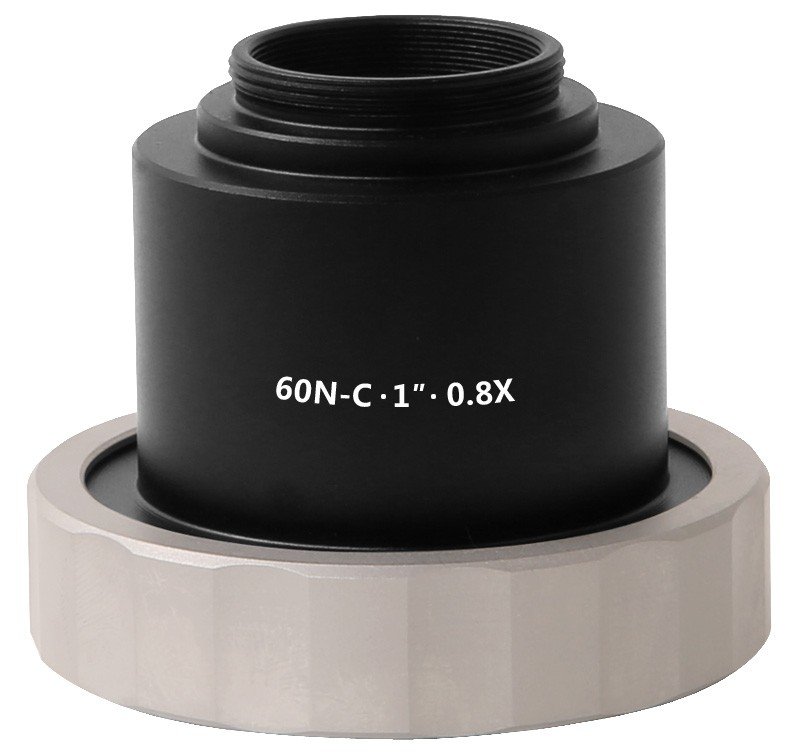

| BIA-ZA-0.8x(New) | 0.80X | 1”,2/3” | C-Mount |
| BIA-ZA-0.65x | 0.65X | 2/3”,1/1.8”,1/2” | C-Mount |

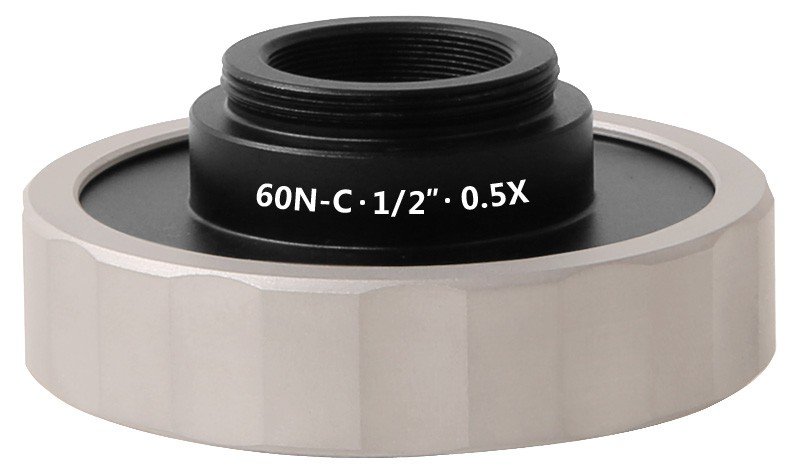

| BIA-ZA-0.50x | 0.5X | 1/1.8”,1/2”,1/2.5” | C-Mount |
| Supported Microscope | Specially designed for Axio Examiner.A1; Axio Examiner.D1; Axio Examiner.Z1;
Axio Imager Vario; Axio Imager.A1; Axio Imager.A1m; Axio Imager.A2; Axio Imager.A2m; Axio Imager.D1; Axio Imager.D1 for epi-fluorescence with ApoTome equipment; Axio Imager.D1m; Axio Imager.D2; Axio Imager.D2m; Axio Imager.M1 (Axio Imager.M1 for KS ELISPOT); Axio Imager.M1m; Axio Imager.M2; Axio Imager.M2m; Axio Imager.Z1; Axio Imager.Z1 + ApoTome; Axio Imager.Z1m; Axio Imager.Z2; Axio Imager.Z2m; Axio Lab.A1; Axio Lab.A1 FL-LED; Axio Lab.A1 MAT; Axio Lab.A1 Pol; Axio Observer.A1; Axio Observer.A1 Entry; Axio Observer.D1; Axio Observer.D1 Entry; Axio Observer.D1 Mid Range; Axio Observer.Z1; Axio Observer.Z1 High End; Axio Scope.A1; Axio Scope.A1 Pol; Axio Scope.A1 Vario; Axio Vert.A1; Axio Vert.A1 FL; Axio Vert.A1 FL-LED; Axio Vert.A1 MAT; Axio Zoom.V16; PALM CombiSystem Rel. 4.2; PALM MicroBeam; PALM MicroBeam Rel.4.2; PALM MicroTweezers Rel.4.2; Stemi 508 doc; Stemi 508 trino; SteREO Discovery.V12; SteREO Discovery.V8; SteREO Lumar.V12 microscope |
||
Note: Please specify your brand name, Bioimager engineers will help you choose the right adaptor magnification according to the camera sensor size;
