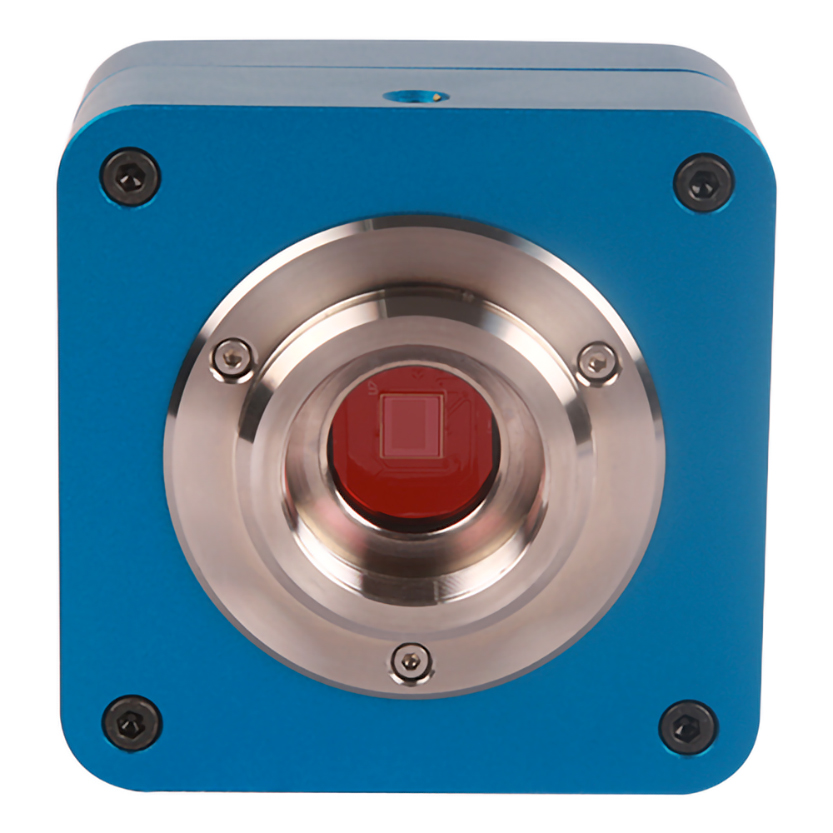

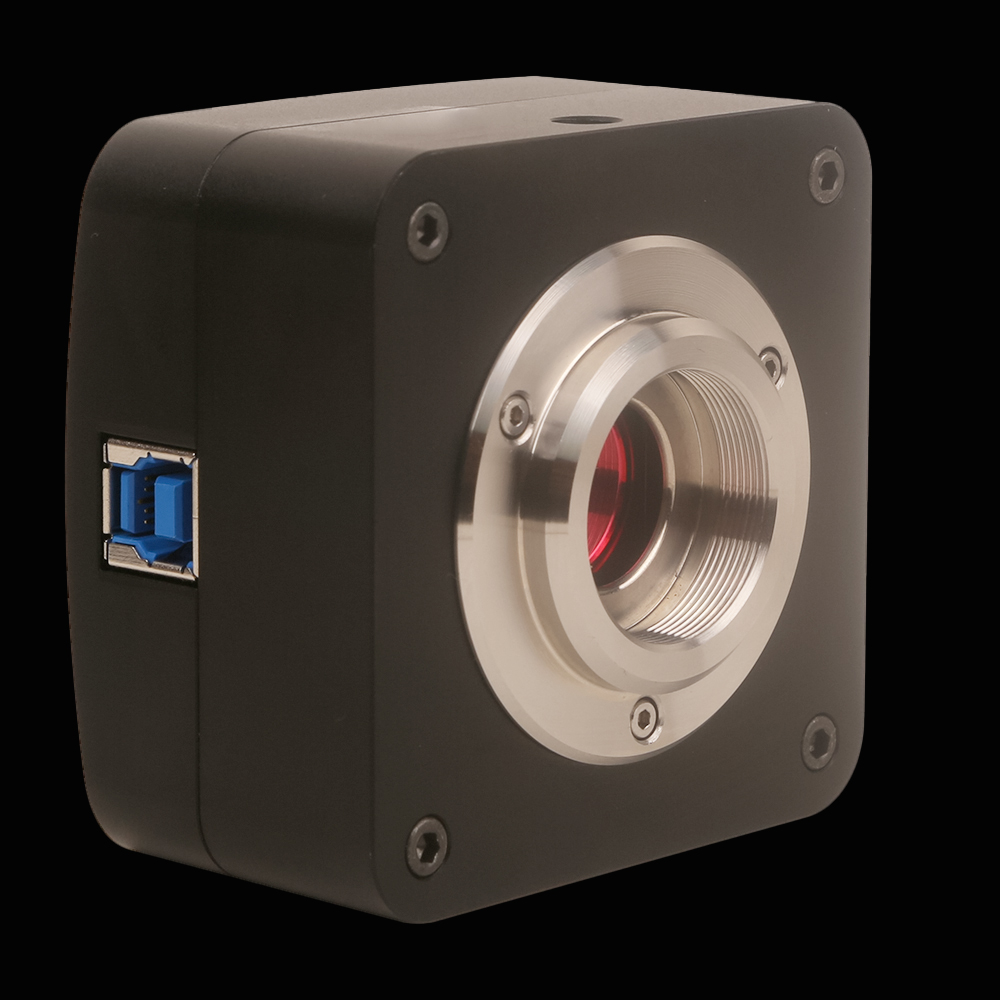

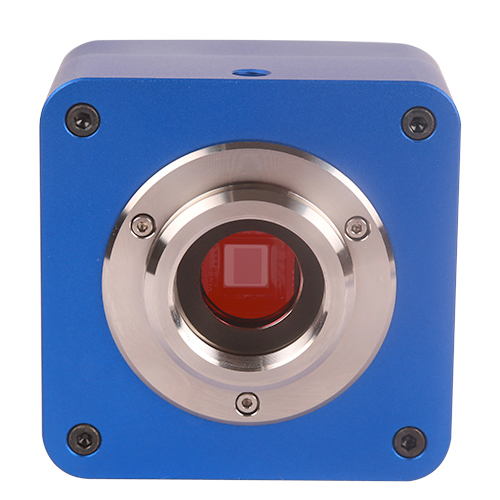

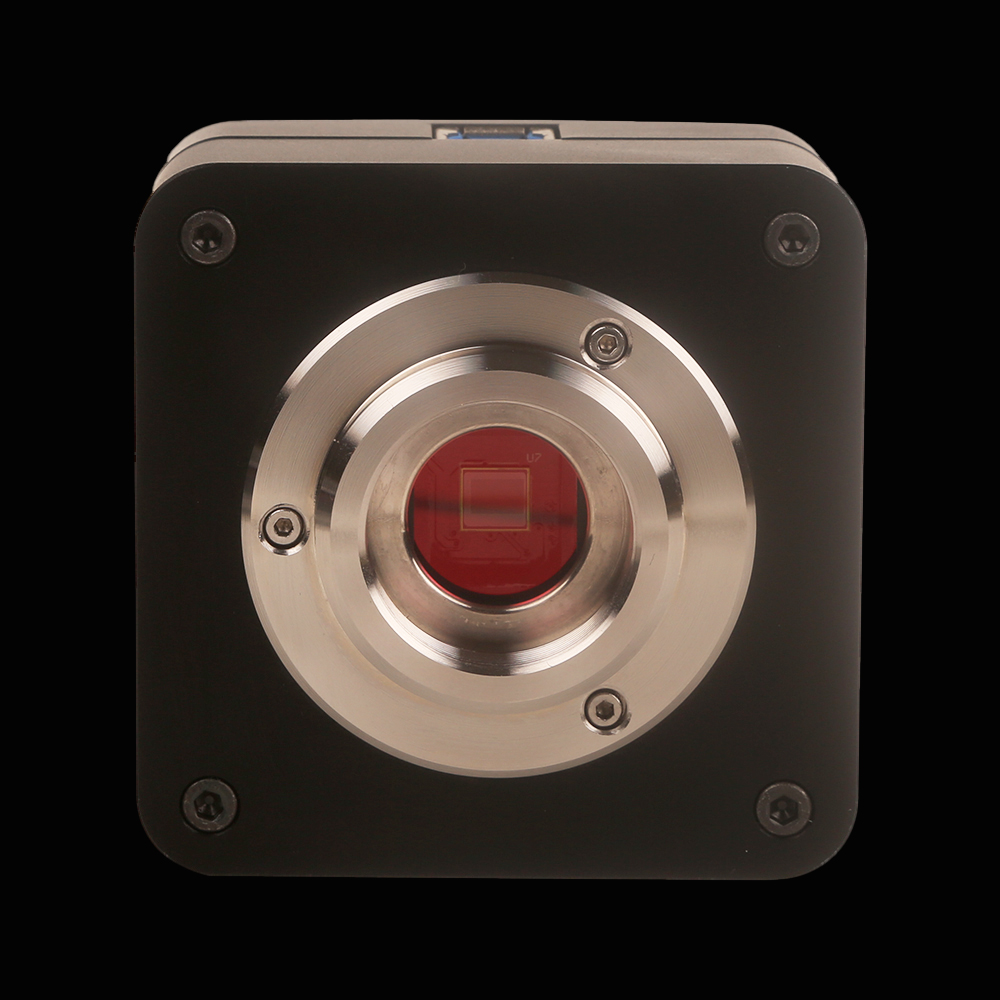

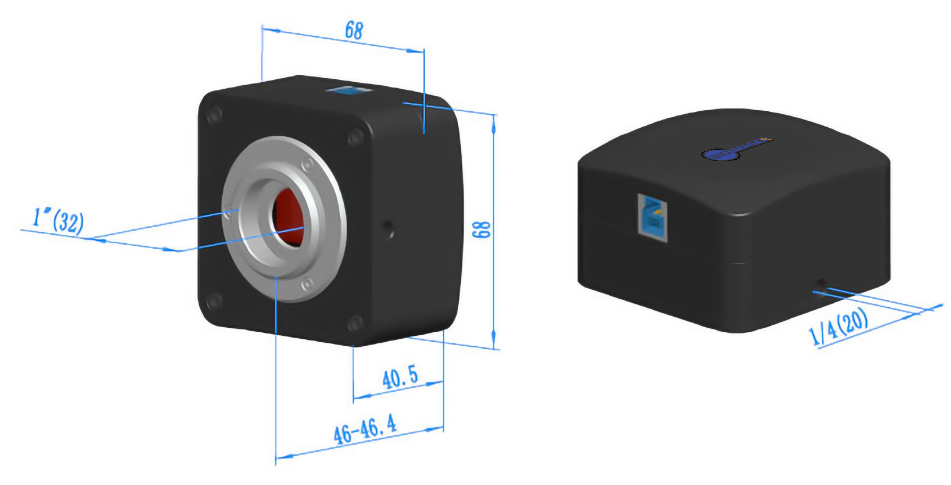

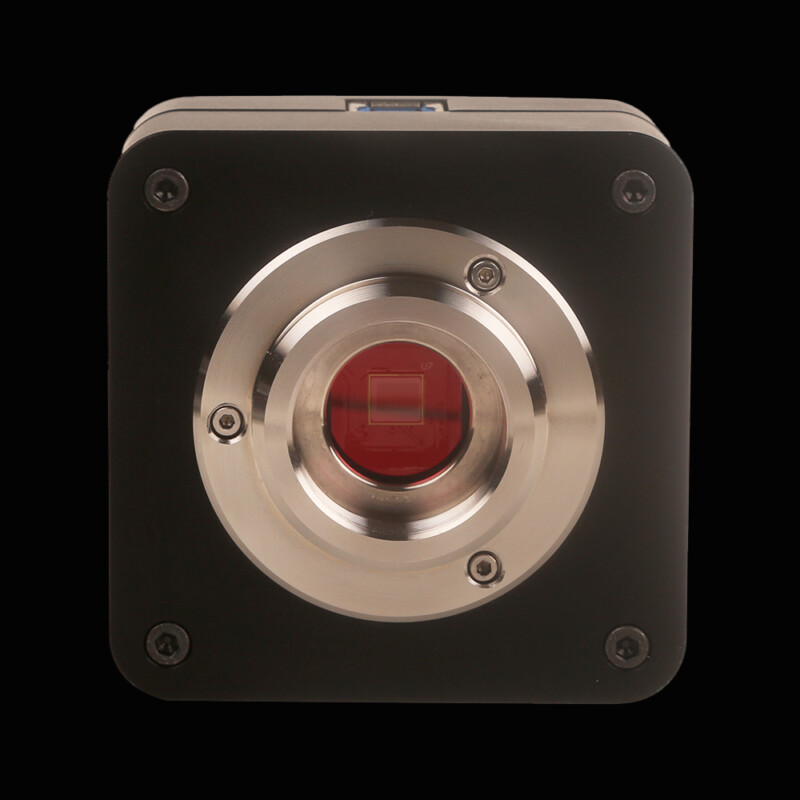

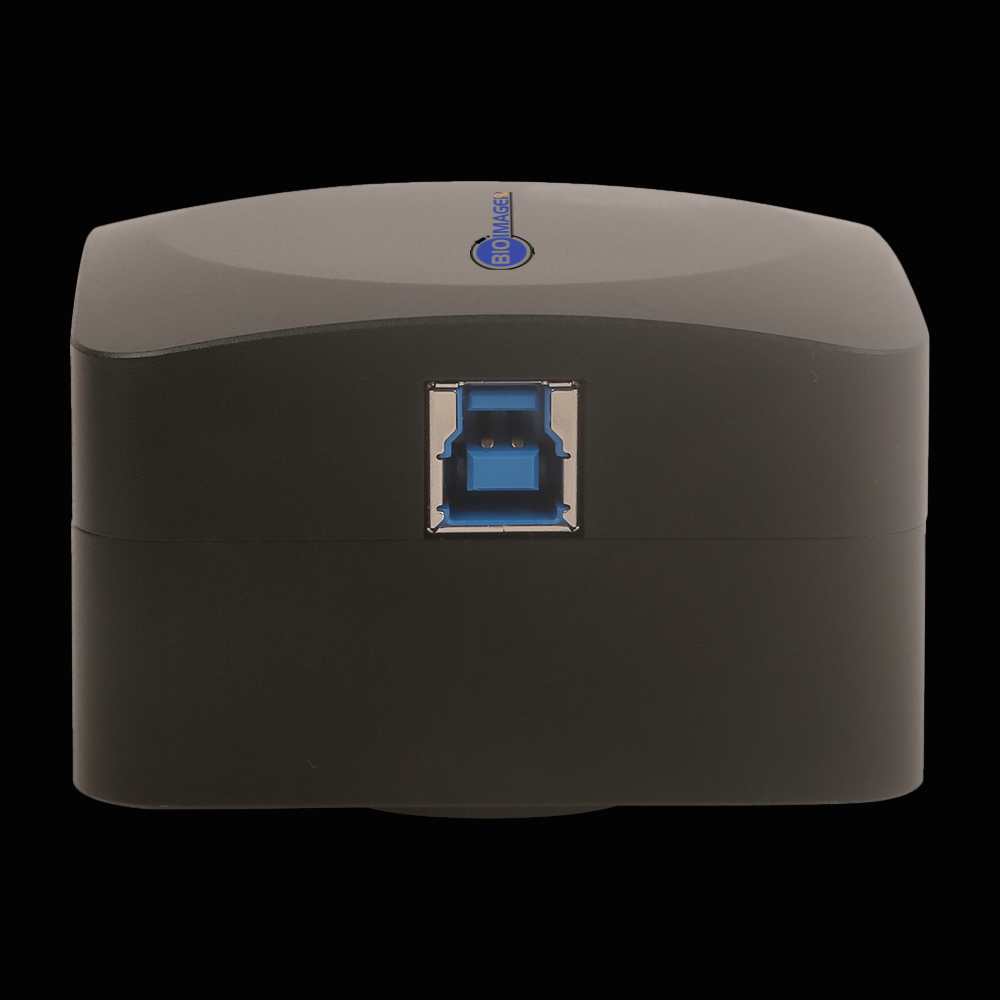

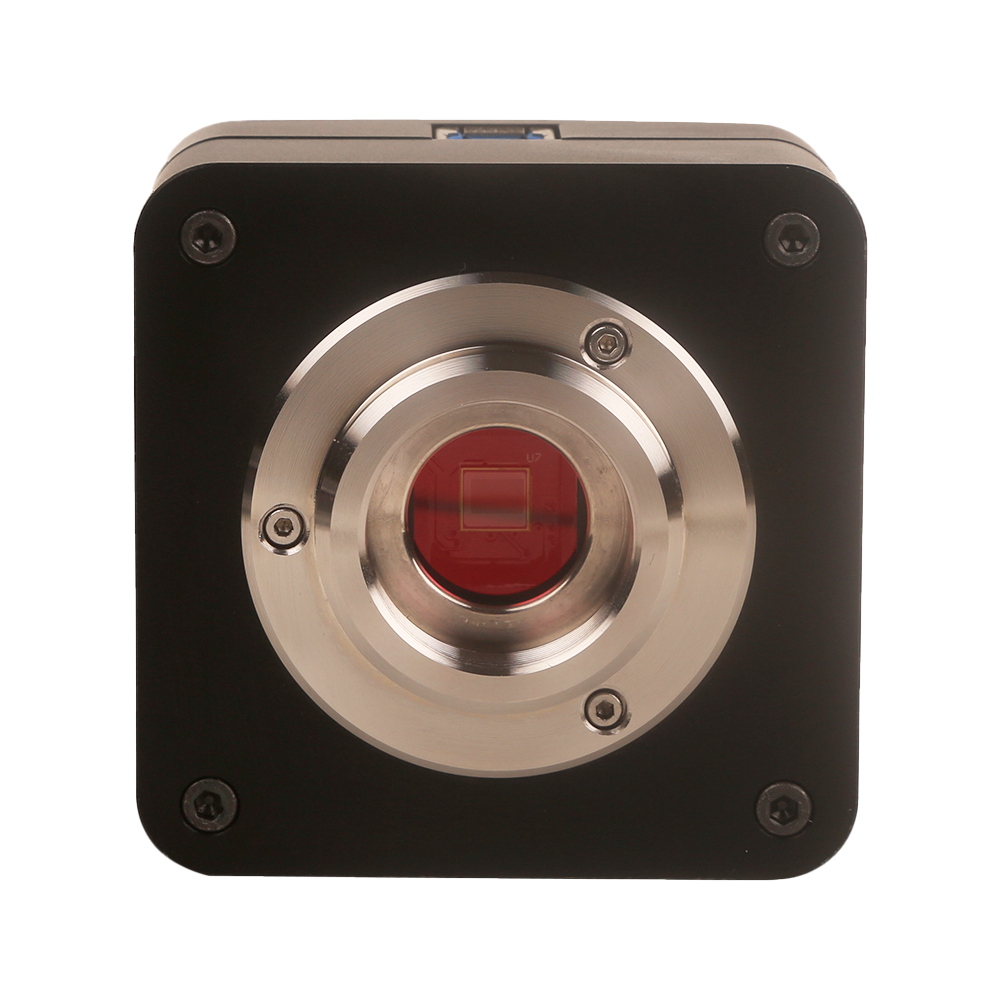

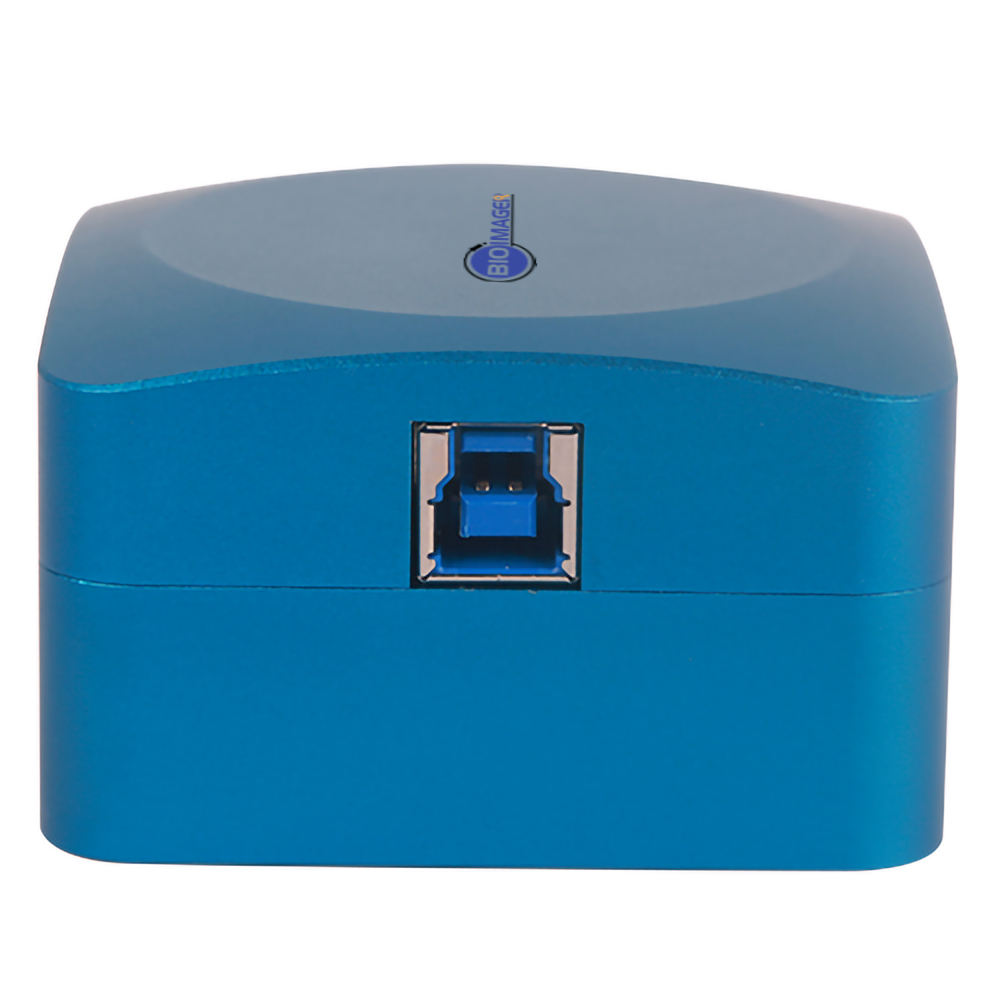

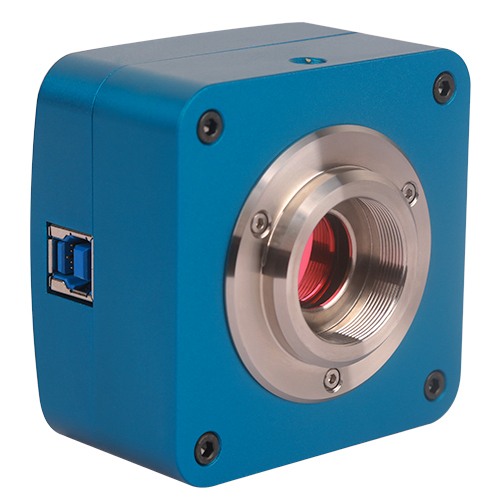

Assembly schematics. Crafted from CNC aluminum alloy, the BIC-E3S body guarantees a durable, high-performance solution. Equipped with a premium IR-CUT feature, the camera safeguards its sensor with top-notch quality. Free from moving components, this design ensures a sturdy, long-lasting solution surpassing typical industrial camera alternatives.
Featuring a SONY Exmor Back-illuminated CMOS sensor equipped with a USB3.0 interface, this camera offers versatile functionality. Enjoy real-time depth switching between 8/12/14/16 bits, depending on the sensor model. Experience exceptional sensitivity up to 2350mV with the IMX385 variant, alongside ultra-low noise and minimal power consumption.
The camera boasts a hardware resolution ranging from 1.5M to 20M, accommodating diverse imaging needs. Choose between Rolling Shutter or Global Shutter modes, with a standard C-Mount design housed in CNC aluminum alloy for durability.
Enhanced by the BioView application, advanced video and image processing capabilities ensure optimal performance. Benefit from an ultra-fine Color hardware Color Engine, facilitating high frame rates of up to 15 frames at 20M resolution.
Compatible with Windows, Linux, Mac OS, and Android platforms, and supported by multiple SDKs, this camera offers seamless integration across various operating systems.
| Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dark Signal |
FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
| BIC-E3S-45A | 45M/IMX294(C) 1.4“ (18.93×13.00) |
2.315×2.315 | 108mv with 1/30s 0.03mv with 1/30s |
8.1@8176×5616 30.0@4088×2808 8.1@7408×5556 33.0@4088×2808 10.4@8176×4320 34.7@4096×2160 62.5@2048×1080 86.5@1344×720 |
1×1(3:2) 2×2(3:2) 1×1(4:3) 2×2(4:3) 1×1(17:9) 2×2(17:9) 3×3(17:9) 4×4(17:9) |
0.1ms~15s |
| BIC-E3S-45A | 45M/IMX492(C) 1.4“ (18.93×13.00) |
2.315×2.315 | 108mv with 1/30s 0.03mv with 1/30s |
8.1@8176×5616(C) 30.0@4080×2808(M) 8.1@7408×5556(C) 33.0@3696×2778(M) 10.4@8176×4320(C) 34.7@4096×2160(M) 62.5@2048×1080(M) 86.5@1344×720(M) |
1×1(3:2) 2×2(3:2) 1×1(4:3) 2×2(4:3) 1×1(17:9) 2×2(17:9) 3×3(17:9) 4×4(17:9) |
0.1ms~15s |
| BIC-E3S-32A | 32M/IMX294(C) 1.15“ (12.96×12.96) |
2.315×2.315 | 108mv with 1/30s 0.03mv with 1/30s |
8.1@5600×5600 30.0@2800×2800 30.0@1400×1400 |
1×1 2×2 4×4 |
0.1ms~15s |
| BIC-E3S-25A | 25M/IMX511(C) 1/2.3 “ (5.519×5.519) |
1.12×1.12 | 96.3mv with 1/30s 0.1mv with 1/30s |
12@4928×4928 46@2464×2464 100@1648×1648 |
1×1 2×2 3×3 |
0.013ms~15s |
| BIC-E3S-21A | 21M/IMX269 (C) 4/3 “(17.4×13.0) |
3.3 x3.3 | 399mv with 1/30s 0.1mv with 1/30s |
17@5280×3954 17@3952×3952 56@2640×1976 67@1760×1316 192@584×438 |
1×1 1×1 2×2 3×3 9×9 |
0.1ms~15s |
| BIC-E3S-20.4A | 20.4M/IMX541 (C) 1.1 “(12.32×12.32) |
2.74 x2.74 | 1574mv with 1/30s 0.15mv with 1/30s |
17.5@4496×4496 64.4@2240×2240 64.4@1120×1120 |
1×1 2×2 4×4 |
0.03ms~15s |
| BIC-E3S-20A | 20M/IMX183(C) 1 “(13.06×8.76) |
2.4 x2.4 | 462mv with 1/30s 0.21mv with 1/30s |
15@5440×3648 50@2736×1824 60@1824×1216 |
1×1 2×2 3×3 |
0.1ms~15s |
| BIC-E3S-20C | 20M/IMX183(C) 1 “(13.06×8.76) |
2.4 x2.4 | 462mv with 1/30s 0.21mv with 1/30s |
20@5440×3648 48@2736×1824 58@1824×1216 |
1×1 2×2 3×3 |
0.1ms~15s |
| BIC-E3S-18A | 18M/SONY Special(C) 1/2.2 “(5.86×4.46) |
1.2 x1.2 | 130mv with 1/30s 0.1mv with 1/30s |
17@4880×3720 40@2448×1836 50@1728×1296 |
1×1 2×2 3×3 |
0.1ms~15s |
| BIC-E3S-15.6A | 15.6M/SONY Special (C)1.1 “(13.0×13.0) | 3.3 x3.3 | 399mv with 1/30s 0.1mv with 1/30s |
17@3952×3952 56@1976×1976 67@1316×1316 |
1×1 2×2 3×3 |
0.1ms~15s |
| BIC-E3S-12.4A | 12.4M/IMX545 (C,GS) 1/1.1“(11.22×8.22) |
2.74 x2.74 | 1337mv with 1/30s 0.15mv with 1/30s |
28.2@4096×3000 100.9@2048×1500 100.9@1024×750 |
1×1 2×2 4×4 |
0.03ms~15s |
| BIC-E3S-12.3A | 12.3M/IMX304(C,GS) 1.1”(14.13×10.35) |
3.45×3.45 | 1146mv with 1/30s 0.1mv with 1/30s |
23.4@4096×3000 46.3@2048×1500 |
1×1 1×1 |
0.244ms~15s |
| BIC-E3S-12A | 12M/IMX226(C) 1/1.7“(7.40×5.55) |
1.85×1.85 | 280mv with 1/30s 0.1mv with 1/30s |
25@4000×3000 50@2048×1080 |
1×1 2×2 |
0.1ms~15s |
| BIC-E3S-12B | 12M/IMX577(C) 1/2“(6.29×4.71) |
1.55×1.55 | 250mv with 1/30s 0.25mv with 1/30s |
30@4056×3040 60@2028×1520 120@1014×760 |
1×1 2×2 4×4 |
0.1ms~5s |
| BIC-E3S-12C | 12M/IMX676(C) 1/1.6“(7.07×7.07) |
2.0×2.0 | 3637mv with 12 bit converted value(HCG) 0.15mv with 1/30s |
27@3536×3536 60@1768×1768 |
1×1 2×2 |
0.013ms~15s |
| BIC-E3S-9A | 9.0M/IMX305(C,GS) 1“ (14.13×7.45) |
3.45×3.45 | 1146mv with 1/30s 0.15mv with 1/30s |
34@4096×2160 60@2048×1080 |
1×1 1×1 |
0.1ms~15s |
| BIC-E3S-9B | 9.0M/IMX533(C) 1“ (11.31×11.28) |
3.76×3.76 | 535mv with 1/30s 0.04mv with 1/30s |
40@3008×3000 123@1488×1500 186@992×998 |
1×1 2×2 3×3 |
0.1ms~15s |
| BIC-E3S-8.3A | 8.3M/IMX274(C) 1/2.5”(6.22×3.50) |
1.62×1.62 | 236mv with 1/30s 0.1mv with 1/30s |
32@3840×2160 65@1920×1080 |
1×1 2×2 |
0.244ms~15s |
| BIC-E3S-8.3B | 8.3M/IMX334(C) 1/1.8”(7.68×4.32) |
2.0×2.0 | 505mv with 1/30s 0.1mv with 1/30s |
35@3840×2160 60@1920×1080 |
1×1 2×2 |
0.02ms~15s |
| BIC-E3S-8.3C | 8.3M/IMX485(C) 1/1.2”(11.14×6.26) |
2.9×2.9 | 2188mv with 1/30s 0.15mv with 1/30s |
45@3840×2160 70@1920×1080 |
1×1 2×2 |
0.02ms~15s |
| BIC-E3S-8.3D | 8.3M/IMX585(C) 1/1.2”(11.14×6.26) |
2.9×2.9 | 5970(mV/lx/s) 0.13mv with 1/30s |
45@3840×2160 70@1920×1080 |
1×1 2×2 |
0.02ms~15s |
| BIC-E3S-8.3E | 8.3M/IMX678(C) 1/1.8”(7.68×4.32) |
2.0×2.0 | 3541(mV/lx/s) 0.15mv with 1/30s |
45@3840×2160 70@1920×1080 |
1×1 2×2 |
0.02ms~15s |
| BIC-E3S-8A | 8.0M/IMX294(C) 1.15 “(13.00×13.00) |
4.63 x4.63 | 419mv with 1/30s 0.12mv with 1/30s |
30@2808×2808(14bit) 139@1392×1392 139@696×696 |
1×1 2×2 4×4 |
0.1ms~15s |
| BIC-E3S-6.3A | 6.3M/IMX178(C) 1/1.8“ (7.37×4.92) |
2.4×2.4 | 425mv with 1/30s 0.15mv with 1/30s |
30@3072 x2048 38@1536x 1024 |
1×1 2×2 |
0.1ms~15s |
| BIC-E3S-6.3B | 6.3M/IMX178(C) 1/1.8“ (7.37×4.92) |
2.4×2.4 | 425mv with 1/30s 0.15mv with 1/30s |
59@3072 x2048 59@1536x 1024 |
1×1 2×2 |
0.02ms~15s |
| BIC-E3S-5.1A | 5.1M/IMX547(C) 1/1.8“ (6.71×5.61) |
2.74×2.74 | 1337mv with 1/30s 0.15mv with 1/30s |
63@2448×2048 208.4@1224×1024 |
1×1 2×2 |
0.03ms~15s |
| BIC-E3S-5A | 5.0M/IMX264(C,GS) 2/3” (8.45×7.07) |
3.45×3.45 | 1146mv with 1/30s 0.15mv with 1/30s |
35@2448×2048 50@1224×1024 |
1×1 1×1 |
0.1ms~15s |
| BIC-E3S-3.1A | 3.1M/IMX265(C,GS) 1/1.8“ (7.07×5.30) |
3.45×3.45 | 1146mvwith 1/30s 0.15mv with 1/30s |
53@2048×1536 85@1024×768 |
1×1 1×1 |
0.1ms~15s |
| BIC-E3S-3.1B | 3.1M/IMX123(C) 1/2.8“ (5.12×3.84) |
2.5×2.5 | 600mv with 1/30s 0.15mv with 1/30s |
50@2048×1536 50@1920×1080 |
1×1 1×1 |
0.1ms~15s |
| BIC-E3S-2.1A | 2.1M/IMX482(C) 1/1.2”(11.14×6.26) |
5.8×5.8 | 8935mv with 1/30s 0.6mv with 1/30s |
96@1920×1080 | 1×1 | 14us~15s |
| BIC-E3S-A | 2M/IMX385(C) 1/2“ (7.2×4.05) |
3.75×3.75 | 2350mvwith 1/30s 0.15mv with 1/30s |
125@1920×1080 | 1×1 | 0.1ms~15s |
| BIC-E3S-1.5A | 1.5M/IMX273(C,GS) 1/2.9“ (4.968×3.726) |
3.45×3.45 | 1146mvwith 1/30s 0.15mv with 1/30s |
164@1440×1080 320@720×540 |
1×1 2×2 |
0.1ms~15s
|
| OTHER HARDWARE CONFIGURATION | |
|---|---|
| Spectral Range | 380-650nm (with IR-filter), for Monochromatic Camera, AR Is Used |
| White Balance | ROI White Balance/ Manual Temp-Tint Adjustment |
| Color Rendering Technique | Ultra Fine Color Engine |
| Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc); |
| ADC | 8 Bit / 14 Bit |
| Recording System | Still Picture and Movie |
| Cooling System* | Natural |
| OPERATING ENVIRONMENT | |
| Operating Temperature | -10 °C~ 50 °C |
| Storage Temperature | -20 °C~ 60 °C |
| Operating Humidity | 30~80%RH |
| Storage Humidity | 10~60%RH |
| Power Supply | DC 5V over PC USB Port |
| SOFTWARE ENVIRONMENT | |
|---|---|
| Operating System | Support Microsoft Windows XP / Vista / 7 /8 /10(32 & 64 bit) OS X (Mac OS X), Linux |
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher |
| Memory: 2GB or More | |
| USB port: USB2.0 High-speed Port | |
| Display: 17″ or Larger | |
| CD-ROM | |

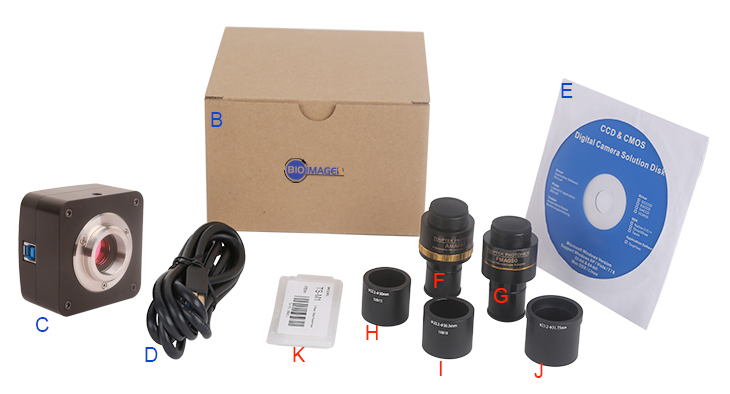

| Standard Camera Packing List | ||||
|---|---|---|---|---|
|
A |
Carton L:52cm W:32cm H:33cm (20pcs, 12~17Kg/ carton), not shown in the photo | |||
|
B |
Gift box L:15cm W:15cm H:10cm (0.58~0.60Kg/ box) | |||
|
C |
BIC-E3S series camera | |||
|
D |
High-speed USB3.0 A male to B male gold-plated connectors cable /2.0m | |||
|
E |
CD (Driver & utilities software, Ø12cm) | |||
| Optional Accessory | ||||
|
F |
Adjustable lens adapter |
C-mount to Dia.23.2mm eyepiece tube (Please choose 1 of them for your microscope) |
108001/AMA037 108002/AMA050 108003/AMA075 |
|
| C-mount to Dia.31.75mm eyepiece tube (Please choose 1 of them for your telescope) |
108008/ATA037 108009/ATA050 108010/ATA075 |
|||
|
G |
Fixed lens adaptor |
C-mount to Dia.23.2mm eyepiece tube (Please choose 1 of them for your microscope) |
108005/FMA037 108006/FMA050 108007/FMA075 |
|
| C-Mount to Dia.31.75mm Eyepiece Tube (Please choose 1 of them for your telescope) |
108011/FTA037 108012/FTA050 108013/FTA075 |
|||
| Note： For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera) , Bioimager engineer will help you to determine the right microscope or telescope camera adapter for your application; | ||||
|
H |
108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube | |||
|
I |
108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube | |||
|
J
|
108017(Dia.23.2mm to 31.75mm Ring)/ Adaptor rings for 31.75mm eyepiece tube | |||
|
K |
Calibration Lit | 106011/TS-M1(X=0.01mm/100Div.)； 106012/TS-M2(X,Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.) |
||
