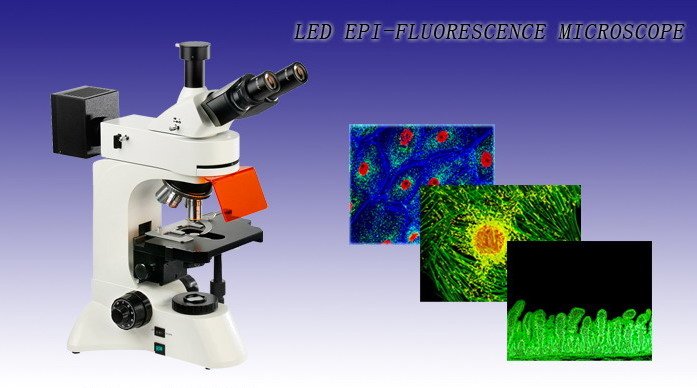

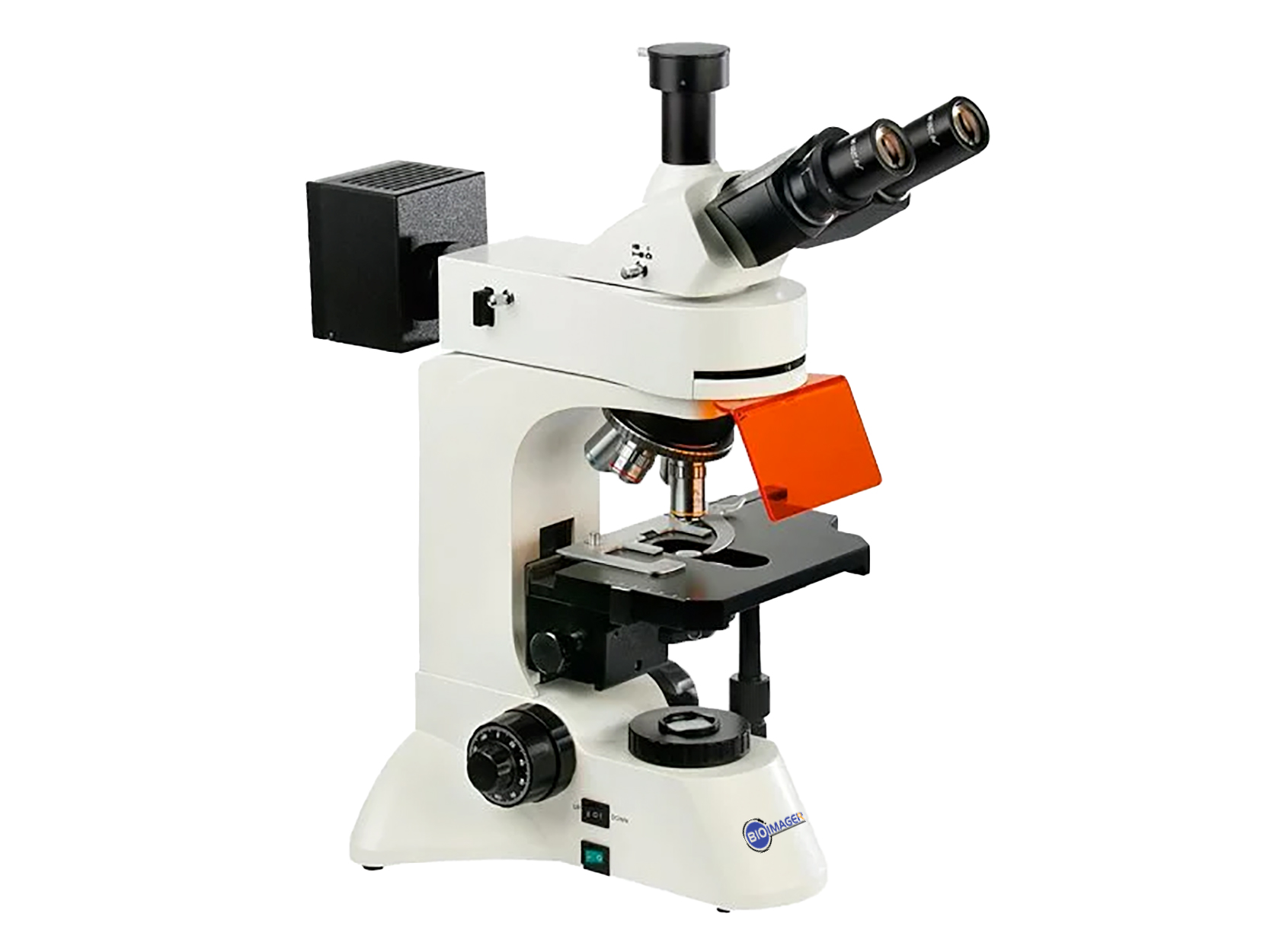

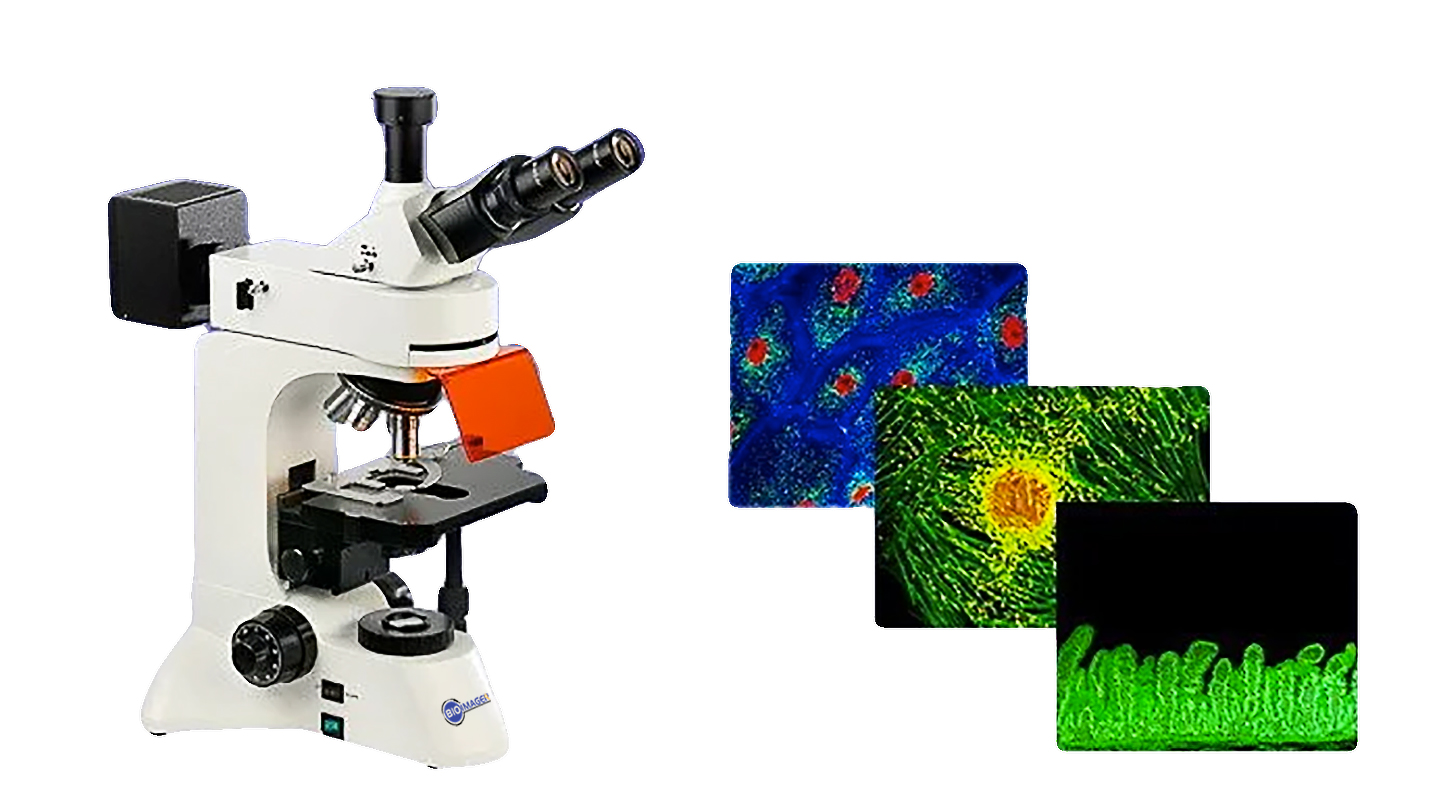

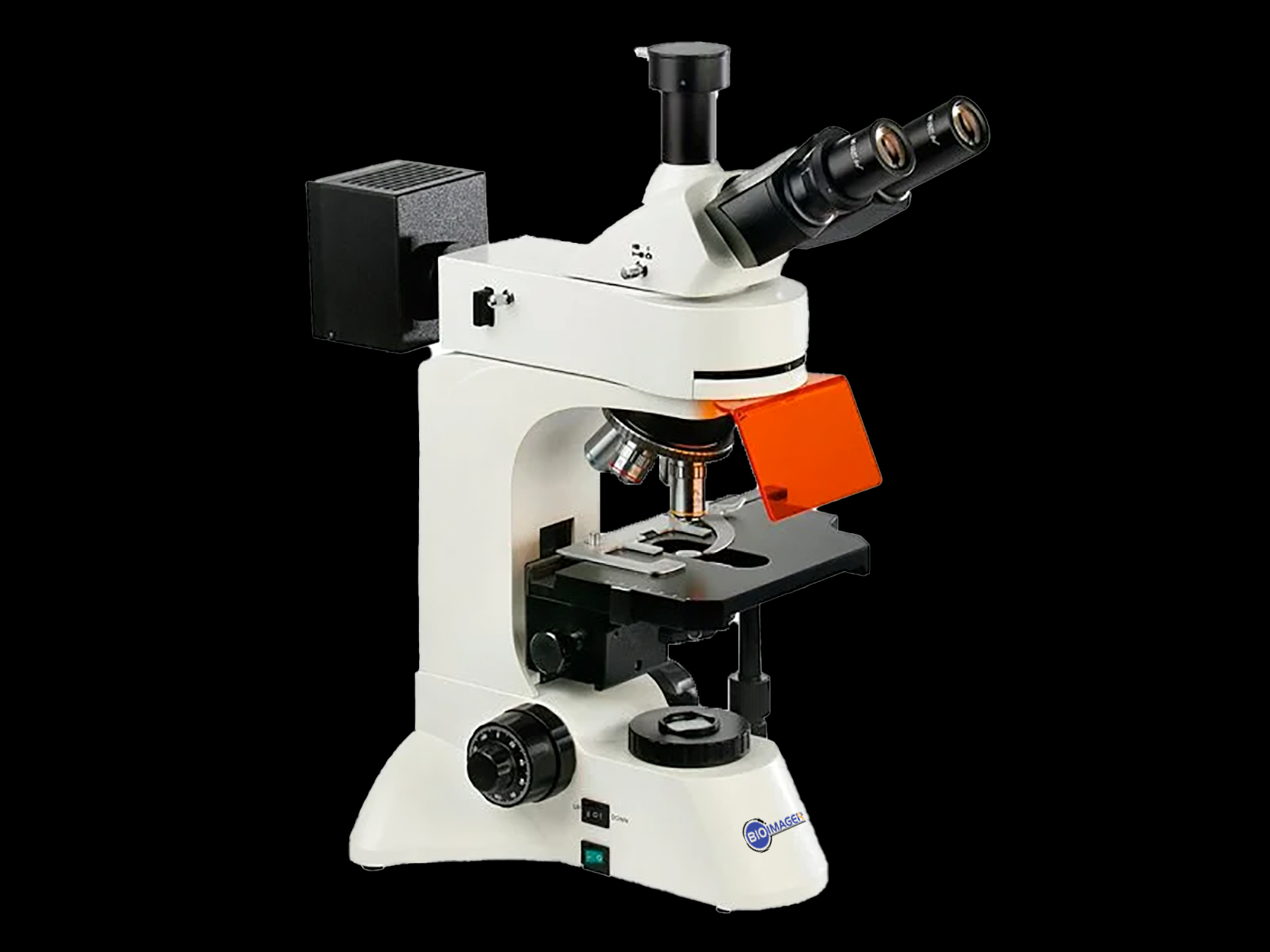

BUM360FLED LED Epi-Fluorescence Upright Microscope

$USD 2,488.00

  • LED Compound Fluorescence Microscope
  • Siedentopf trinocular viewing head
  • Wide Field Eyepiece WF10×/22
  • Infinity Cirrected Plan Objective 4x, 10x, 40x, 100x
  • Blue & Green Filters (for GFP and RFP/Texas Red/mCherry staining) included
  • Optional UV (for Dapi/Hoechst) and V filters
  • Unique design; Patented MultiLED Illumination System
  • Long Life-time, Ultra-Safe, Low Maintenance LED illumination
  • Koehler illumination
  • Rotating filter cube turret
  • Ergonomic focus control

Free worldwide shipping on all orders over $50

  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

  • Infinity corrected optics
  • Unique design; Patented MultiLED Illumination System
  • Long Life-time, Ultra-Safe, Low Maintenance LED illumination
  • 4 fluorescence cubes included as standard
  • Trinocular head
  • Koehler illumination
  • Rotating filter cube turret
  • Ergonomic focus control
  • Superb quality optics

BUM360FLED LED Epi-fluorescent microscope is used for fluorescence microscopy and transmitted field observation.
It is equipped with infinity plan achromatic fluorescent objectives and wide field eyepieces, has clear picture and wide view field.
The transmitted and epi-fluorescent illumination light source are high power & bright LED. Power consumption is lower and has longer life time as it has very efficient radiating heat effect.
the cost of use and maintenance are way  lower tan HBO / Mercury series.
It is an ideal  solution for routin lab works in biology, cytology, oncology, genetics, immunology etc.
It also can be used in scientific research, universities, medical treatment, epidemic prevention etc.

Quality & Value

Representing amazing value for money the new BUM360LED  infinity optics trinocular LED fluorescence microscope is designed for use in laboratories undertaking routine fluorescence microscopy such as hospitals and universities.

This high quality instrument is equipped with a patented MultiLED fluorescence epi-illuminator which includes a LED selection system, a full range of high quality infinity corrected plan achromatic objectives. This system provides superb, bright fluorescent imaging with almost no running costs and complete safety.

Fully Equipped

A full set of 4 filter cubes are included as standard and are mounted in rotatable filter cube turret.

Specimens can be mounted on the large mechanical stage and secured in place with the springloaded slide holder. The stage has aside mounted coaxial control and provides very smooth movement through the bearing mounted stage.

Wide Field Optics & Digital Imaging

You can view your specimens through crystal sharp widefield eyepieces or via a high resolution digital camera (optional) mounted on the photoport of the trinocular head. To ensure maximum comfort the interpupillary distance and diopter setting can be adjusted.

Unobstructed Slide Mounting

The objectives are mounted in a quadruple nosepiece and rotate inwards to provide an unobstructed specimen loading/unloading area. Koehler transmitted light illumination is included as standard this microscope.


The ergonomic focus controls reduce strain during prolonged observations. The focus mechanism can be easily adjusted for tension and a focus lock can be set to reduce risk of damage to the optics and specimens.

Other options include darkfield illumination and phase contrast kits.

Typical applications include GFP, immunolabelling, FISH, histochemistry and cytology.

BUM360FLED LED Epi-Fluorescence Upright Microscope -9985

BUM360FLED LED Epi-Fluorescence Upright Microscope -9984

BUM360FLED LED Epi-Fluorescence Upright Microscope -9980

BUM360FLED LED Epi-Fluorescence Upright Microscope -9987

Model BUM360F LED
Eyepiece Wide field WF10X (Ф22mm)
Objective Infinity plan achromatic objectives
PL 4X/0.10, Work distance:19.8 mm
PL 10X/0.25, Work distance:5.0 mm
PLF L40X/0.85(spring), Work distance: 0.42 mm

(No magnification spherochromatic aberration )

PL 100X/1.25(Spring, oil), Work distance: 0.36mm

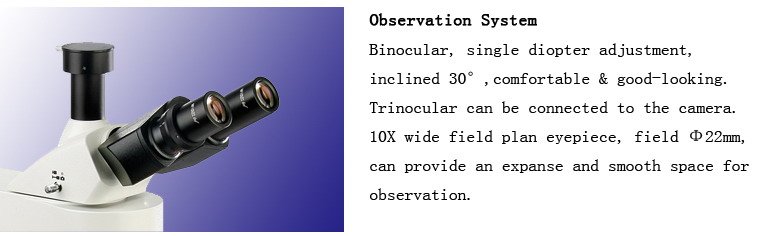

Eyepieces tube Trinocular, Inclination of 30˚.

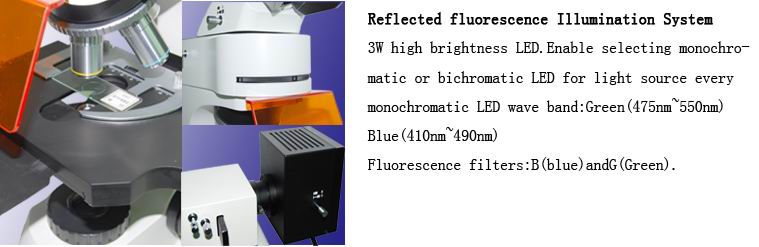

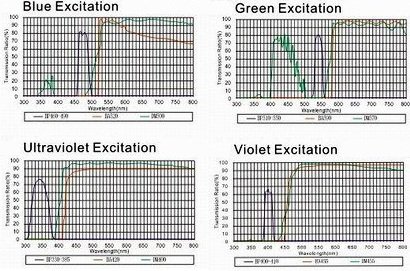

Epi-fluorescent illumination system 5W high brightness LED. Enable selecting monochromatic or bichromatic LED for light source, every monochromatic LED wave band: Green (475nm~550nm) Blue (410nm~490nm)
Fluorescence filters: B (Blue) and G(Green).
Focus system Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2μm.
Nosepiece Quadruple(Backward ball bearing inner locating)

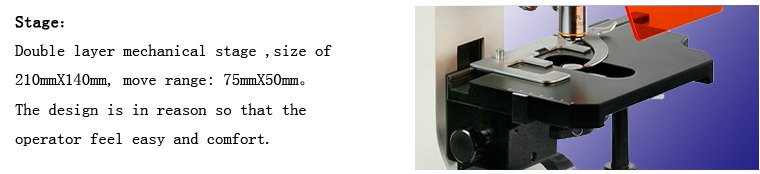

Stage Double layer mechanical

Size: 210mmX140mm,

Moving range: 75mmX50mm

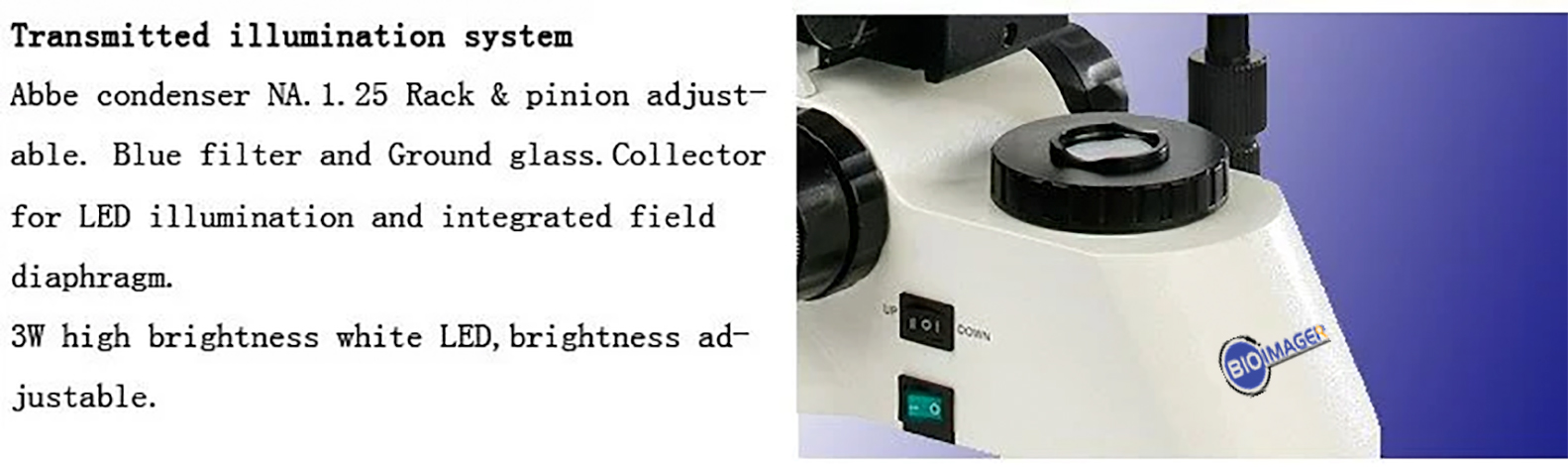

Transmitted illumination


Abbe condenser NA.1.25  Rack & pinion adjustable
Blue filter and Ground glass
Collector for LED illumination and integrated field diaphragm
3W high brightness white LED, brightness adjustable.

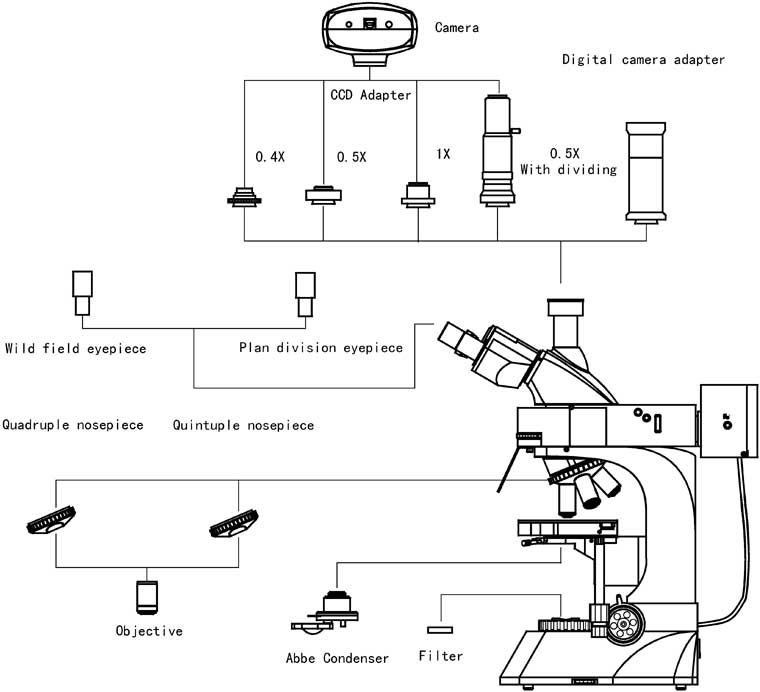

Optional accessories

Name Sort/Technique parameter NO.
Eyepiece Dividing eyepiece (field number: Ф22mm) 0.10mm/Div BUM36-R0.1
Objective Infinity plan achromatic objective PL 60X/0.80,WD:0.46 mm BUM36-60x
Infinity plan achromatic fluorescent objective PL FL10X/0.35, 2.37 mm BUM36-10xF
Nosepiece Quintuple (Backward ball bearing inner locating) BUM36-5N
Filter Green filter BUM36-FG
Yellow filter BUM36-FY
LED Violet (380nm~415nm) BUM36-V-L
Ultraviolet (320nm~380nm) BUM36-U-L
Fluorescent filters V (Violet) BUM36-V-F
UV (Ultraviolet) BUM36-U-F

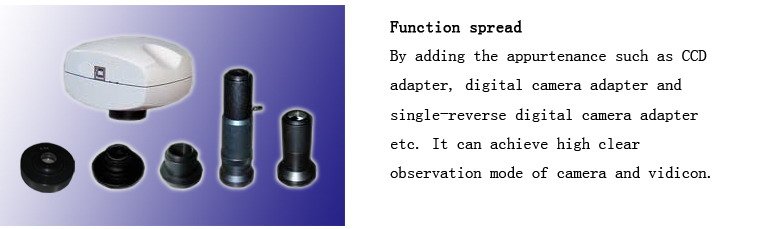

CCD adapter 0.4X BUM36-0.4x
0.5X BUM36-0.5x
1X BUM36-1.0x
0.5X with dividing 0.1mm/Div BUM36-0.5xD
Camera DV-1 Video output (380/520 TV line) USB output (0.42 M pixel) BUM36-Dv1
DV-2 With USB output (1.3M, 3.0M, 5.0M, 10.0Mpixel)   BUM36-DV2
DV-3 With video output (380/520 TV line) BUM36-DV3
Digital camera adapter CANON (EF), NIKON( F) BUM36-SLR-X

Video 1. Epi-Fluorescence Images

Video 2. Phase Contrast Kit and Sample Images

BUM-PHK Phase Contrast Kit for Upright Biological Microscopes is composed of 10x, 20x, 40x , 60x and 100x (oil) Phase contrast objective lenses, green filter, Phase alignment tool and turret condenser with different annulus.
In this video we look at the samples images of an Onion Skin thins section slide and Tilia (basswood) thin section slide, using this kit installed on Bioimager BUM800FL upright biological microscope and connected a 2.3MP USB3.0 CMOS Colorful Camera as well as a 0.5x C-Mount Adapter.


BUM360FLED LED Epi-Fluorescence Upright Microscope -9989

BUM360FLED LED Epi-Fluorescence Upright Microscope -9988
